lexus LS400 1994 Comfort Adjustment / 1994 LS400: COMFORT ADJUSTMENT

SECTION 1 – 6
49
INSTRUMENTS AND CONTROLS
Comfort adjustment
Front seat50 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Headrests52 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tilt and telescopic steering wheel54 . . . . . . . . . . . . . . . . . . . . . . . . . . .
Outside rear view mirrors57 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Inside rear view mirror58 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Seat belts59 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Supplemental restraint system (SRS)67 . . . . . . . . . . . . . . . . . . . . . . . .
Child restraint73 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Driving position memory system81 . . . . . . . . . . . . . . . . . . . . . . . . . . . .

COMFORT ADJUSTMENT
50
FRONT SEAT
Seat adjustment precautions
Adjust the driver’s seat so that the foot pedals, steering wheel
and instrument panel controls are within easy reach of the
driver.
CAUTION:

Do not adjust the seat while the vehicle is moving as the
seat may unexpectedly move and cause the driver to
lose control of the vehicle.

Be careful not to hit the seat against a passenger,
luggage or the rear seat.
NOTICE:
Do not operate the control switch in more than one
dimension at a time. It may cause electrical overload.

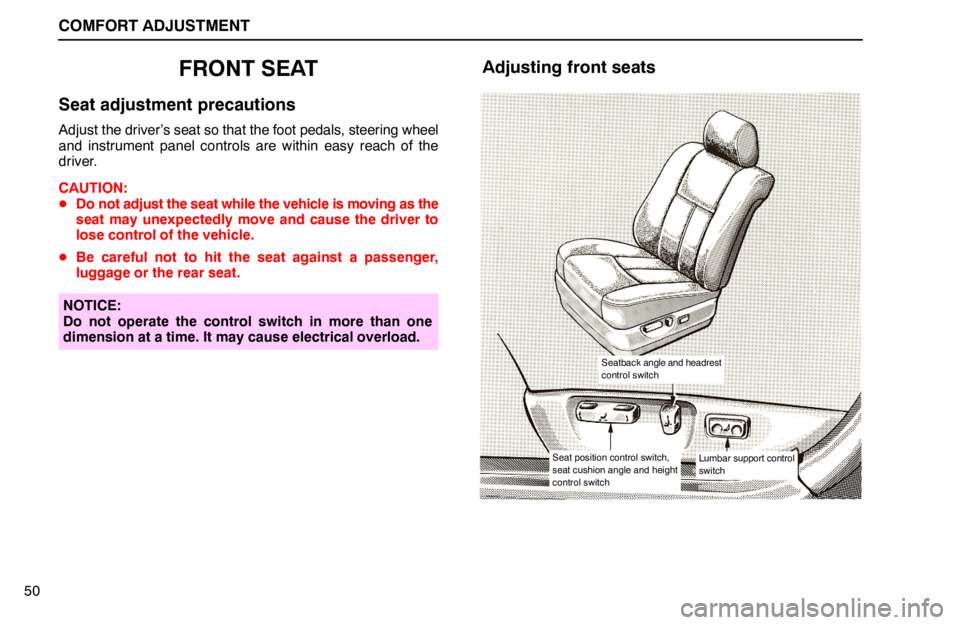

Adjusting front seats
Seat position control switch,
seat cushion angle and height
control switch
Seatback angle and headrest
control switch
Lumbar support control
switch

COMFORT ADJUSTMENT
51

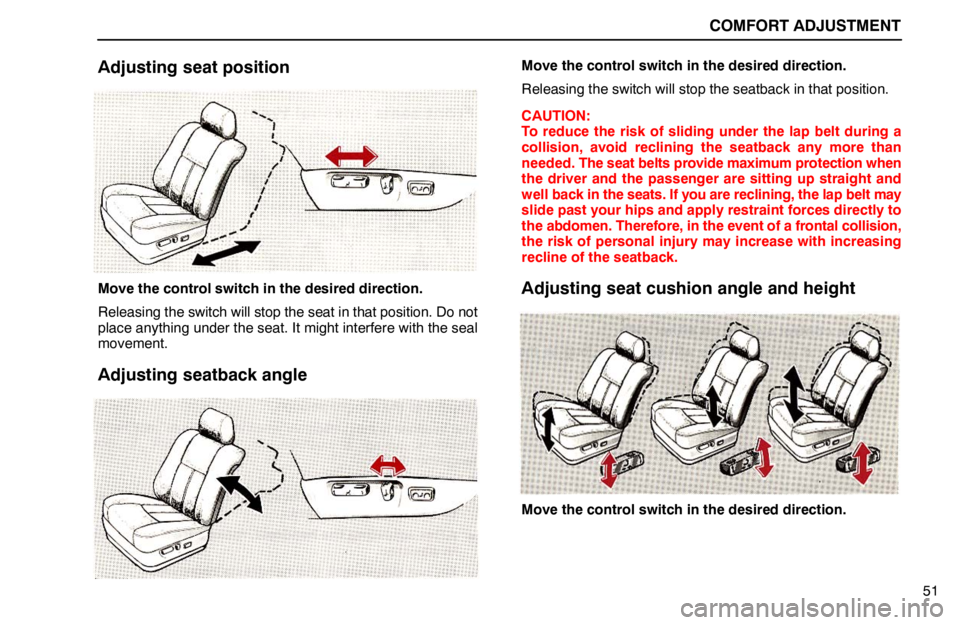

Adjusting seat position
Move the control switch in the desired direction.
Releasing the switch will stop the seat in that position. Do not
place anything under the seat. It might interfere with the seal
movement.
Adjusting seatback angle
Move the control switch in the desired direction.
Releasing the switch will stop the seatback in that position.
CAUTION:
To reduce the risk of sliding under the lap belt during a
collision, avoid reclining the seatback any more than
needed. The seat belts provide maximum protection when
the driver and the passenger are sitting up straight and
well back in the seats. If you are reclining, the lap belt may
slide past your hips and apply restraint forces directly to
the abdomen. Therefore, in the event of a frontal collision,
the risk of personal injury may increase with increasing
recline of the seatback.
Adjusting seat cushion angle and height
Move the control switch in the desired direction.

COMFORT ADJUSTMENT
52Releasing the switch will stop the seat cushion in that position.

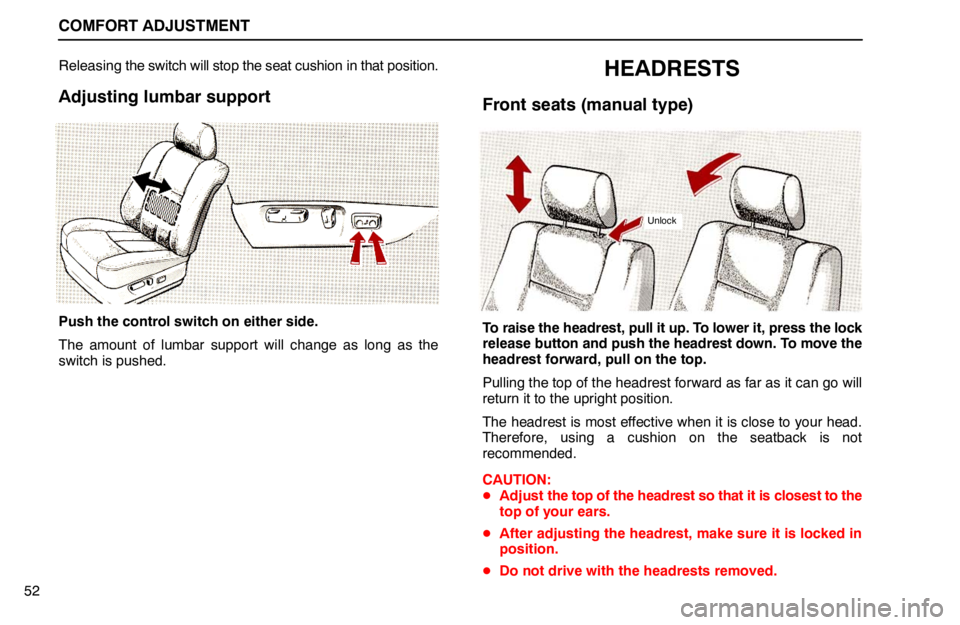

Adjusting lumbar support
Push the control switch on either side.
The amount of lumbar support will change as long as the
switch is pushed.
HEADRESTS
Front seats (manual type)
Unlock
To raise the headrest, pull it up. To lower it, press the lock
release button and push the headrest down. To move the
headrest forward, pull on the top.
Pulling the top of the headrest forward as far as it can go will
return it to the upright position.
The headrest is most effective when it is close to your head.
Therefore, using a cushion on the seatback is not
recommended.
CAUTION:

Adjust the top of the headrest so that it is closest to the
top of your ears.

After adjusting the headrest, make sure it is locked in
position.

Do not drive with the headrests removed.

COMFORT ADJUSTMENT
53

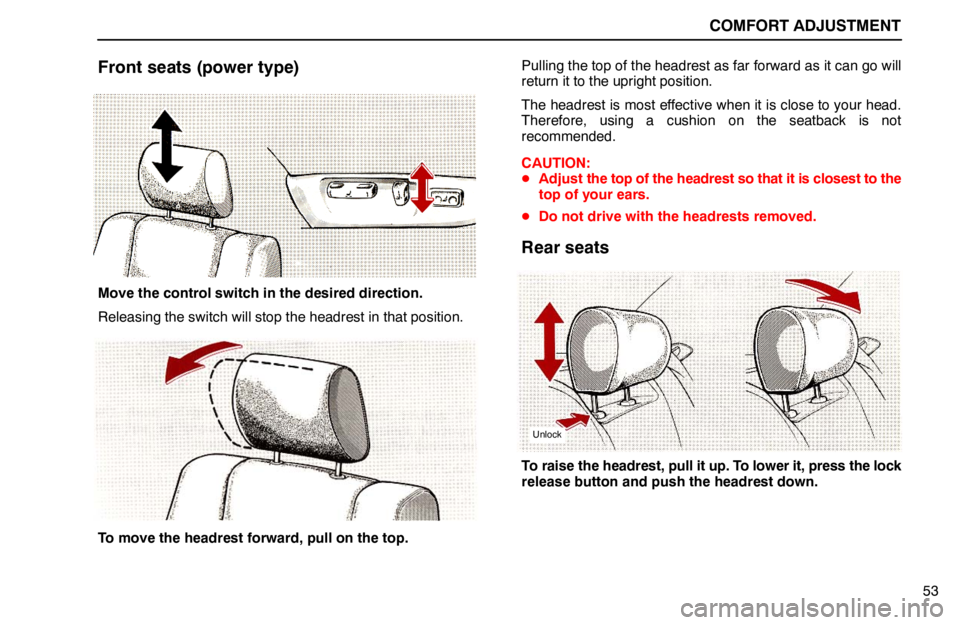

Front seats (power type)
Move the control switch in the desired direction.
Releasing the switch will stop the headrest in that position.
To move the headrest forward, pull on the top.Pulling the top of the headrest as far forward as it can go will
return it to the upright position.
The headrest is most effective when it is close to your head.
Therefore, using a cushion on the seatback is not
recommended.
CAUTION:

Adjust the top of the headrest so that it is closest to the
top of your ears.

Do not drive with the headrests removed.
Rear seats
Unlock
To raise the headrest, pull it up. To lower it, press the lock
release button and push the headrest down.

COMFORT ADJUSTMENT
54The headrest is most effective when it is close to your head.
Therefore, using a cushion on the seatback is not
recommended.
CAUTION:

Adjust the top of the headrest so that it is closest to the
top of your ears.

After adjusting the headrest, make sure it is locked in
position.

Do not drive with the headrests removed.

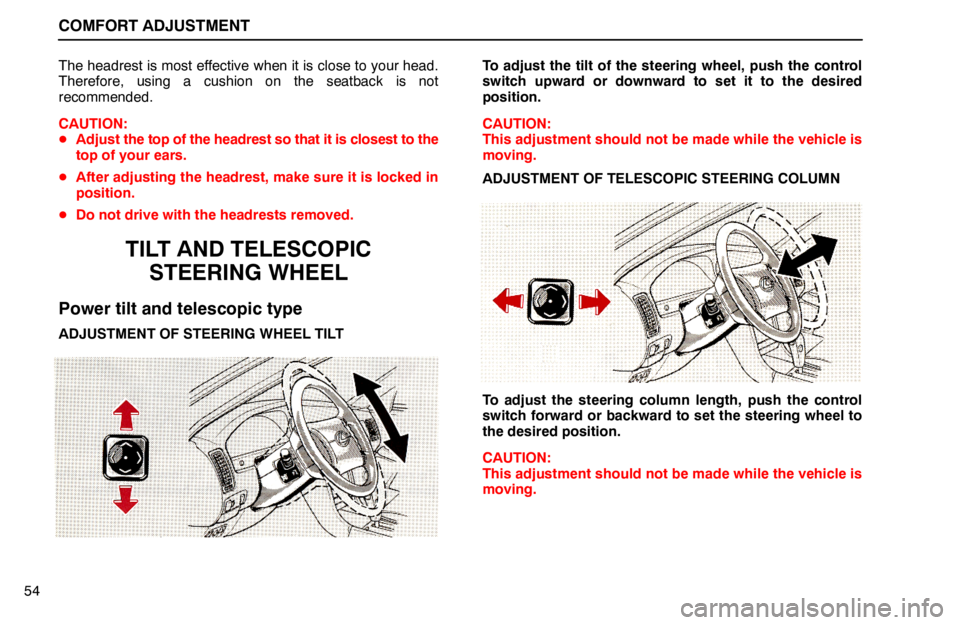

TILT AND TELESCOPIC
STEERING WHEEL
Power tilt and telescopic type
ADJUSTMENT OF STEERING WHEEL TILT
To adjust the tilt of the steering wheel, push the control
switch upward or downward to set it to the desired
position.
CAUTION:
This adjustment should not be made while the vehicle is
moving.
ADJUSTMENT OF TELESCOPIC STEERING COLUMN
To adjust the steering column length, push the control
switch forward or backward to set the steering wheel to
the desired position.
CAUTION:
This adjustment should not be made while the vehicle is
moving.

COMFORT ADJUSTMENT

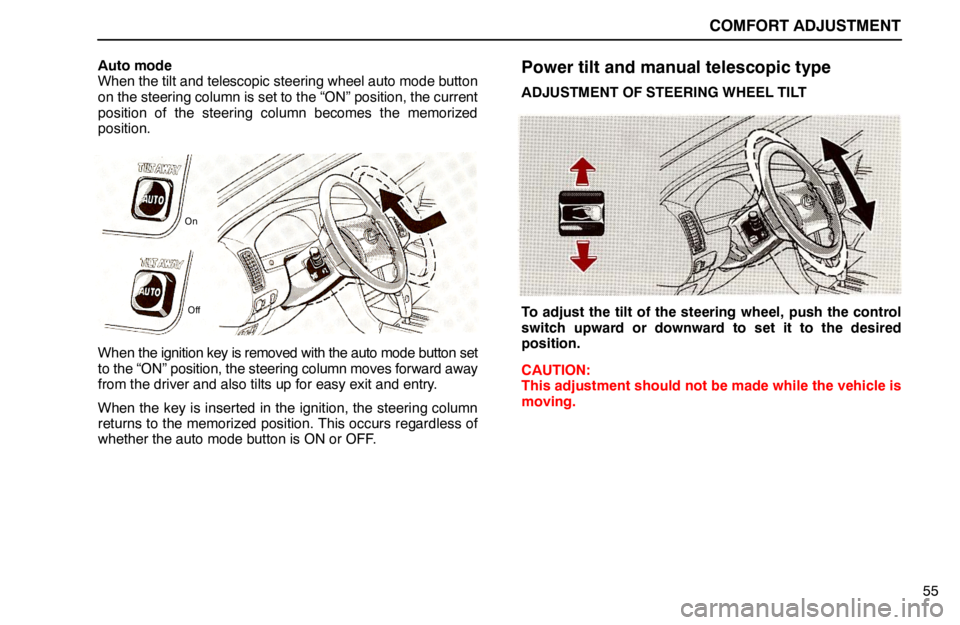

55 Auto mode
When the tilt and telescopic steering wheel auto mode button
on the steering column is set to the “ON” position, the current
position of the steering column becomes the memorized
position.
On
Off
When the ignition key is removed with the auto mode button set
to the “ON” position, the steering column moves forward away
from the driver and also tilts up for easy exit and entry.
When the key is inserted in the ignition, the steering column
returns to the memorized position. This occurs regardless of
whether the auto mode button is ON or OFF.
Power tilt and manual telescopic type
ADJUSTMENT OF STEERING WHEEL TILT
To adjust the tilt of the steering wheel, push the control
switch upward or downward to set it to the desired
position.
CAUTION:
This adjustment should not be made while the vehicle is
moving.

COMFORT ADJUSTMENT

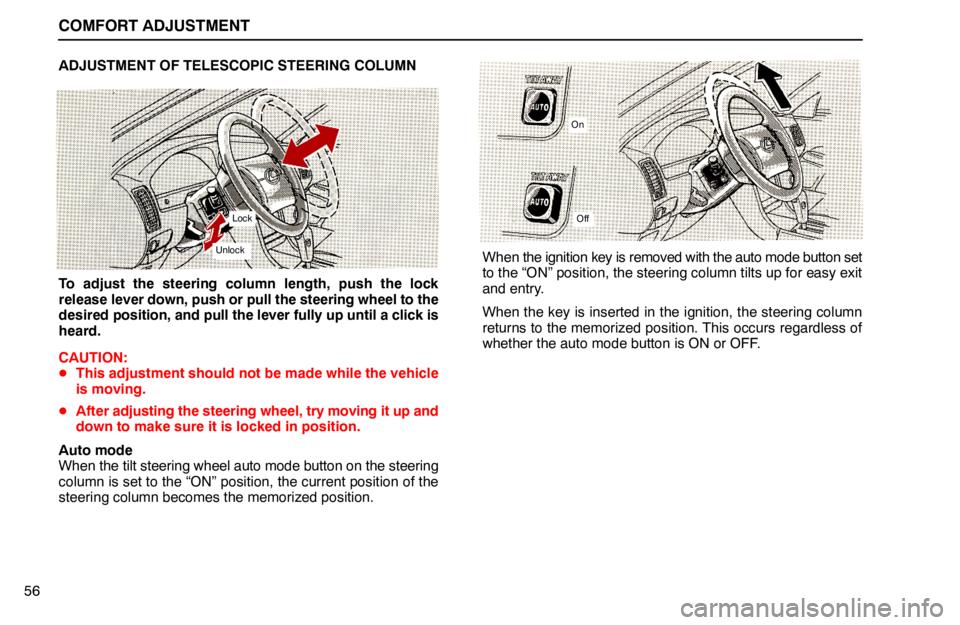

56ADJUSTMENT OF TELESCOPIC STEERING COLUMN
Lock
Unlock
To adjust the steering column length, push the lock
release lever down, push or pull the steering wheel to the
desired position, and pull the lever fully up until a click is
heard.
CAUTION:

This adjustment should not be made while the vehicle
is moving.

After adjusting the steering wheel, try moving it up and
down to make sure it is locked in position.
Auto mode
When the tilt steering wheel auto mode button on the steering
column is set to the “ON” position, the current position of the
steering column becomes the memorized position.
Off
On
When the ignition key is removed with the auto mode button set
to the “ON” position, the steering column tilts up for easy exit
and entry.
When the key is inserted in the ignition, the steering column
returns to the memorized position. This occurs regardless of
whether the auto mode button is ON or OFF.

COMFORT ADJUSTMENT
57

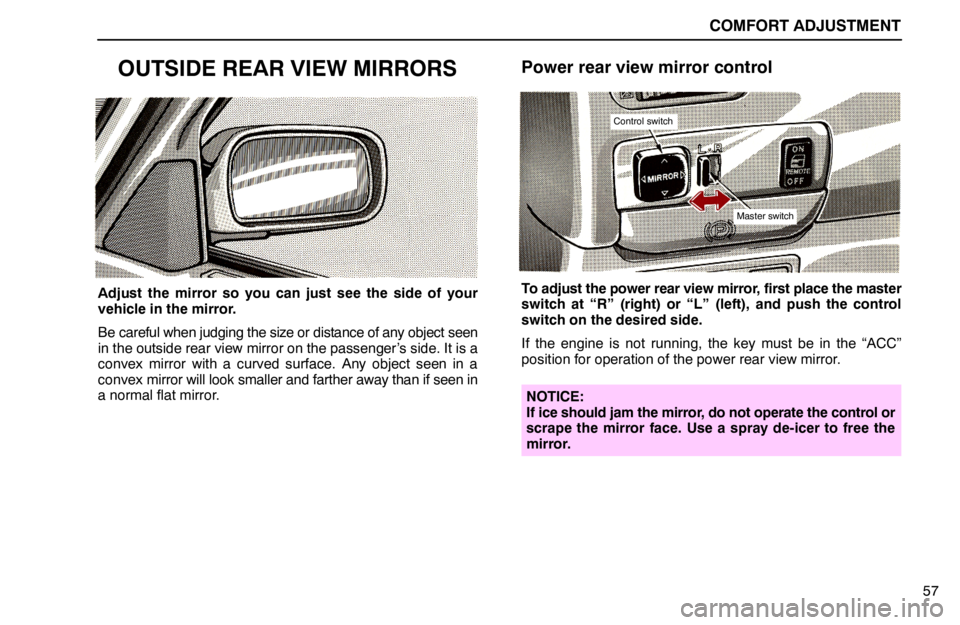

OUTSIDE REAR VIEW MIRRORS
Adjust the mirror so you can just see the side of your
vehicle in the mirror.
Be careful when judging the size or distance of any object seen
in the outside rear view mirror on the passenger’s side. It is a
convex mirror with a curved surface. Any object seen in a
convex mirror will look smaller and farther away than if seen in
a normal flat mirror.
Power rear view mirror control
Control switch
Master switch
To adjust the power rear view mirror, first place the master
switch at “R” (right) or “L” (left), and push the control
switch on the desired side.
If the engine is not running, the key must be in the “ACC”
position for operation of the power rear view mirror.
NOTICE:
If ice should jam the mirror, do not operate the control or
scrape the mirror face. Use a spray de-icer to free the
mirror.

COMFORT ADJUSTMENT
58

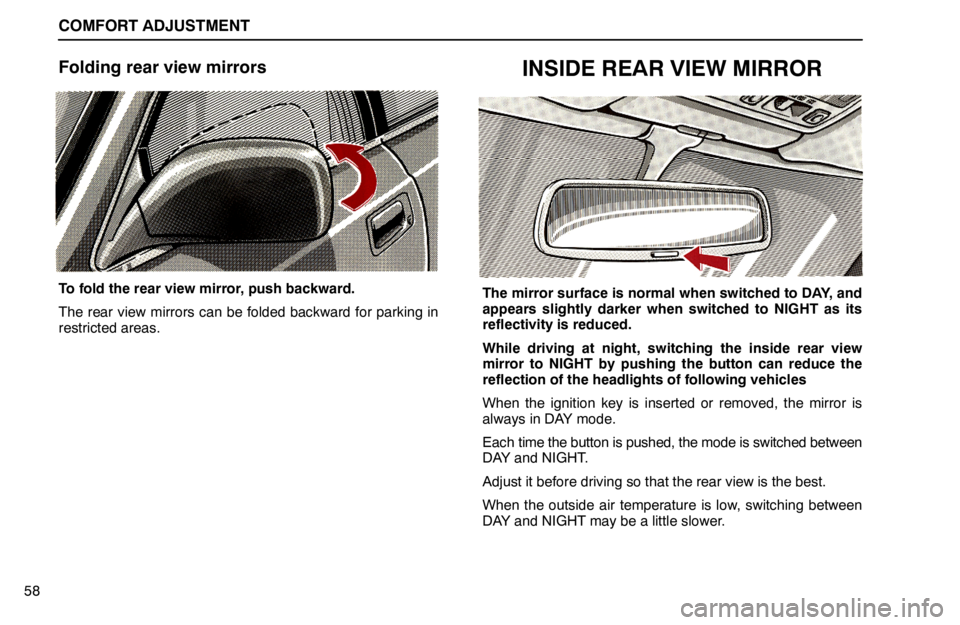

Folding rear view mirrors
To fold the rear view mirror, push backward.
The rear view mirrors can be folded backward for parking in
restricted areas.
INSIDE REAR VIEW MIRROR
The mirror surface is normal when switched to DAY, and
appears slightly darker when switched to NIGHT as its
reflectivity is reduced.
While driving at night, switching the inside rear view
mirror to NIGHT by pushing the button can reduce the
reflection of the headlights of following vehicles
When the ignition key is inserted or removed, the mirror is
always in DAY mode.
Each time the button is pushed, the mode is switched between
DAY and NIGHT.
Adjust it before driving so that the rear view is the best.
When the outside air temperature is low, switching between
DAY and NIGHT may be a little slower.
