lexus LS400 1999 Electrical Components / LEXUS 1999 LS400 (OM50514U) Owners Manual

GAUGES, METERS AND SERVICE REMINDER INDICATORS
75
(b) Warning messages
13L052

Reminder light
W40W40
When the engine oil pressure becomes too low, the
above message appears, the reminder light flashes
and the warning tone sounds.
If this message appears while you are driving, pull off the
road to a safe place and stop the engine immediately.
Call a Lexus dealer or qualified repair shop for
assistance.
The message may appear when the oil level is extremely
low. It is not designed to indicate low oil level, and the
oil level must be checked using the oil level dipstick.NOTICE
Do not drive the vehicle with the warning messagedisplayed ± even for one block. It may ruin theengine.
W41W41

GAUGES, METERS AND SERVICE REMINDER INDICATORS
76When your brake pads are worn enough to require
replacement, the above message appears, the
reminder
light flashes and the warning tone sounds.
If this message appears while you are driving, have the
brake pads checked and replaced by your Lexus dealer
as soon as possible.
W43W43
W42W42
W45±1
W44W44
W46W46
When any door or trunk is open with the ignition
switch turned on, the message which door or trunk
is open appears, and the reminder light comes on. If you continue driving with any door or trunk open, the
reminder light starts flashing and the warning tone
sounds to remind you to close the door or trunk.
W52W52
If the driver's door is opened with the ignition switch
turned off and the moon roof opened, the above
message appears and the reminder light flashes.
W48W48

GAUGES, METERS AND SERVICE REMINDER INDICATORS
77
In the following cases, the warning message
appears and the reminder light next to the warning
message and the ºVSC OFFº indicator light come
on. And the warning tone also sounds.
(a) After
the removal of the battery terminals (See ºInitial
adjustment of vehicle skid control systemº on page 310.)
(b) If the vehicle skid control system malfunctions
If the above message appears for the cause of (b), have
your vehicle checked by your Lexus dealer as soon as
possible.
Although the above message appears, you can continue
your normal driving, but without the vehicle skid control
system function.

GAUGES, METERS AND SERVICE REMINDER INDICATORS
78
W49W49
In the following cases, the above message appears,
the reminder light comes on and the warning tone
sounds.
When the headlight switch is turned to the first or
second clickstop with one or more of tail light bulbs
burned out.
 When the brake pedal is held down with one or more
of stop light bulbs burned out.
Have defective bulbs replaced as soon as possible.
W50W50
When the engine oil level is too low, the above
message appears, the reminder light comes on and
the warning tone sounds.
Add oil as soon as possible. (For instructions, see
ºChecking the engine oil levelº on page 405.)
NOTICE
Continued engine operation with low engine oil will damage the engine.

GAUGES, METERS AND SERVICE REMINDER INDICATORS
79
W51W51
When the fluid level in the tank becomes nearly
empty, the above message appears, the reminder
light comes on and the warning tone sounds.
Fill the tank as soon as possible.
W53W53
When there is a problem somewhere in the
automatic headlight leveling system, the above
message appears, the reminder light comes on and
the warning tone sounds.
If this message appears, have your vehicle checked by
your Lexus dealer.INSTRUMENT PANEL LIGHTCONTROL
13L005
To adjust the brightness of the instrument panel
lights, turn the knob.

SECTION 1 ± 4
80
INSTRUMENTS AND CONTROLS
Interior equipment
Vanity mirrors80
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Interior lights 82
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Personal lights 84
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Ignition switch light 86
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Clock 87
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
Outside temperature display 88
. . . . . . . . . . . . . . . . . . . . .
Cigarette lighter and ashtray 89
. . . . . . . . . . . . . . . . . . . . .
Power outlet 91
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Glove box 92
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\

Garage door opener 93
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cup holder 96
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Coin box 99
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
.
Penlight 100
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
.
Floor mat 100
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Luggage stowage precautions 103
. . . . . . . . . . . . . . . . . .
VANITY MIRRORS

INTERIOR EQUIPMENT
81
14L001a

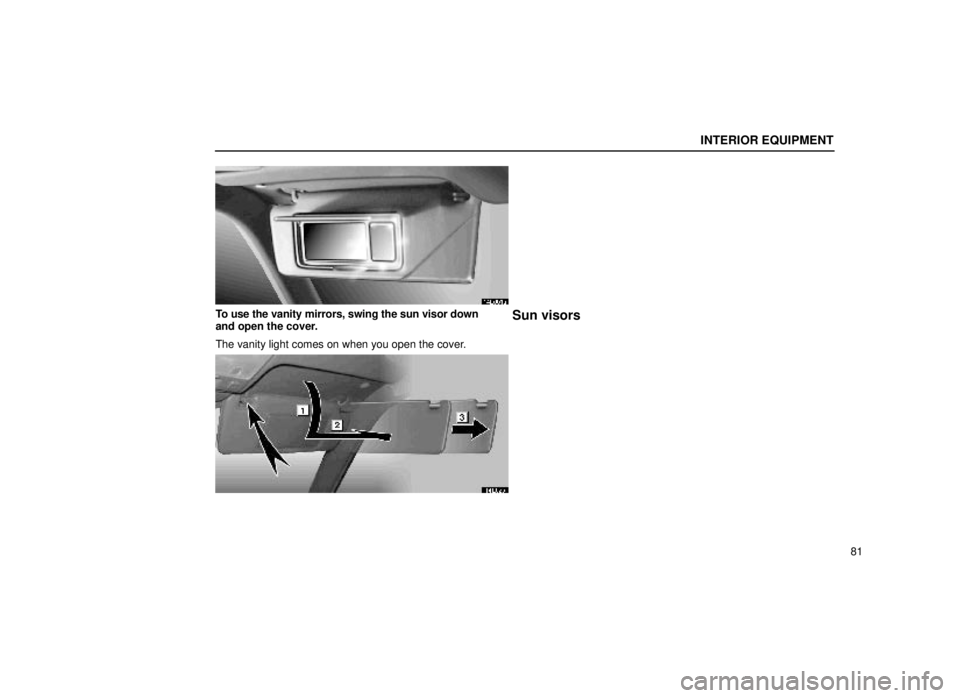

To use the vanity mirrors, swing the sun visor down
and open the cover.
The vanity light comes on when you open the cover.Sun visors
14L025

INTERIOR EQUIPMENT
82
1To block out glare from the front , swing the sun
visor down.
2To block out glare from the side, remove the
sun visor from the hook and swing it to the side.
3To block out glare coming obliquely from
behind you, slide the visor backwards.
At this position, the vanity light does not come on.
INTERIOR LIGHTS
Front

INTERIOR EQUIPMENT
83
14L002a

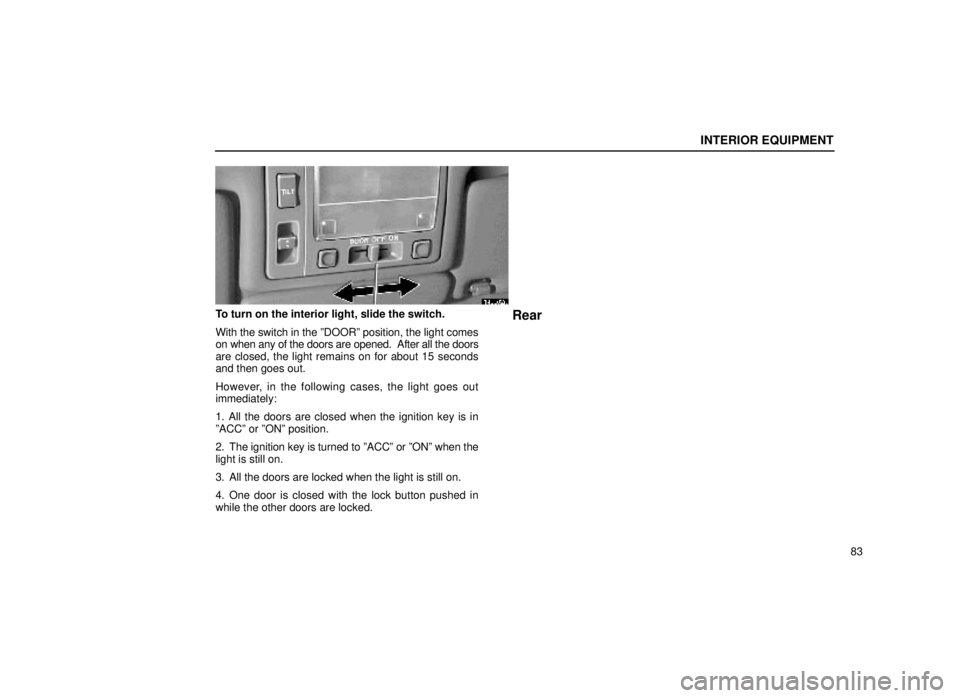

To turn on the interior light, slide the switch.
With the switch in the ºDOORº position, the light comes
on when any of the doors are opened. After all the doors
are closed, the light remains on for about 15 seconds
and then goes out.
However, in the following cases, the light goes out
immediately:
1. All the doors are closed when the ignition key is in
ºACCº or ºONº position.
2. The ignition key is turned to ºACCº or ºONº when the
light is still on.
3. All the doors are locked when the light is still on.
4. One door is closed with the lock button pushed in
while the other doors are locked.Rear

INTERIOR EQUIPMENT
84
14L005a

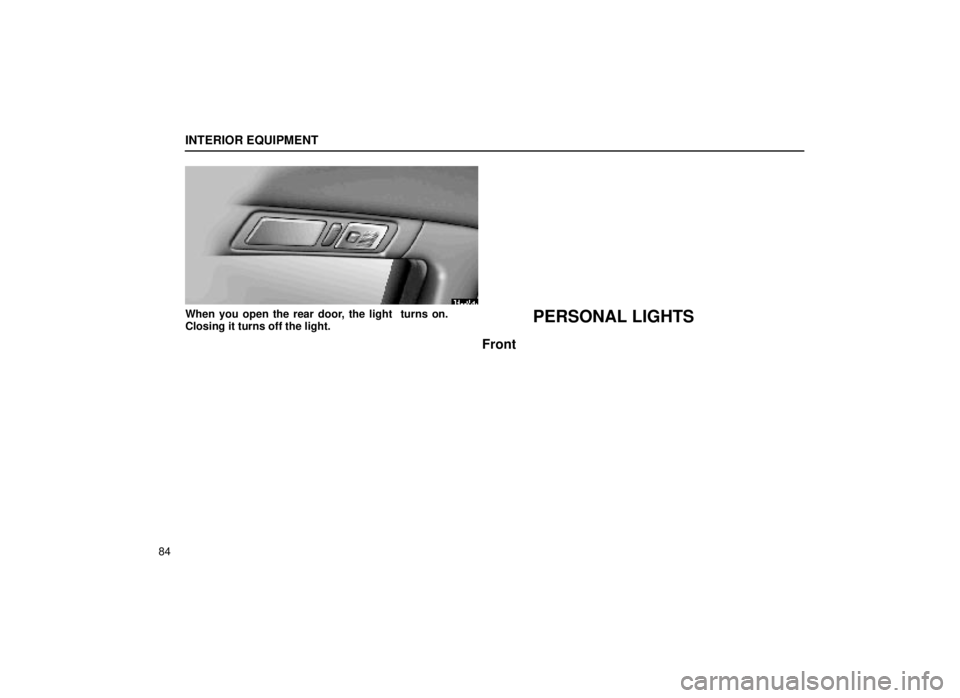

When you open the rear door, the light turns on.
Closing it turns off the light.PERSONAL LIGHTS
Front
