rear view mirror lexus LS400 1999 Electrical Components / LEXUS 1999 LS400 OWNER'S MANUAL (OM50514U)

For detailed information, refer to the description given in each section\
.
PICTORIAL INDEX
ix
Page
1 Door lock switch and power windowswitches 32, 46 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2 Driving position memory switch 203
. . . . . . . . .
3 Shoulder anchor control switch 147
. . . . . . . . .
4 Power rear view mirror control switch 134 . . .
5 Parking brake release lever 279
. . . . . . . . . . . . .
6 Fuel filler door opener 110
. . . . . . . . . . . . . . . . . .
7 Trunk lid opener 109
. . . . . . . . . . . . . . . . . . . . . . .
8 Parking brake 279
. . . . . . . . . . . . . . . . . . . . . . . . .
9 Headlight, turn signal and fog
light switch 35, 38, 41 . . . . . . . . . . . . . . . . . . . . . .
10 Windshield wiper and washer switch 41 . . . . .
11 Multi information control switch 70
. . . . . . . . . .
12 Cruise control switch 297
. . . . . . . . . . . . . . . . . . Page
13 Outside temperature display
88
. . . . . . . . . . . . .
14 Clock 87
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
15 Emergency flasher switch 52
. . . . . . . . . . . . . . .
16 Automatic air conditioning controls 215 . . . . .
17 Car audio 233
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
18 Vehicle skid control system off switch 304 . . .
19 Headlight cleaner switch 44
. . . . . . . . . . . . . . . .
20 Seat heater switches 53
. . . . . . . . . . . . . . . . . . . .
21 Ashtray 89
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
22 Height control switch 301
. . . . . . . . . . . . . . . . . .
23 Driving pattern selector switch 281
. . . . . . . . . .
24 Automatic transmission selector lever 281 . . .
25 CD automatic changer 254
. . . . . . . . . . . . . . . . . .
26 Glove box 92
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

00L006-3
00L020±3
PICTORIAL INDEX
xv
EXTERIOR VIEW
Page
1 Rear window defogger 45
2 Trunk lid107
. . . . . . . . . . . .
3 Fuel filler door 110 . . . . . .
4 Hood 105
. . . . . . . . . . . . . . .
5 Headlight 35, 462 . . . . . . . .
6 Moon roof 113
. . . . . . . . . .
7 Windshield wiper and
washer 41, 459 . . . . . . . . . .
8 Outside rear view mirror .
132
9 Door 29
. . . . . . . . . . . . . . . .
10 Tire and wheel 421 . . . . . .
For detailed information, refer to the description givenin each section.

SECTION 1 ± 2
34
INSTRUMENTS AND CONTROLS
Switches
Headlight switch35
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Headlight dimmer and turn signal switch 38
. . . . . . . . . .
Fog light switch 41
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Windshield wiper and washer switch 41
. . . . . . . . . . . . . .
Headlight cleaner switch 44
. . . . . . . . . . . . . . . . . . . . . . . .
Rear window and outside rear view mirror
defogger switch 45
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power window switches 46
. . . . . . . . . . . . . . . . . . . . . . . . .
Emergency flasher switch 52
. . . . . . . . . . . . . . . . . . . . . . .
Seat heater switches 53
. . . . . . . . . . . . . . . . . . . . . . . . . . .

SWITCHES
45

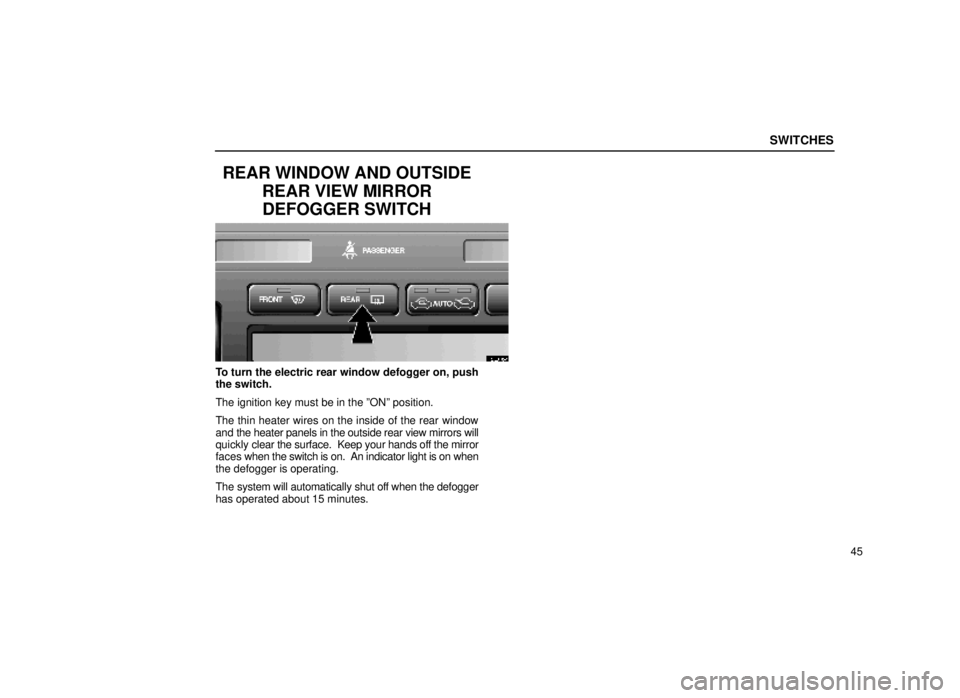

REAR WINDOW AND OUTSIDEREAR VIEW MIRRORDEFOGGER SWITCH
12L008-4
To turn the electric rear window defogger on, push
the switch.
The ignition key must be in the ºONº position.
The thin heater wires on the inside of the rear window
and the heater panels in the outside rear view mirrors will
quickly clear the surface. Keep your hands off the mirror
faces when the switch is on. An indicator light is on when
the defogger is operating.
The system will automatically shut off when the defogger
has operated about 15 minutes.

SWITCHES
46
CAUTION
Since the mirror surfaces can get hot, keep your hands
off them when the rear window and outside rear view
mirror defogger switch is on.
If further defrosting or defogging is desired, simply
actuate the switch again. When the surface has cleared,
push the switch once again to turn the defogger off.
Continuous use may cause the battery to discharge,
especially during stop±and±go driving. The defogger is
not designed to dry rain water or to melt snow.
If the outside rear view mirrors are heavily coated with
ice, use a spray de±icer before operating the switch.
NOTICE
When cleaning the inside of the rear window, be
careful not to scratch or damage the heater wires.
To prevent the battery from being discharged,do not operate the defogger continuouslylonger than necessary.
POWER WINDOW SWITCHES
12L009-2

SECTION 1 ± 6
11 8
INSTRUMENTS AND CONTROLS
Comfort adjustment
Front seats118
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Head restraints 125
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tilt and telescopic steering wheel 130
. . . . . . . . . . . . . . .
Outside rear view mirrors 132
. . . . . . . . . . . . . . . . . . . . . .
Inside rear view mirror 137
. . . . . . . . . . . . . . . . . . . . . . . . .
Seat belts 139
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Supplemental restraint system (SRS) 151
. . . . . . . . . . . .
Child restraint 176
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Driving position memory system 203
. . . . . . . . . . . . . . . .
FRONT SEATS
Front seat precautions

COMFORT ADJUSTMENT
132

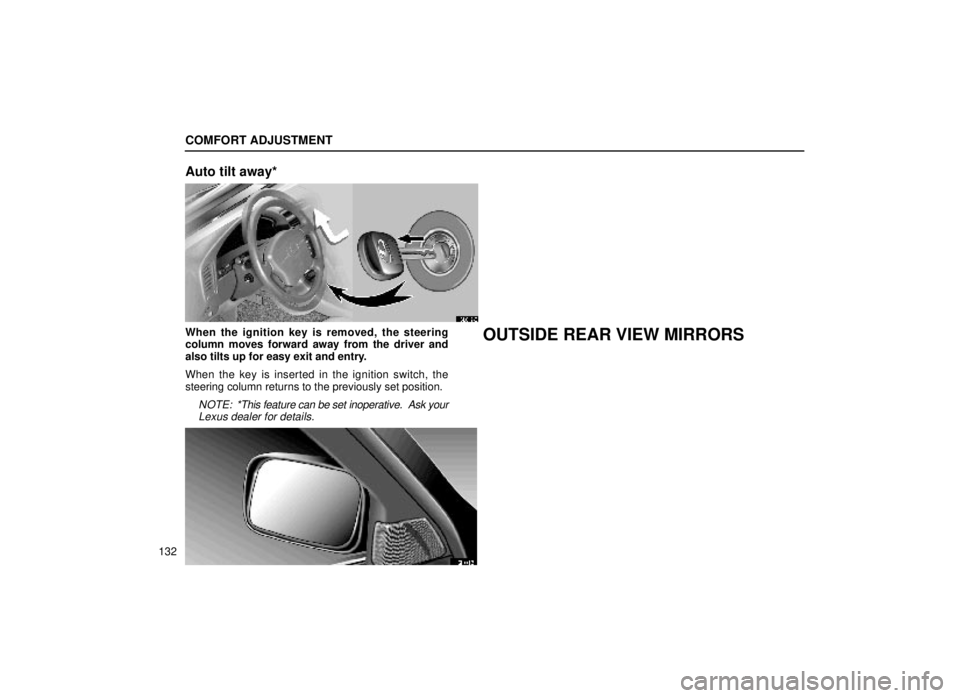

Auto tilt away*
16L012-2
When the ignition key is removed, the steering
column moves forward away from the driver and
also tilts up for easy exit and entry.
When the key is inserted in the ignition switch, the
steering column returns to the previously set position.
NOTE: *This feature can be set inoperative. Ask your
Lexus dealer for details.
OUTSIDE REAR VIEW MIRRORS
16L016

COMFORT ADJUSTMENT
133
Adjust the m
irror so that you can just see the side of
your vehicle in the mirror.
When the inside rear view mirror darkens in ºAUTOº
mode, the outside rear view mirrors also darken to
reduce the reflection of the headlights of the following
vehicle. For details, see ºInside rear view mirrorº on
page 137.
When you push the rear window and outside rear view
mirror defogger switch, the heater panels in the outside
rear view mirrors will quickly clear the mirror surface.

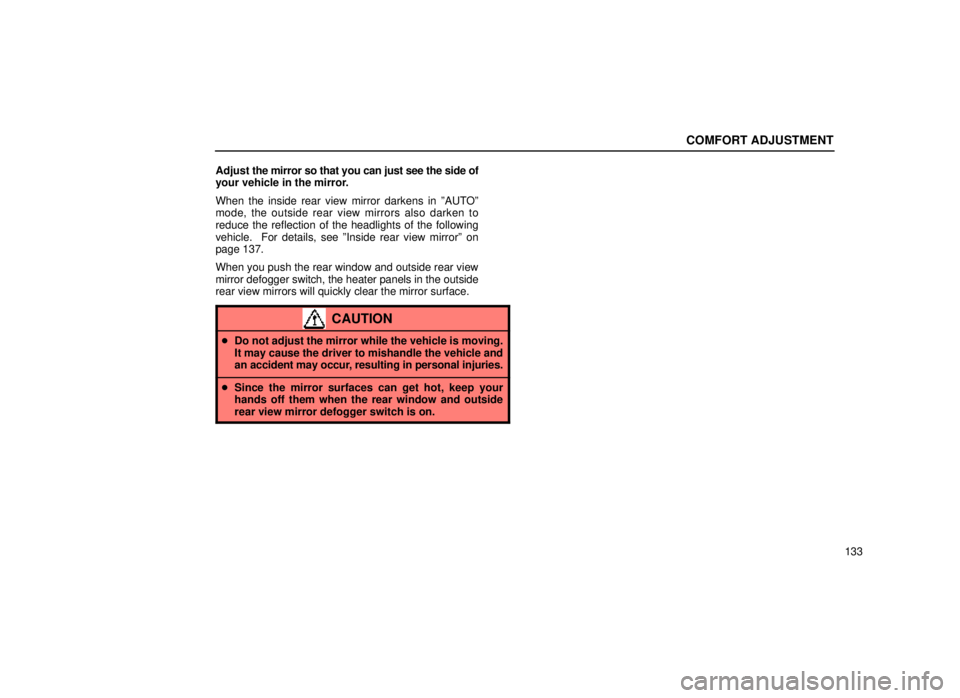

CAUTION
 Do not adjust the mirror while the vehicle is moving.
It may cause the driver to mishandle the vehicle and
an accident may occur, resulting in personal injuries.
Since the mirror surfaces can get hot, keep your
hands off them when the rear window and outside
rear view mirror defogger switch is on.

COMFORT ADJUSTMENT
134

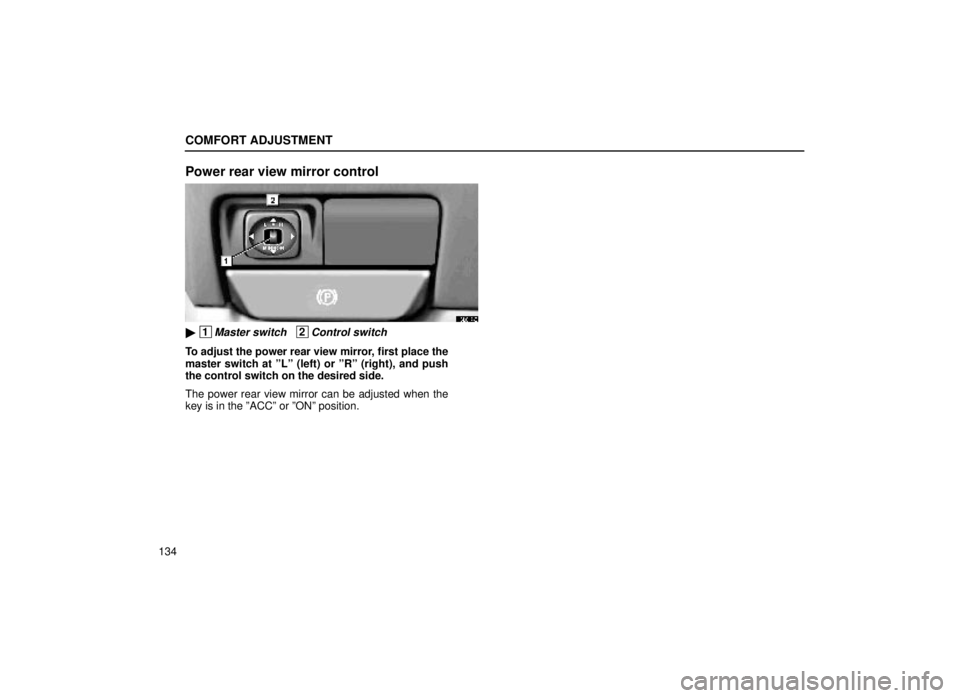

Power rear view mirror control
16L017-2

1Master switch 2Control switch
To adjust the power rear view mirror, first place the
master switch at ºLº (left) or ºRº (right), and push
the control switch on the desired side.
The power rear view mirror can be adjusted when the
key is in the ºACCº or ºONº position.

COMFORT ADJUSTMENT
136

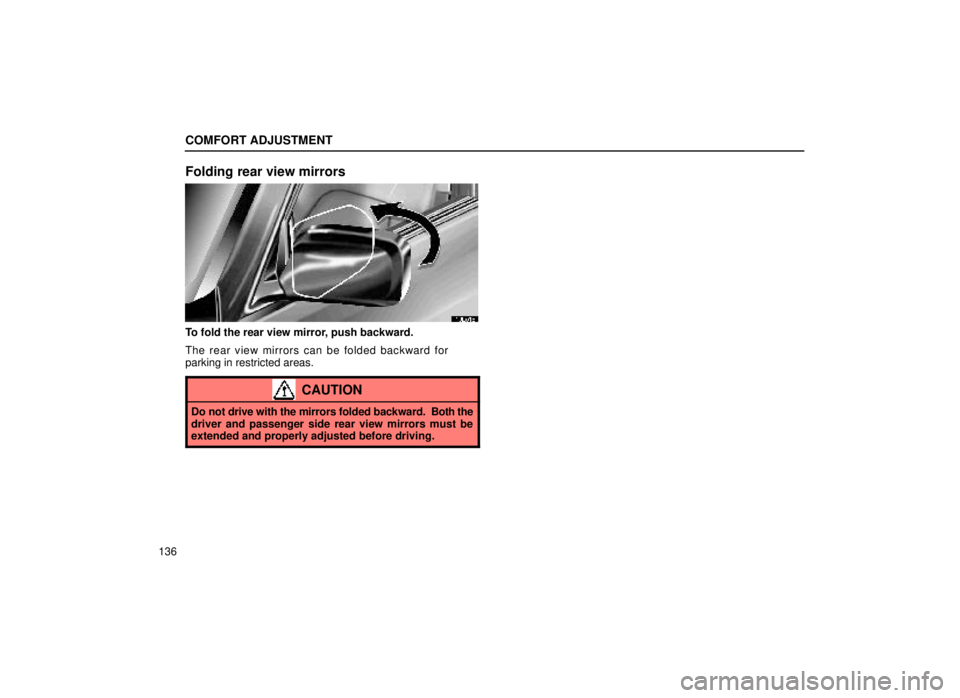

Folding rear view mirrors
16L018
To fold the rear view mirror, push backward.
The rear view mirrors can be folded backward for
parking in restricted areas.
CAUTION
Do not drive with the mirrors folded backward. Both the
driver and passenger side rear view mirrors must be
extended and properly adjusted before driving.
