remote control lexus LS400 1999 Electrical Components / LEXUS 1999 LS400 OWNER'S MANUAL (OM50514U)

SECTION 1 ± 1
9
INSTRUMENTS AND CONTROLS
Keys and doors
Keys9
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .
Engine immobiliser system 15
. . . . . . . . . . . . . . . . . . . . . .
Wireless remote control 17
. . . . . . . . . . . . . . . . . . . . . . . . .
Doors 29
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
KEYS
11L025-3

KEYS AND DOORS
17
For vehicles sold in Canada
This device complies with RSS±210 of Industry
Canada.
Operation is subject to the following two
conditions: (1) this device may not cause
interference, and (2) this device must accept any
interference, including interference that may
cause undesired operation of the device.

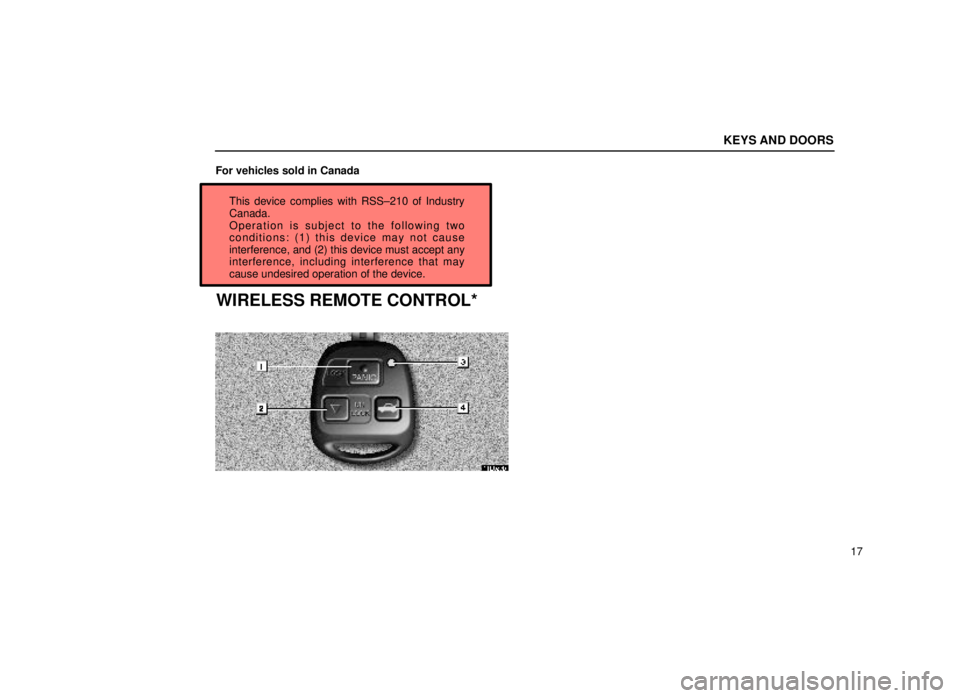

WIRELESS REMOTE CONTROL*
11L027b

KEYS AND DOORS
18
1Locking the doors and sounding an alarm
2Unlocking the doors
3Indicator light
4Unlocking the trunk lid
NOTE: *This feature can be set inoperative as
vehicle theft deterrent measure in case of the loss ofthe wireless remote control key. Ask your Lexusdealer for details.
When you operate any button on the key, push it slowly
and surely.
The operational range of the wireless remote control is
approximately 1 meter (3 ft.). The effective range may
vary with different conditions. To activate the wireless
remote control without fail, do it approximately 1 meter
(3 ft.) from your Lexus. In the following cases, the battery in the key may be
discharged. If this is a case, replace it using a special
screwdriver.

The remote control does not work.
 The operational range of wireless remote control
becomes extremely short.
 The indicator light on the key is dimmed or does not
come on.
For the replacement of the battery, see ºReplacing the
batteryº on page 26. You can also have the battery of the
key replaced by your Lexus dealer.
If you lose the wireless key, contact your Lexus dealer
as soon as possible to avoid the possibility of theft, or an
accident.
You can use up to 4 wireless remote control keys for the
same vehicle. Contact your Lexus dealer for detailed
information.
The wireless remote control key is an electronic
component. Observe the following instructions in
order not to cause damage to the key.
 Do not leave the wireless remote control key on
places where the temperature becomes high such as
on the dashboard.
 Do not disassemble it.
 Avoid knocking it hard against other objects or

SWITCHES
37
The automatic light control sensor is on top of the
driver's side instrument panel.
Do not place anything on the instrument panel, and/or do
not affix anything on the windshield to block this sensor.
When the headlights come on, the lights automatically
turn off about 30 seconds after any of the doors is
opened and closed with the ignition key turned to the
ºACCº or ºL
OCKº position.** To turn them on again, turn
the ignition key to the ºONº position, or turn the headlight
switch off and then twist the knob until the first or second
clickstop. If you are going to park for over one week,
make sure the headlight switch is off.
When the headlight switch is on with all the doors locked,
pushing the ºLOCKº button on the wireless remote
control key turns off the headlights.
NOTE: *The operating condition or sensitivity can be changed. **The time before turning off the lights can
be changed. Ask your Lexus dealer for details.
Daytime Running Light System
The headlights turn on at reduced intensity when the
parking brake is released with the engine started, even
with the light switch in the ºOFFº position. They will not
go off until the ignition switch is turned off.
To turn on the other exterior lights and instrument panel
lights, twist the knob to the first clickstop.
Twist the knob to the second clickstop to turn on the
headlights to full intensity for driving at night.
When setting the knob to the third clickstop (ºAUTOº),
the headlights will automatically adjust to full intensity
and/or turn on the other lights depending on the
darkness of the surroundings. Likewise, as the
surroundings become brighter, the headlights will turn to
reduced intensity, ultimately turning off the other lights.
NOTICE
To prevent the battery from being discharged, do not leave the lights on longer than necessarywhen the engine is not running.

EXTERIOR EQUIPMENT
107

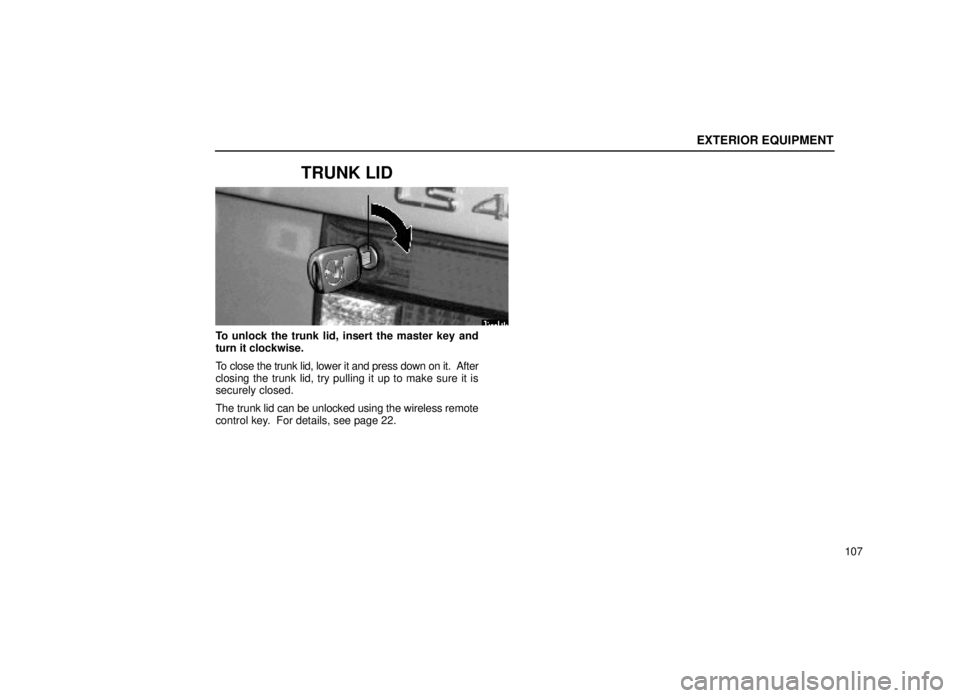

TRUNK LID
15L017a
To unlock the trunk lid, insert the master key and
turn it clockwise.
To close the trunk lid, lower it and press down on it. After
closing the trunk lid, try pulling it up to make sure it is
securely closed.
The trunk lid can be unlocked using the wireless remote
control key. For details, see page 22.

THEFT DETERRENT
209

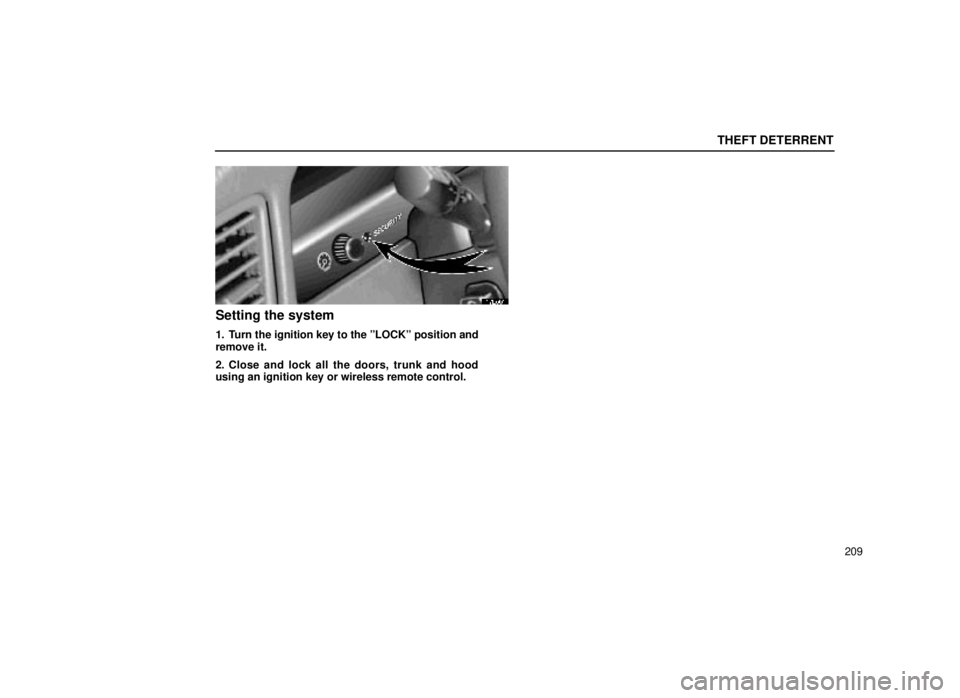

17L001
Setting the system
1. Turn the ignition key to the ºLOCKº position and
remove it.
2. Close and lock all the doors, trunk and hood
using an ignition key or wireless remote control.

THEFT DETERRENT
210If you lock them with wireless remote control, the turn
signals flash once.* If you do not want to make them
flash, consult with your Lexus dealer.
NOTE: *The turn signals can be set not to flash. Ask
your Lexus dealer for details.
The indicator light will come on when all the doors, trunk
and hood are closed and locked.
3. After 30 seconds, the indicator flashes and the
system is set.
Cancelling the system
When you unlock any door or trunk using an ignition
key or wireless remote control, the system is
cancelled.
If you unlock any door or trunk with wireless remote
control, the turn signals flash twice.* If you do not want
to make them flash, consult with your Lexus dealer.
NOTE: *The turn signals can be set not to flash. Ask your Lexus dealer for details.
Activating the system
The alarm sounds for 60 seconds if any of the following
are operated:

Unlocking any door or trunk without using an ignition
key or wireless remote control.

Opening the hood forcibly.

Reconnecting the battery.

THEFT DETERRENT
211
If any door is unlocked and the ignition key is not in the
ignition switch during the alarm sounding, its door is
automatically locked.
To stop the alarm:
Use either of the following methods.

Unlock the door or trunk using an ignition key or
wireless remote control.

Turn the ignition switch on.
Testing the system
1. Open all the windows.
2. Set the system as described above.
The front doors should be locked with the ignition key or
wireless remote control. Be sure to wait until the
indicator light starts flashing.
3. Unlock one of the doors from the inside.
The system should activate the alarm.
4. Unlock any of the doors with a key or the wireless
remote control to cancel the system.
5. Repeat this operation for the other doors and
hood.
When testing the hood, also check that the system is
activated when the battery terminal is disconnected and
then reconnected.
If the system does not work properly, have it checked by your Lexus dealer.
NOTICE
Disconnecting the battery may result in the
erasure of information you have set in thecomputer memory. After reconnecting thebattery, check that the memorized data has beenretained. If it has been erased, input it into thecomputer once more.
