COMFORT ADJUSTMENT
160
16L241
This front seat belt pretensioner system has a service
reminder indicator to inform the driver of operating
problems. If any of the following conditions occurs, this
indicates a malfunction of the pretensioners. Contact
your Lexus dealer as soon as possible to service the
vehicle.
When the ignition key is turned to the ªACCº or ªONº
position, the light does not come on or flashes.
 The light flashes while driving.
 If either front seat belt does not retract or cannot be
pulled out due to a malfunction or activation of the
pretensioner.
 The front seat belt pretensioner assembly or
surrounding area has been damaged.
The front parts of the vehicle (shaded in the
illustration) were involved in an accident that did not
cause the seat belt pretensioners to operate.
 The front seat belt pretensioner assembly is
scratched, cracked, or otherwise damaged.

COMFORT ADJUSTMENT
165

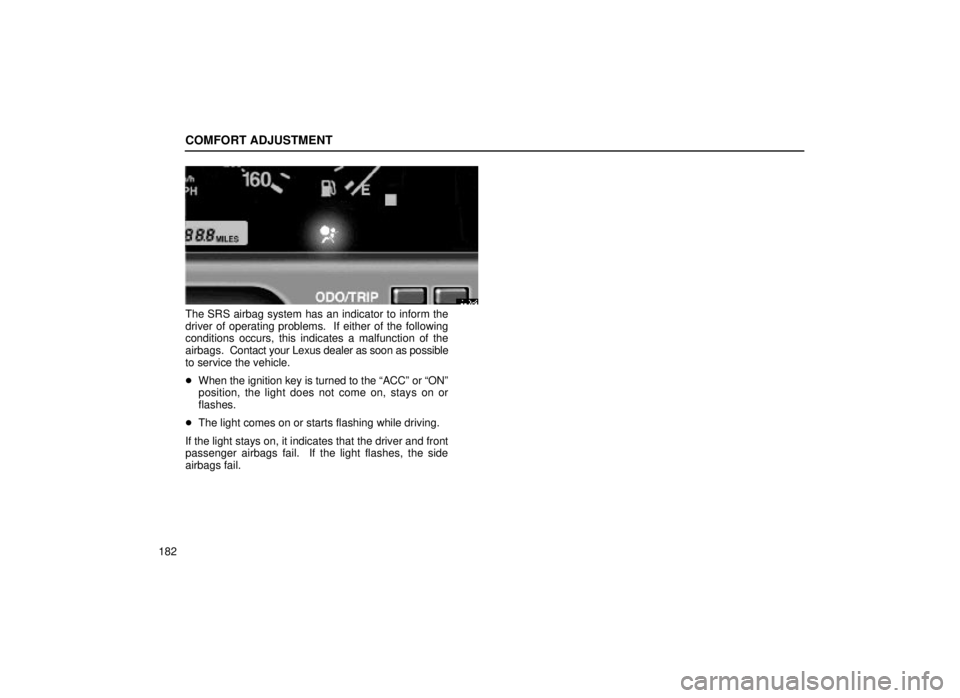

The indicator comes on when the ignition key is
turned to the ºACCº or ºONº position. It goes off
after
about 6 seconds. This means the SRS airbags
are operating properly.
The SRS warning light system monitors the airbag
sensor assembly, side airbag sensor assemblies,
inflators, warning light, interconnecting wiring and power
sources. (For details, see ºService reminder indicators
and warning buzzersº on page 62.)
16L029

COMFORT ADJUSTMENT
182
16L136-2
The SRS airbag system has an indicator to inform the
driver of operating problems. If either of the following
conditions occurs, this indicates a malfunction of the
airbags. Contact your Lexus dealer as soon as possible
to service the vehicle.
When the ignition key is turned to the ªACCº or ªONº
position, the light does not come on, stays on or
flashes.
 The light comes on or starts flashing while driving.
If the light stays on, it indicates that the driver and front
passenger airbags fail. If the light flashes, the side
airbags fail.

COMFORT ADJUSTMENT
210
DRIVING POSITION MEMORYSYSTEM
The micro computer can memorize the position of the
driver's seat, the height of the shoulder belt anchor of the
driver's seat belt, and the positions of the tilt and
telescopic steering, and outside rear view mirrors. Two
different driving position profiles can be entered into the
computer's memory.
Recording a driving position in the computer's memory
can only be done when the ignition key is in the ºONº
position and the selector lever is in the ªNº or ªPº position.
Setting a driving position
16L055

COMFORT ADJUSTMENT
213
Conditions for memorized position activation

Ignition key ºONº and selector lever in ºNº or ºPº
position with the vehicle stopped.
All parts of the memorized positions can be activated.
 Key not in ignition switch and within 30 seconds of
opening driver's door.
The memorized position can be activated, except for
the tilt and telescopic steering.
If any driving position memory switch is pushed while
one of the memorized driving position profiles is being
activated, the operation will stop.
To activate the system, push the desired button (º1º or
º2º) again.
The driving position memory control system cannot be
operated while the vehicle is moving.
If the vehicle's battery is disconnected, the computer's
memory will be erased and the memorized positions will
have to be set again.

THEFT DETERRENT
217
Setting the system
1. Turn the ignition key to the ºLOCKº position and
remove it.
The indicator light flashes by means of the engine
immobiliser system.
2. Close and lock all the doors, trunk and hood
using an ignition key or wireless remote control.If you lock them with wireless remote control, the turn
signals flash once.*NOTE: *The turn signals can be set not to flash. Ask
your Lexus dealer for details.
The flashing indicator light will change to stay on when
all the doors, trunk and hood are closed and locked.
3. After 30 seconds, the indicator flashes and the
system is set.
Cancelling the system
When you unlock any door or trunk using an ignition
key or wireless remote control, the system is
cancelled.
If you unlock any door or trunk with wireless remote
control, the turn signals flash twice.*
NOTE: *The turn signals can be set not to flash. Ask your Lexus dealer for details.
Activating the system
The alarm sounds for 60 seconds if any of the following
are operated:

Unlocking any door or trunk without using an ignition
key or wireless remote control.

Opening the hood forcibly.

Reconnecting the battery.

THEFT DETERRENT
218If any door is unlocked and the ignition key is not in the
ignition switch during the alarm sounding, its door is
automatically locked.
To stop the alarm:
Use either of the following methods.

Unlock the door or trunk using an ignition key or
wireless remote control.

Turn the ignition switch on.
Testing the system
1. Open all the windows.
2. Set the system as described above.
The front doors should be locked with the ignition key or
wireless remote control. Be sure to wait until the
indicator light starts flashing.
3. Unlock one of the doors from the inside.
The system should activate the alarm.
4. Unlock any of the doors with a key or the wireless
remote control to cancel the system.
5. Repeat this operation for the other doors and
hood.
When testing the hood, also check that the system is
activated when the battery terminal is disconnected and
then reconnected.
If the system does not work properly, have it checked by your Lexus dealer.
NOTICE
Disconnecting the battery may result in the
erasure of information you have set in thecomputer memory. After reconnecting thebattery, check that the memorized data has beenretained. If it has been erased, input it into thecomputer once more.

AIR CONDITIONING
222
AUTOMATIC AIR CONDITIONING CONTROLS
21L050

The automatic air conditioning automatically
maintains the set temperature.
This air conditioning features automatic fan speed
and air flow control which automatically selects the
most suitable fan speed and air flow to control the
temperature. The ignition key must be in the ºONº
position.NOTICE
To prevent the battery from being discharged, do
not leave the air conditioning on longer thannecessary when the engine is not running.

AUDIO
244program
(See page 261 for details.)
CD mode: Direct access to a desired
program (See page 270 for details.)
Using your audio system: some basics
This section describes some of the basic features of the
Lexus audio system. Some information may not pertain
to your system.
Your audio system works when the ignition key is in the
ºACCº or ºONº position.
NOTICE
To prevent the battery from being discharged, do not leave the car audio on longer than necessarywhen the engine is not running.
(a) Turning the system on and off

STARTING AND DRIVING
283
Keep the trunk lid closed while driving. An
open or unsealed trunk lid may cause exhaust
gases to be drawn into the vehicle.
 To allow proper operation of your vehicle's
ventilation system, keep the inlet grilles in front
of the windshield clear of snow, leaves, or other
obstructions.
 If you smell exhaust fumes in the vehicle, drive
with the windows open and the trunk lid closed.
Have the cause immediately located and
corrected.BEFORE STARTING THE ENGINE
1. Check the area around the vehicle before entering it.
2. Adjust seat position, seatback angle, head restraint
height and steering wheel angle.
3. Adjust the inside and outside rear view mirrors.
4. Lock all doors.
5. Fasten seat belts.
Remember to check that the service reminder indicators
function when turning the key to ºONº, and check the fuel
gauge to see that you have sufficient fuel.
