SWITCHES
72
Rear climate control seats
12L178
 1For left seat 2For right seat
3Warm air 4Air at room temperature 5Cool air
The rear climate control switches are located in the rear
armrest.
The rear climate control seat has two switches: one
marked “L” (for the rear left seat) and the other marked
“R” (for the rear right seat).
The ignition switch must be in the “ON” position.
The rear climate control seat has three modes: air at room
temperature, cool air and warm air. To use the rear seat climate control, push the knob and
turn the knob. The indicator light comes on.
To feed air at room temperature,
turn the knob to the gray
zone.
To feed cool air, turn the knob counterclockwise and set the
knob in the blue zone. Three setting levels are available.
To feed warm air, turn the knob clockwise and set the knob in
the red zone. Three setting levels are available. When you
push and turn the knob to the red zone, the seat heater turns
on first and then the rear climate control operates to feed warm
air.
After the switch is turned on, it takes several minutes until you
feel warm or cool.
To disable this function, push the knob again. The indicator
light goes off.
If you turn off the ignition switch without turning off the rear
climate control seat, the rear climate control seat does not turn
on with the ignition on.

SWITCHES
73
CAUTION
Use caution when operating the climate control seat.
The occupants listed below may experience minor
burns even at low temperatures from warm air.
Babies, small children, elderly persons, sick persons
or persons with physical disabilities
 Persons who have delicate skin
 Persons who are exhausted
 Persons who have taken alcohol or drugs which
induce sleep (such as sleeping drugs or cold
remedies).
To prevent the seat from overheating, do not use the
climate control seat if a blanket, cushion, or other
insulating object covers the seat. Use also caution not
to overuse this feature, which may cool down the
occupants excessively.
NOTICE
 Do not put unevenly weighted objects on the seat .
Do not stick sharp objects (such as needles or nails)
into the seat.
 When cleaning the seats, do not use harsh cleaning
substances (such as paint thinner, benzine, alcohol
or gasoline). They may damage the climate control
seat and seat surface.
 Clean the seats using a towel wrung out of water.
Entering water in the seats may cause the
malfunction of the climate control seats.
 To prevent the battery from being discharged, turn
the switches off when the engine is not running.

SWITCHES
74
Replacing the air filters
The air filters may clog after the long use of the climate control
seats which will reduce the air flow. However, you can inspect
the filters easily.
When you replace the air filters, be sure to turn off the fans.
Front
12L130
Under the seat
1
Remove the air filter locks.
2Remove the air filter.
The front climate control seat filters are located under the
driver and front passenger seats.
Replace the air filter when the performance of air flow becomes
low by the deterioration of filter.
NOTICE
The air filters should be installed properly in position.
The use of front climate control seat with the air filter
removed may cause the malfunction of the front climate
control seat.

SWITCHES
75

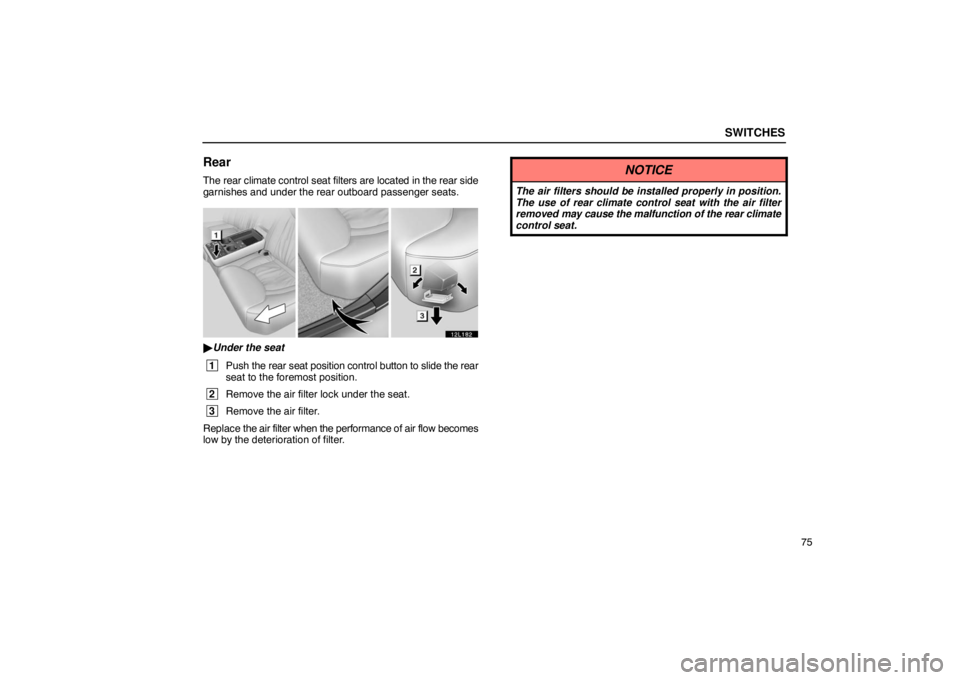

Rear
The rear climate control seat filters are located in the rear side
garnishes and under the rear outboard passenger seats.
12L182
Under the seat
1
Push the rear seat po sition control button to slide the rear
seat to the foremost position.
2 Remove the air filter lock under the seat.
3Remove the air filter.
Replace the air filter when the performance of air flow becomes
low by the deterioration of filter.
NOTICE
The air filters should be installed properly in position.
The use of rear climate control seat with the air filter
removed may cause the malfunction of the rear climate
control seat.

SWITCHES
76

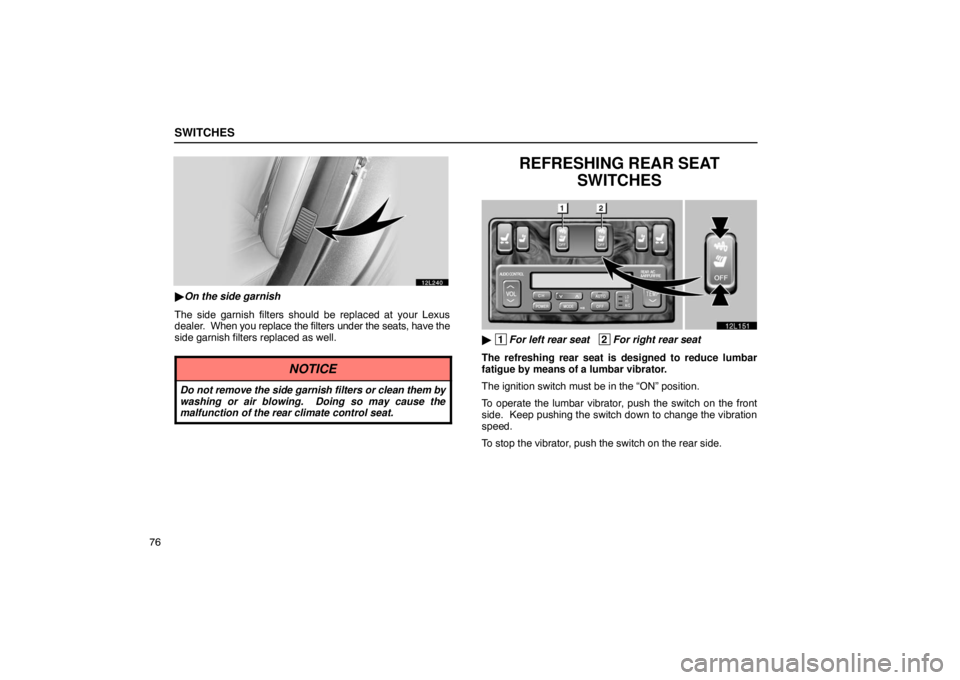

12L240
On the side garnish
The side garnish filters should be replaced at your Lexus
dealer. When you replace the filters under the seats, have the
side garnish filters replaced as well.
NOTICE
Do not remove the side garnish filters or clean them by
washing or air blowing. Doing so may cause the
malfunction of the rear climate control seat.
REFRESHING REAR SEAT SWITCHES
12L151
 1For left rear seat 2For right rear seat
The refreshing rear seat is designed to reduce lumbar
fatigue by means of a lumbar vibrator.
The ignition switch must be in the “ON” position.
To operate the lumbar vibrator, push the switch on the front
side. Keep pushing the switch down to change the vibration
speed.
To stop the vibrator, push the switch on the rear side.

SWITCHES
77
CAUTION
Those who are pregnant, have just given birth, or
suffer from heart disease and other ailments
requiring rest, should consult a doctor before using
the refreshing seat.
 Do not allow children to use the refreshing seat.
 Do not use the refreshing seat immediately after
meals or for extended periods.
 If you feel sick while using the refreshing seat,
immediately stop using it.

SWITCHES
78

SECTION 1 – 3
79
INSTRUMENTS AND CONTROLS
Gauges, meters and service reminder
indicators
Fuel gauge80
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . .
Engine coolant temperature gauge 80
. . . . . . . . . . . . . . . . . . . . . . . . . .
Tachometer 81
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Odometer and trip meter 82
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service reminder indicators and warning buzzers 82
. . . . . . . . . . . . . .
Multi−information display 90
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Compass 105
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Instrument panel light control 109
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

GAUGES, METERS AND SERVICE REMINDER INDICATORS
80
FUEL GAUGE
13L062d
Low fuel level warning light
The gauge indicates the approximate quantity of fuel
remaining in the tank when the ignition switch is on.
It is a good idea to keep the tank over 1/4 full.
If the fuel level approaches “E” or the low fuel level warning light\
comes on, fill the fuel tank as soon as possible.
On inclines or curves, due to the movement of fuel in the tank,
the fuel gauge needle may fluctuate or the low fuel level
warning light may come on earlier than usual.
If the fuel tank is completely empty, the malfunction indicator
lamp comes on. Fill the fuel tank immediately.
The indicator lamp goes off after driving several times. If the
indicator lamp does not go off, contact your Lexus dealer as
soon as possible. See the inner back cover for fuel capacity and recommended
fuel selection.
ENGINE COOLANT
TEMPERATURE GAUGE
13L151
 Normal range
The gauge indicates the engine coolant temperature when
the ignition switch is on. The engine operating
temperature will vary with changes in weather and engine
load.
If the needle points to the red zone or higher, stop your vehicle
and allow the engine to cool.
Your vehicle may overheat during severe operating conditions,
such as:
 Driving up a long hill on a hot day.
 Reducing speed or stopping after high speed driving.

GAUGES, METERS AND SERVICE REMINDER INDICATORS
81

Idling for a long period with the air conditioning on in
stop−and−go traffic.
 Towing a trailer.
NOTICE
Do not remove the thermostat in the engine cooling
system as this may cause the engine to overheat. The
thermostat is designed to control the flow of coolant
to keep the temperature of the engine within the
specified operating range.
 Do not continue driving with an overheated engine.
See “If your vehicle overheats” on page 404.
TACHOMETER
13L144
The tachometer indicates engine speed in thousands of
rpm (revolutions per minute). Use it while driving to
prevent engine overrevving.
Driving with the engine running too fast causes excessive
engine wear and poor fuel economy. Remember, in most
cases the slower the engine speed, the greater the fuel
economy.
NOTICE
Do not let the indicator needle get into the red zone. This
may cause severe engine damage.
