STEERING WHEEL AND MIRRORS
232
Folding and extending automatic rear view
mirrors
16L642
With the rear view mirror folding switch in the “AUTO”
position:
When you turn the ignition switch to “ACC” or “ON” position,
the folded rear view mirrors are automatically extended.
 When you turn the ignition switch to “LOCK” position, the
rear view mirrors are automatically folded.
The rear view mirrors can be folded or extended manually.
CAUTION
 To avoid personal injury and mirror malfunction, do
not touch the mirror while it is moving.
 Do not drive with the mirrors folded backward. Both
the driver and passenger side rear view mirrors must
be extended and properly adjusted before driving.
Folding rear view mirrors154.
16L643
To fold the mirrors, push the switch on the right side. To
extend the rear view mirrors, push the switch on the left
side.
The rear view mirrors can be folded backward for parking in
compact areas.
CAUTION
To avoid personal injury and any mirror malfunction,
do not touch the mirror while it is moving.
 Do not drive with the mirrors folded backward. Both
the driver and passenger side rear view mirrors must
be extended and properly adjusted before driving.

STEERING WHEEL AND MIRRORS
233

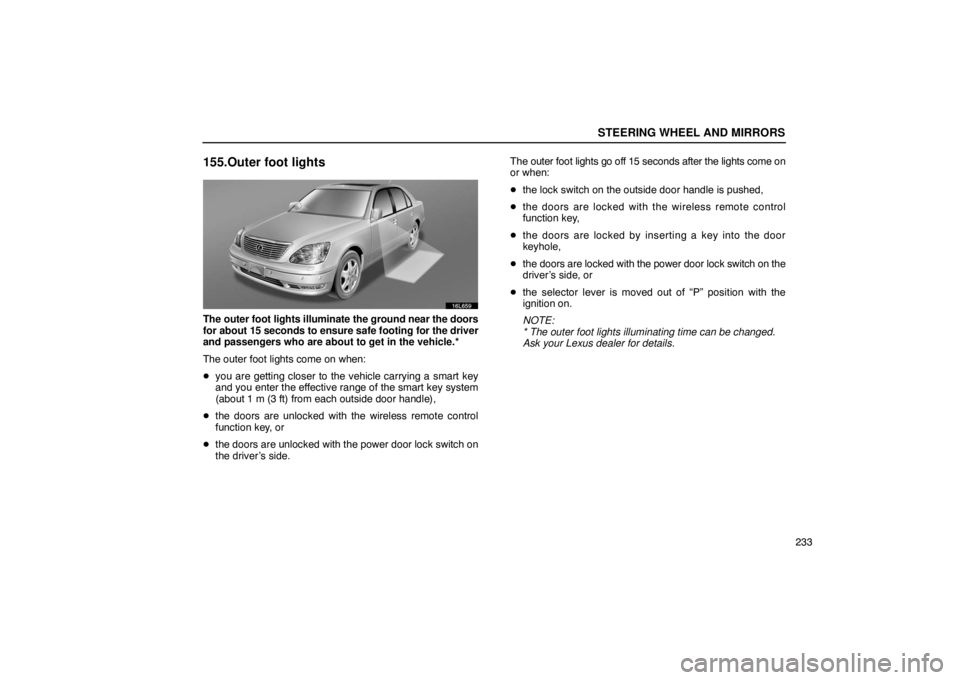

155.Outer foot lights
16L659
The outer foot lights illuminate the ground near the doors
for about 15 seconds to ensure safe footing for the driver
and passengers who are about to get in the vehicle.*
The outer foot lights come on when:
you are getting closer to the vehicle carrying a smart key
and you enter the effective range of the smart key system
(about 1 m (3 ft) from each outside door handle),
 the doors are unlocked with the wireless remote control
function key, or
 the doors are unlocked with the power door lock switch on
the driver’s side. The outer foot lights go off 15 seconds after the lights come on
or when:

the lock switch on the outside door handle is pushed,
 the doors are locked with th e wireless remote control
function key,
 the doors are locked by inserting a key into the door
keyhole,
 the doors are locked with the power door lock switch on the
driver’s side, or
 the selector lever is moved out of “P” position with the
ignition on.
NOTE:
* The outer foot lights illuminating time can be changed.
Ask your Lexus dealer for details.

STEERING WHEEL AND MIRRORS
234
156.INSIDE REAR VIEW MIRROR
16L286
Adjust the mirror so that you can just see the rear of your
vehicle in the mirror.
Pushing the switch changes the mode between “AUTO”
and “DAY”.
The indicator comes on when the “AUTO” mode is selected.
“DAY” mode: The mirror surface is normal.
“AUTO” mode: If the mirror detects light from the
headlights of the vehicle behind you, the mirror surface
darkens slightly to reduce the reflected light.
When the inside rear view mirror surface changes, the outside
rear view mirror surfaces will also become darker.
When the ignition switch is turned on, the inside rear view
mirror always turns on in the “AUTO” mode. When the outside air temperature is low, it may take a little
longer for the mirror to darken in response to the detection of
headlights.
CAUTION
Do not adjust the mirror while the vehicle is moving.
Doing so may cause the
driver to mishandle the vehicle
and an accident may occur resulting in death or serious
injuries.

STEERING WHEEL AND MIRRORS
235
16L784
To ensure correct functioning of antiglare mirror sensors
located on both sides of the mirror, do not touch or cover
the sensors with your finger or a piece of cloth, etc.
157.VANITY MIRRORS
Front
14L206
To use the front vanity mirrors, swing the sun visor down
and open the cover.
The vanity light comes on when you open the cover. However
if the sun visor is not hooked securely, the light may not come
on.

STEERING WHEEL AND MIRRORS
236
Rear
14L228a
To use the rear vanity mirrors, open the cover.
The vanity light comes on when you open the cover.
NOTICE
Keep the rear vanity mirrors closed when not in use.
Otherwise you may hit your head on the mirror when
you get in or out of the vehicle.
 To prevent the battery from being discharged, do not
leave the cover open for a long time while the engine
is stopped.

SECTION 2 – 1
237
AIR CONDITIONING AND AUDIO
Air conditioning
Automatic air conditioning controls
(Vehicles with rear air conditioning)238
. . . . . . . . . . . . . . . . . . . . . . .
Automatic air conditioning controls
(Vehicles without rear air conditioning) 240
. . . . . . . . . . . . . . . . . . . .
Rear air conditioning controls 254
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
For vehicles equipped with Navigation System,
please refer to the separate “Navigation System
Owner’s Manual”.

AIR CONDITIONING
238
AUTOMATIC AIR CONDITIONING CONTROLS (Vehicles with Rear Air Conditioning)
21L188
For rear air conditioning operation, see “Rear air conditioning contr\
ols” on page 254

AIR CONDITIONING
239
The automatic air conditioning automatically maintains
the set temperature.
This
air conditioning features automatic fan speed and air flow
control which automatically se lects the most suitable fan
speed and air flow to control the temperature.
The ignition switch must be in the “ON” position.
NOTICE
To prevent the battery from being discharged, do not
leave the air conditioning on longer than necessary
when the engine is not running.
1 Temperature selector
(with the “DUAL” button on; for driver and rear
passengers)
(with the “DUAL” button off; for driver and all
passengers)
2 Passenger side temperature control button
3 Front windshield button
4 Driver side temperature display
(in degrees Fahrenheit or Centigrade)
5 Air intake control button
6 Fan speed display
7 Air flow display
8 Passenger side temperature display
(in degrees Fahrenheit or Centigrade)
9 Center vent vane swing button
10 Air conditioning onoff button
11 Air flow control button
12 Fan speed control button
13 OFF button
14 Automatic control button
15 Separate/dual control button

AIR CONDITIONING
240

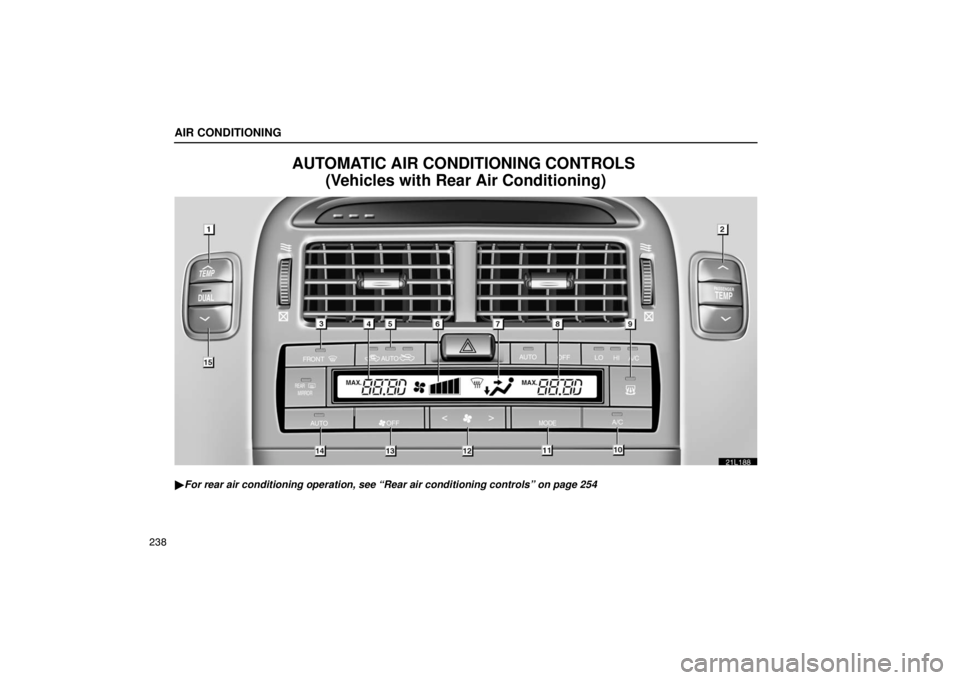

AUTOMATIC AIR CONDITIONING CONTROLS (Vehicles without Rear Air Conditioning)
21L189

AIR CONDITIONING
241
The automatic air conditioning automatically maintains
the set temperature.
This
air conditioning features automatic fan speed and air flow
control which automatically se lects the most suitable fan
speed and air flow to control the temperature.
The ignition switch must be in the “ON” position.
NOTICE
To prevent the battery from being discharged, do not
leave the air conditioning on longer than necessary
when the engine is not running.
1 Temperature selector
(with the “DUAL” button on; for driver and rear
passengers)
(with the “DUAL” button off; for driver and all
passengers)
2 Passenger side temperature control button
3 Front windshield button
4 Driver side temperature display
(in degrees Fahrenheit or Centigrade)
5 Fan speed display
6 Air flow display
7 Air intake control button
8 Passenger side temperature display
(in degrees Fahrenheit or Centigrade)
9 Center vent vane swing button
10 Air conditioning onoff button
11 Air flow control button
12 Fan speed control button
13 OFF button
14 Automatic control button
15 Separate/dual control button
