LEXUS LS430 2005 Owners Manual

OCCUPANT RESTRAINT SYSTEMS
202(A) Infant seat
16L306
(B) Convertible seat
16L307
(C) Booster seat
16L308

OCCUPANT RESTRAINT SYSTEMS
203
INSTALLATION WITH 3POINT TYPE SEAT BELT
(A) Infant seat installation
16L306
An infant seat must be used in rearfacing position only.
16L310
CAUTION

Never install a rearfacing child restraint system on
the front passenger seat. In the event of an accident,
the force of the rapid inflation of the front passenger
airbag can cause death or serious injury to the child
if the rearfacing child restraint system is installed
on the front passenger seat.

OCCUPANT RESTRAINT SYSTEMS
204
16L326
If the driver’s seat position does not allow sufficient
space for safe installation, install the child restraint
system on the rear right seat.
16L427
1
Fix both seats at the same position.
2Fix both seatbacks at the same angle.
CAUTION
When installing a child restraint system in the rear
center position, adjust both seat cushions to the same
position and align both seatbacks at the same angle.
Otherwise, the child restraint system cannot be
securely restrained and this may cause death or serious
injuries in a collision.

OCCUPANT RESTRAINT SYSTEMS
205
16L311
1. Run the lap and shoulder belt through or around the infant
seat following the instructions provided by its manufacturer
and insert the tab into the buckle taking care not to twist the
belt. Keep the lap portion of the belt tight.
CAUTION
After inserting the tab, make sure the tab and buckle
are locked and that the lap and shoulder portions of
the belt are not twisted.
 Do not insert coins, clips, etc. in the buckle as this
may prevent your child from properly latching the tab
and buckle.
 If the seat belt does not function normally, it cannot
protect your child from death or serious injury.
Contact your Lexus dealer immediately. Do not
install the child restraint system on the seat until the
seat belt is fixed.
16L312
2. Fully extend the shoulder belt to put it in the lock mode.
When the belt is then retrac ted even slightly, it cannot be
extended.
To hold the infant seat securely, make sure the belt is in the lock
mode before letting the belt retract.

OCCUPANT RESTRAINT SYSTEMS
206
16L313
3. While pressing the infant seat firmly against the seat
cushion and seatback, let the shoulder belt retract as far as it
will go to hold the infant seat securely.
16L314
CAUTION
Push and pull the child restraint system in different
directions to be sure it is secure. Follow all the
installation instructions provided by its manufacturer.

OCCUPANT RESTRAINT SYSTEMS
207
16L315

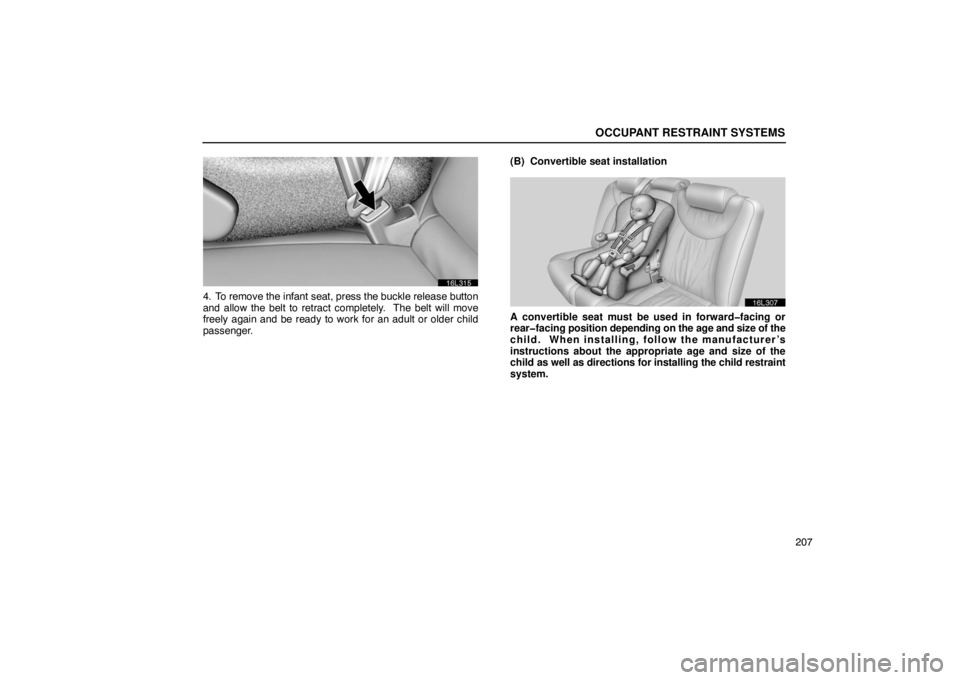

4. To remove the infant seat, press the buckle release button
and allow the belt to retract completely. The belt will move
freely again and be ready to work for an adult or older child
passenger.(B) Convertible seat installation
16L307
A convertible seat must be used in forwardfacing or
rearfacing
position depending on the age and size of the
child. When installing, follow the manufacturer’s
instructions about the appropriate age and size of the
child as well as directions for installing the child restraint
system.

OCCUPANT RESTRAINT SYSTEMS
208

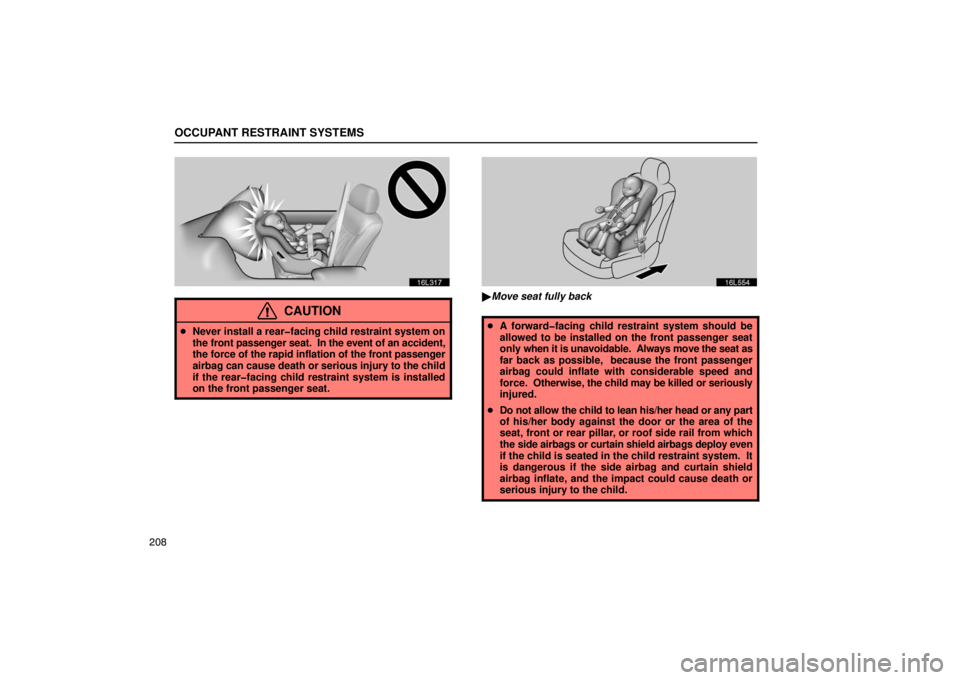

16L317
CAUTION
Never install a rearfacing child restraint system on
the front passenger seat. In the event of an accident,
the force of the rapid inflation of the front passenger
airbag can cause death or serious injury to the child
if the rearfacing child restraint system is installed
on the front passenger seat.
16L554
Move seat fully back
 A forwardfacing child restraint system should be
allowed to be installed on the front passenger seat
only when it is unavoidable. Always move the seat as
far back as possible, because the front passenger
airbag could inflate with considerable speed and
force. Otherwise, the child may be killed or seriously
injured.
 Do not allow the child to lean his/her head or any part
of his/her body against the door or the area of the
seat, front or rear pillar, or roof side rail from which
the side airbags or curtain shield airbags deploy even
if the child is seated in the child restraint system. It
is dangerous if the side airbag and curtain shield
airbag inflate, and the impact could cause death or
serious injury to the child.

OCCUPANT RESTRAINT SYSTEMS
209

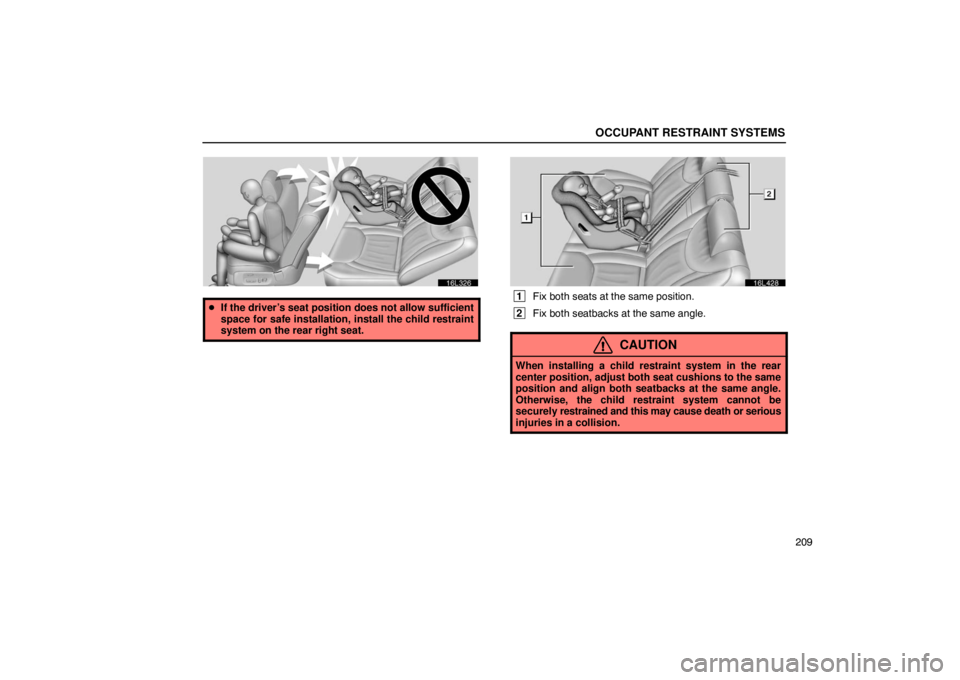

16L327
If the driver’s seat position does not allow sufficient
space for safe installation, install the child restraint
system on the rear right seat.
16L428
1
Fix both seats at the same position.
2Fix both seatbacks at the same angle.
CAUTION
When installing a child restraint system in the rear
center position, adjust both seat cushions to the same
position and align both seatbacks at the same angle.
Otherwise, the child restraint system cannot be
securely restrained and this may cause death or serious
injuries in a collision.

OCCUPANT RESTRAINT SYSTEMS
210

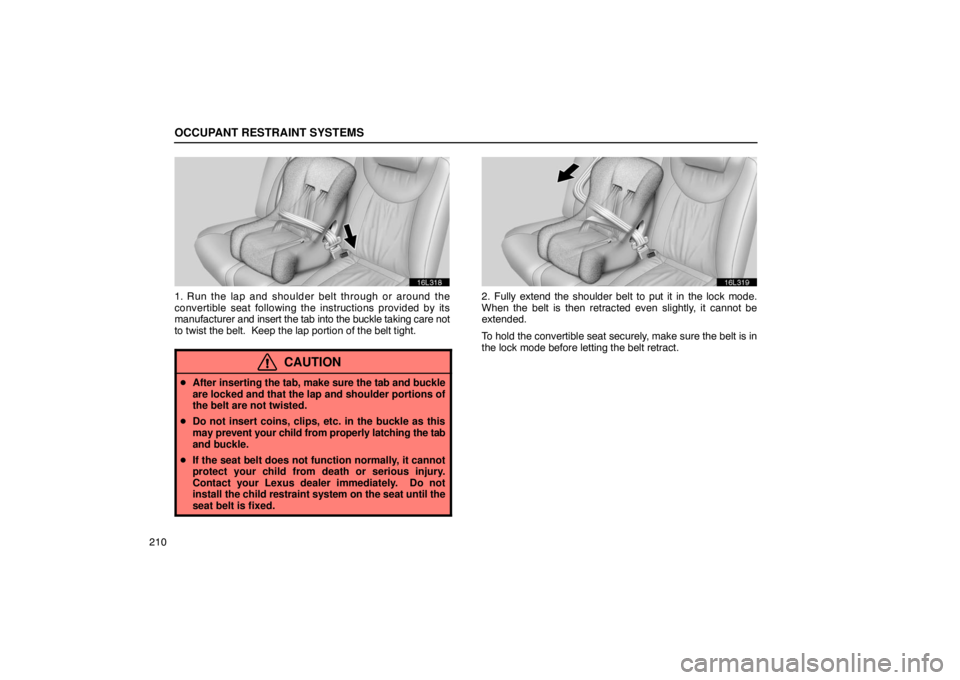

16L318
1. Run the lap and shoulder belt through or around the
convertible seat following the instructions provided by its
manufacturer and insert the tab into the buckle taking care not
to twist the belt. Keep the lap portion of the belt tight.
CAUTION
 After inserting the tab, make sure the tab and buckle
are locked and that the lap and shoulder portions of
the belt are not twisted.
 Do not insert coins, clips, etc. in the buckle as this
may prevent your child from properly latching the tab
and buckle.
 If the seat belt does not function normally, it cannot
protect your child from death or serious injury.
Contact your Lexus dealer immediately. Do not
install the child restraint system on the seat until the
seat belt is fixed.
16L319
2. Fully extend the shoulder belt to put it in the lock mode.
When the belt is then retrac ted even slightly, it cannot be
extended.
To hold the convertible seat securely, make sure the belt is in
the lock mode before letting the belt retract.

OCCUPANT RESTRAINT SYSTEMS
211
16L320

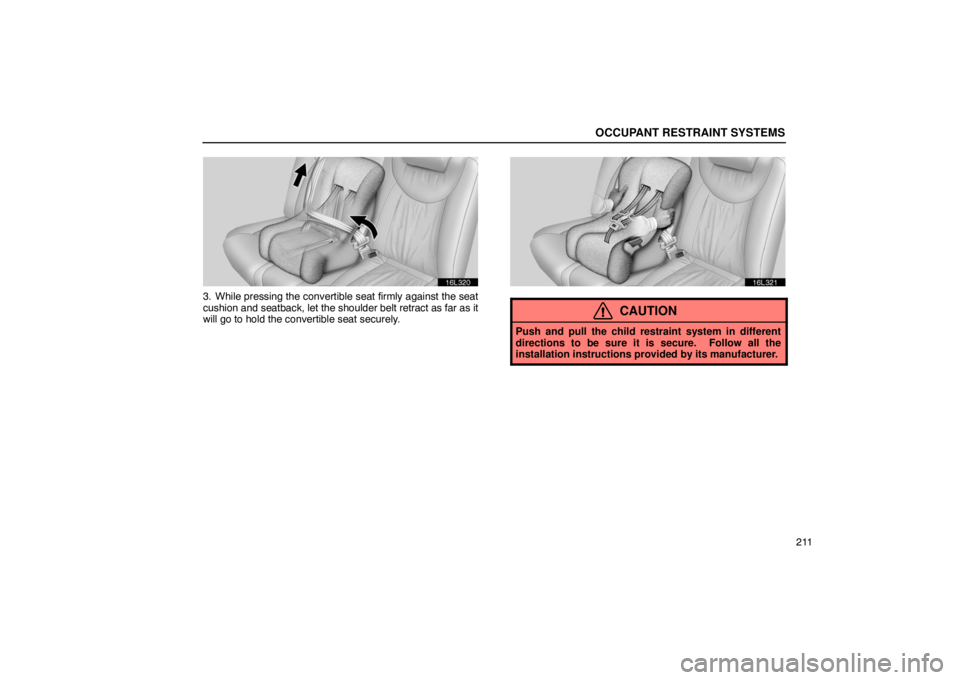

3. While pressing the convertible seat firmly against the seat
cushion and seatback, let the shoulder belt retract as far as it
will go to hold the convertible seat securely.
16L321
CAUTION
Push and pull the child restraint system in different
directions to be sure it is secure. Follow all the
installation instructions provided by its manufacturer.
