DRIVING TIPS
392
HOW TO SAVE FUEL AND MAKEYOUR VEHICLE LAST LONGER
Improving fuel economy is easy − just take it easy. It will help
make your vehicle last longer, too. Here are some specific tips
on how to save money on both fuel and repairs:
 Keep your tires inflated at the correct pressure. Check
the pressure every two weeks, or at least once a month.
Underinflation causes tire wear and wastes fuel.
 Do not carry unneeded weight in your vehicle. Excess
weight puts a heavier load on the engine, causing greater
fuel consumption.
 Avoid lengthy warmup idling. Once the engine is
running smoothly, begin driving − but gently. Remember,
however, that on cold winter days this may take a little
longer.
 Always keep the automatic transmission selector lever
in the “D” position when engine braking is not required.
Driving with the overdrive off will reduce the fuel economy
(For details, see “Automatic transmission” on page 305.)
 Accelerate slowly and smoothly. Avoid jackrabbit starts.
 Avoid long engine idling. If you have a long wait and you
are not in traffic, it is better to turn off the engine and start
again later.
 Avoid engine overrevving. Use a gear position suitable
for the road on which you are traveling.
Avoid continuous speeding up and slowing down.
Stop−and−go driving wastes fuel.
 Avoid unnecessary stopping and braking. Maintain a
steady pace. Try to time the traf fic signals so you only need
to stop as little as possible or take advantage of through
streets to avoid traffic lights. Keep a proper distance from
other vehicles to avoid sudden braking. This will also
reduce wear on your brakes.
 Avoid heavy traffic or traffic jams whenever possible.
 Do not rest your foot on the brake pedal. This causes
premature wear, overheating and poor fuel economy.
 Maintain a moderate speed on highways. The faster you
drive, the greater the fuel consumption. By reducing your
speed, you will cut down on fuel consumption.
 Keep the front wheels in proper alignment. Avoid hitting
the curb and slow down on rough roads. Improper
alignment not only causes faster tire wear but also puts an
extra load on the engine, which, in turn, wastes fuel.
 Keep the bottom of your vehicle free from mud, etc.
This not only lessens weight but also helps prevent
corrosion.

DRIVING TIPS
393

Keep your vehicle tunedup and in top shape. A dirty air
cleaner, improper valve clearance, dirty plugs, dirty oil and
grease, brakes not adjusted, etc. all lower engine
performance and contribute to poor fuel economy. For
longer life of all parts and lower operating costs, keep all
maintenance work on schedule, and if you often drive under
severe conditions, see that your vehicle receives more
frequent maintenance. (For scheduled maintenance
information, please refer to the “Owner’s Manual
Supplement / Scheduled Maintenance”.)
CAUTION
Never turn off the engine to coast down hills. Your
power steering and brake booster will not function
without the engine running. Also, the emission control
system operates properly only when the engine is
running.
VEHICLE LOAD LIMITS
Vehicle load limits include total load capacity, seating
capacity, towing capacity and cargo capacity . Follow the
load limits shown below. Total load capacity and seating
capacity are also described on the tire and loading
information label. For location of the tire and loading
information label, see “Checking tire inflation pressure”
on page 468.
Total load capacity: 410 kg (900 lb.)
Total load capacity means combined weight of
occupants, cargo and luggage. Tongue load is included
when trailer towing.
Seating capacity: Total 5 (Front 2, Rear 3)
Seating capacity means the maximum number of
occupants whose estimated average weight is 68 kg
(150 lb.) per person. Depending on the weight of each
person, the seating capacity given may exceed the total
load capacity.
NOTICE
Even if the number of occupants are within the
seating capacity, do not exceed the total load
capacity.

DRIVING TIPS
394
Towing capacity:907 kg (2000 lb.)
Towing capacity means the maximum gross trailer
weight (trailer weight plus its cargo weight) that your
vehicle is able to tow.
Cargo capacity
Cargo capacity may increase or decrease depending on
the size (weight) and the number of occupants. For
details, see “Capacity and distribution” that follows.
CAUTION
Do not apply the load more than each load limit.
That may cause not only damage to the tires, but
also deterioration to the steering ability and
braking ability, which may cause an accident.
CARGO AND LUGGAGE
Stowage precautions
When stowing cargo and luggage in the vehicle,
observe the following:
 Put cargo and luggage in the trunk when at all
possible. Be sure all items are secured in place.
 Be careful to keep the vehicle level. Placing the
weight as far forward as possible helps maintain
vehicle balance.
 For better fuel economy, do not carry unnecessary
weight.
CAUTION
Do not place anything on the package tray
behind the rear seatback. Such items may be
thrown about and possibly injure people in the
vehicle during sudden braking or in an
accident.
 Do not drive with objects left on top of the
instrument panel. They may interfere with the
driver’s field of view. Or they may move during
sharp vehicle acceleration or turning, and
impair the driver’s control of the vehicle. In an
accident they may injure the vehicle occupants.

DRIVING TIPS
395
NOTICE
Do not load the vehicle beyond the vehicle
capacity weight specified on the tire and loading
information label affixed on the center pillar on the
driver side.
Capacity and distribution
Cargo capacity depends on the total weight of the
occupants.
(Cargo capacity) = (Total load capacity) – (Total weight
of occupants)
Steps for determining correct load limit
1. Locate the statement “The combined weight of
occupants and cargo should never exceed XXX pounds”
on your vehicle’s placard.
2. Determine the combined weight of the driver and
passengers that will be riding in your vehicle.
3. Subtract the combined weight of the driver and
passengers from XXX kilograms or XXX pounds.
4. The resulting figure equals the available amount of
cargo and luggage load capacity. For example, if the
“XXX” amount equals 1400 lbs. and there will be five 150
lb. passengers in your vehicle, the amount of available
cargo and luggage load capacity is 650 lbs. 1400 – 750
(5 x 150) = 650 lbs.
5. Determine the combined weight of luggage and cargo
being loaded on the vehicle. That weight may not safely
exceed the available cargo and luggage load capacity
calculated in Step 4.

DRIVING TIPS
396
6. If your vehicle will be towing a trailer, load from your
trailer will be transferred to your vehicle. Consult this
manual to determine how this reduces the available
cargo and luggage load capacity of your vehicle.

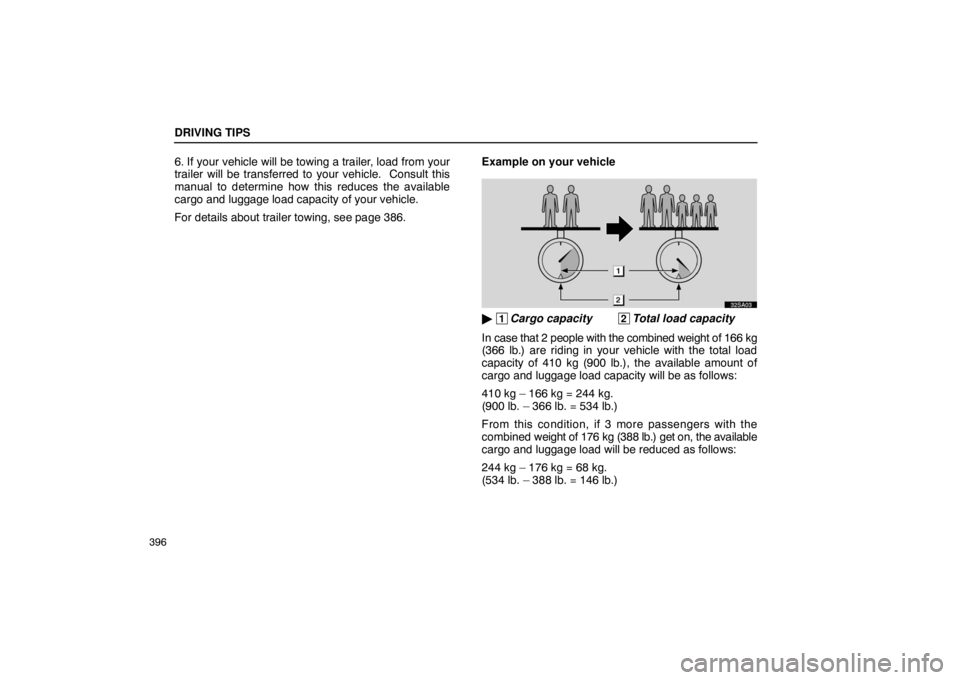

For details about trailer towing, see page 386.Example on your vehicle
32SA03
 1Cargo capacity
2Total load capacity
In case that 2 people with the combined weight of 166 kg
(366 lb.) are riding in your vehicle with the total load
capacity of 410 kg (900 lb.), the available amount of
cargo and luggage load capacity will be as follows:
410 kg – 166 kg = 244 kg.
(900 lb. – 366 lb. = 534 lb.)
From this condition, if 3 more passengers with the
combined weight of 176 kg (388 lb.) get on, the available
cargo and luggage load will be reduced as follows:
244 kg – 176 kg = 68 kg.
(534 lb. – 388 lb. = 146 lb.)

DRIVING TIPS
397
As shown in the above example, if the number of
occupants increases, the cargo and luggage load
equaling the combined weight of occupants who got on
later must be reduced. In other words, if the increase in
the number of occupants causes the excess of the total
load capacity (combined weight of occupants plus cargo
and luggage load), you have to reduce the cargo and
luggage on your vehicle.
For details about total load capacity, see “Vehicle load
limits” on page 393.

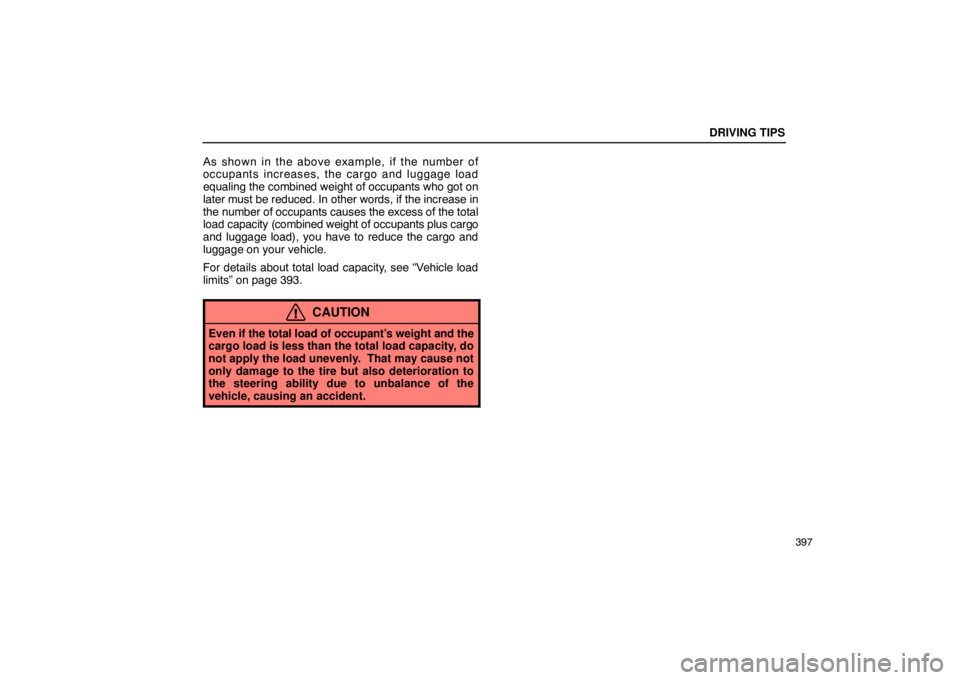

CAUTION
Even if the total load of occupant’s weight and the
cargo load is less than the total load capacity, do
not apply the load unevenly. That may cause not
only damage to the tire but also deterioration to
the steering ability due to unbalance of the
vehicle, causing an accident.

DRIVING TIPS
398

SECTION 4
399
IN CASE OF AN EMERGENCY
In case of an emergency
If your engine stalls while driving400
. . . . . . . . . . . . . . . . . . . . . . . . . . .
If your vehicle will not start 400
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
If you cannot increase engine speed 404
. . . . . . . . . . . . . . . . . . . . . . . .
If your vehicle overheats 404
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
If you have a flat tire 405
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
.
If your vehicle becomes stuck 415
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
If your vehicle needs to be towed 416
. . . . . . . . . . . . . . . . . . . . . . . . . .
If you cannot shift automatic transmission
selector lever 423
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . .
If you lose your keys or lock yourself out 424
. . . . . . . . . . . . . . . . . . . .

IN CASE OF AN EMERGENCY
400
IF YOUR ENGINE STALLS WHILEDRIVING
If your engine stalls while driving . . .
1. Reduce your speed gradually, keeping a straight line. Move
cautiously off the road to a safe place.
2. Turn on your emergency flashers.
3. Turn the ignition switch to “ACC” or “LOCK”, and try starting
the engine again.
If the engine will not start, see “If your vehicle will not start”\
.
CAUTION
If the engine is not running, the power assist for the
brakes and steering will not work, so steering and
braking will be much harder than usual.
IF YOUR VEHICLE WILL NOT START
(a) Simple checks
Before making these checks, make sure you have followed the
correct starting procedure instructions in “How to start the
engine” on page 304 and that you have sufficient fuel. Since
your vehicle is equipped with the engine immobilizer system,
also check whether the other keys will start the engine. If they
work, your key may be broken. Have the key checked at your
Lexus dealer. If none of your keys work, there may be a
malfunction in the immobilizer system. Call your Lexus dealer.
See “Keys” on page 10.
If the engine is not turning over or is turning over too
slowly
1. Check that the battery terminals are tight and clean.
2. If the battery terminals are O.K., switch on the interior light.
3. If the light is out, dim or goes out when the starter is cranked,
the battery is discharged. You may try jump starting. See “(c)
Jump starting” for further instruction.
If the light is O.K., but the engine still will not start, it needs
adjustment or repair. Call a Lexus dealer, Roadside
Assistance or Customer Service Assistance. (See
“Foreword”.)

IN CASE OF AN EMERGENCY
401
NOTICE
Do not pull or pushstart the vehicle. It may damage
the vehicle or cause a collision when the engine starts.
Also the threeway catalytic converter may overheat
and become a fire hazard.
If the engine turns over at its normal speed but will not
start
1. If the engine will not start, the engine may be flooded
because of repeated cranking. See “(b) Starting a flooded
engine” for further instructions.
2. If the engine still will not start, it needs adjustment or repair.
Call a Lexus dealer, Roadside Assistance or Customer
Service Assistance. (See “Foreword”.)
(b) Starting a flooded engine
If the engine will not start, your engine may be flooded
because of repeated cranking.
If this happens, turn the ignition switch to “START” with the
accelerator pedal fully depressed. Continue this operation for
30 seconds and then stop cranking. Then try starting the
engine with your foot off the accelerator pedal.
If the engine does not start after 30 seconds of cranking,
release the ignition switch, wait a few minutes and try again.
If the engine still will not start, it needs adjustment or repair.
Call a Lexus dealer, Roadside Assistance or Customer
Service Assistance. (See “Foreword”.)
NOTICE
Do not crank for more than 30 seconds at a time. This
may overheat the starter and wiring systems.
(c) Jump starting
To avoid serious personal injury and damage to your
vehicle which might result from battery explosion, acid
burns, electrical burns, or damaged electronic
components, these instructions must be followed
precisely.
If you are unsure about how to follow this procedure, we
strongly recommend that you seek help from your Lexus
dealer, Roadside Assistance or Customer Service Assistance.
(See “Foreword”.)
