ELECTRICAL COMPONENTS
492
64L206
Engine compartment
No.FUSEAMPERECIRCUIT
1 TI & TE20Tilt and telescopic steering
2 PANEL7.5
Lexus park assist system, Rear
seat heater, Rear climate
control seat, Multi− information
display, Audio system,
Cigarette lighter, Instrument
panel light, Coin box light, Rear
mirror light, Glove box light,
Power rear seat, Electronically
modulated air suspension
system, Turn signal lights,
Clock, Shift lock system,
Vehicle stability control system,
Sunshade, Power rear view
mirror control system, Console
box light, Fuel opener system,
Adaptive Front Lighting System
(AFS)
3 D P/SEAT30Power seat system
4 GAUGE7.5Gauges and meters, Lexus
park assist system, Shift lock
system
5 MPXIG7.5
Tilt and telescopic steering,
Power door lock system, Power
seat system, Engine
immobilizer system
6 D S/HTR15Seat heater, Climate control
seat system
7 AIR SUS20Electronically modulated air
suspension system
8 DACC7.5Shift lock system, Theft
deterrent system

ELECTRICAL COMPONENTS
493
No.FUSEAMPERECIRCUIT
9 PWR
OUTLET15Power outlet
10 DCIG15Rear cigarette lighter
11 OBD7.5On− board diagnosis system
12 AM17.5Starting system
13 ABSIG7.5Vehicle stability control system
14 D B/ANC5Seat belts
15 SECURITY7.5Theft deterrent system
16 A/C7.5Air conditioning system
17 STOP5Stop lights
18 D RRIG10Refreshing seat
19 IG230SRS airbag system, Engine
immobilizer system, Steering
lock system, Starting system
20 HAZ15Emergency flashers
21 STR LOCK7.5Steering lock system
22 AM27.5All components in “STA” and
“IG2”, Starting system
23 MPXB17.5
Power door lock system,
Engine immobilizer system,
Steering lock system, Front
power seat, Rear power seat
24 MPXB37.5
Tilt and telescopic steering,
Headlight switch, Windshield
wiper and washer switch, Turn
signal switch
No.FUSEAMPERECIRCUIT
25 DOME10
Vanity lights, Outer foot lights,
Ignition switch light, Clock,
Gauges and meters, Interior
lights, Personal lights
26 MPXB27.5Gauges and meters, Vehicle
stability control system,
Illuminated entry system, TEL
27 P RRIG10Refreshing seat
28 HLP LVL7.5Headlight leveling system,
Adaptive Front Lighting System
(AFS)
29 PIG7.5Rain sensor, Air conditioning
system, Moon roof,
Multi −information display, Clock
30 P S/HTR15Seat heater, Climate control
seat system
31 PACC7.5
Air conditioning system, Audio
system, Clock,
Multi −information display,
Illuminated entry system
32 PCIG15Front cigarette lighter
33 RADIO
NO.17.5Audio system
34 RR DOOR LH20Power door lock system, Power
window, Door closer system,
Door courtesy lights

ELECTRICAL COMPONENTS
494
No.FUSEAMPERECIRCUIT
35 P DOOR25
Power door lock system, Power
rear view mirror control system,
Outside rear view mirror
defogger, Door closer system,
Door courtesy lights, Power
windows
36 TEL7.5Audio system, Navigation
system
37 P B/ANC5Seat belts, Seat belt buckle
illumination
38 RR DOORRH20Power door lock system, Power
window, Door closer system,
Door courtesy lights
39 D DOOR25
Power door lock system, Door
closer system, Power rear view
mirror control system, Outside
rear view mirror defogger, Door
courtesy lights, Power windows
40 RR IG7.5
Lexus park assist system,
Electronically modulated air
suspension system, Theft
deterrent system, TEL
41 RR ACC7.5Audio system, TEL
42 RR ECUB7.5Rear air conditioning system,
Theft deterrent system, Trunk
light, Refreshing rear seat
43 RR A/C7.5Rear air conditioning system,
Air purifier
44 RR S/HTR30Seat heater, Climate control
seat system
No.FUSEAMPERECIRCUIT
45 RR
S/SHADE15Sunshade
46 LCE LP7.5License plate lights
47 S/ROOF30Moon roof
48 FUEL OPN10Fuel opener system, Trunk lid
closer system
49 AMP30Audio system
50 P P/SEAT30Power seat system
51 RR SEAT LH30Power seat system
52 RR SEATRH30Power seat system
53 LUG J/B50
All components in “RR SEAT
RH”, “RR SEAT LH”, “S/ROOF”,
“AMP”, “RR IG”, “RR ECU −B”,
“P P/SEAT”, “RR S/HTR”, “RR
S/SHADE”, “RR A/C”, “RR
ACC”, “FUEL OPN” and “LCE
LP”, Tail lights and Stop lights
54 ABS 250Vehicle stability control system
55 HEATER50Air conditioning system
56 ABS 130Vehicle stability control system
57 DEFOG40Rear window defogger
58 AIR SUS40Electronically modulated air
suspension system

ELECTRICAL COMPONENTS
495
No.FUSEAMPERECIRCUIT
59 R/B60
All components in “FR FOG”,
“TAIL”, “WASHER”, “FR IG”,
“WIP”, “H−LP CRN” and “A/C
IG”
60 FA N80Air conditioning system
61 DJ/B80
All components in “TI & TE”, “D
P/SEAT”, “A/C”, “OBD”,
“STOP”, “AM1”, “MPX −IG”,
“ABS− IG”, “GAUGE”,
“AIRSUS”, “D S/HTR”,
“SECURITY”, “PANEL”, “D
B/ANC”, “PWR OUTLET”,
“D− CIG”, “D RR− IG” and
“D−ACC”
62 ALT140Charging system
63 PJ/B80
All components in “RR DOOR
RH”, “RR DOOR LH”, “D
DOOR”, “H− LP LVL”, “P
DOOR”, “P S/HTR”, “P− IG”,
“P− ACC”, “P B/ANC”, “P −CIG”,
“TEL” and “P RR −IG”
64 BATT30All components in “RADIO
NO.1”, “AM2”, “HAZ” and “STR
LOCK”
65 ST30Starting system
66 D/C CUT20All components in “DOME”,
“MPX− B1”, “MPX− B2” and
“MPS−B3”
67 ALTS5Charging system
68 FA N50Air conditioning system
No.FUSEAMPERECIRCUIT
69 LUG J/B60
All components in “RR SEAT
RH”, “RR SEAT LH”, “S/ROOF”,
“AMP”, “RR IG”, “RR ECU −B”,
“P P/SEAT”, “RR S/HTR”, “RR
S/SHADE”, “RR A/C”, “RR
ACC”, “FUEL OPN” and “LCE
LP”, Tail lights and Stop lights
70 HLP R
LW R15Right− hand headlight (low
beam)
71 HLP L
LW R15Left− hand headlight (low beam)
72 EFI NO.27.5Multiport fuel injection
system/sequential multiport fuel
injection system
73 STA7.5Multiport fuel injection
system/sequential multiport fuel
injection system
74 INJ10Multiport fuel injection
system/sequential multiport fuel
injection system
75 IGN7.5Multiport fuel injection
system/sequential multiport fuel
injection system
76 FR IG7.5
Electric cooling fan, Headlight
cleaner, Charging system,
Starting system, Rear window
defogger
77 A/C IG7.5Air conditioning system
78 WIP30Windshield wiper

ELECTRICAL COMPONENTS
496
No.FUSEAMPERECIRCUIT
79 FR FOG15Fog lights
80 WASHER20Windshield washer
81 TAIL7.5Tail lights, Parking lights, Side
marker lights
82 HLP CLN30Headlight cleaner
83 EFI NO.125Multiport fuel injection
system/sequential multiport fuel
injection system
84 HORN10Horns
85 ETCS10Multiport fuel injection
system/sequential multiport fuel
injection system
86 HLP HI20Headlights (high beam)
CHECKING BATTERY CONDITION
Precautions

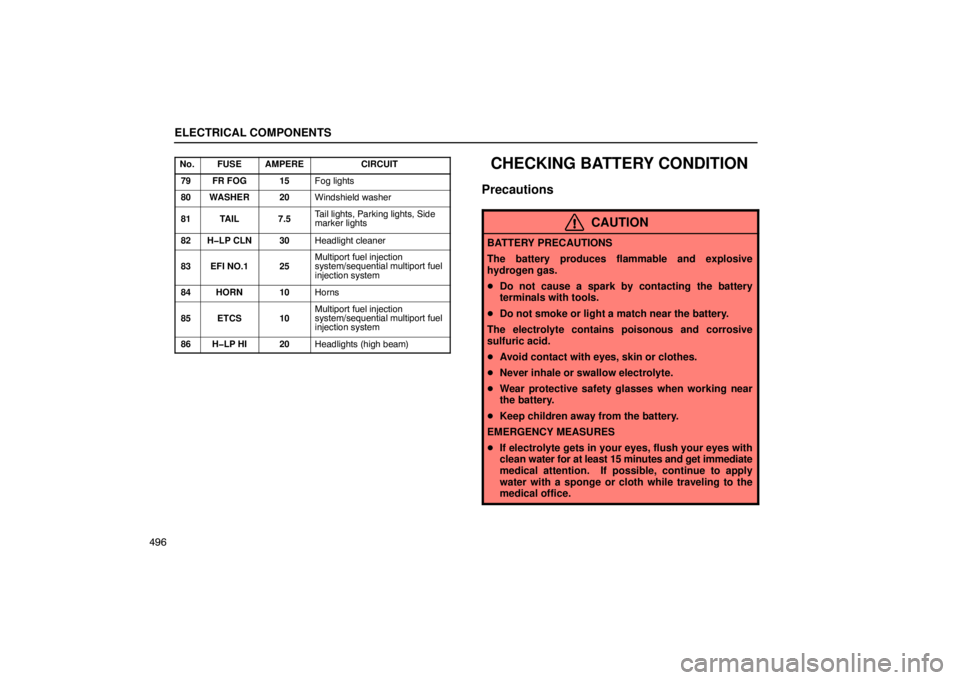

CAUTION
BATTERY PRECAUTIONS
The battery produces flammable and explosive
hydrogen gas.
Do not cause a spark by contacting the battery
terminals with tools.
 Do not smoke or light a match near the battery.
The electrolyte contains poisonous and corrosive
sulfuric acid.
 Avoid contact with eyes, skin or clothes.
 Never inhale or swallow electrolyte.
 Wear protective safety glasses when working near
the battery.
 Keep children away from the battery.
EMERGENCY MEASURES
 If electrolyte gets in your eyes, flush your eyes with
clean water for at least 15 minutes and get immediate
medical attention. If possible, continue to apply
water with a sponge or cloth while traveling to the
medical office.

ELECTRICAL COMPONENTS
497
If electrolyte gets on your skin, thoroughly wash the
contacted area. If you feel a pain or burn, get medical
attention immediately.
 If electrolyte gets on your clothes, there is a
possibility of its soaking through to your skin, so
immediately take off the exposed clothing and follow
the procedure above, if necessary.
 If you accidentally swallow electrolyte, drink a large
quantity of water or milk. Follow with milk of
magnesia, beaten ra w egg or vegetable oil. Then go
immediately for emergency help.
 Warning: Battery posts, terminals and related
accessories contain lead and lead compounds,
chemicals known to the State of California to cause
cancer and reproductive harm. Wash hands after

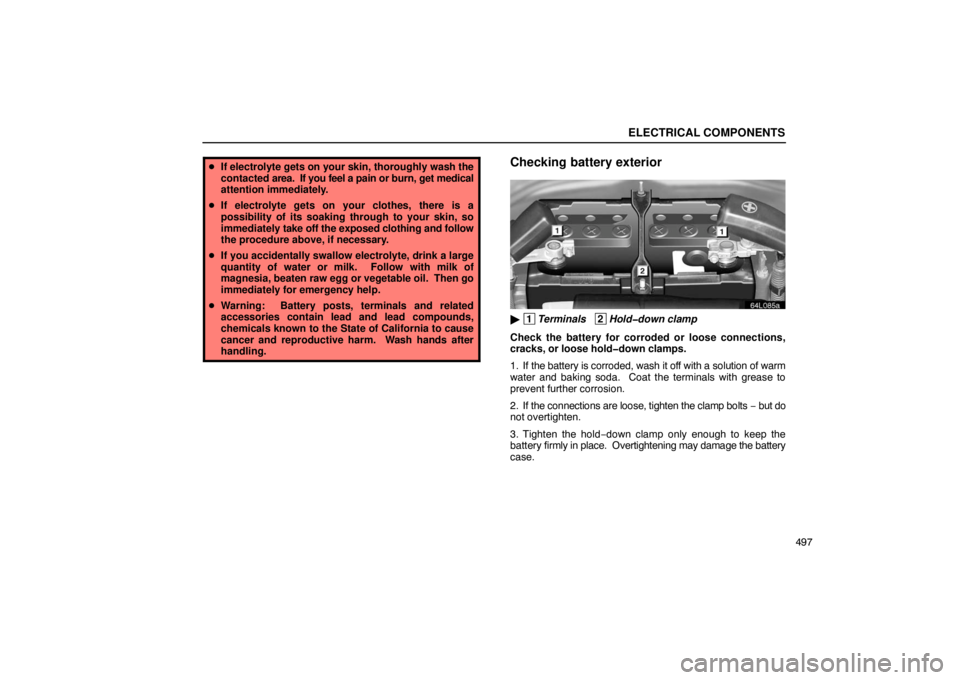

handling.Checking battery exterior
64L085a
 1
Terminals 2Holddown clamp
Check the battery for corroded or loose connections,
cracks, or loose holddown clamps.
1. If the battery is corroded, wash it off with a solution of warm
water and baking soda. Coat the terminals with grease to
prevent further corrosion.
2. If the connections are loose, tighten the clamp bolts − but do
not overtighten.
3. Tighten the hold −down clamp only e nough to keep the
battery firmly in place. Overtightening may damage the battery
case.

ELECTRICAL COMPONENTS
498
NOTICE
Make sure the engine and all accessories are turned
off before performing maintenance.
 When checking the battery, remove the ground cable
first and reinstall it last.
 Be careful not to cause a short circuit with tools.
 Take care no solution gets into the battery when
washing it.
Checking battery condition
Checking by indicator
64L086a
Check the battery condition by the indicator color.
1
BLUE − Good condition.
2
WHITE − Charging necessary. Have the battery checked
by your Lexus dealer.
3 RED − Have the battery checked by your Lexus dealer.
NOTICE
Do not refill the battery with water.

ELECTRICAL COMPONENTS
499
BATTERY RECHARGINGPRECAUTIONS
During recharging, the battery is producing hydrogen
gas.
Therefore, before recharging:
1. If recharging with the battery installed on the vehicle, be
sure to disconnect the ground cable.
2. Make sure the power switch on the recharger is off when
connecting the charger cables to the battery and when
disconnecting them.
CAUTION
Always charge the battery in an unconfined area. Do
not charge the battery in a garage or closed room
where there is not sufficient ventilation.
 Only do a slow charge (5 A or less). Charging at a
quicker rate is dangerous. The battery may explode
causing personal injuries.
NOTICE
Never recharge the battery while the engine is running.
Also, make sure all accessories are turned off.
CHECKING AND REPLACING THE BLADE TYPE FUSES
64L087a
Engine compartment 1
Spare fuses 2Pullout tool
64L089a
Engine compartment

ELECTRICAL COMPONENTS
500
64L207
Driver’s side kick panel
64L090
Passenger’s side kick panel
64L092
Trunk
1. Turn the ignition switch off and open the fuse box lid.
Determine which fuse may be causing the problem. The lid of
the fuse box shows the name of the circuit for each fuse.
64L203
2. Make sure the inoperative component is turned off. Pull
the suspected fuse straight out with the pullout tool and
check it. If it has blown, push a new fuse into the clips.

ELECTRICAL COMPONENTS
501
omg061c
Good Blown
a. Look carefully at the fuse. If the thin wire is broken, the fuse
has blown. If you are not sure or if it is too dark to see, try
replacing the suspected fuse with one of the same value that
you know is good.
b. Only install a fuse with the amperage rating designated on
the fuse box lid.
If you do not have a spare fuse, in an emergency you can pull
out the “D−CIG”, “P RR −IG” or “OBD” fuse, which may be
dispensable for normal driving, and use it if its amperage rating
is the same.
If you cannot use one of the same amperage, use one lower
than, but as close to the amperage as possible. If the
amperage is lower than that specified, the fuse might blow out
again but this does not indicate anything wrong. Be sure to get
the correct fuse as soon as possible and return the substitute
to its original clips. It is a good idea to purchase a
set of spare fuses and keep them
in your vehicle for emergencies.
If the new fuse immediately blows out, there is a problem with
the electrical system. Have your Lexus dealer correct it as
soon as possible.
CAUTION
Never use a fuse with a higher amperage rating, or any
other object, in place of a fuse. This may cause
extensive damage and possibly a fire.
