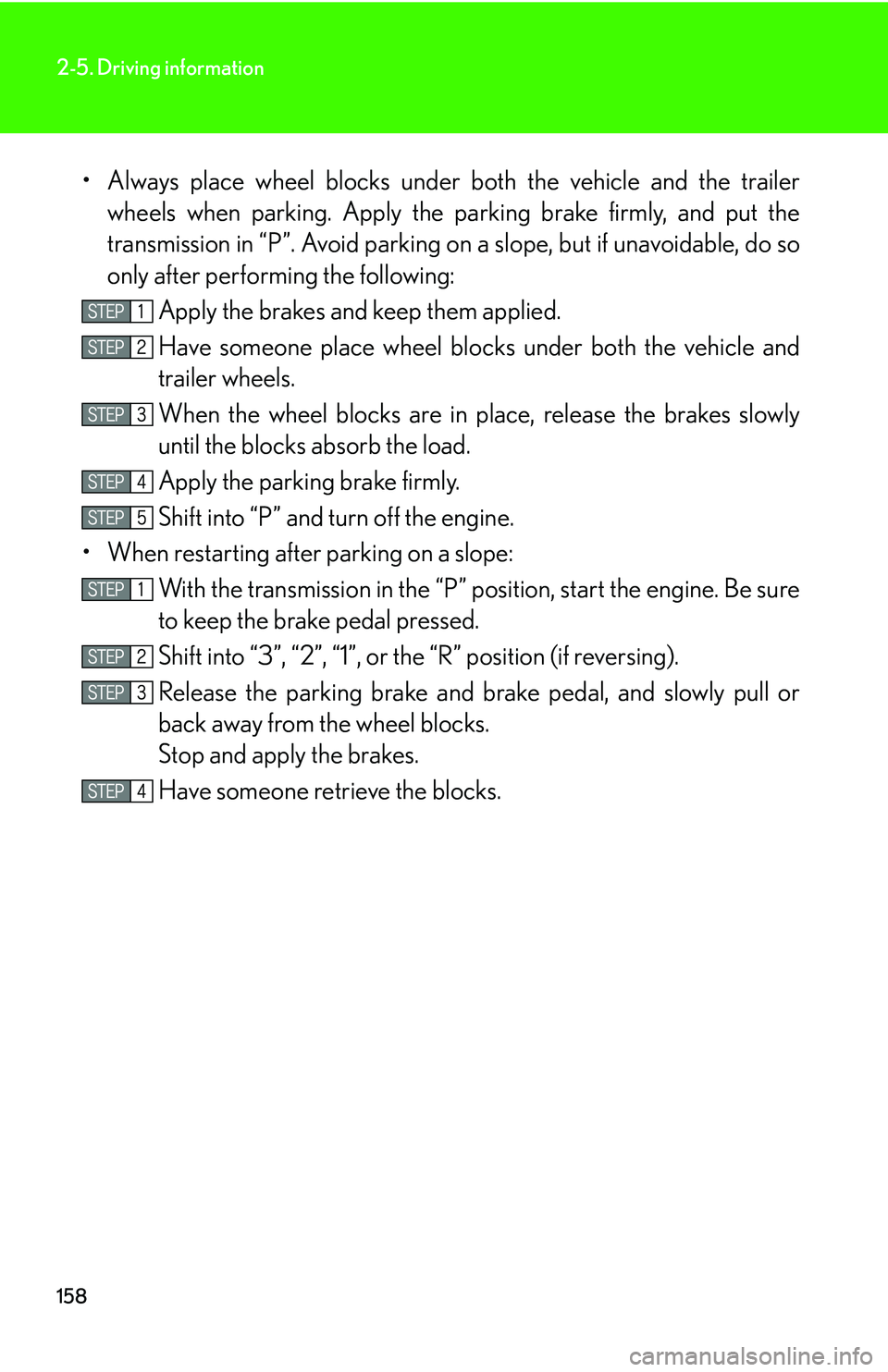

158
2-5. Driving information
• Always place wheel blocks under both the vehicle and the trailer
wheels when parking. Apply the pa rking brake firmly, and put the
transmission in “P”. Avoi d parking on a slope, but if unavoidable, do so
only after performing the following:
Apply the brakes and keep them applied.
Have someone place wheel blocks under both the v
ehicle and
trailer wheels.
When the wheel blocks are in pl ace, r
elease the brakes slowly
until the blocks absorb the load.
Apply the parking brake firmly.
Shift into “P” and turn off the engine.
• When restarting after parking on a slope:
With the transmission in the “P” position, star
t the engine. Be sure
to keep the brake pedal pressed.
Shift into “3”, “2”, “1”, or the “R” position (if r
eversing).
Release the parking brake and br ak
e pedal, and slowly pull or
back away from the wheel blocks. 
Stop and apply the brakes.
Have someone retrieve the blocks.

261
4-3. Do-it-yourself maintenance
4
Maintenance and care
Positioning the jack
CAUTION
■When raising your vehicle:
Make sure to observe the following to reduce the possibility of death or serious
injur
y.
• Do not put any part of your body or get underneath the vehicle supported only b
y the jack. Always use automotive jack stands or a solid, level, surface.
• Do not start or run the engine while your vehicle is supported by the jack.
• Stop the vehicle on level firm ground, firmly
set the parking brake and put the
selector lever in “P” position.
• Make sure to set the jack properly at the jack point. 
Raising the vehicle with an improperly positioned jack will damage the vehicle
or
may allow the vehicle to fall off the jack.
• Do not raise the vehicle with someone in the vehicle.
• When raising the vehicle, do not place an y ob
jects on top of or underneath the
jack.
When raising your vehicle, position the jack correctly.
Improper placement may damage your vehicle or cause injury.
Dummy

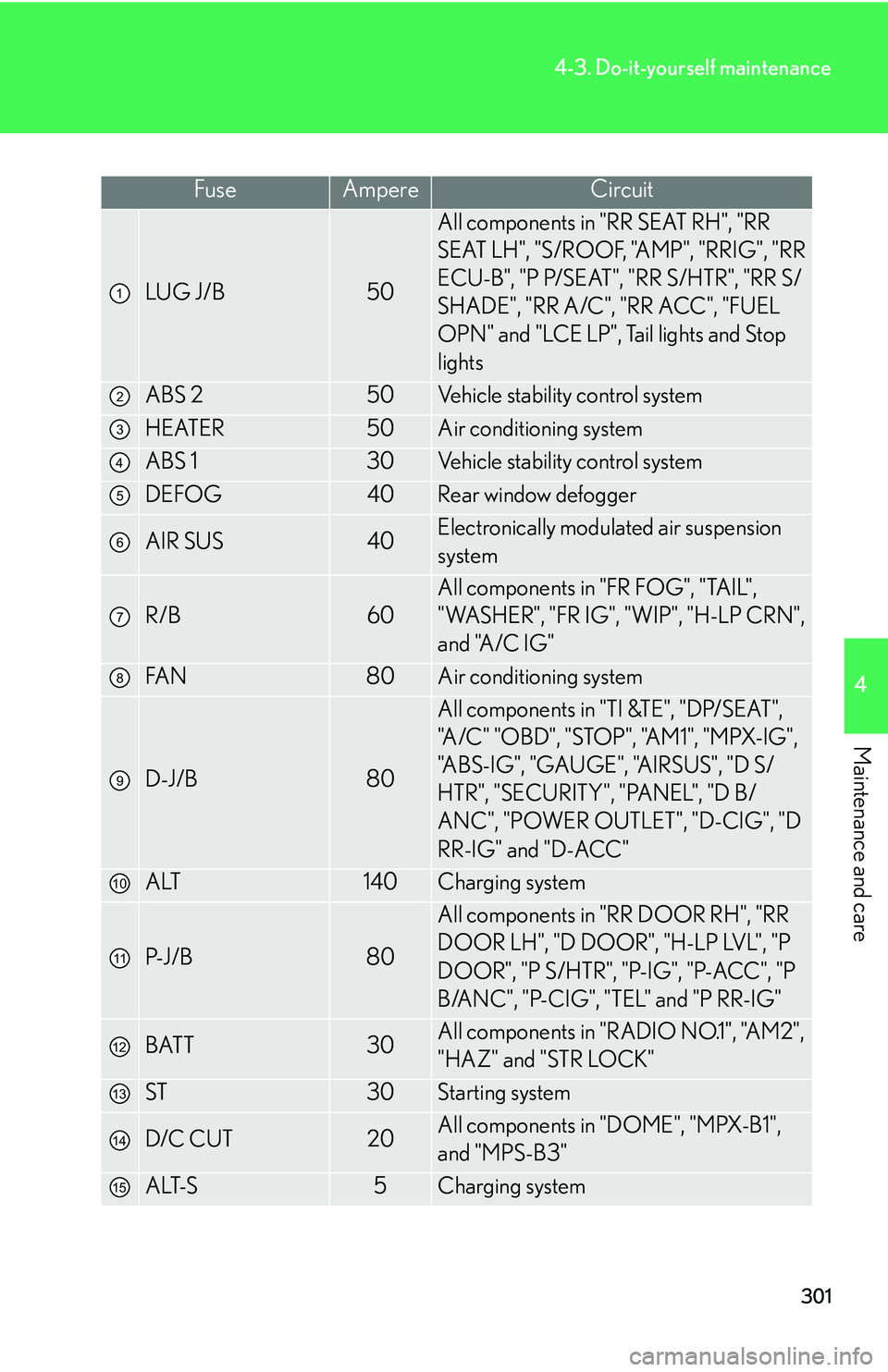

301
4-3. Do-it-yourself maintenance
4
Maintenance and care
FuseAmpereCircuit
LUG J/B50
All components in "RR SEAT RH", "RR
SEAT LH", "S/ROOF, "AMP", "RRIG", "RR
ECU-B", "P P/SEAT", "RR S/HTR", "RR S/
SHADE", "RR A/C", "RR ACC", "FUEL
OPN" and "LCE LP", Tail lights and Stop
lights
ABS 250Vehicle stability control system
HEATER50Air conditioning system
ABS 130Vehicle stability control system
DEFOG40Rear window defogger
AIR SUS40Electronically modulated air suspension
system
R/B60
All components in "FR FOG", "TAIL",
"WASHER", "FR IG", "WIP", "H-LP CRN",
and "A/C IG"
FA N80Air conditioning system
D-J/B80
All components in "TI &TE", "DP/SEAT",
"A/C" "OBD", "STOP", "AM1", "MPX-IG",
"ABS-IG", "GAUGE", "AIRSUS", "D S/
HTR", "SECURITY", "PANEL", "D B/
ANC", "POWER OUTLET", "D-CIG", "D
RR-IG" and "D-ACC"
A LT140Charging system
P-J / B80
All components in "RR DOOR RH", "RR
DOOR LH", "D DOOR", "H-LP LVL", "P
DOOR", "P S/HTR", "P-IG", "P-ACC", "P
B/ANC", "P-CIG", "TEL" and "P RR-IG"
B AT T30All components in "RADIO NO.1", "AM2",
"HAZ" and "STR LOCK"
ST30Starting system
D/C CUT20All components in "DOME", "MPX-B1",
and "MPS-B3"
A LT- S5Charging system
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

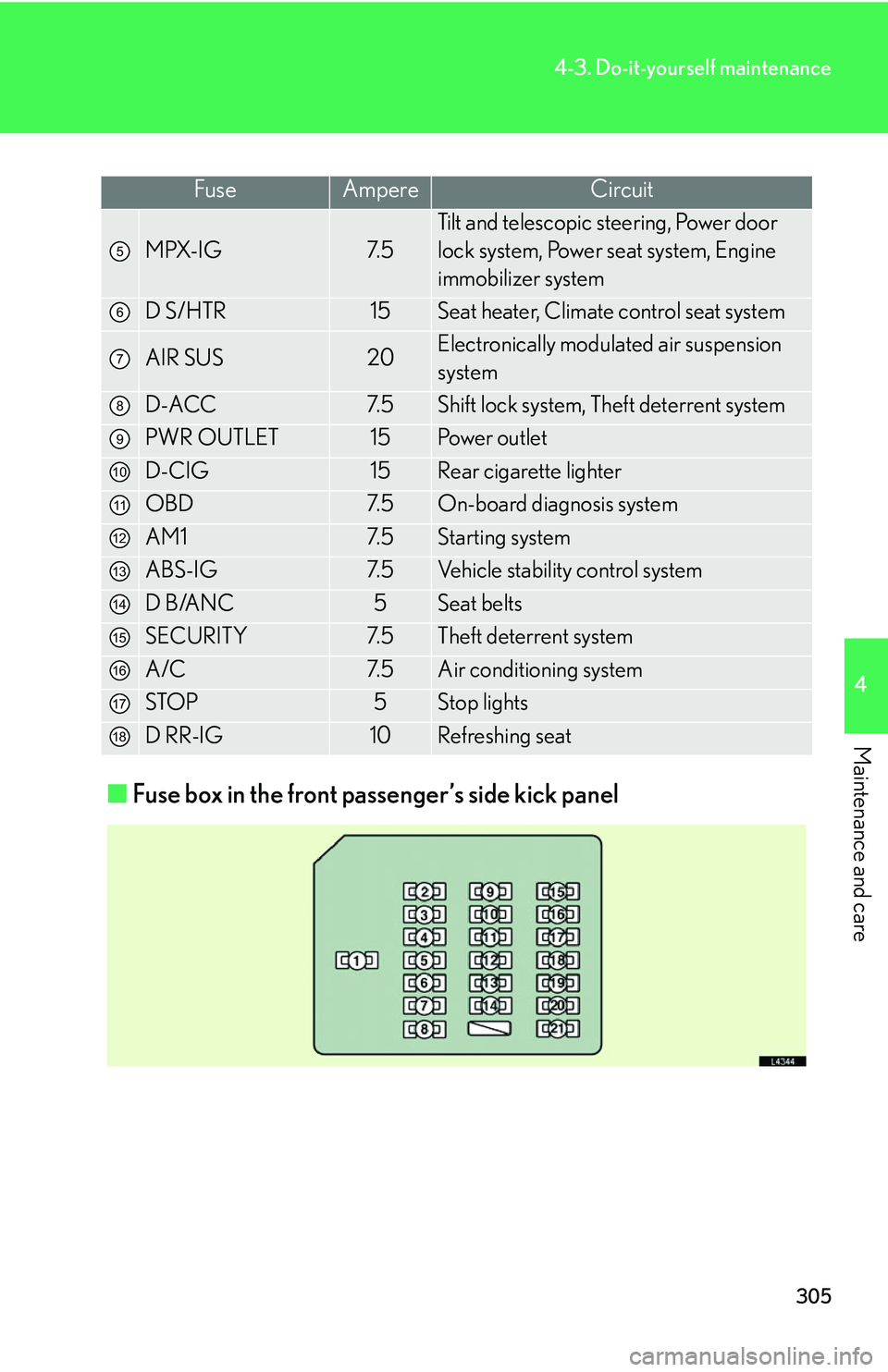

305
4-3. Do-it-yourself maintenance
4
Maintenance and care
■Fuse box in the front passenger’s side kick panel
FuseAmpereCircuit
MPX-IG7. 5
Tilt and telescopic steering, Power door
lock system, Power seat system, Engine
immobilizer system
D S/HTR15Seat heater, Climate control seat system
AIR SUS20Electronically modula ted air suspension
system
D-ACC7. 5Shift lock system, Theft deterrent system
PWR OUTLET15Power outlet
D-CIG15Rear cigarette lighter
OBD7. 5On-board diagnosis system
AM17. 5Starting system
ABS-IG7. 5Vehicle stability control system
D B/ANC5Seat belts
SECURITY7. 5Theft deterrent system
A/C7. 5Air conditioning system
STO P5Stop lights
D RR-IG10Refreshing seat
5
6
7
8
9
10
11
12
13
14
15
16
17
18

5
When trouble arises

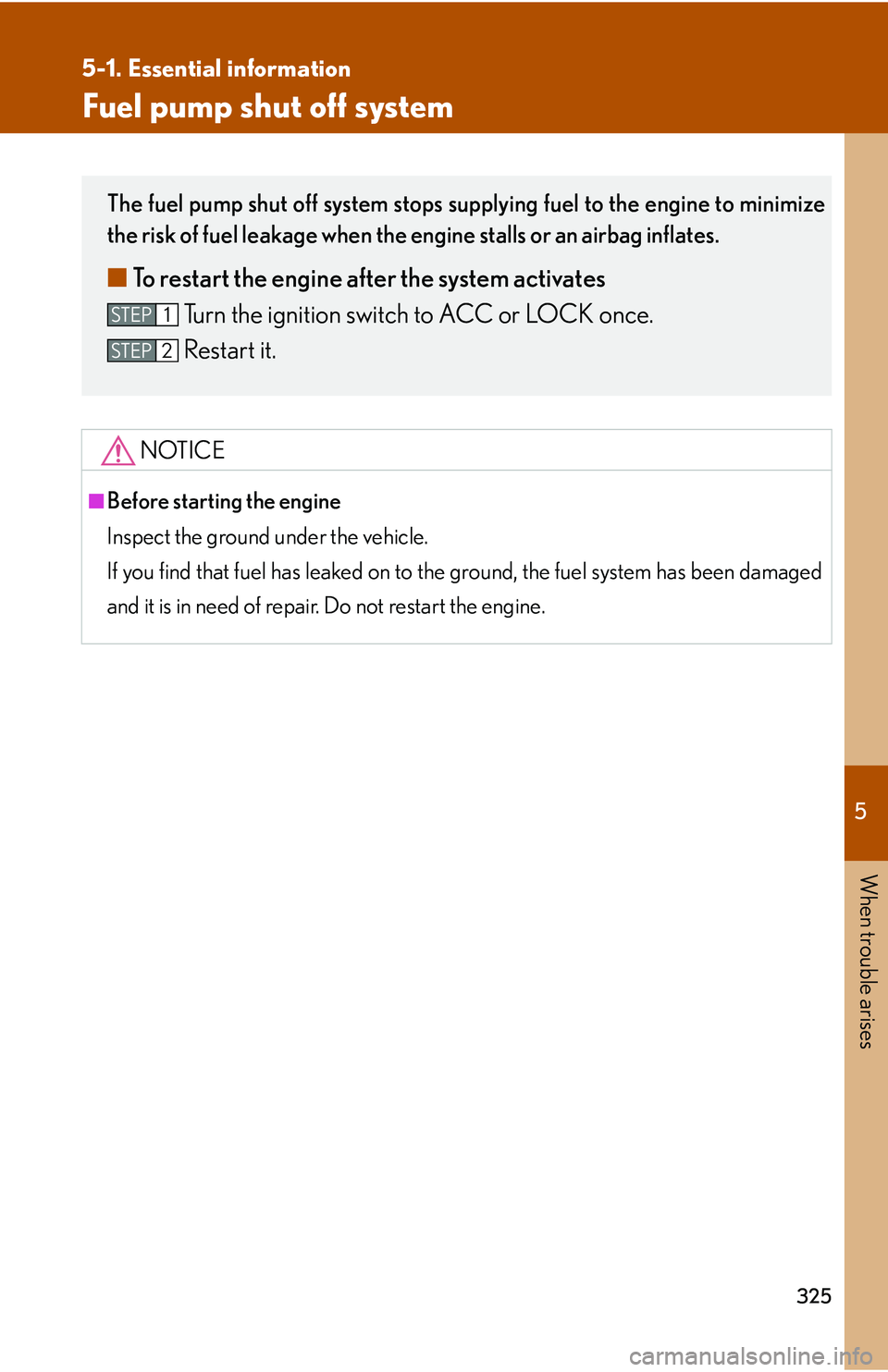

325
5-1. Essential information
Fuel pump shut off system
NOTICE
■Before starting the engine
Inspect the ground under the vehicle.
If you find that fuel has leaked on to the ground, the fuel system has been damaged
and it is in
need of repair. Do not restart the engine.
The fuel pump shut off system stops suppl ying fuel to the engine to minimize
the risk of fuel leakage when the en gine stalls or an airbag inflates.
■To restart the engine after the system activates
Turn the ignition switch to ACC or LOCK once.
Restart it.
STEP1
STEP2

5
When trouble arises

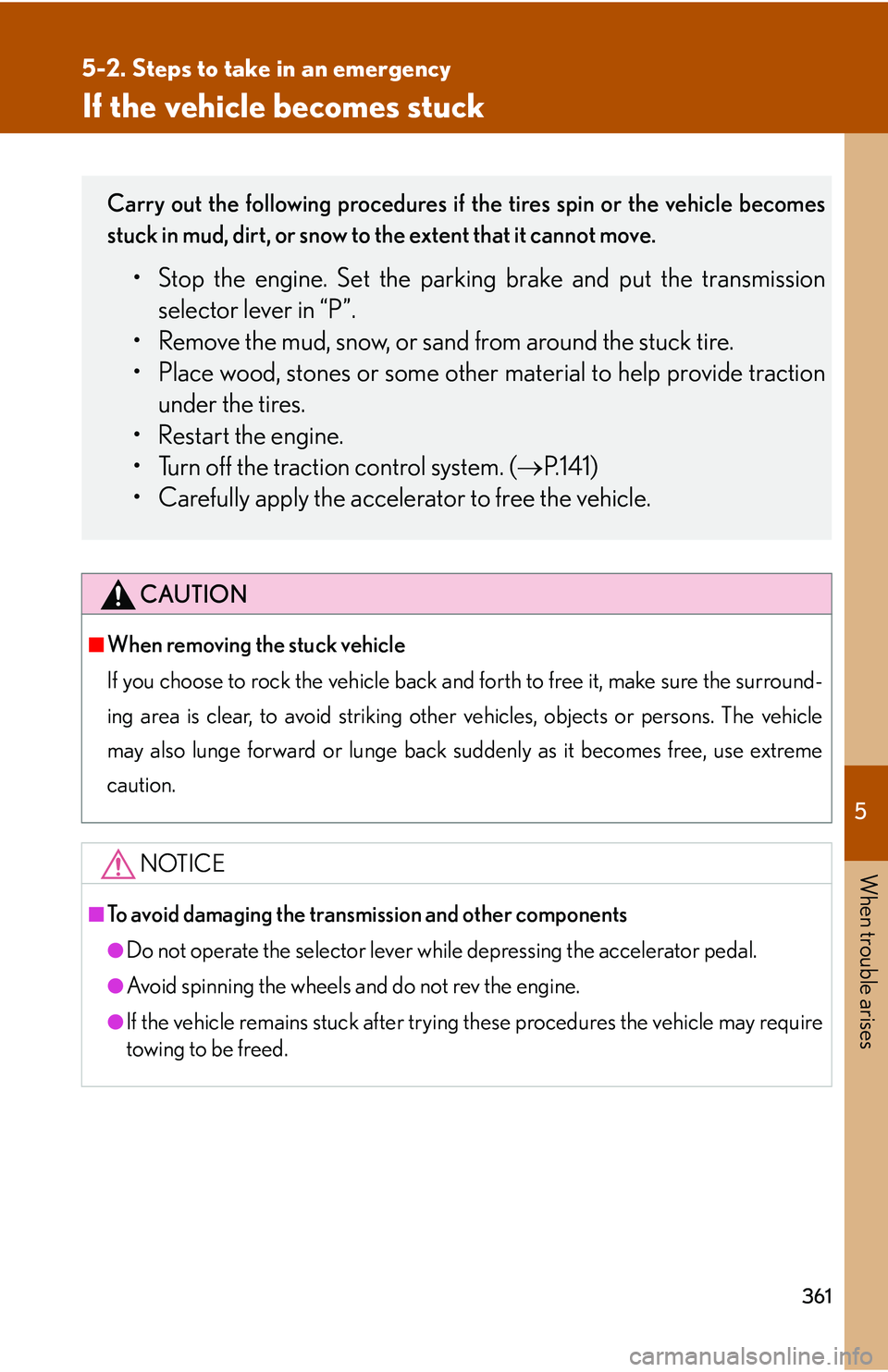

361
5-2. Steps to take in an emergency
If the vehicle becomes stuck
CAUTION
■When removing the stuck vehicle
If you choose to rock the vehicle back and forth to free it, make sure the surround-
ing area is clear, to avoid striking other vehicles, objects or persons. The vehicle
may
also lunge forward or lunge back suddenly as it becomes free, use extreme
caution.
NOTICE
■To avoid damaging the transmission and other components
●Do not operate the selector lever while depressing the accelerator pedal.
●Avoid spinning the wheels and do not rev the engine.
●If the vehicle remains stuck after trying these procedures the vehicle may require
towing to be freed.
Carry out the following procedures if the tires spin or the vehicle becomes
stuck in mud, dirt, or snow to the extent that it cannot move.
• Stop the engine. Set the parking brake and put the transmission
selector lever in “P”.
• Remove the mud, snow, or sand from around the stuck tire.
• Place wood, stones or some other ma terial to help pr
ovide traction
under the tires.
• Restart the engine.
• Turn off the traction control system. ( P.141)
• Carefully apply the accelerator to free the vehicle.

395
Alphabetical index
Switch .........................................................110
Wattage .................................................. 372
Heaters Seat heaters............................................ 218
Side mirror ................................................ 43
High mounted stop light Replacing bulbs.................................... 314
Wattage .................................................. 372
Hood ......................................................... 260
I/M test ..................................................... 255
Ignition Keys ................................................................. 2
Switch .......................................................... 94
Ignition switch light ................................ 198
Illuminated entry system ..................... 198
In case of an emergency If the battery runs out....................... 356
If you cannot shift automatic 
transmission selector lever ....... 354
If you have a flat tire........................... 347
If you lose your keys ........................ 355
If your vehicle becomes 
stuck ....................................................... 361
If your vehicle needs to 
be towed ............................................ 320
If your vehicle overheats................ 359
If your vehicle will not start............ 353
If you think something is 
wrong................................................... 324
Indicator lights ......................................... 105
Initializing your lexus........................... 387
Inside rear view mirror........................... 42
Interior light .............................................. 199Jack
Positioning the jack ............................. 261
Replacing the wheel ......................... 287
Jack handle.............................................. 347
Jump starting .....
........................................ 353
Key reminder buzzer .............................. 15
Keys Flat key........................................................ 95
If you lose your keys ........................ 355
Ignition switch ......................................... 94
Key number ................................................. 2
Keys ................................................................. 2
Mechanical key ................................... 295
Replacing battery ............................... 295
Wireless remote control ..................... 12
Knee airbag.................................................. 61
Lexus park assist system Lexus park assist system ................... 118
Warning message ............................. 334
License plate lights Wattage .................................................. 372
Light bulbs Replacing ................................................ 314
Wattage .................................................. 372
Lights Fog lights switch .................................... 113
Headlights switch.................................. 110
Interior light switch ............................... 20
Personal light switch........................ 200
Replacing light bulbs ......................... 313
Turn signal lever .................................... 101
Vanity lights ......................................... 209
Wattage .................................................. 372
