LEXUS LS430 2006 Owners Manual

365
6-1. Specifications
6
Vehicle specifications

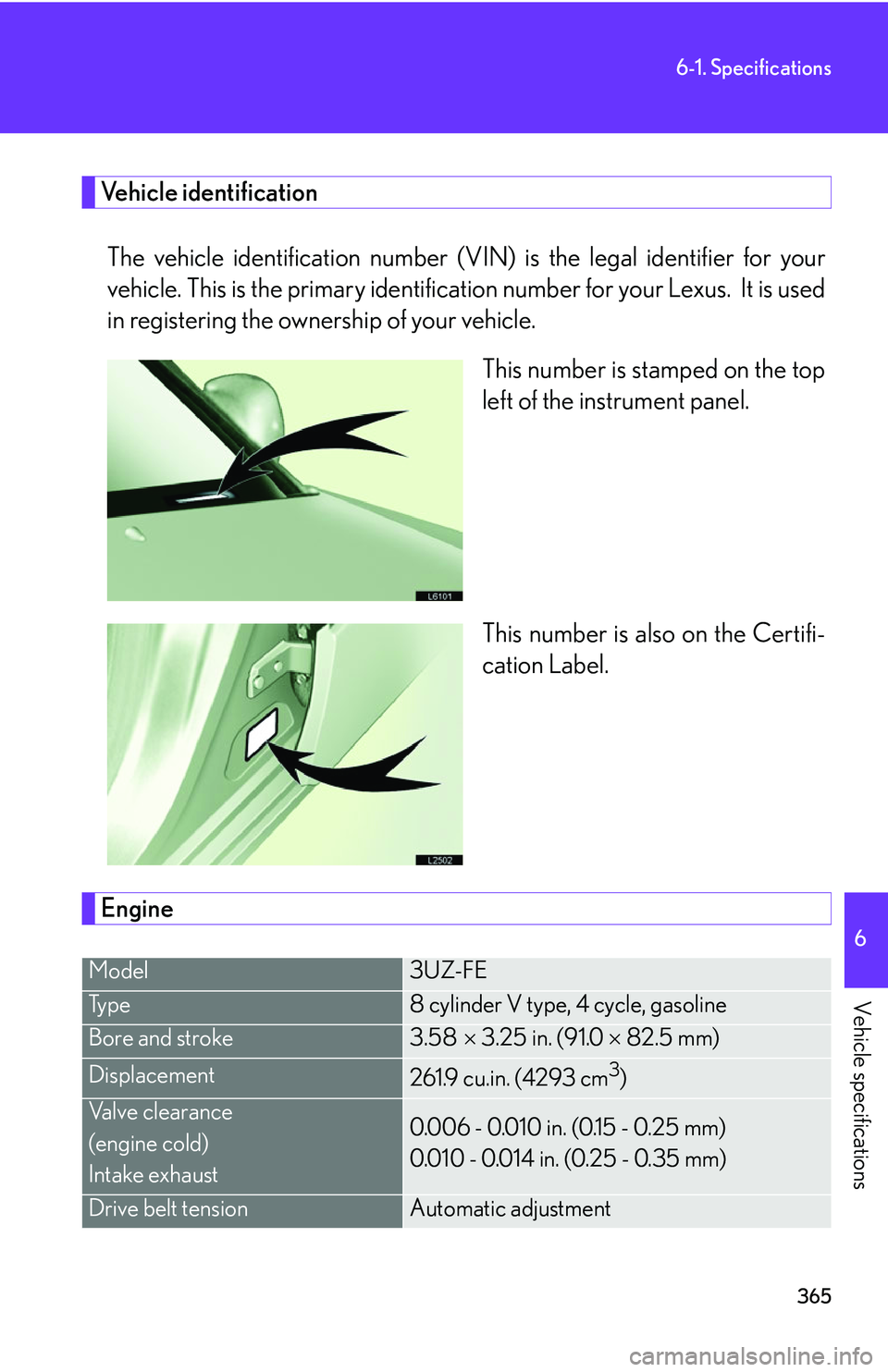

Vehicle identification
The vehicle identification number (VIN) is the legal identifier for your
vehicle. This is the primar y identification number for your Lexus. It is used
in registering the ownership of your vehicle.
This number is stamped on the top
lef
t of the instrument panel.
This number is also on the Certifi-
cation Label.
Engine
Model3UZ-FE
Ty p e8 cylinder V type, 4 cycle, gasoline
Bore and stroke3.58  3.25 in. (91.0  82.5 mm)
Displacement261.9 cu.in. (4293 cm3)
Valve clearance 
(engine cold) 
Intake exhaust
0.006 - 0.010 in. (0.15 - 0.25 mm) 
0.010 - 0.014 in. (0.25 - 0.35 mm)
Drive belt tensionAutomatic adjustment

366
6-1. Specifications

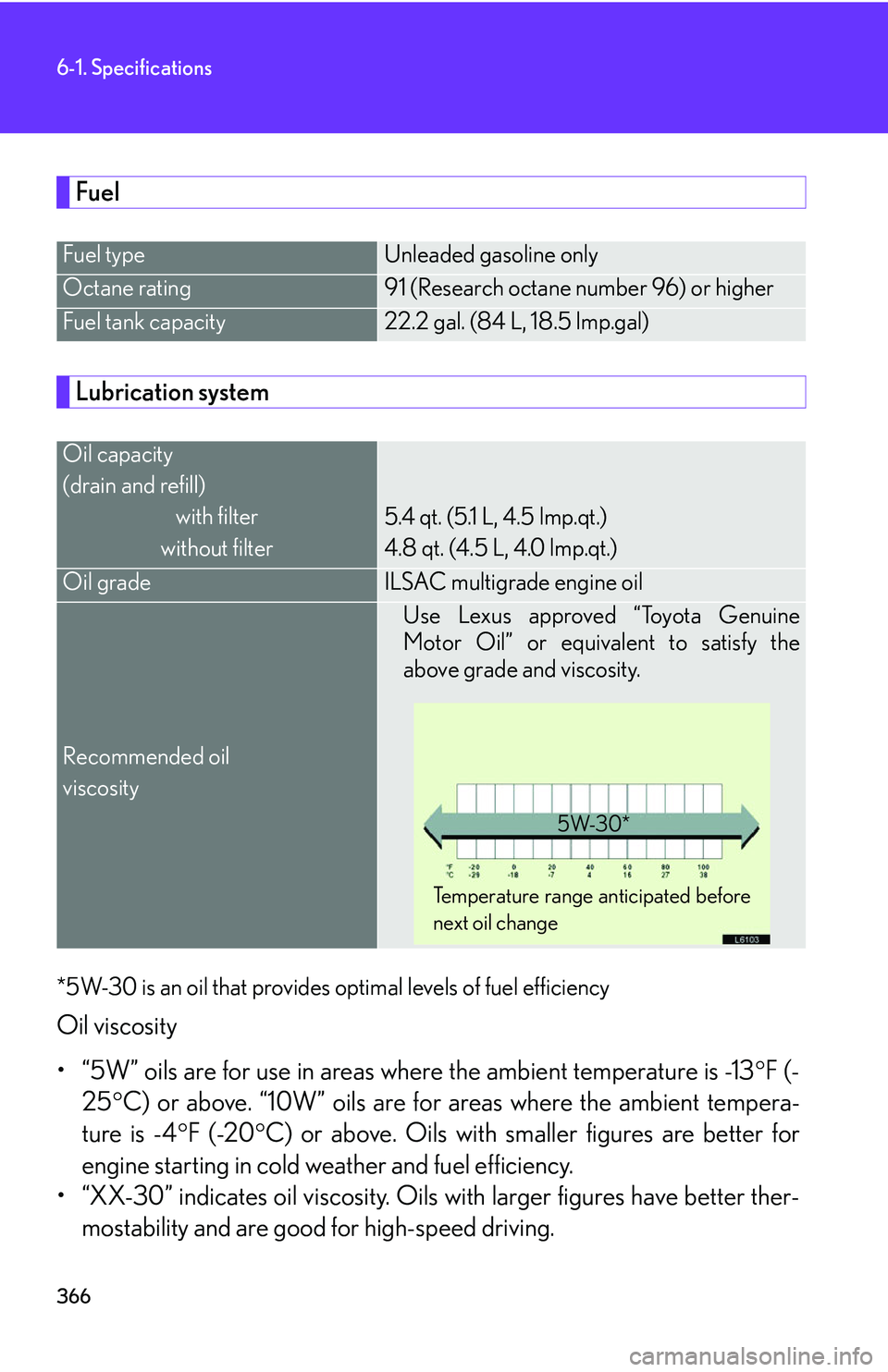

Fuel
Lubrication system
*5W-30 is an oil that provides optimal levels of fuel efficiency
Oil viscosity
• “5W” oils are for use in ar
eas where the ambient temperature is -13 F (-
25 C) or above. “10W” oils are fo r areas where the ambient tempera -
ture is -4 F (-
20C) or above. Oils with smaller figures are better for
engine starting in cold we ather and fuel efficiency.
• “XX-30” indicates oil viscosity. O ils with lar
ger figures have better ther-
mostability and are good for high-speed driving.
Fuel typeUnleaded gasoline only
Octane rating91 (Research octane number 96) or higher
Fuel tank capacity22.2 gal. (84 L, 18.5 lmp.gal)
Oil capacity
(drain and refill) with filter
without filter
5.4 qt. (5.1 L, 4.5 lmp.qt.)
4.8 qt. (4.5 L, 4.0 lmp.qt.)
Oil gradeILSAC multigrade engine oil
Recommended oil 
viscosity
Use Lexus approved “Toyota Genuine
Motor Oil” or equivalent to satisfy the
above grade and viscosity.
Temperature range anticipated before
next oil change 5W-30*

367
6-1. Specifications
6
Vehicle specifications

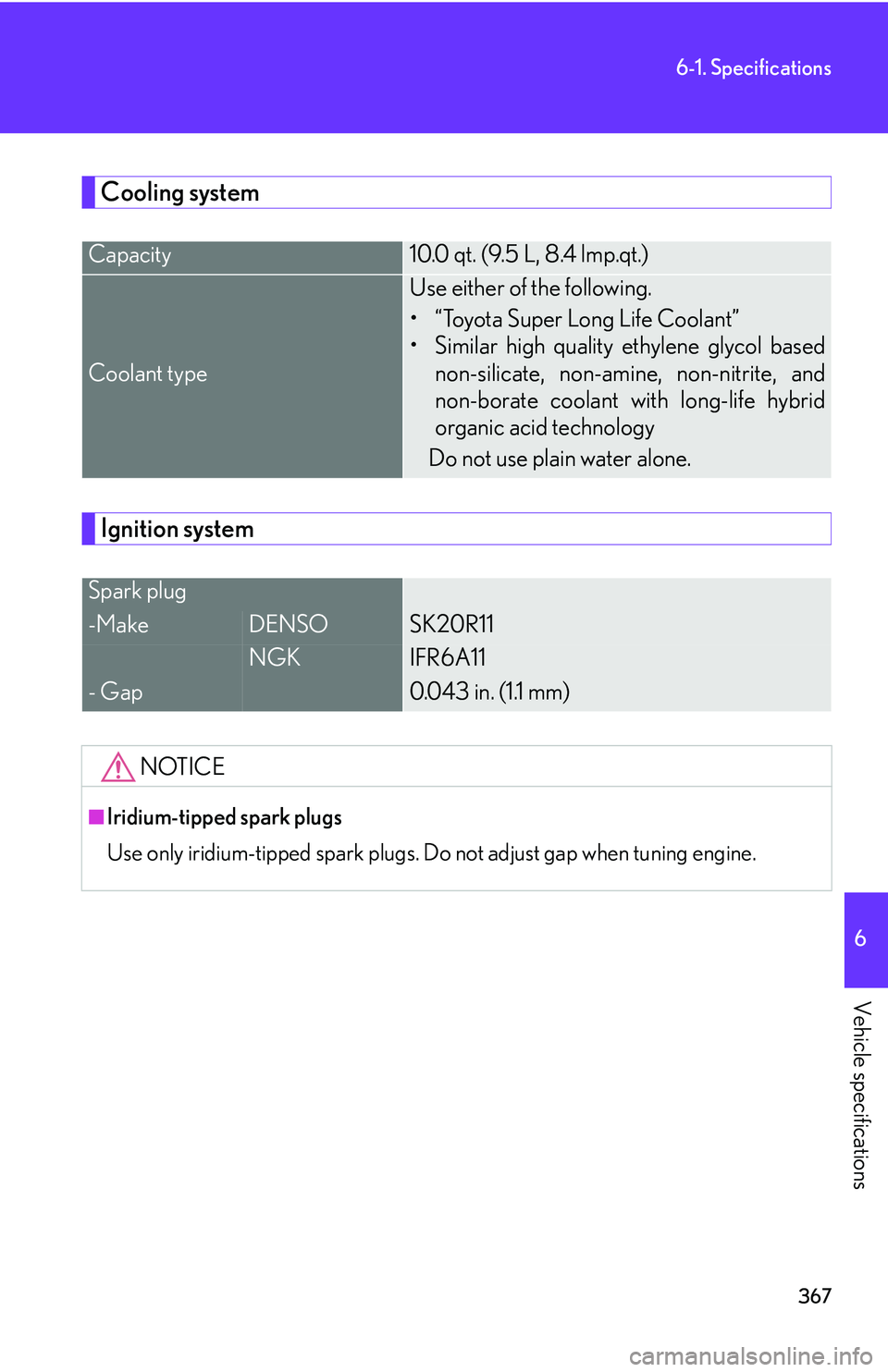

Cooling system
Ignition system
Capacity10.0 qt. (9.5 L, 8.4 lmp.qt.)
Coolant type
Use either of the following.
• “Toyota Super Long Life Coolant”
• Similar high quality ethylene glycol based non-silicat
e, non-amine, non-nitrite, and
non-borate coolant with long-life hybrid
organic acid technology
Do not use plain water alone.
Spark plug
-MakeDENSOSK20R11
NGKIFR6A11
- Gap0.043 in. (1.1 mm)
NOTICE
■Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not
adjust gap when tuning engine.

368
6-1. Specifications

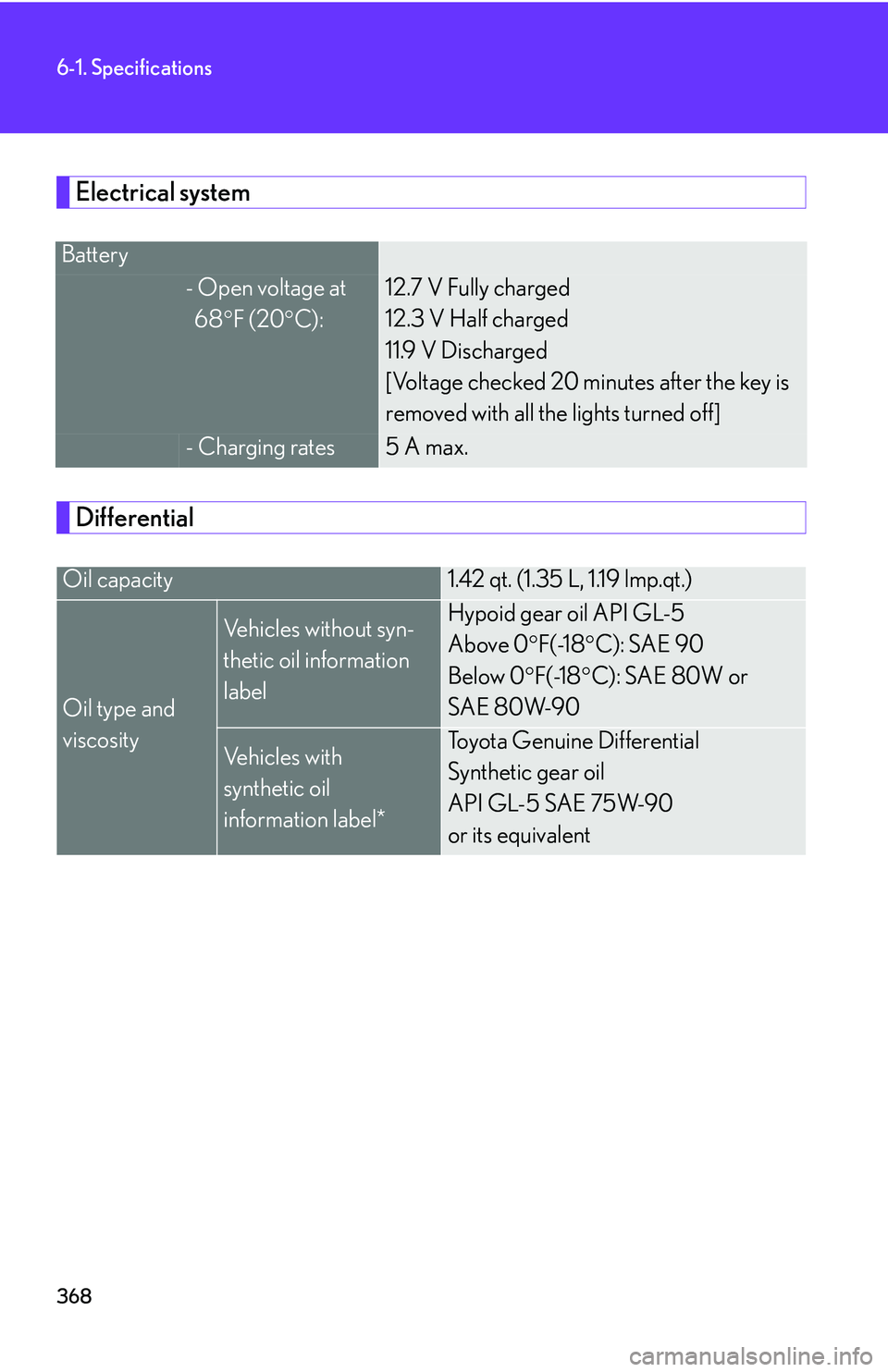

Electrical system
Differential
Battery
- Open voltage at 
68F (20 C):
12.7 V Fully charged 
12.3 V Half charged 
11.9 V Discharged 
[Voltage checked 20 minutes after the key is
removed with all the lights turned off]
- Charging rates5 A max.
Oil capacity1.42 qt. (1.35 L, 1.19 lmp.qt.)
Oil type and 
viscosity
Vehicles without syn -
thetic oil information
label
Hypoid gear oil API GL-5 
Above 0 F(-
18 C): SAE 90 
Below 0 F(-
18 C): SAE 80W or 
SAE 80W-90
Vehicles with 
synthetic oil 
information label*
Toyota Genuine Differential 
Synthetic gear oil
API GL-5 SAE 75W-90 
or its equivalent

369
6-1. Specifications
6
Vehicle specifications

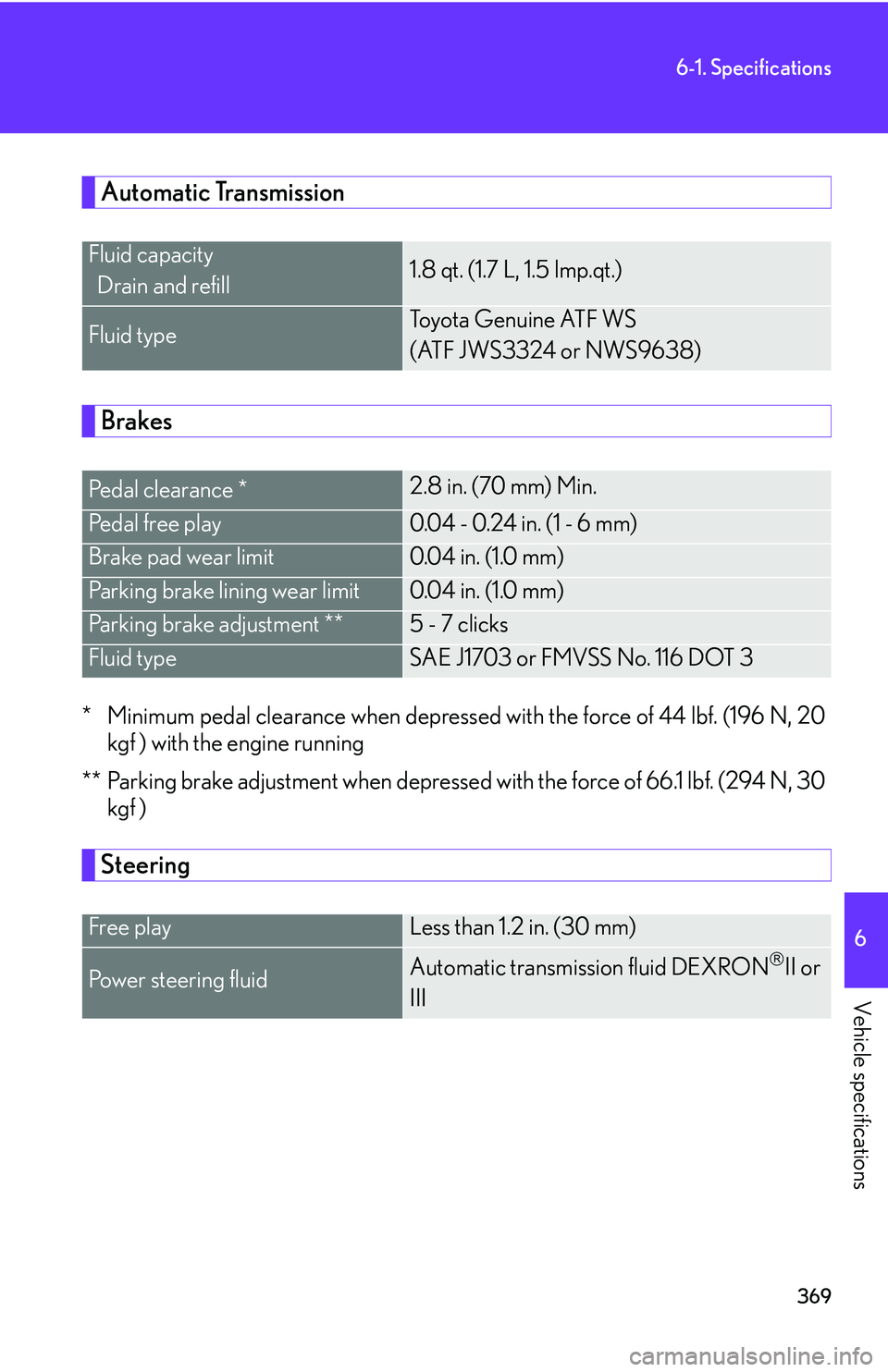

Automatic Transmission
Brakes
* Minimum pedal clearance when depressed with the force of 44 lbf. (196 N, 20 kgf ) with the engine running
** Parking brake adjustment when depressed with the for
ce of 66.1 lbf. (294 N, 30
kgf )
Steering
Fluid capacity 
Drain and refill1.8 qt. (1.7 L, 1.5 lmp.qt.)
Fluid typeToyota Genuine ATF WS 
(ATF JWS3324 or NWS9638)
Pedal clearance *2.8 in. (70 mm) Min.
Pedal free play0.04 - 0.24 in. (1 - 6 mm)
Brake pad wear limit0.04 in. (1.0 mm)
Parking brake lining wear limit0.04 in. (1.0 mm)
Parking brake adjustment **5 - 7 clicks
Fluid typeSAE J1703 or FMVSS No. 116 DOT 3
Free playLess than 1.2 in. (30 mm)
Power steering fluidAutomatic transmission fluid DEXRONII or
III

370
6-1. Specifications

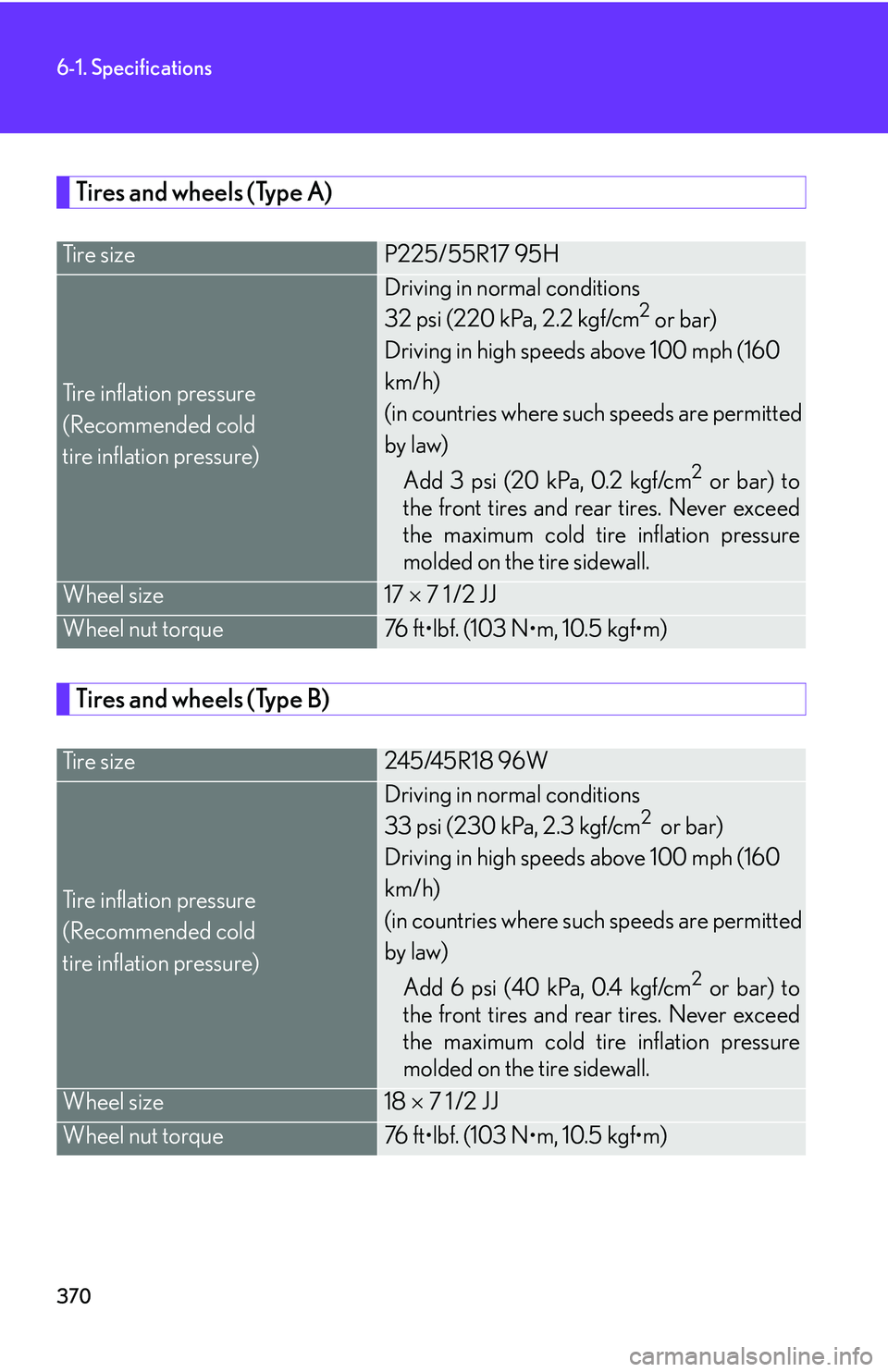

Tires and wheels (Type A)
Tires and wheels (Type B)
Ti r e s i z eP225/55R17 95H
Tire inflation pressure
(Recommended cold 
tire inflation pressure)
Driving in normal conditions
32 psi (220 kPa, 2.2 kgf/cm2 or bar)
Driving in high speeds above 100 mph (160
km/
h) 
(in countries where such speeds are permitted
b

y law)
Add 3 psi (20 kPa, 0.2 kgf/cm
2 or bar) to
the front tires and rear tires. Never exceed
the maximum cold tire inflation pressure
molded on the tire sidewall.
Wheel size17  7 1 /2 JJ
Wheel nut torque76 f t•lbf. (103 N•m, 10.5 kgf•m)
Ti r e s i z e245/45R18 96W
Tire inflation pressure
(Recommended cold 
tire inflation pressure)
Driving in normal conditions
33 psi (230 kPa, 2.3 kgf/cm2 or bar)
Driving in high speeds above 100 mph (160
km/
h) 
(in countries where such speeds are permitted
b
y law)
Add 6 psi (40 kPa, 0.4 kgf/cm
2 or bar) to
the front tires and rear tires. Never exceed
the maximum cold tire inflation pressure
molded on the tire sidewall.
Wheel size18  7 1 /2 JJ
Wheel nut torque76 f t•lbf. (103 N•m, 10.5 kgf•m)

371
6-1. Specifications
6
Vehicle specifications

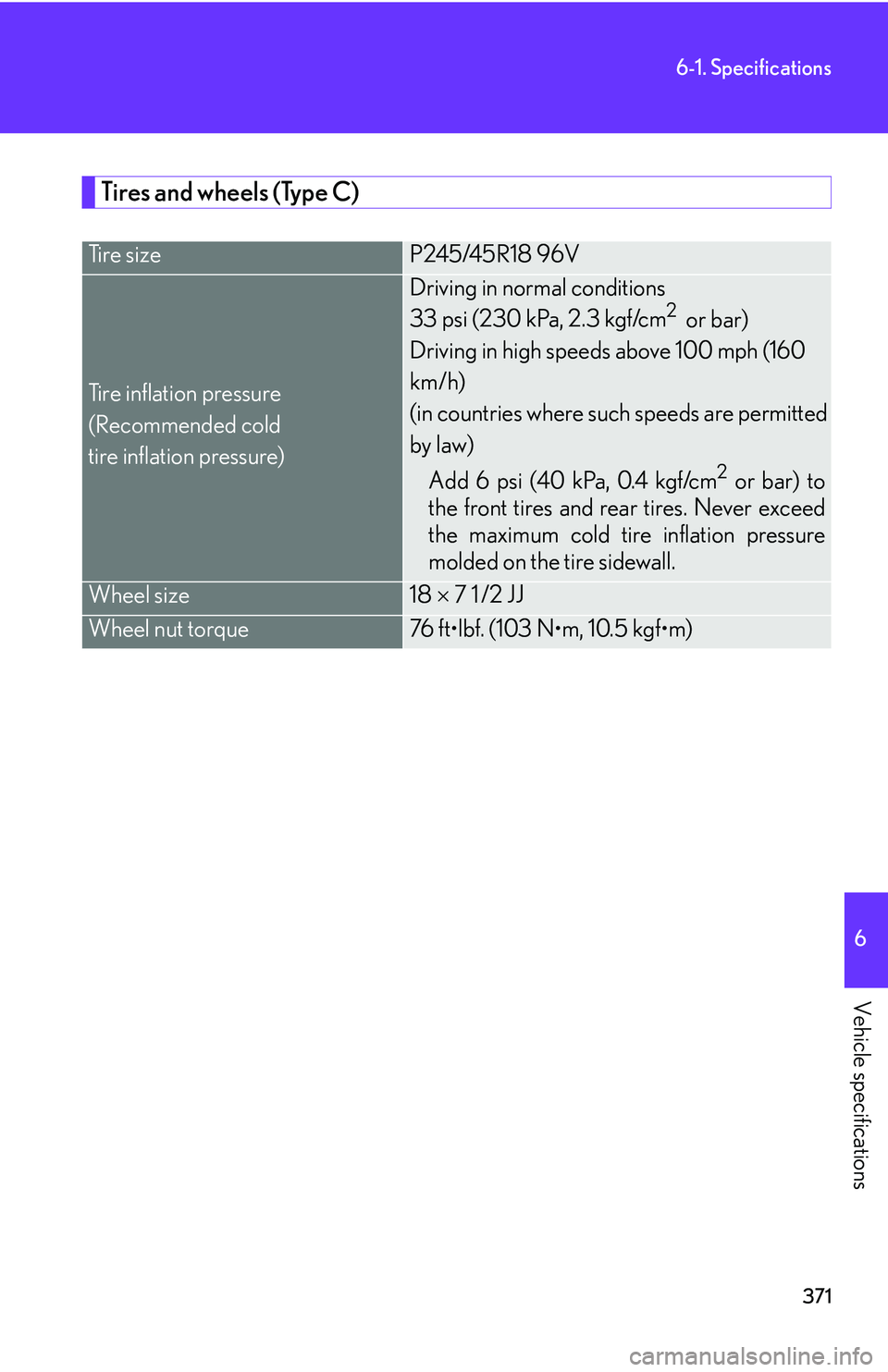

Tires and wheels (Type C)
Ti r e s i z eP245/45R18 96V
Tire inflation pressure
(Recommended cold 
tire inflation pressure)
Driving in normal conditions
33 psi (230 kPa, 2.3 kgf/cm2 or bar)
Driving in high speeds above 100 mph (160
km/
h) 
(in countries where such speeds are permitted
b

y law)
Add 6 psi (40 kPa, 0.4 kgf/cm
2 or bar) to
the front tires and rear tires. Never exceed
the maximum cold tire inflation pressure
molded on the tire sidewall.
Wheel size18  7 1 /2 JJ
Wheel nut torque76 f t•lbf. (103 N•m, 10.5 kgf•m)

372
6-1. Specifications

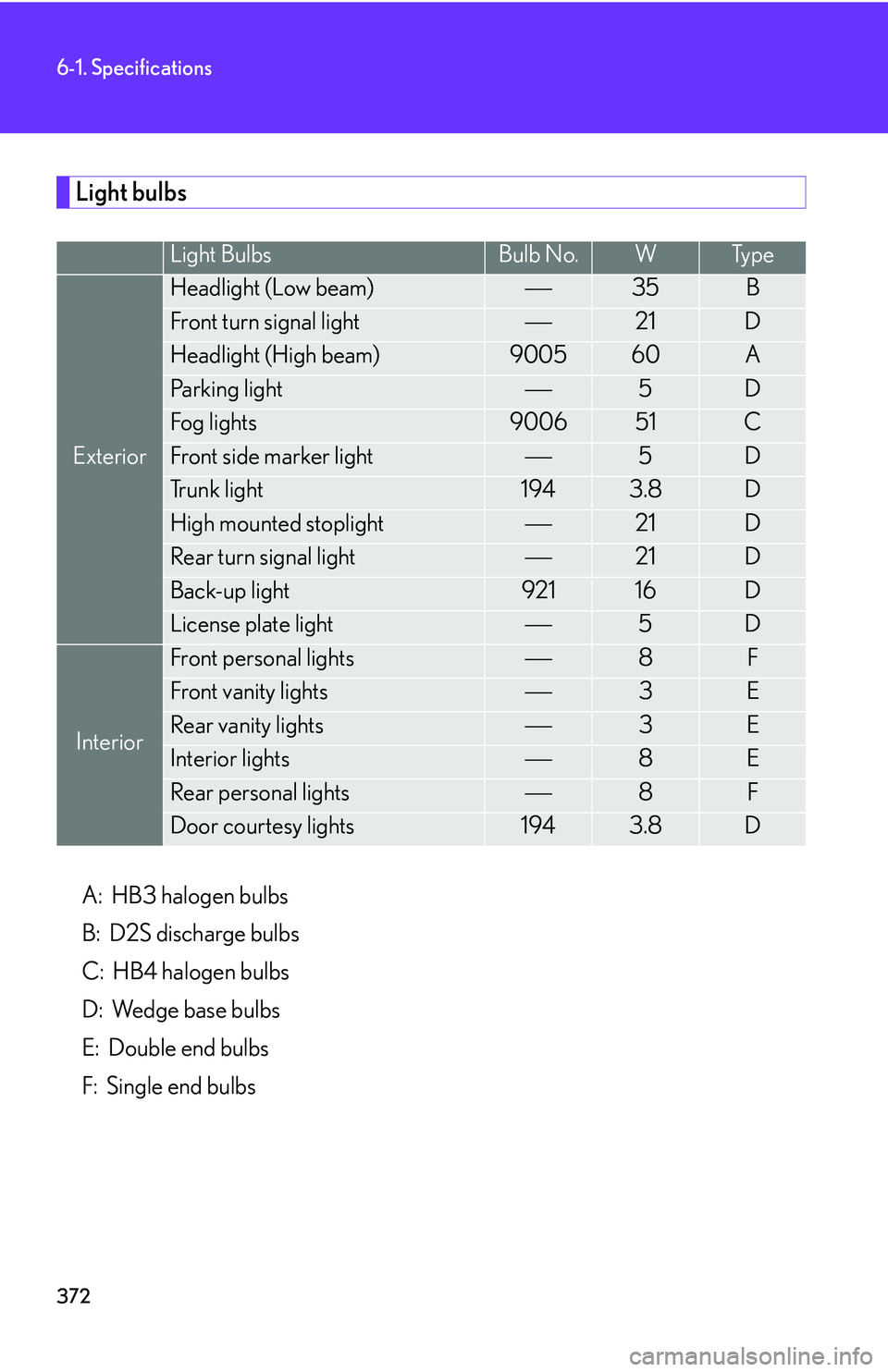

Light bulbs
A: HB3 halogen bulbs
B: D2S discharge bulbs
C: HB4 halogen bulbs
D: Wedge base bulbs
E: Double end bulbs
F: Single end bulbs
Light BulbsBulb No.WTy p e
Exterior
Headlight (Low beam)35B
Front turn signal light21D
Headlight (High beam)900560A
Parking light5D
Fog lights900651C
Front side marker light5D
Trunk light1943.8D
High mounted stoplight21D
Rear turn signal light21D
Back-up light92116D
License plate light5D
Interior
Front personal lights8F
Front vanity lights3E
Rear vanity lights3E
Interior lights8E
Rear personal lights8F
Door courtesy lights1943.8D

373
6-1. Specifications
6
Vehicle specifications

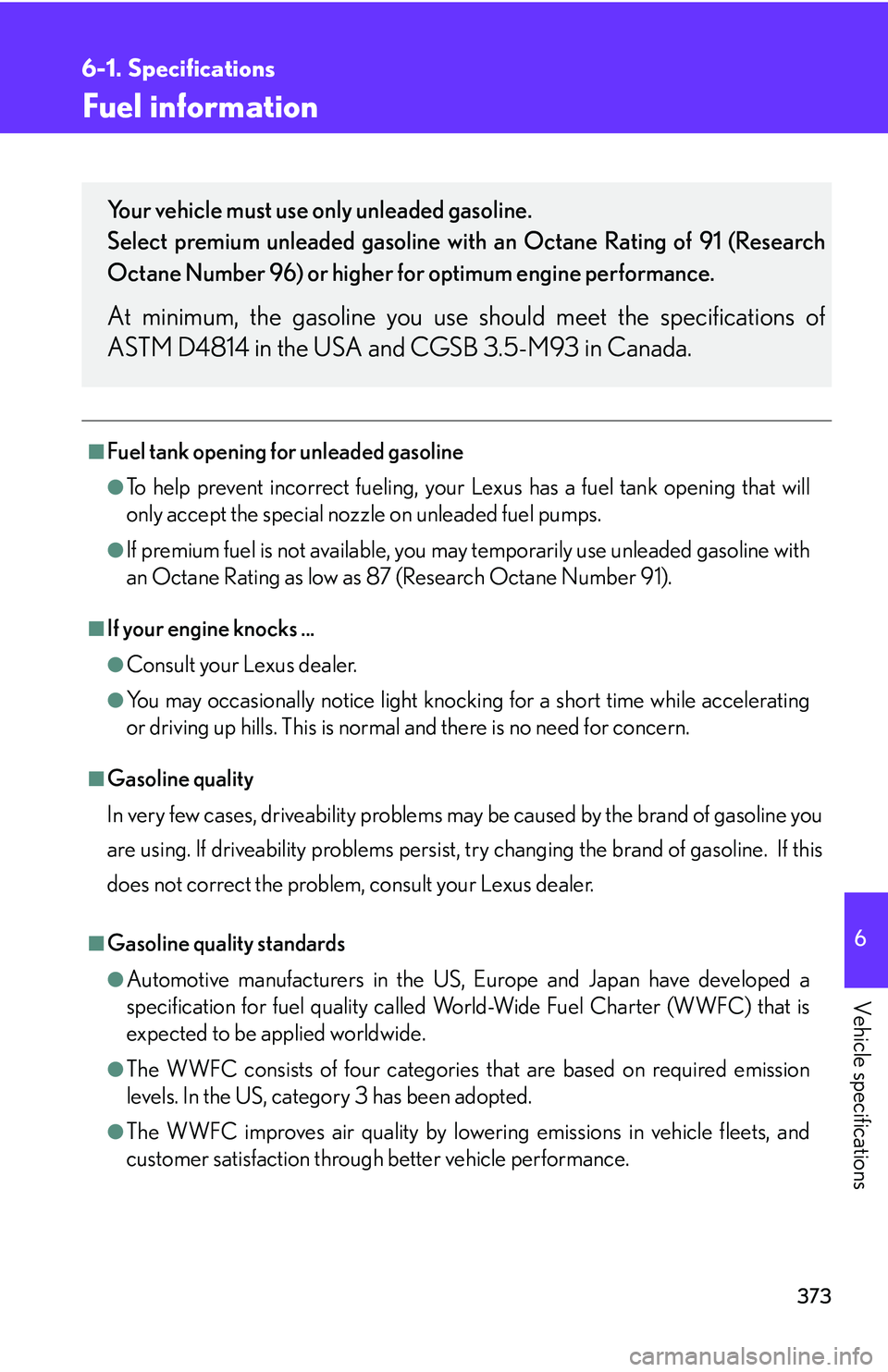

Fuel information
■Fuel tank opening for unleaded gasoline
●To help prevent incorrect fueling, your Lexus has a fuel tank opening that will
only accept the special nozzle on unleaded fuel pumps.
●If premium fuel is not available, you may temporarily use unleaded gasoline with
an Octane Rating as low as 87 (Research Octane Number 91).
■If your engine knocks ...
●Consult your Lexus dealer.
●You may occasionally notice light knocking for a short time while accelerating
or driving up hills. This is normal and there is no need for concern.
■Gasoline quality
In very few cases, driveability problems may be caused by the brand of gasoline you
ar

e using. If driveability problems persist, try changing the brand of gasoline. If this
does not correct the problem, consult your Lexus dealer.
■Gasoline quality standards
●Automotive manufacturers in the US, Europe and Japan have developed a
specification for fuel quality called World-Wide Fuel Charter (WWFC) that is
expected to be applied worldwide.
●The WWFC consists of four categories that are based on required emission
levels. In the US, category 3 has been adopted.
●The WWFC improves air quality by lowering emissions in vehicle fleets, and
customer satisfaction through better vehicle performance.
Your vehicle must use on ly unleaded gasoline. 
Select premium unleaded gasoline with an
Octane Rating of 91 (Research
Octane Number 96) or higher for optimum engine performance.
At minimum, the gasoline you use sh ould meet the specifications of
ASTM D4814 in the USA and CGSB 3.5-M93 in Canada.

374
6-1. Specifications
■Lexus recommends the use of gasoline containing detergent additives
●Lexus recommends the use of gasoline that contains detergent additives to
avoid build-up of engine deposits.
●All gasoline sold in the US contains detergent additives to clean and/or keep
clean intake systems.
■Lexus recommends the use of cleaner burning gasoline
Cleaner burning gasoline, including reform ulated gasoline that conta
ins oxygen-
ates such as ethanol or MTBE (Methyl Tertiary Butyl Ether) is available in many
ar

eas.
Lexus recommends the use of cleaner burning gasoline and appropriately blended
r
eformulated gasoline. These types of gasoline provide excellent vehicle perfor -
mance, reduce vehicle emissions, and improve air quality.
■Lexus does not recommend blended gasoline
●Lexus allows the use of oxygenate blended gasoline where the oxygenate con -
tent is up to 10% ethanol or 15% MTBE.
●If you use gasohol in your Lexus, be sure that it has an octane rating no lower
than 87.
●Lexus DOES NOT recommend the use of gasoline containing methanol.
■Lexus does not recommend gasoline containing MMT
Some gasolines contain an octane enhanc
ing additive called MMT (Methylcyclo-
pentadienyl Manganese Tricarbonyl).
Lexus DOES NOT recommend the use of gasoline that contains MMT. If fuel con -
taining MMT is used, your emission control system may be adversely affected.
The Malfunction Indicator Lamp on the inst rum
ent cluster may come on. If this hap-
pens, contact your Lexus dealer for service.
