LEXUS LS460L 2016 Owners Manual

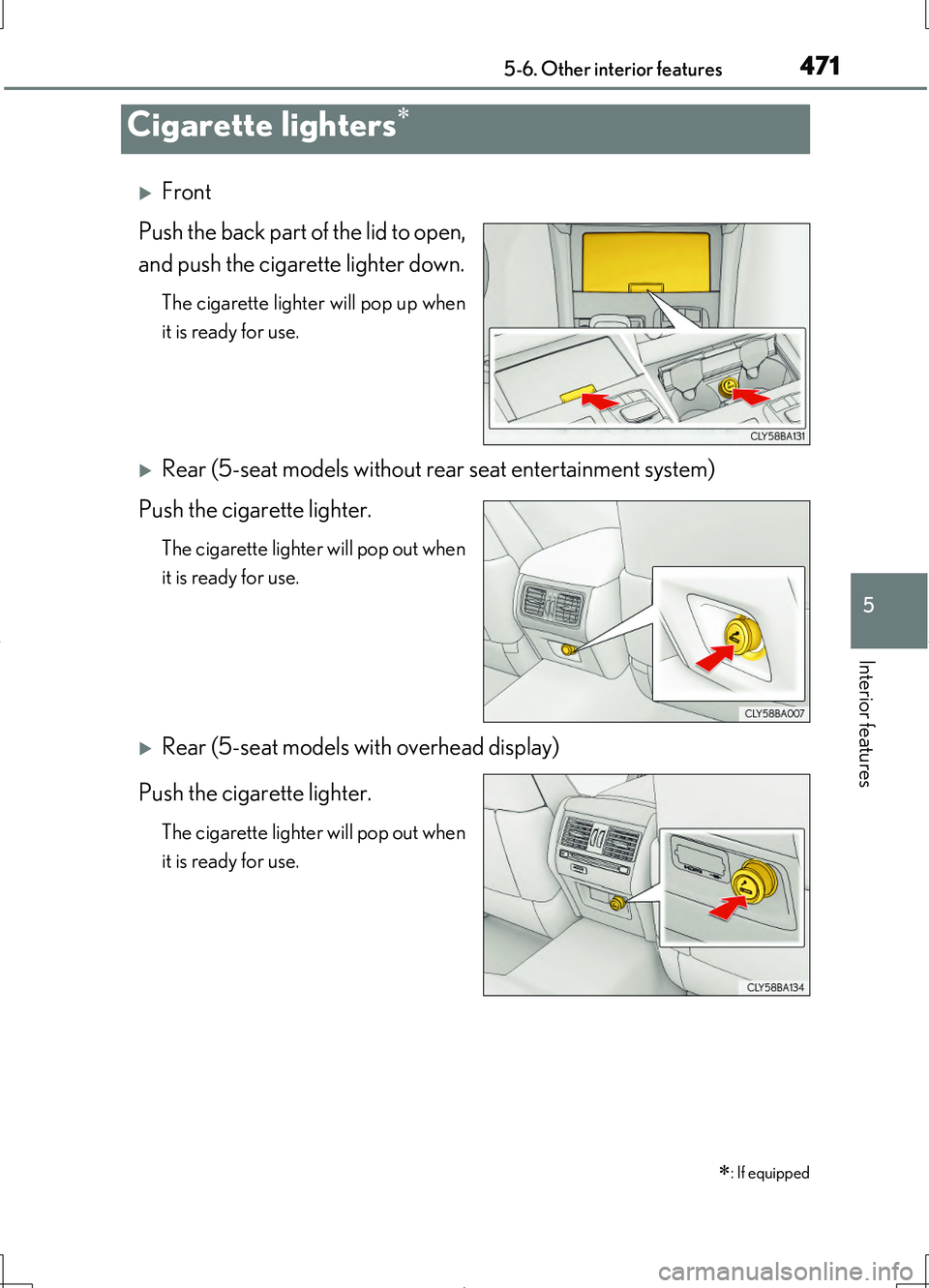

4715-6. Other interior features
5
Interior features
LS460/LS460L_GE (OM50G06E)
Front
Push the back part of the lid to open,
and push the cigare tte lighter down.
The cigarette lighter will pop up when
it is ready for use.
Rear (5-seat models without rear seat entertainment system)
Push the cigarette lighter.
The cigarette lighter will pop out when
it is ready for use.
Rear (5-seat models with overhead display)
Push the cigarette lighter.
The cigarette lighter will pop out when
it is ready for use.
Cigarette lighters
: If equipped

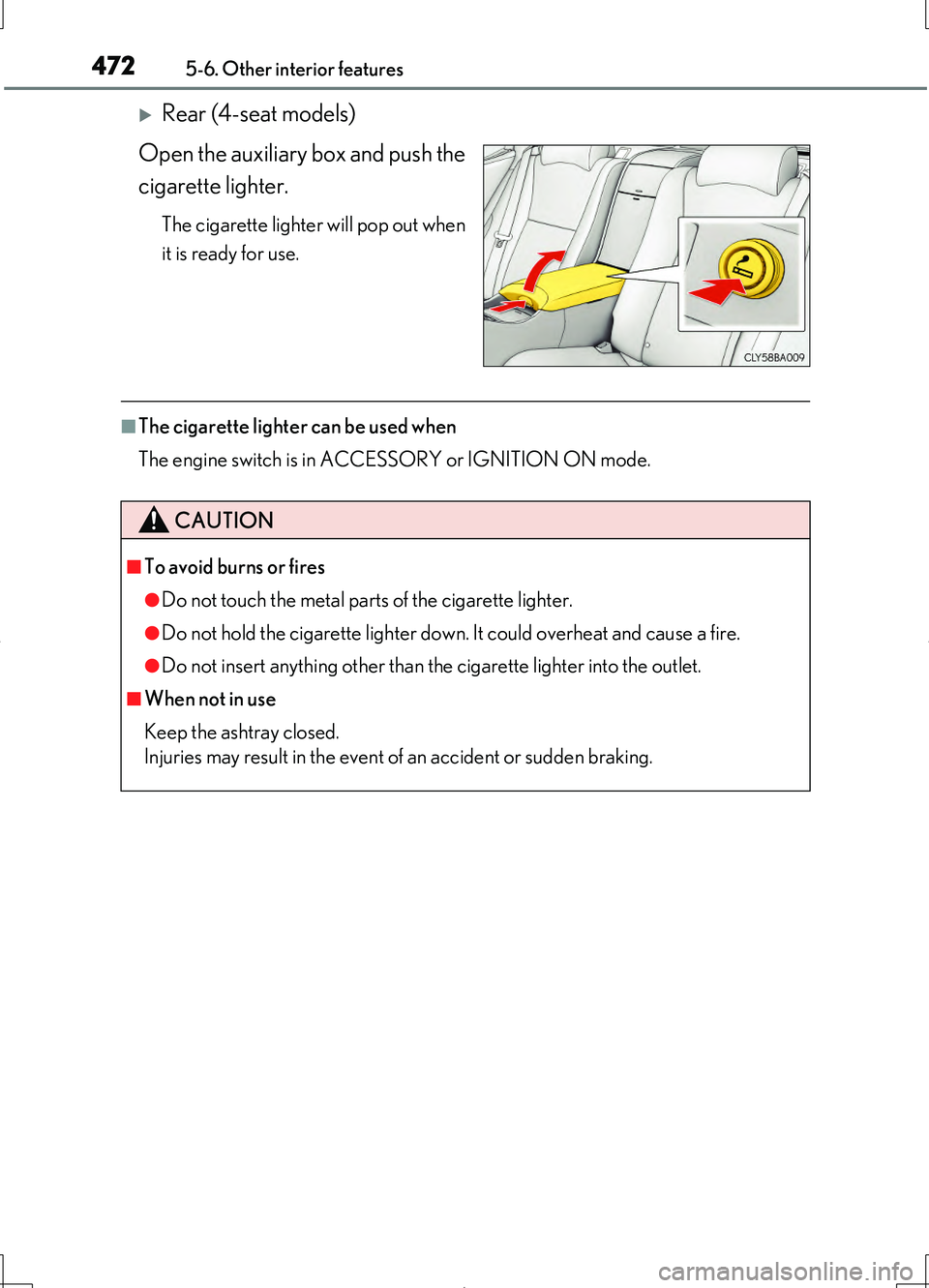

4725-6. Other interior features
LS460/LS460L_GE (OM50G06E)
Rear (4-seat models)
Open the auxiliary box and push the
cigarette lighter.
The cigarette lighter will pop out when
it is ready for use.
■The cigarette lighter can be used when
The engine switch is in ACCE SSORY or IGNITION ON mode.
CAUTION
■To avoid burns or fires
●Do not touch the metal parts of the cigarette lighter.
●Do not hold the cigarette lighter down. It could overheat and cause a fire.
●Do not insert anything other than the cigarette lighter into the outlet.
■When not in use
Keep the ashtray closed.
Injuries may result in the event of an accident or sudden braking.

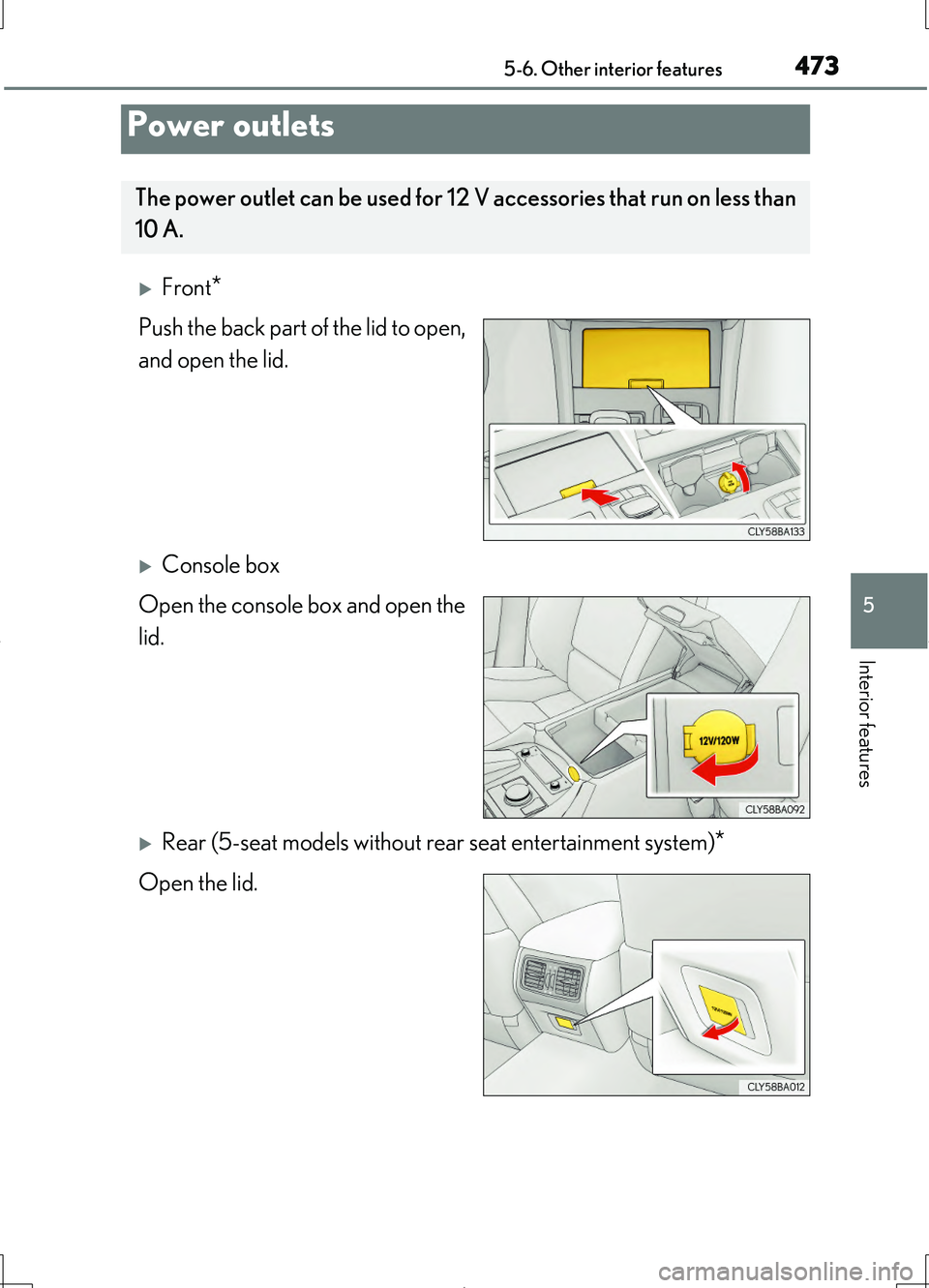

4735-6. Other interior features
5
Interior features
LS460/LS460L_GE (OM50G06E)
Front*
Push the back part of the lid to open,
and open the lid.
Console box
Open the console box and open the
lid.
Rear (5-seat models without rear seat entertainment system)*
Open the lid.
Power outlets
The power outlet can be used for 12 V accessories that run on less than
10 A.

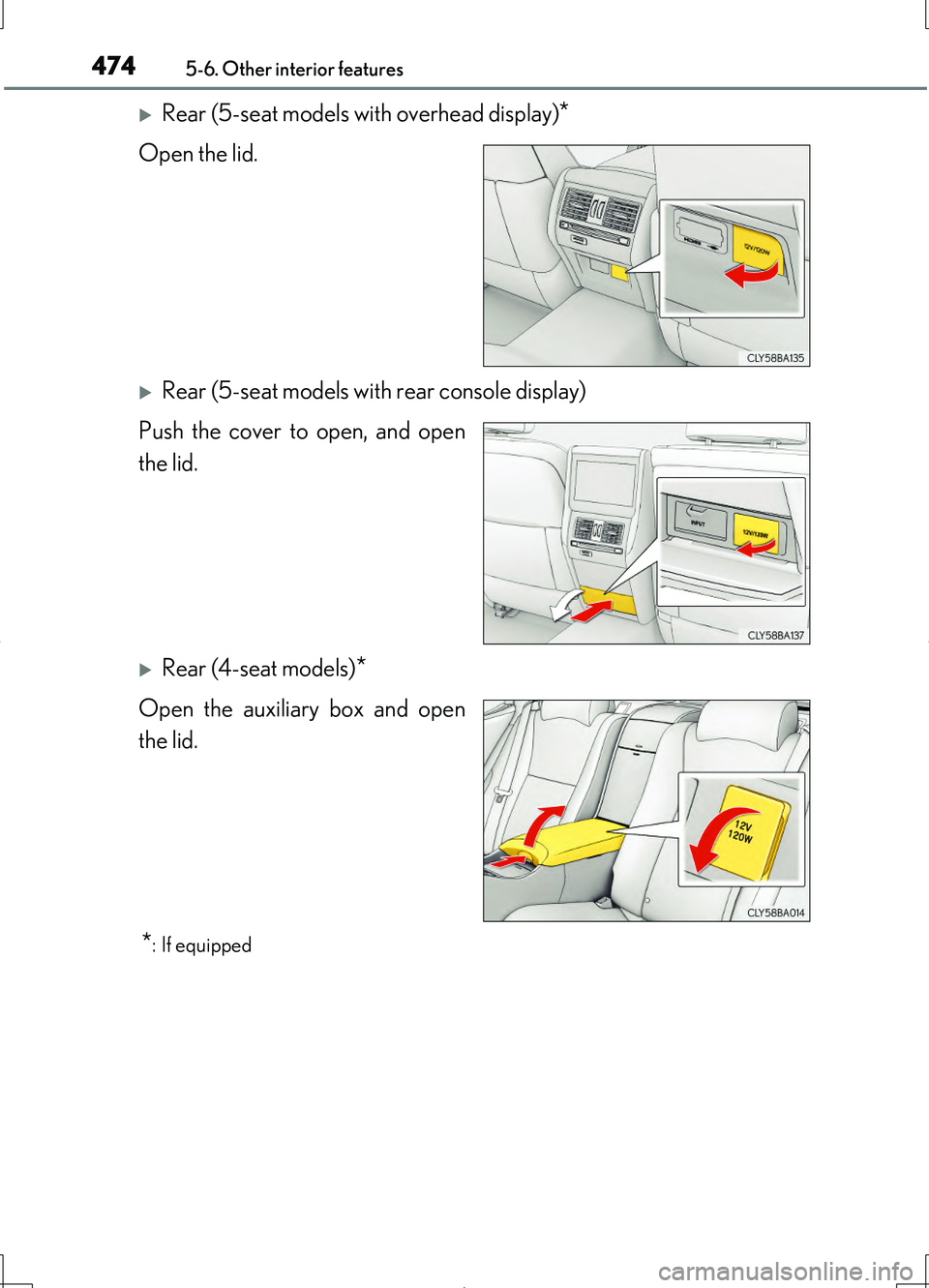

4745-6. Other interior features
LS460/LS460L_GE (OM50G06E)
Rear (5-seat models with overhead display)*
Open the lid.
Rear (5-seat models with rear console display)
Push the cover to open, and open
the lid.
Rear (4-seat models)*
Open the auxiliary box and open
the lid.
*: If equipped

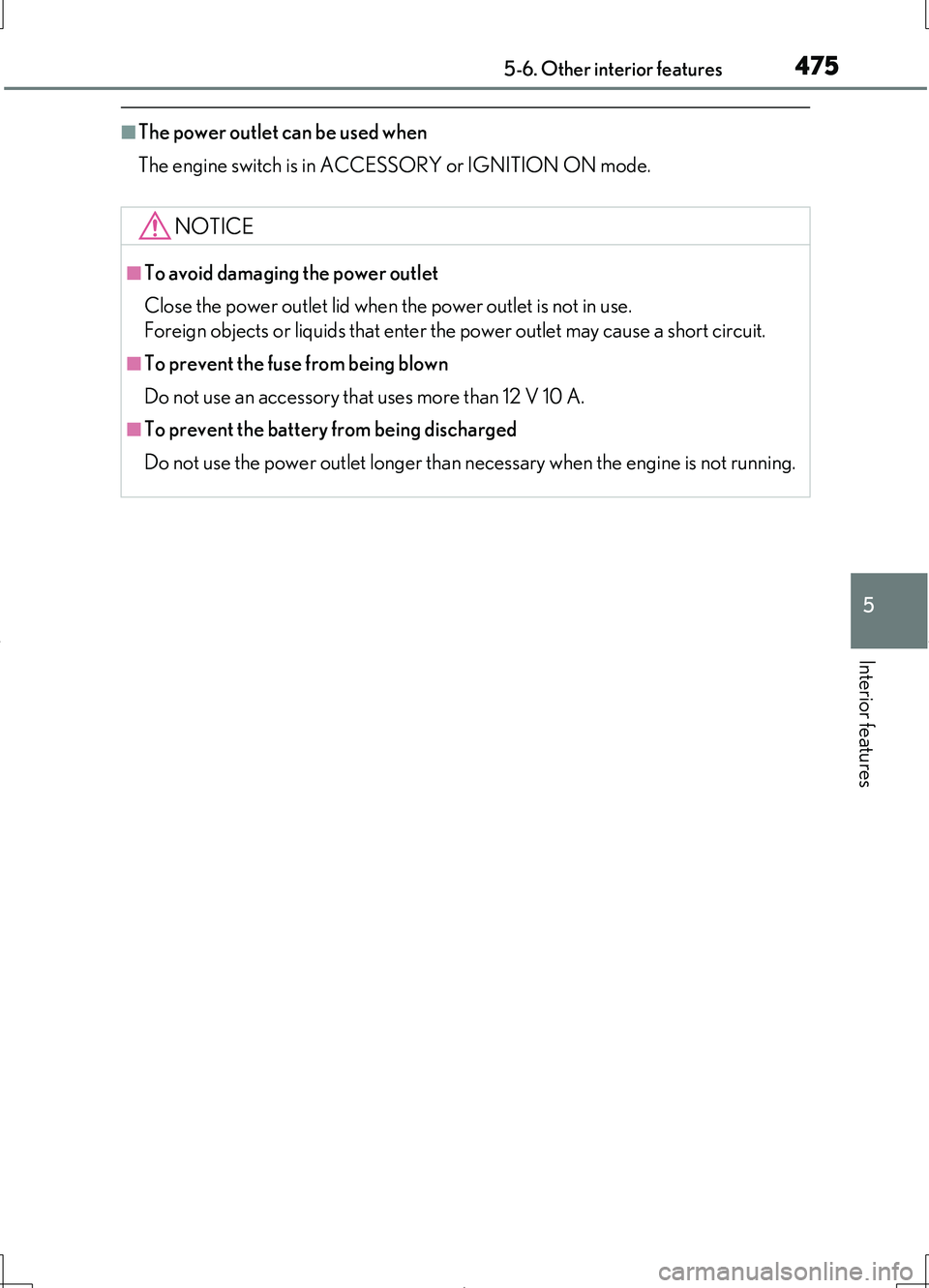

4755-6. Other interior features
5
Interior features
LS460/LS460L_GE (OM50G06E)
■The power outlet can be used when
The engine switch is in ACCE SSORY or IGNITION ON mode.
NOTICE
■To avoid damaging the power outlet
Close the power outlet lid when the power outlet is not in use.
Foreign objects or liquids that enter the power outlet may cause a short circuit.
■To prevent the fuse from being blown
Do not use an accessory that uses more than 12 V 10 A.
■To prevent the battery from being discharged
Do not use the power outlet longer than necessary when the engine is not running.

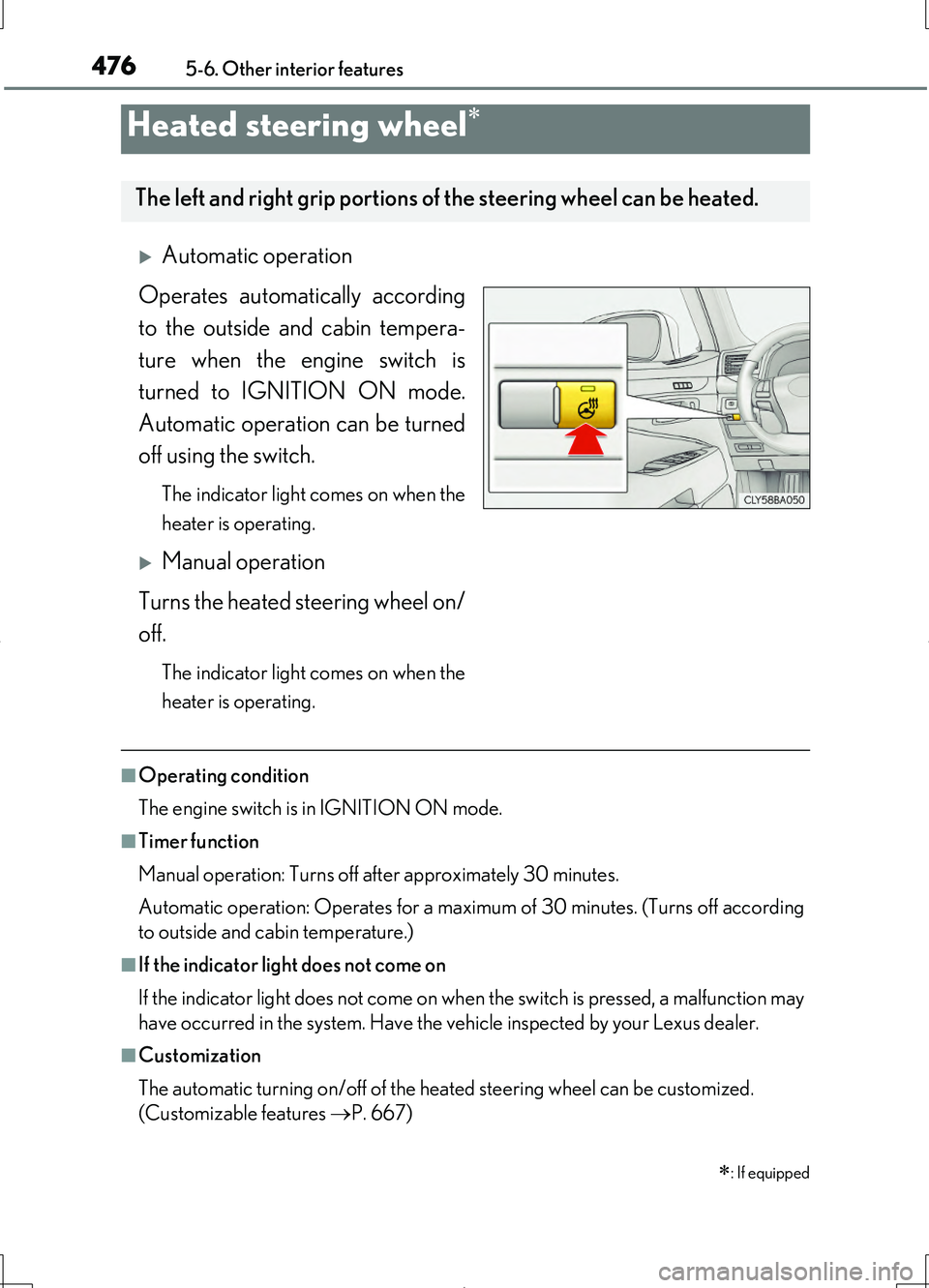

4765-6. Other interior features
LS460/LS460L_GE (OM50G06E)
Automatic operation
Operates automatically according
to the outside and cabin tempera-
ture when the engine switch is
turned to IGNITION ON mode.
Automatic operation can be turned
off using the switch.
The indicator light comes on when the
heater is operating.
Manual operation
Turns the heated steering wheel on/
off.
The indicator light comes on when the
heater is operating.
■Operating condition
The engine switch is in IGNITION ON mode.
■Timer function
Manual operation: Turns off after approximately 30 minutes.
Automatic operation: Operates for a maximum of 30 minutes. (Turns off according
to outside and cabin temperature.)
■If the indicator light does not come on
If the indicator light does not come on when the switch is pressed, a malfunction may
have occurred in the system. Have the vehicle inspected by your Lexus dealer.
■Customization
The automatic turning on/off of the heated steering wheel can be customized.
(Customizable features P. 667)
Heated steering wheel
: If equipped
The left and right grip portions of the steering wheel can be heated.

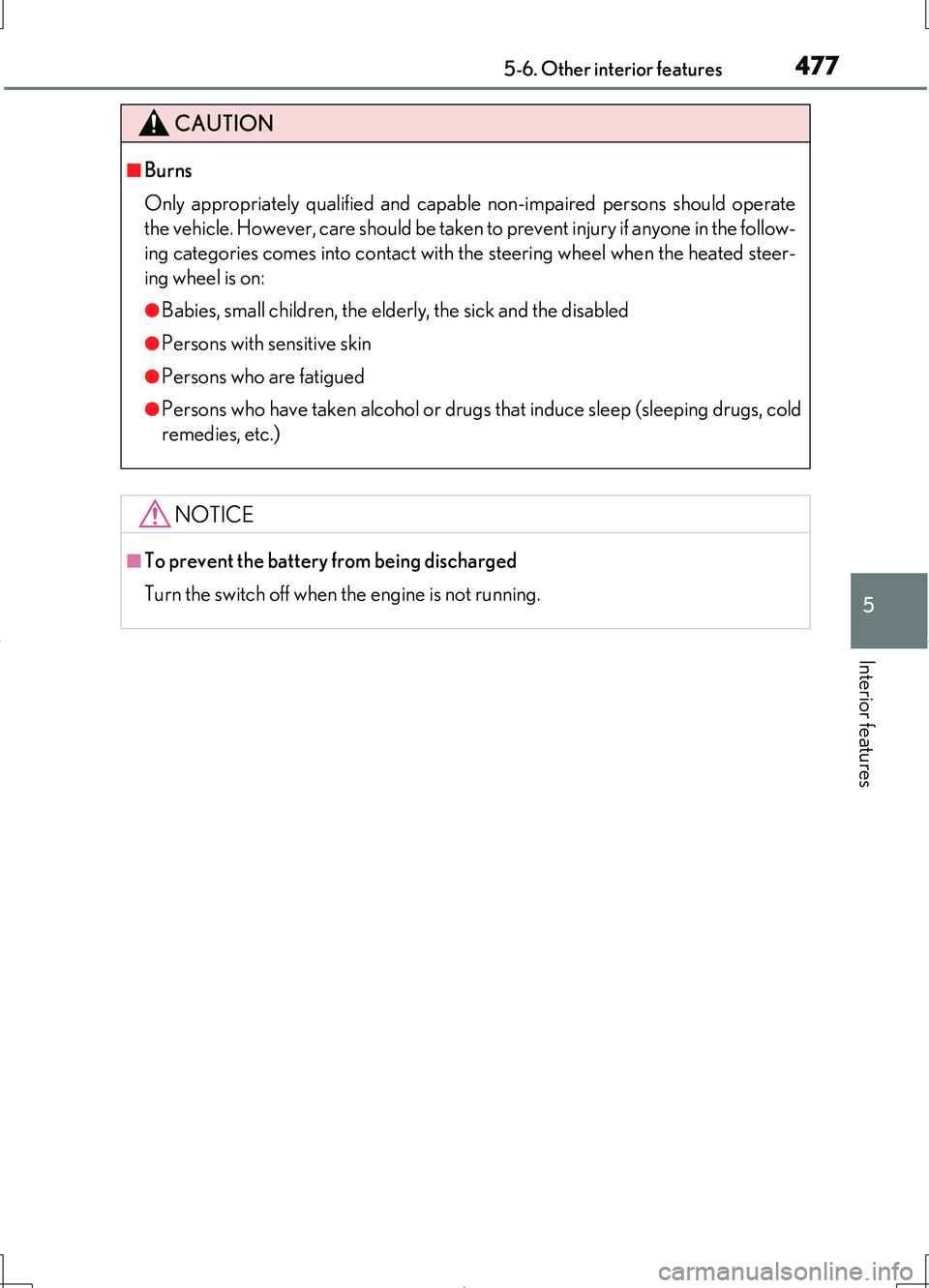

4775-6. Other interior features
5
Interior features
LS460/LS460L_GE (OM50G06E)
CAUTION
■Burns
Only appropriately qualified and capable non-impaired persons should operate
the vehicle. However, care should be taken to prevent injury if anyone in the follow-
ing categories comes into contact with the steering wheel when the heated steer-
ing wheel is on:
●Babies, small children, the elderly, the sick and the disabled
●Persons with sensitive skin
●Persons who are fatigued
●Persons who have taken alcohol or drugs that induce sleep (sleeping drugs, cold
remedies, etc.)
NOTICE
■To prevent the battery from being discharged
Turn the switch off when the engine is not running.

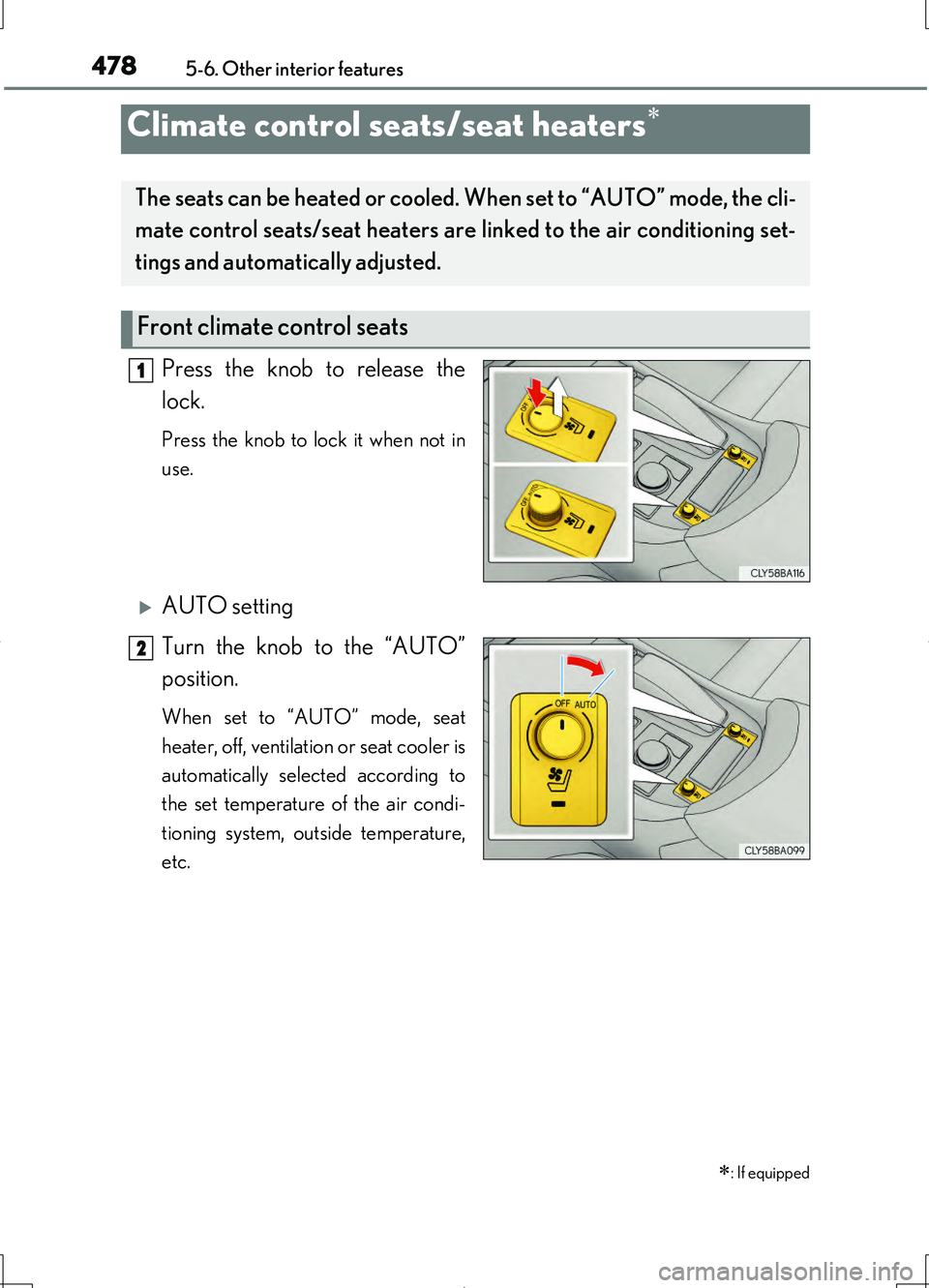

4785-6. Other interior features
LS460/LS460L_GE (OM50G06E)
Press the knob to release the
lock.
Press the knob to lock it when not in
use.
AUTO setting
Turn the knob to the “AUTO”
position.
When set to “AUTO” mode, seat
heater, off, ventilation or seat cooler is
automatically selected according to
the set temperature of the air condi-
tioning system, outside temperature,
etc.
Climate control seats/seat heaters
: If equipped
The seats can be heated or cooled. When set to “AUTO” mode, the cli-
mate control seats/seat heaters are linked to the air conditioning set-
tings and automatically adjusted.
Front climate control seats
1
2

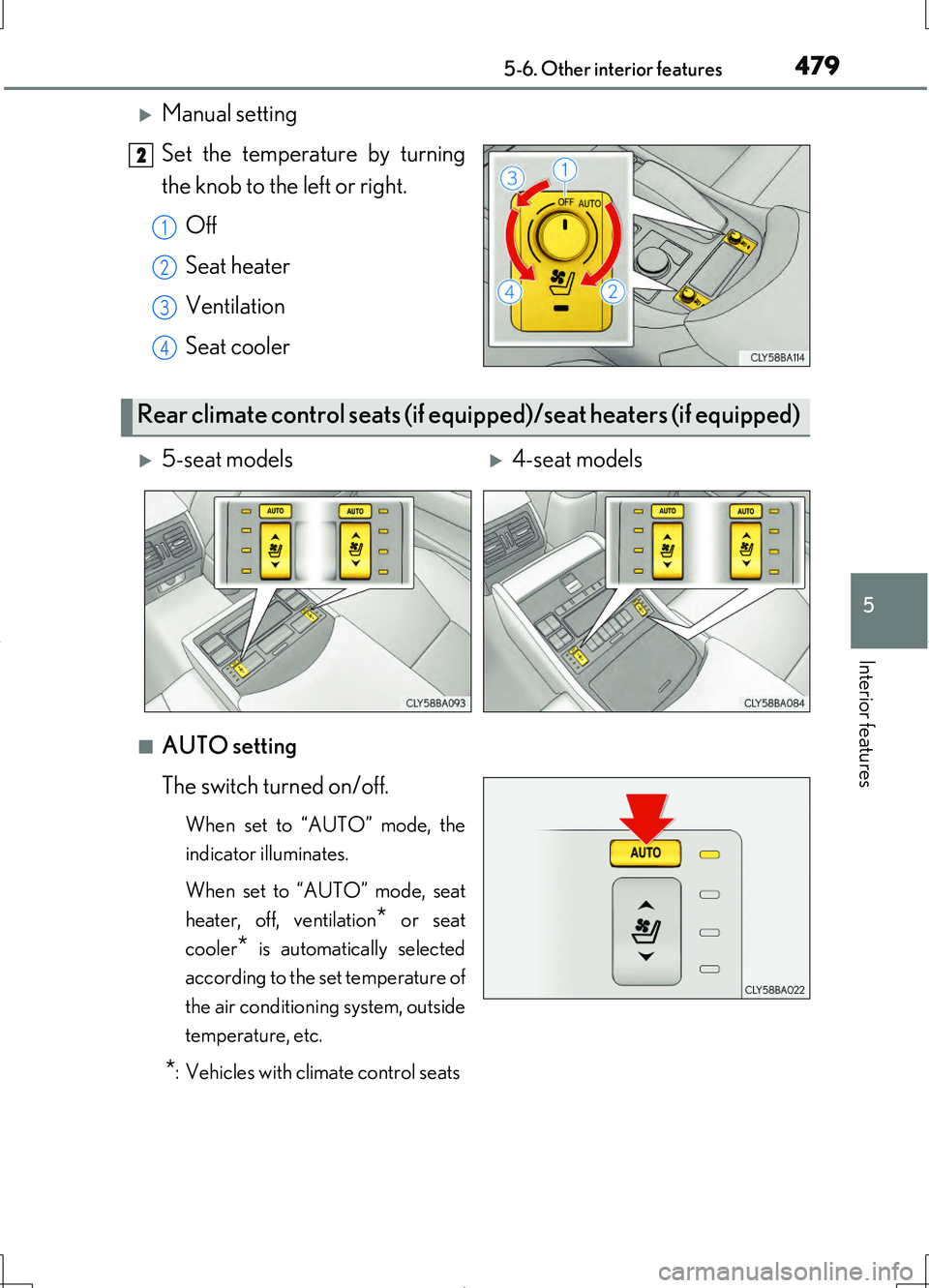

4795-6. Other interior features
5
Interior features
LS460/LS460L_GE (OM50G06E)
Manual setting
Set the temperature by turning
the knob to the left or right.
Off
Seat heater
Ventilation
Seat cooler
■AUTO setting
The switch turned on/off.
When set to “AUTO” mode, the
indicator illuminates.
When set to “AUTO” mode, seat
heater, off, ventilation* or seat
cooler* is automatically selected
according to the set temperature of
the air conditioning system, outside
temperature, etc.
*: Vehicles with climate control seats
2
1
2
3
4
Rear climate control seats (if eq uipped)/seat heaters (if equipped)
5-seat models4-seat models

4805-6. Other interior features
LS460/LS460L_GE (OM50G06E)
■Manual setting
The strength of the seat heater and seat cooler can be adjusted to 3
levels each.
Seat heater*1: When the system is off, pressing “ ” turns the seat
heater on.
Pressing “ ” increases the level and pressing “” lowers the level.
Seat cooler*2, 3: When the system is off, pressing “” turns the seat
cooler on.
Pressing “ ” increases the level and pressing “” lowers the level.
*1: The indicator illuminates in amber.
*2: The indicator illuminates in blue.
*3: Vehicles with climate control seats
OFF
Seat heater*1
Low
Mid
Hi
Seat cooler*2, 3
Low
Mid
Hi
1
2
3
4
5
6
