LEXUS LS460L 2016 Owners Manual

4915-6. Other interior features
5
Interior features
LS460/LS460L_GE (OM50G06E)

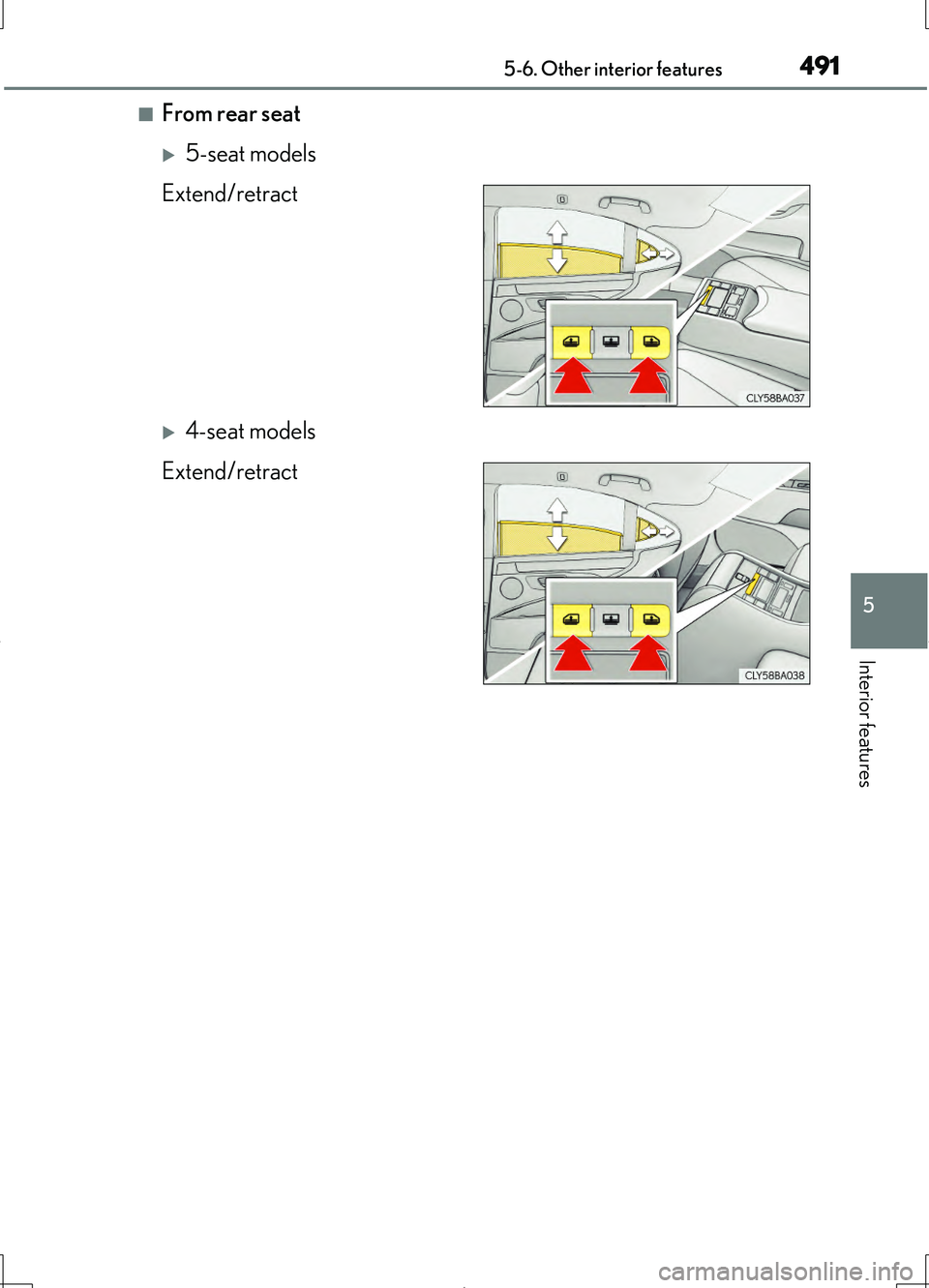

■From rear seat
5-seat models
Extend/retract
4-seat models
Extend/retract

4925-6. Other interior features
LS460/LS460L_GE (OM50G06E)

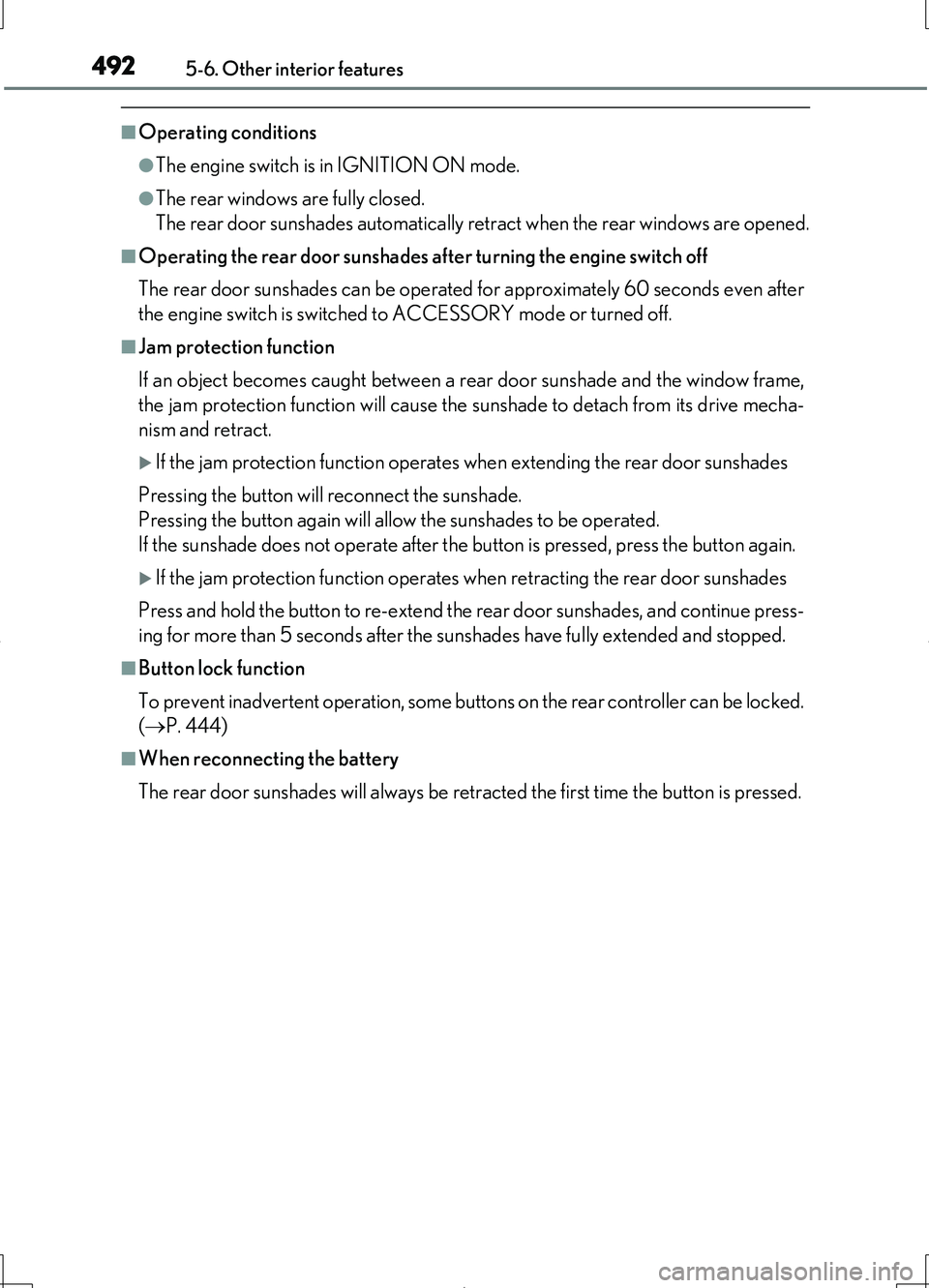

■Operating conditions
●The engine switch is in IGNITION ON mode.
●The rear windows are fully closed.
The rear door sunshades automatically retract when the rear windows are opened.
■Operating the rear door sunshades after turning the engine switch off
The rear door sunshades can be operated for approximately 60 seconds even after
the engine switch is switched to ACCESSORY mode or turned off.
■Jam protection function
If an object becomes caught between a rear door sunshade and the window frame,
the jam protection function will cause the sunshade to detach from its drive mecha-
nism and retract.
If the jam protection function operates when extending the rear door sunshades
Pressing the button will reconnect the sunshade.
Pressing the button again will allow the sunshades to be operated.
If the sunshade does not operate after the button is pressed, press the button again.
If the jam protection function operates when retracting the rear door sunshades
Press and hold the button to re-extend the rear door sunshades, and continue press-
ing for more than 5 seconds after the sunshades have fully extended and stopped.
■Button lock function
To prevent inadvertent operation, some buttons on the rear controller can be locked.
( P. 444)
■When reconnecting the battery
The rear door sunshades will always be retracted the first time the button is pressed.

4935-6. Other interior features
5
Interior features
LS460/LS460L_GE (OM50G06E)

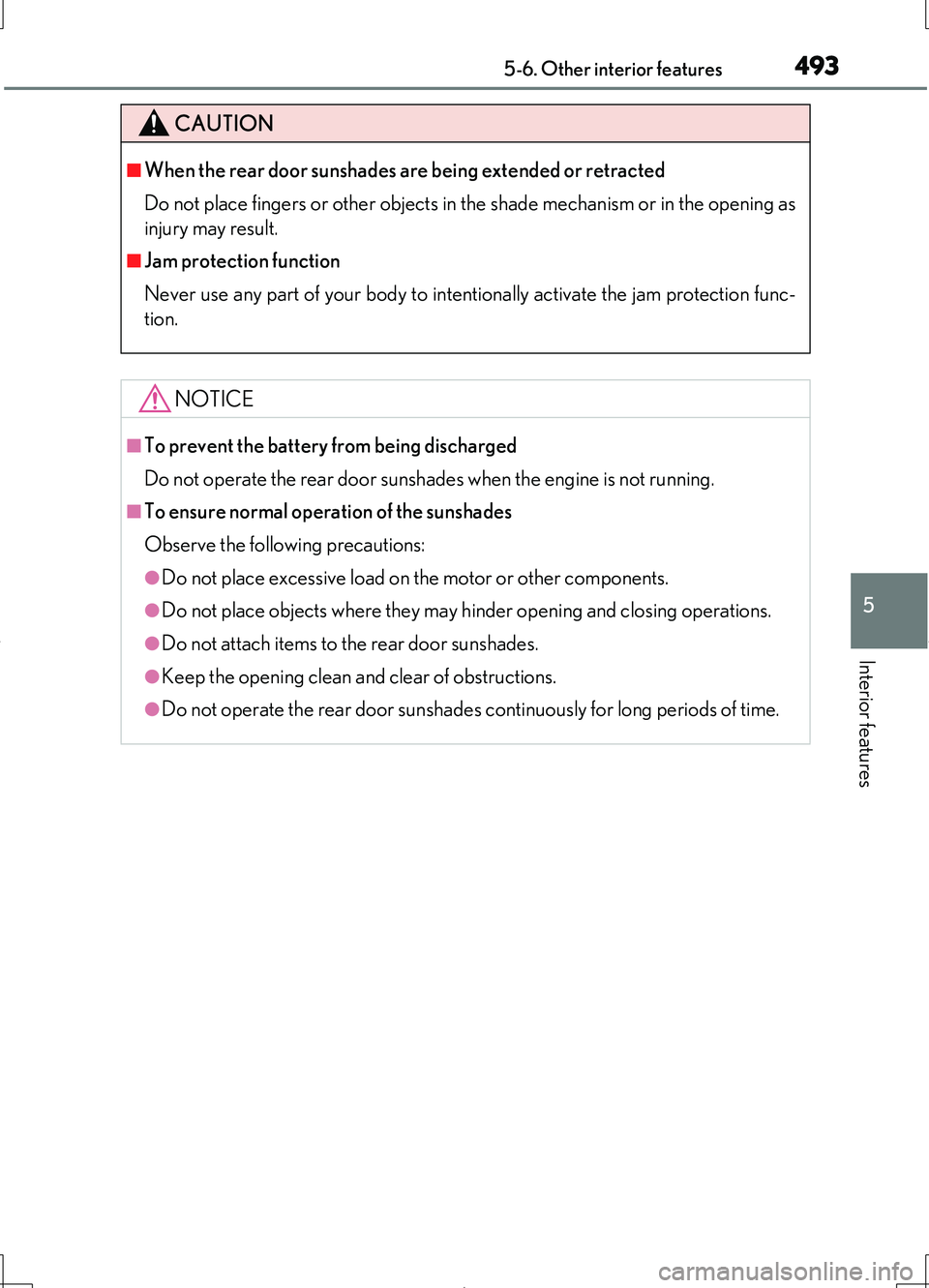

CAUTION
■When the rear door sunshades are being extended or retracted
Do not place fingers or other objects in the shade mechanism or in the opening as
injury may result.
■Jam protection function
Never use any part of your body to intentionally activate the jam protection func-
tion.
NOTICE
■To prevent the battery from being discharged
Do not operate the rear door sunshades when the engine is not running.
■To ensure normal operation of the sunshades
Observe the following precautions:
●Do not place excessive load on the motor or other components.
●Do not place objects where they may hinder opening and closing operations.
●Do not attach items to the rear door sunshades.
●Keep the opening clean and clear of obstructions.
●Do not operate the rear door sunshades continuously for long periods of time.

4945-6. Other interior features
LS460/LS460L_GE (OM50G06E)

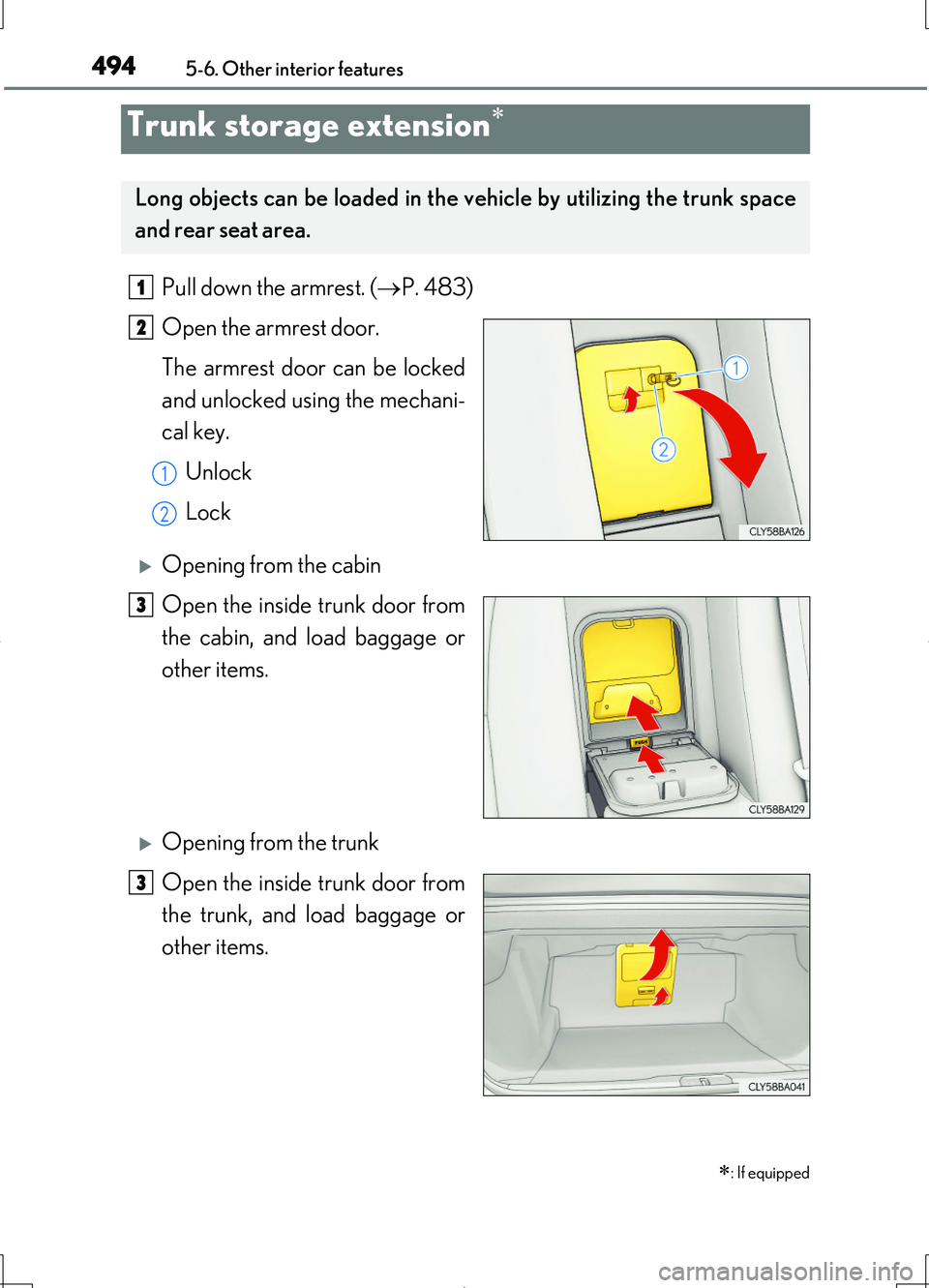

Pull down the armrest. (P. 483)
Open the armrest door.
The armrest door can be locked
and unlocked using the mechani-
cal key.
Unlock
Lock
Opening from the cabin
Open the inside trunk door from
the cabin, and load baggage or
other items.
Opening from the trunk
Open the inside trunk door from
the trunk, and load baggage or
other items.
Trunk storage extension
: If equipped
Long objects can be loaded in the vehicle by utilizing the trunk space
and rear seat area.
1
2
1
2
3
3

4955-6. Other interior features
5
Interior features
LS460/LS460L_GE (OM50G06E)

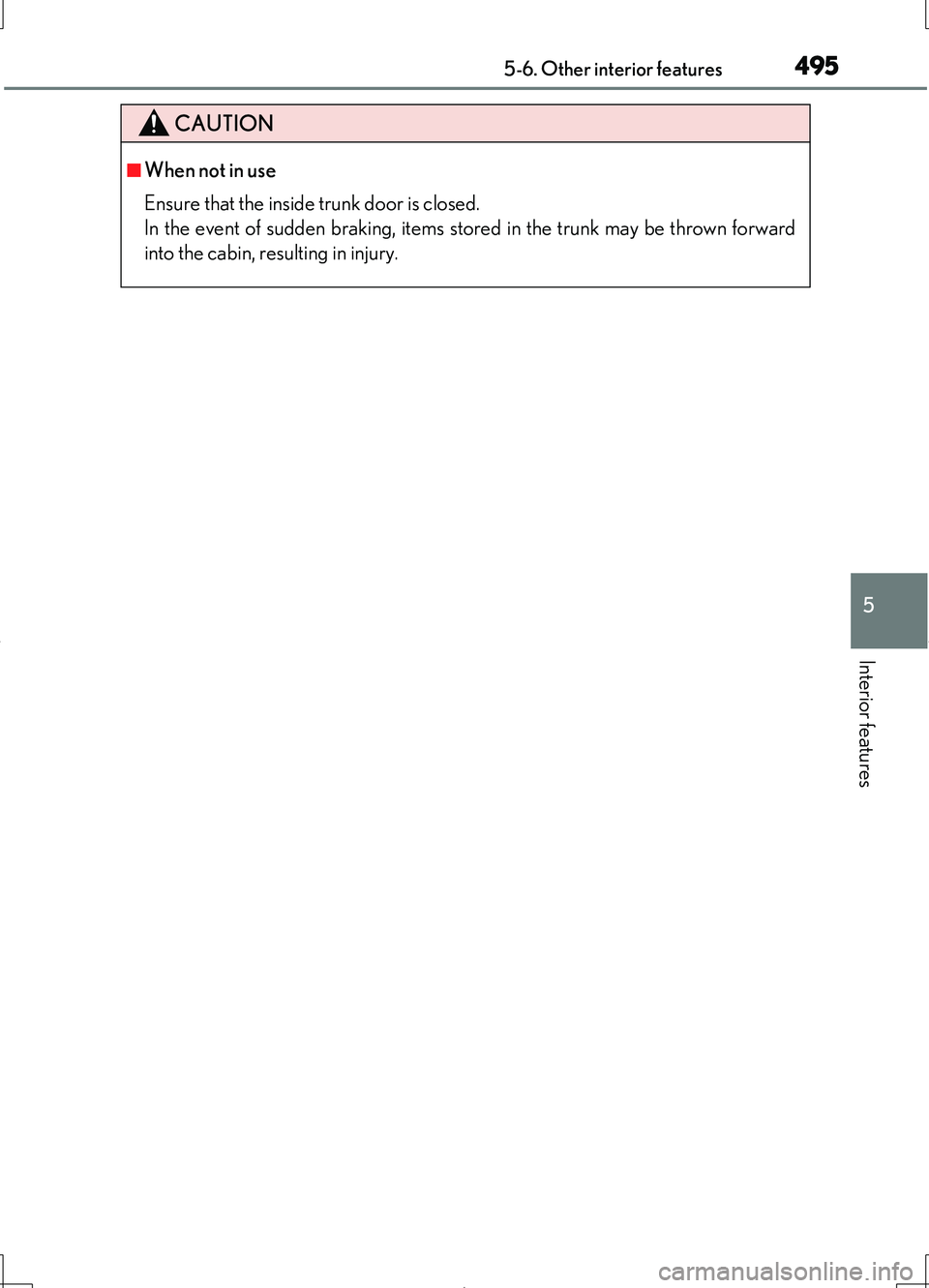

CAUTION
■When not in use
Ensure that the inside trunk door is closed.
In the event of sudden braking, items stored in the trunk may be thrown forward
into the cabin, resulting in injury.

4965-6. Other interior features
LS460/LS460L_GE (OM50G06E)

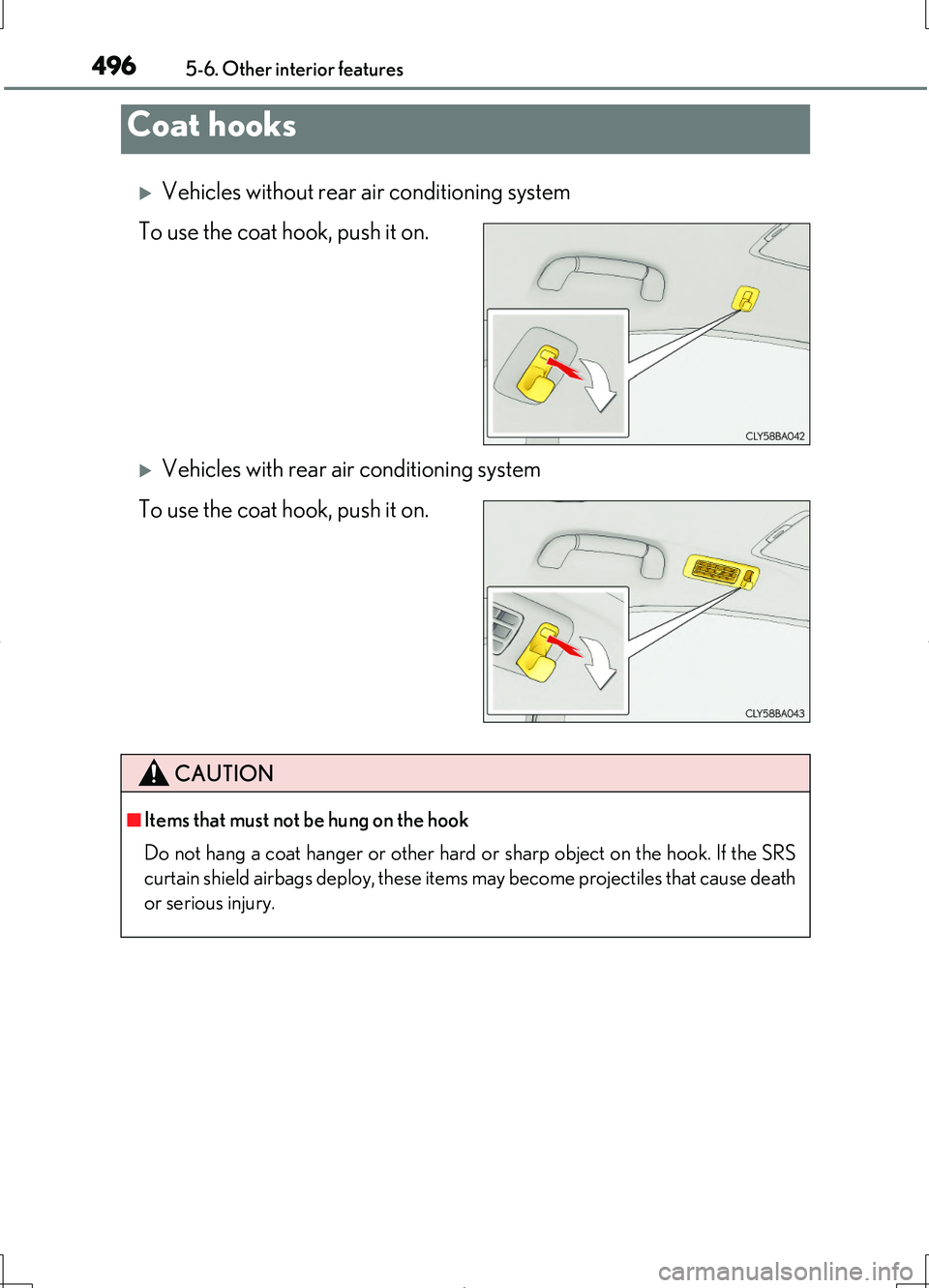

Vehicles without rear air conditioning system
To use the coat hook, push it on.
Vehicles with rear air conditioning system
To use the coat hook, push it on.
Coat hooks
CAUTION
■Items that must not be hung on the hook
Do not hang a coat hanger or other hard or sharp object on the hook. If the SRS
curtain shield airbags deploy, these items may become projectiles that cause death
or serious injury.

4975-6. Other interior features
5
Interior features
LS460/LS460L_GE (OM50G06E)

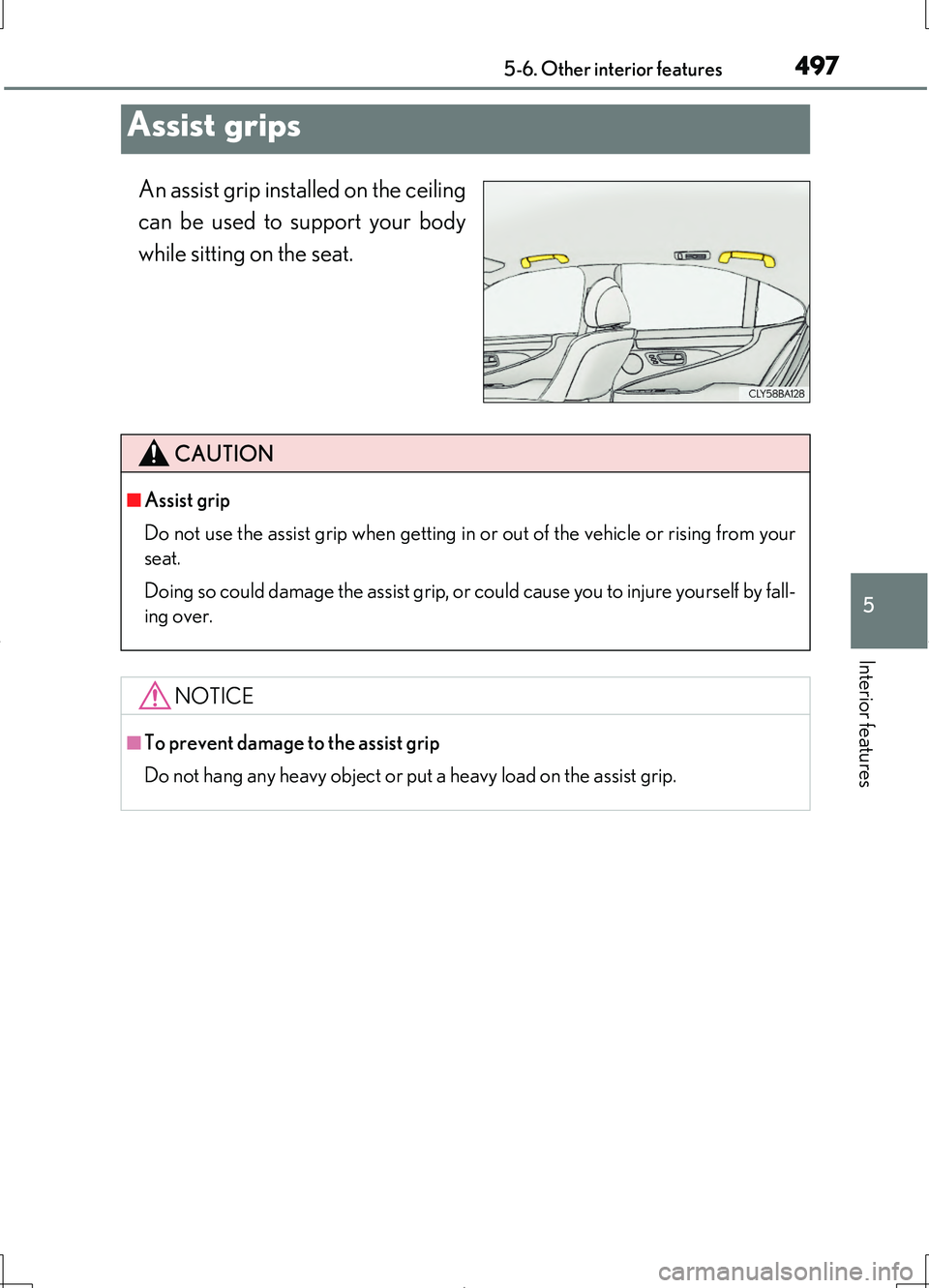

An assist grip installed on the ceiling
can be used to support your body
while sitting on the seat.
Assist grips
CAUTION
■Assist grip
Do not use the assist grip when getting in or out of the vehicle or rising from your
seat.
Doing so could damage the assist grip, or could cause you to injure yourself by fall-
ing over.
NOTICE
■To prevent damage to the assist grip
Do not hang any heavy object or put a heavy load on the assist grip.

4985-6. Other interior features
LS460/LS460L_GE (OM50G06E)

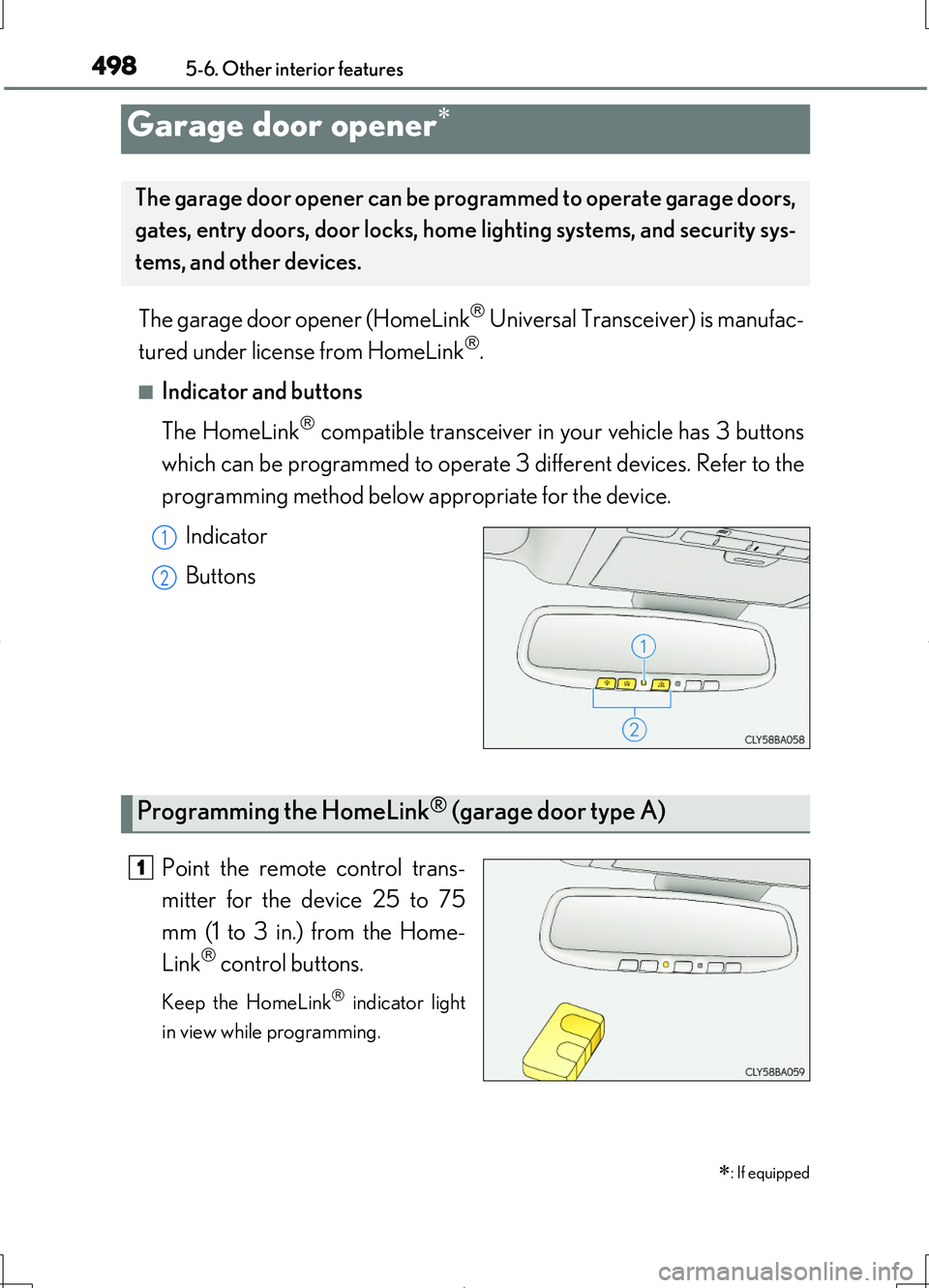

The garage door opener (HomeLink Universal Transceiver) is manufac-
tured under license from HomeLink.
■Indicator and buttons
The HomeLink compatible transceiver in your vehicle has 3 buttons
which can be programmed to operate 3 different devices. Refer to the
programming method below appropriate for the device.
Indicator
Buttons
Point the remote control trans-
mitter for the device 25 to 75
mm (1 to 3 in.) from the Home-
Link control buttons.
Keep the HomeLink indicator light
in view while programming.
Garage door opener
: If equipped
The garage door opener can be pr ogrammed to operate garage doors,
gates, entry doors, door locks, home lighting systems, and security sys-
tems, and other devices.
1
2
Programming the HomeLink® (garage door type A)
1

4995-6. Other interior features
5
Interior features
LS460/LS460L_GE (OM50G06E)

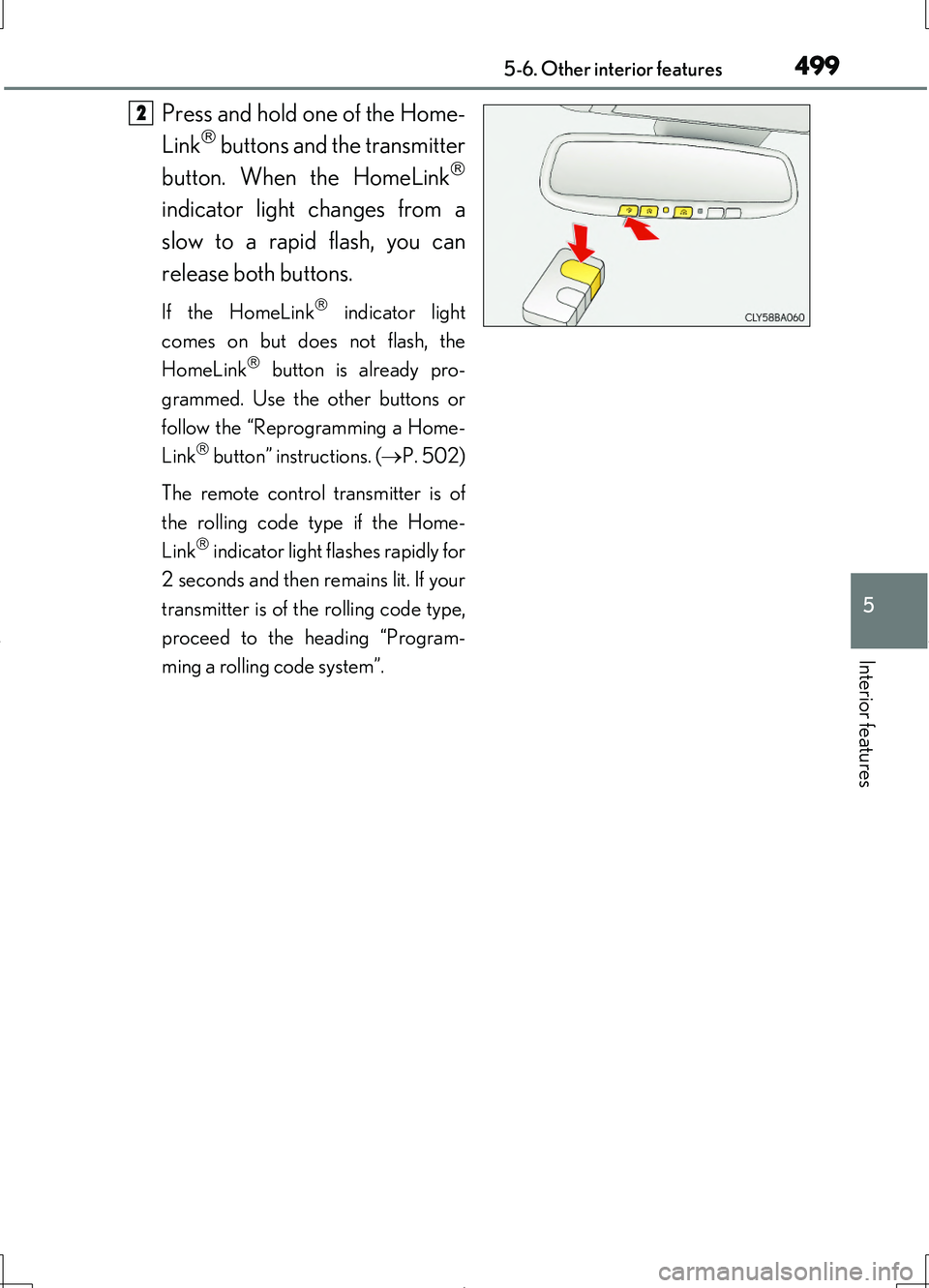

Press and hold one of the Home-
Link buttons and the transmitter
button. When the HomeLink
indicator light changes from a
slow to a rapid flash, you can
release both buttons.
If the HomeLink indicator light
comes on but does not flash, the
HomeLink button is already pro-
grammed. Use the other buttons or
follow the “Reprogramming a Home-
Link button” instructions. ( P. 502)
The remote control transmitter is of
the rolling code type if the Home-
Link indicator light flashes rapidly for
2 seconds and then remains lit. If your
transmitter is of the rolling code type,
proceed to the heading “Program-
ming a rolling code system”.
2

5005-6. Other interior features
LS460/LS460L_GE (OM50G06E)

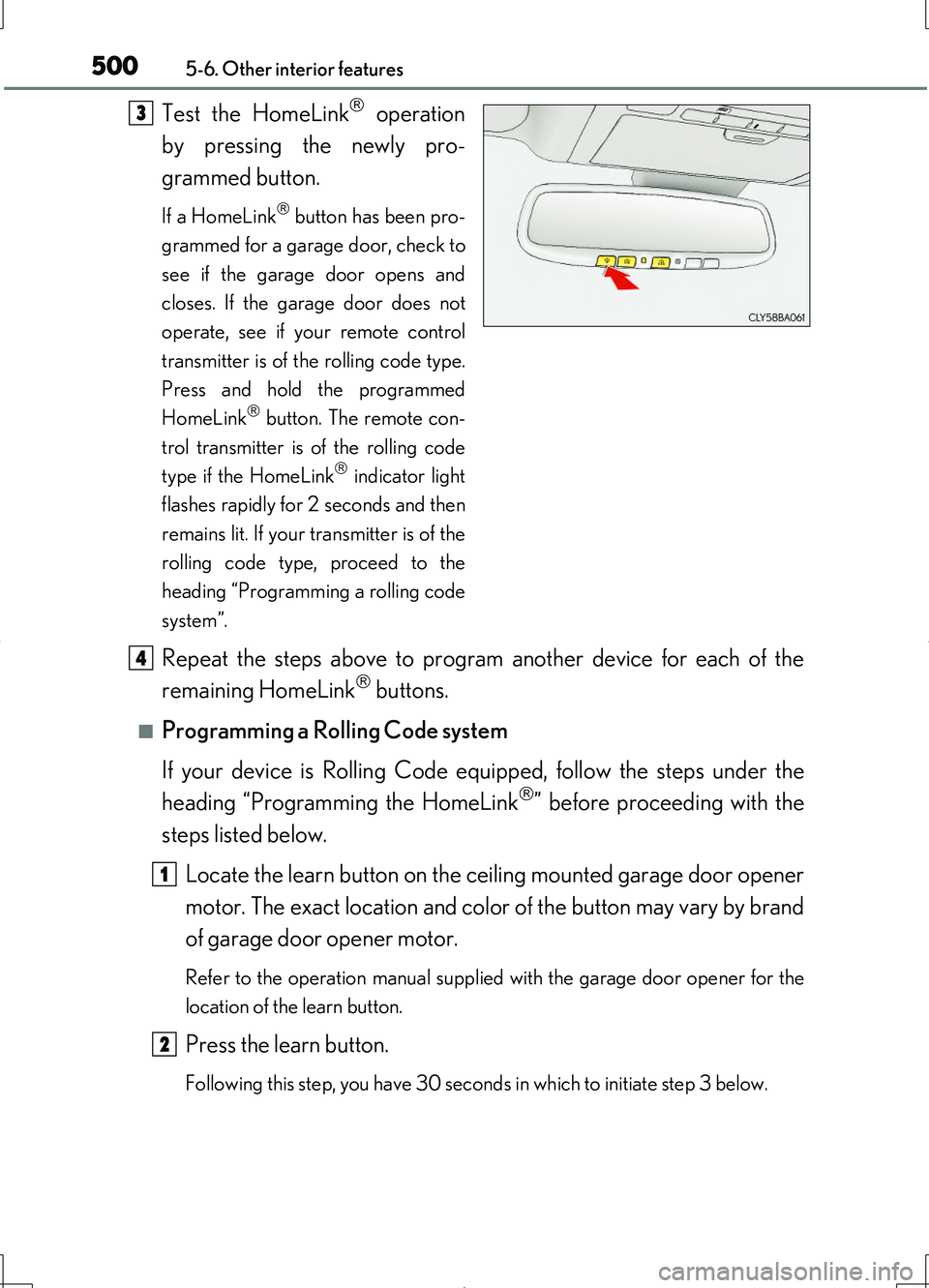

Test the HomeLink operation
by pressing the newly pro-
grammed button.
If a HomeLink button has been pro-
grammed for a garage door, check to
see if the garage door opens and
closes. If the garage door does not
operate, see if your remote control
transmitter is of the rolling code type.
Press and hold the programmed
HomeLink button. The remote con-
trol transmitter is of the rolling code
type if the HomeLink indicator light
flashes rapidly for 2 seconds and then
remains lit. If your transmitter is of the
rolling code type, proceed to the
heading “Programming a rolling code
system”.
Repeat the steps above to program another device for each of the
remaining HomeLink buttons.
■Programming a Rolling Code system
If your device is Rolling Code eq uipped, follow the steps under the
heading “Programming the HomeLink” before proceeding with the
steps listed below.
Locate the learn button on the ceiling mounted garage door opener
motor. The exact location and color of the button may vary by brand
of garage door opener motor.
Refer to the operation manual supplied with the garage door opener for the
location of the learn button.
Press the learn button.
Following this step, you have 30 seconds in which to initiate step 3 below.
3
4
1
2
