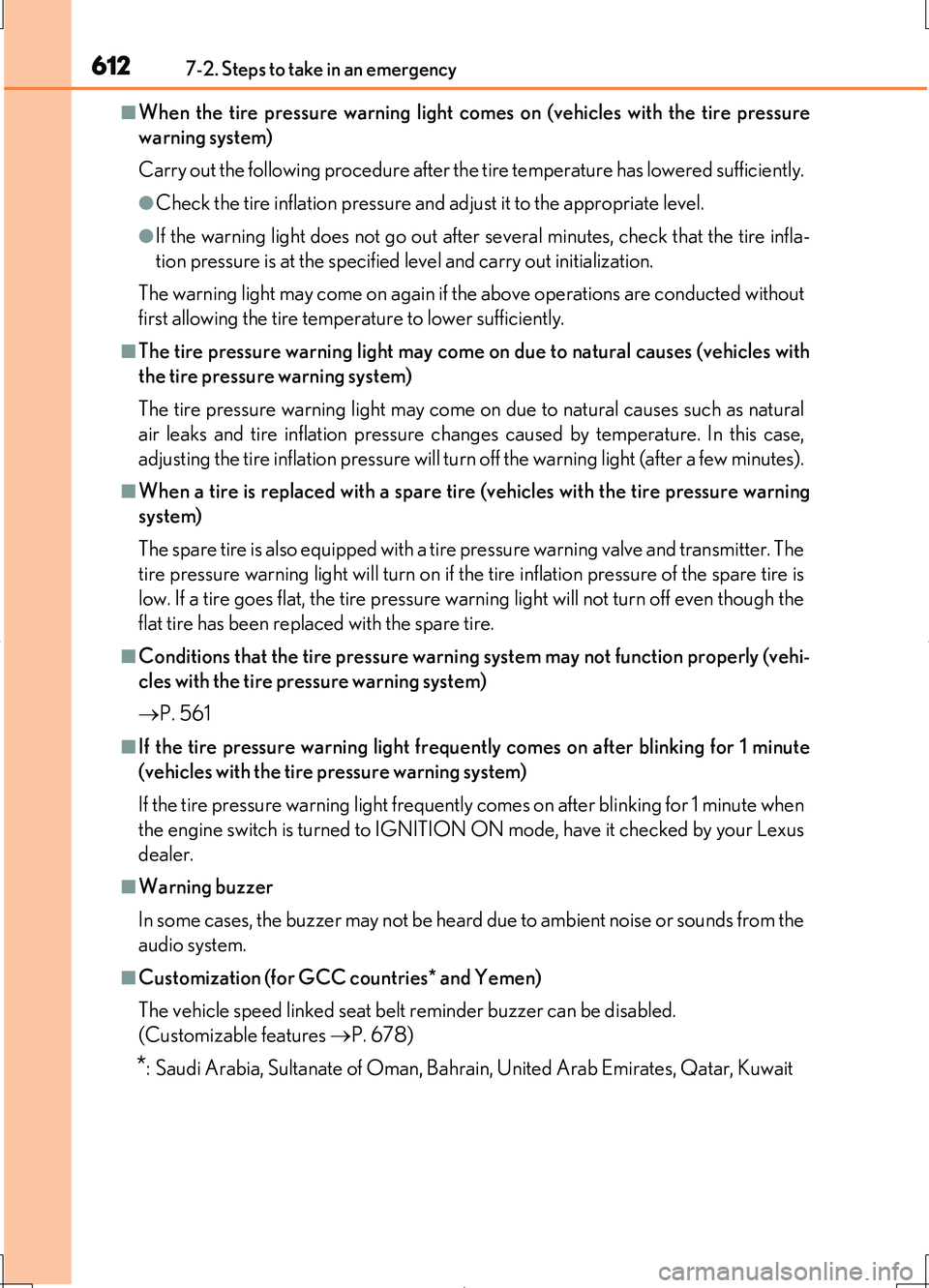

6127-2. Steps to take in an emergency
LS460/LS460L_GE (OM50G06E)
■When the tire pressure warning light comes on (vehicles with the tire pressure
warning system)
Carry out the following procedure after the tire temperature has lowered sufficiently.
●Check the tire inflation pressure and adjust it to the appropriate level.
●If the warning light does not go out after several minutes, check that the tire infla-
tion pressure is at the specified level and carry out initialization.
The warning light may come on again if the above operations are conducted without
first allowing the tire temperature to lower sufficiently.
■The tire pressure warning light may come on due to natural causes (vehicles with
the tire pressure warning system)
The tire pressure warning light may come on due to natural causes such as natural
air leaks and tire inflation pressure changes caused by temperature. In this case,
adjusting the tire inflation pressure will turn off the warning light (after a few minutes).
■When a tire is replaced with a spare tire (vehicles with the tire pressure warning
system)
The spare tire is also equipped with a tire pressure warning valve and transmitter. The
tire pressure warning light will turn on if the tire inflation pressure of the spare tire is
low. If a tire goes flat, the tire pressure warning light will not turn off even though the
flat tire has been replaced with the spare tire.
■Conditions that the tire pressure warning system may not function properly (vehi-
cles with the tire pressure warning system)
 P. 561
■If the tire pressure warning light frequently comes on after blinking for 1 minute
(vehicles with the tire pressure warning system)
If the tire pressure warning light frequently comes on after blinking for 1 minute when
the engine switch is turned to IGNITION ON mode, have it checked by your Lexus
dealer.
■Warning buzzer
In some cases, the buzzer may not be heard due to ambient noise or sounds from the
audio system.
■Customization (for GCC countries* and Yemen)
The vehicle speed linked seat belt reminder buzzer can be disabled.
(Customizable features P. 678)
*: Saudi Arabia, Sultanate of Oman, Bahrain, United Arab Emirates, Qatar, Kuwait

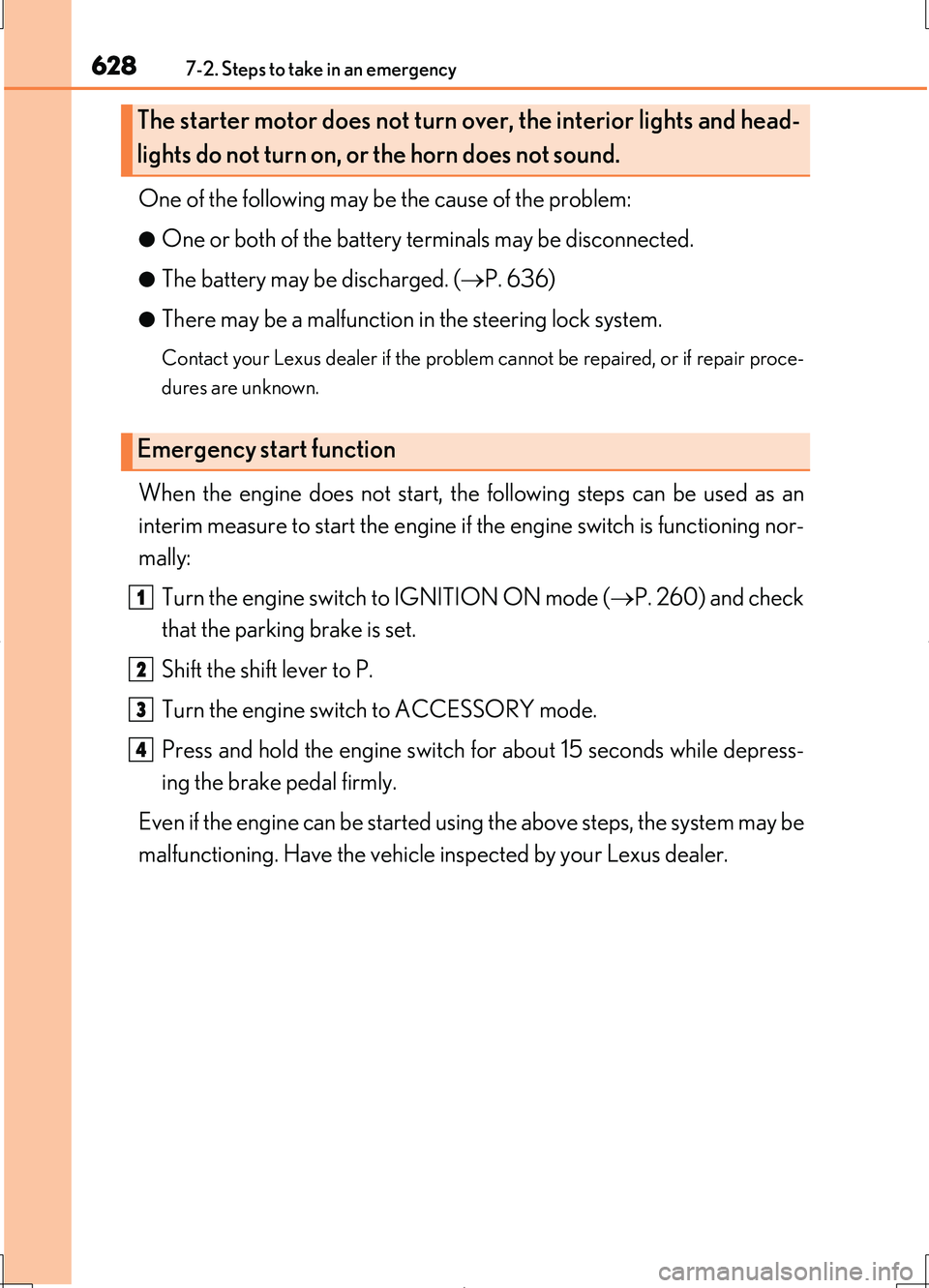

6287-2. Steps to take in an emergency
LS460/LS460L_GE (OM50G06E)
One of the following may be the cause of the problem:
●One or both of the battery terminals may be disconnected.
●The battery may be discharged. (P. 636)
●There may be a malfunction in the steering lock system.
Contact your Lexus dealer if the problem cannot be repaired, or if repair proce-
dures are unknown.
When the engine does not start, the following steps can be used as an
interim measure to start the engine if the engine switch is functioning nor-
mally:
Turn the engine switch to IGNITION ON mode ( P. 260) and check
that the parking brake is set.
Shift the shift lever to P.
Turn the engine switch to ACCESSORY mode.
Press and hold the engine switch for about 15 seconds while depress-
ing the brake pedal firmly.
Even if the engine can be started using the above steps, the system may be
malfunctioning. Have the vehicle inspected by your Lexus dealer.
The starter motor does not turn over, the interior lights and head-
lights do not turn on, or the horn does not sound.
Emergency start function
1
2
3
4

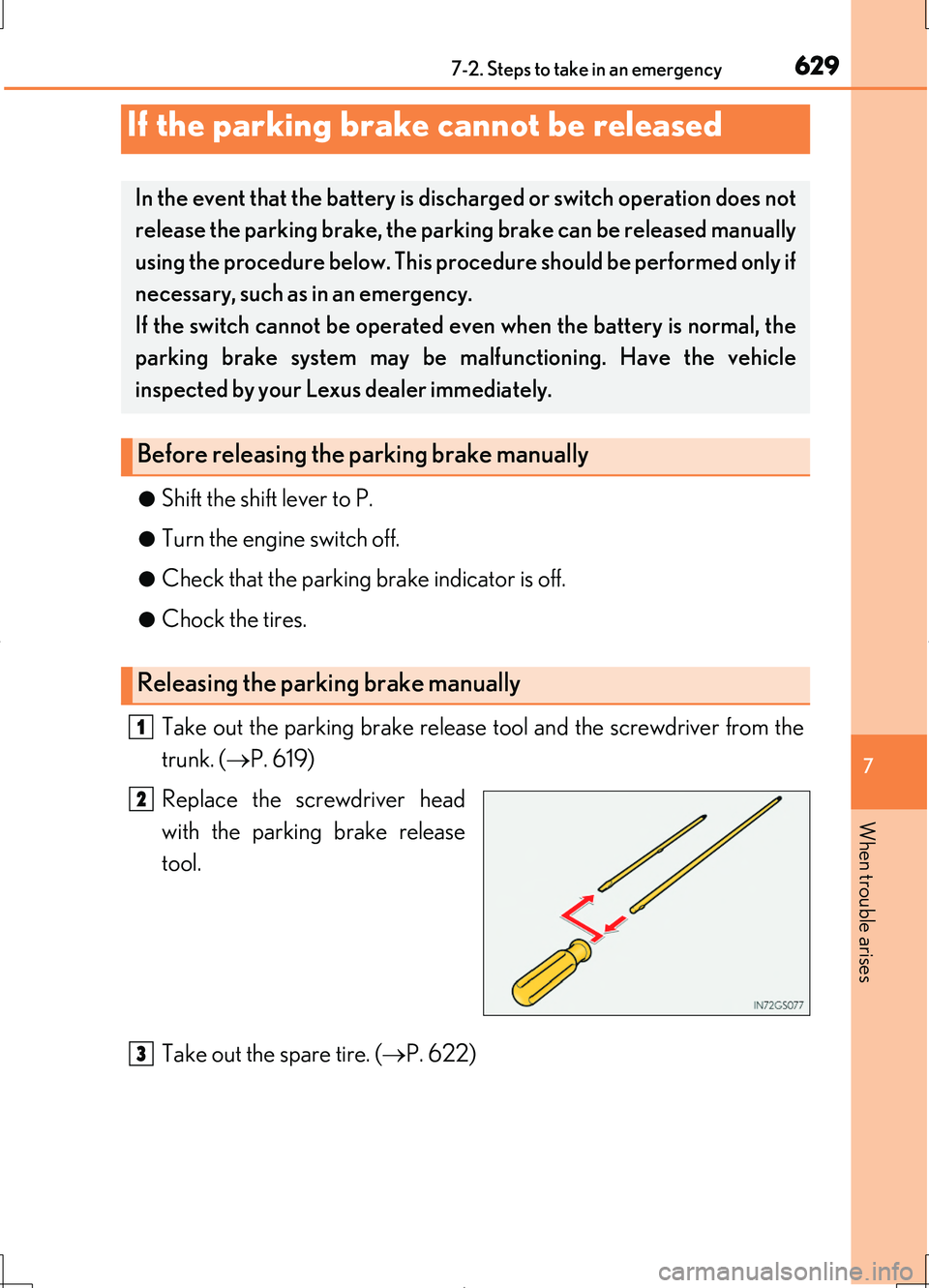

6297-2. Steps to take in an emergency
7
When trouble arises
LS460/LS460L_GE (OM50G06E)
●Shift the shift lever to P.
●Turn the engine switch off.
●Check that the parking brake indicator is off.
●Chock the tires.
Take out the parking brake release tool and the screwdriver from the
trunk. ( P. 619)
Replace the screwdriver head
with the parking brake release
tool.
Take out the spare tire. ( P. 622)
If the parking brake cannot be released
In the event that the battery is discharged or switch operation does not
release the parking brake, the parking brake can be released manually
using the procedure below. This pro cedure should be performed only if
necessary, such as in an emergency.
If the switch cannot be operated even when the battery is normal, the
parking brake system may be malfunctioning. Have the vehicle
inspected by your Lexus dealer immediately.
Before releasing the parking brake manually
Releasing the parking brake manually
1
2
3

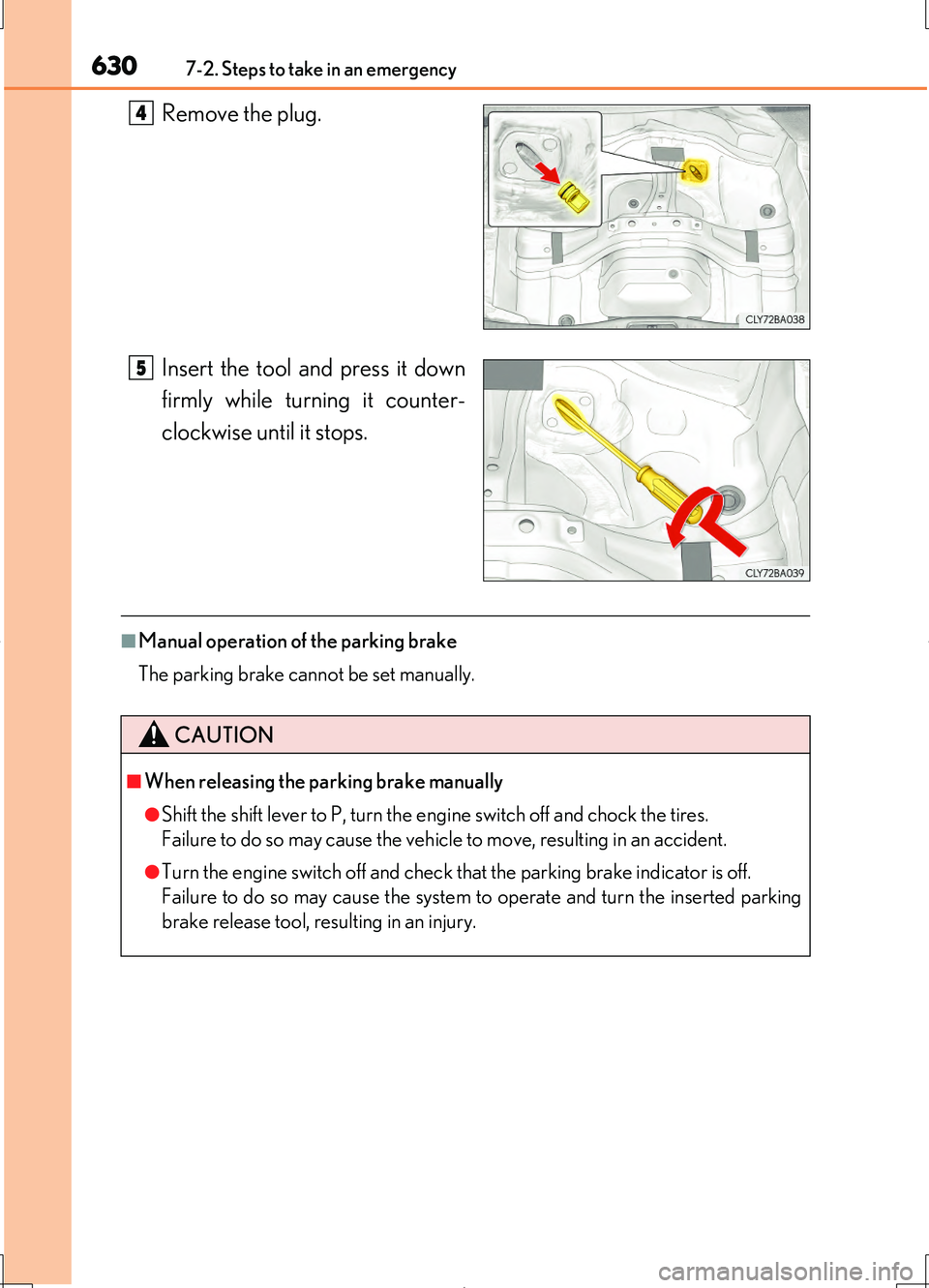

6307-2. Steps to take in an emergency
LS460/LS460L_GE (OM50G06E)
Remove the plug.
Insert the tool and press it down
firmly while turning it counter-
clockwise until it stops.
■Manual operation of the parking brake
The parking brake cannot be set manually.
4
5
CAUTION
■When releasing the parking brake manually
●Shift the shift lever to P, turn the engine switch off and chock the tires.
Failure to do so may cause the vehicle to move, resulting in an accident.
●Turn the engine switch off and check that the parking brake indicator is off.
Failure to do so may cause the system to operate and turn the inserted parking
brake release tool, resulting in an injury.

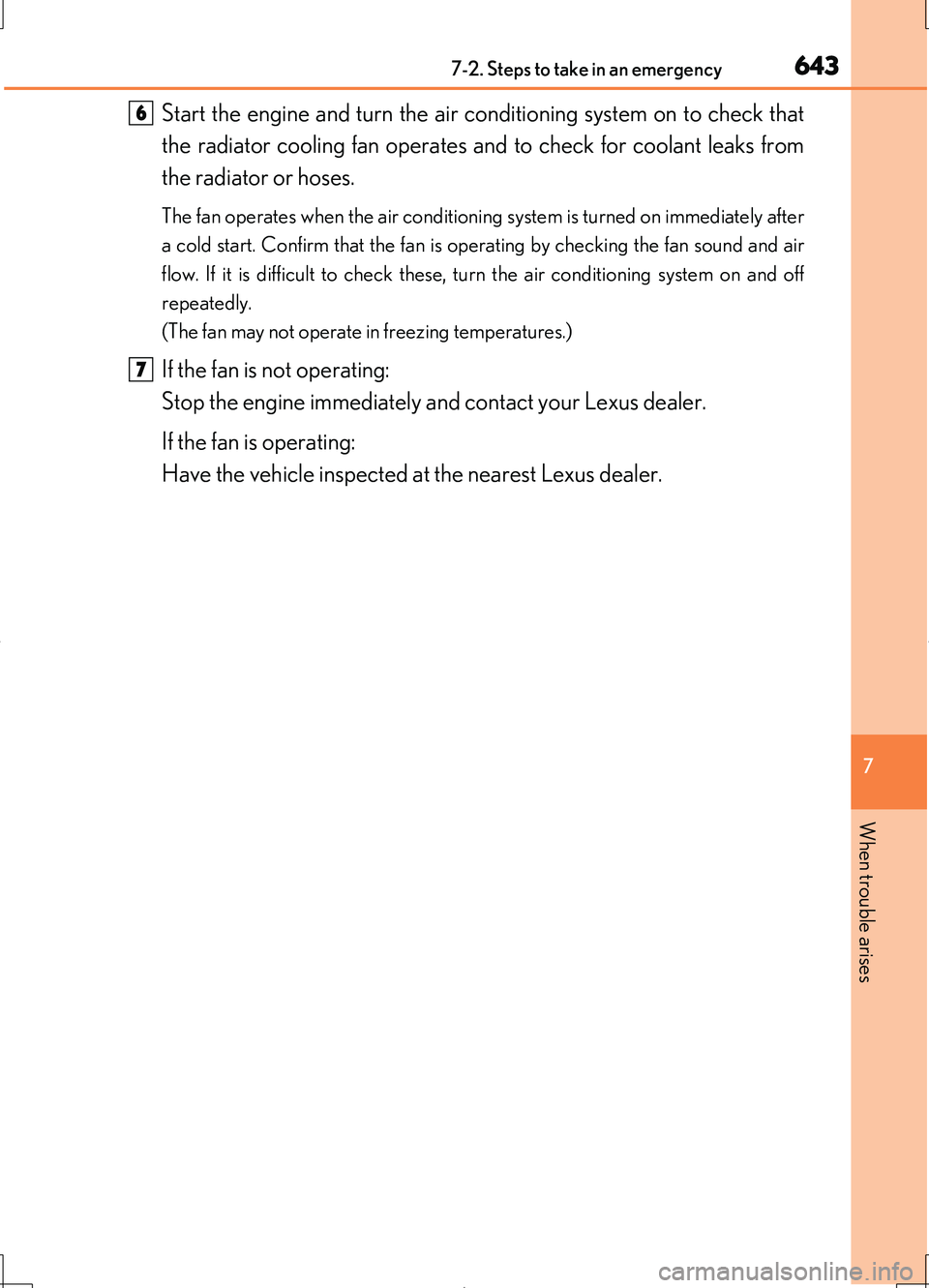

6437-2. Steps to take in an emergency
7
When trouble arises
LS460/LS460L_GE (OM50G06E)
Start the engine and turn the air conditioning system on to check that
the radiator cooling fan operates and to check for coolant leaks from
the radiator or hoses.
The fan operates when the air conditioning system is turned on immediately after
a cold start. Confirm that the fan is operating by checking the fan sound and air
flow. If it is difficult to check these, turn the air conditioning system on and off
repeatedly.
(The fan may not operate in freezing temperatures.)
If the fan is not operating:
Stop the engine immediately and contact your Lexus dealer.
If the fan is operating:
Have the vehicle inspected at the nearest Lexus dealer.
6
7

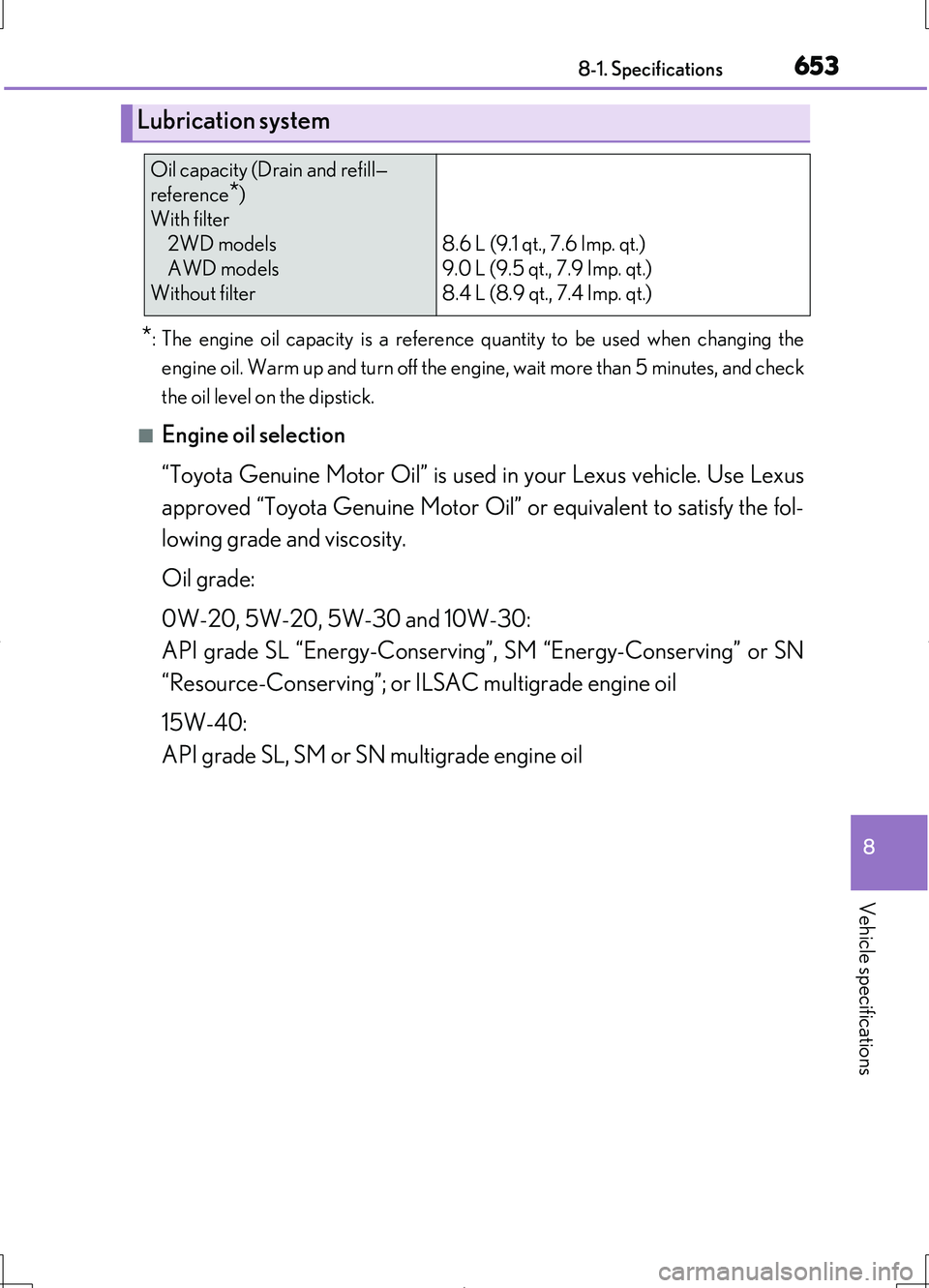

653
8
8-1. Specifications
Vehicle specifications
LS460/LS460L_GE (OM50G06E)
*: The engine oil capacity is a reference quantity to be used when changing the
engine oil. Warm up and turn off the engine, wait more than 5 minutes, and check
the oil level on the dipstick.
■Engine oil selection
“Toyota Genuine Motor Oil” is used in your Lexus vehicle. Use Lexus
approved “Toyota Genuine Motor Oil” or equivalent to satisfy the fol-
lowing grade and viscosity.
Oil grade:
0W-20, 5W-20, 5W-30 and 10W-30:
API grade SL “Energy-Conserving”, SM “Energy-Conserving” or SN
“Resource-Conserving”; or ILSAC multigrade engine oil
15W-40:
API grade SL, SM or SN multigrade engine oil
Lubrication system
Oil capacity (Drain and refill—
reference*)
With filter
2WD models
AWD models
Without filter
8.6 L (9.1 qt., 7.6 Imp. qt.)
9.0 L (9.5 qt., 7.9 Imp. qt.)
8.4 L (8.9 qt., 7.4 Imp. qt.)

659
8
8-1. Specifications
Vehicle specifications
LS460/LS460L_GE (OM50G06E)

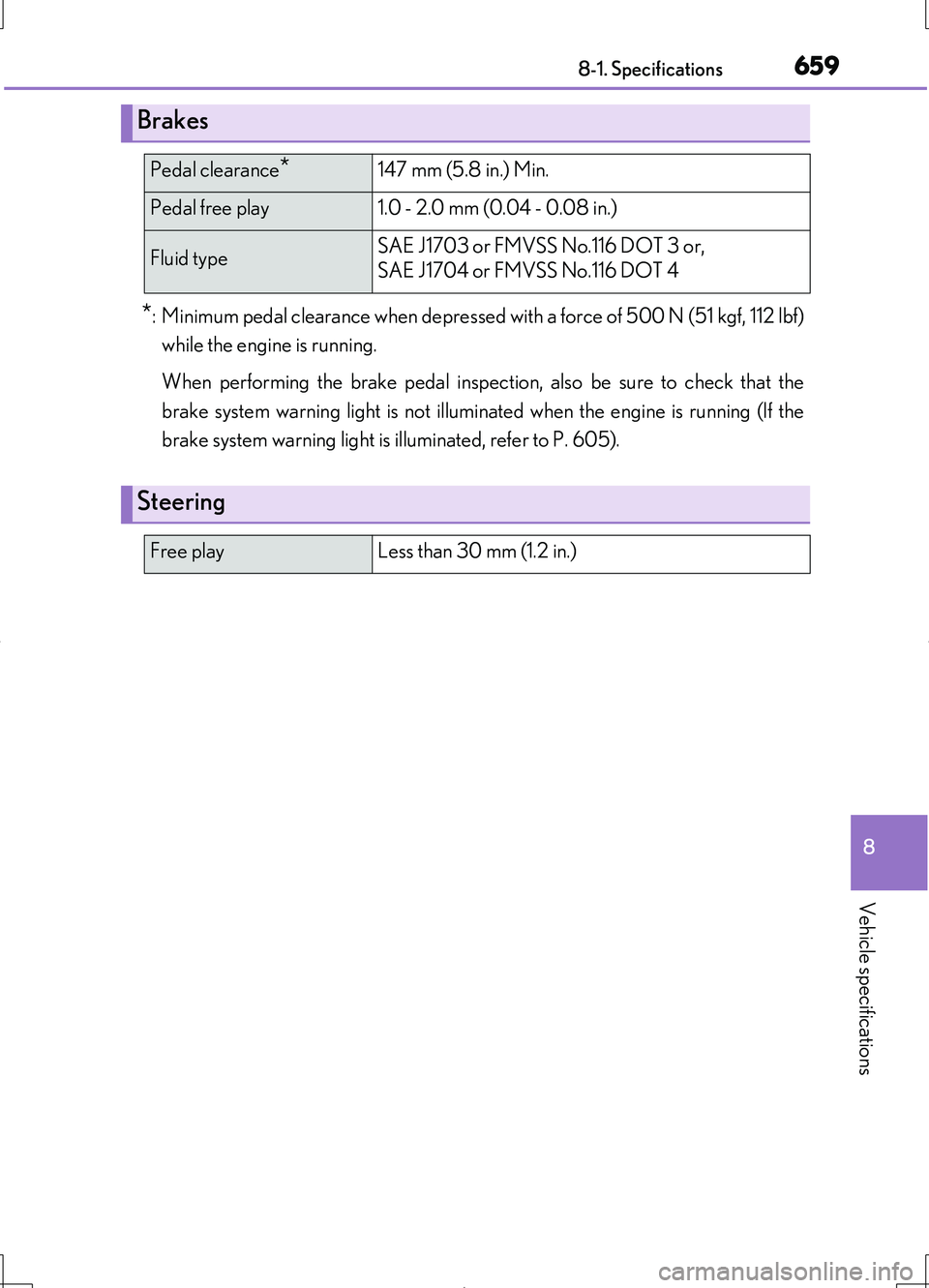

*: Minimum pedal clearance when depressed with a force of 500 N (51 kgf, 112 lbf)
while the engine is running.
When performing the brake pedal inspection, also be sure to check that the
brake system warning light is not illuminated when the engine is running (If the
brake system warning light is illuminated, refer to P. 605).
Brakes
Pedal clearance*147 mm (5.8 in.) Min.
Pedal free play1.0 - 2.0 mm (0.04 - 0.08 in.)
Fluid typeSAE J1703 or FMVSS No.116 DOT 3 or,
SAE J1704 or FMVSS No.116 DOT 4
Steering
Free playLess than 30 mm (1.2 in.)

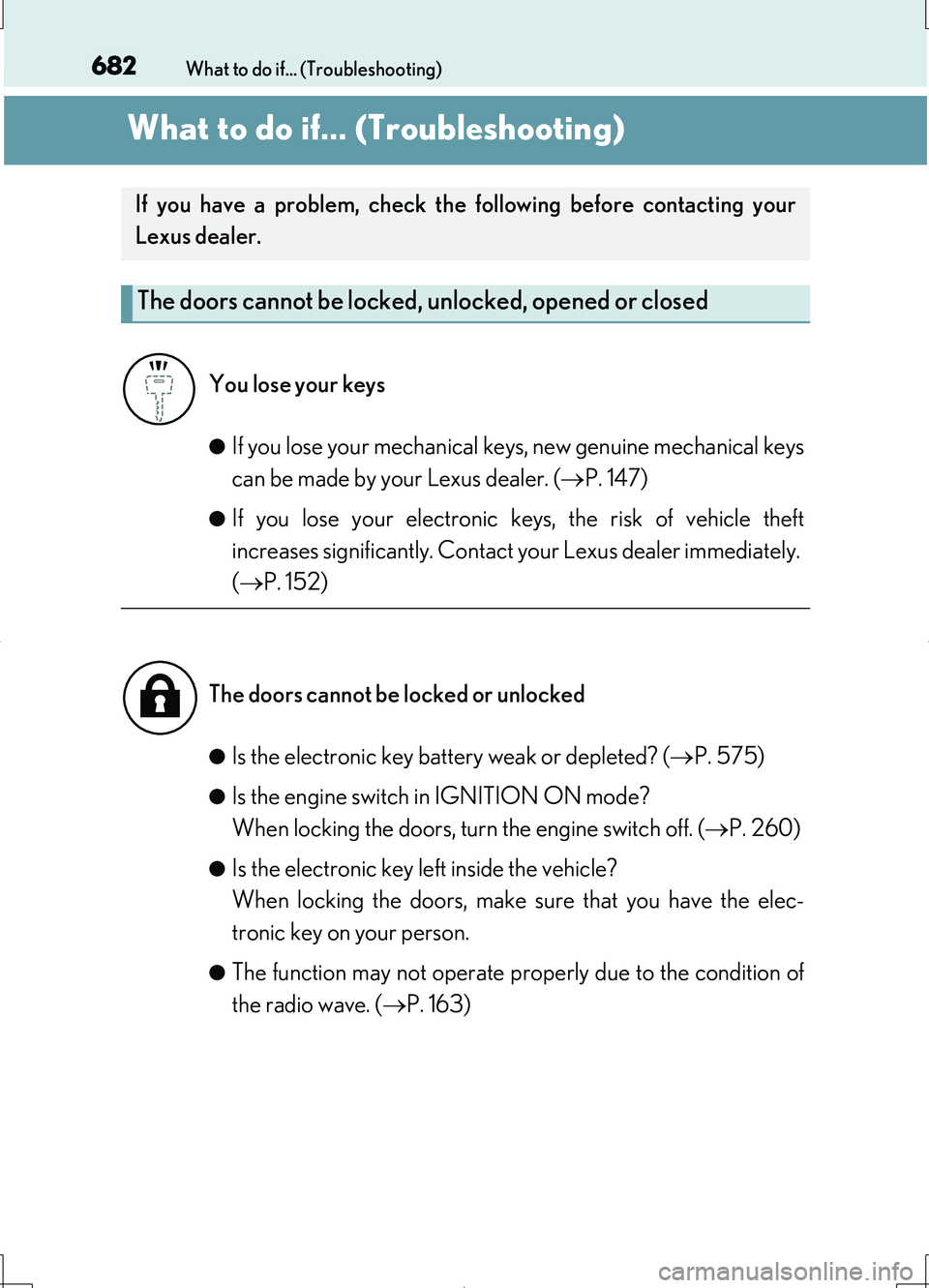

682
LS460/LS460L_GE (OM50G06E)
What to do if... (Troubleshooting)
What to do if... (Troubleshooting)
●If you lose your mechanical keys, new genuine mechanical keys
can be made by your Lexus dealer. ( P. 147)
●If you lose your electronic keys, the risk of vehicle theft
increases significantly. Contact your Lexus dealer immediately.
( P. 152)
●Is the electronic key battery weak or depleted? (P. 575)
●Is the engine switch in IGNITION ON mode?
When locking the doors, turn the engine switch off. ( P. 260)
●Is the electronic key left inside the vehicle?
When locking the doors, make sure that you have the elec-
tronic key on your person.
●The function may not operate properly due to the condition of
the radio wave. ( P. 163)
If you have a problem, check the following before contacting your
Lexus dealer.
The doors cannot be locked, unlocked, opened or closed
You lose your keys
The doors cannot be locked or unlocked

686What to do if... (Troubleshooting)
LS460/LS460L_GE (OM50G06E)
●Did anyone inside the vehicle open a door or anything move
inside the vehicle* during setting the alarm?
The sensor detects them and the alarm sounds. ( P. 112)
*: If the vehicle is equipped with intrusion sensor and tilt sensor.
Do one of the following to stop the alarm:
Vehicles without airbag manual on-off system
• Unlock the doors or open the trunk.
• Turn the engine switch to ACCESSORY or IGNITION ON
mode, or start the engine.
Vehicles with airbag manual on-off system
• Unlock the doors or open the trunk using the entry function or
wireless remote control.
•Start the engine.
●Is the message displayed on the multi-information display?
Check the message on the multi-information display.
( P. 614)
●When a warning light turns on or a warning message is dis-
played, refer to P. 605, 614.
An alarm is activated and the horn sounds
A warning buzzer sounds when leaving the vehicle
A warning light turns on or a warning message is displayed

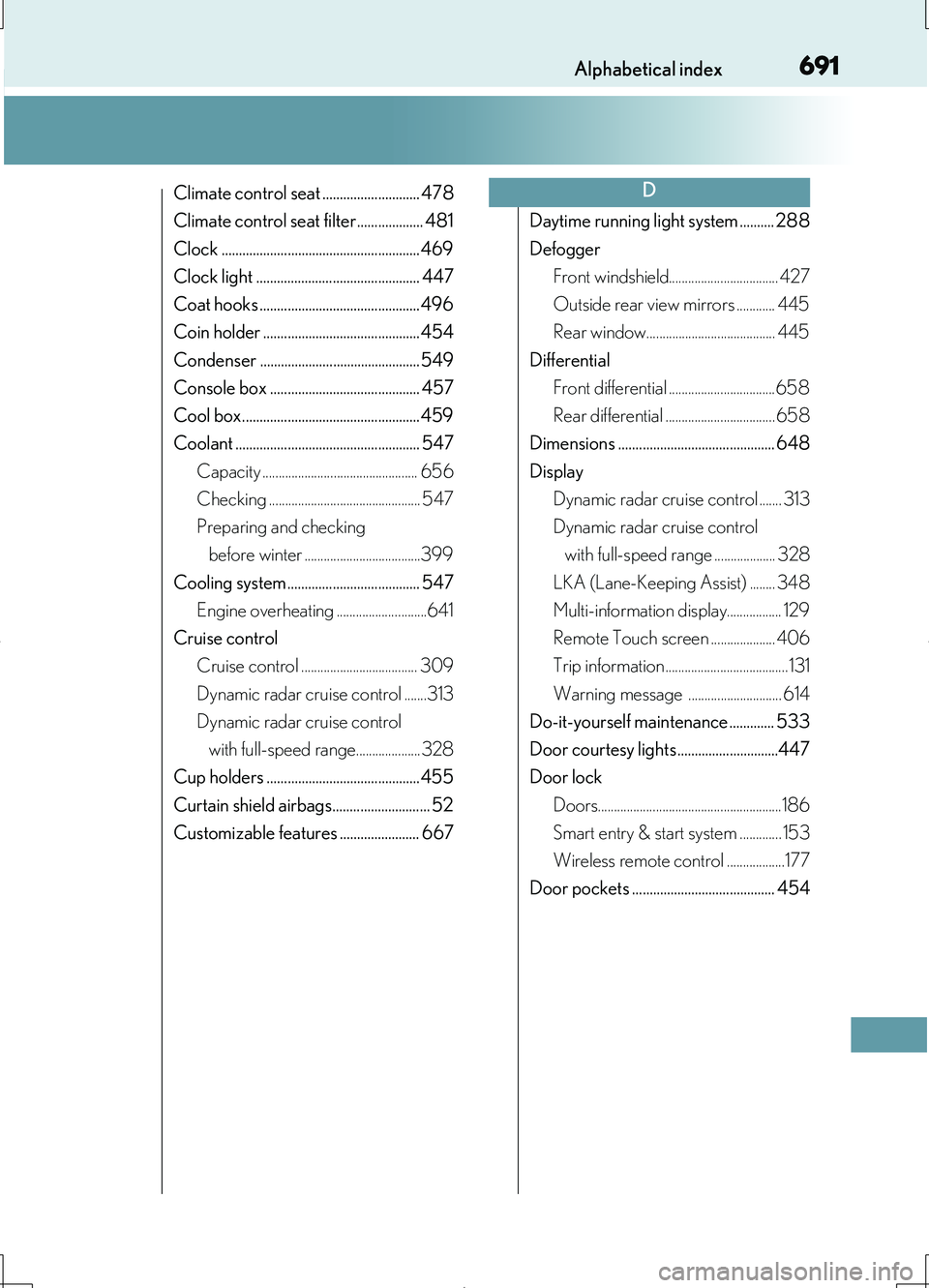

691Alphabetical index
LS460/LS460L_GE (OM50G06E)
Climate control seat ............................ 478
Climate control seat filter................... 481
Clock ......................................................... 469
Clock light ............................................... 447
Coat hooks .............................................. 496
Coin holder ............................................. 454
Condenser .............................................. 549
Console box ........................................... 457
Cool box................................................... 459
Coolant ..................................................... 547
Capacity ................................................ 656
Checking ............................................... 547
Preparing and checking
before winter ....................................399
Cooling system ...................................... 547
Engine overheating ............................641
Cruise control
Cruise control .................................... 309
Dynamic radar cruise control .......313
Dynamic radar cruise control
with full-speed range.................... 328
Cup holders ............................................455
Curtain shield airbags............................ 52
Customizable features ....................... 667
Daytime running light system .......... 288
Defogger
Front windshield.................................. 427
Outside rear view mirrors ............ 445
Rear window........................................ 445
Differential
Front differential .................................658
Rear differential ..................................658
Dimensions ............................................. 648
Display
Dynamic radar cruise control ....... 313
Dynamic radar cruise control
with full-speed range ................... 328
LKA (Lane-Keeping Assist) ........ 348
Multi-information display................. 129
Remote Touch screen .................... 406
Trip information...................................... 131
Warning message ............................. 614
Do-it-yourself maintenance ............. 533
Door courtesy lights.............................447
Door lock
Doors.........................................................186
Smart entry & start system ............. 153
Wireless remote control ..................177
Door pockets ......................................... 454
D
