4117-2. Steps to take in an emergency
LS500_OM_(U)_1810 7
When trouble arises 
From the front
Use a towing dolly under the rear
wheels. 
From the rear
Use a towing dolly under the front
wheels.
If your vehicle is transported by a flat-
bed truck, it should be tied down at the
locations shown in the illustration. If you use chains or cables to tie down
your vehicle, the angles shaded in
black must be 45°.
Do not overly tighten the tie downs or
the vehicle may be damaged.
Make sure to disable all functions of
the vehicle height control of the elec-
tronically modulated air suspension.
Otherwise, the vehicle height may
change and the vehicle may be dam-
aged. (  P.293)
If a tow truck is not available in an
emergency, your vehicle may be tem-
porarily towed using cables or chains
secured to the emergency towing eye-
lets. This should only be attempted on
hard surfaced roads for short distances
at under 18 mph (30 km/h).
A driver must be in the vehicle to steer
and operate the brakes. The vehicle’s Towing with a wheel-lift type
truck
Using a flatbed truck
Emergency towing

412 7-2. Steps to take in an emergency
LS500_OM_(U)_1810 wheels, drive train, axles, steering and
brakes must be in good condition.
To have your vehicle towed by another
vehicle, the towing eyelet must be
installed to your vehicle. Install the tow-
ing eyelet using the following proce-
dure.
1 Take out the phillips-head screw-
driver and towing eyelet.
Phillips-head screwdriver
Towing eyelet
2 Remove the eyelet cover using a
flathead screwdriver.To protect the bodywork, place a rag
between the screwdriver and the vehicle
body as shown in the illustration. 3 Insert the towing eyelet into the
hole and tighten partially by hand.
4 Tighten down the towing eyelet
securely using a phillips-head
screwdriver or hard metal bar.
5 Securely attach cables or chains to
the towing eyelet. Take care not to damage the vehicle body.
6 Enter the vehicle being towed and
start the engine. If the engine does not start, turn the engine
switch to IGNITION ON mode.
7 Shift the shift position to N and
release the parking brake. ■
While towing
If the engine is not running, the power assist
for the brakes and steering will not function,
making steering and braking more difficult.Emergency towing procedure
A
B

4137-2. Steps to take in an emergency
LS500_OM_(U)_1810 7
When trouble arises  Fluid leaks under the vehicle.
(Water dripping from the air condi-
tioning after use is normal.)
 Flat-looking tires or uneven tire
wear
 Engine coolant temperature gauge
needle continually points higher
than normal.
 Changes in exhaust sound
 Excessive tire squeal when corner-
ing
 Strange noises related to the sus-
pension system
 Pinging or other noises related to
the engine
 Engine missing, stumbling or run-
ning roughly
 Appreciable loss of power
 Vehicle pulls heavily to one side
when braking  Vehicle pulls heavily to one side
when driving on a level road
 Loss of brake effectiveness, spongy
feeling, pedal almost touches the
floor
If you think something is
wrong If you notice any of the following
symptoms, your vehicle probably
needs adjustment or repair. Con-
tact your Lexus dealer as soon as
possible.
Visible symptoms
Audible symptoms
Operational symptoms

414 7-2. Steps to take in an emergency
LS500_OM_(U)_1810 Follow the procedure below to restart
the engine after the system is activated.
1 Turn the engine switch to ACCES-
SORY mode or turn it off.
2 Restart the engine.Fuel pump shut off system To minimize the risk of fuel leakage
when the engine stalls or when an
airbag inflates upon collision, the
fuel pump shut off system stops the
supply of fuel to the engine.
Restarting the engine
NOTICE■
Before starting the engine
Inspect the ground under the vehicle.
If you find that fuel has leaked onto the
ground, the fuel system has been dam-
aged and is in need of repair. Do not
restart the engine.

4157-2. Steps to take in an emergency
LS500_OM_(U)_1810 7
When trouble arises ■

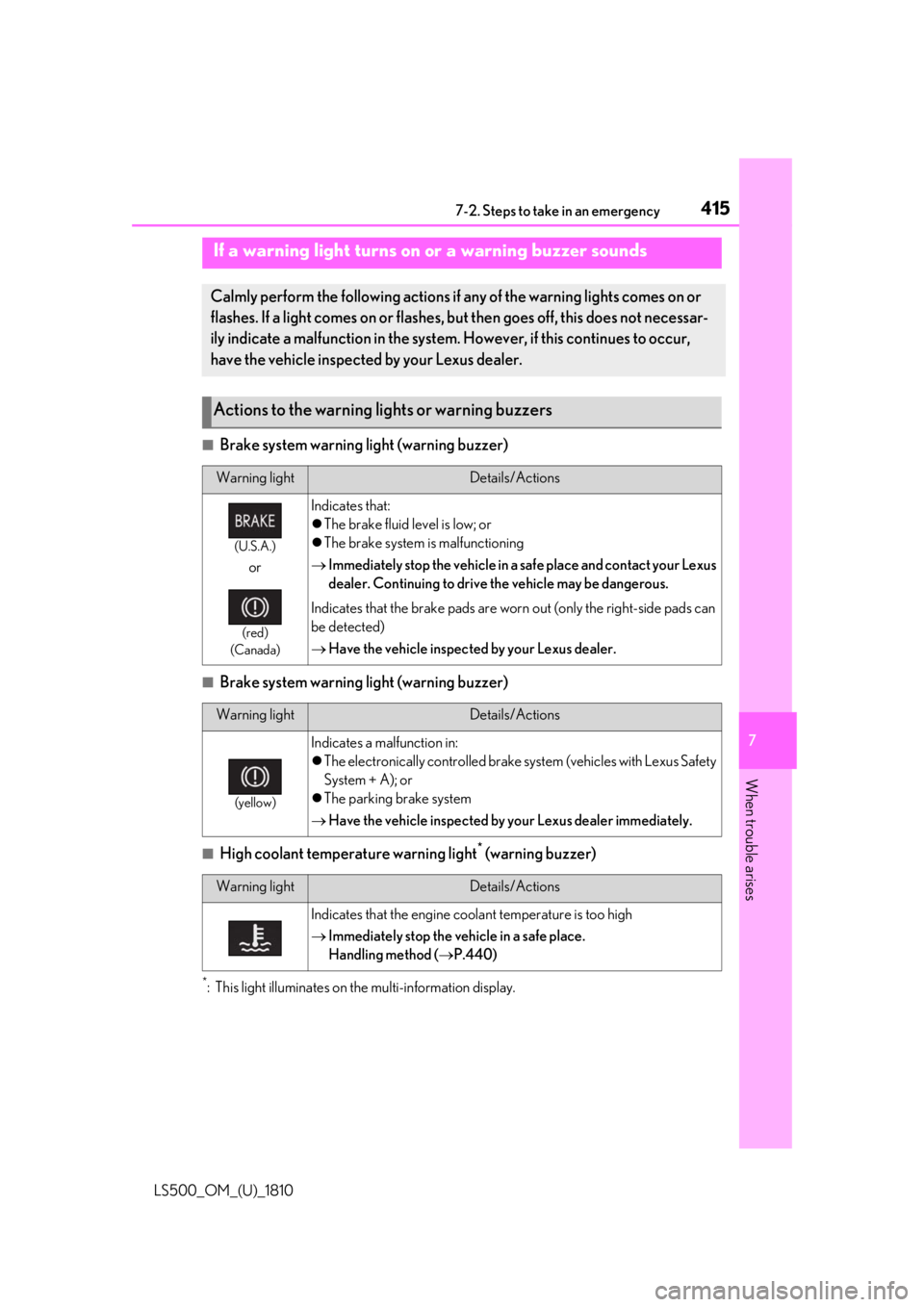

Brake system warning light (warning buzzer)
■
Brake system warning light (warning buzzer)
■
High coolant temperature warning light *
(warning buzzer)
*
: This light illuminates on the multi-information display.If a warning light turns on or a warning buzzer soundsCalmly perform the following actions if any of the warning lights comes on or
flashes. If a light comes on or flashes, bu t then goes off, this does not necessar-
ily indicate a malfunction in the system. However, if this continues to occur,
have the vehicle inspected by your Lexus dealer.
Actions to the warning lights or warning buzzers Warning light Details/Actions(U.S.A.)
or (red)
(Canada) Indicates that:
 The brake fluid level is low; or
 The brake system is malfunctioning
 Immediately stop the vehicle in a safe place and contact your Lexus
dealer. Continuing to drive the vehicle may be dangerous.
Indicates that the brake pads are worn out (only the right-side pads can
be detected)
 Have the vehicle inspected by your Lexus dealer.
Warning light Details/Actions
(yellow) Indicates a malfunction in:
 The electronically controlled brake sy stem (vehicles with Lexus Safety
System + A); or
 The parking brake system
 Have the vehicle inspected by your Lexus dealer immediately.
Warning light Details/Actions
Indicates that the engine coolant temperature is too high
 Immediately stop the vehicle in a safe place.
Handling method (  P.440)

416 7-2. Steps to take in an emergency
LS500_OM_(U)_1810 ■

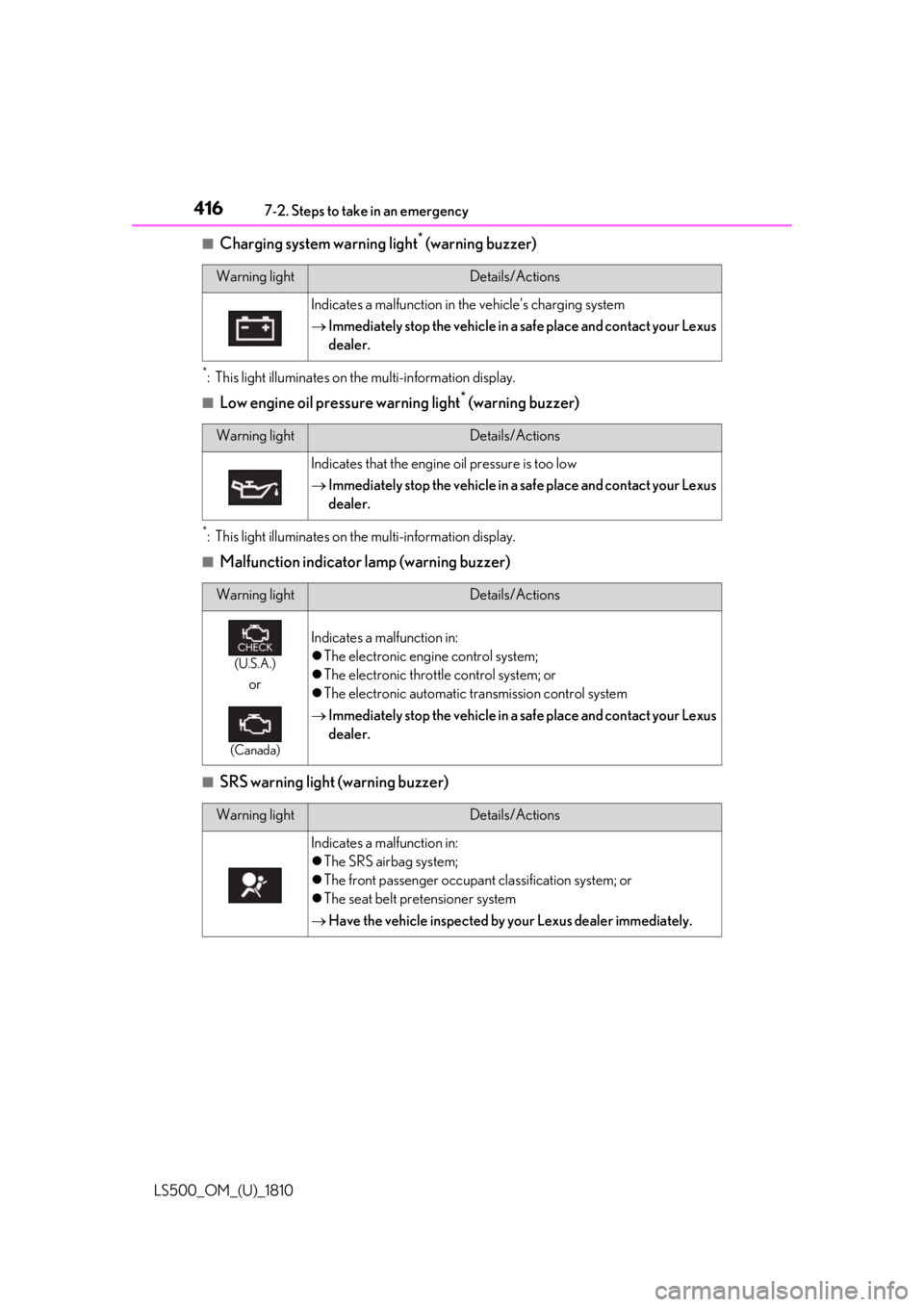

Charging system warning light *
(warning buzzer)*
: This light illuminates on the multi-information display. ■
Low engine oil pressure warning light *
(warning buzzer)*
: This light illuminates on the multi-information display. ■
Malfunction indicator lamp (warning buzzer)
■
SRS warning light (warning buzzer) Warning light Details/Actions
Indicates a malfunction in the vehicle’s charging system
 Immediately stop the vehicle in a safe place and contact your Lexus
dealer.
Warning light Details/Actions
Indicates that the engine oil pressure is too low
 Immediately stop the vehicle in a safe place and contact your Lexus
dealer.
Warning light Details/Actions
(U.S.A.)
or
(Canada) Indicates a malfunction in:
 The electronic engine control system;
 The electronic throttle control system; or
 The electronic automatic transmission control system
 Immediately stop the vehicle in a safe place and contact your Lexus
dealer.
Warning light Details/Actions
Indicates a malfunction in:
 The SRS airbag system;
 The front passenger occupant classification system; or
 The seat belt pr etensioner system
 Have the vehicle inspected by your Lexus dealer immediately.

4177-2. Steps to take in an emergency
LS500_OM_(U)_1810 7
When trouble arises ■

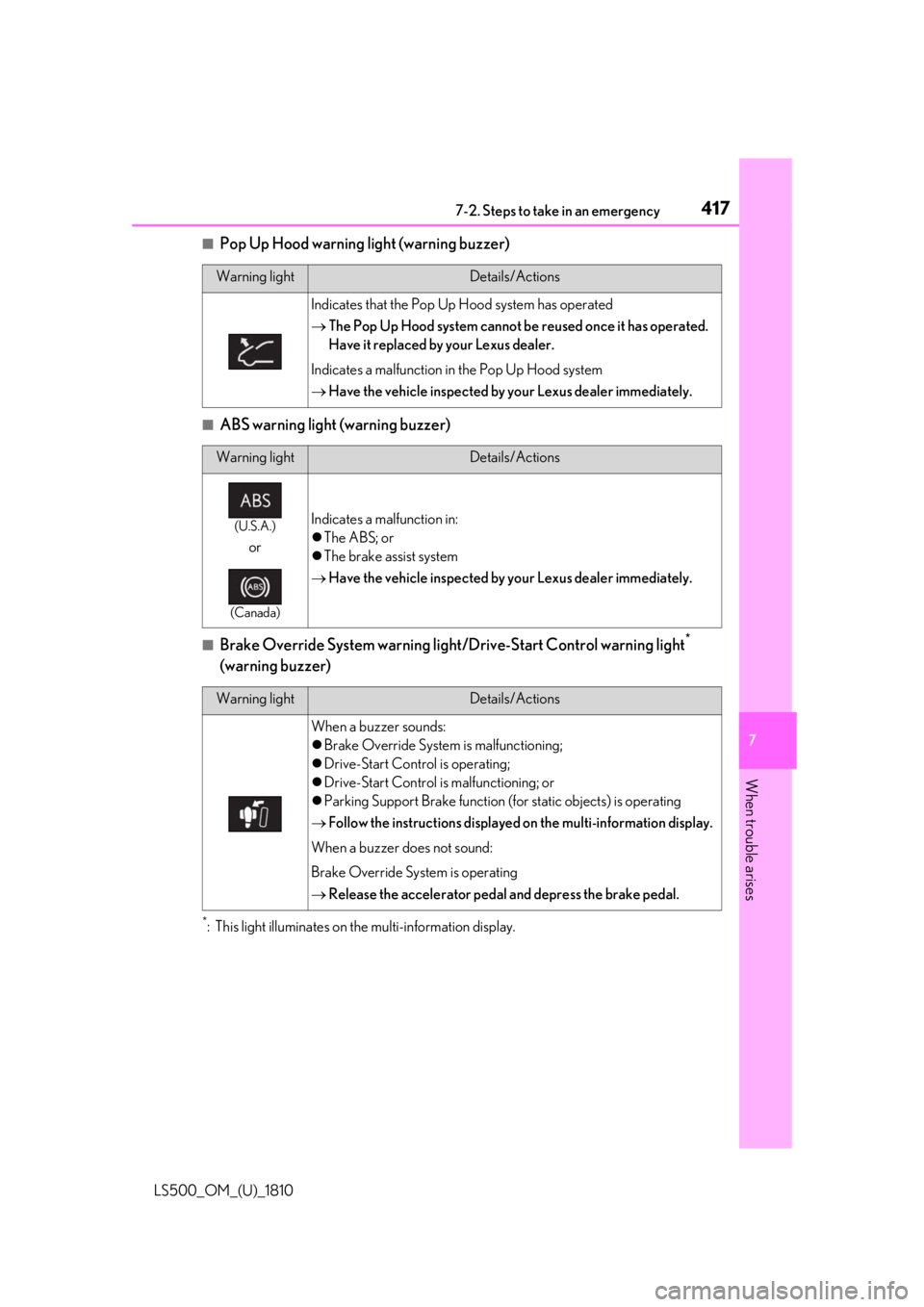

Pop Up Hood warning light (warning buzzer)
■
ABS warning light (warning buzzer)
■
Brake Override System warning light/Drive-Start Control warning light *

(warning buzzer)
*
: This light illuminates on the multi-information display. Warning light Details/Actions
Indicates that the Pop Up Hood system has operated
 The Pop Up Hood system cannot be reused once it has operated.
Have it replaced by your Lexus dealer.
Indicates a malfunction in the Pop Up Hood system
 Have the vehicle inspected by your Lexus dealer immediately.
Warning light Details/Actions(U.S.A.)
or (Canada) Indicates a malfunction in:
 The ABS; or
 The brake assist system
 Have the vehicle inspected by your Lexus dealer immediately.
Warning light Details/Actions
When a buzzer sounds:
 Brake Override System is malfunctioning;
 Drive-Start Control is operating;
 Drive-Start Control is malfunctioning; or
 Parking Support Brake function (for static objects) is operating
 Follow the instructions displayed on the multi-information display.
When a buzzer does not sound:
Brake Override System is operating
 Release the accelerator pedal and depress the brake pedal.

418 7-2. Steps to take in an emergency
LS500_OM_(U)_1810 ■

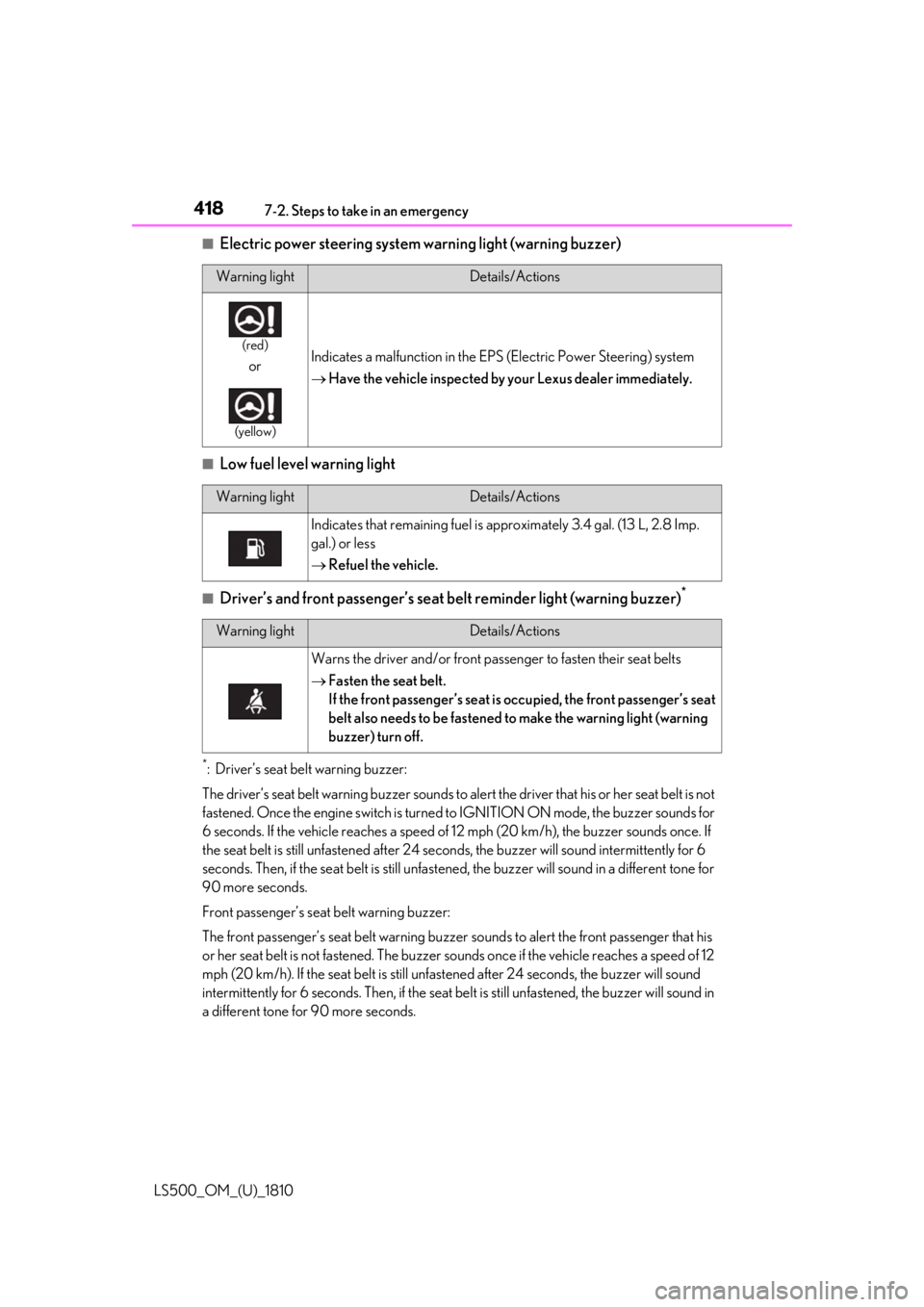

Electric power steering system warning light (warning buzzer)
■
Low fuel level warning light
■
Driver’s and front passenger’s seat belt reminder light (warning buzzer) *
*
: Driver’s seat belt warning buzzer:
The driver’s seat belt warning buzzer sounds to al ert the driver that his or her seat belt is not
fastened. Once the engine switch is turned to IGNITION ON mode, the buzzer sounds for
6 seconds. If the vehicle reaches a speed of 12 mph (20 km/h), the buzzer sounds once. If
the seat belt is still unfastened after 24 seconds, the buzzer will sound intermittently for 6
seconds. Then, if the seat belt is still unfastened, th e buzzer will sound in a different tone for
90 more seconds.
Front passenger’s seat belt warning buzzer:
The front passenger’s seat belt warning buzzer sounds to alert the front passenger that his
or her seat belt is not fastened. The buzzer sounds once if the vehicle reaches a speed of 12
mph (20 km/h). If the seat belt is still unfastened after 24 seconds, the buzzer will sound
intermittently for 6 seconds. Th en, if the seat belt is still un fastened, the buzzer will sound in
a different tone for 90 more seconds. Warning light Details/Actions(red)
or (yellow)
Indicates a malfunction in the EPS (Electric Power Steering) system
 Have the vehicle inspected by your Lexus dealer immediately.
Warning light Details/Actions
Indicates that remaining fuel is approximately 3.4 gal. (13 L, 2.8 Imp.
gal.) or less
 Refuel the vehicle.
Warning light Details/Actions
Warns the driver and/or front pass enger to fasten their seat belts
 Fasten the seat belt.
If the front passenger’s seat is occupied, the front passenger’s seat
belt also needs to be fastened to make the warning light (warning
buzzer) turn off.

4197-2. Steps to take in an emergency
LS500_OM_(U)_1810 7
When trouble arises ■

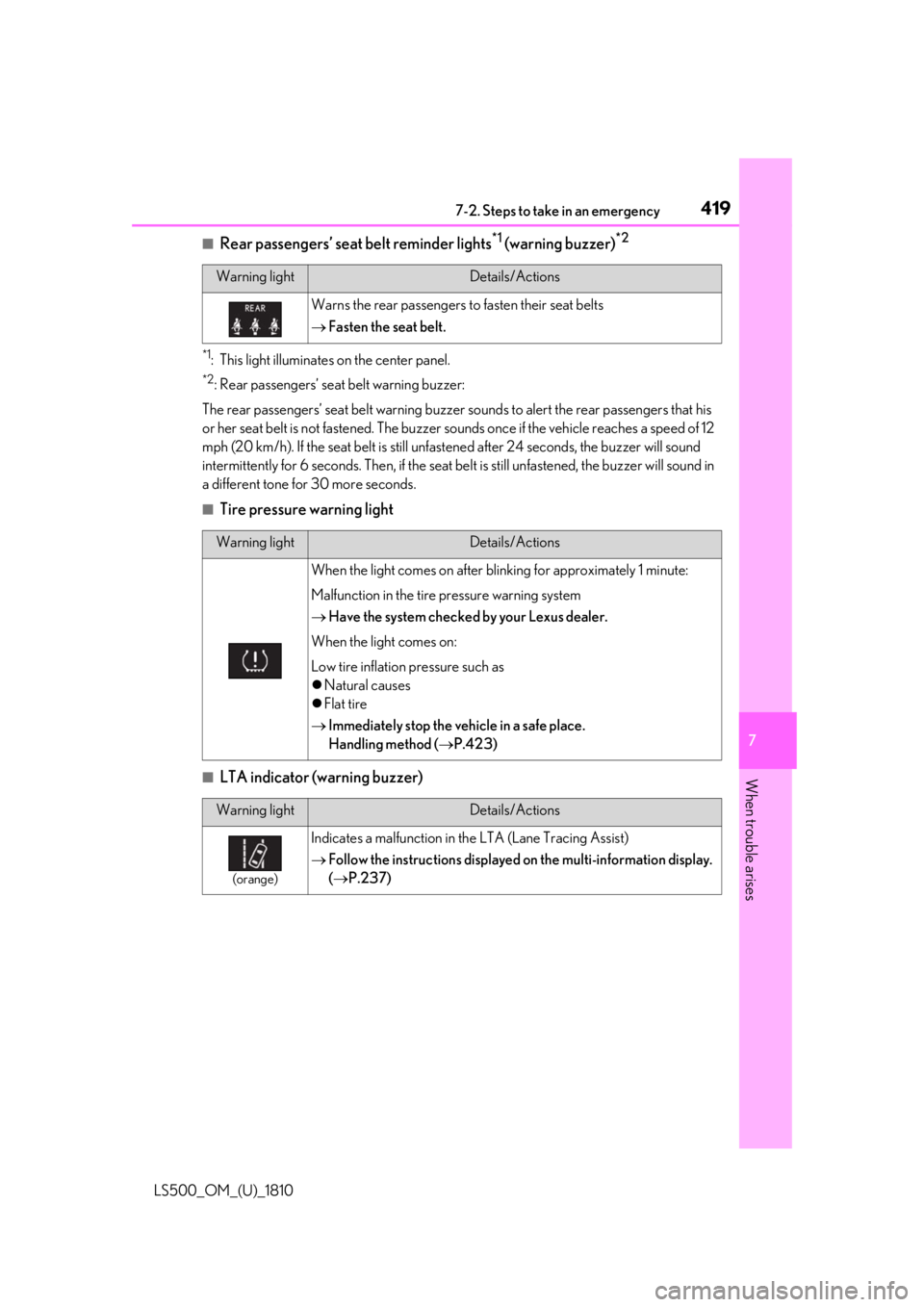

Rear passengers’ seat belt reminder lights *1
(warning buzzer) *2
*1
: This light illuminates on the center panel. *2
: Rear passengers’ seat belt warning buzzer:
The rear passengers’ seat belt warning buzzer sounds to alert the rear passengers that his
or her seat belt is not fastened. The buzzer sounds once if the vehicle reaches a speed of 12
mph (20 km/h). If the seat belt is still unfastened after 24 seconds, the buzzer will sound
intermittently for 6 seconds. Th en, if the seat belt is still un fastened, the buzzer will sound in
a different tone for 30 more seconds. ■
Tire pressure warning light
■
LTA indicator (warning buzzer) Warning light Details/Actions
Warns the rear passengers to fasten their seat belts
 Fasten the seat belt.
Warning light Details/Actions
When the light comes on after blinking for approximately 1 minute:
Malfunction in the tire pressure warning system
 Have the system checked by your Lexus dealer.
When the light comes on:
Low tire inflation pressure such as
 Natural causes
 Flat tire
 Immediately stop the vehicle in a safe place.
Handling method (  P.423)
Warning light Details/Actions
(orange)
Indicates a malfunction in th e LTA (Lane Tracing Assist)
 Follow the instructions displayed on the multi-information display.
(  P.237)

420 7-2. Steps to take in an emergency
LS500_OM_(U)_1810 ■

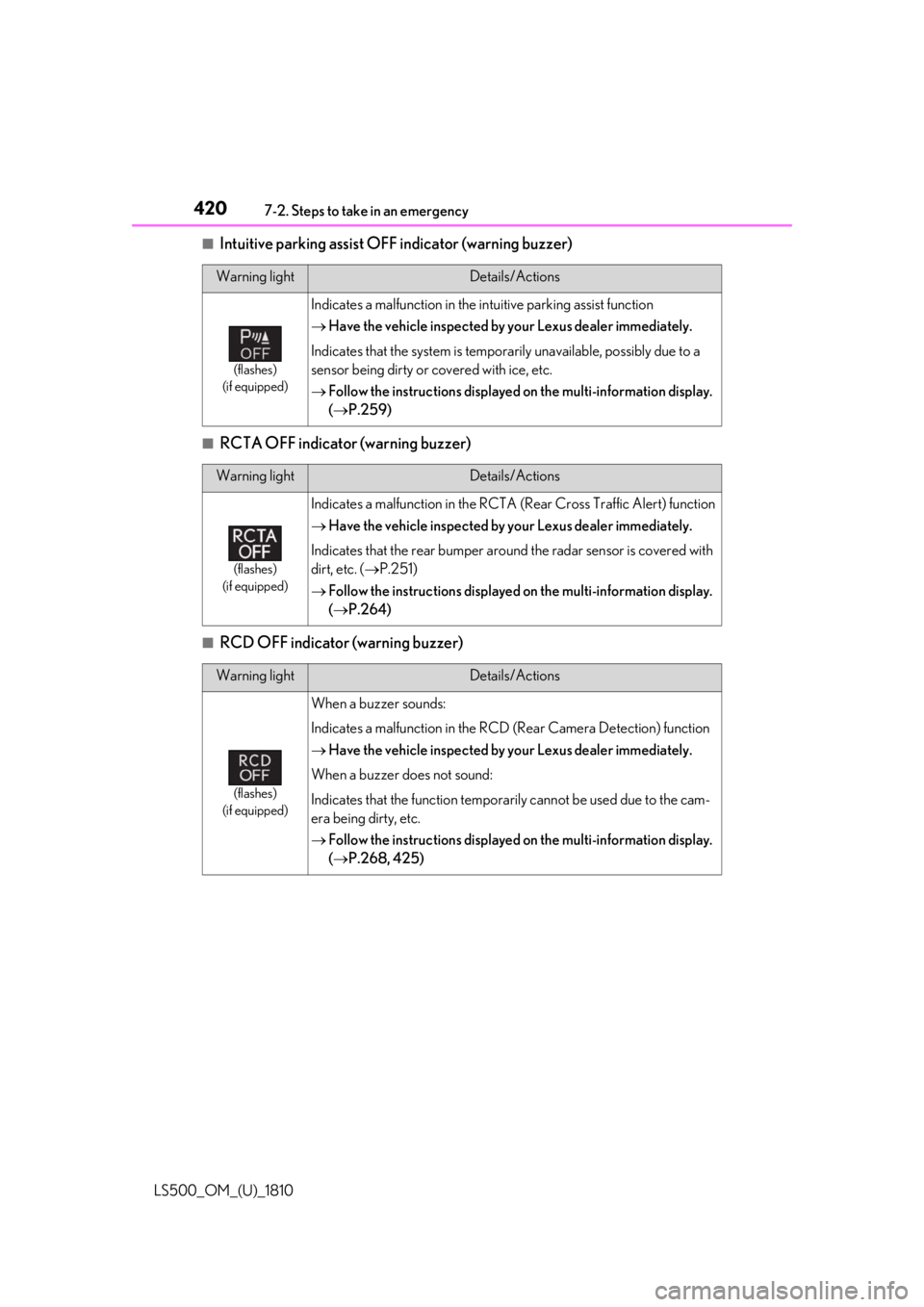

Intuitive parking assist OFF indicator (warning buzzer)
■
RCTA OFF indicator (warning buzzer)
■
RCD OFF indicator (warning buzzer) Warning light Details/Actions(flashes)
(if equipped)
Indicates a malfunction in the in tuitive parking assist function
 Have the vehicle inspected by your Lexus dealer immediately.
Indicates that the system is temporarily unavailable, possibly due to a
sensor being dirty or covered with ice, etc.
 Follow the instructions displayed on the multi-information display.
(  P.259)
Warning light Details/Actions
(flashes)
(if equipped) Indicates a malfunction in the RCTA (Rear Cross Traffic Alert) function
 Have the vehicle inspected by your Lexus dealer immediately.
Indicates that the rear bumper around the radar sensor is covered with
dirt, etc. (  P.251)
 Follow the instructions displayed on the multi-information display.
(  P.264)
Warning light Details/Actions
(flashes)
(if equipped) When a buzzer sounds:
Indicates a malfunction in the RCD (Rear Camera Detection) function
 Have the vehicle inspected by your Lexus dealer immediately.
When a buzzer does not sound:
Indicates that the function temporarily cannot be used due to the cam-
era being dirty, etc.
 Follow the instructions displayed on the multi-information display.
(  P.268, 425)
