LEXUS LS500 2022 Manual PDF

70
LS500_QG_U

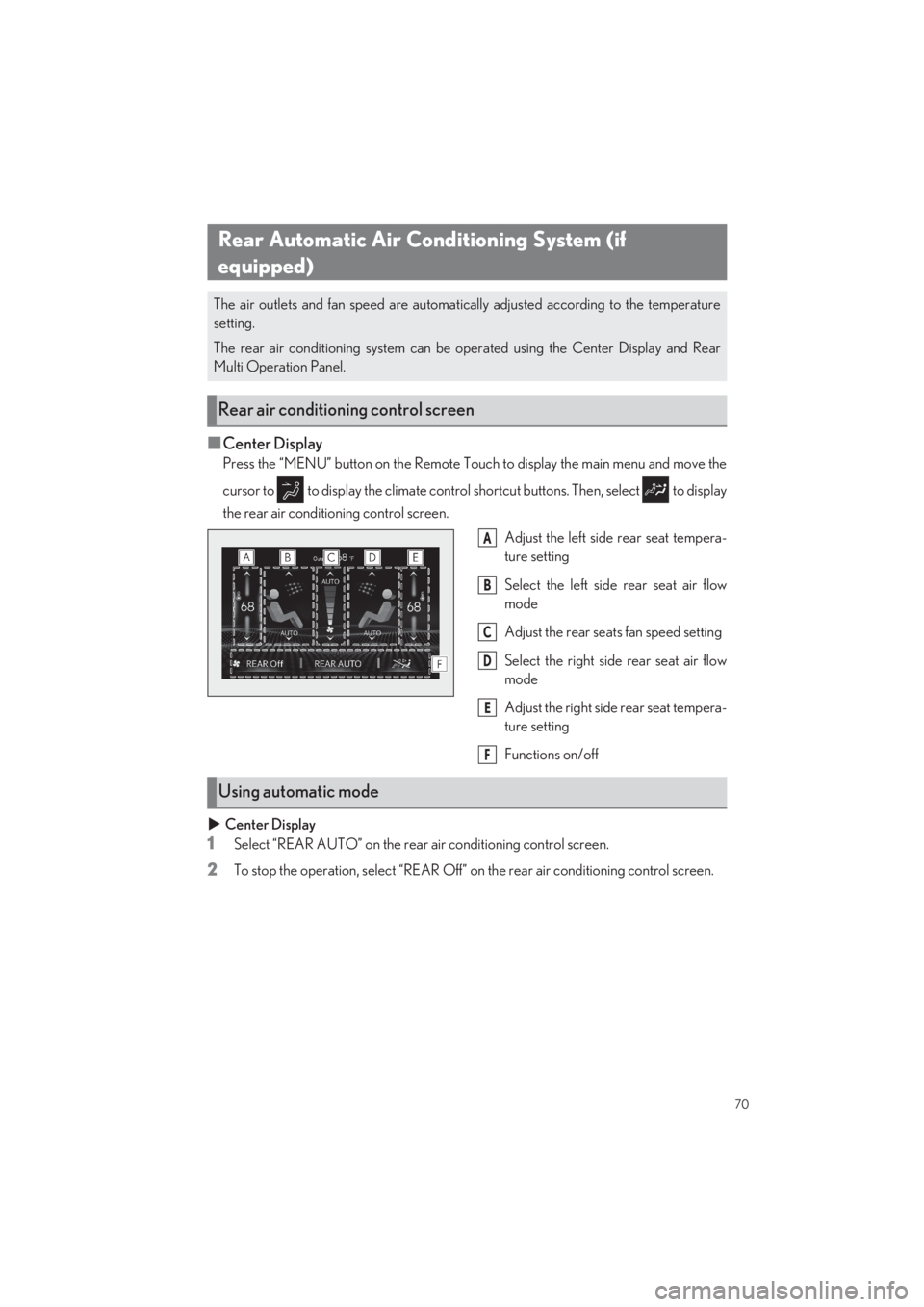

■Center Display
Press the “MENU” button on the Remote Touch to display the main menu and move the
cursor to to display the climate control sh ortcut buttons. Then, select to display
the rear air conditioning control screen.
Adjust the left side rear seat tempera-
ture setting
Select the left side rear seat air flow
mode
Adjust the rear seats fan speed setting
Select the right side rear seat air flow
mode
Adjust the right side rear seat tempera-
ture setting
Functions on/off
 Center Display
1Select “REAR AUTO” on the rear air conditioning control screen.
2To stop the operation, select “REAR Off” on the rear air conditioning control screen.
Rear Automatic Air Conditioning System (if
equipped)
The air outlets and fan speed are automatically adjusted according to the temperature
setting.
The rear air conditioning system can be operated using the Center Display and Rear
Multi Operation Panel.
Rear air conditioning control screen
A
B
C
D
E
F
Using automatic mode

71
LS500_QG_U

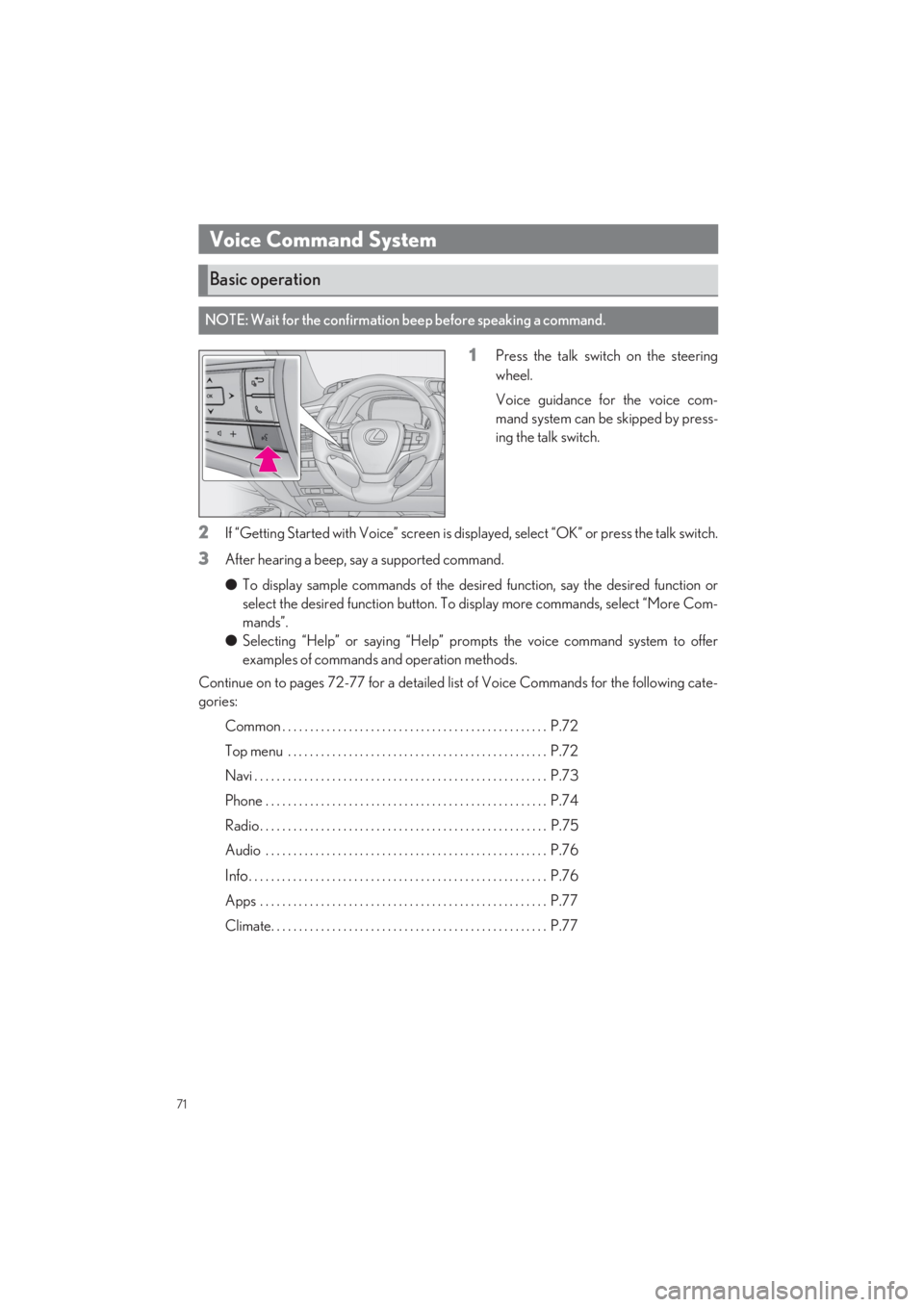

1Press the talk switch on the steering
wheel.
Voice guidance for the voice com-
mand system can be skipped by press-
ing the talk switch.
2If “Getting Started with Voice” screen is disp layed, select “OK” or press the talk switch.
3After hearing a beep, say a supported command.
● To display sample commands of the desired function, say the desired function or
select the desired function button. To display more commands, select “More Com-
mands”.
● Selecting “Help” or saying “Help” prompts the voice command system to offer
examples of commands and operation methods.
Continue on to pages 72-77 for a detailed list of Voice Commands for the following cate-
gories:
Common . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P.72
Top menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P.72
Navi . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P.73
Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P.74
Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P.75
Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P.76
Info. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P.76
Apps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P.77
Climate. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P.77
Voice Command System
Basic operation
NOTE: Wait for the confirmation beep before speaking a command.

72
LS500_QG_U

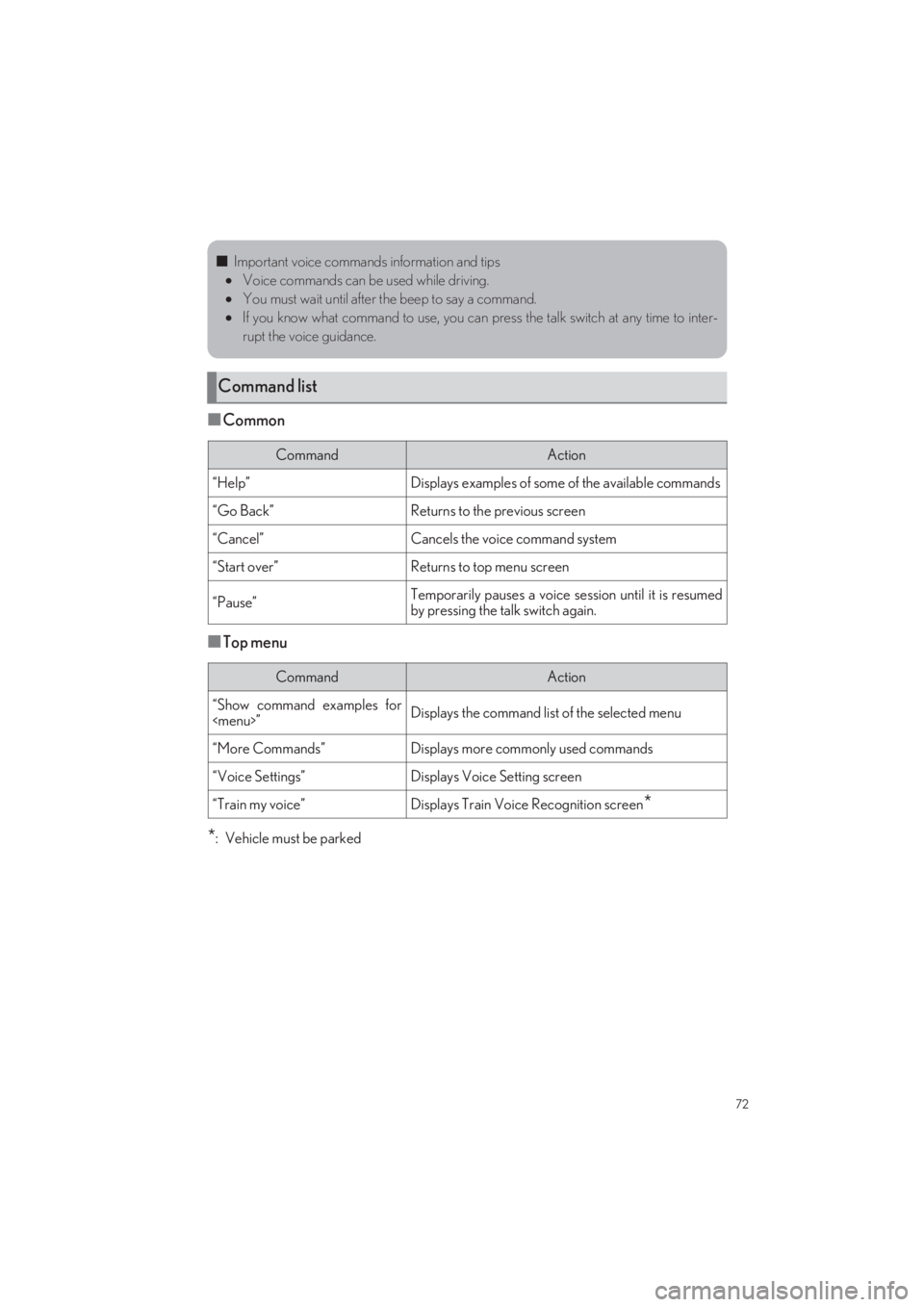

■Common
■Top menu
*: Vehicle must be parked
■Important voice commands information and tips
 Voice commands can be used while driving.
 You must wait until after the beep to say a command.
 If you know what command to use, you can press the talk switch at any time to inter-
rupt the voice guidance.
Command list
CommandAction
“Help”Displays examples of some of the available commands
“Go Back”Returns to the previous screen
“Cancel”Cancels the voice command system
“Start over”Returns to top menu screen
“Pause”Temporarily pauses a voice session until it is resumed
by pressing the talk switch again.
CommandAction
“Show command examples for

73
LS500_QG_U

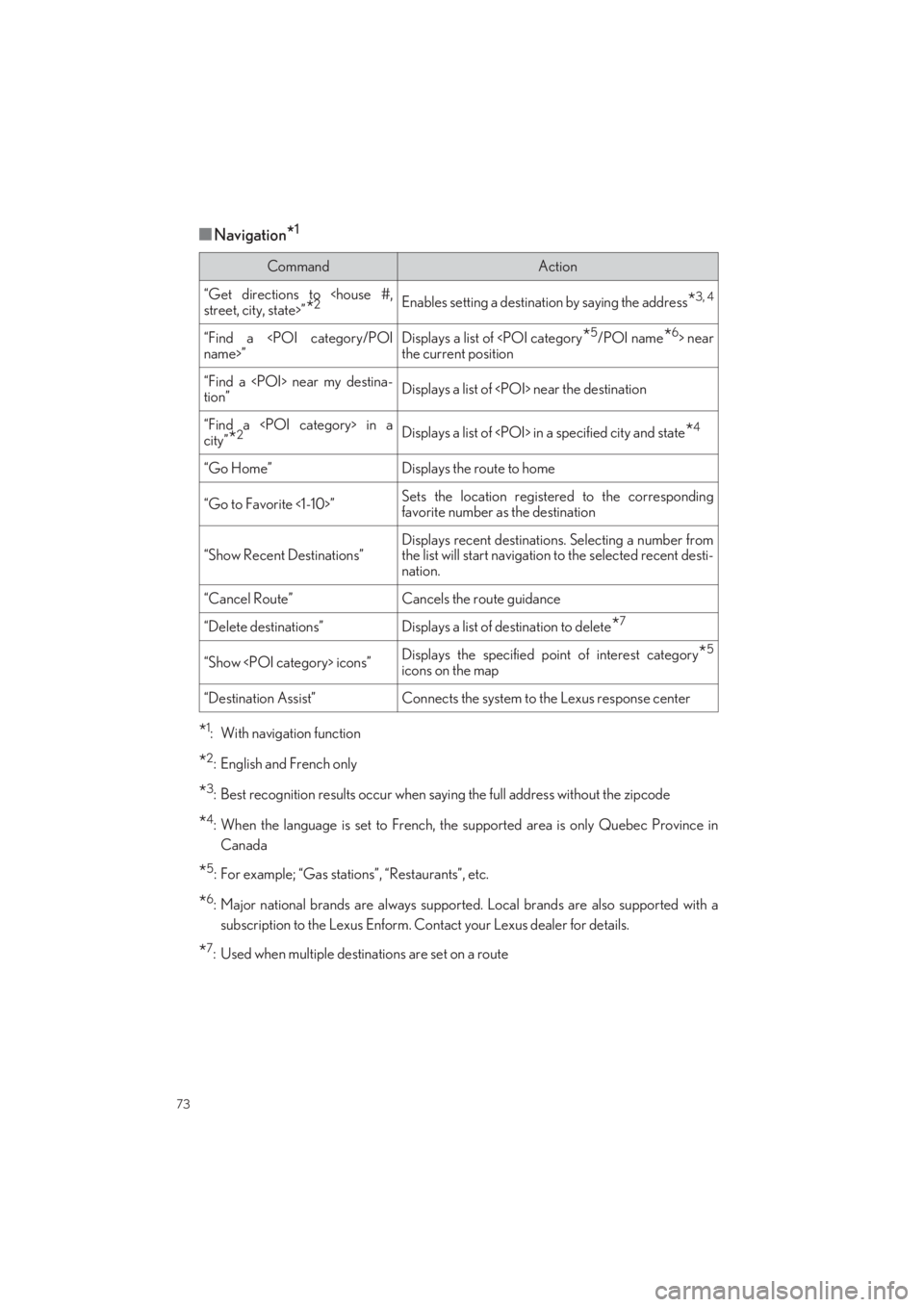

■Navigation*1
*1: With navigation function
*2: English and French only
*3: Best recognition results occur when saying the full address without the zipcode
*4: When the language is set to French, the supported area is only Quebec Province in
Canada
*5: For example; “Gas stations”, “Restaurants”, etc.
*6: Major national brands are always supporte d. Local brands are also supported with a
subscription to the Lexus Enform. Contact your Lexus dealer for details.
*7: Used when multiple destinations are set on a route
CommandAction
“Get directions to street, city, state>”*2Enables setting a destinatio n by saying the address*3, 4
“Find a name>”
Displays a list of near
the current position
“Find a near my destina-
tion”Displays a list of near the destination
“Find a in a city”*2Displays a list of in a specified city and state*4
“Go Home”Displays the route to home
“Go to Favorite <1-10>”Sets the location registered to the corresponding
favorite number as the destination
“Show Recent Destinations”
Displays recent destinatio ns. Selecting a number from
the list will start navigation to the selected recent desti- nation.
“Cancel Route”Cancels the route guidance
“Delete destinations”Displays a list of destination to delete*7
“Show icons”Displays the specified po int of interest category*5
icons on the map
“Destination Assist”Connects the system to the Lexus response center

74
LS500_QG_U

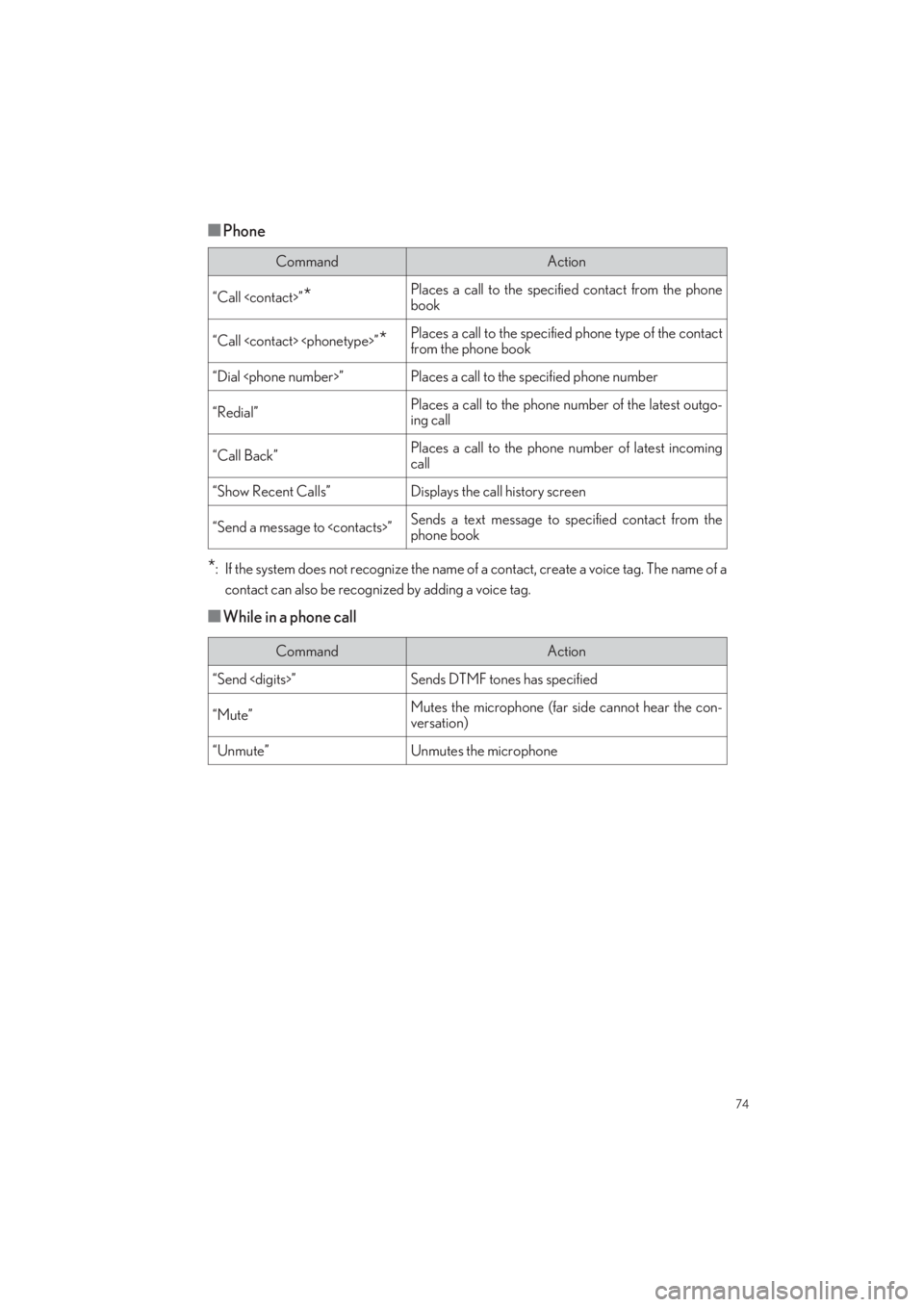

■Phone
*: If the system does not recognize the name of a contact, create a voice tag. The name of a
contact can also be recognized by adding a voice tag.
■While in a phone call
CommandAction
“Call ”*Places a call to the specified contact from the phone
book
“Call ”*Places a call to the specified phone type of the contact from the phone book
“Dial ”Places a call to the specified phone number
“Redial”Places a call to the phone number of the latest outgo-
ing call
“Call Back”Places a call to the phone number of latest incoming
call
“Show Recent Calls”Displays the call history screen
“Send a message to ”Sends a text message to specified contact from the phone book
CommandAction
“Send ”Sends DTMF tones has specified
“Mute”Mutes the microphone (far side cannot hear the con-
versation)
“Unmute”Unmutes the microphone

75
LS500_QG_U

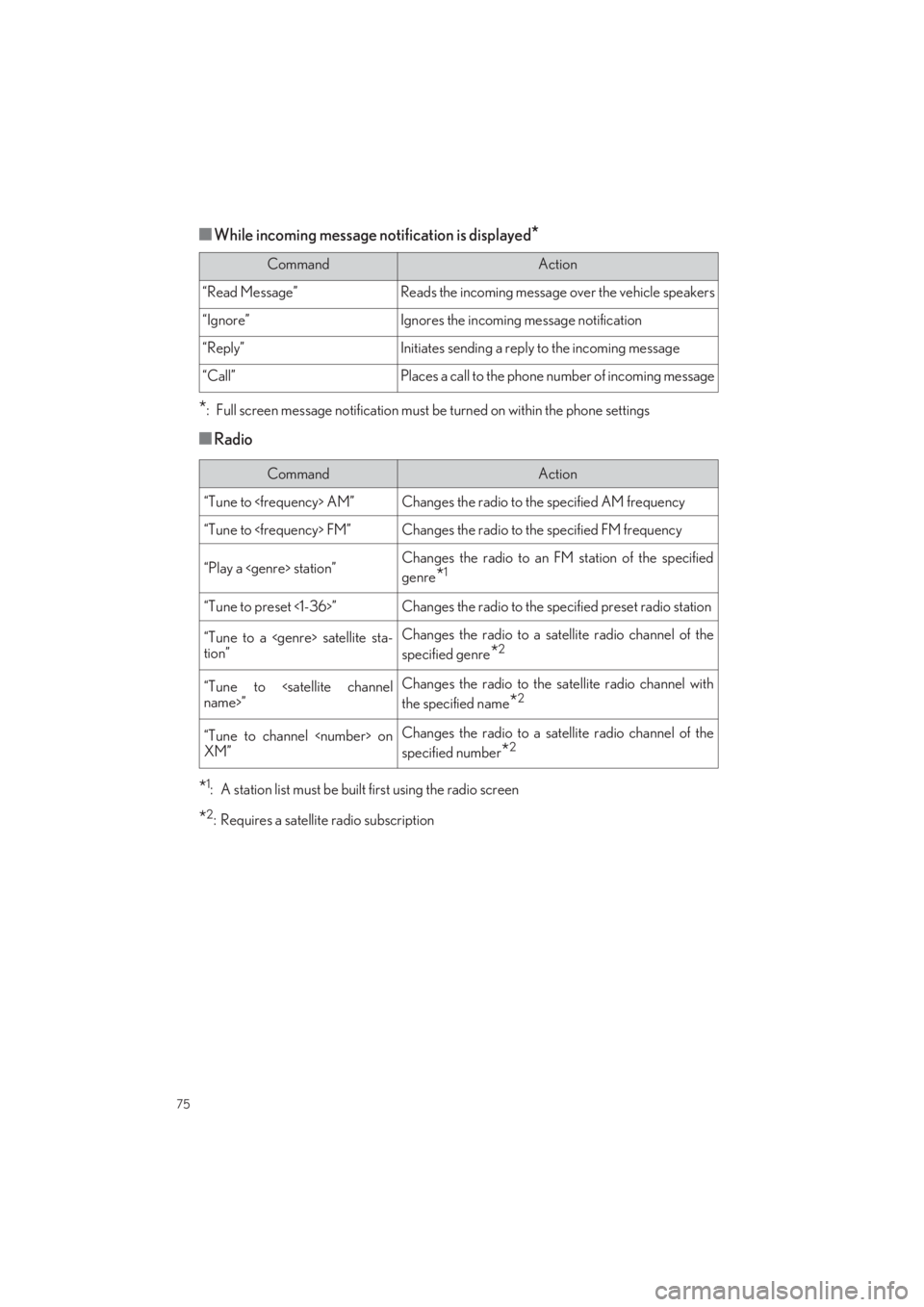

■While incoming message notification is displayed*
*: Full screen message notification must be turned on within the phone settings
■Radio
*1: A station list must be built first using the radio screen
*2: Requires a satellite radio subscription
CommandAction
“Read Message”Reads the incoming message over the vehicle speakers
“Ignore”Ignores the incoming message notification
“Reply”Initiates sending a reply to the incoming message
“Call”Places a call to the phone number of incoming message
CommandAction
“Tune to AM”Changes the radio to the specified AM frequency
“Tune to FM”Changes the radio to the specified FM frequency
“Play a station”Changes the radio to an FM station of the specified
genre*1
“Tune to preset <1-36>”Changes the radio to the specified preset radio station
“Tune to a satellite sta-
tion”
Changes the radio to a sate llite radio channel of the
specified genre*2
“Tune to ”
Changes the radio to the satellite radio channel with
the specified name*2
“Tune to channel on XM”
Changes the radio to a sate llite radio channel of the
specified number*2

76
LS500_QG_U

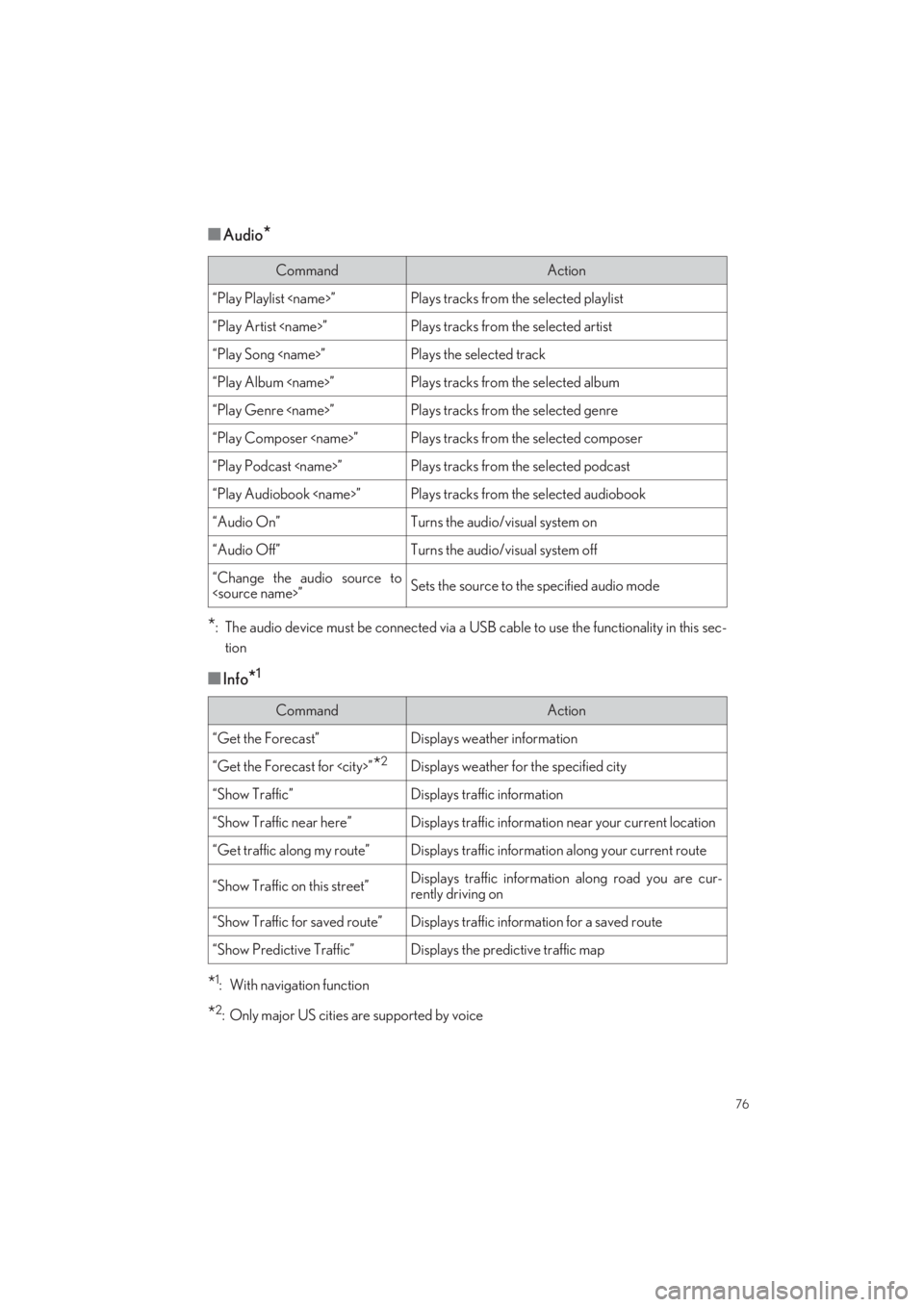

■Audio*
*: The audio device must be connected via a USB cable to use the functionality in this sec-
tion
■Info*1
*1: With navigation function
*2: Only major US cities are supported by voice
CommandAction
“Play Playlist ”Plays tracks from the selected playlist
“Play Artist ”Plays tracks from the selected artist
“Play Song ”Plays the selected track
“Play Album ”Plays tracks from the selected album
“Play Genre ”Plays tracks from the selected genre
“Play Composer ”Plays tracks from the selected composer
“Play Podcast ”Plays tracks from the selected podcast
“Play Audiobook ”Plays tracks from the selected audiobook
“Audio On”Turns the audio/visual system on
“Audio Off”Turns the audio/visual system off
“Change the audio source to
”Sets the source to the specified audio mode
CommandAction
“Get the Forecast”Displays weather information
“Get the Forecast for ”*2Displays weather fo r the specified city
“Show Traffic”Displays traffic information
“Show Traffic near here”Displays traffic information near your current location
“Get traffic along my route”Displays traffic information along your current route
“Show Traffic on this street”Displays traffic information along road you are cur-
rently driving on
“Show Traffic for saved route”Displays traffic inform ation for a saved route
“Show Predictive Traffic”Displays the predictive traffic map

77
LS500_QG_U

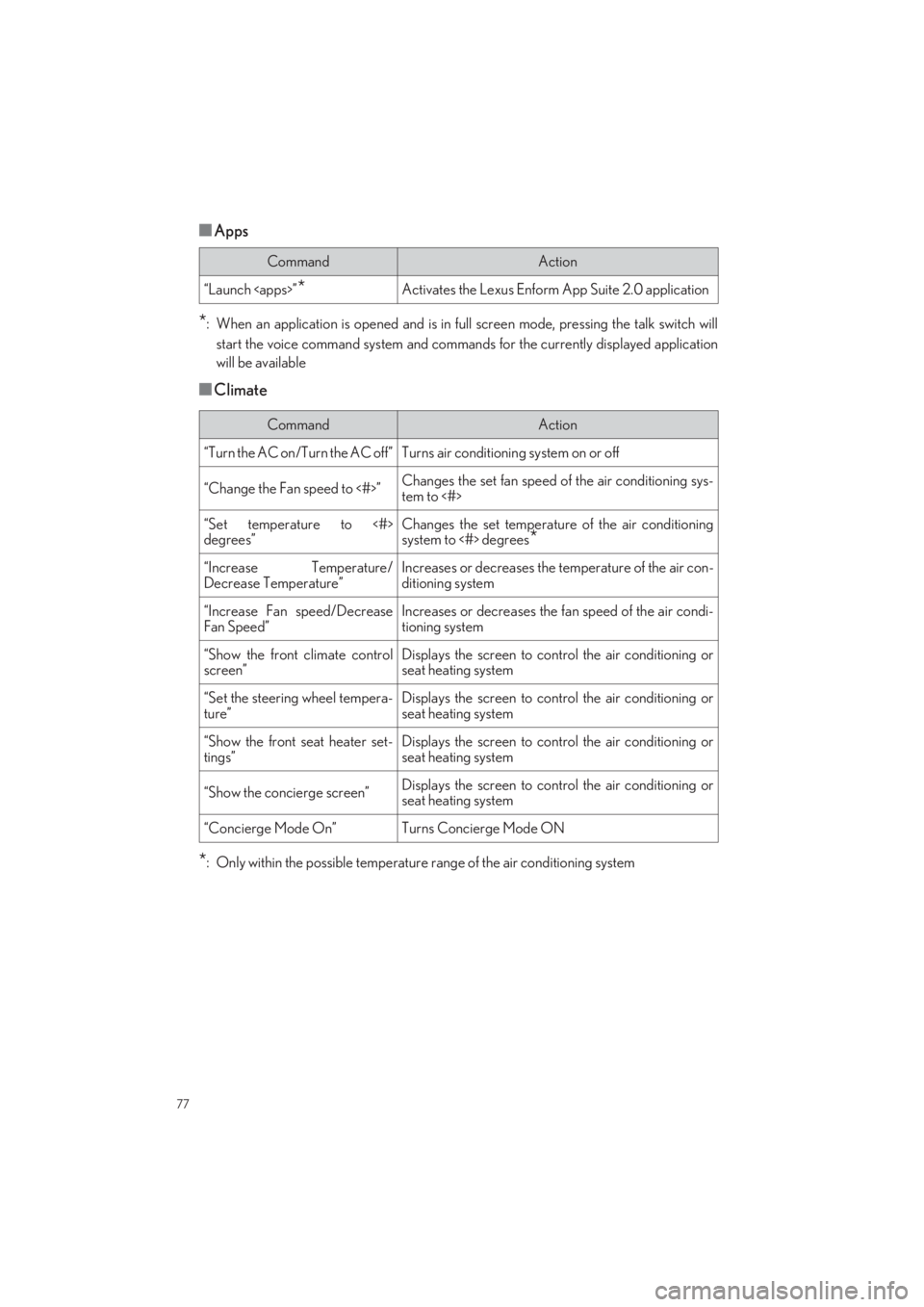

■Apps
*: When an application is opened and is in full screen mode, pressing the talk switch will
start the voice command system and commands for the currently displayed application
will be available
■Climate
*: Only within the possible temperature range of the air conditioning system
CommandAction
“Launch ”*Activates the Lexus Enform App Suite 2.0 application
CommandAction
“Turn the AC on/Turn the AC off”Turns air conditioning system on or off
“Change the Fan speed to <#>”Changes the set fan speed of the air conditioning sys-
tem to <#>
“Set temperature to <#> degrees”Changes the set temperature of the air conditioningsystem to <#> degrees*
“Increase Temperature/
Decrease Temperature”
Increases or decreases the temperature of the air con-
ditioning system
“Increase Fan speed/Decrease
Fan Speed”
Increases or decrea ses the fan speed of the air condi-
tioning system
“Show the front climate control screen”Displays the screen to cont rol the air conditioning or seat heating system
“Set the steering wheel tempera-
ture”
Displays the screen to cont rol the air conditioning or
seat heating system
“Show the front seat heater set-
tings”
Displays the screen to cont rol the air conditioning or
seat heating system
“Show the concierge screen”Displays the screen to cont rol the air conditioning or seat heating system
“Concierge Mode On”Turns Concierge Mode ON

78
LS500_QG_U

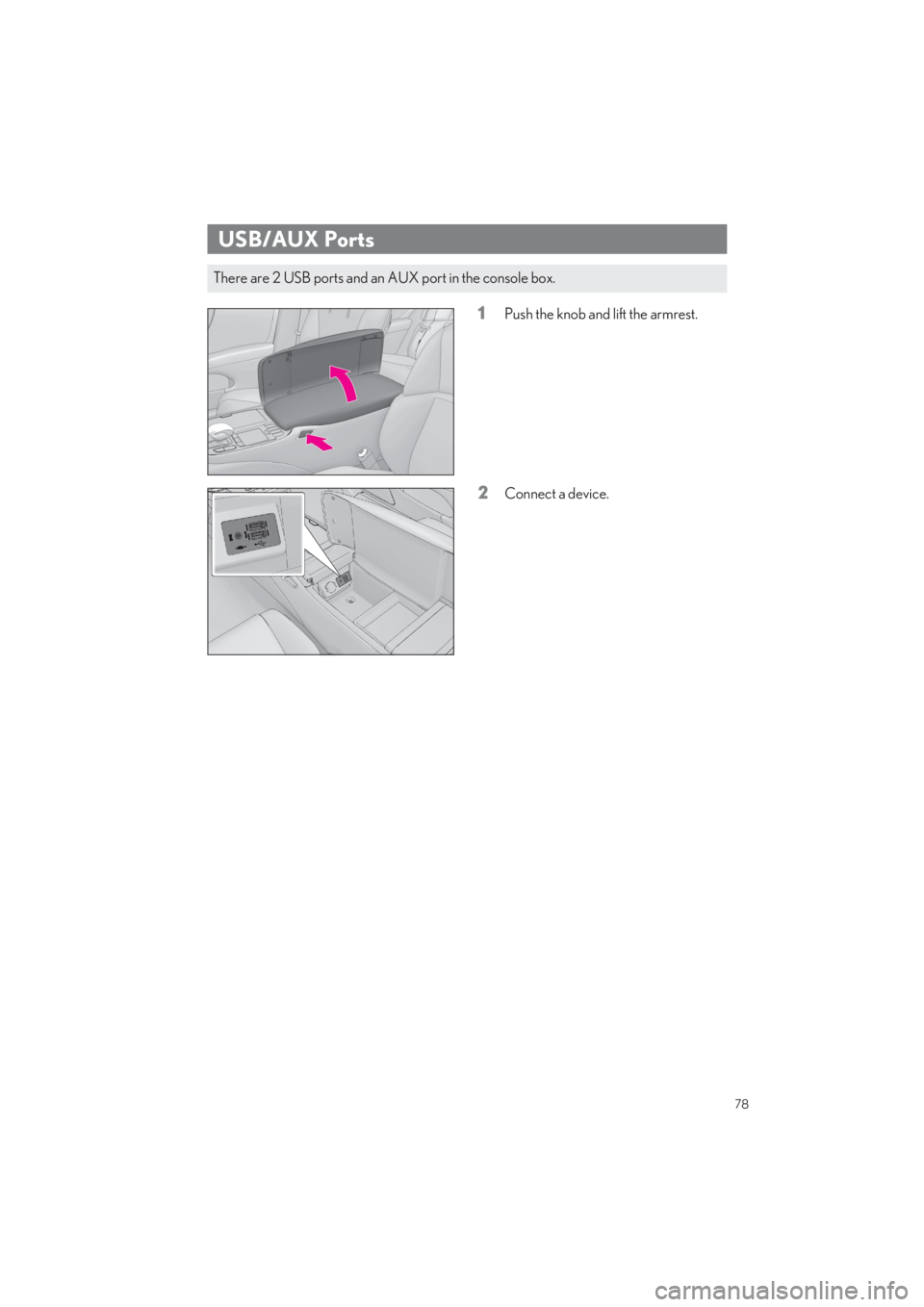

1Push the knob and lift the armrest.
2Connect a device.
USB/AUX Ports
There are 2 USB ports and an AUX port in the console box.

79
LS500_QG_U

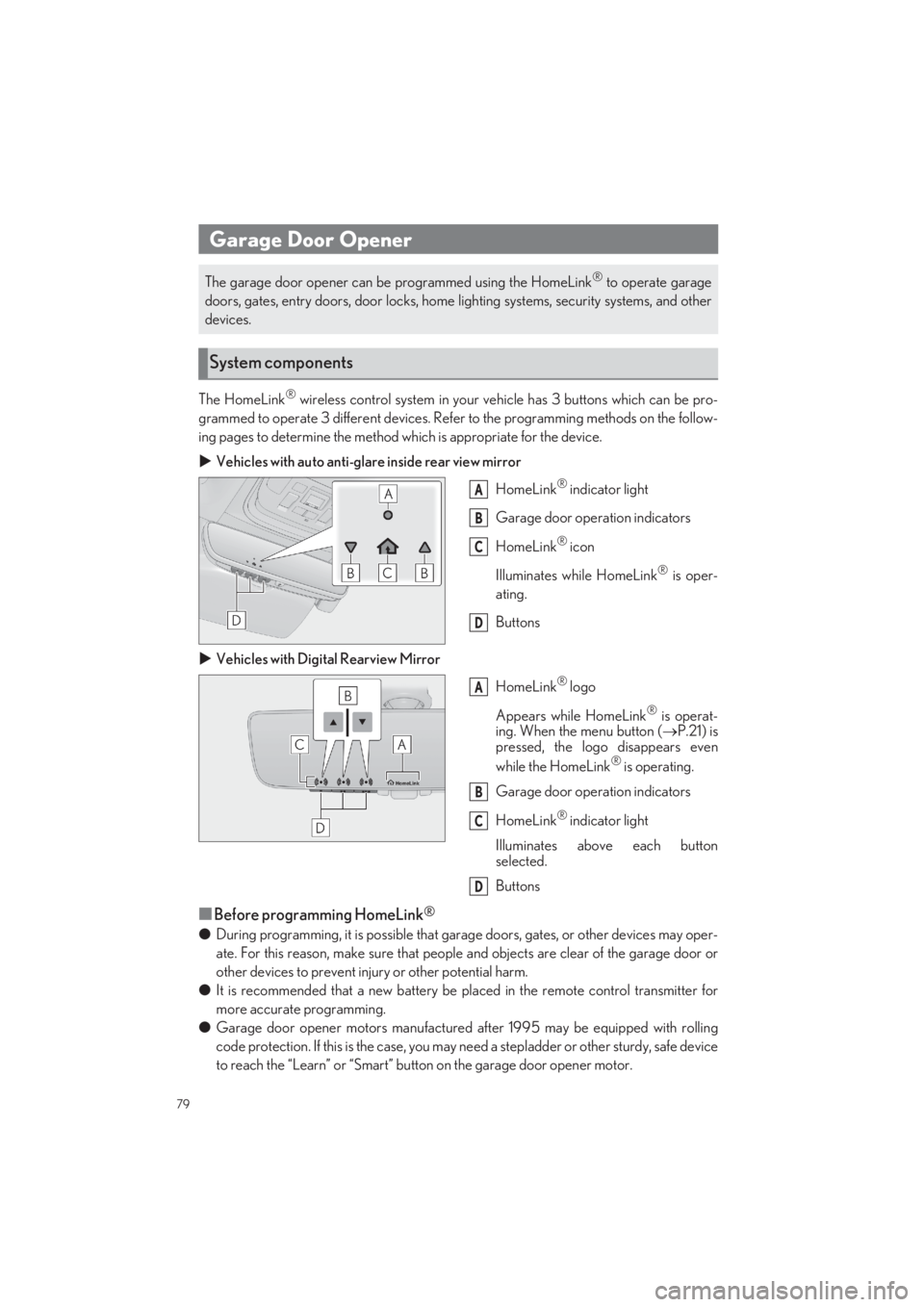

The HomeLink® wireless control system in your vehicle has 3 buttons which can be pro-
grammed to operate 3 different devices. Refe r to the programming methods on the follow-
ing pages to determine the method wh ich is appropriate for the device.
 Vehicles with auto anti-glare inside rear view mirror
HomeLink® indicator light
Garage door operation indicators
HomeLink® icon
Illuminates while HomeLink® is oper-
ating.
Buttons
 Vehicles with Digital Rearview Mirror
HomeLink® logo
Appears while HomeLink® is operat-
ing. When the menu button ( P.21) is pressed, the logo disappears even
while the HomeLink® is operating.
Garage door operation indicators
HomeLink® indicator light
Illuminates above each button
selected.
Buttons
■Before programming HomeLink®
● During programming, it is possible that garage doors, gates, or other devices may oper-
ate. For this reason, make su re that people and objects are clear of the garage door or
other devices to prevent inju ry or other potential harm.
● It is recommended that a new battery be placed in the remote control transmitter for
more accurate programming.
● Garage door opener motors manufactured after 1995 may be equipped with rolling
code protection. If this is the case, you may need a stepladder or other sturdy, safe device
to reach the “Learn” or “Smart” button on the garage door opener motor.
Garage Door Opener
The garage door opener can be programmed using the HomeLink® to operate garage
doors, gates, entry doors, door locks, home lighting systems, security systems, and other
devices.
System components
A
B
C
D
A
B
C
D
