LEXUS LS500 2022 Service Manual

40
LS500_QG_U
1 (U.S.A.) or (Canada)
Off

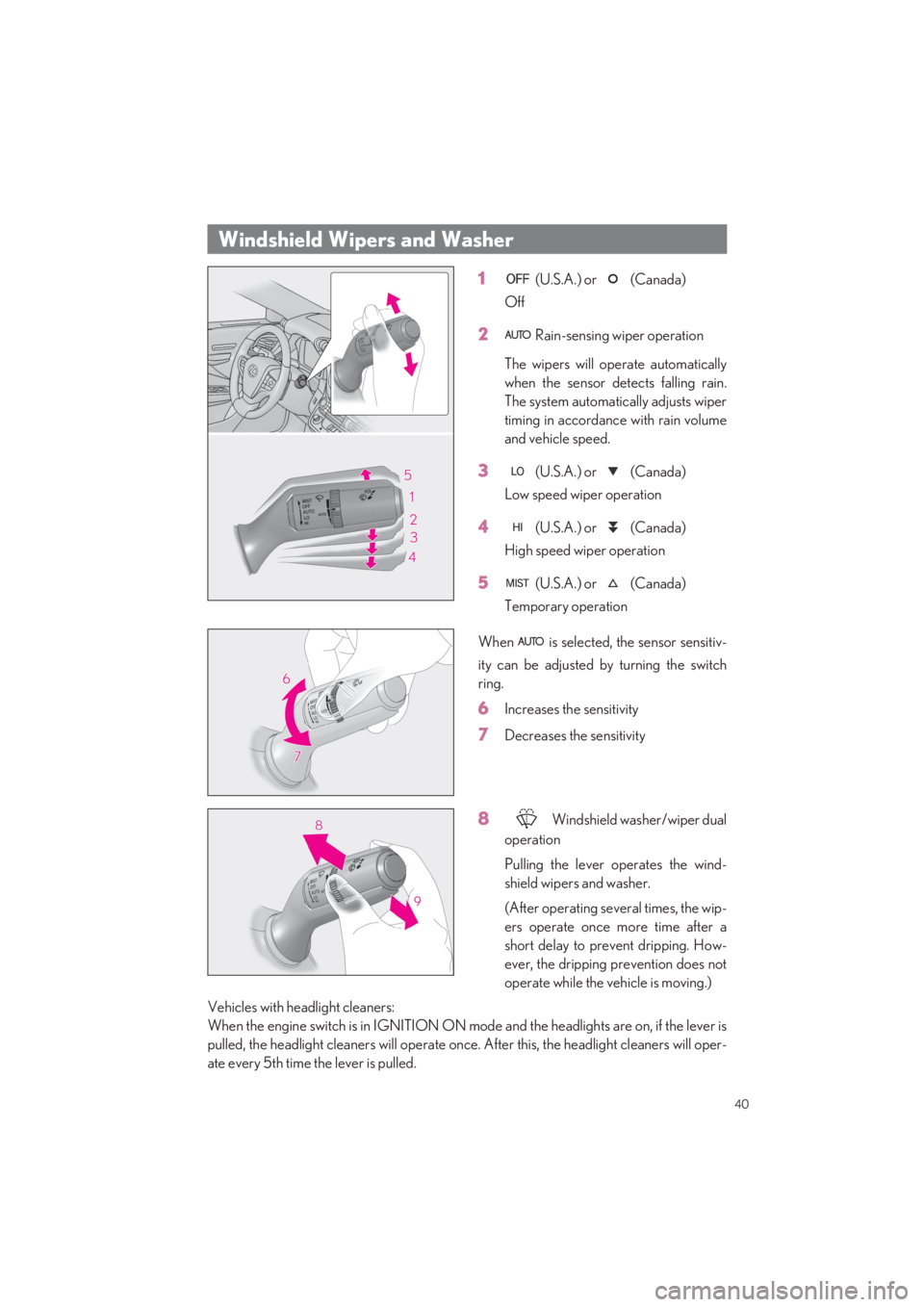

2 Rain-sensing wiper operation
The wipers will operate automatically
when the sensor detects falling rain.
The system automatically adjusts wiper
timing in accordance with rain volume
and vehicle speed.
3 (U.S.A.) or (Canada)
Low speed wiper operation
4 (U.S.A.) or (Canada)
High speed wiper operation
5 (U.S.A.) or (Canada)
Temporary operation
When is selected, the sensor sensitiv-
ity can be adjusted by turning the switch
ring.
6Increases the sensitivity
7Decreases the sensitivity
8 Windshield washer/wiper dual
operation
Pulling the lever operates the wind-
shield wipers and washer.
(After operating seve ral times, the wip-
ers operate once more time after a
short delay to prevent dripping. How-
ever, the dripping prevention does not
operate while the vehicle is moving.)
Vehicles with headlight cleaners:
When the engine switch is in IGNITION ON mode and the headlights are on, if the lever is
pulled, the headlight cleaners w ill operate once. After this, the headlight cleaners will oper-
ate every 5th time the lever is pulled.
Windshield Wipe rs and Washer

41
LS500_QG_U
9* Rear camera washer operation
Pushing the lever operates the rear camera washer and cleans the rear camera and the
camera for the Digital Rearview Mirror.
*: Vehicles with Digital Rearview Mirror

42
LS500_QG_U

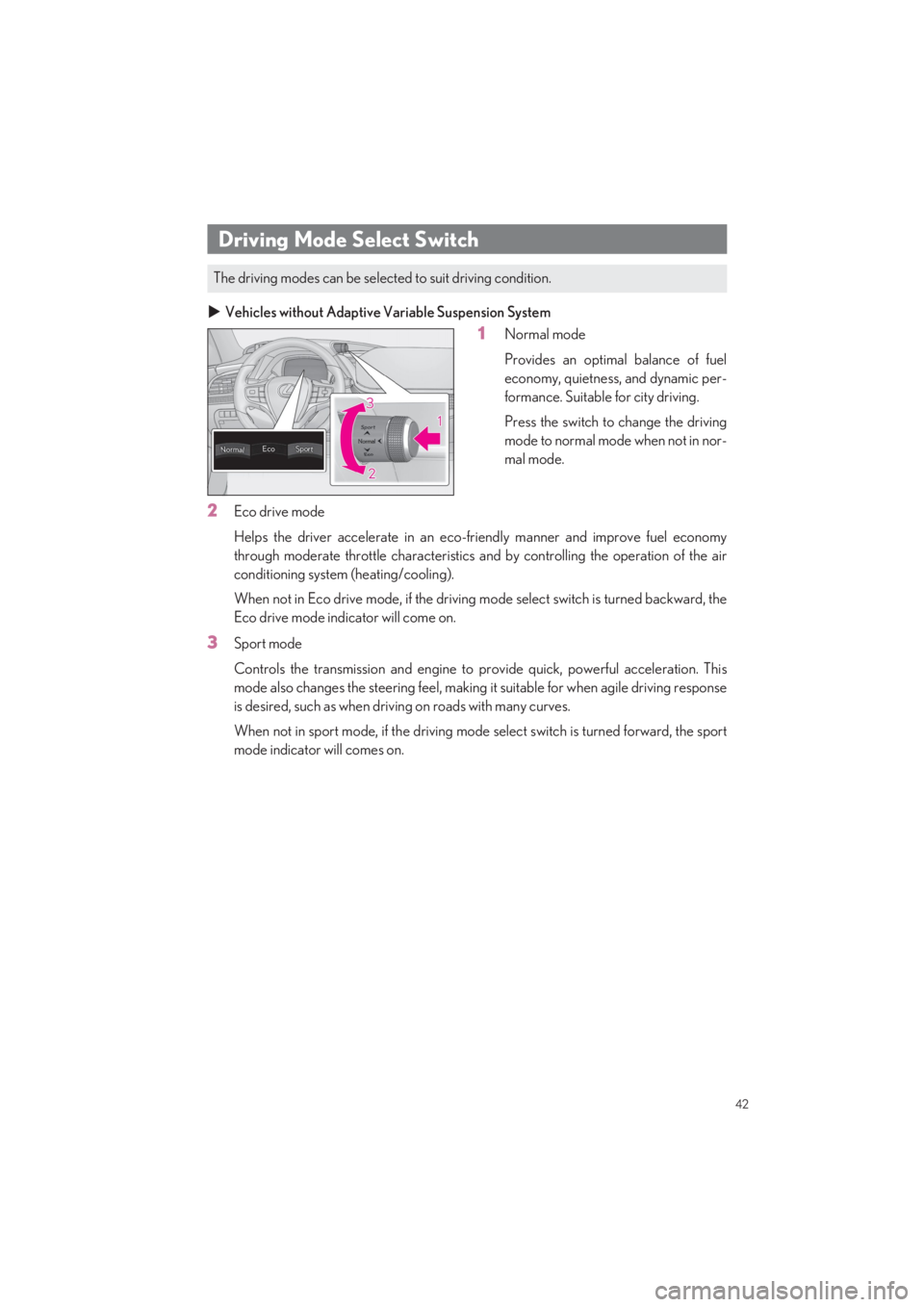

Vehicles without Adaptive Variable Suspension System
1Normal mode
Provides an optimal balance of fuel
economy, quietness, and dynamic per-
formance. Suitable for city driving.
Press the switch to change the driving
mode to normal mode when not in nor-
mal mode.
2Eco drive mode
Helps the driver acce lerate in an eco-friendly manner and improve fuel economy
through moderate throttle characteristics an d by controlling the operation of the air
conditioning system (heating/cooling).
When not in Eco drive mode, if the driving mo de select switch is turned backward, the
Eco drive mode indi cator will come on.
3Sport mode
Controls the transmission and engine to provide quick, powerful acceleration. This
mode also changes the steering feel, making it suitable for when agile driving response
is desired, such as when driv ing on roads with many curves.
When not in sport mode, if th e driving mode select switch is turned forward, the sport
mode indicator will comes on.
Driving Mode Select Switch
The driving modes can be select ed to suit driving condition.

43
LS500_QG_U

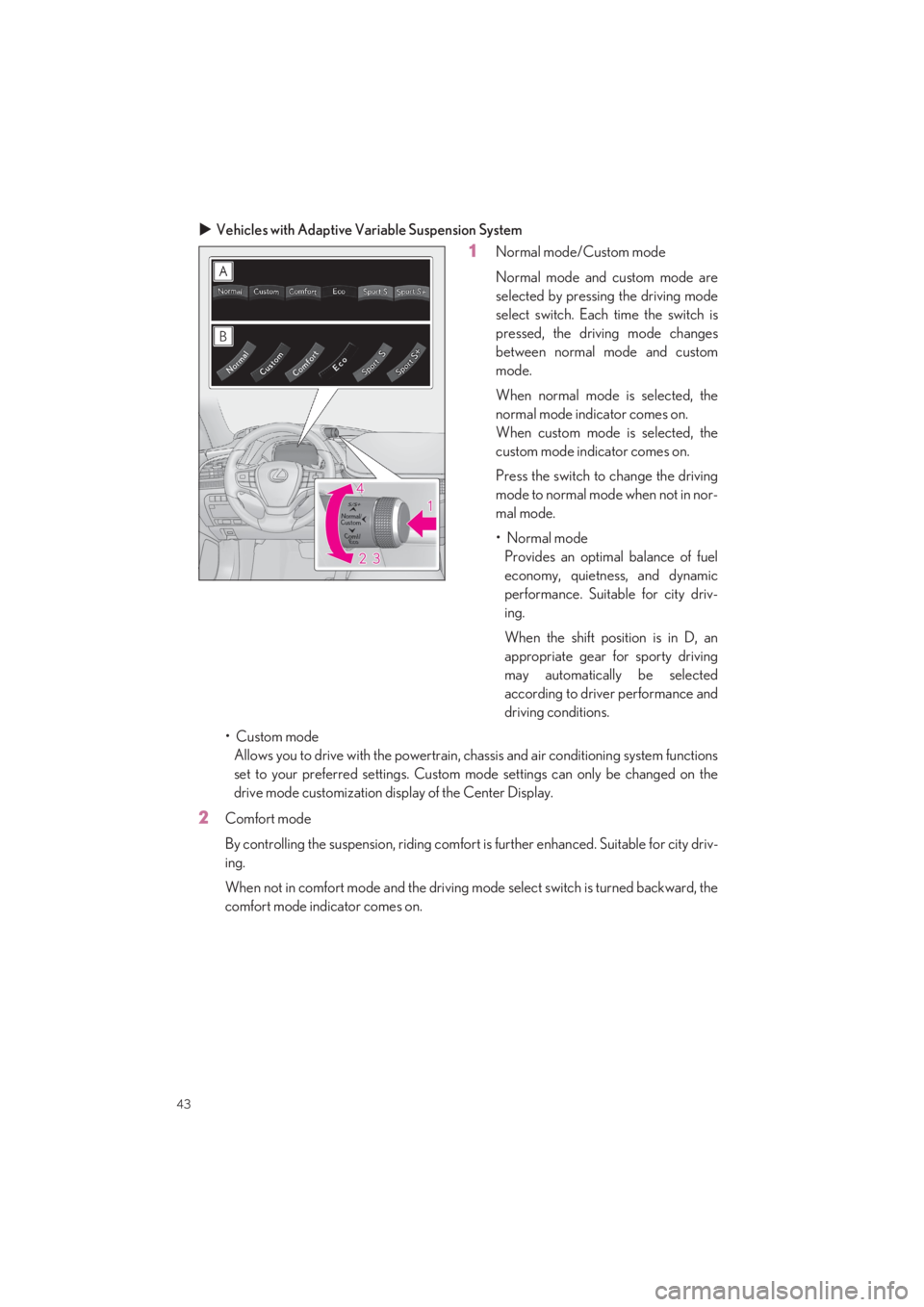

Vehicles with Adaptive Variable Suspension System
1Normal mode/Custom mode
Normal mode and custom mode are
selected by pressing the driving mode
select switch. Each time the switch is
pressed, the driving mode changes
between normal mode and custom
mode.
When normal mode is selected, the
normal mode indicator comes on.
When custom mode is selected, the
custom mode indicator comes on.
Press the switch to change the driving
mode to normal mode when not in nor-
mal mode.
•Normal mode
Provides an optimal balance of fuel
economy, quietness, and dynamic
performance. Suitab le for city driv-
ing.
When the shift position is in D, an
appropriate gear for sporty driving
may automatically be selected
according to driver performance and
driving conditions.
• Custom mode
Allows you to drive with the powertrain, ch assis and air conditioning system functions
set to your preferred settings. Custom mode settings can only be changed on the
drive mode customization disp lay of the Center Display.
2Comfort mode
By controlling the suspension, riding comfort is further enhanced. Suitable for city driv-
ing.
When not in comfort mode and the driving mo de select switch is turned backward, the
comfort mode indicator comes on.

44
LS500_QG_U
3Eco drive mode
Helps the driver acce lerate in an eco-friendly manner and improve fuel economy
through moderate throttle characteristics an d by controlling the operation of the air
conditioning system (heating/cooling).
When in comfort mode, if the driving mode select switch is turned backward, the Eco
drive mode indicator comes on.
4Sport mode
• Sport S mode
Controls the transmission and engine to provide quick, powerful acceleration. This
mode is suitable for when agile driving resp onse is desired, such as when driving on
roads with many curves.
When not in Sport S mode, if the driving mo de select switch is turned forward, the
Sport S mode indicator comes on.
• Sport S+ mode
Helps to ensure steering performance and driving stability by simultaneously con-
trolling the steering and suspen sion in addition to the transmission and engine. Suit-
able for spor tier driving.
When in Sport S mode, if the driving mode se lect switch is turned forward, the Sport
S+ mode indicator comes on.
Except F SPORT models
F SPORT models
A
B

45
LS500_QG_U
Driving Comfort
“MAP” button
Vehicles with navigation function:
Press this button to display the vehicle’s
current position.
Vehicles without navigation function:
Press this button to display the com-
pass mode screen.
“MENU” button
Press this button to display the menu screen.
Back button
Press this button to display the previous screen.
Touchpad
Slide your finger on the touchpad and move the pointer to select a function, letter and
screen button.
Press the touchpad to enter the selected function, letter or screen button. Certain fin-
ger movements on the touchpad can perform functions, such as changing map scalings
and scrolling list screens.
Sub function button
When is displayed on the screen, a functi on screen assigned to the screen can be
displayed.

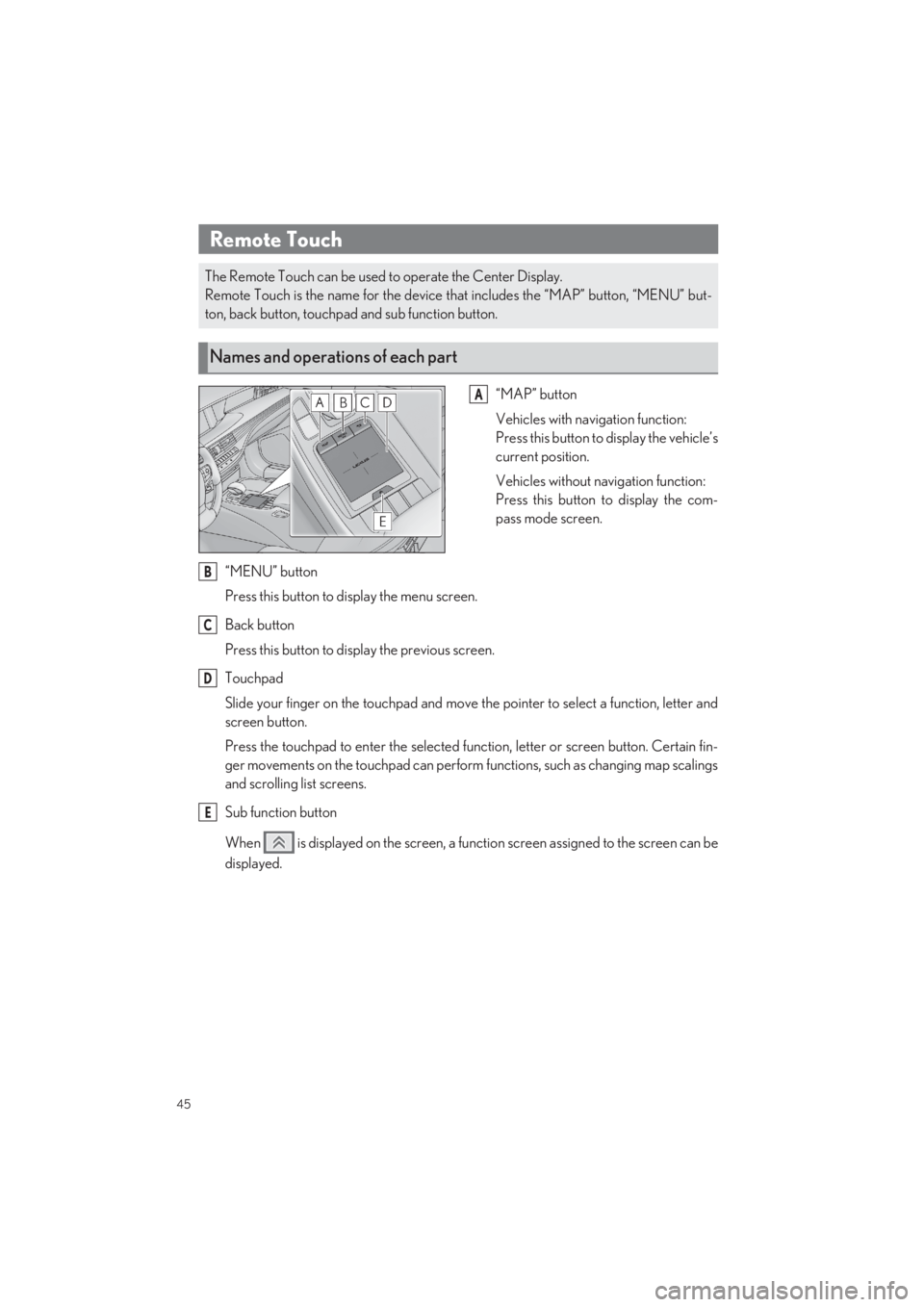

Remote Touch
The Remote Touch can be used to operate the Center Display.
Remote Touch is the name for the device th at includes the “MAP” button, “MENU” but-
ton, back button, touchpad and sub function button.
Names and operations of each part
A
B
C
D
E

46
LS500_QG_U
Press the “MENU” button on the Remote Touch to display the menu screen.
The displays shown in the illu strations are used for example only and may differ from the
actual vehicle.
*1: Refer to the “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.
*2: This function is not made ava ilable in some models or areas.
Center Display
Menu screen
SwitchFunction
Select to display the “Destination” screen.*2 (P.51)
Select to display the audio control screen.*1 (P.60, 61, 62, 63, 64)
Select to display the hands-free control screen. (P.56)
Select to display the “Apps” screen.*1, 2
//
When an Apple CarPlay/Android Auto connection is established and this
button displays “Apple CarPlay”/“An droid Auto”, select to display the
home screen of Apple CarPlay/Android Auto.*1, 2
Select to display the information screen. ( P.49)
Select to display the setup screen.*1
Select to display the air conditioning control screen. (P.67)

47
LS500_QG_U

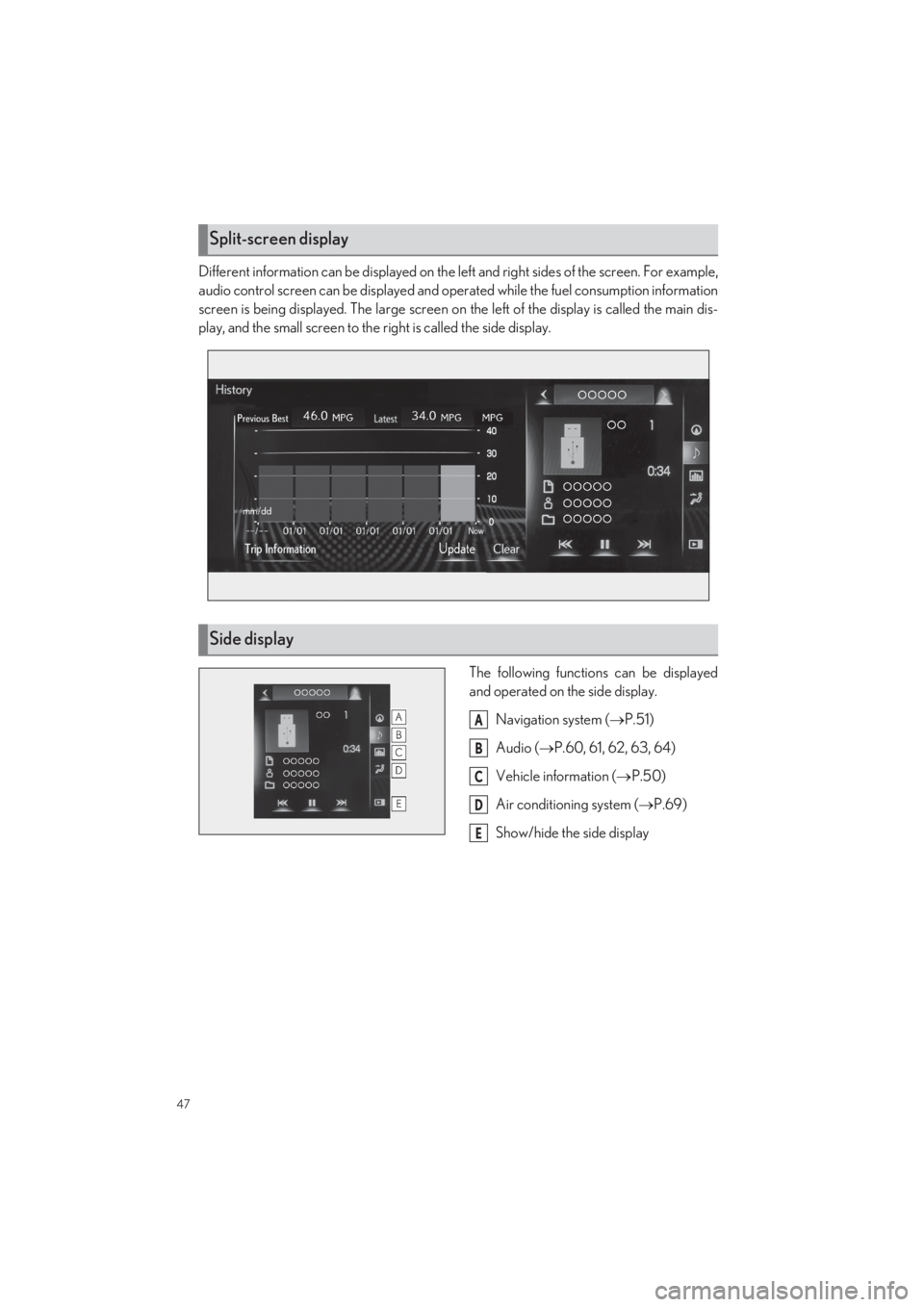

Different information can be displayed on the left and right sides of the screen. For example,
audio control screen can be displayed and oper ated while the fuel consumption information
screen is being displayed. The la rge screen on the left of the display is called the main dis-
play, and the small screen to the right is called the side display.
The following functions can be displayed
and operated on the side display.
Navigation system ( P.51)
Audio ( P.60, 61, 62, 63, 64)
Vehicle information ( P.50)
Air conditioning system ( P.69)
Show/hide the side display
Split-screen display
Side display
A
B
C
D
E

48
LS500_QG_U

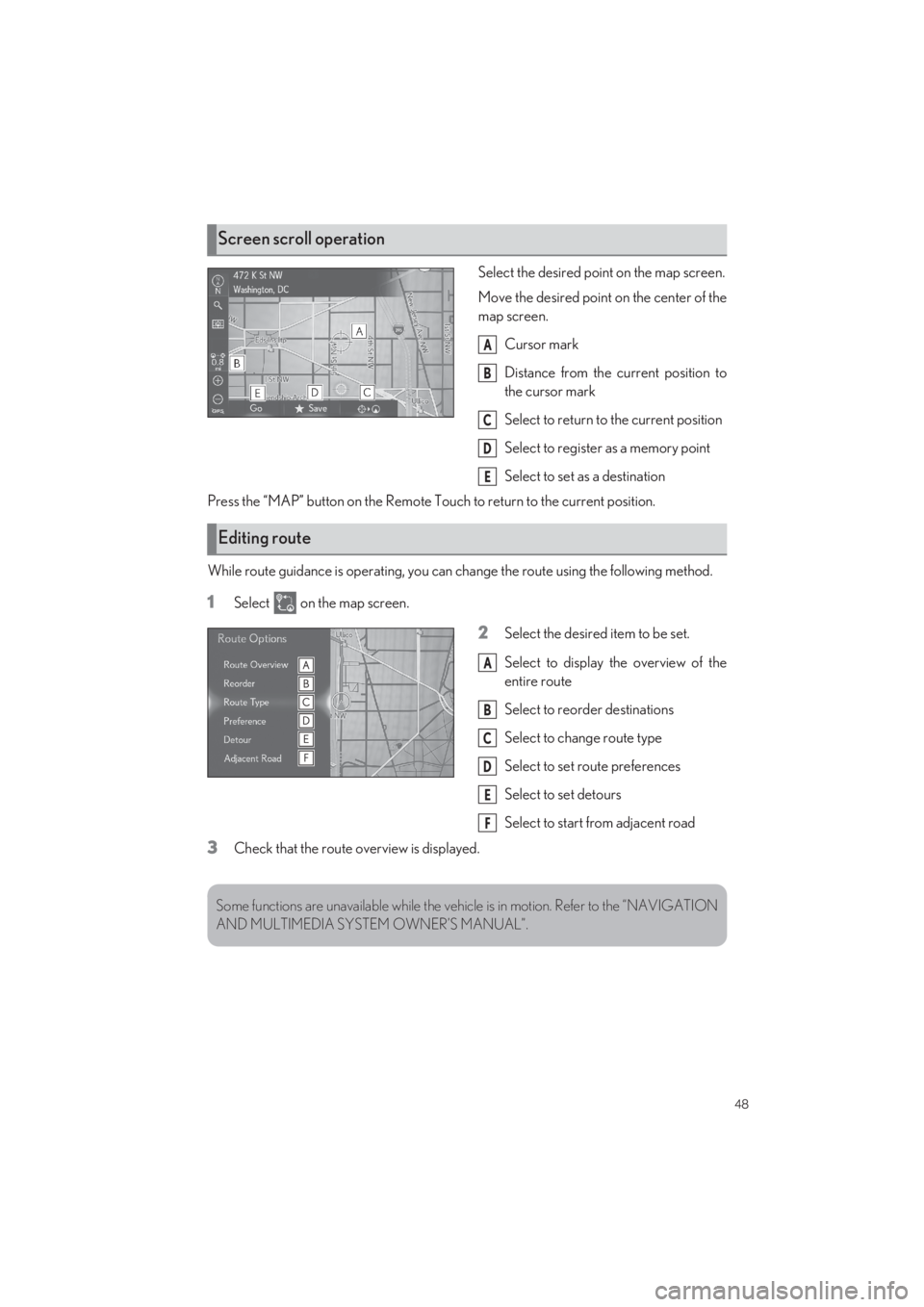

Select the desired point on the map screen.
Move the desired point on the center of the
map screen.
Cursor mark
Distance from the current position to
the cursor mark
Select to return to the current position
Select to register as a memory point
Select to set as a destination
Press the “MAP” button on the Remote Touch to return to the current position.
While route guidance is operat ing, you can change the route using the following method.
1Select on the map screen.
2Select the desired item to be set.
Select to display th e overview of the
entire route
Select to reorder destinations
Select to change route type
Select to set route preferences
Select to set detours
Select to start from adjacent road
3Check that the route overview is displayed.
Screen scroll operation
A
B
C
D
E
Editing route
A
B
C
D
E
F
Some functions are unavailable while the vehi cle is in motion. Refer to the “NAVIGATION
AND MULTIMEDIA SYST EM OWNER’S MANUAL”.

49
LS500_QG_U
Press the “MENU” button on the Remote Touch, then select on the menu screen.
■Trip information
If a screen other than “Trip Information” is displayed, select “Trip Information”.
Resetting the consumption data
Fuel consumption in the past 15 min-
utes
Current fuel consumption
Average vehicle speed since the
engine was started.
Elapsed time since the engine was
started.
Cruising range
■History
If a screen other than “History” is displayed, select “History”.
Best recorded fuel consumption
Latest fuel consumption
Previous fuel consumption record
Resetting the history data
Updating the latest fuel consumption
data

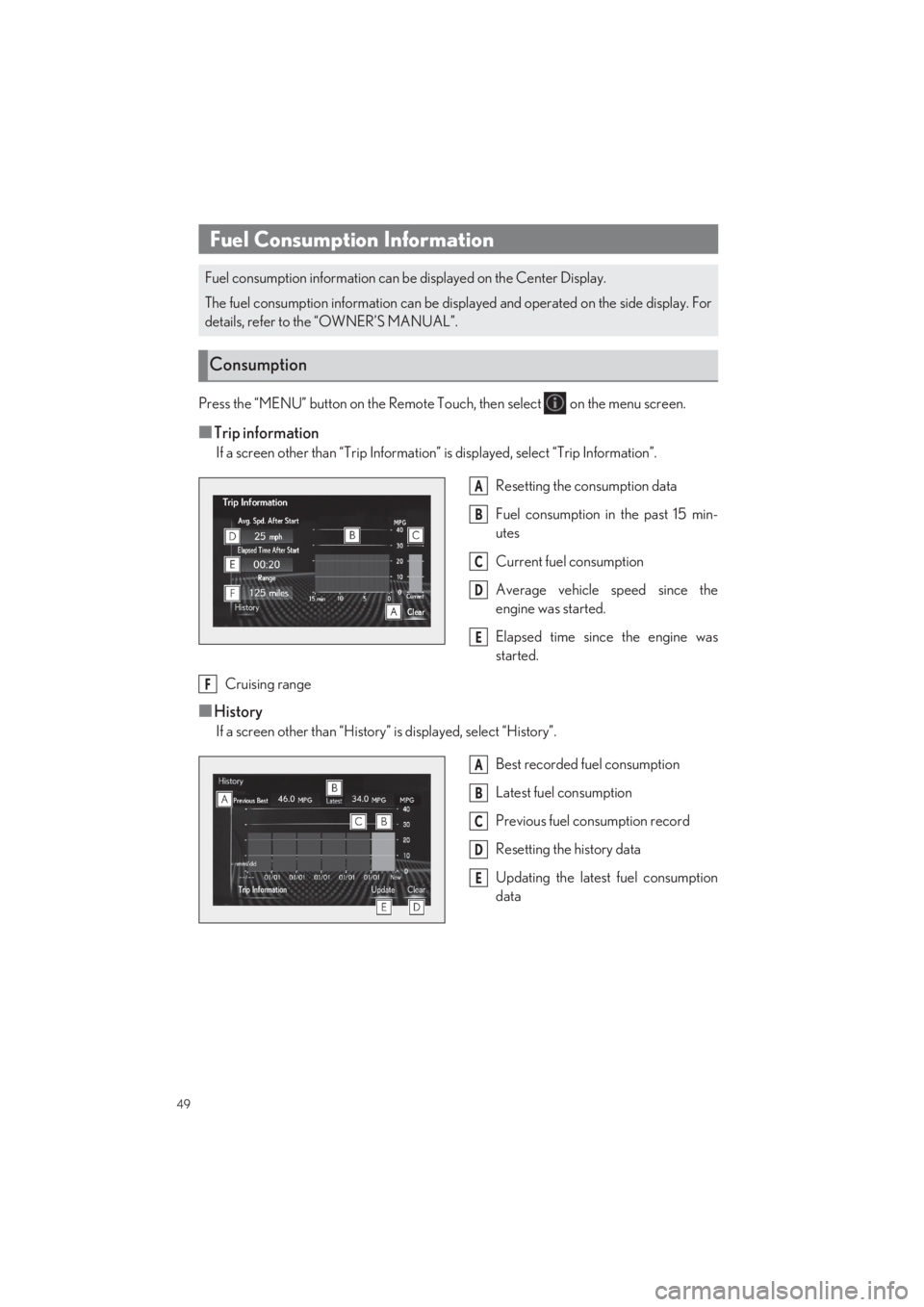

Fuel Consumption Information
Fuel consumption information can be displayed on the Center Display.
The fuel consumption information can be displayed and operated on the side display. For
details, refer to the “OWNER’S MANUAL”.
Consumption
A
B
C
D
E
F
A
B
C
D
E
