engine LEXUS LS500H 2020 Owners Manual

4608-1. Specifications
driving uphill. This is normal and there is
no need for concern.NOTICE
■Notice on fuel quality
●Do not use improper fuels. If improper
fuels are used, the engine will be dam-
aged.
●Do not use leaded gasoline.
Leaded gasoline can cause damage to
your vehicle’s three-way catalytic con-
verters causing the emission control
system to malfunction.
●Do not use gasohol other than the type
previously stated.
Other gasohol may cause fuel system
damage or vehicle performance prob-
lems.
●Using unleaded gasoline with an
octane number or rating lower than
the level previously stated may cause
persistent he avy knocking.
At worst, this may lead to engine dam-
age and will void the vehicle warranty.
■When refueling with gasohol
Take care not to spill gasohol. It can dam-
age your vehicle’s paint.
■Fuel-related poor driveability
If poor driveability is encountered after
using a different type of fuel (poor hot
starting, vaporization, engine knocking,
etc.), discontinue the use of that type of
fuel.

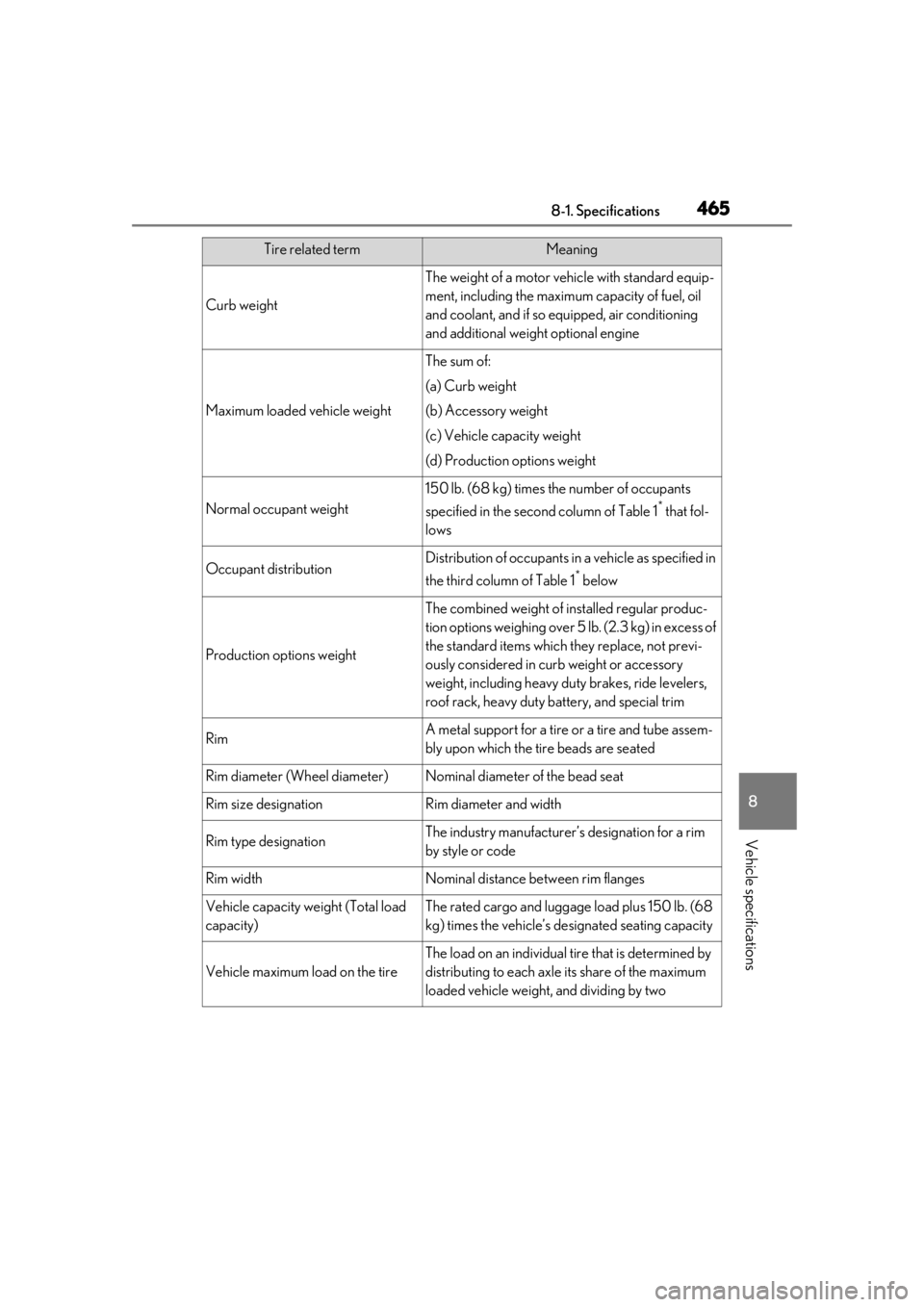

4658-1. Specifications
8
Vehicle specifications
Curb weight
The weight of a motor vehicle with standard equip-
ment, including the maximum capacity of fuel, oil
and coolant, and if so equipped, air conditioning
and additional weight optional engine
Maximum loaded vehicle weight
The sum of:
(a) Curb weight
(b) Accessory weight
(c) Vehicle capacity weight
(d) Production options weight
Normal occupant weight
150 lb. (68 kg) times the number of occupants
specified in the second column of Table 1
* that fol-
lows
Occupant distributionDistribution of occupants in a vehicle as specified in
the third column of Table 1
* below
Production options weight
The combined weight of installed regular produc-
tion options weighing over 5 lb. (2.3 kg) in excess of
the standard items which they replace, not previ-
ously considered in curb weight or accessory
weight, including heavy duty brakes, ride levelers,
roof rack, heavy duty battery, and special trim
RimA metal support for a tire or a tire and tube assem-
bly upon which the tire beads are seated
Rim diameter (Wheel diameter)Nominal diameter of the bead seat
Rim size designationRim diameter and width
Rim type designationThe industry manufacturer’s designation for a rim
by style or code
Rim widthNominal distance between rim flanges
Vehicle capacity weight (Total load
capacity)The rated cargo and luggage load plus 150 lb. (68
kg) times the vehicle’s designated seating capacity
Vehicle maximum load on the tire
The load on an individual ti re that is determined by
distributing to each axle its share of the maximum
loaded vehicle weight, and dividing by two
Tire related termMeaning

4708-2. Customization
8-2.Customization
■Changing by using the meter con-
trol switches
1
Press or to select .
2
Operate the meter control
switches to select the desired item
to be customized.
3
According to the display, select the
desired setting and then press .
To go back to the previous screen or exit
the customize mode, press .
■Changing by using the Remote
Touch
1
Press the “MENU” button on the
Remote Touch.
2
Select “Setup” on the menu screen
and select “Vehicle”.
3
Select “Vehicle Customization” or
“Drive Mode Customization”.
Various setting can be changed. Refer to
the list of settings that can be changed for
details.
For details on the Remote Touch, refer
to the “NAVIGATION AND MULTI-
MEDIA SYSTEM OWNER’S MAN- UAL”.
■Changing by using the Rear Multi
Operation Panel (if equipped)
1
Display the home screen on the
Rear Multi Operation Panel and
then touch “Seat”.
2
Touch “Left” or “Right”.
3
Touch .
4
Touch a button to change the set-
ting.
■When customizing using the Remote
Touch
Stop the vehicle in a safe place, apply the
parking brake, and shift the shift position to
P. Also, to prevent battery discharge, leave
the engine running while customizing the
features.
Customizable features
Your vehicle includes a variety of
electronic features that can be per-
sonalized to your preferences. The
settings of these features can be
changed by using the meter control
switches, the Remote Touch, Rear
Multi Operation Panel or at your
Lexus dealer.
Customizing vehicle features
WARNING
■During customization
As the engine needs to be running
during customization, ensure that the
vehicle is parked in a place with ade-
quate ventilation. In a closed area such as
a garage, exhaust gases including harm-
ful carbon monoxide (CO) may collect
and enter the vehicle. This may lead to
death or a serious health hazard.
NOTICE
■During customization
To prevent battery discharge, ensure that
the engine is running while customizing
features.

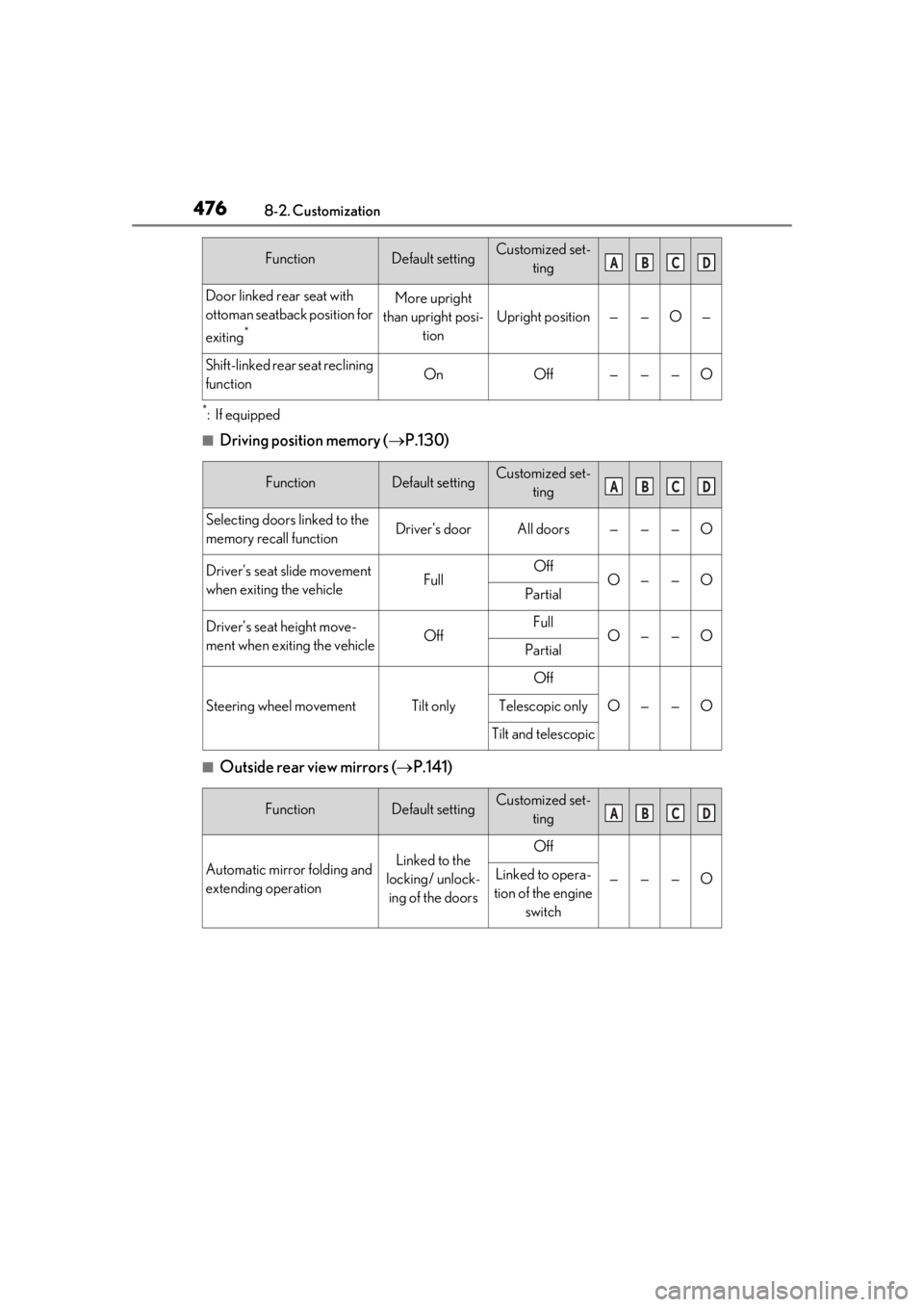

4768-2. Customization
*:If equipped
■Driving position memory (P.130)
■Outside rear view mirrors ( P.141)
Door linked rear seat with
ottoman seatback position for
exiting
*
More upright
than upright posi- tion
Upright position——O—
Shift-linked rear seat reclining
functionOnOff———O
FunctionDefault settingCustomized set-ting
Selecting doors linked to the
memory recall functionDriver’s doorAll doors———O
Driver’s seat slide movement
when exiting the vehicleFullOffO——OPartial
Driver’s seat height move-
ment when exiting the vehicleOffFullO——OPartial
Steering wheel movementTilt only
Off
O——OTelescopic only
Tilt and telescopic
FunctionDefault settingCustomized set-ting
Automatic mirror folding and
extending operationLinked to the
locking/ unlock- ing of the doorsOff
———OLinked to opera-
tion of the engine switch
FunctionDefault settingCustomized set- tingABCD
ABCD
ABCD

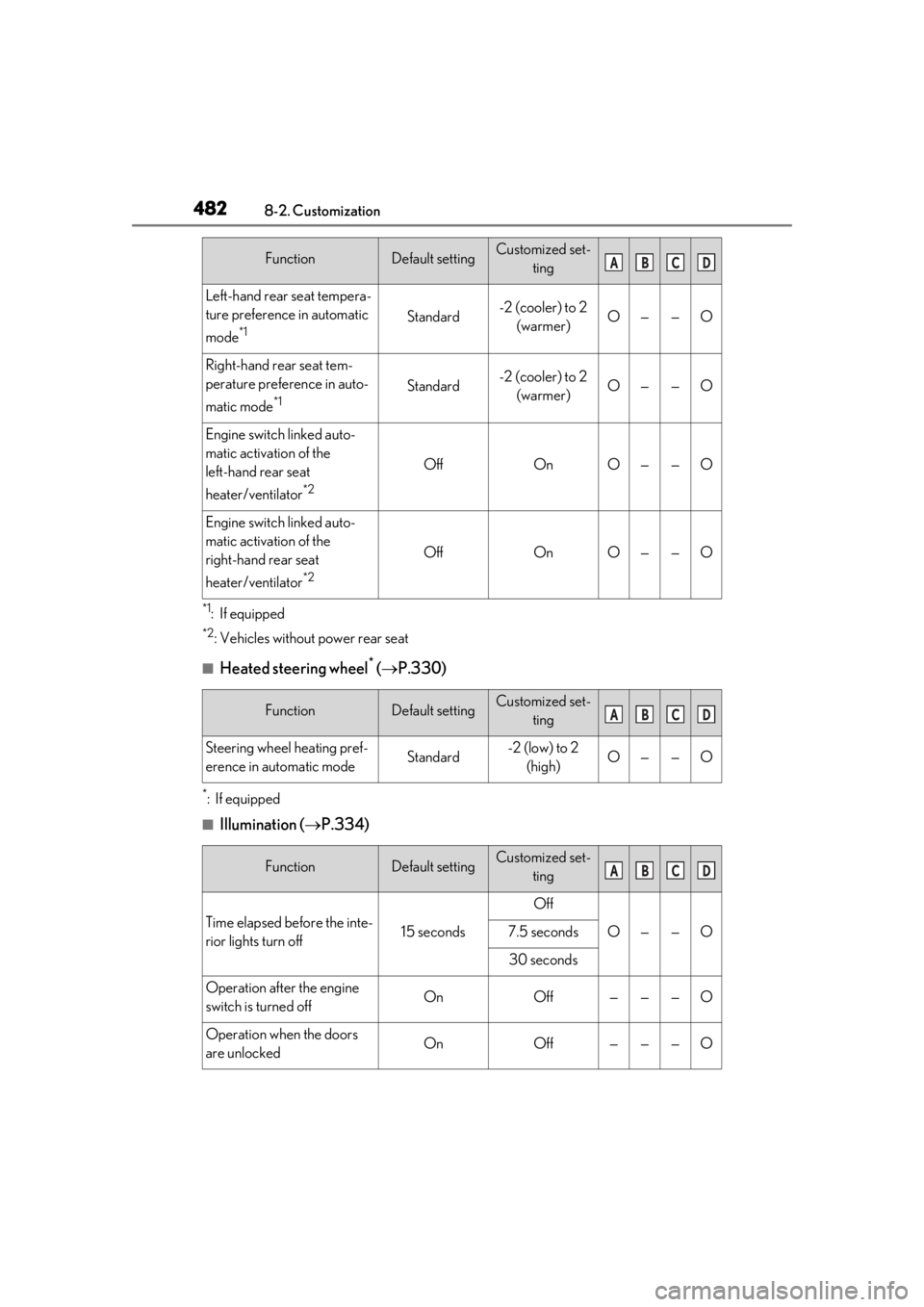

4828-2. Customization
*1: If equipped
*2: Vehicles without power rear seat
■Heated steering wheel* ( P.330)
*:If equipped
■Illumination ( P.334)
Left-hand rear seat tempera-
ture preference in automatic
mode
*1Standard-2 (cooler) to 2
(warmer)O——O
Right-hand rear seat tem-
perature preference in auto-
matic mode
*1Standard-2 (cooler) to 2 (warmer)O——O
Engine switch linked auto-
matic activation of the
left-hand rear seat
heater/ventilator
*2
OffOnO——O
Engine switch linked auto-
matic activation of the
right-hand rear seat
heater/ventilator
*2
OffOnO——O
FunctionDefault settingCustomized set- ting
Steering wheel heating pref-
erence in automatic modeStandard-2 (low) to 2 (high)O——O
FunctionDefault settingCustomized set- ting
Time elapsed before the inte-
rior lights turn off15 seconds
Off
O——O7.5 seconds
30 seconds
Operation after the engine
switch is turned offOnOff———O
Operation when the doors
are unlockedOnOff———O
FunctionDefault settingCustomized set-tingABCD
ABCD
ABCD

4838-2. Customization
8
Vehicle specifications
■Vehicle customization
●When the smart access system with
push-button start is off, the entry unlock
function cannot be customized.
●When the doors remain closed after
unlocking the doors and the timer acti-
vated automatic door lock function acti-
vates, signals will be generated in
accordance with the operation buzzer
volume and operational signal (Emer-
gency flashers) function settings.
●Some settings can be changed using a
switch or the audio system screen. If a
setting is changed using a switch, the
changed setting will not be reflected on
the audio system screen until the engine
switch is turned off and then to IGNI- TION ON mode.
■Clock settings screen
If the clock adjustment screen is displayed
continuously when attempting to change
the clock settings, the system may be mal-
functioning. Have the vehicle inspected by
your Lexus dealer.
Operation when you
approach the vehicle with the
electronic key on your person
OnOff———O
Footwell lightsOnOff———O
Instrument panel ornament
light and door trim ornament
lights
OnOff———O
Time elapsed before the outer
foot lights turn off15 seconds
Off
O——O7.5 seconds
30 seconds
Operation of the outer foot
lights when you approach the
vehicle with the electronic
key on your person
OnOff———O
Operation of the outer foot
lights when the doors are
unlocked
OnOff———O
Operation of the outer foot
lights when a door is openedOnOff———O
Fading out of the outer foot
lights when they turn offLongShort———O
FunctionDefault settingCustomized set-
tingABCD

496What to do if... (Troubleshooting)
1-1.What to do if... (Troubleshooting)What to do if... (Troubleshooting)
If you lose your mechanical keys,
new genuine mechanical keys can
be made by your Lexus dealer.
( P.436)
 If you lose your electronic keys, the
risk of vehicle theft increases signifi-
cantly. Contact your Lexus dealer
immediately. ( P.436)
 Is the electronic key battery weak or
depleted? ( P.403)
 Is the engine switch in IGNITION
ON mode?
When locking the doors, turn the engine
switch off. ( P.168)
 Is the electronic key left inside the
vehicle?
When locking the doors, make sure that
you have the electronic key on your per-
son.
The function may not operate prop-
erly due to the condition of the radio
wave. ( P.113)
 Is the child-protector lock set?
The rear door cannot be opened from
inside the vehicle when the lock is set.
Open the rear door from outside and then
unlock the child-protector lock. ( P.103)
 The function to prevent the elec-
tronic key from being left inside the
trunk will operate and you can open
the trunk as usual. Take the key out
from the trunk. ( P.109)
 Did you press the engine switch
while firmly depressing the brake
pedal? ( P.165)
 Is the electronic key anywhere
detectable inside the vehicle?
( P.112)
 Is the steering wheel unlocked?
( P.165)
 Is the electronic key battery weak or
depleted?
If you have a problem, check the
following before contacting your
Lexus dealer.
The doors cannot be locked,
unlocked, opened or closed
You lose your keys
The electronic key does not
operate properly
The doors cannot be locked or
unlocked
The rear door cannot be opened
The trunk lid is closed with the
electronic key left inside
If you think something is wrong
The engine does not start

497What to do if... (Troubleshooting)
In this case, the engine can be started in a
temporary way. (P.438)
Is the battery discharged?
( P.439)
 It is locked automatically to prevent
theft of the vehicle. ( P.165)
 Is the window lock switch pressed?
The power window except for the one at
the driver’s seat cannot be operated if the
window lock switch is pressed. ( P.145)
 The auto power off function will be
operated if the vehicle is left in
ACCESSORY mode for a period of
time. ( P.168)
 The seat belt reminder light is flash-
ing
Are the driver and the front passenger
wearing the seat belts? ( P.422)
 The parking brake indicator is on
Is the parking brake released? ( P.176)
Depending on the situation, other
types of warning buzzer may also sound. (
P.419, 429)
 Did anyone inside the vehicle open
a door during setting the alarm?
The sensor detects it and the alarm sounds.
( P.65)
Do one of the following to deactivate
or stop the alarms:
 Unlock the doors.
 Turn the engine switch to ACCES-
SORY or IGNITION ON mode, or
start the engine. (The alarm will be
deactivated or stopped after a few
seconds.)
 Is the message displayed on the
multi-information display?
Check the message on the multi-informa-
tion display. ( P.429)
 When a warning light turns on or a
warning message is displayed, refer
to P.419, 429.
The steering wheel cannot be
turned after the engine is
stopped
The windows do not open or
close by operating the power
window switches
The engine switch is turned off
automatically
A warning buzzer sounds during
driving
An alarm is activated and the
horn sounds
A warning buzzer sounds when
leaving the vehicle
A warning light turns on or a
warning message is displayed
When a problem has occurred
If you have a flat tire

500Alphabetical Index
Parking brake ................................................ 176
Warning light .................................................419
Brake assist .................................................... 297
Break-in tips.................................................... 155
Brightness control Instrument panel light control ........75, 79
BSM (Blind Spot Monitor).........................251
Buzzer Hands off steering wheel warning (LTA)......................................................................... 237
C
Card key ............................................................ 96
Care Aluminum wheels ...................................... 362
Exterior ........................................................... 362
Interior .............................................................365
Seat belts........................................................365
Cargo capacity...............................................163
Cargo net ....................................................... 343
Center Display .............................................. 310
Chains .............................................................. 304
Child restraint system Fixed with a LATCH system .................. 53
Fixed with a seat belt................................... 49
Front passenger occupant classification system ............................................................. 39
Points to remember .................................... 45
Riding with children ..................................... 45
Types of child restraint system installation method ........................................................... 46
Using an anchor bracket .......................... 55
Child safety Airbag precautions...................................... 34
Battery precautions ..................... 385, 443
Child restraint system................................. 46
Heated steering wheel and seat heater precautions................................................330
How your child should wear the seat belt ............................................................................ 25
Moon roof precautions ............................ 147
Panoramic moon roof precautions ..... 151 Power window lock switch .................... 145
Power window precautions ...................144
Rear door child-protectors ................... 103
Removed electronic key battery precau-
tions .............................................................. 404
Seat belt extender precautions.............. 25
Seat belt precautions .................................. 45
Trunk precautions....................................... 104
Child-protectors........................................... 103
Cleaning Aluminum wheels ......................................362
Exterior............................................................362
Interior ............................................................ 365
Radar sensor .......................................193, 199
Seat belts ....................................................... 365
Clock ................................................73, 76, 348
Clock light ...................................................... 334
Coat hooks..................................................... 347
Coin holder .................................................... 340
Condenser ..................................................... 383
Console box ....................................................341
Consumption screen ...................................... 91
Cooling system............................................. 382 Engine overheating................................... 444
Cornering lights .............................................182
Cruise control Dynamic radar cruise control with full-speed range ........................... 238, 241
Cup holders ................................................... 340
Current fuel consumption .......................... 82
Curtain shield airbags .................................. 29
Customizable features .............................. 470
D
Daytime running light system .................. 180
Defogger Outside rear view mirrors...................... 318
Rear window ................................................. 318
Windshield ..................................................... 318
Differential Front differential oil............. .......................454
Rear differential oil......... ..................... ...... 455

501Alphabetical Index
Dimension ...................................................... 450
Dinghy towing.................................................164
DisplayCenter Display............................................. 310
Dynamic radar cruise control with full-speed range ........................................ 241
Head-up display ........................................... 87
Intuitive parking assist.............................. 259
LTA (Lane Tracing Assist).................... 232
Multi-information display ..........................80
Parking Support Brake function (rear pedestrians) ..............................................289
RCD (Rear Camera Detection) ........ 270
RCTA .............................................................. 266
Warning message..................................... 429
Distance until next engine oil change ...74, 79
Do-it-yourself maintenance .................... 369
Door courtesy lights ................................... 334
Door lock Doors................................................................ 100
Smart access system with push-button start ..................................................................... 111
Wireless remote control........................... 98
Doors Automatic door lock ing and unlocking
system ........................................................... 104
Door closer ................................................... 103
Door glasses ..................................................143
Door lock........................................................ 100
Open door warning bu zzer ........ 101, 103
Outside rear view mirrors ........................141
Rear door child-protectors ................... 103
Drive distance .................................................. 82
Drive info 1/Drive info 2 .............................. 82
Driver’s seat position memory Driving position memory........................ 130
Memory recall function ............................133
Power easy access system .................... 130
Drive-start control ....................................... 155
Driving Break-in tips .................................................. 155 Correct driving posture ............................ 23
Driving mode select switch .................. 292
Procedures .................................................... 154
Winter drive tips ........................................ 303
Driving information disp lay ........................ 82
Driving position memory........................... 130 Memory recall function............................ 133
Power easy access system .................... 130
Driving range ................................................... 82
Driving support system information display ............................................................................. 85
DRS (Dynamic Rear Steering) .............. 298
Dynamic radar cruise control with full-speed range .............................. 238, 241Warning message ..................................... 249
Dynamic Rear Steering (DRS) .............. 298
E
ECB (Electronically Controlled Brake Sys-
tem) ................................................................ 297
Eco Driving Indicator............................. 83, 91
Eco Driving Indicator Light ........................ 83
EDR (Event data recorder) ............................7
Elapsed time ..................................................... 82
Electric Power Steering (EPS) .............. 298 Warning light ............................................... 422
Electronic key .................................................. 96 Battery-saving function.............................. 112
If the electronic key does not operate properly ....................................................... 437
Replacing the battery .............................. 403
Electronic roof sunshade Jam protection function ........................... 150
Operation ....................................................... 148
Electronically Controlled Brake System (ECB) ............................................................ 297
Electronically modulated air suspension .......................................................................... 294
Emergency flashers ..................................... 410
Emergency, in case of If a warning buzzer sounds.................... 419
If a warning light turns on........................ 419
