4377-2. Steps to take in an emergency
7
When trouble arises
■When the electronic key does not work
properly
●Make sure that the smart access system
with push-button start has not been dis-
abled at your Lexus dealer. If it has been
disabled, re-enable it.
●Check if battery-saving mode is set. If it is
set, cancel the function. (P.113)
■Unlocking the door
Use the mechanical key ( P.98) in
order to perform the following opera-
tions: 1
Pull the driver’s door handle and
insert the mechanical key.
2
Unlock the door.
3
Remove the key, return the handle,
and then pull the handle again.
■Locking the door
1
With the door open, push down the
inside lock button.
2
Close the door.
■Trunk
Turn the mechanical key clockwise to
open. ( P.65)
If the electronic key does not
o
perate properly
If communication between the
electronic key and vehicle is inter-
rupted ( P.113) or the electronic
key cannot be used because the
battery is depleted, the smart
access system with push-button
start and wireless remote control
cannot be used. In such cases, the
doors and trunk can be opened and
the engine can be started by follow-
ing the procedure below.
NOTICE
■In case of a smart access system with
push-button start malfunction or
other key-related problems
Take your vehicle with all the electronic
keys provided with your vehicle to your
Lexus dealer.
Locking and unlocking the
doors, unlocking the trunk

4427-2. Steps to take in an emergency
as in heavy traffic.
■When the battery is removed or dis-
charged
●Information stored in the ECU is cleared.
When the battery is depleted, have the
vehicle inspected at your Lexus dealer.
●Some systems may require initialization.
( P.484)
■When removing the battery terminals
When the battery terminals are removed,
the information stored in the ECU is
cleared. Before removi ng the battery termi-
nals, contact your Lexus dealer.
■Charging the battery
The electricity stored in the battery will dis-
charge gradually even when the vehicle is
not in use, due to natural discharge and the
draining effects of certain electrical appli-
ances. If the vehicle is left for a long time,
the battery may discharge, and the engine
may be unable to start. (The battery
recharges automatically during driving.)
■When recharging or replacing the bat-
tery
●In some cases, it may not be possible to
unlock the doors using the smart access
system with push-button start when the
battery is discharged. Use the wireless
remote control or the mechanical key to
lock or unlock the doors.
●The engine may not start on the first
attempt after the battery has recharged
but will start normally after the second
attempt. This is not a malfunction.
●The engine switch mode is memorized by
the vehicle. When the battery is recon-
nected, the system will return to the
mode it was in before the battery was dis-
charged. Before di sconnecting the bat-
tery, turn the engine switch off.
If you are unsure what mode the engine
switch was in befo re the battery dis-
charged, be especially careful when
reconnecting the battery.
■When replacing the battery
●Use a Central Degassing type battery
(European Regulations).
●Use a battery with the same case size as the previous battery and an equivalent
20 hour rate capacity (20HR) or greater.
• If the sizes differ, the battery cannot be
properly secured.
• If the 20 hour rate capacity is low, even if the time period where the vehicle is not
used is a short time, the battery may dis-
charge and the engine may not be able to
start.
●Use a battery with a handle. If a battery
without a handle is used, removal is more
difficult.
●After replacing, firm ly attach the follow-
ing items to the exhaust hole of the bat-
tery.
• Use the exhaust hose that was attached
to the battery before replacing and con-
firm that it is firmly connected to the hole
section of the vehicle.
• Use the exhaust hole plug included with the battery replaced or the one installed
on the battery prior to the replacement.
(Depending on the battery to be
replaced, the exhaust hole may be
plugged.)
Exhaust hole plug
Exhaust hole
Exhaust hose
For details, consult your Lexus dealer.
A
B
C

4708-2. Customization
8-2.Customization
■Changing by using the meter con-
trol switches
1
Press or to select .
2
Operate the meter control
switches to select the desired item
to be customized.
3
According to the display, select the
desired setting and then press .
To go back to the previous screen or exit
the customize mode, press .
■Changing by using the Remote
Touch
1
Press the “MENU” button on the
Remote Touch.
2
Select “Setup” on the menu screen
and select “Vehicle”.
3
Select “Vehicle Customization” or
“Drive Mode Customization”.
Various setting can be changed. Refer to
the list of settings that can be changed for
details.
For details on the Remote Touch, refer
to the “NAVIGATION AND MULTI-
MEDIA SYSTEM OWNER’S MAN- UAL”.
■Changing by using the Rear Multi
Operation Panel (if equipped)
1
Display the home screen on the
Rear Multi Operation Panel and
then touch “Seat”.
2
Touch “Left” or “Right”.
3
Touch .
4
Touch a button to change the set-
ting.
■When customizing using the Remote
Touch
Stop the vehicle in a safe place, apply the
parking brake, and shift the shift position to
P. Also, to prevent battery discharge, leave
the engine running while customizing the
features.
Customizable features
Your vehicle includes a variety of
electronic features that can be per-
sonalized to your preferences. The
settings of these features can be
changed by using the meter control
switches, the Remote Touch, Rear
Multi Operation Panel or at your
Lexus dealer.
Customizing vehicle features
WARNING
■During customization
As the engine needs to be running
during customization, ensure that the
vehicle is parked in a place with ade-
quate ventilation. In a closed area such as
a garage, exhaust gases including harm-
ful carbon monoxide (CO) may collect
and enter the vehicle. This may lead to
death or a serious health hazard.
NOTICE
■During customization
To prevent battery discharge, ensure that
the engine is running while customizing
features.

4718-2. Customization
8
Vehicle specifications
Some function settings are changed simultaneously with other functions being cus-
tomized. Contact your Lexus dealer for further details.
Settings that can be changed using the Remote Touch
Settings that can be changed using the meter control switches
Settings that can be changed using the Rear Multi Operation Panel (if
equipped)
Settings that can be changed by your Lexus dealer
Definition of symbols: O = Available, — = Not available
■Seat belts ( P.24)
*1: If equipped
*2: Vehicles with pre-collision se at belts with comfort function
■Gauges, meters and multi-information display ( P.68, 73, 76, 80)
Customizable features
FunctionDefault settingCustomized set-
ting
Easy Access Buckle*1OnOff———O
Retraction of front seat belts
when vehicle speed reaches
approximately 12 mph (20
km/h)
*2
OnOff———O
Retraction of front seat belt
when corresponding front
door is opened or seat belt is
released
*2
OnOff———O
Function*1Default settingCustomized set-ting
LanguageEnglishFrenchOO——Spanish
Units*2miles (MPG)
km (km/L)
OO——km (L/100 km)
miles (MPG Imperial)
A
B
C
D
ABCD
ABCD

4748-2. Customization
■Smart access system with push-button start and wireless remote control
(  P.100, 111)
■Smart access system with push-button start ( P.100, 111)
■Wireless remote control ( P.98, 100, 104)
FunctionDefault settingCustomized set-
ting
Operating signal (Buzzers)5OffO——O1 to 7
Operation signal (Emer-
gency flashers)OnOffO——O
Time elapsed before auto-
matic door lock function is
activated if door is not
opened after being unlocked
60 seconds
Off
O——O30 seconds
120 seconds
Open door warning buzzerOnOff———O
FunctionDefault settingCustomized set-ting
Smart access system with
push-button startOnOff———O
Smart door unlockingDriver’s doorAll the doorsO——O
Time elapsed before unlock-
ing all the door when gripping
and holding the driver’s door
handle
2 seconds
Off
———O1.5 seconds
2.5 seconds
Number of consecutive door
lock operations2 timesAs many as desired———O
FunctionDefault settingCustomized set- ting
Wireless remote controlOnOff———O
Unlocking operation
Driver’s door
unlocked in one step, all doors
unlocked in two step
All doors
unlocked in one step
O——O
ABCD
ABCD
ABCD

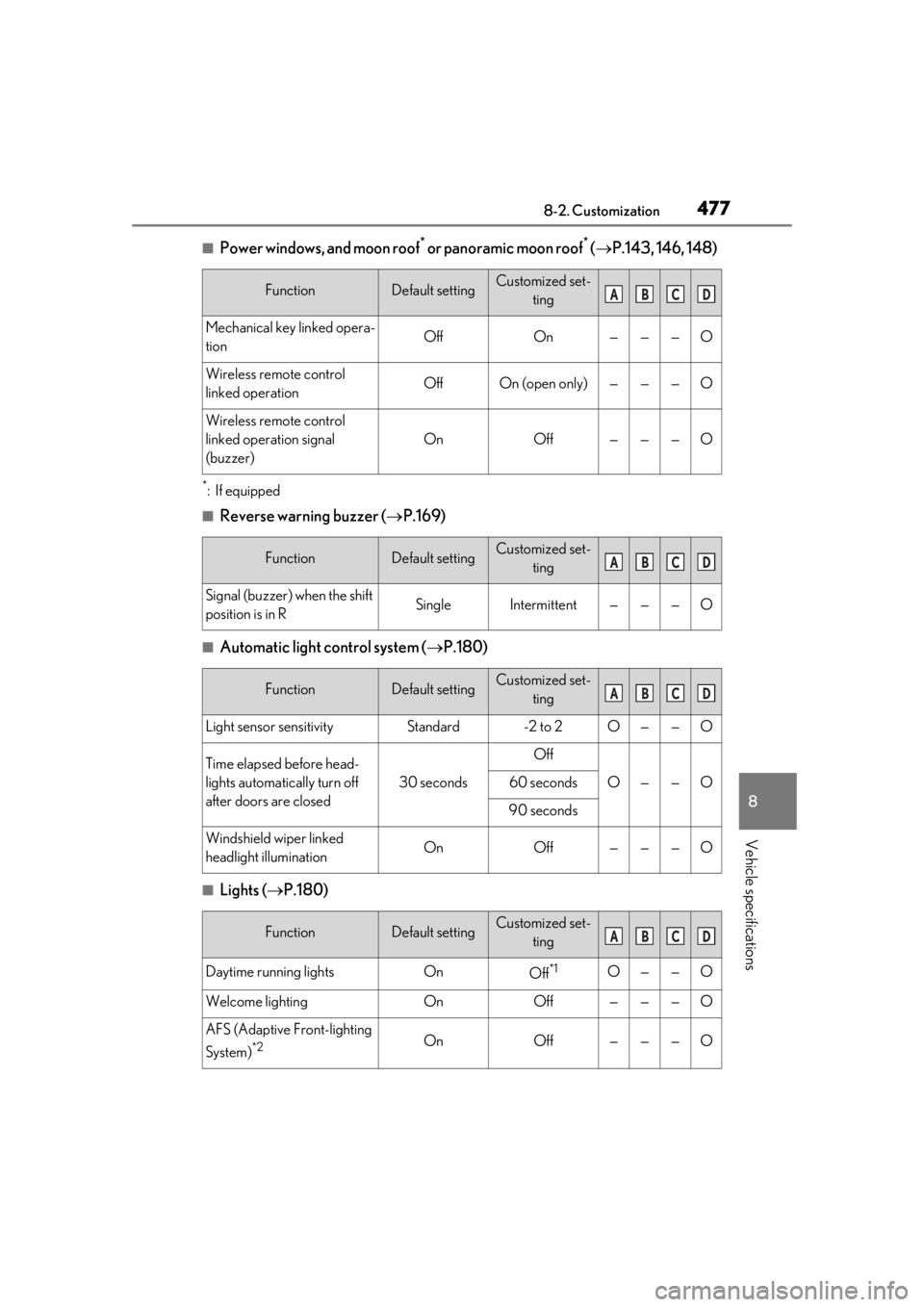

4778-2. Customization
8
Vehicle specifications
■Power windows, and moon roof* or panoramic moon roof* ( P.143, 146, 148)
*:If equipped
■Reverse warning buzzer ( P.169)
■Automatic light control system ( P.180)
■Lights ( P.180)
FunctionDefault settingCustomized set-
ting
Mechanical key linked opera-
tionOffOn———O
Wireless remote control
linked operationOffOn (open only)———O
Wireless remote control
linked operation signal
(buzzer)
OnOff———O
FunctionDefault settingCustomized set-ting
Signal (buzzer) when the shift
position is in RSingleIntermittent———O
FunctionDefault settingCustomized set-ting
Light sensor sensitivityStandard-2 to 2O——O
Time elapsed before head-
lights automatically turn off
after doors are closed
30 seconds
Off
O——O60 seconds
90 seconds
Windshield wiper linked
headlight illuminationOnOff———O
FunctionDefault settingCustomized set-ting
Daytime running lightsOnOff*1O——O
Welcome lightingOnOff———O
AFS (Adaptive Front-lighting
System)
*2OnOff———O
ABCD
ABCD
ABCD
ABCD

501Alphabetical Index
Dimension ...................................................... 450
Dinghy towing.................................................164
DisplayCenter Display............................................. 310
Dynamic radar cruise control with full-speed range ........................................ 241
Head-up display ........................................... 87
Intuitive parking assist.............................. 259
LTA (Lane Tracing Assist).................... 232
Multi-information display ..........................80
Parking Support Brake function (rear pedestrians) ..............................................289
RCD (Rear Camera Detection) ........ 270
RCTA .............................................................. 266
Warning message..................................... 429
Distance until next engine oil change ...74, 79
Do-it-yourself maintenance .................... 369
Door courtesy lights ................................... 334
Door lock Doors................................................................ 100
Smart access system with push-button start ..................................................................... 111
Wireless remote control........................... 98
Doors Automatic door lock ing and unlocking
system ........................................................... 104
Door closer ................................................... 103
Door glasses ..................................................143
Door lock........................................................ 100
Open door warning bu zzer ........ 101, 103
Outside rear view mirrors ........................141
Rear door child-protectors ................... 103
Drive distance .................................................. 82
Drive info 1/Drive info 2 .............................. 82
Driver’s seat position memory Driving position memory........................ 130
Memory recall function ............................133
Power easy access system .................... 130
Drive-start control ....................................... 155
Driving Break-in tips .................................................. 155 Correct driving posture ............................ 23
Driving mode select switch .................. 292
Procedures .................................................... 154
Winter drive tips ........................................ 303
Driving information disp lay ........................ 82
Driving position memory........................... 130 Memory recall function............................ 133
Power easy access system .................... 130
Driving range ................................................... 82
Driving support system information display ............................................................................. 85
DRS (Dynamic Rear Steering) .............. 298
Dynamic radar cruise control with full-speed range .............................. 238, 241Warning message ..................................... 249
Dynamic Rear Steering (DRS) .............. 298
E
ECB (Electronically Controlled Brake Sys-
tem) ................................................................ 297
Eco Driving Indicator............................. 83, 91
Eco Driving Indicator Light ........................ 83
EDR (Event data recorder) ............................7
Elapsed time ..................................................... 82
Electric Power Steering (EPS) .............. 298 Warning light ............................................... 422
Electronic key .................................................. 96 Battery-saving function.............................. 112
If the electronic key does not operate properly ....................................................... 437
Replacing the battery .............................. 403
Electronic roof sunshade Jam protection function ........................... 150
Operation ....................................................... 148
Electronically Controlled Brake System (ECB) ............................................................ 297
Electronically modulated air suspension .......................................................................... 294
Emergency flashers ..................................... 410
Emergency, in case of If a warning buzzer sounds.................... 419
If a warning light turns on........................ 419

504Alphabetical Index
InitializationItems to initialize .........................................484
Maintenance .....................................368, 381
Power windows............................................ 143
Tire pressure warning system ............. 392
Inside door handle lights .......................... 334
Inside rear view mirror ............................... 140
Instrument panel light control ........... 75, 79
Intercooler...................................................... 383
Intercooler coolant Capacity ......................................................... 453
Checking ....................................................... 382
Interior lights.................................................. 334 Front interior light ...................................... 334
Rear interior light ....................................... 334
Intuitive parking assist..................... 257, 259 Function .......................................................... 259
Warning message........................... 261, 277
J
JackPositioning a floor jack............................ 375
Jam protection function Electronic roof sunshade........................ 150
Moon roof .......................................................146
Panoramic moon roof.............................. 150
Power trunk opener and closer .......... 109
Power windows............................................ 143
Rear door sunshade ............................... 350
K
Keyless entrySmart access system with push-button start ..................................................................... 111
Wireless remote control........................... 98
Keys Battery-saving function ..............................112
Electronic key ................................................. 96
Engine switch................................................ 165
If the electronic key does not operate properly....................................................... 437 If you lose your keys .................................436
Key number plate .........................................96
Keyless entry .......................................... 100, 111
Mechanical key .............................................. 96
Replacing the battery .............................. 403
Warning buzzer ............................................ 112
Wireless remote control ...........................98
Knee airbags .................................................... 29
L
Lane change assist function .................... 226
Lane Tracing Assist (LTA) Operation ...................................................... 226
Warning messages...................................238
Language (multi-information display) ... 85
LATCH anchors ............................................. 53
LDH (Lexus Dynamic Handling system) .......................................................................... 298
Lever Auxiliary catch lever .................................375
Hood lock release lever .........................375
Internal trunk release lever..................... 109
Shift lever ......................................................... 169
Turn signal lever ...........................................175
Wiper lever .................................................... 185
Lexus climate concierge ............................315
Lexus Dynamic Handling system (LDH) .......................................................................... 298
Lexus Enform Safety Connect.................. 58
Lexus Safety System + 2.0 AHB (Automatic High Beam) ............. 183
Dynamic radar cruise control with full-speed range ........................................241
LTA (Lane Tracing Assist) .................... 226
PCS (Pre-Collision System) ..................216
RSA (Road Sign Assist)..........................238
Lexus Safety System + A AHB (Automatic High Beam) ............. 183
Dynamic radar cruise control with full-speed range ........................... 238, 241
FCTA (Front Cross Traffic Alert)...... 223
LTA (Lane Tracing Assist) .................... 226

507Alphabetical Index
Pre-Collision System (PCS)Function ............................................... 205, 216
PCS OFF switch ............................. 208, 218
Warning light ............................................... 425
R
Radar cruise control (dynamic radar cruise control with full-speed range)... 238, 241
Radiator ........................................................... 383
RCD (Rear camera detection) .............. 257 Function .......................................................... 270
Warning message....................................... 271
RCTA Function .......................................................... 266
Warning message..................................... 267
RCTA (Rear Cross Traffic Alert) ......... 257
RCTA function ..............................................267
Rear automatic air conditioning system .......................................................................... 327
Rear Cross Traffic Alert (RCTA) ......... 266
Rear door sunshades ..... ............................ 350
Rear Multi Operation Panel .....................312
Rear seat position memory .......................134
Rear seats .........................................................125 Adjustment...................................................... 126
Head restraints .............................................135
Rear seat position memory .................... 134
Relaxation system........................................128
Seat heaters ..................................................330
Seat ventilators............................................330
Rear side marker lights Light switch .................................................... 180
Replacing light bulbs............................... 408
Rear sunshades ............................................ 352
Rear turn signal lights Replacing light bulbs............................... 408
Turn signal lever ........................................... 175
Rear view mirror Inside rear view mirror............................. 140
Outside rear view mirrors ........................141
Rear window defogger .............................. 318 Refueling
Capacity .......................................................... 451
Fuel types ........................................................ 451
If the fuel filler do or cannot be opened
..........................................................................436
Opening the fuel tank cap ..................... 190
Remote Touch ..............................................308
Replacing Electronic key battery ............................. 403
Fuses................................................................ 405
Light bulbs .................................................... 408
Tires ................................................................. 395
Resetting the message indicating mainte- nance is required ...................................... 368
Rev indicator .................................................... 78
Rev peak............................................................. 78
Road Sign Assist .......................................... 238
RSA (Road Sign Assist) ............................ 238
Run-flat tires....................................... 389, 433
S
Seat belt buckle lights ................................ 334
Seat belt reminder light............................. 422
Seat belts............................................................ 24 Automatic Locking Retractor................. 26
Child restraint system installation ......... 46
Cleaning and maintaining the seat belt......................................................................... 365
Easy Access Buckle .................................... 26
Emergency Locking Retractor .............. 26
How to wear your seat belt ..................... 25
How your child should wear the seat belt ............................................................................. 25
Pregnant women, proper seat belt use ............................................................................. 24
Reminder light and buzzer ................... 422
Seat belt extender......................................... 25
SRS warning light.......................................420
Seat heaters ................................................... 330
Seat position memory....................... 130, 134
Seat ventilators ............................................. 330
Seating capacity.............................................163

510Alphabetical Index
Checking ....................................................... 387
If you have a flat tire .................................. 433
Inflation pressure........................................399
Information ......................................................461
Replacing .......................................................395
Rotating tires ............................................... 388
Run-flat tires .................................... 389, 433
Size....................................................................456
Snow tires ......................................................303
Tire inflation pressure display function
.........................................................................389
Tire pressure warning system .............389
Warning light ............................................... 423
Top tether strap............................................... 55
Total load capacity ....... ............................... 450
Towing Dinghy towing ...............................................164
Emergency towing ..................................... 413
Towing eyelet ................................................416
Trailer towing .................................................163
TRAC (Traction Control) ........................ 298
Traction Control (TRAC) ........................ 298
Trailer towing ..................................................163
Transmission Automatic transmission ............................169
Driving mode select switch .................. 292
M mode ............................................................ 174
Paddle shift switches ........................ 173, 174
Snow mode .................................................... 172
Trip meters .................................................74, 79
Trunk .................................................................. 104 Hands Free Power Trunk Lid ...............107
Internal trunk release lever .................... 109
Power trunk opener and closer .......... 106
Smart access system with push-button start ..................................................................107
Trunk closer switch.................................... 108
Trunk easy closer........................................ 108
Trunk features.............................................. 343
Trunk grip ....................................................... 108
Trunk lid light................................................. 108
Trunk light....................................................... 108 Trunk opener main switch........................ 110
Trunk opener switch ................................. 106
Wireless remote control ......................... 107
Trunk lid light .................................................. 108
Trunk light ........................................................ 108
Turn signal lights Replacing light bulbs ............................... 408
Turn signal lever ...........................................175
U
USB charging ports.................................... 346
V
Vanity lights....................................................350
Vanity mirrors ...............................................350
Variable Gear Ratio Steering (VGRS)298
VDIM (Vehicle Dynamics Integrated Man-agement)...................................................... 298
Vehicle data recording ....................................7
Vehicle Dynamics Integrated Manage- ment (VDIM).............................................. 298
Vehicle identification number ................ 450
Vehicle Stability Control (VSC) ........... 297
Ventilators (seat ventilators)................... 330
VGRS (Variable Gear Ratio Steering)298
VSC (Vehicle Stability Control) ........... 297
W
Warning buzzers ABS .....................................................................421
Airbags............................................................420
Approach warning.................................... 247
Brake hold ..................................................... 426
Brake Override System ...........................421
Brake system................................................. 419
Charging system........................................420
Downshifting ..................................................174
Drive-Start Control.....................................421
Electric power steering........................... 422
Engine..............................................................420
