Headlight Switch............................................................................................................................... .40
Head-up Display ............................................................................................................................... .. 38
Hybrid System ............................................................................................................................... ......... 12
Hybrid Transmission ......................................................................................................................... 28
Keys ............................................................................................................................... .............................15
Lexus Climate Concierge .............................................................................................................. 68
Lexus Enform Remote ....................................................................................................................... 91
Lexus Enform Safety Connect ..................................................................................................... 89
Lexus Enform Service Connect .................................................................................................... 91
Moon Roof ............................................................................................................................................. 95
Multi-information Display .............................................................................................................. 36
Navigation System
*
Registering home ............................................................................................................... ........... 54
Destination search ............................................................................................................. ........... 54
Voice Command System ........................................................................................................... 74
Parking Brake ............................................................................................................................... ....... 33
Power (Ignit ion) Switch................................................................................................................... 25
Power Rear Seat ............................................................................................................................... .... 21
Power Windows ............................................................................................................................... ... 94
Rear Automatic Air Conditioning System Rear air conditioning control screen .....................................................................................73
Using automatic mode........................................................................................................... ......73
Remote Touch .......................................................................................................................................47
SiriusXM Satellite Radio ................................................................................................................ 92
Smart Access System with Push-button Start ........................................................................ 17
Trunk .........................................................................................................................................................97
Turn Signal Lever ............................................................................................................................... .32
USB/AUX Ports ............................................................................................................................... .. 82
Voice Command System
*
Basic operation ................................................................................................................ ...............74
Command list................................................................................................................... ................76
Windshield Wipers and Washer ................................................................................................. 43
*: This feature may be operated by Voice command (See P.74)
Page 6 of 108
5
LS500h_QG_U
■Switches
Vehicle height adjustment switch*1, 2
EV drive mode switch*3......................................................................................... P.27
HUD (Head-up display) switch
*1, 3.................................................................... P.38
Camera switch
*3, 4
Instrument panel light control switches*2
“ODO TRIP” switch*2
VSC OFF switch*2
Snow mode switch .................................................................................................... P.30
Driving mode select switch ................................................................................... P.45
Trunk opener switch ................................................................................................ P.97
Fuel filler door opener switch ...... ............................................. ............................ P.96
*1: If equipped
*2: Refer to the “OWNER’S MANUAL”.
*3: Location of the switches varies ac cording to the vehicle grade level.
*4: Refer to “NAVIGATION AND MULT IMEDIA SYSTEM OWNER’S MANUAL”.
A
B
C
D
E
F
G
H
I
J
Page 10 of 108
9
LS500h_QG_U

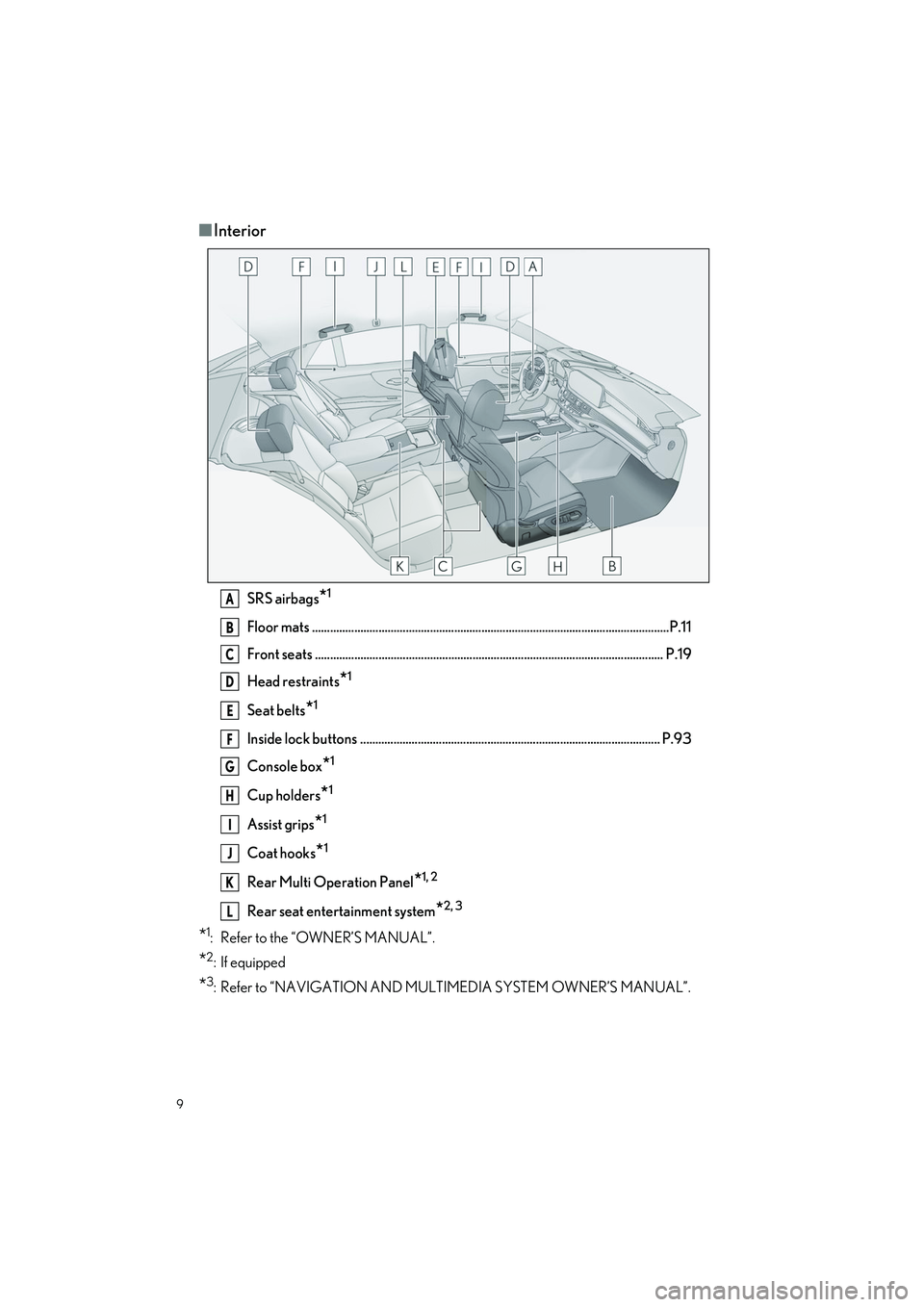

■Interior
SRS airbags*1
Floor mats ..................................................................................................................... .P.11
Front seats ................................................................................................................... P .19
Head restraints
*1
Seat belts*1
Inside lock buttons ................................................................................................... P.93
Console box
*1
Cup holders*1
Assist grips*1
Coat hooks*1
Rear Multi Operation Panel*1, 2
Rear seat entertainment system*2, 3
*1: Refer to the “OWNER’S MANUAL”.
*2: If equipped
*3: Refer to “NAVIGATION AND MULT IMEDIA SYSTEM OWNER’S MANUAL”.
A
B
C
D
E
F
G
H
I
J
K
L
Page 37 of 108
36
LS500h_QG_U

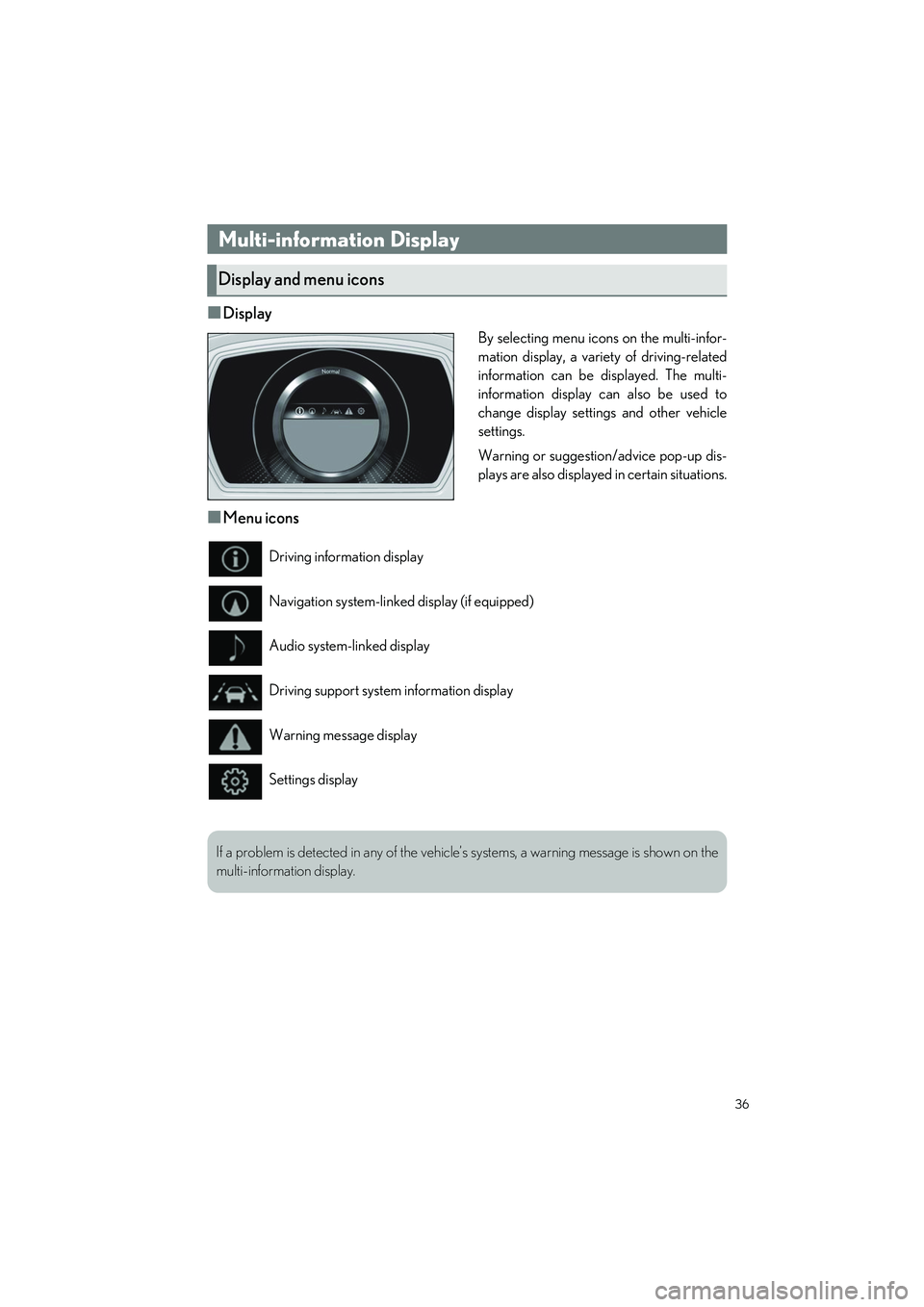

■Display
By selecting menu icons on the multi-infor-
mation display, a variety of driving-related
information can be di splayed. The multi-
information display ca n also be used to
change display settings and other vehicle
settings.
Warning or suggestion/advice pop-up dis-
plays are also displayed in certain situations.
■Menu icons
Multi-information Display
Display and menu icons
Driving information display
Navigation system-linked display (if equipped)
Audio system-linked display
Driving support system information display
Warning message display
Settings display
If a problem is detected in any of the vehicl e’s systems, a warning message is shown on the
multi-information display.
Page 39 of 108
38
LS500h_QG_U
Navigation system-linked display area (if equipped)
Driving support system display area
Speed limit/RSA (Road Sign Assist) display area (if equipped)
Outside temperature display area
Driving information display area
Hybrid System Indicator/tachometer display area
HUD (Head-up display) switch

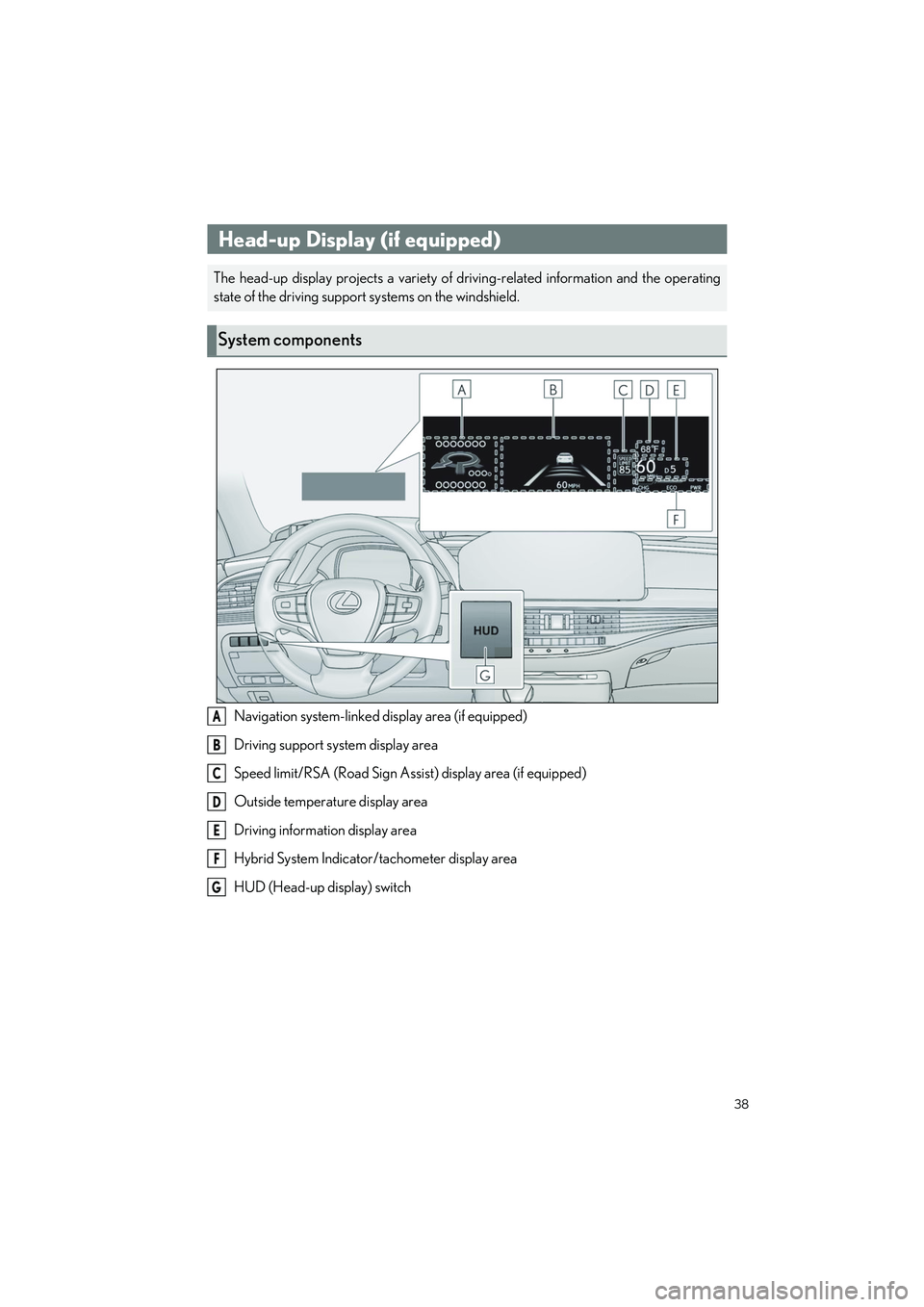

Head-up Display (if equipped)
The head-up display projects a variety of driving-related information and the operating
state of the driving support systems on the windshield.
System components
A
B
C
D
E
F
G
Page 49 of 108
48
LS500h_QG_U

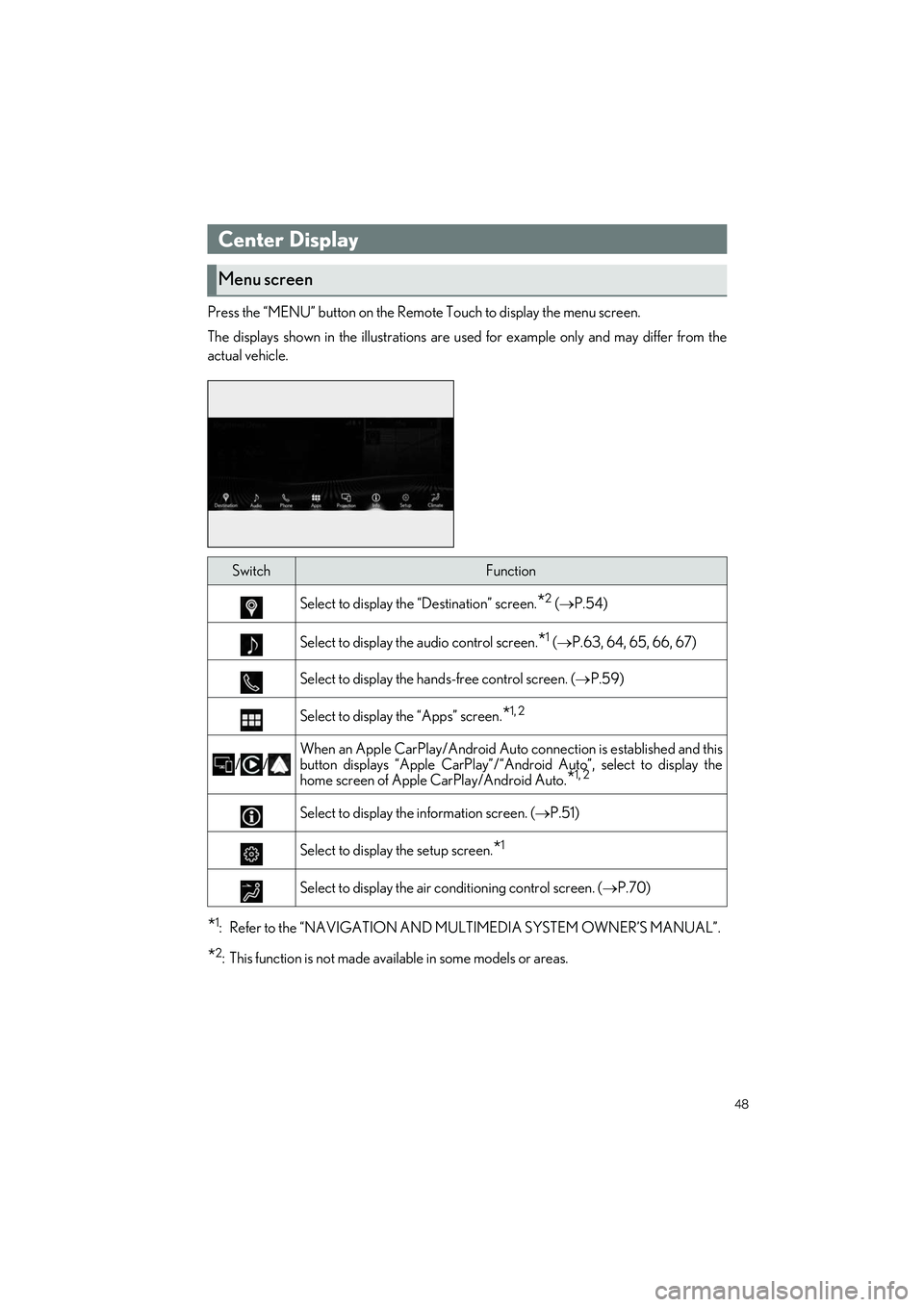

Press the “MENU” button on the Remote Touch to display the menu screen.
The displays shown in the illu strations are used for example only and may differ from the
actual vehicle.
*1: Refer to the “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.
*2: This function is not made available in some models or areas.
Center Display
Menu screen
SwitchFunction
Select to display the “Destination” screen.*2 ( P.54)
Select to display the audio control screen.*1 (P.63, 64, 65, 66, 67)
Select to display the hand s-free control screen. (P.59)
Select to display the “Apps” screen.*1, 2
//
When an Apple CarPlay/Android Auto connection is established and this
button displays “Apple CarPlay”/“An droid Auto”, select to display the
home screen of Apple CarPlay/Android Auto.
*1, 2
Select to display the information screen. ( P.51)
Select to display the setup screen.*1
Select to display the air conditioning control screen. ( P.70)
Page 50 of 108
49
LS500h_QG_U

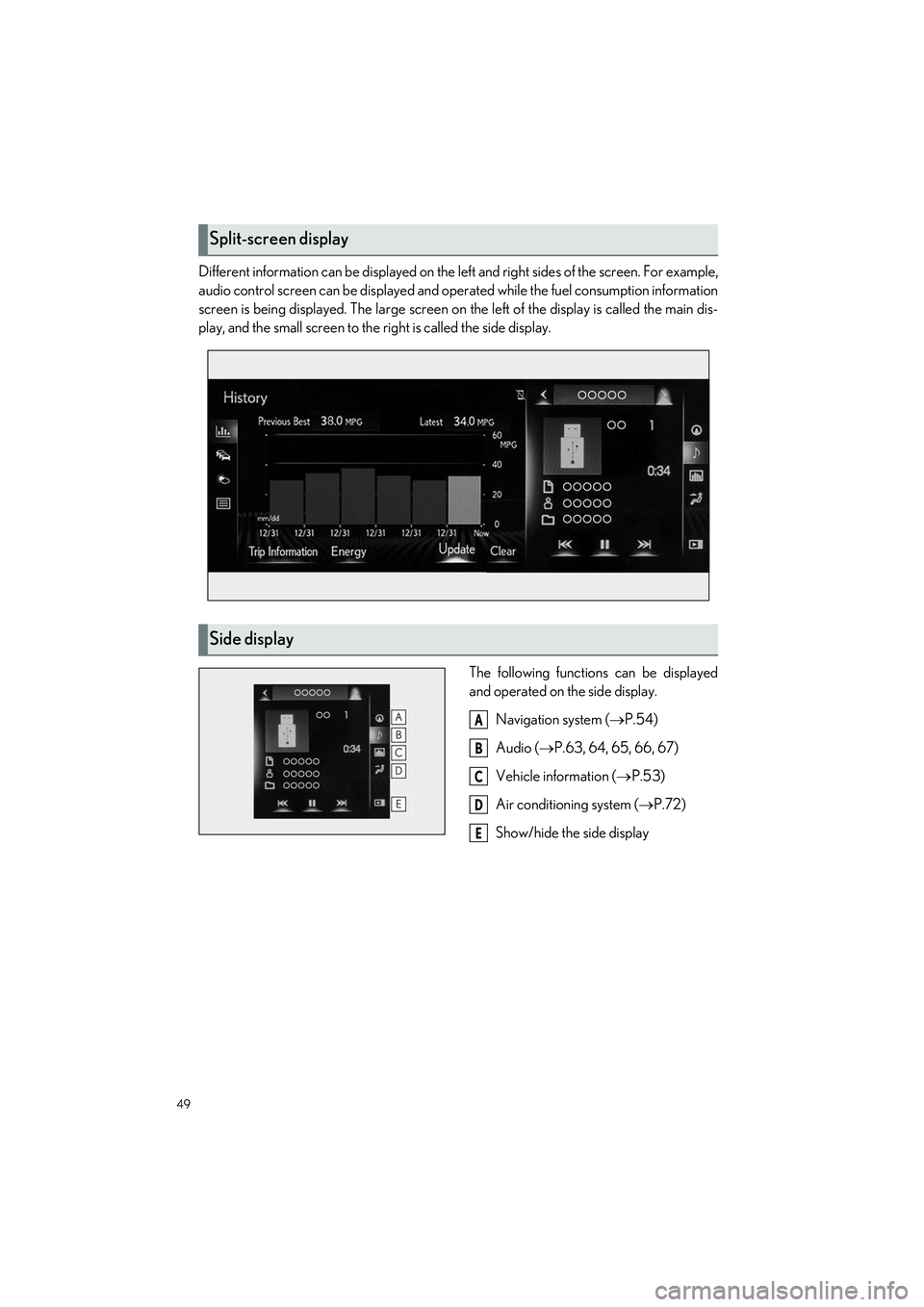

Different information can be displayed on the left and right sides of the screen. For example,
audio control screen can be displayed and oper ated while the fuel consumption information
screen is being displayed. The la rge screen on the left of the display is called the main dis-
play, and the small screen to the right is called the side display.
The following functions can be displayed
and operated on the side display.Navigation system ( P.54)
Audio ( P.63, 64, 65, 66, 67)
Vehicle information ( P.53)
Air conditioning system ( P.72)
Show/hide the side display
Split-screen display
Side display
A
B
C
D
E
Page 55 of 108
54
LS500h_QG_U
1Press the “MAP” button on the Remote
Touch.
Please refer to P.47 for the
Remote Touch operation.
2Select .
3Select “Home”.
4Select “Yes”.
5Select “Address” (P.54) or “Current
Location” to search for your home.
6Select “OK”.
Registration of home is complete.
■Searching by address
1
Display the destination search screen by either operation:
● “MAP” button
● “MENU” button “Destination”
2Select “Address”.
If a state (province) has not been selected yet, “State/Province” screen is displayed.
3Enter a house number and select “Search”.
“Change State/Province”: Select to change the search area.
4Enter a street name and select “Search”.
5Select the desired street name.
6Enter a city name and select “Search”.
7Select the desired city name.
If multiple locations with the same address exist, the address list screen will be dis-
played. Select the desired address.

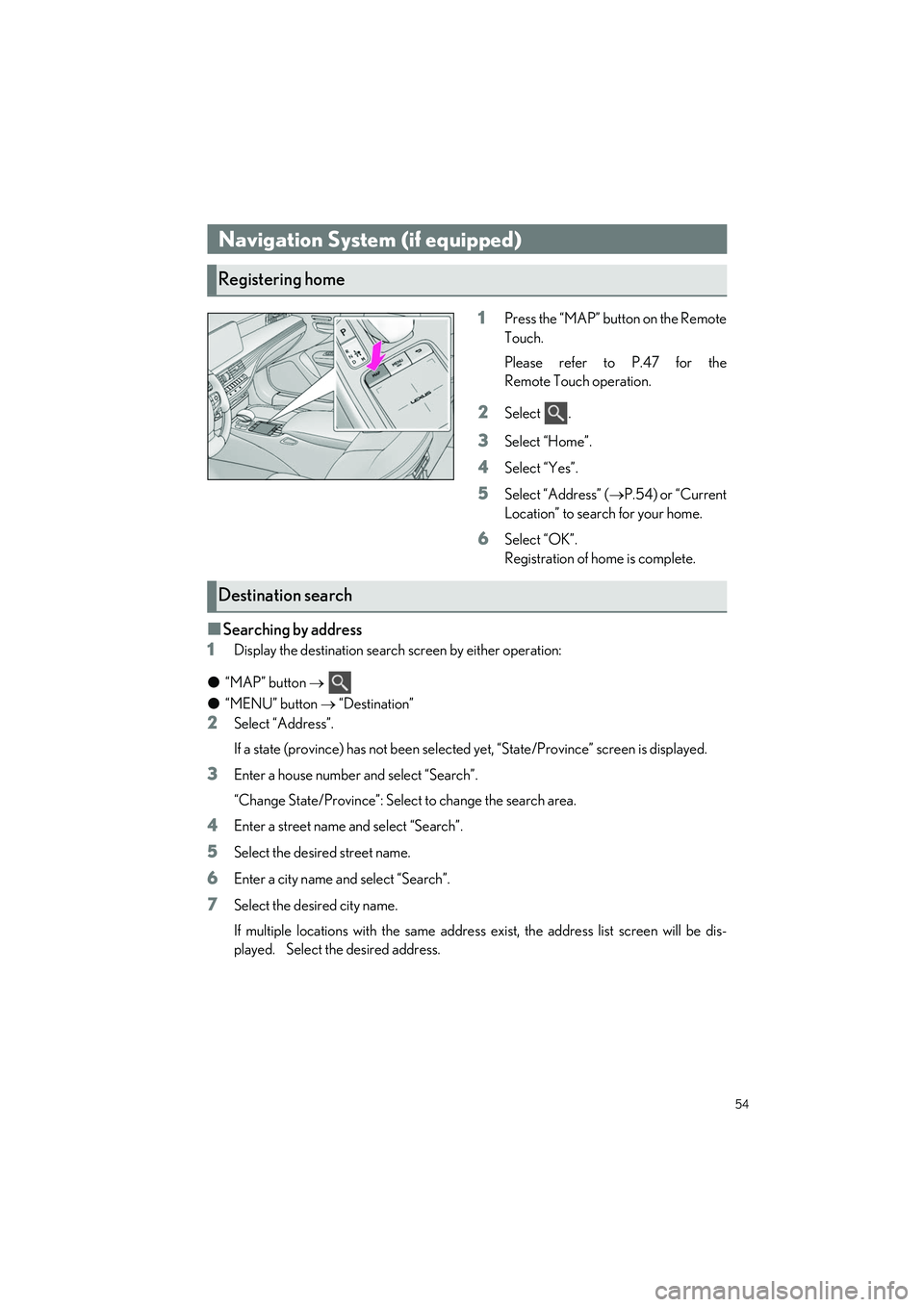

Navigation System (if equipped)
Registering home
Destination search
Page 78 of 108
77
LS500h_QG_U

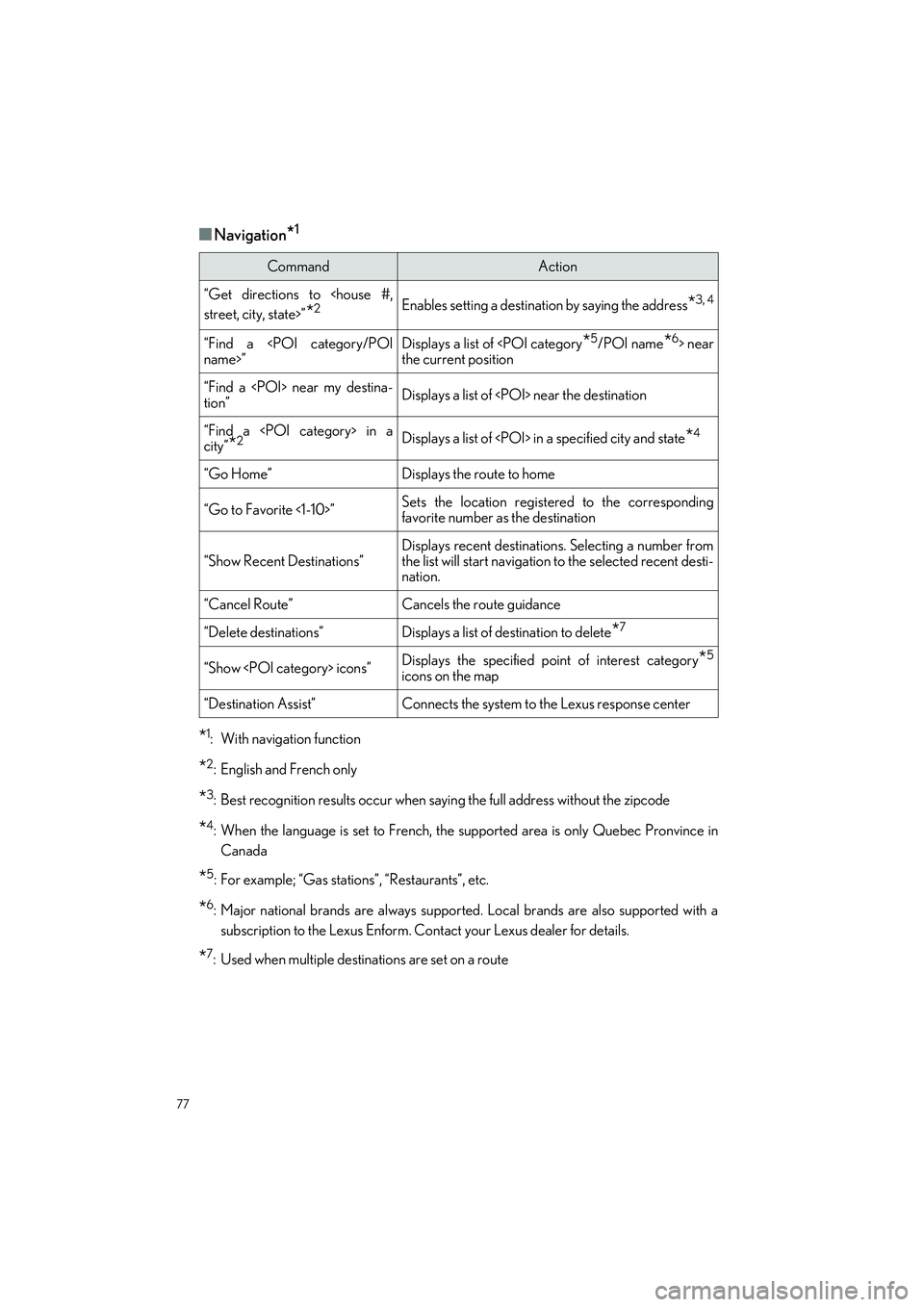

■Navigation*1
*1: With navigation function
*2: English and French only
*3: Best recognition results occur when saying the full address without the zipcode
*4: When the language is set to French, the supported area is only Quebec Pronvince inCanada
*5: For example; “Gas stations”, “Restaurants”, etc.
*6: Major national brands are always supported. Local brands are also supported with asubscription to the Lexus Enform. Contact your Lexus dealer for details.
*7: Used when multiple destinations are set on a route
CommandAction
“Get directions to
*2Enables setting a destinatio n by saying the address*3, 4
“Find a
the current position
“Find a
tion”Displays a list of
“Find a
city”*2Displays a list of
“Go Home”Displays the route to home
“Go to Favorite <1-10>”Sets the location registered to the corresponding
favorite number as the destination
“Show Recent Destinations”
Displays recent destinatio ns. Selecting a number from
the list will start navigation to the selected recent desti-
nation.
“Cancel Route”Cancels the route guidance
“Delete destinations”Displays a list of destination to delete*7
“Show
icons on the map
“Destination Assist”Connects the system to the Lexus response center
Page 82 of 108
81
LS500h_QG_U

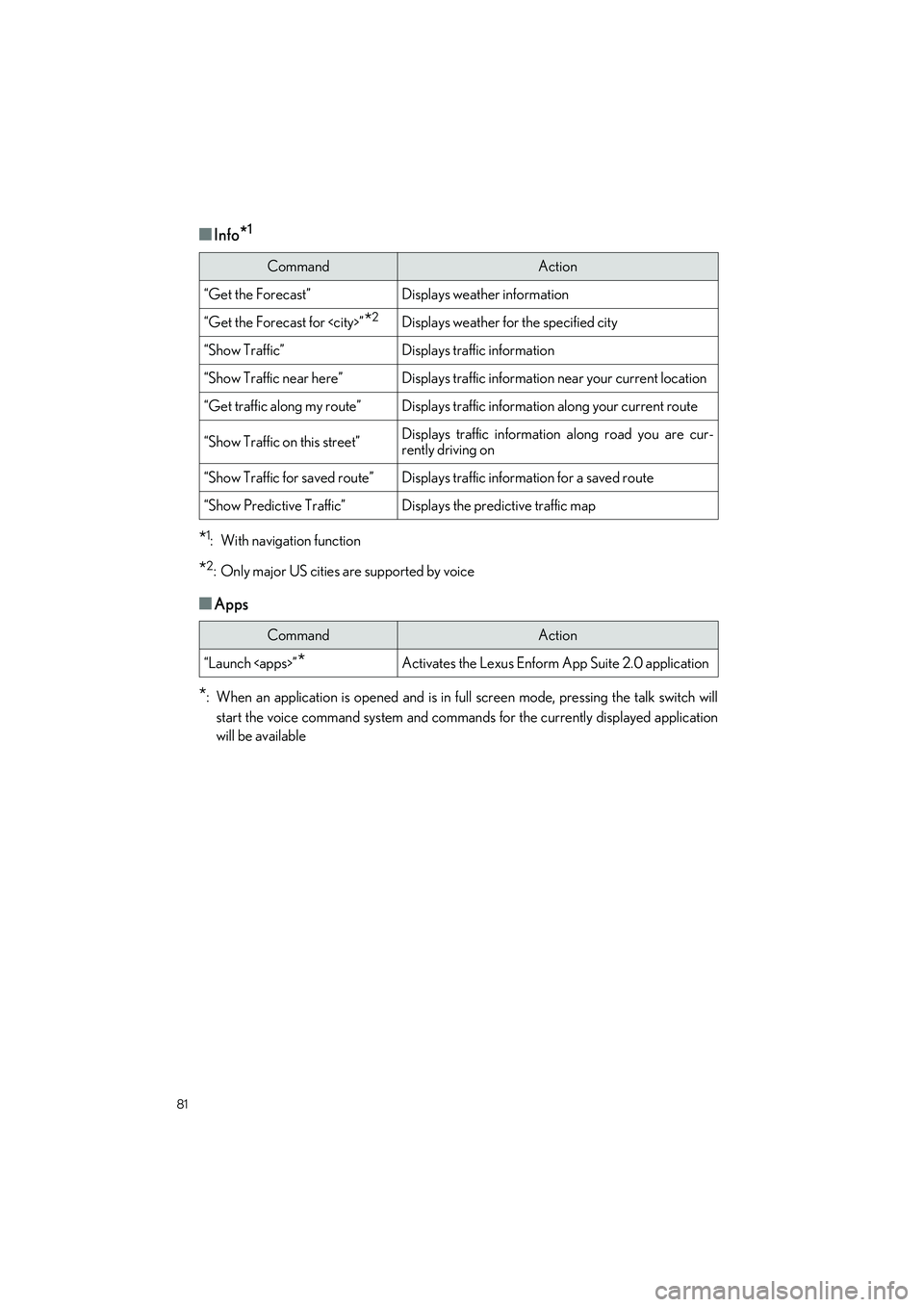

■Info*1
*1: With navigation function
*2: Only major US cities are supported by voice
■Apps
*: When an application is opened and is in full screen mode, pressing the talk switch will
start the voice command system and commands for the currently displayed application
will be available
CommandAction
“Get the Forecast”Displays weather information
“Get the Forecast for
“Show Traffic”Displays traffic information
“Show Traffic near here”Displays traffic information near your current location
“Get traffic along my route”Displays traffic information along your current route
“Show Traffic on this street”Displays traffic information along road you are cur-
rently driving on
“Show Traffic for saved route”Displays traffic information for a saved route
“Show Predictive Traffic”Displays the predictive traffic map
CommandAction
