Page 2 of 108

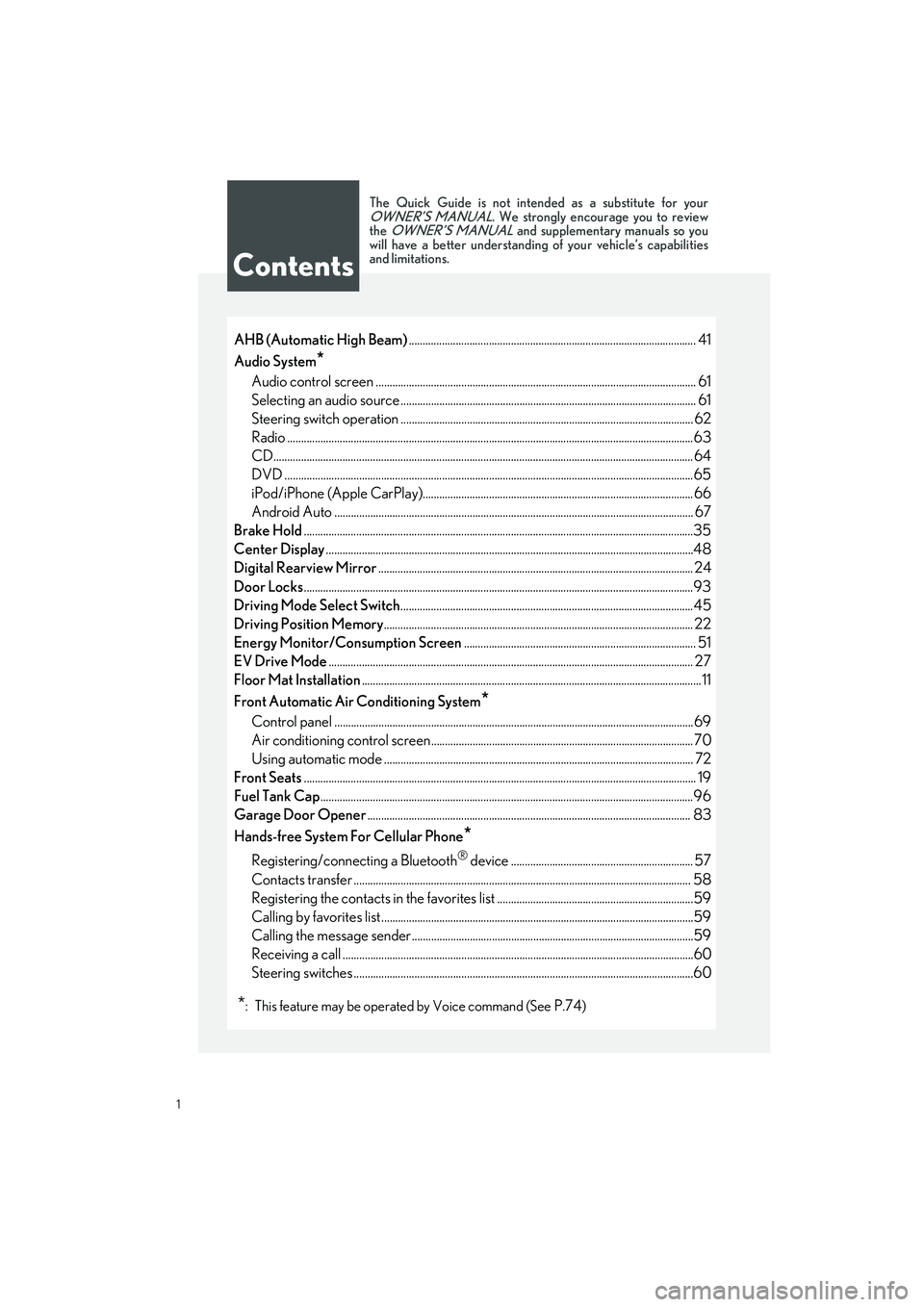

1
LS500h_QG_U
AHB (Automatic High Beam)........................................................................................................ 41
Audio System
*
Audio control screen ........................................................................................................... ......... 61
Selecting an audio source ...................................................................................................... ..... 61
Steering switch operation ...................................................................................................... .... 62
Radio ...................................................................................................................................................63
CD........................................................................................................................................................ 64
DVD ....................................................................................................................................................65
iPod/iPhone (Apple CarPlay).................................................................................................. 66
Android Auto ................................................................................................................... ............... 67
Brake Hold .............................................................................................................................................35
Center Display ............................................................................................................................... ......48
Digital Rearview Mirror .................................................................................................................. 24
Door Locks .............................................................................................................................................93
Driving Mode Select Switch ..........................................................................................................45
Driving Position Memory ................................................................................................................ 22
Energy Monitor/Consumption Screen .................................................................................... 51
EV Drive Mode .................................................................................................................................... 27
Floor Mat Installation ...........................................................................................................................11
Front Automatic Air Conditioning System
*
Control panel .................................................................................................................. ................69
Air conditioning control screen...............................................................................................7 0
Using automatic mode ........................................................................................................... ..... 72
Front Seats ............................................................................................................................... ............... 19
Fuel Tank Cap .......................................................................................................................................96
Garage Door Opener ..................................................................................................................... 83
Hands-free System For Cellular Phone
*
Registering/connecting a Bluetooth® device .................................................................. 57
Contacts transfer .............................................................................................................. ............ 58
Registering the contacts in the favorites list .... ...................................................................59
Calling by favorites list ...................................................................................................... ...........59
Calling the message sender..................................................................................................... .59
Receiving a call ............................................................................................................... ................60
Steering switches .............................................................................................................. .............60
*: This feature may be operated by Voice command (See P.74)
Contents
The Quick Guide is not intended as a substitute for yourOWNER’S MANUAL. We strongly encourage you to review
the OWNER’S MANUAL and supplementary manuals so you
will have a better understandin g of your vehicle’s capabilities
and limitations.

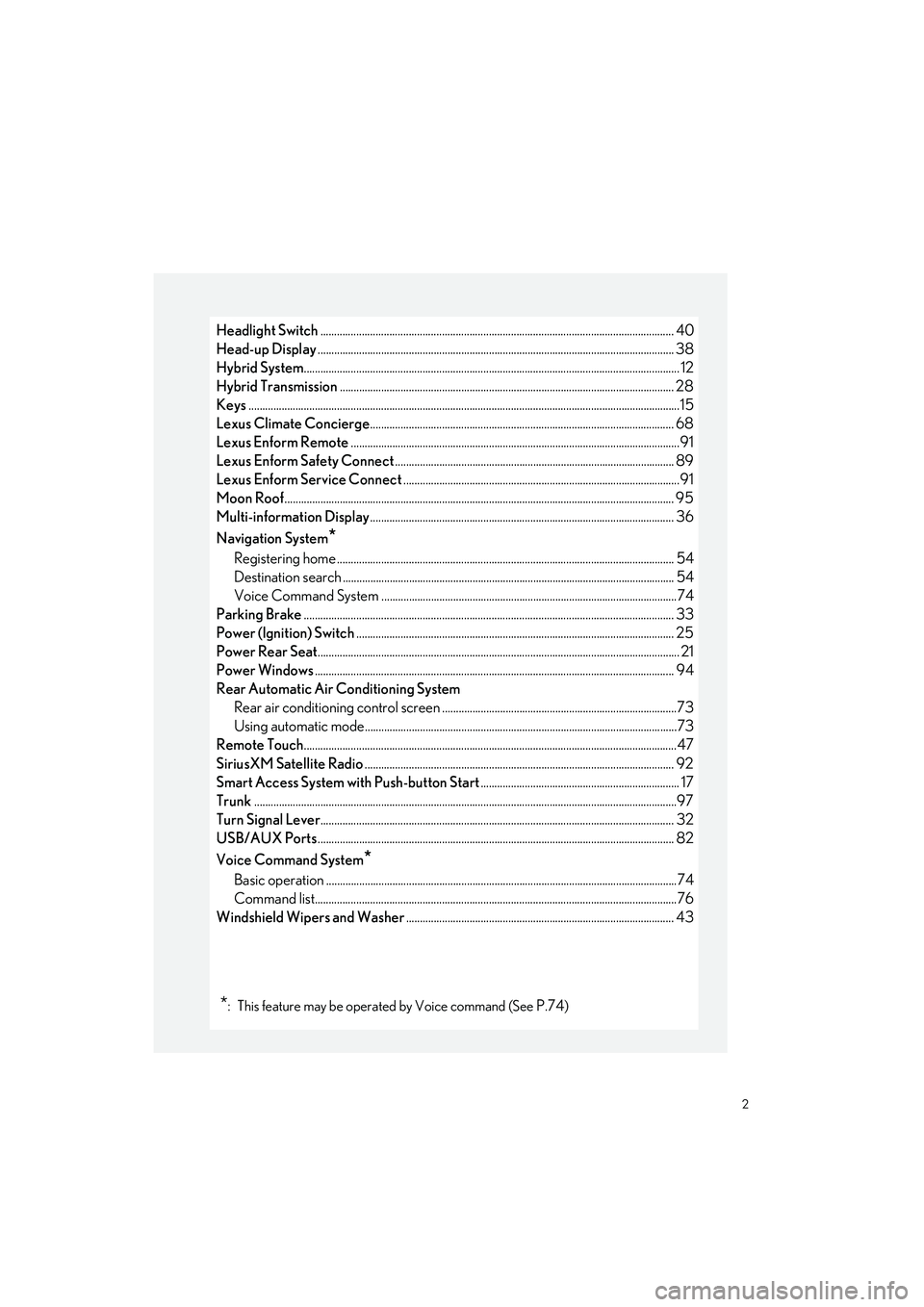

Page 3 of 108
2
LS500h_QG_U
Headlight Switch............................................................................................................................... .40
Head-up Display ............................................................................................................................... .. 38
Hybrid System ............................................................................................................................... ......... 12
Hybrid Transmission ......................................................................................................................... 28
Keys ............................................................................................................................... .............................15
Lexus Climate Concierge .............................................................................................................. 68
Lexus Enform Remote ....................................................................................................................... 91
Lexus Enform Safety Connect ..................................................................................................... 89
Lexus Enform Service Connect .................................................................................................... 91
Moon Roof ............................................................................................................................................. 95
Multi-information Display .............................................................................................................. 36
Navigation System
*
Registering home ............................................................................................................... ........... 54
Destination search ............................................................................................................. ........... 54
Voice Command System ........................................................................................................... 74
Parking Brake ............................................................................................................................... ....... 33
Power (Ignit ion) Switch................................................................................................................... 25
Power Rear Seat ............................................................................................................................... .... 21
Power Windows ............................................................................................................................... ... 94
Rear Automatic Air Conditioning System Rear air conditioning control screen .....................................................................................73
Using automatic mode........................................................................................................... ......73
Remote Touch .......................................................................................................................................47
SiriusXM Satellite Radio ................................................................................................................ 92
Smart Access System with Push-button Start ........................................................................ 17
Trunk .........................................................................................................................................................97
Turn Signal Lever ............................................................................................................................... .32
USB/AUX Ports ............................................................................................................................... .. 82
Voice Command System
*
Basic operation ................................................................................................................ ...............74
Command list................................................................................................................... ................76
Windshield Wipers and Washer ................................................................................................. 43
*: This feature may be operated by Voice command (See P.74)
Page 4 of 108
3
LS500h_QG_U
■Instrument panel
Power switch.............................................................................................................. P.25
Starting the hybrid system/changing the modes ....................................................P.25
Emergency stop of the hybrid system ......................................................................... P.27
When the hybrid system will not start ........................................................................P.105
Warning messages
*
Shift lever .................................................................................................................... P.28
Changing the shift position.............................................................................................. P.28
Precautions for towing
*
Meters*
Reading the meters/adjusting the instrument panel light*
Warning lights/indicator lights ...................................................................................... P.99
When a warning light turns on
*
Multi-information display ...................................................................................... P.36
Display.......................................................................................................................................P.36
Energy monitor................................................................................................................. ...... P.51
When a warning messages is displayed
*
Pictorial Index
A
B
C
D
Page 6 of 108
5
LS500h_QG_U

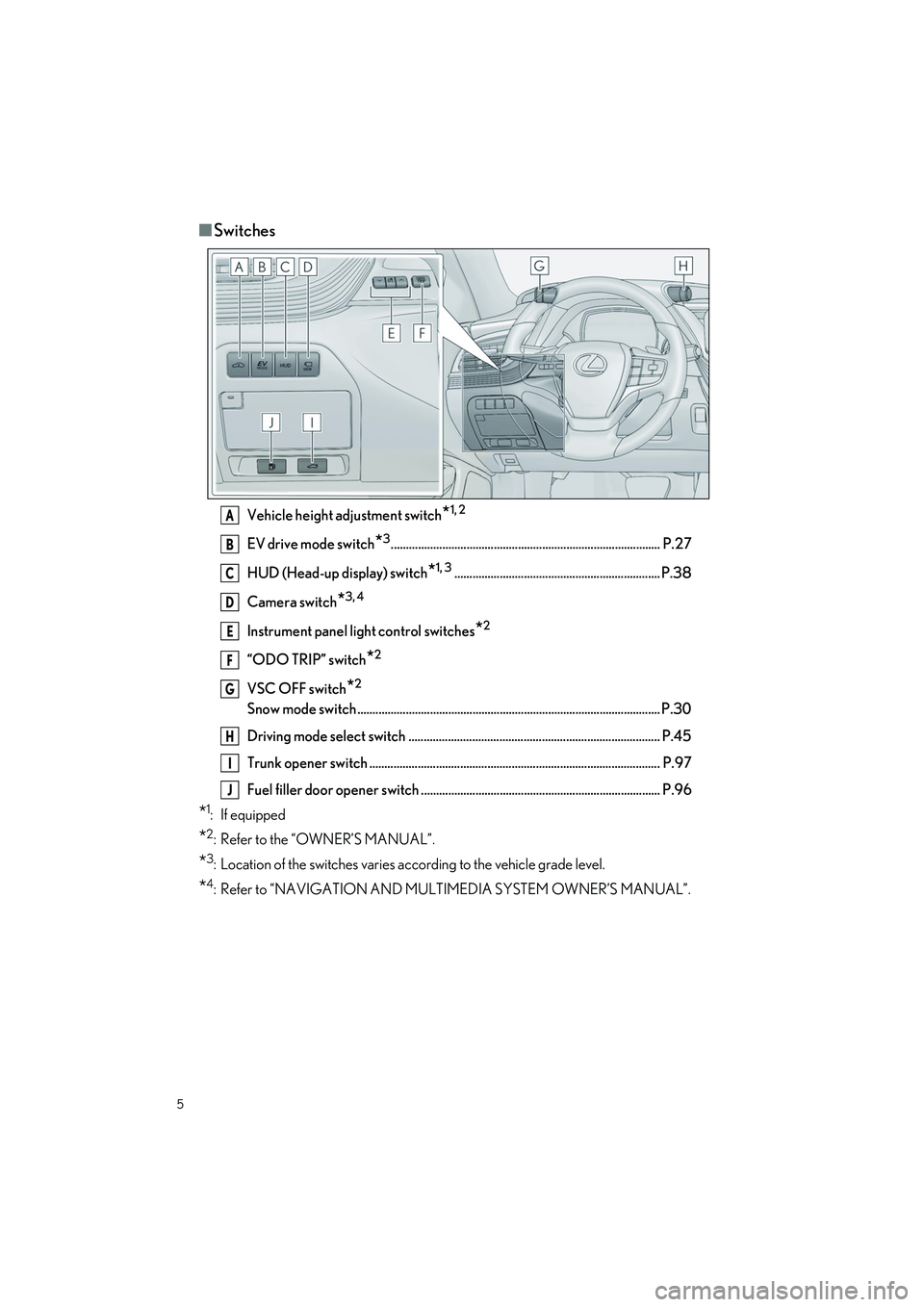

■Switches
Vehicle height adjustment switch*1, 2
EV drive mode switch*3......................................................................................... P.27
HUD (Head-up display) switch
*1, 3.................................................................... P.38
Camera switch
*3, 4
Instrument panel light control switches*2
“ODO TRIP” switch*2
VSC OFF switch*2
Snow mode switch .................................................................................................... P.30
Driving mode select switch ................................................................................... P.45
Trunk opener switch ................................................................................................ P.97
Fuel filler door opener switch ...... ............................................. ............................ P.96
*1: If equipped
*2: Refer to the “OWNER’S MANUAL”.
*3: Location of the switches varies ac cording to the vehicle grade level.
*4: Refer to “NAVIGATION AND MULT IMEDIA SYSTEM OWNER’S MANUAL”.
A
B
C
D
E
F
G
H
I
J
Page 13 of 108
12
LS500h_QG_U
Charge area
Shows regeneration
* status.
Regenerated energy will be used to
charge the hybrid battery (traction bat-
tery).
Hybrid Eco area
Shows that gasoline engine power is
not being used very often.
The gasoline engine will automatically
stop and restart under various condi-
tions.
Eco area
Shows that the vehicle is being driven
in an Eco-friendly manner.
By keeping the bar display within Eco
area, more Eco-friendly driving can be
achieved.
Power area
Shows that an Eco- friendly driving
range is being exceeded (during full
power driving etc.)
*: When used in this manual, regeneration
refers to the conversion of energy cre-
ated by the movement of the vehicle into
electrical energy.
Hybrid System
Your vehicle is a hybrid vehicle. It has charac teristics different from conventional vehicles.
Be sure you are closely familiar with the characterist ics of your vehicle, and operate it with
care.
The hybrid system combines the use of a gaso line engine and an electric motor (traction
motor) according to driving conditions, impr oving fuel efficiency and reducing exhaust
emissions.
For details, refer to the “OWNER’S MANUAL”.
Hybrid System Indicator
A
B
C
D
Page 15 of 108
14
LS500h_QG_U
There may be no engine sound or vibration even though the vehicle is able to move with the
“READY” indicator is illuminated. For safety, apply the parking brake and make sure to shift
the shift position to P when parked.
The following sounds or vibrations may occur when the hybrid system is operating and are
not a malfunction:
● Motor sounds may be heard from the engine compartment.
● Relay operating sounds such as a snap or so ft clank will be emitted from the hybrid bat-
tery (traction battery), behind the rear se ats, when the hybrid system is started or
stopped.
● Sounds may be heard from the hybrid battery (traction battery) behind the rear seats
when the hybrid syst em starts or stops.
● Sounds from the hybrid system may be heard when the trunk lid is open.
● Sounds may be heard from the transmission when the gasoline engine starts or stops,
when driving at low speeds, or during idling.
● Engine sounds may be heard when accelerating sharply.
● Sounds may be heard due to regenerative braking when the brake pedal is depressed or
as the accelerator pedal is released.
● Vibration may be felt or sounds may be hear d when the gasoline engine starts or stops.
● Cooling fan sounds may be heard from the air intake vents on the both sides of the rear
seatback.
When the vehicle has run out of fuel and the hybrid system cannot be started, refuel the
vehicle with at least enough gasoline to make the low fuel level warning light go off. If there is
only a small amount of fuel, the hybrid system may not be able to start. (The standard amount
of fuel is about 3.4 gal. [13 L, 2.8 Imp. gal.], when the vehicle is on a level su rface. This value
may vary when the vehicle is on a slope. Add extra fuel when the vehicle is inclined.)
A message is automatically disp layed when a malfunction occurs in the hybrid system or an
improper operation is attempted.
If a warning message is shown on the multi-
information display, read the message and
follow the instructions.
Sounds and vibrations specific to a hybrid vehicle
Running out of fuel
Hybrid warning message
Page 20 of 108
19
LS500h_QG_U

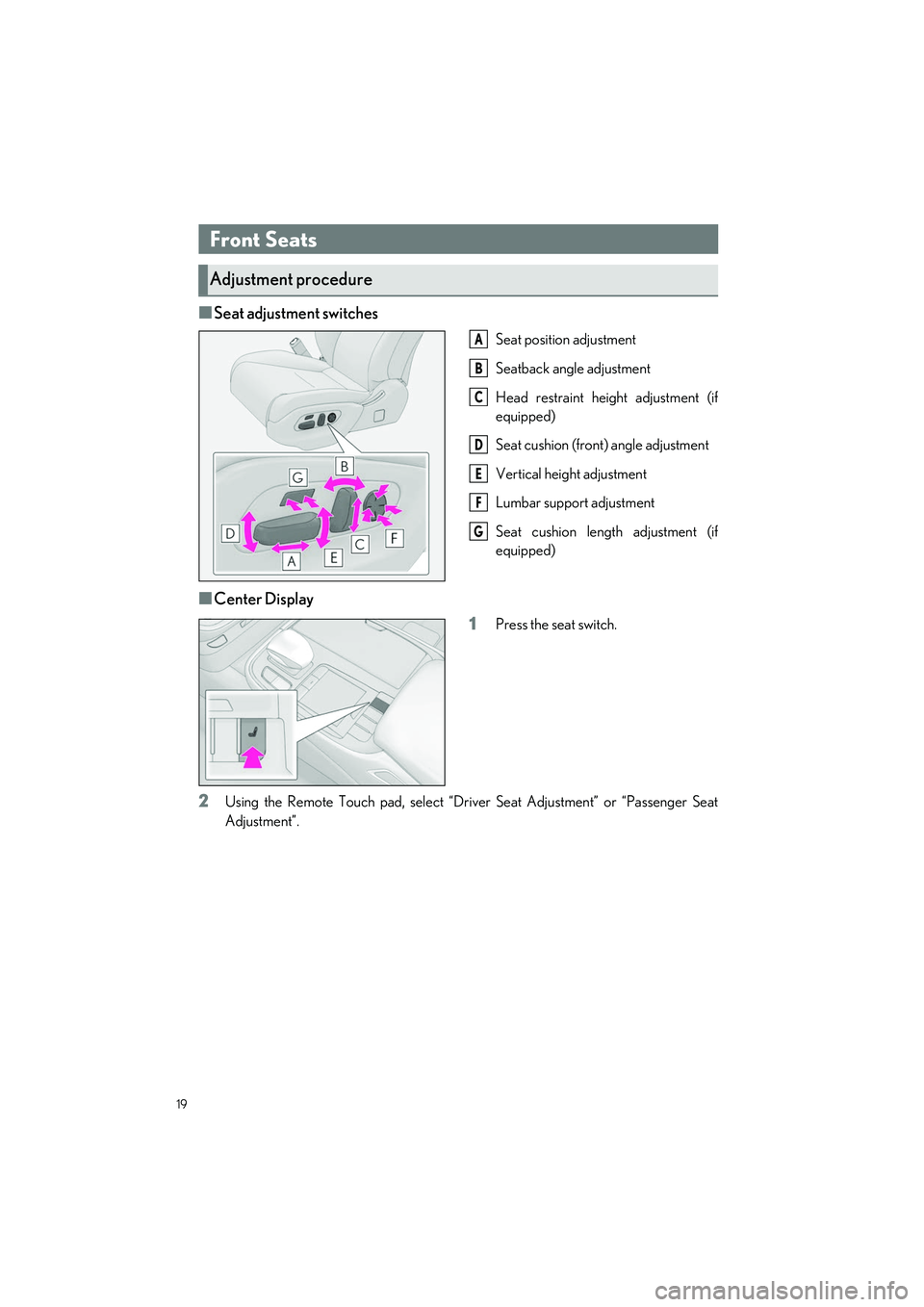

■Seat adjustment switches
Seat position adjustment
Seatback angle adjustment
Head restraint height adjustment (if
equipped)
Seat cushion (front) angle adjustment
Vertical height adjustment
Lumbar support adjustment
Seat cushion length adjustment (if
equipped)
■Center Display 1
Press the seat switch.
2Using the Remote Touch pad, select “Dri ver Seat Adjustment” or “Passenger Seat
Adjustment”.
Front Seats
Adjustment procedure
A
B
C
D
E
F
G
Page 21 of 108
20
LS500h_QG_U

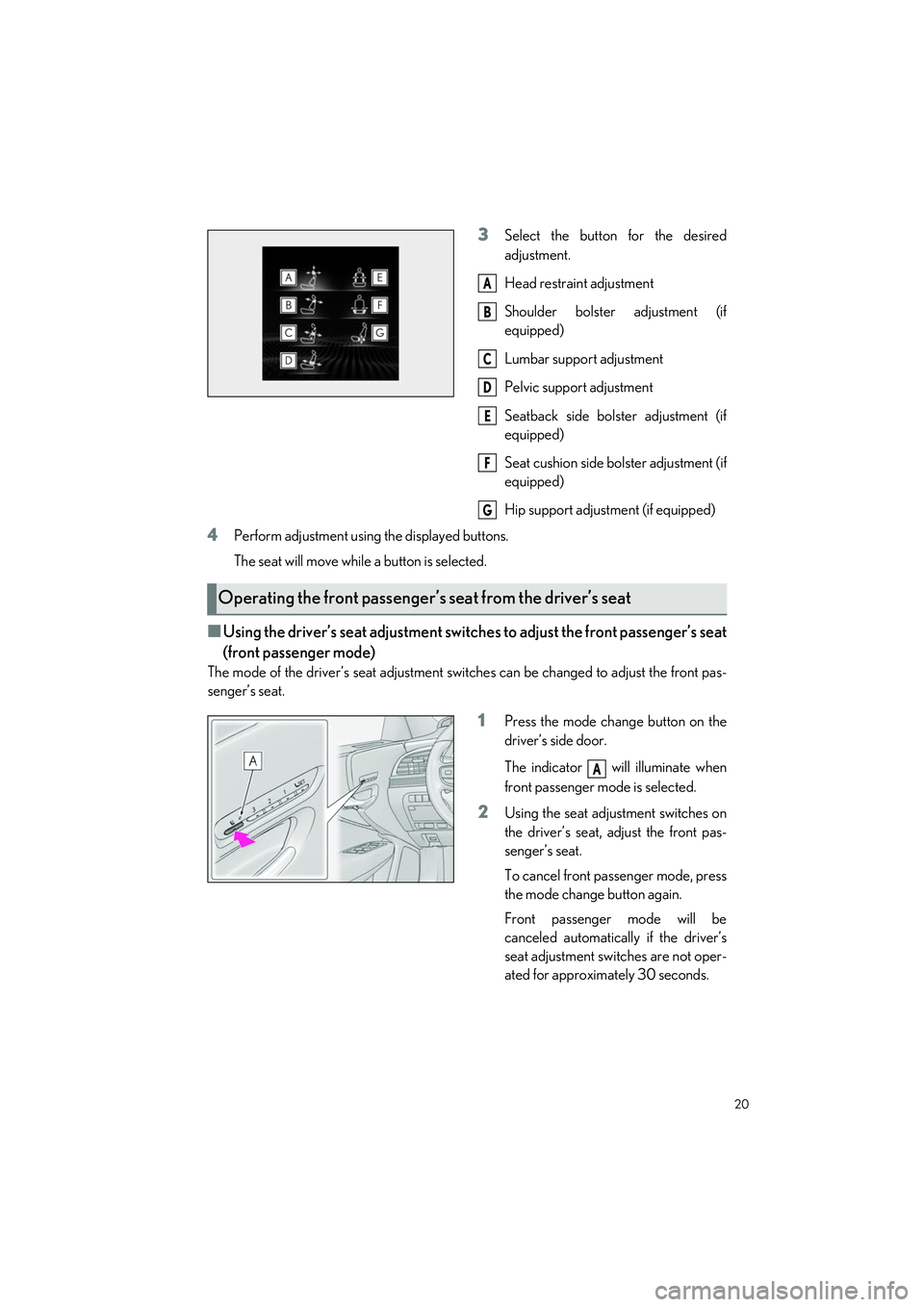

3Select the button for the desired
adjustment.
Head restraint adjustment
Shoulder bolster adjustment (if
equipped)
Lumbar support adjustment
Pelvic support adjustment
Seatback side bolster adjustment (if
equipped)
Seat cushion side bolster adjustment (if
equipped)
Hip support adjustment (if equipped)
4Perform adjustment using the displayed buttons.
The seat will move while a button is selected.
■Using the driver’s seat adjustment switches to adjust the front passenger’s seat
(front passenger mode)
The mode of the driver’s seat adjustment switches can be changed to adjust the front pas-
senger’s seat.
1Press the mode change button on the
driver’s side door.
The indicator will illuminate when
front passenger mo de is selected.
2Using the seat adju stment switches on
the driver’s seat, adjust the front pas-
senger’s seat.
To cancel front passenger mode, press
the mode change button again.
Front passenger mode will be
canceled automatically if the driver’s
seat adjustment switches are not oper-
ated for approximately 30 seconds.
A
B
C
D
E
F
G
Operating the front passenger’s seat from the driver’s seat
A
Page 22 of 108
21
LS500h_QG_U

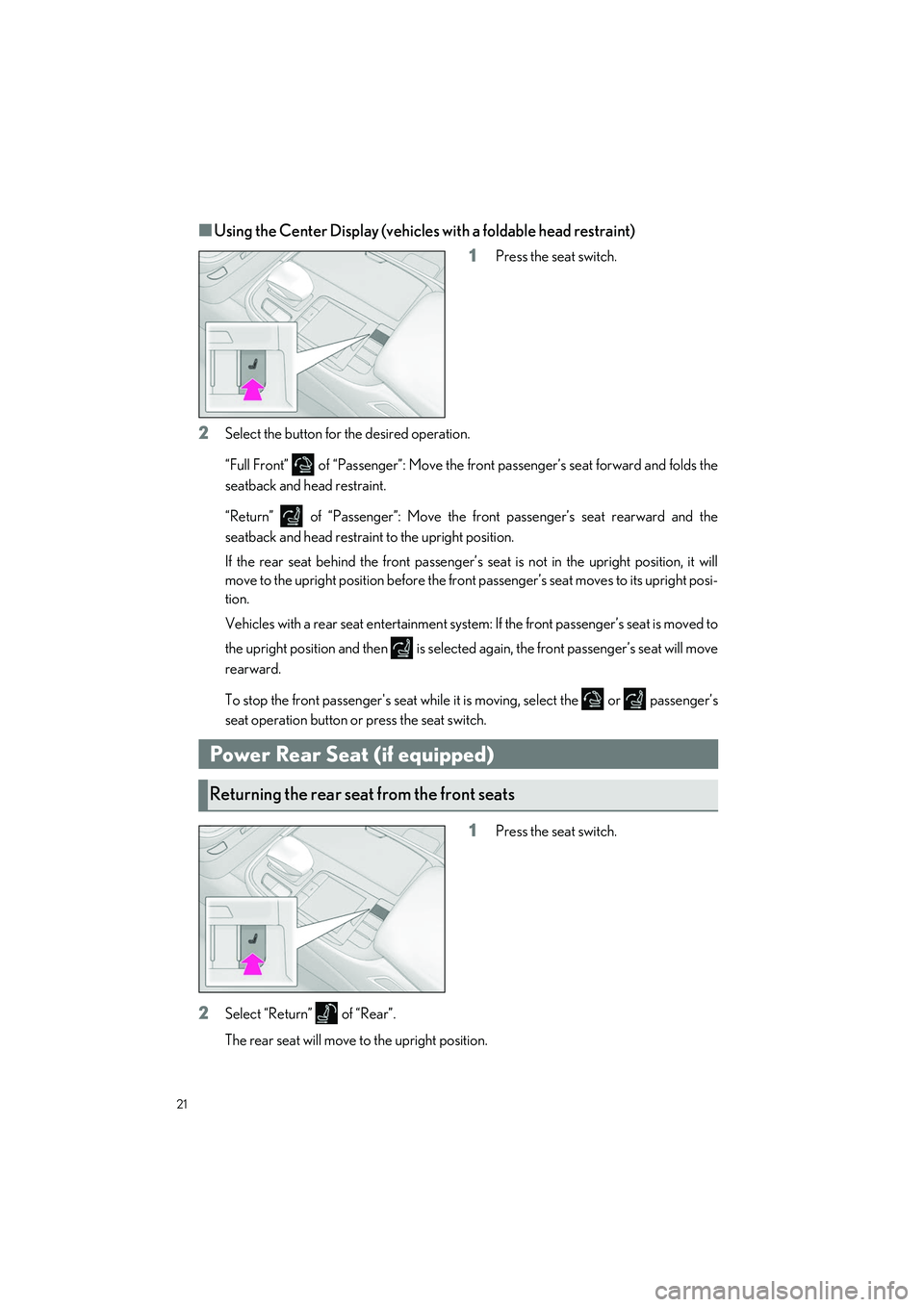

■Using the Center Display (vehicles with a foldable head restraint)
1
Press the seat switch.
2Select the button for the desired operation.
“Full Front” of “Passenger”: Move the fr ont passenger’s seat forward and folds the
seatback and head restraint.
“Return” of “Passenger”: Move the front passenger’s seat rearward and the
seatback and head restraint to the upright position.
If the rear seat behind the front passenger’s seat is not in the upright position, it will
move to the upright position before the fron t passenger’s seat moves to its upright posi-
tion.
Vehicles with a rear seat entertainment syst em: If the front passenger’s seat is moved to
the upright position and then is selected again, the front passenger’s seat will move
rearward.
To stop the front passenger' s seat while it is moving, select the or passenger’s
seat operation button or press the seat switch.
1Press the seat switch.
2Select “Return” of “Rear”.
The rear seat will move to the upright position.
Power Rear Seat (if equipped)
Returning the rear seat from the front seats
Page 23 of 108
22
LS500h_QG_U
1Turn the power switch to ON mode.
2Check that the shift position is in P.
3Adjust the driver’s seat, steering wheel, outside rear view mirrors and head-up display
(if equipped) to the desired positions.
4While pressing the “SET” button, or
within 3 seconds after the “SET” button
is pressed, press button “1”, “2” or “3”
until the buzzer sounds.
If the selected button has already been
preset, the previously recorded posi-
tion will be overwritten.
When the driver’s seat adjustment
switches are in front passenger mode
( P.20), the position of the driver’s
seat cannot be registered.
To record the position of the front passenger’s seat, adjust the front passenger’s seat to the
desired position and perform step
4 using the buttons on the front passenger’s side.
1Turn the power switch to ON mode.
2Check that the shift position is in P.
3Press one of the buttons for the driving
position you want to recall until the
buzzer sounds.
When the driver’s seat adjustment
switches are in front passenger mode
( P.20), a driving position cannot be
recalled.

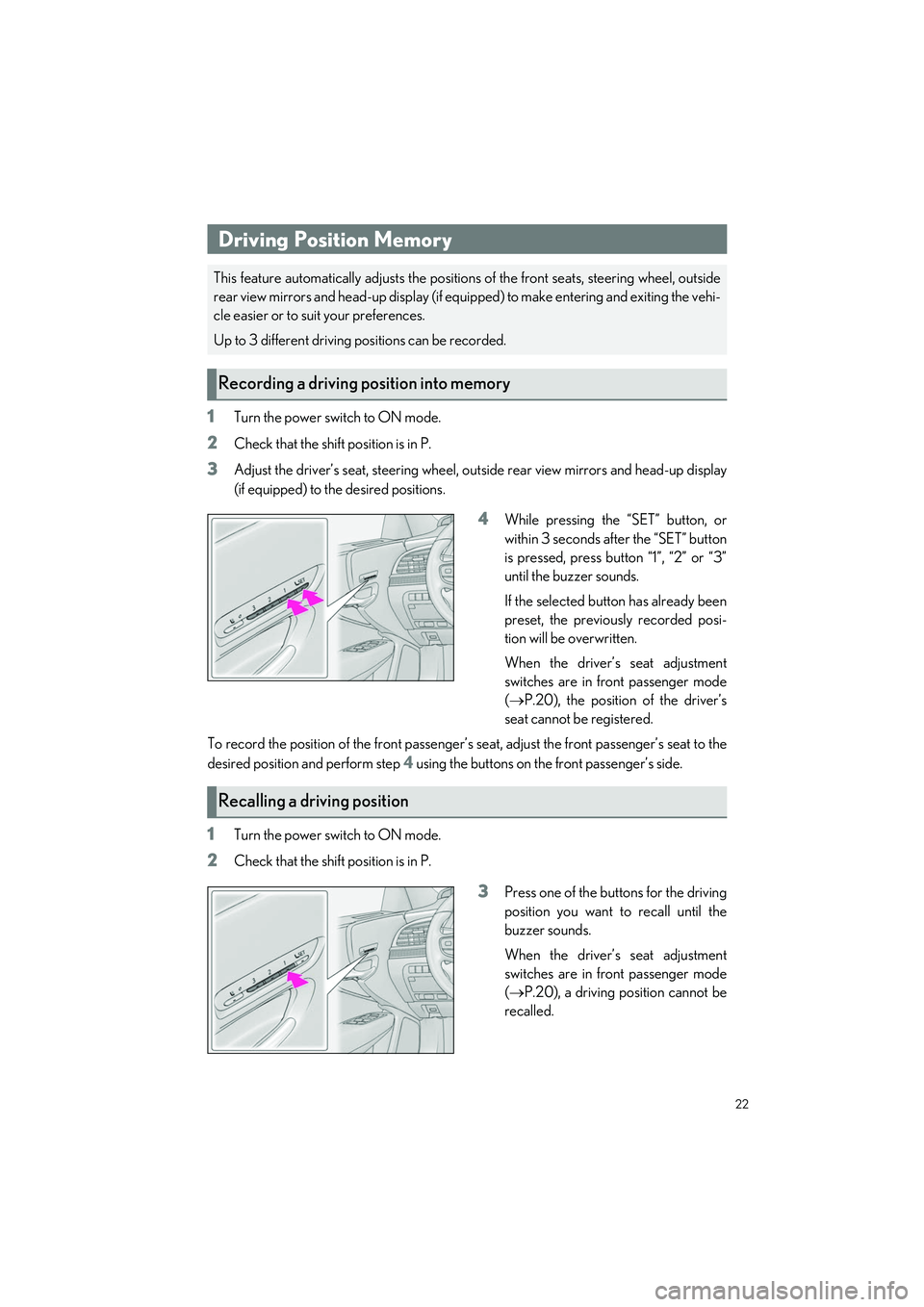

Driving Position Memory
This feature automatically adjust s the positions of the front seats, steering wheel, outside
rear view mirrors and head-up display (if equi pped) to make entering and exiting the vehi-
cle easier or to suit your preferences.
Up to 3 different driving positions can be recorded.
Recording a driving position into memory
Recalling a driving position
