Press the “MENU” button on the Remote Touch to display the menu screen.
The displays shown in the illust rations are used for example on ly and may differ from the
actual vehicle.
*1: Refer to the “NAVIGATION AND MU LTIMEDIA SYSTEM OWNER’S MANUAL”.
*2: This function is not made available in some models or areas.
Center Display
Menu screen
SwitchFunction
Select to display the “Destination” screen.*2 (P.53)
Select to display the audio control screen.*1 (P.62, 63, 64, 65, 66)
Select to display the hands-free control screen. ( P.58)
Select to display the “Apps” screen.*1, 2
//
When an Apple CarPlay/Android Auto connection is established and this
button displays “Apple CarPlay”/“An droid Auto”, select to display the
home screen of Apple CarPlay/Android Auto.
*1, 2
Select to display the information screen. ( P.50)
Select to display the setup screen.*1
Select to display the air co nditioning control screen. ( P.69)

61
LS500h_QG_U

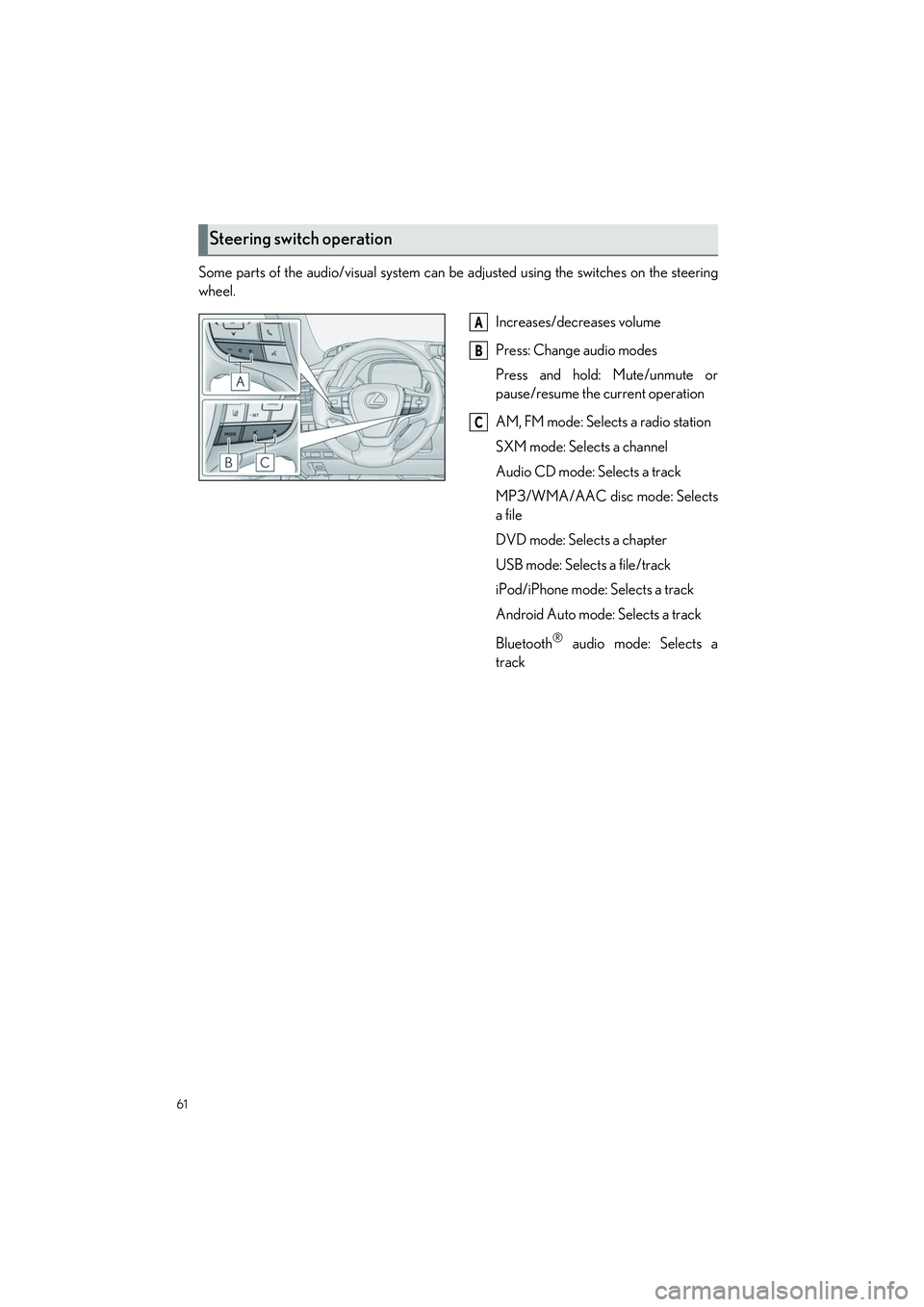

Some parts of the audio/visual system can be adjusted using the switches on the steering
wheel.
Increases/decreases volume
Press: Change audio modes
Press and hold: Mute/unmute or
pause/resume the current operation
AM, FM mode: Selects a radio station
SXM mode: Selects a channel
Audio CD mode: Selects a track
MP3/WMA/AAC disc mode: Selects
a file
DVD mode: Selects a chapter
USB mode: Selects a file/track
iPod/iPhone mode: Selects a track
Android Auto mode: Selects a track
Bluetooth
® audio mode: Selects a
track
Steering switch operation
A
B
C

66
LS500h_QG_U
Android Auto is not available in some countries or areas.
■Audio control switch
Turn to select a track.
Press to select a track.
■Control screen
Displays cover art
Select to change the track.
Select to play/pause.
Android Auto
A
B
A
B
C
