LEXUS LS600H 2017 Owners Manual

2113-3. Adjusting the seats
3
Operation of each component
LS600h/LS600hL_EE(OM50G20E)
■Cancelation procedure
Using the wireless remote control
Turn the power switch off and close the driver’s door.
While pressing the “SET” switch, press on the wireless remote
control until the buzzer sounds.
Using the door lock switch
Carry only the key you want to cancel and then close the driver’s door.
If 2 or more keys are in the vehicl e, the driving position cannot be can-
celed properly.
Turn the power switch off and close the driver’s door.
While pressing the “SET” switch, press the lock or unlock side on the
door lock switch until the buzzer sounds.
■Recalling the driving position using the memory recall function
●Different driving positions can be registered for each electronic key. Therefore, the
driving position that is recalled may be different depending on the key being car-
ried.
●If a door other than the driver’s door is unlocked with the smart entry & start sys-
tem, the driving position cannot be recalled. In this case, press the driving position
switch which has been set.
■ Seat operation automatic stop function (vehicles with relaxation seat)
If a front seat is likely to come into contact with the retractable table (4-seat models)
or the ottoman during seat operation or activation of the power easy access system,
a buzzer will sound and seat slide operation will be stopped partway.
(A warning message will be shown on the multi-information display.)
CAUTION
■Seat adjustment caution
Take care during seat adjustment so that the seat does not strike the rear passen-
ger or squeeze your body against the steering wheel.
1
2
1
2

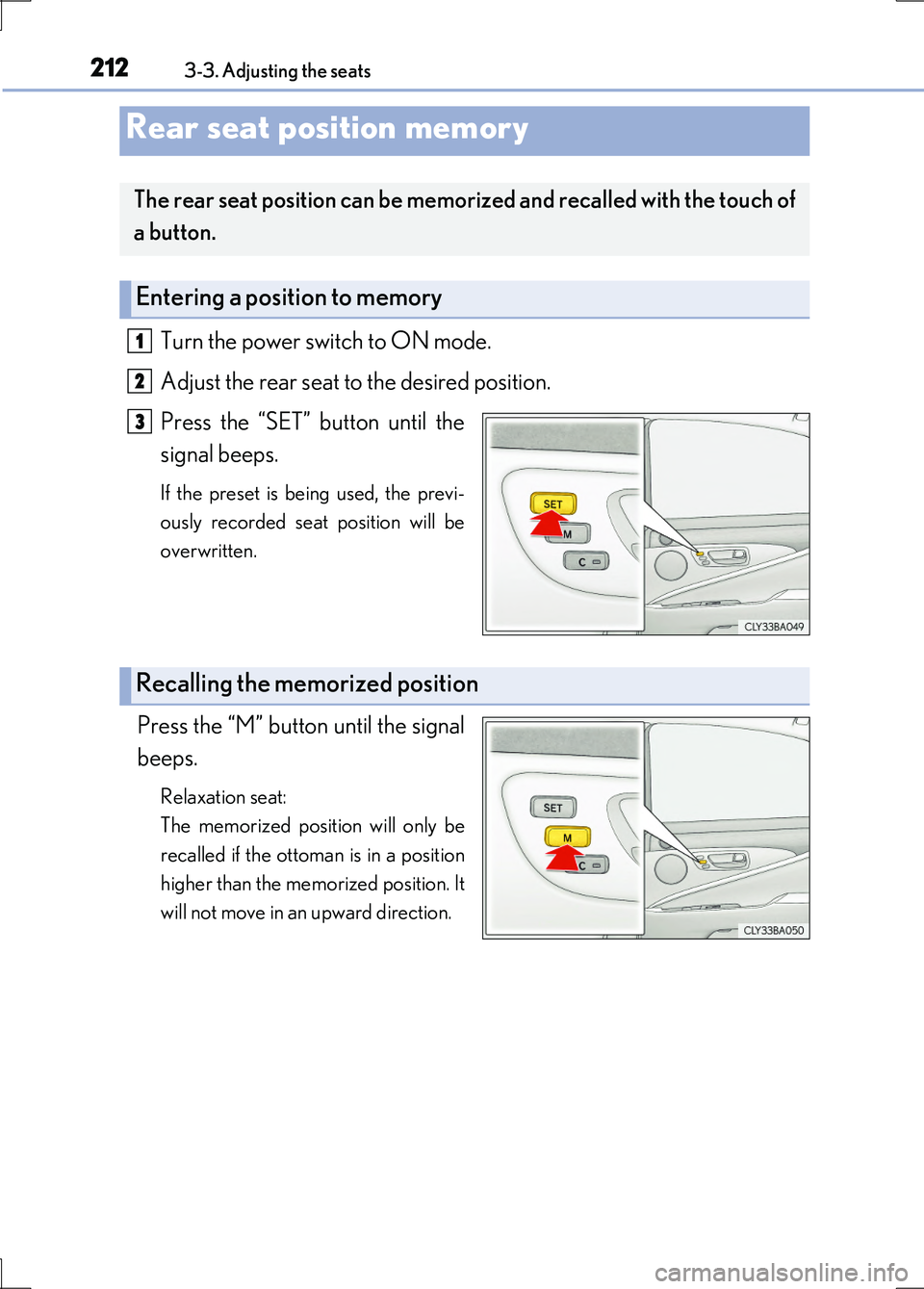

2123-3. Adjusting the seats
LS600h/LS600hL_EE(OM50G20E)
Turn the power switch to ON mode.
Adjust the rear seat to the desired position.
Press the “SET” button until the
signal beeps.
If the preset is being used, the previ-
ously recorded seat position will be
overwritten.
Press the “M” button until the signal
beeps.
Relaxation seat:
The memorized position will only be
recalled if the ottoman is in a position
higher than the memorized position. It
will not move in an upward direction.
Rear seat position memory
The rear seat position can be memorized and recalled with the touch of
a button.
Entering a position to memory
1
2
3
Recalling the memorized position

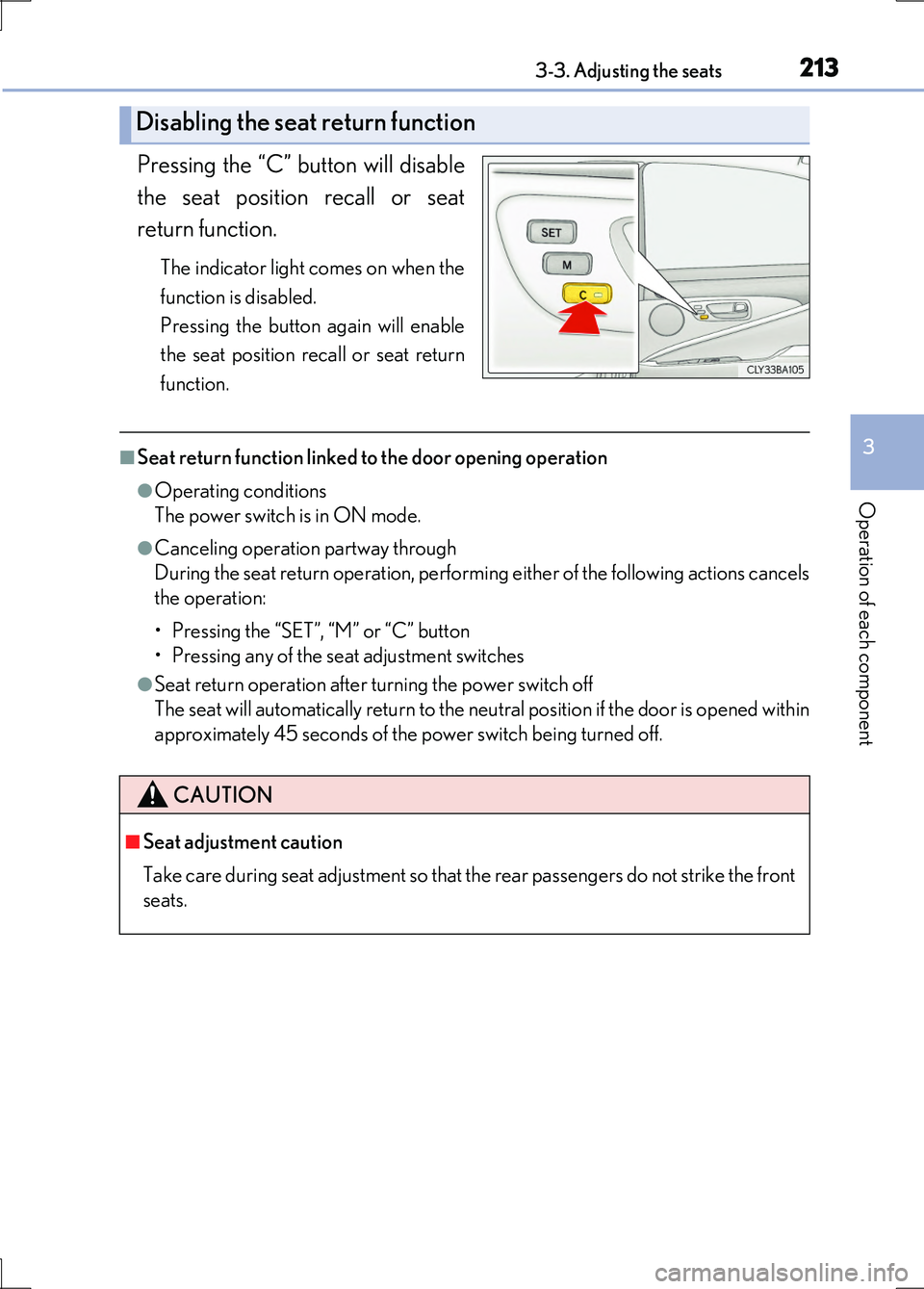

2133-3. Adjusting the seats
3
Operation of each component
LS600h/LS600hL_EE(OM50G20E)
Pressing the “C” button will disable
the seat position recall or seat
return function.
The indicator light comes on when the
function is disabled.
Pressing the button again will enable
the seat position recall or seat return
function.
■Seat return function linked to the door opening operation
●Operating conditions
The power switch is in ON mode.
●Canceling operation partway through
During the seat return operation, performing either of the following actions cancels
the operation:
• Pressing the “SET”, “M” or “C” button
• Pressing any of the seat adjustment switches
●Seat return operation after turning the power switch off
The seat will automatically return to the neutral position if the door is opened within
approximately 45 seconds of the power switch being turned off.
Disabling the seat return function
CAUTION
■Seat adjustment caution
Take care during seat adjustment so that the rear passengers do not strike the front
seats.

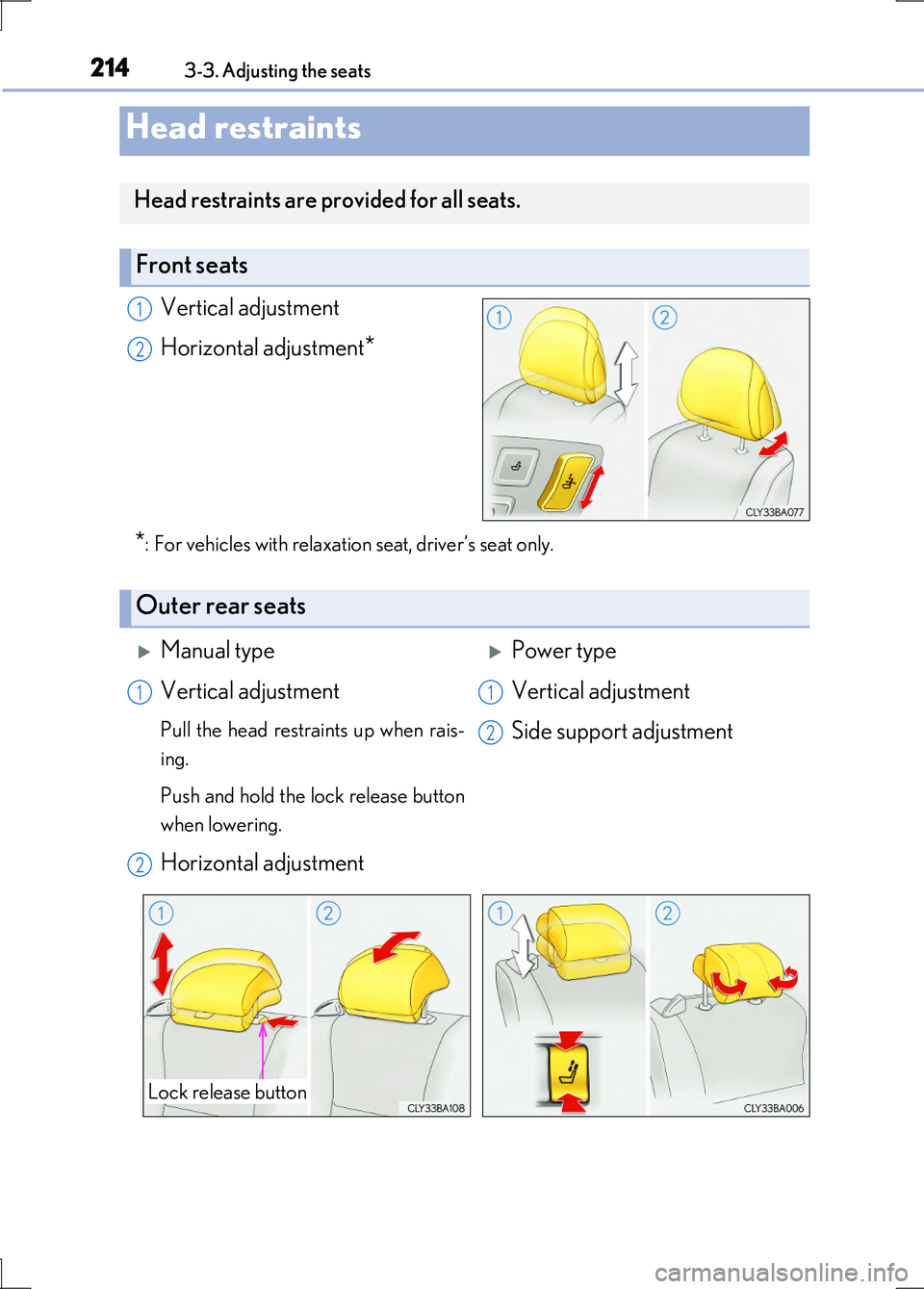

2143-3. Adjusting the seats
LS600h/LS600hL_EE(OM50G20E)
Vertical adjustment
Horizontal adjustment*
*: For vehicles with relaxation seat, driver’s seat only.
Head restraints
Head restraints are provided for all seats.
Front seats
1
2
Outer rear seats
Manual typePower type
Vertical adjustment
Pull the head restraints up when rais-
ing.
Push and hold the lock release button
when lowering.
Horizontal adjustment
Vertical adjustment
Side support adjustment
1
2
1
2
Lock release button

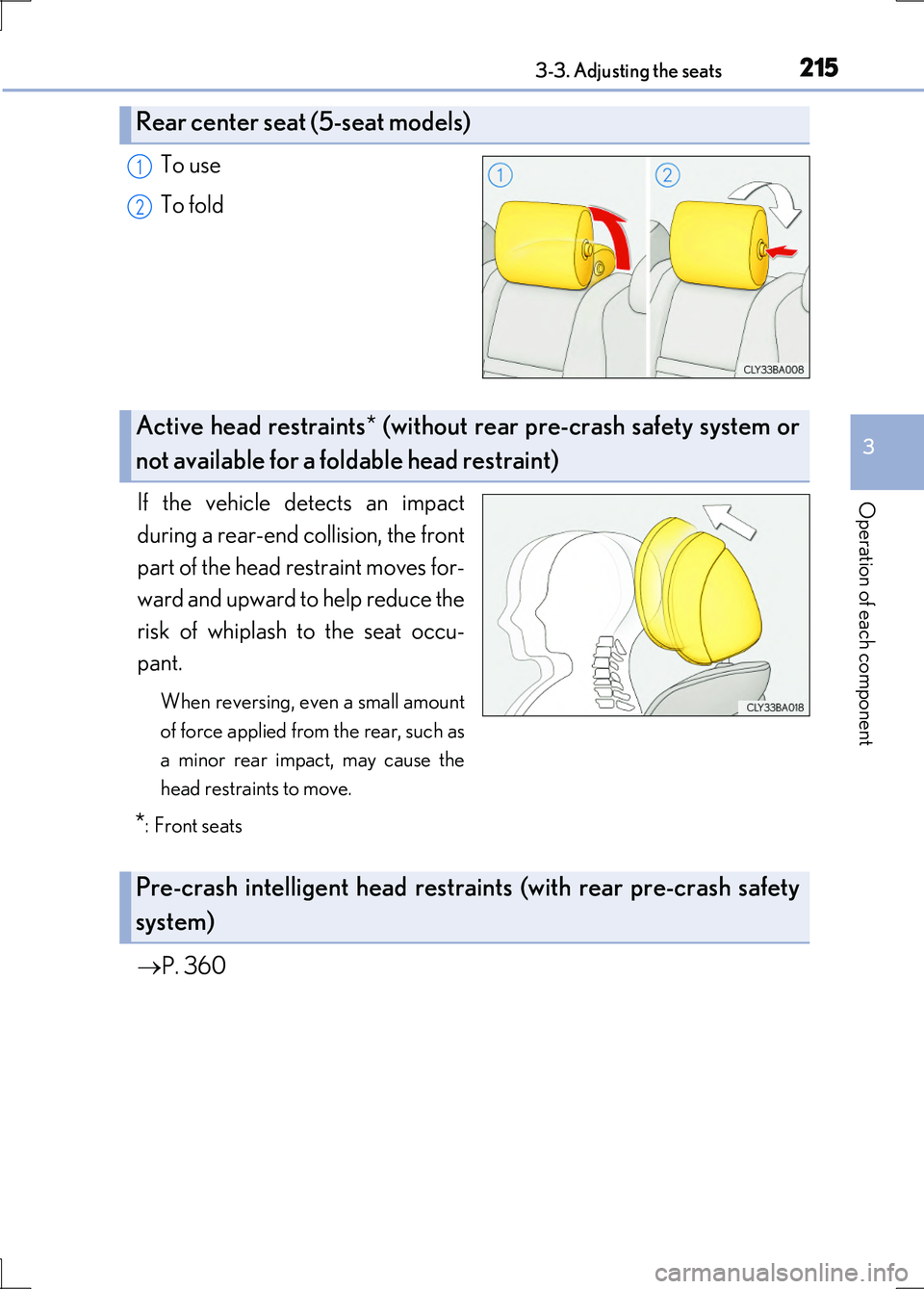

2153-3. Adjusting the seats
3
Operation of each component
LS600h/LS600hL_EE(OM50G20E)
To use
To fold
If the vehicle detects an impact
during a rear-end collision, the front
part of the head restraint moves for-
ward and upward to help reduce the
risk of whiplash to the seat occu-
pant.
When reversing, even a small amount
of force applied from the rear, such as
a minor rear impact, may cause the
head restraints to move.
*:Front seats
 P. 360
Rear center seat (5-seat models)
1
2
Active head restraints* (without rear pre-crash safety system or
not available for a foldable head restraint)
Pre-crash intelligent head restraints (with rear pre-crash safety
system)

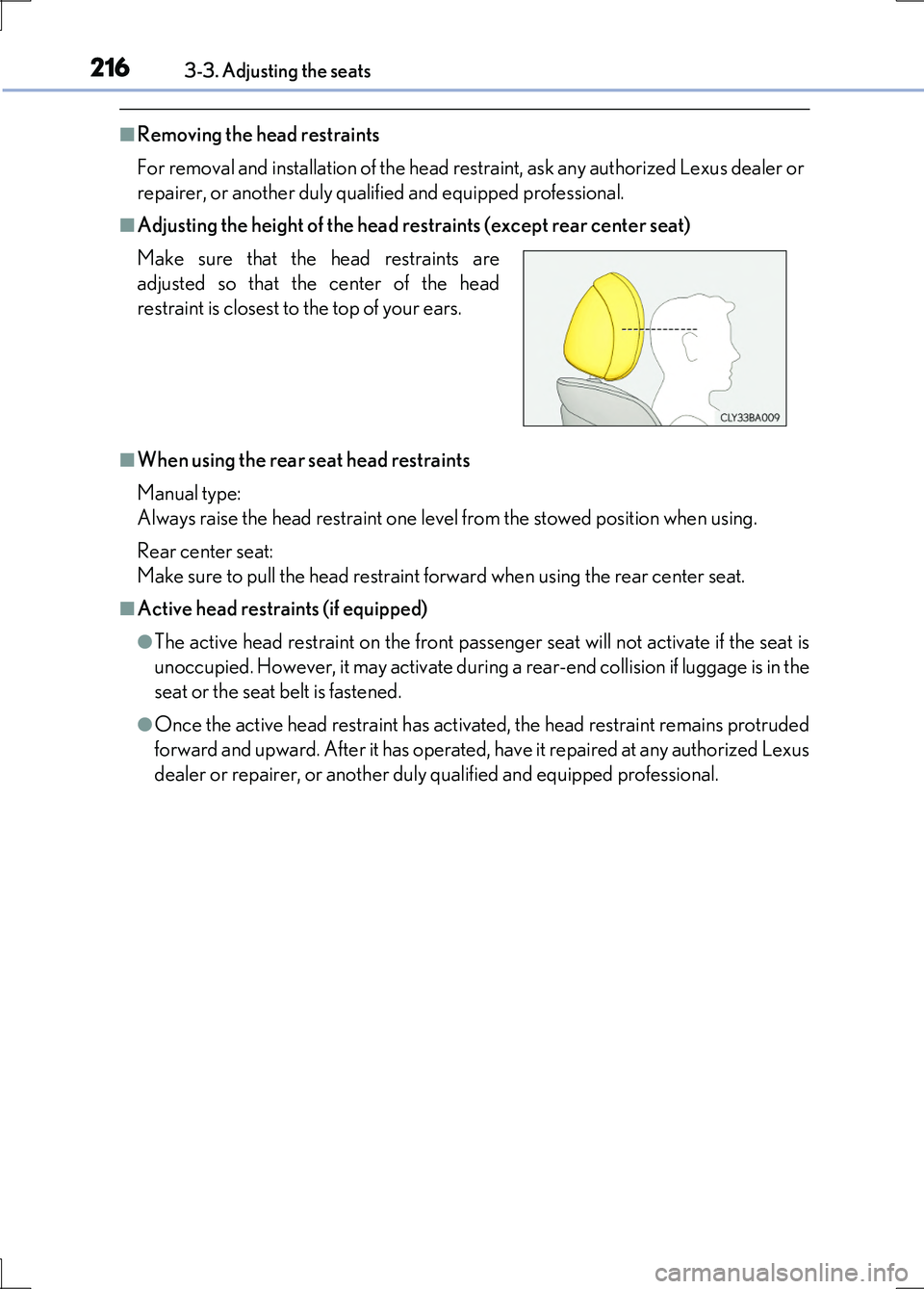

2163-3. Adjusting the seats
LS600h/LS600hL_EE(OM50G20E)
■Removing the head restraints
For removal and installation of the head restraint, ask any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional.
■Adjusting the height of the head restraints (except rear center seat)
■When using the rear seat head restraints
Manual type:
Always raise the head restraint one level from the stowed position when using.
Rear center seat:
Make sure to pull the head restraint forward when using the rear center seat.
■Active head restraints (if equipped)
●The active head restraint on the front passenger seat will not activate if the seat is
unoccupied. However, it may activate during a rear-end collision if luggage is in the
seat or the seat belt is fastened.
●Once the active head restraint has activated, the head restraint remains protruded
forward and upward. After it has operated, have it repaired at any authorized Lexus
dealer or repairer, or another duly qualified and equipped professional.
Make sure that the head restraints are
adjusted so that the center of the head
restraint is closest to the top of your ears.

2173-3. Adjusting the seats
3
Operation of each component
LS600h/LS600hL_EE(OM50G20E)
CAUTION
■Head restraint precautions
Observe the following precautions regarding the head restraints. Failure to do so
may result in death or serious injury.
●Use the head restraints designed for each respective seat.
●Adjust the head restraints to the correct position at all times.
●Manual type: After adjusting the head restraints, push down on them and make
sure they are locked in position.
●Do not drive with the head restraints removed.
■The active head restraint on the front passenger seat (if equipped)
Do not place anything, such as a cushion, on the front passenger’s seat.
Doing so will disperse the passenger’s weight, which may prevents the sensor from
detecting the passenger’s weight properly. As a result, the active head restraint
may not activate in the event of an accident.
■Active head restraint precautions (if equipped)
●Do not put head restraint covers.
●For removal, installation, modification, disassembly or disposal of the active head
restraints, contact at any authorized Lexus dealer or repairer, or another duly
qualified and equipped professional.
Inappropriate handling of the active head restraints may prevent them from oper-
ating properly during an accident.

218
LS600h/LS600hL_EE(OM50G20E)

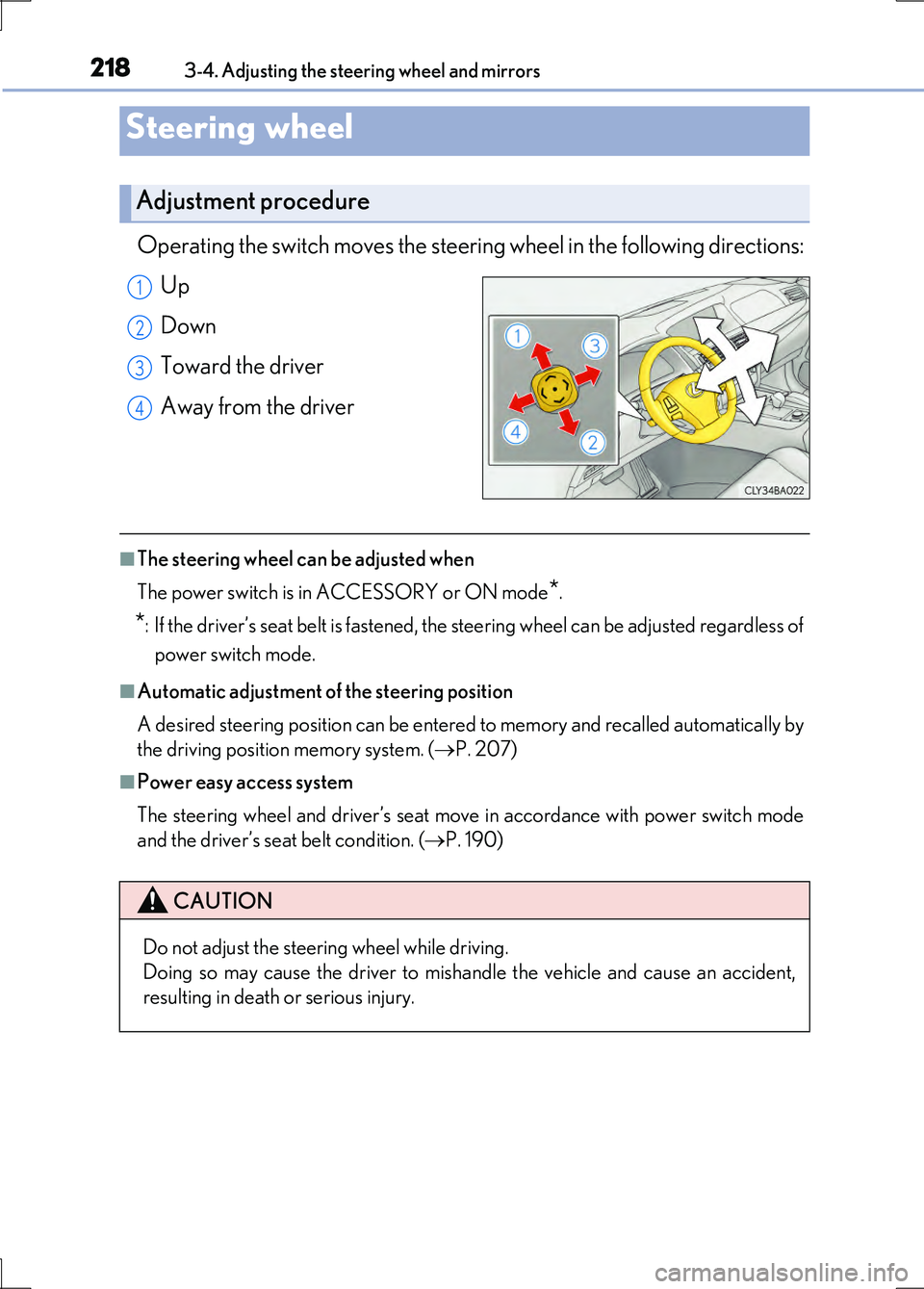

3-4. Adjusting the steering wheel and mirrors
Operating the switch moves the steering wheel in the following directions:
Up
Down
Toward the driver
Away from the driver
■The steering wheel can be adjusted when
The power switch is in ACCESSORY or ON mode*.
*: If the driver’s seat belt is fastened, the steering wheel can be adjusted regardless of
power switch mode.
■Automatic adjustment of the steering position
A desired steering position can be entered to memory and recalled automatically by
the driving position memory system. ( P. 207)
■Power easy access system
The steering wheel and driver’s seat move in accordance with power switch mode
and the driver’s seat belt condition. ( P. 190)
Steering wheel
Adjustment procedure
1
2
3
4
CAUTION
Do not adjust the steering wheel while driving.
Doing so may cause the driver to mishandle the vehicle and cause an accident,
resulting in death or serious injury.

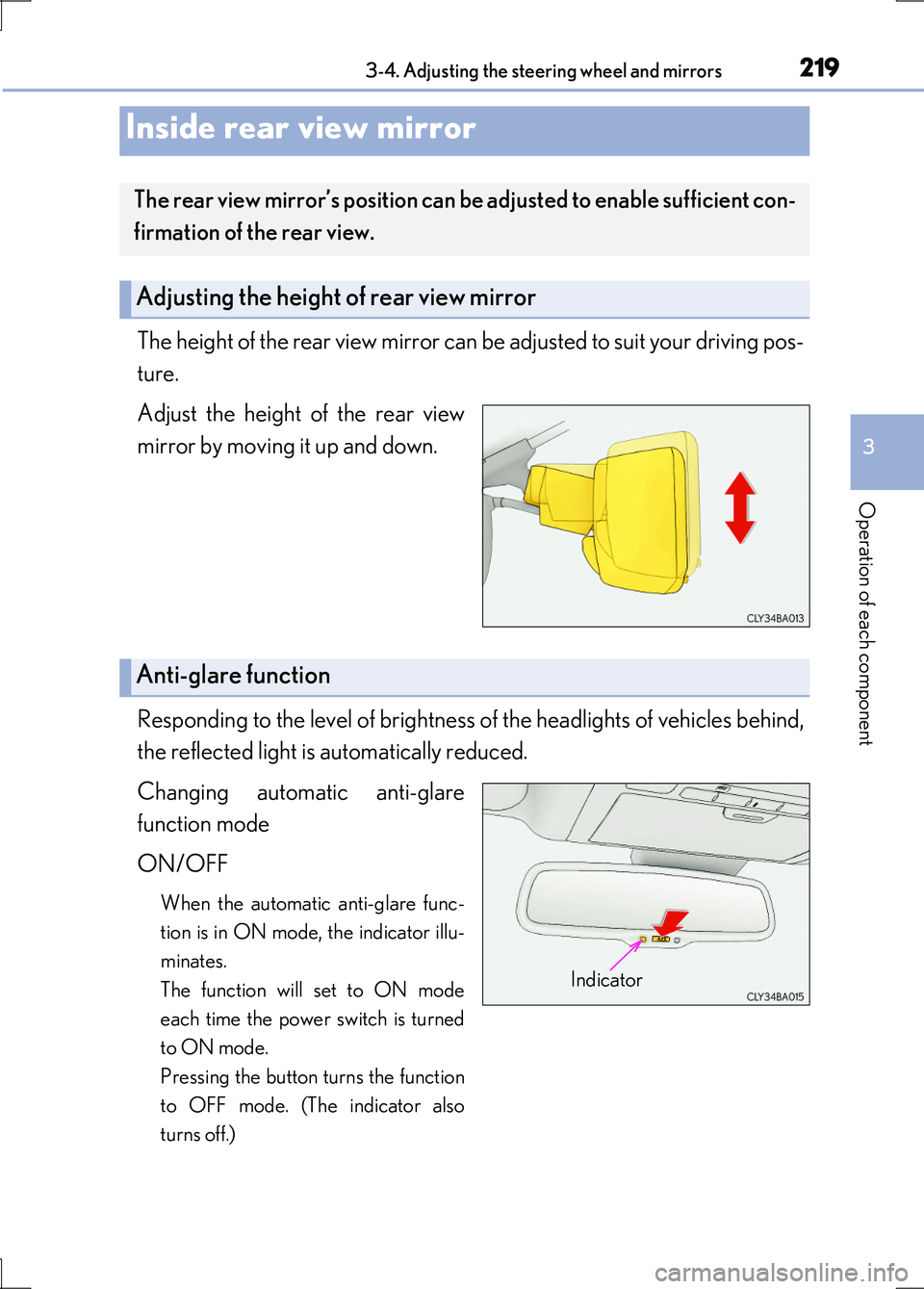

2193-4. Adjusting the steering wheel and mirrors
3
Operation of each component
LS600h/LS600hL_EE(OM50G20E)
The height of the rear view mirror can be adjusted to suit your driving pos-
ture.
Adjust the height of the rear view
mirror by moving it up and down.
Responding to the level of brightness of the headlights of vehicles behind,
the reflected light is automatically reduced.
Changing automatic anti-glare
function mode
ON/OFF
When the automatic anti-glare func-
tion is in ON mode, the indicator illu-
minates.
The function will set to ON mode
each time the power switch is turned
to ON mode.
Pressing the button turns the function
to OFF mode. (The indicator also
turns off.)
Inside rear view mirror
The rear view mirror’s position can be adjusted to enable sufficient con-
firmation of the rear view.
Adjusting the height of rear view mirror
Anti-glare function
Indicator

2203-4. Adjusting the steering wheel and mirrors
LS600h/LS600hL_EE(OM50G20E)
■To prevent sensor error
To ensure that the sensors operate properly,
do not touch or cover them.
CAUTION
Do not adjust the position of the mirror while driving.
Doing so may lead to mishandling of the vehicle and cause an accident, resulting in
death or serious injury.
