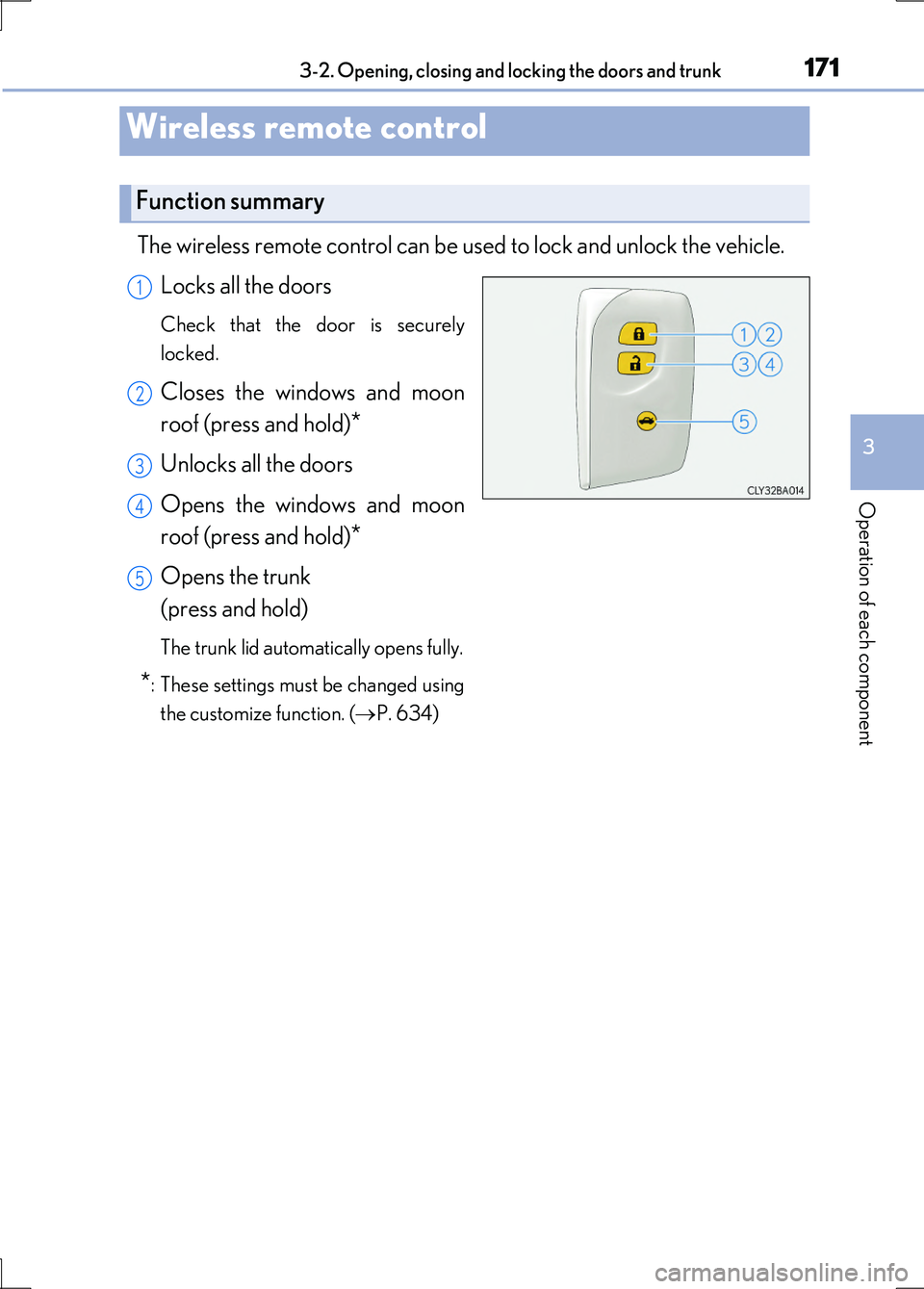

Page 171 of 676

1713-2. Opening, closing and locking the doors and trunk
3
Operation of each component
LS600h/LS600hL_EE(OM50G20E)
The wireless remote control can be used to lock and unlock the vehicle.
Locks all the doors
Check that the door is securely
locked.
Closes the windows and moon
roof (press and hold)*
Unlocks all the doors
Opens the windows and moon
roof (press and hold)*
Opens the trunk
(press and hold)
The trunk lid automatically opens fully.
*: These settings must be changed using
the customize function. ( P. 634)
Wireless remote control
Function summary
1
2
3
4
5

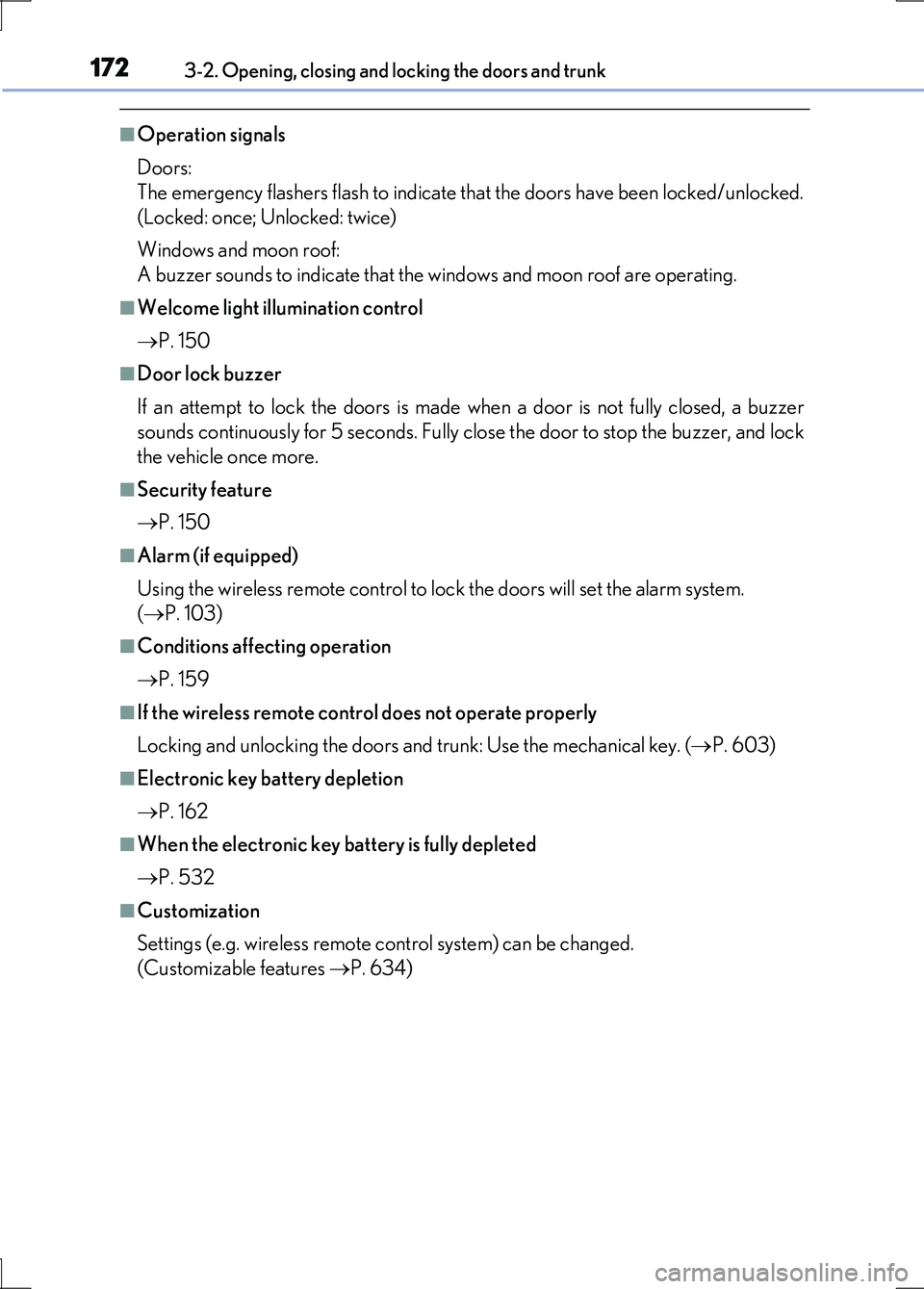

Page 172 of 676

1723-2. Opening, closing and locking the doors and trunk
LS600h/LS600hL_EE(OM50G20E)
■Operation signals
Doors:
The emergency flashers flash to indicate that the doors have been locked/unlocked.
(Locked: once; Unlocked: twice)
Windows and moon roof:
A buzzer sounds to indicate that th e windows and moon roof are operating.
■Welcome light illumination control
P. 150
■Door lock buzzer
If an attempt to lock the doors is made when a door is not fully closed, a buzzer
sounds continuously for 5 seconds. Fully close the door to stop the buzzer, and lock
the vehicle once more.
■Security feature
P. 150
■Alarm (if equipped)
Using the wireless remote control to lock the doors will set the alarm system.
( P. 103)
■Conditions affecting operation
P. 159
■If the wireless remote control does not operate properly
Locking and unlocking the doors and trunk: Use the mechanical key. ( P. 603)
■Electronic key battery depletion
P. 162
■When the electronic key battery is fully depleted
P. 532
■Customization
Settings (e.g. wireless remote control system) can be changed.
(Customizable features P. 634)

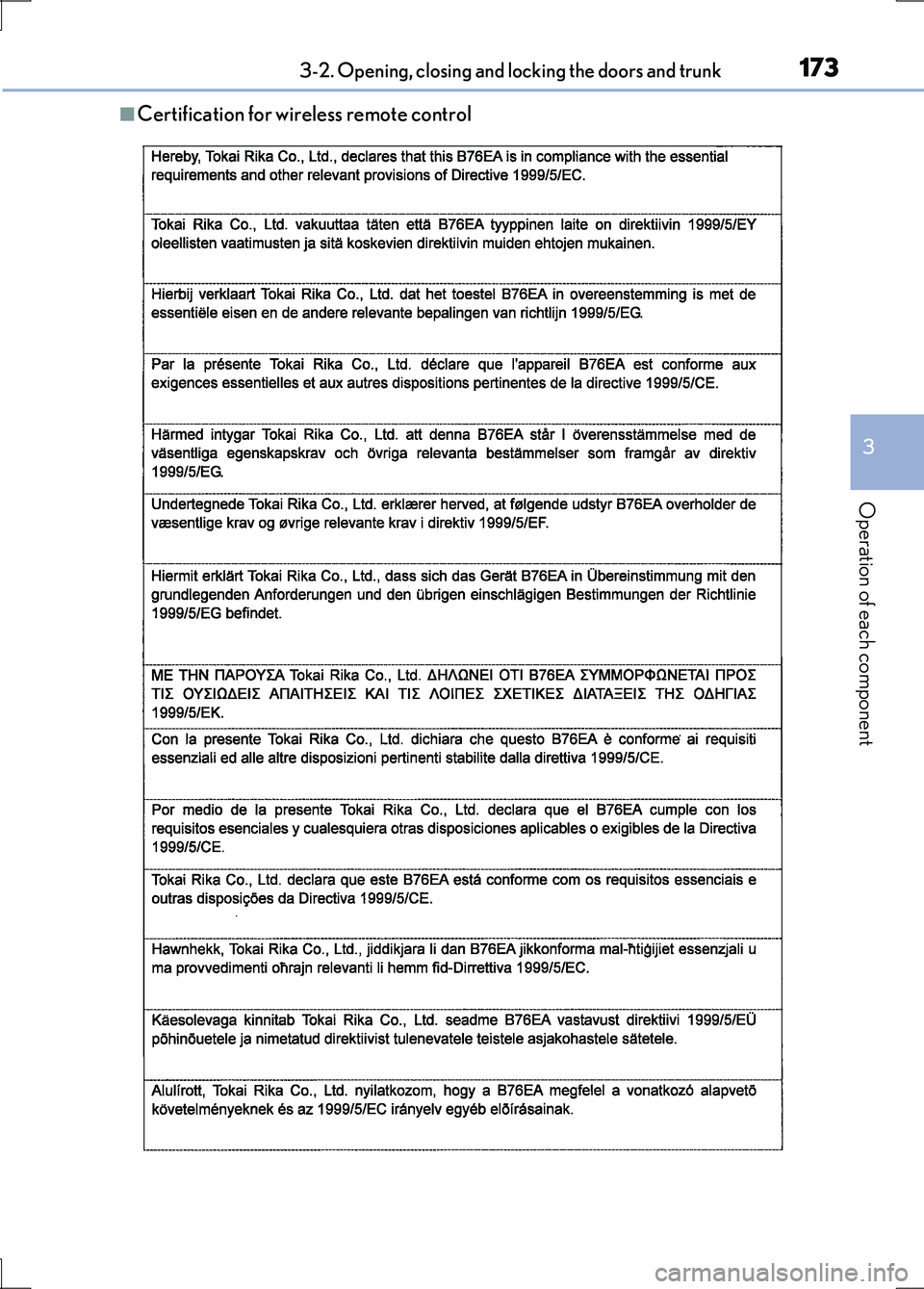

Page 173 of 676

1733-2. Opening, closing and locking the doors and trunk
3
Operation of each component
LS600h/LS600hL_EE(OM50G20E)
■Certification for wireless remote control

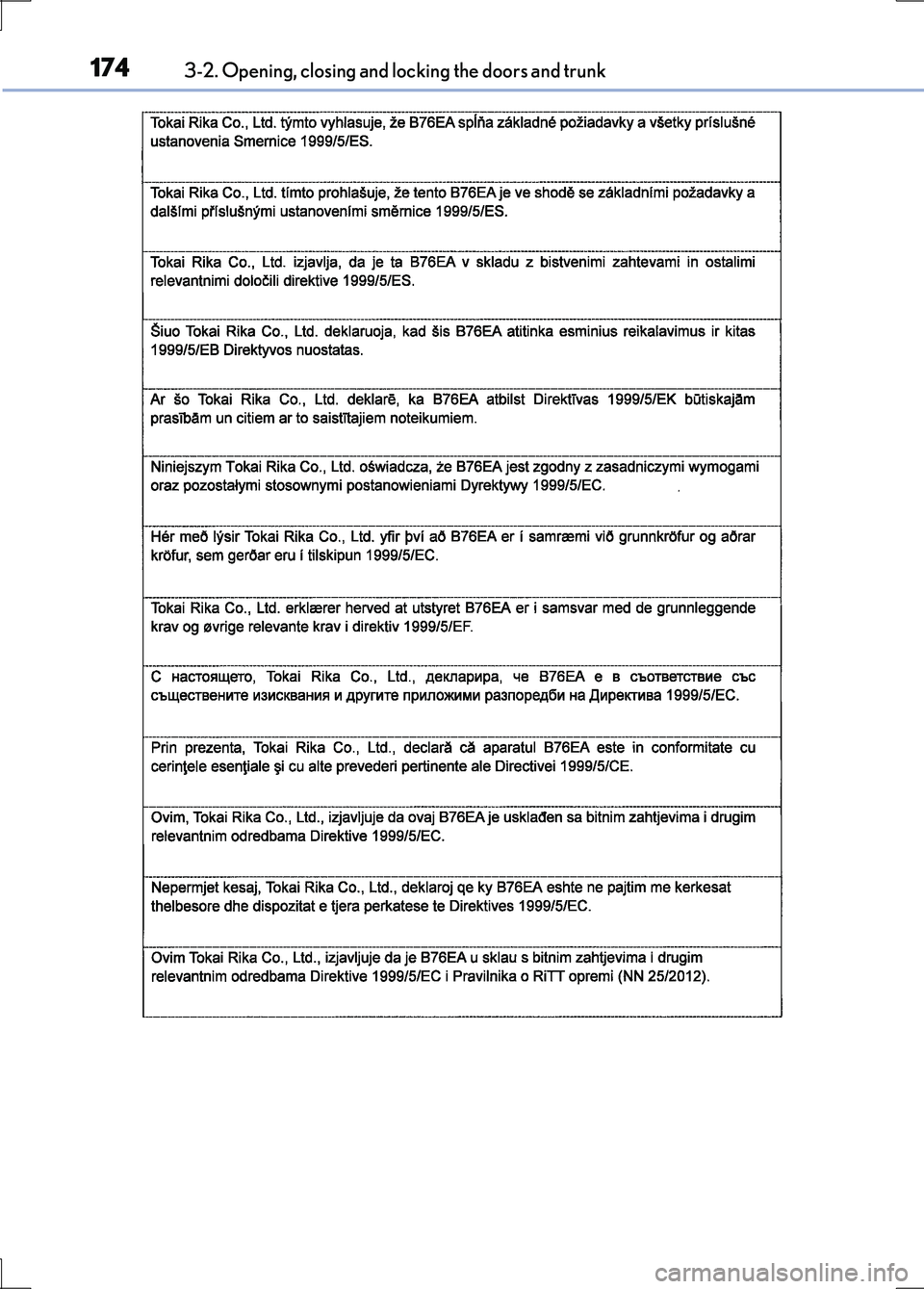

Page 174 of 676

1743-2. Opening, closing and locking the doors and trunk
LS600h/LS600hL_EE(OM50G20E)

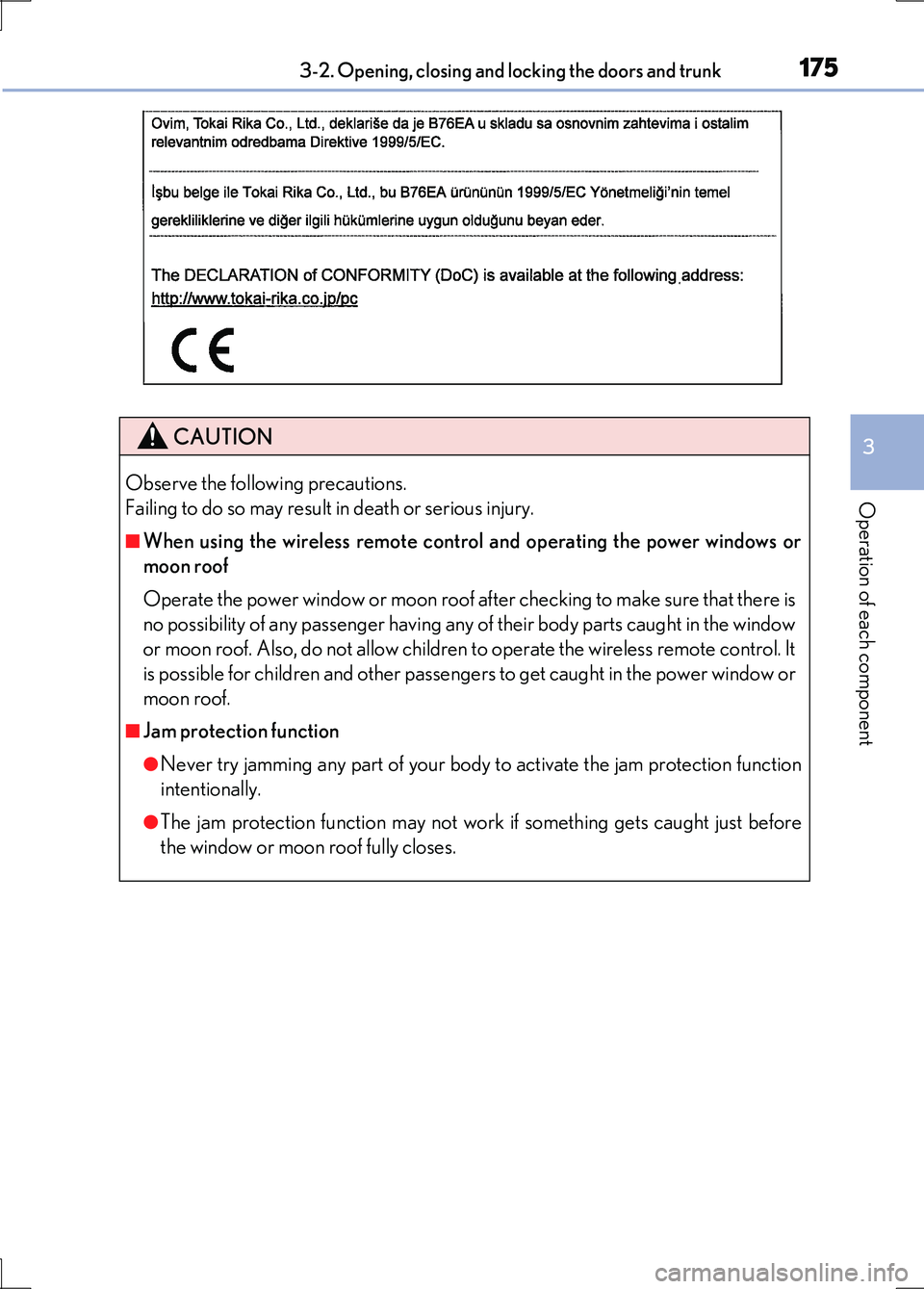

Page 175 of 676

1753-2. Opening, closing and locking the doors and trunk
3
Operation of each component
LS600h/LS600hL_EE(OM50G20E)
CAUTION
Observe the following precautions.
Failing to do so may result in death or serious injury.
■When using the wireless remote cont rol and operating the power windows or
moon roof
Operate the power window or moon roof after checking to make sure that there is
no possibility of any passenger having any of their body parts caught in the window
or moon roof. Also, do not allow children to operate the wireless remote control. It
is possible for children and other passengers to get caught in the power window or
moon roof.
■Jam protection function
●Never try jamming any part of your body to activate the jam protection function
intentionally.
●The jam protection function may not work if something gets caught just before
the window or moon roof fully closes.

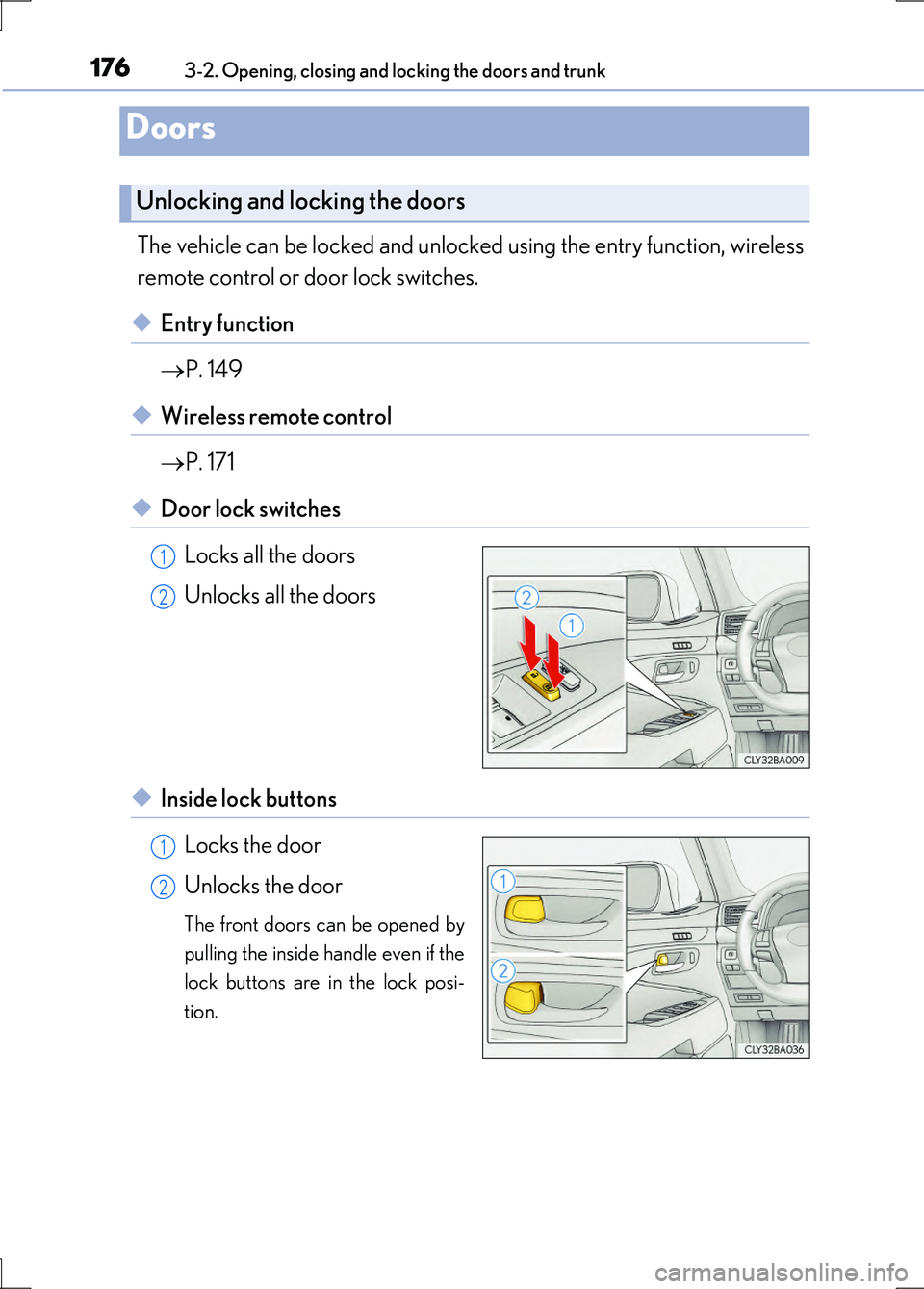

Page 176 of 676

1763-2. Opening, closing and locking the doors and trunk
LS600h/LS600hL_EE(OM50G20E)
The vehicle can be locked and unlocked using the entry function, wireless
remote control or door lock switches.
◆Entry function
P. 149
◆Wireless remote control
P. 171
◆Door lock switches
Locks all the doors
Unlocks all the doors
◆Inside lock buttons
Locks the door
Unlocks the door
The front doors can be opened by
pulling the inside handle even if the
lock buttons are in the lock posi-
tion.
Doors
Unlocking and locking the doors
1
2
1
2

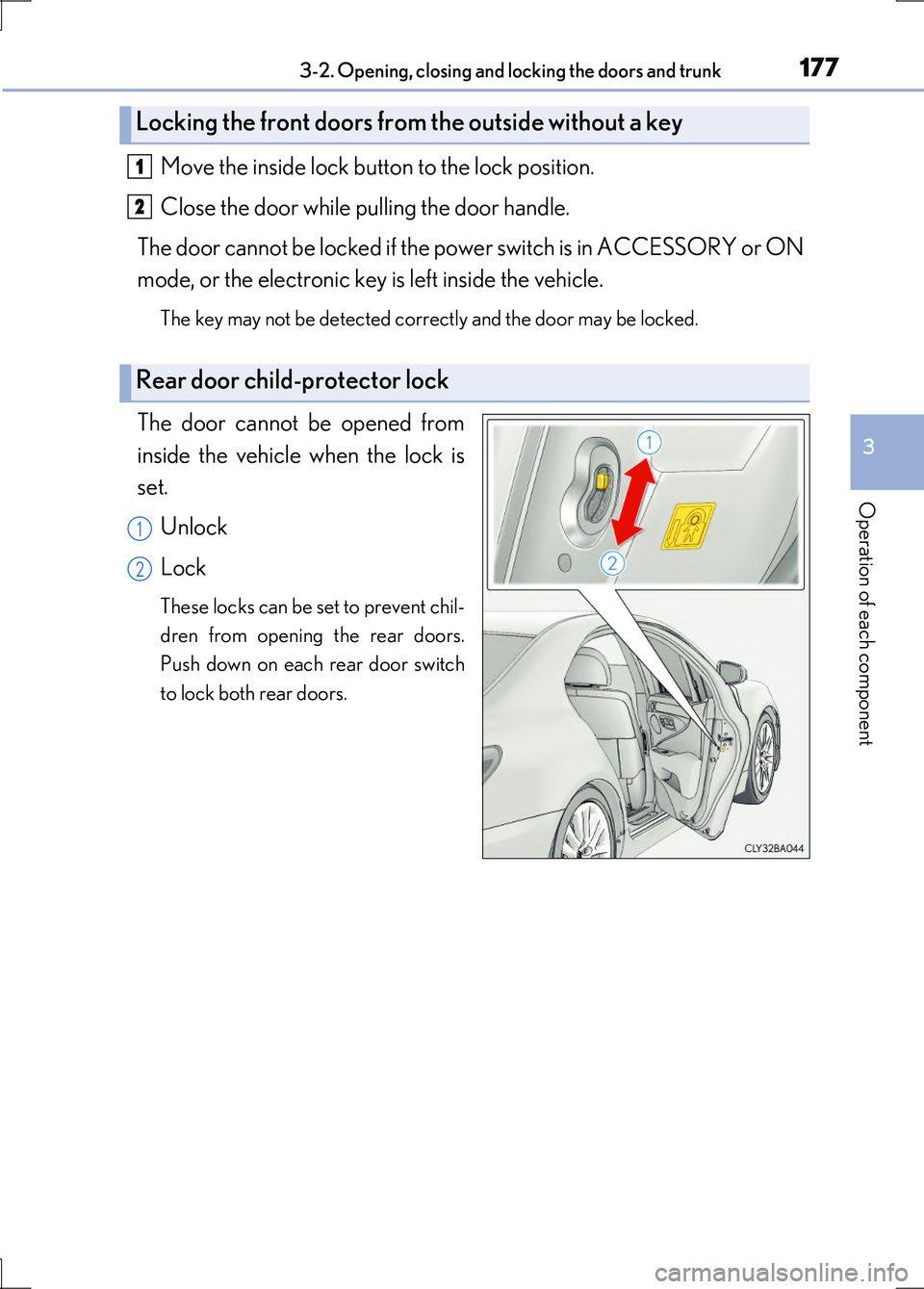

Page 177 of 676

1773-2. Opening, closing and locking the doors and trunk
3
Operation of each component
LS600h/LS600hL_EE(OM50G20E)
Move the inside lock button to the lock position.
Close the door while pulling the door handle.
The door cannot be locked if the power switch is in ACCESSORY or ON
mode, or the electronic key is left inside the vehicle.
The key may not be detected correctly and the door may be locked.
The door cannot be opened from
inside the vehicle when the lock is
set.
Unlock
Lock
These locks can be set to prevent chil-
dren from opening the rear doors.
Push down on each rear door switch
to lock both rear doors.
Locking the front doors from the outside without a key
Rear door child-protector lock
1
2
1
2

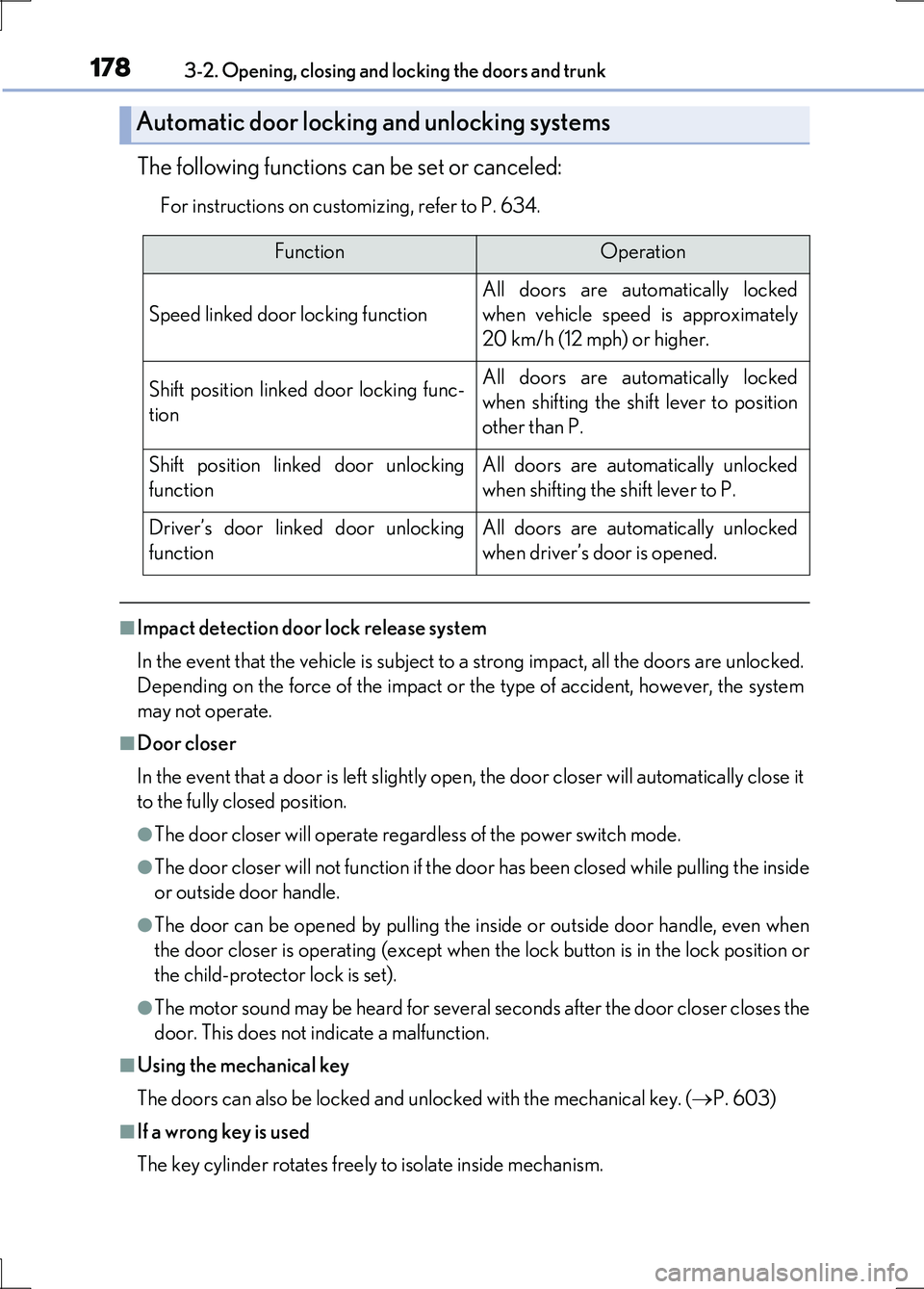

Page 178 of 676

1783-2. Opening, closing and locking the doors and trunk
LS600h/LS600hL_EE(OM50G20E)
The following functions can be set or canceled:
For instructions on customizing, refer to P. 634.
■Impact detection door lock release system
In the event that the vehicle is subject to a strong impact, all the doors are unlocked.
Depending on the force of the impact or the type of accident, however, the system
may not operate.
■Door closer
In the event that a door is left slightly open, the door closer will automatically close it
to the fully closed position.
●The door closer will operate regardless of the power switch mode.
●The door closer will not function if the door has been closed while pulling the inside
or outside door handle.
●The door can be opened by pulling the in side or outside door handle, even when
the door closer is operating (except when the lock button is in the lock position or
the child-protector lock is set).
●The motor sound may be heard for several s econds after the door closer closes the
door. This does not indicate a malfunction.
■Using the mechanical key
The doors can also be locked and unlocked with the mechanical key. ( P. 603)
■If a wrong key is used
The key cylinder rotates freely to isolate inside mechanism.
Automatic door locking and unlocking systems
FunctionOperation
Speed linked door locking function
All doors are automatically locked
when vehicle speed is approximately
20 km/h (12 mph) or higher.
Shift position linked door locking func-
tion
All doors are automatically locked
when shifting the shift lever to position
other than P.
Shift position linked door unlocking
function
All doors are automatically unlocked
when shifting the shift lever to P.
Driver’s door linked door unlocking
function
All doors are automatically unlocked
when driver’s door is opened.

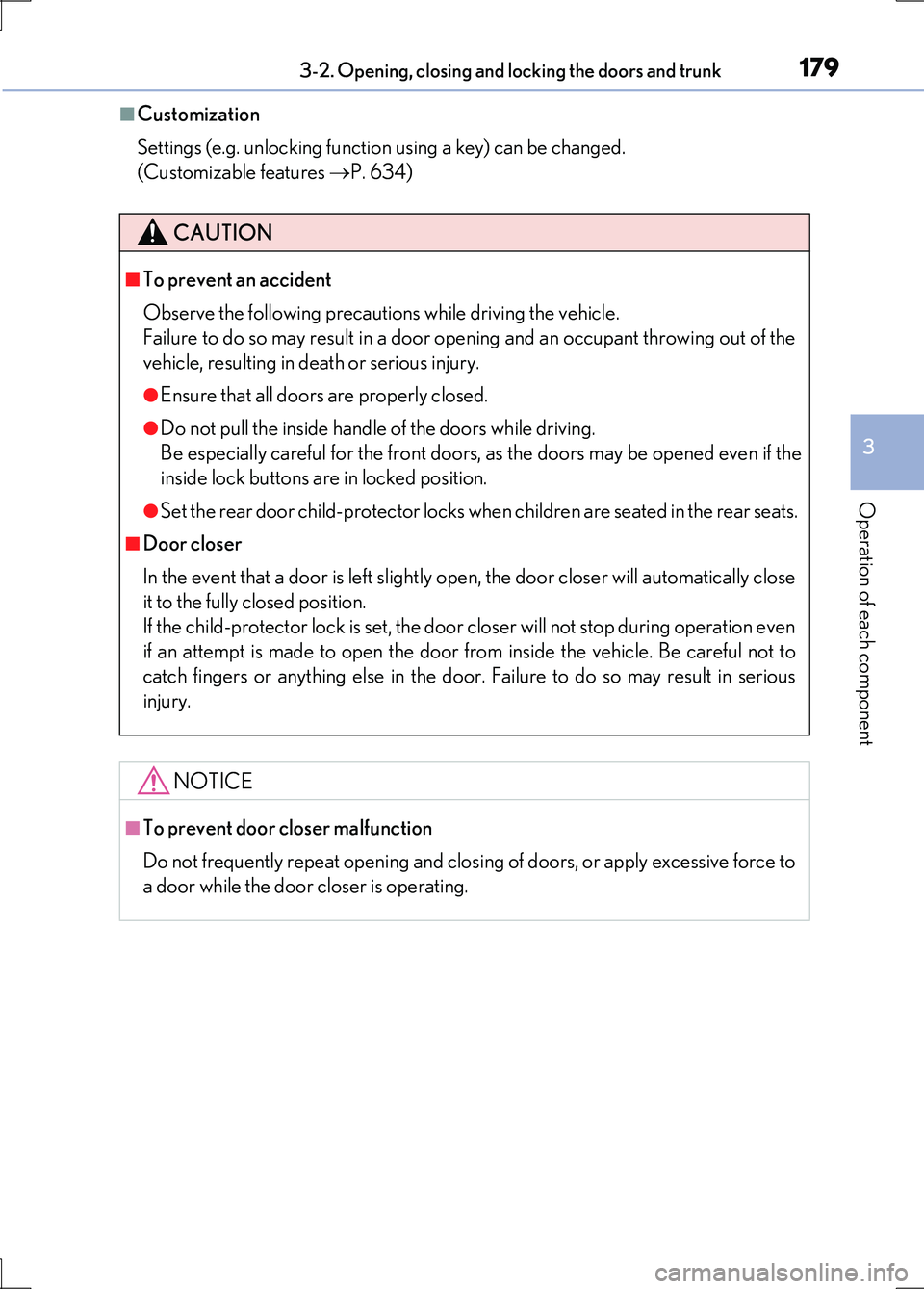

Page 179 of 676

1793-2. Opening, closing and locking the doors and trunk
3
Operation of each component
LS600h/LS600hL_EE(OM50G20E)
■Customization
Settings (e.g. unlocking function using a key) can be changed.
(Customizable features P. 634)
CAUTION
■To prevent an accident
Observe the following precautions while driving the vehicle.
Failure to do so may result in a door opening and an occupant throwing out of the
vehicle, resulting in death or serious injury.
●Ensure that all doors are properly closed.
●Do not pull the inside handle of the doors while driving.
Be especially careful for the front doors, as the doors may be opened even if the
inside lock buttons are in locked position.
●Set the rear door child-protector locks when children are seated in the rear seats.
■Door closer
In the event that a door is left slightly open, the door closer will automatically close
it to the fully closed position.
If the child-protector lock is set, the door closer will not stop during operation even
if an attempt is made to open the door from inside the vehicle. Be careful not to
catch fingers or anything else in the door. Failure to do so may result in serious
injury.
NOTICE
■To prevent door closer malfunction
Do not frequently repeat opening and closing of doors, or apply excessive force to
a door while the door closer is operating.

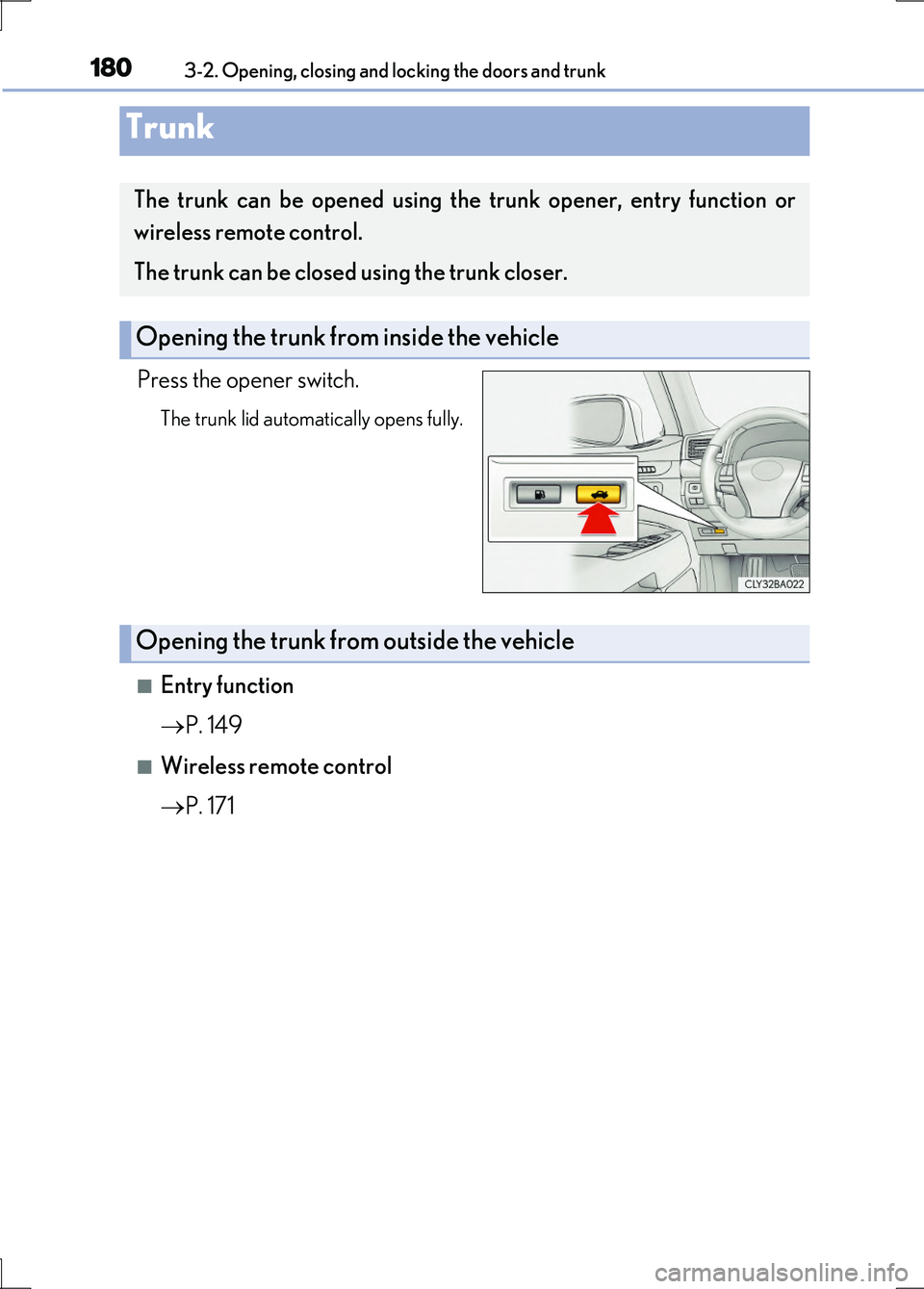

Page 180 of 676

1803-2. Opening, closing and locking the doors and trunk
LS600h/LS600hL_EE(OM50G20E)
Press the opener switch.
The trunk lid automatically opens fully.
■Entry function
P. 149
■Wireless remote control
P. 171
Trunk
The trunk can be opened using the trunk opener, entry function or
wireless remote control.
The trunk can be closed using the trunk closer.
Opening the trunk from inside the vehicle
Opening the trunk from outside the vehicle
