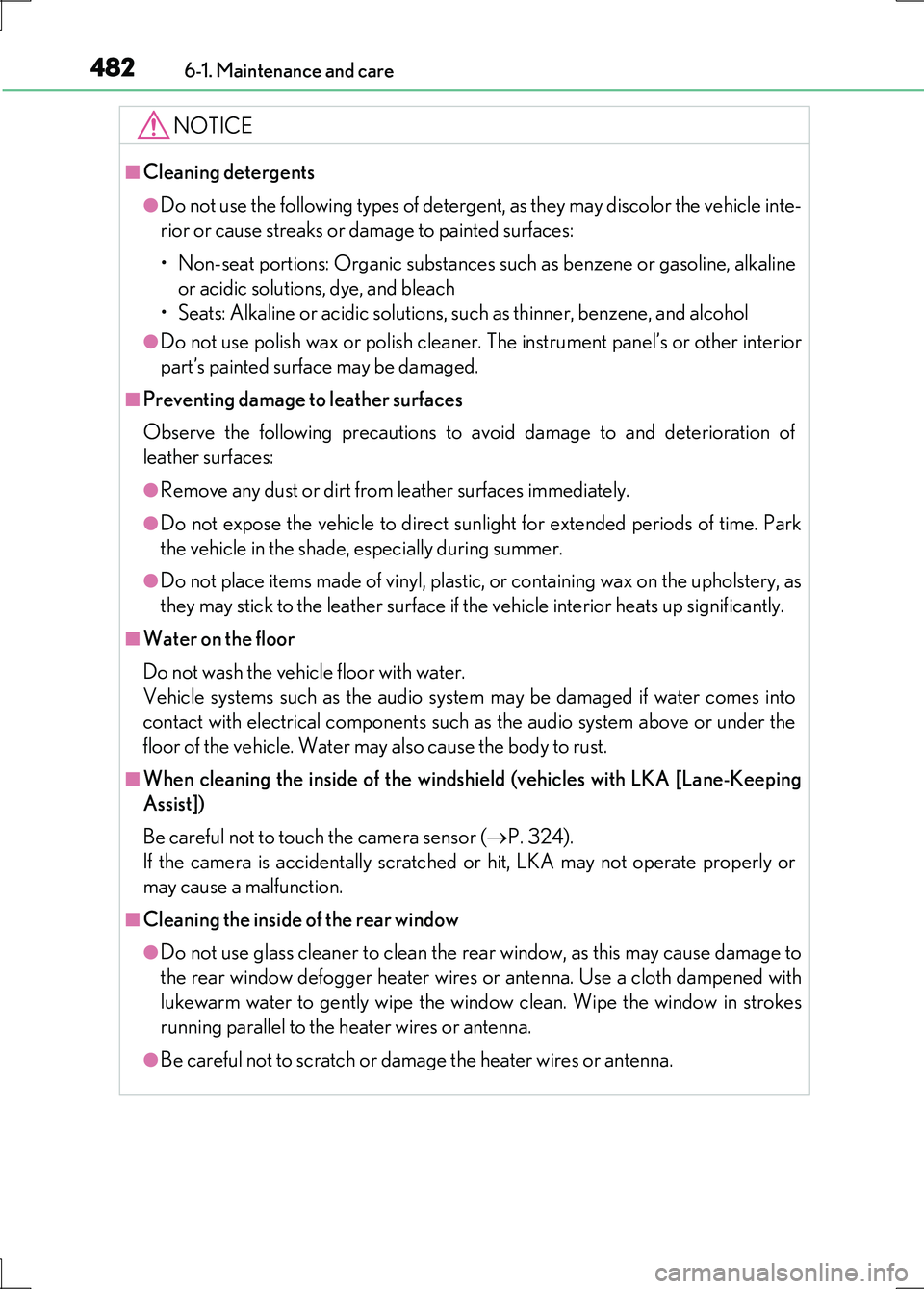

4826-1. Maintenance and care
LS600h/LS600hL_EE(OM50G20E)
NOTICE
■Cleaning detergents
●Do not use the following types of detergent, as they may discolor the vehicle inte-
rior or cause streaks or damage to painted surfaces:
• Non-seat portions: Organic substances such as benzene or gasoline, alkaline
or acidic solutions, dye, and bleach
• Seats: Alkaline or acidic solutions, such as thinner, benzene, and alcohol
●Do not use polish wax or polish cleaner. The instrument panel’s or other interior
part’s painted surface may be damaged.
■Preventing damage to leather surfaces
Observe the following precautions to avoid damage to and deterioration of
leather surfaces:
●Remove any dust or dirt from leather surfaces immediately.
●Do not expose the vehicle to direct sun light for extended periods of time. Park
the vehicle in the shade, especially during summer.
●Do not place items made of vinyl, plastic, or containing wax on the upholstery, as
they may stick to the leather surface if the vehicle interior heats up significantly.
■Water on the floor
Do not wash the vehicle floor with water.
Vehicle systems such as the audio system may be damaged if water comes into
contact with electrical components such as the audio system above or under the
floor of the vehicle. Water may also cause the body to rust.
■When cleaning the inside of the windshield (vehicles with LKA [Lane-Keeping
Assist])
Be careful not to touch the camera sensor ( P. 324).
If the camera is accidentally scratched or hit, LKA may not operate properly or
may cause a malfunction.
■Cleaning the inside of the rear window
●Do not use glass cleaner to clean the rear window, as this may cause damage to
the rear window defogger heater wires or antenna. Use a cloth dampened with
lukewarm water to gently wipe the window clean. Wipe the window in strokes
running parallel to the heater wires or antenna.
●Be careful not to scratch or damage the heater wires or antenna.

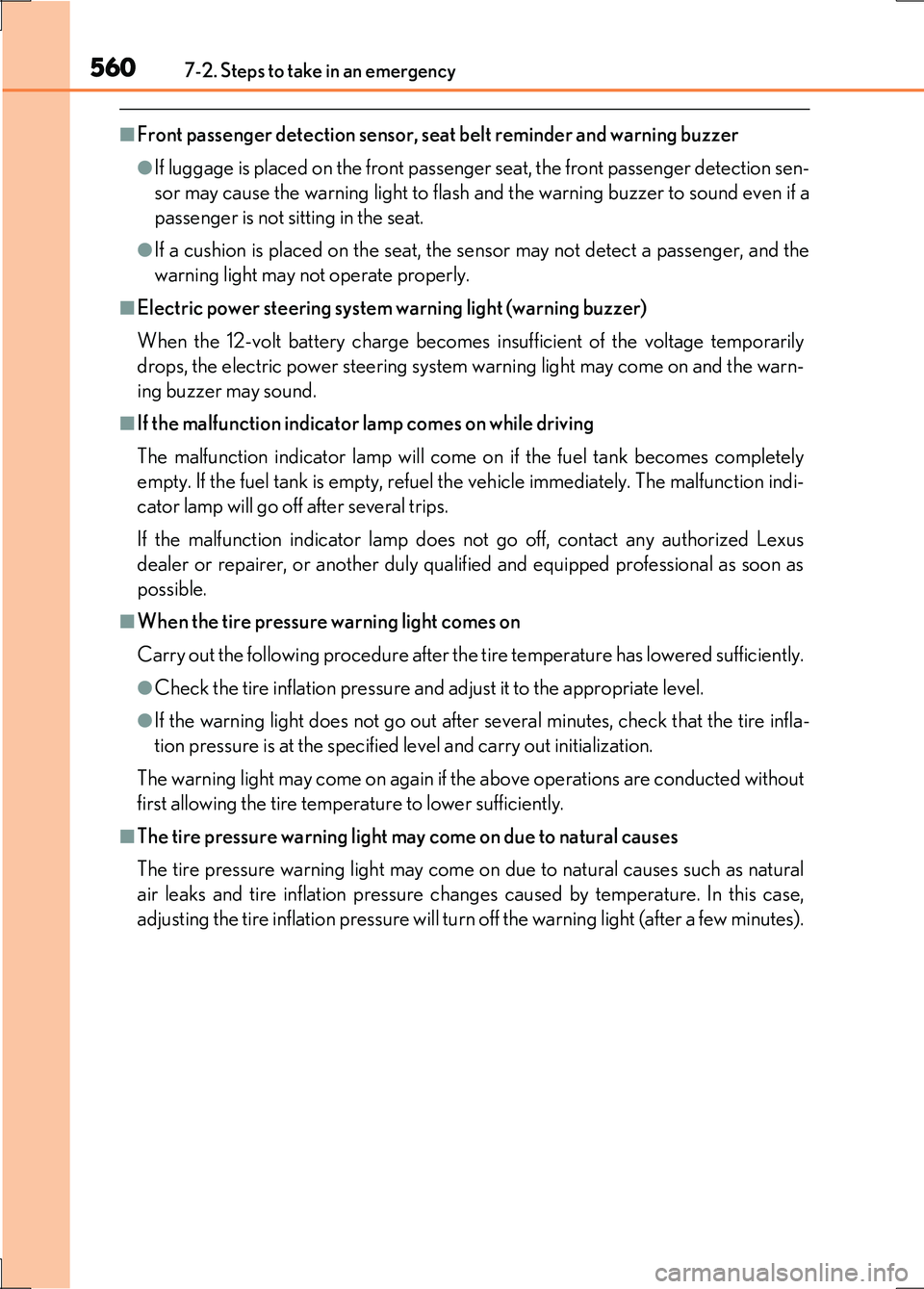

5607-2. Steps to take in an emergency
LS600h/LS600hL_EE(OM50G20E)
■Front passenger detection sensor, seat belt reminder and warning buzzer
●If luggage is placed on the front passenger seat, the front passenger detection sen-
sor may cause the warning light to flash and the warning buzzer to sound even if a
passenger is not sitting in the seat.
●If a cushion is placed on the seat, the sensor may not detect a passenger, and the
warning light may not operate properly.
■Electric power steering system warning light (warning buzzer)
When the 12-volt battery charge becomes insufficient of the voltage temporarily
drops, the electric power steering system warning light may come on and the warn-
ing buzzer may sound.
■If the malfunction indicator lamp comes on while driving
The malfunction indicator lamp will come on if the fuel tank becomes completely
empty. If the fuel tank is empty, refuel the vehicle immediately. The malfunction indi-
cator lamp will go off after several trips.
If the malfunction indicator lamp does not go off, contact any authorized Lexus
dealer or repairer, or another duly qualified and equipped professional as soon as
possible.
■When the tire pressure warning light comes on
Carry out the following procedure after the tire temperature has lowered sufficiently.
●Check the tire inflation pressure and adjust it to the appropriate level.
●If the warning light does not go out after several minutes, check that the tire infla-
tion pressure is at the specified level and carry out initialization.
The warning light may come on again if the above operations are conducted without
first allowing the tire temperature to lower sufficiently.
■The tire pressure warning light may come on due to natural causes
The tire pressure warning light may come on due to natural causes such as natural
air leaks and tire inflation pressure changes caused by temperature. In this case,
adjusting the tire inflation pressure will turn off the warning light (after a few minutes).

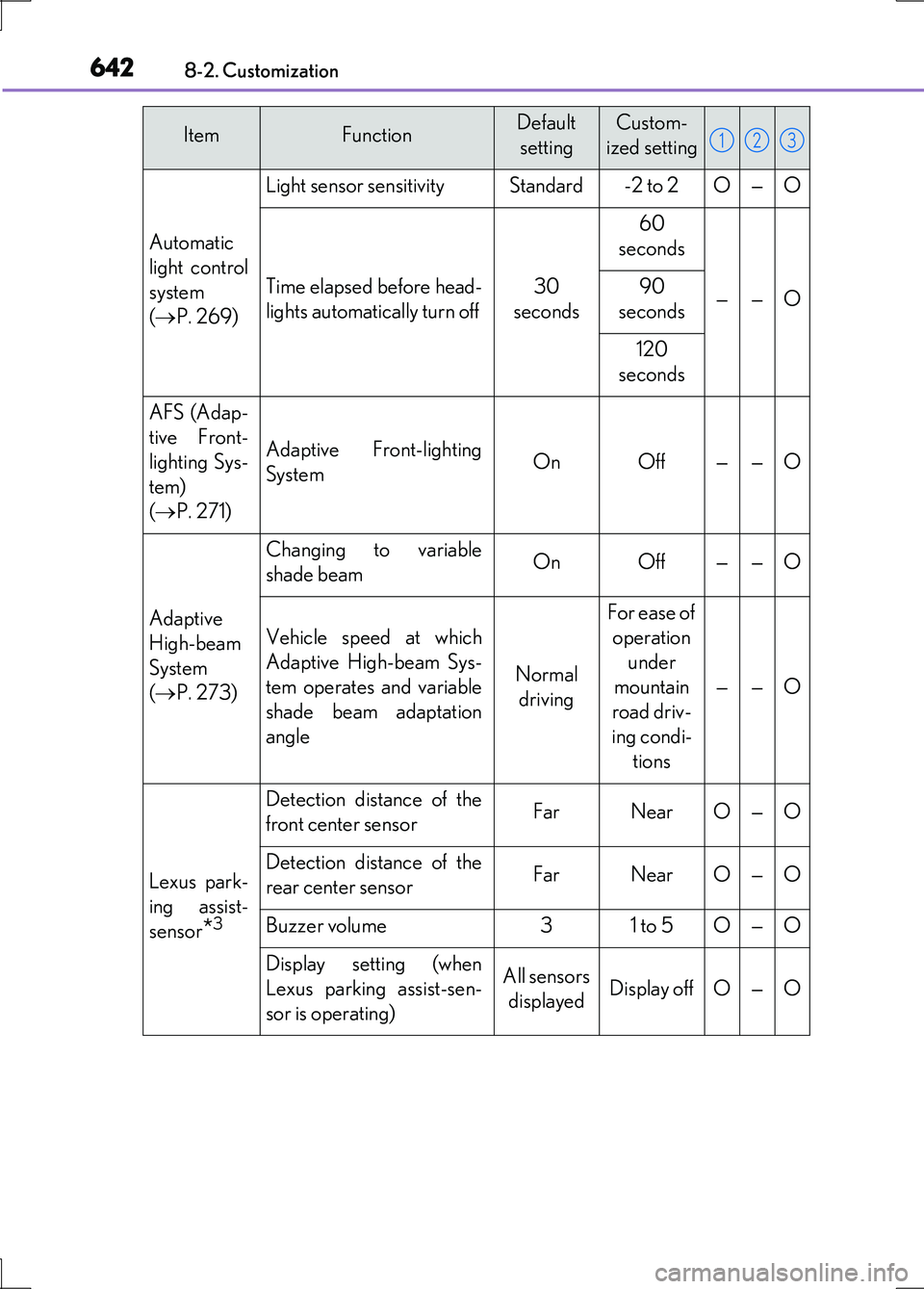

6428-2. Customization
LS600h/LS600hL_EE(OM50G20E)
Automatic
light control
system
( P. 269)
Light sensor sensitivityStandard-2 to 2O—O
Time elapsed before head-
lights automatically turn off
30
seconds
60
seconds
——O90
seconds
120
seconds
AFS (Adap-
tive Front-
lighting Sys-
tem)
( P. 271)
Adaptive Front-lighting
SystemOnOff——O
Adaptive
High-beam
System
( P. 273)
Changing to variable
shade beamOnOff——O
Vehicle speed at which
Adaptive High-beam Sys-
tem operates and variable
shade beam adaptation
angle
Normal
driving
For ease of
operation
under
mountain
road driv-
ing condi-
tions
——O
Lexus park-
ing assist-
sensor*3
Detection distance of the
front center sensorFarNearO—O
Detection distance of the
rear center sensorFarNearO—O
Buzzer volume31 to 5O—O
Display setting (when
Lexus parking assist-sen-
sor is operating)
All sensors
displayedDisplay offO—O
ItemFunctionDefault
setting
Custom-
ized setting123

643
8

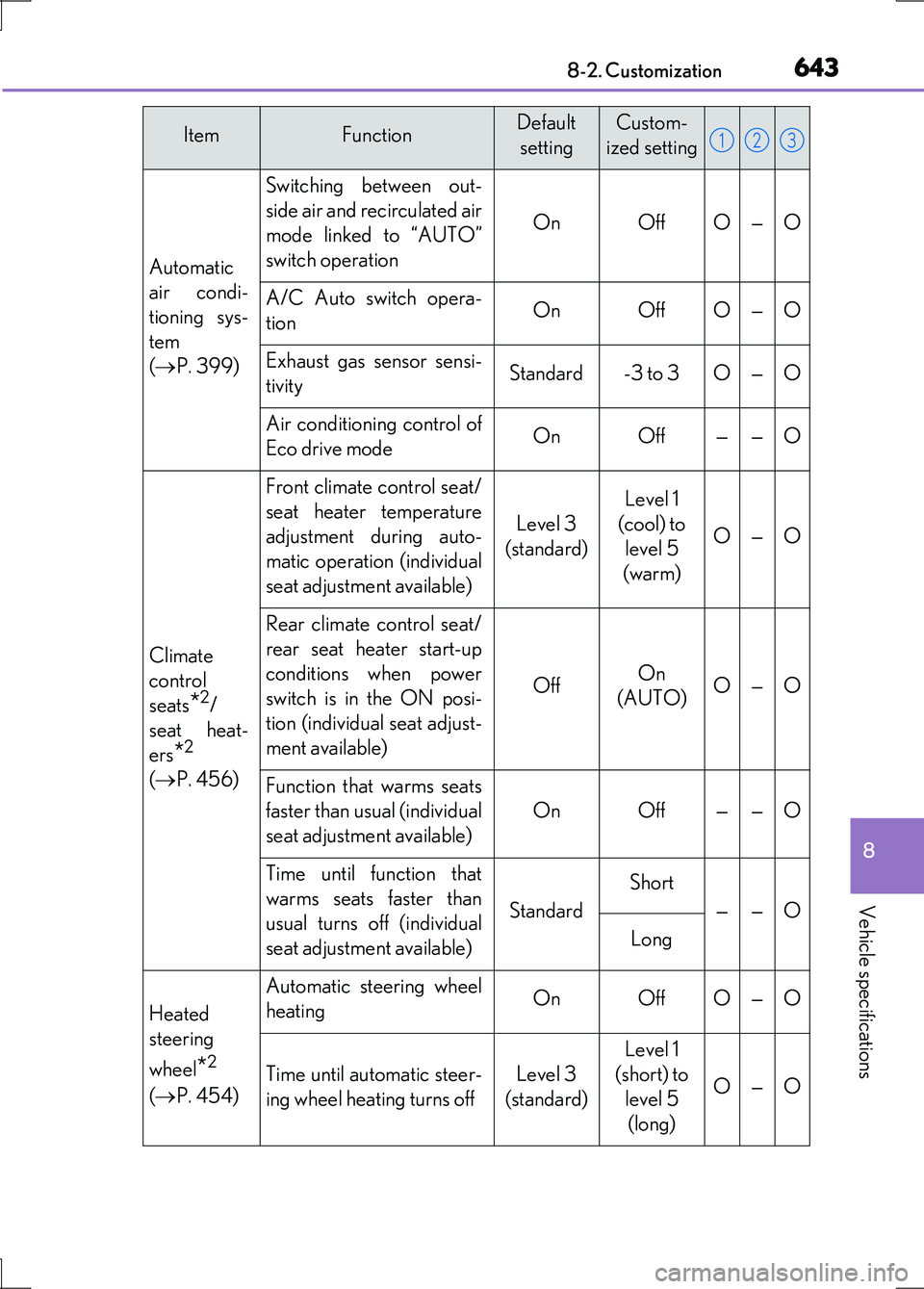

8-2. Customization
Vehicle specifications
LS600h/LS600hL_EE(OM50G20E)
Automatic
air condi-
tioning sys-
tem
( P. 399)
Switching between out-
side air and recirculated air
mode linked to “AUTO”
switch operation
OnOffO—O
A/C Auto switch opera-
tionOnOffO—O
Exhaust gas sensor sensi-
tivityStandard-3 to 3O—O
Air conditioning control of
Eco drive modeOnOff——O
Climate
control
seats*2/
seat heat-
ers*2
( P. 456)
Front climate control seat/
seat heater temperature
adjustment during auto-
matic operation (individual
seat adjustment available)
Level 3
(standard)
Level 1
(cool) to
level 5
(warm)
O—O
Rear climate control seat/
rear seat heater start-up
conditions when power
switch is in the ON posi-
tion (individual seat adjust-
ment available)
OffOn
(AUTO)O—O
Function that warms seats
faster than usual (individual
seat adjustment available)
OnOff——O
Time until function that
warms seats faster than
usual turns off (individual
seat adjustment available)
Standard
Short
——O
Long
Heated
steering
wheel*2
( P. 454)
Automatic steering wheel
heatingOnOffO—O
Time until automatic steer-
ing wheel heating turns off
Level 3
(standard)
Level 1
(short) to
level 5
(long)
O—O
ItemFunctionDefault
setting
Custom-
ized setting123

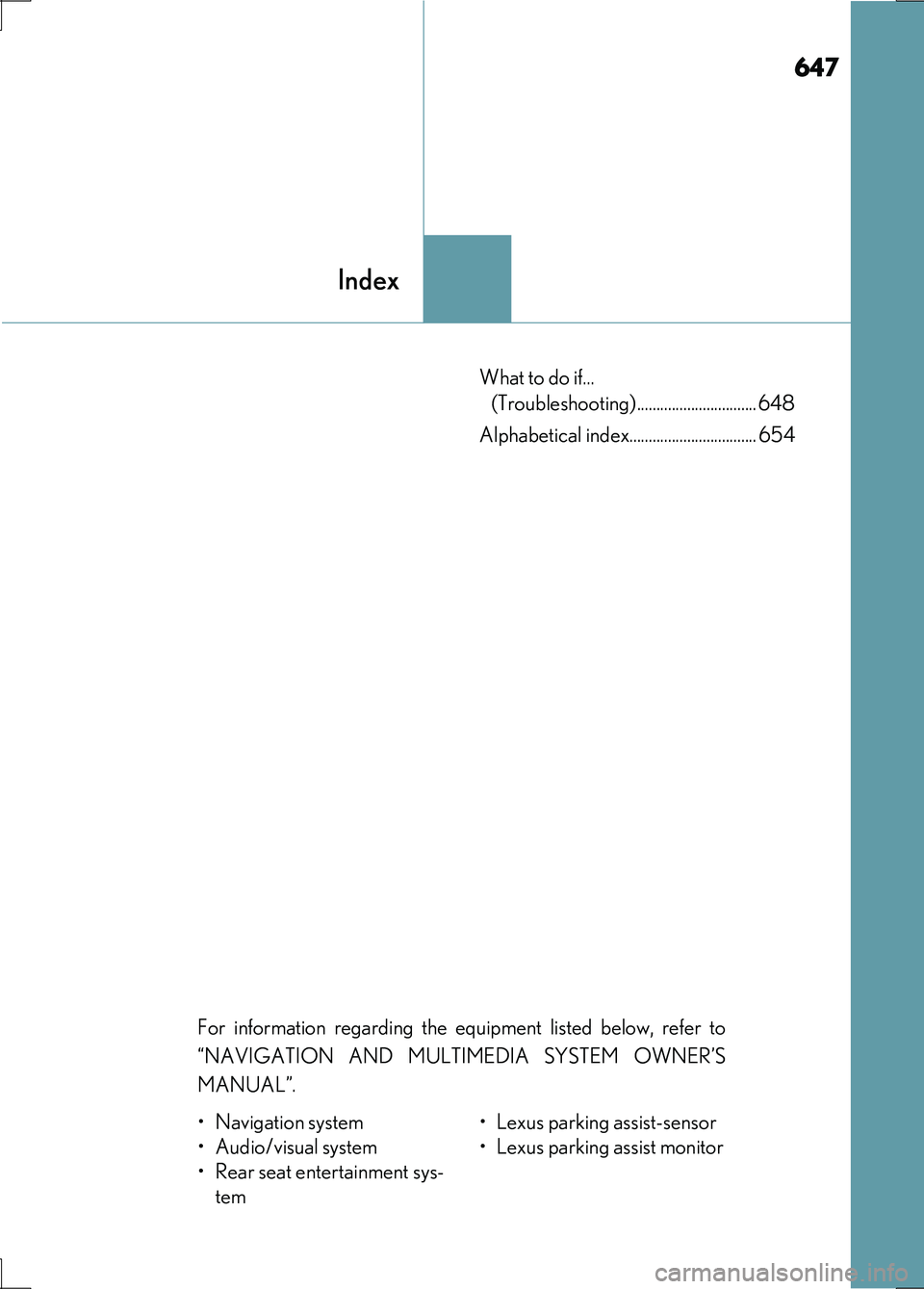

647
Index
LS600h/LS600hL_EE(OM50G20E)
What to do if...
(Troubleshooting)............................... 648
Alphabetical index................................. 654
For information regarding the equipment listed below, refer to
“NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S
MANUAL”.
• Navigation system
• Audio/visual system
• Rear seat entertainment sys-
tem
• Lexus parking assist-sensor
•Lexus parking assist monitor

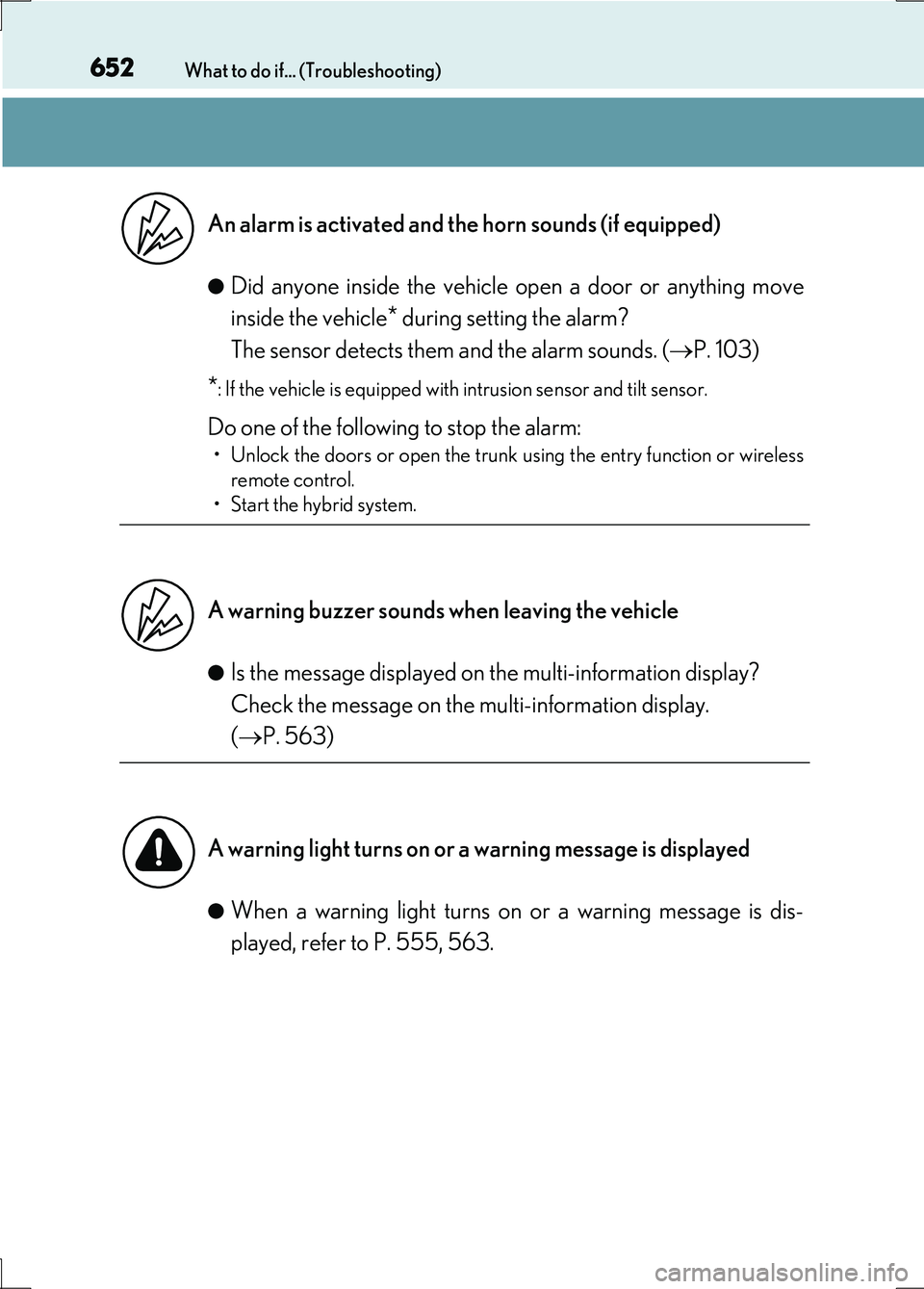

652What to do if... (Troubleshooting)
LS600h/LS600hL_EE(OM50G20E)
●Did anyone inside the vehicle open a door or anything move
inside the vehicle* during setting the alarm?
The sensor detects them and the alarm sounds. ( P. 103)
*: If the vehicle is equipped with intrusion sensor and tilt sensor.
Do one of the following to stop the alarm:
• Unlock the doors or open the trunk using the entry function or wireless
remote control.
• Start the hybrid system.
●Is the message displayed on the multi-information display?
Check the message on the multi-information display.
( P. 563)
●When a warning light turns on or a warning message is dis-
played, refer to P. 555, 563.
An alarm is activated and th e horn sounds (if equipped)
A warning buzzer sounds when leaving the vehicle
A warning light turns on or a warning message is displayed

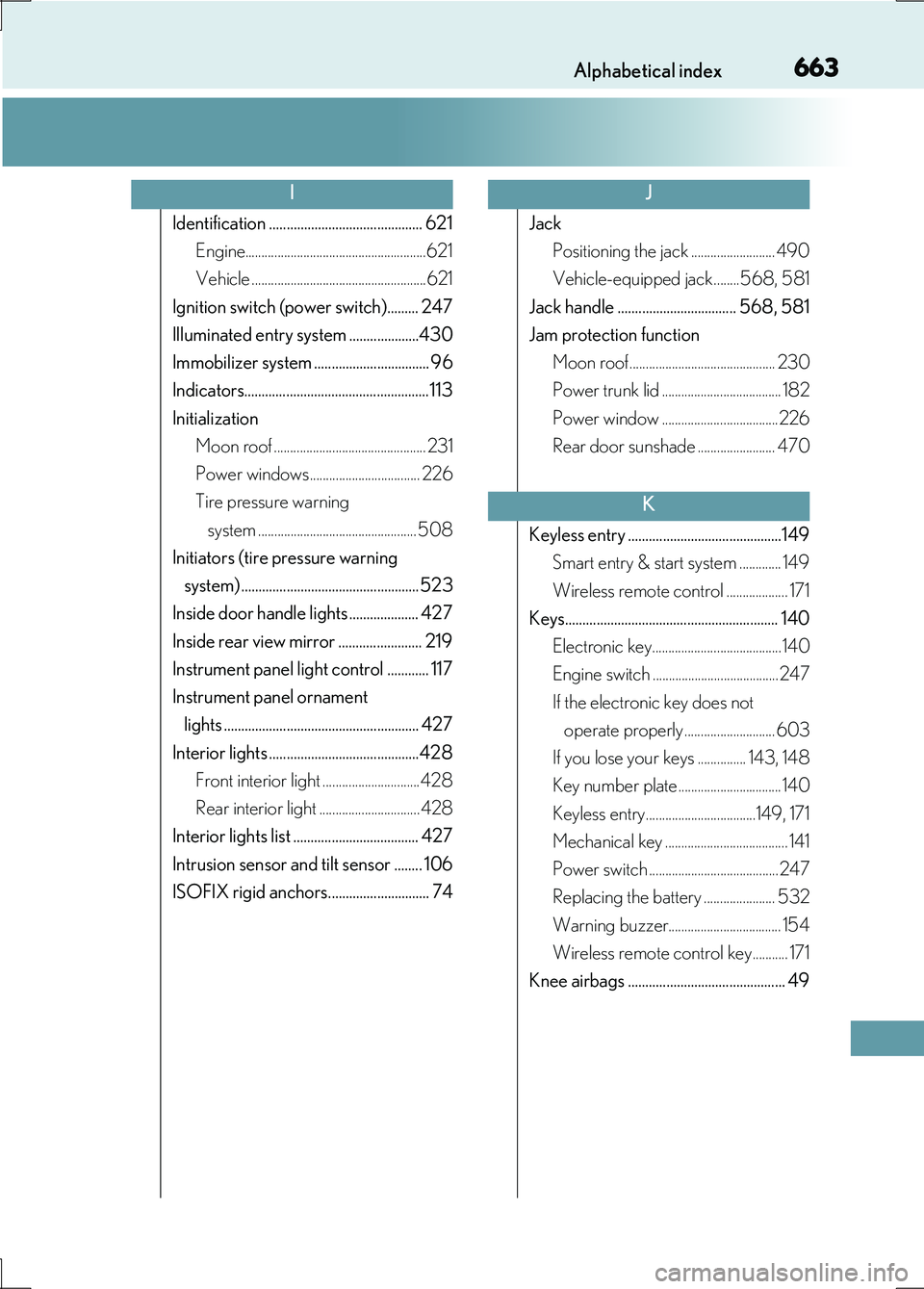

663Alphabetical index
LS600h/LS600hL_EE(OM50G20E)
Identification ............................................ 621
Engine........................................................621
Vehicle ......................................................621
Ignition switch (power switch)......... 247
Illuminated entry system ....................430
Immobilizer system ................................. 96
Indicators..................................................... 113
Initialization
Moon roof ............................................... 231
Power windows.................................. 226
Tire pressure warning
system ................................................. 508
Initiators (tire pressure warning
system) ................................................... 523
Inside door handle lights .................... 427
Inside rear view mirror ........................ 219
Instrument panel light control ............ 117
Instrument panel ornament
lights ........................................................ 427
Interior lights ...........................................428
Front interior light ..............................428
Rear interior light ...............................428
Interior lights list .................................... 427
Intrusion sensor and tilt sensor ........ 106
ISOFIX rigid anchors............................. 74
Jack
Positioning the jack .......................... 490
Vehicle-equipped jack........568, 581
Jack handle .................................. 568, 581
Jam protection function
Moon roof ............................................. 230
Power trunk lid ..................................... 182
Power window ....................................226
Rear door sunshade ........................ 470
Keyless entry ............................................149
Smart entry & start system ............. 149
Wireless remote control ................... 171
Keys............................................................. 140
Electronic key........................................ 140
Engine switch ....................................... 247
If the electronic key does not
operate properly ............................ 603
If you lose your keys ............... 143, 148
Key number plate ................................ 140
Keyless entry..................................149, 171
Mechanical key ...................................... 141
Power switch ........................................ 247
Replacing the battery ...................... 532
Warning buzzer................................... 154
Wireless remote control key........... 171
Knee airbags ............................................. 49
IJ
K

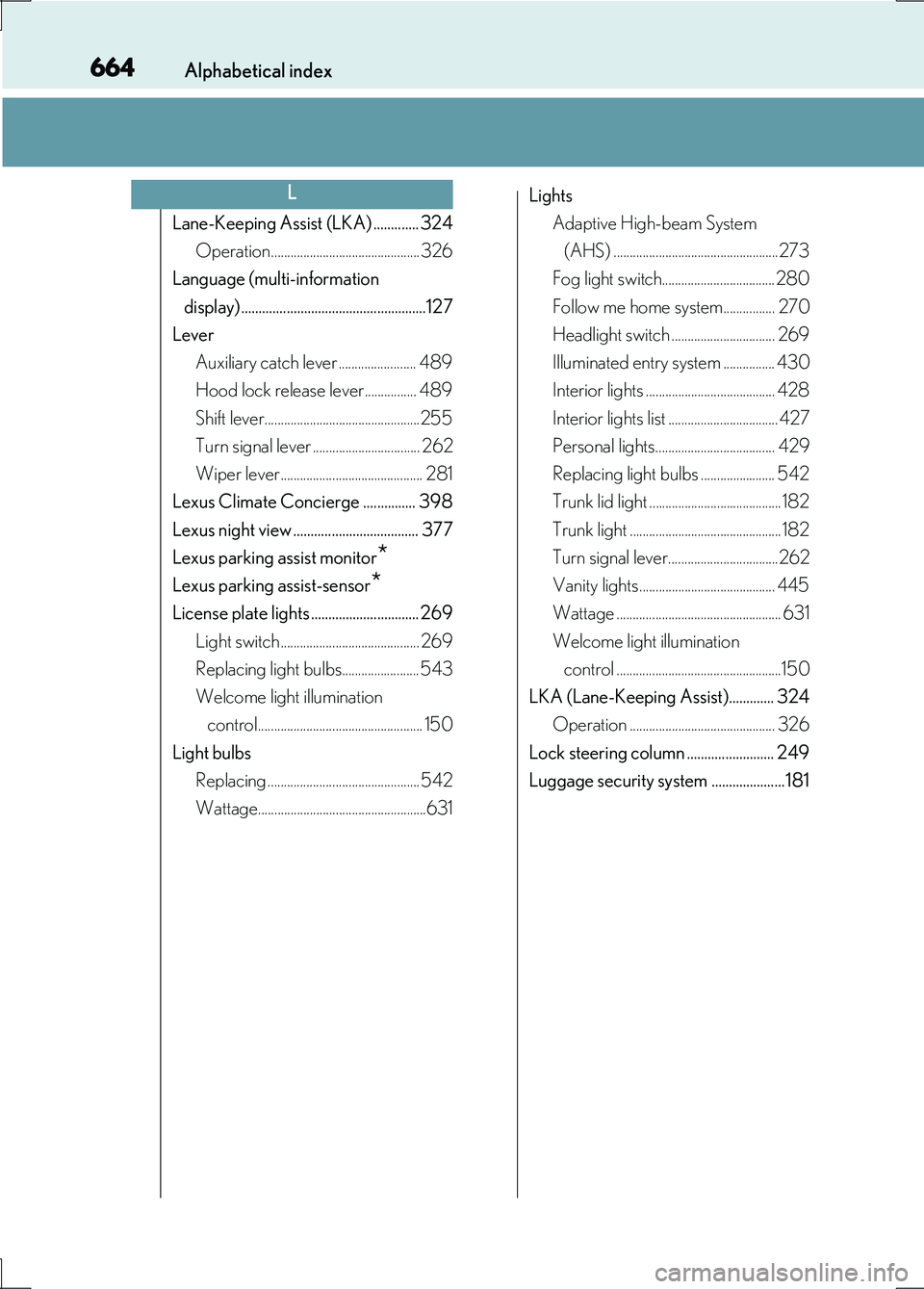

664Alphabetical index
LS600h/LS600hL_EE(OM50G20E)
Lane-Keeping Assist (LKA) ............. 324
Operation.............................................. 326
Language (multi-information
display) .....................................................127
Lever
Auxiliary catch lever ........................ 489
Hood lock release lever................ 489
Shift lever................................................255
Turn signal lever ................................. 262
Wiper lever............................................ 281
Lexus Climate Concierge ............... 398
Lexus night view .................................... 377
Lexus parking assist monitor*
Lexus parking assist-sensor*
License plate lights ............................... 269
Light switch ........................................... 269
Replacing light bulbs........................ 543
Welcome light illumination
control................................................... 150
Light bulbs
Replacing ............................................... 542
Wattage....................................................631
Lights
Adaptive High-beam System
(AHS) ...................................................273
Fog light switch................................... 280
Follow me home system................ 270
Headlight switch ................................ 269
Illuminated entry system ................ 430
Interior lights ........................................ 428
Interior lights list .................................. 427
Personal lights..................................... 429
Replacing light bulbs ....................... 542
Trunk lid light ......................................... 182
Trunk light ............................................... 182
Turn signal lever..................................262
Vanity lights.......................................... 445
Wattage ................................................... 631
Welcome light illumination
control ...................................................150
LKA (Lane-Keeping Assist)............. 324
Operation ............................................. 326
Lock steering column ......................... 249
Luggage security system ..................... 181
L

669Alphabetical index
LS600h/LS600hL_EE(OM50G20E)
Seats .................................................. 187, 194
Adjustment................................... 187, 194
Adjustment precautions ...... 192, 205
Child seats/child restraint
system installation ..............................74
Cleaning................................................ 480
Climate control seat .........................456
Driving position memory ............... 207
Head restraints...................................... 214
Pelvic support seat with
seat vibrator ....................................... 199
Power easy access system ............ 190
Properly sitting in the seat ................ 42
Rear seat position memory ............ 212
Rear seat relaxation system........... 201
Seat heaters .......................................... 457
Seat position memory ........... 207, 212
Sensor
Adaptive High-beam System
(AHS) ...................................................279
Automatic headlight system .......... 271
Camera sensors ................................ 349
Driver monitor sensor..................... 349
Inside rear view mirror ................... 220
Intrusion sensor and tilt sensor.....106
Lexus night view ................................. 377
LKA (Lane-Keeping Assist) .........324
Radar
sensor ............... 302, 317, 348, 370
Rain-sensing windshield
wipers .................................................. 282
Service plug ............................................... 89
Shift lever ................................................. 255
Hybrid transmission ......................... 255
If the shift lever cannot be
shifted from P................................... 259
Shift lever light ........................................427
Shift lock system ................................... 259
Shopping bag hooks ........................... 442
Side airbags ............................................... 50

672Alphabetical index
LS600h/LS600hL_EE(OM50G20E)
Rear sunshade switch...................... 464
Rear window and outside rear
view mirror defoggers
switch.................................................... 425
Seat heater switches ........................ 457
Snow mode switch ...........................258
Tilt and telescopic steering
control switch .................................... 218
Tire pressure warning reset
switch................................................... 509
Trunk closer switch.............................. 181
Trunk opener main switch ............... 181
Trunk opener switch ......................... 180
Vehicle-to-vehicle distance
button ........................................ 296, 310
VSC OFF switch ...............................340
Window lock switch......................... 225
Windshield wiper
and washer switch .......................... 281
Tachometer ............................................... 115
Tail lights................................................... 269
Light switch........................................... 269
Replacing light bulbs ....................... 543
Welcome light illumination
control ...................................................150
Theft deterrent system
Alarm ......................................................... 103
Double locking system ..................... 102
Immobilizer system ............................. 96
Intrusion sensor and tilt sensor.....106
Tire inflation pressure ......................... 525
Maintenance data ............................. 630
Tire inflation pressure display
function ................................................. 125
Warning light....................................... 559
Tire pressure warning system .........508
Function................................................. 508
Initializing .............................................. 508
Installing tire pressure warning
valves and transmitters .............. 508
Registering ID codes.........................510
Tire pressure warning reset
switch ...................................................509
Warning light....................................... 559
T
