TABLE OF CONTENTS2
LS600h/LS600hL_EE(OM50G20E)
For your information ...................................8
Reading this manual .................................. 12
How to search ............................................. 13
Pictorial index .............................................. 14
1-1. For safe use
Before driving .................................40
For safety drive............................... 42
Seat belts .......................................... 44
SRS airbags ..................................... 49
Airbag manual on-off
system .............................................. 61
Safety information for
children........................................... 63
Child restraint systems ............... 64
Installing child restraints ............. 74
Exhaust gas precautions ............84
1-2. Hybrid system
Hybrid system features.............. 85
Hybrid system precautions .......89
1-3. Theft deterrent system
Immobilizer system ...................... 96
Double locking system ............. 102
Alarm ............................................... 103
2. Instrument cluster
Warning lights and
indicators ...................................... 110
Gauges and meters .....................115
Multi-information display...........121
Energy monitor/
consumption screen ............... 130
3-1. Key information
Keys .................................................. 140
3-2. Opening, closing and
locking the doors
and trunk
Smart entry & start system ...... 149
Wireless remote control ............ 171
Doors ................................................176
Trunk ................................................180
3-3. Adjusting the seats
Front seats...................................... 187
Power rear seat ........................... 194
Driving position memory ........ 207
Rear seat position memory ..... 212
Head restraints............................. 214
3-4. Adjusting the steering
wheel and mirrors
Steering wheel ............................. 218
Inside rear view mirror.............. 219
Outside rear view mirrors ....... 221
1For safety and security
2Instrument cluster
3Operation of
each component

1041-3. Theft deterrent system
LS600h/LS600hL_EE(OM50G20E)

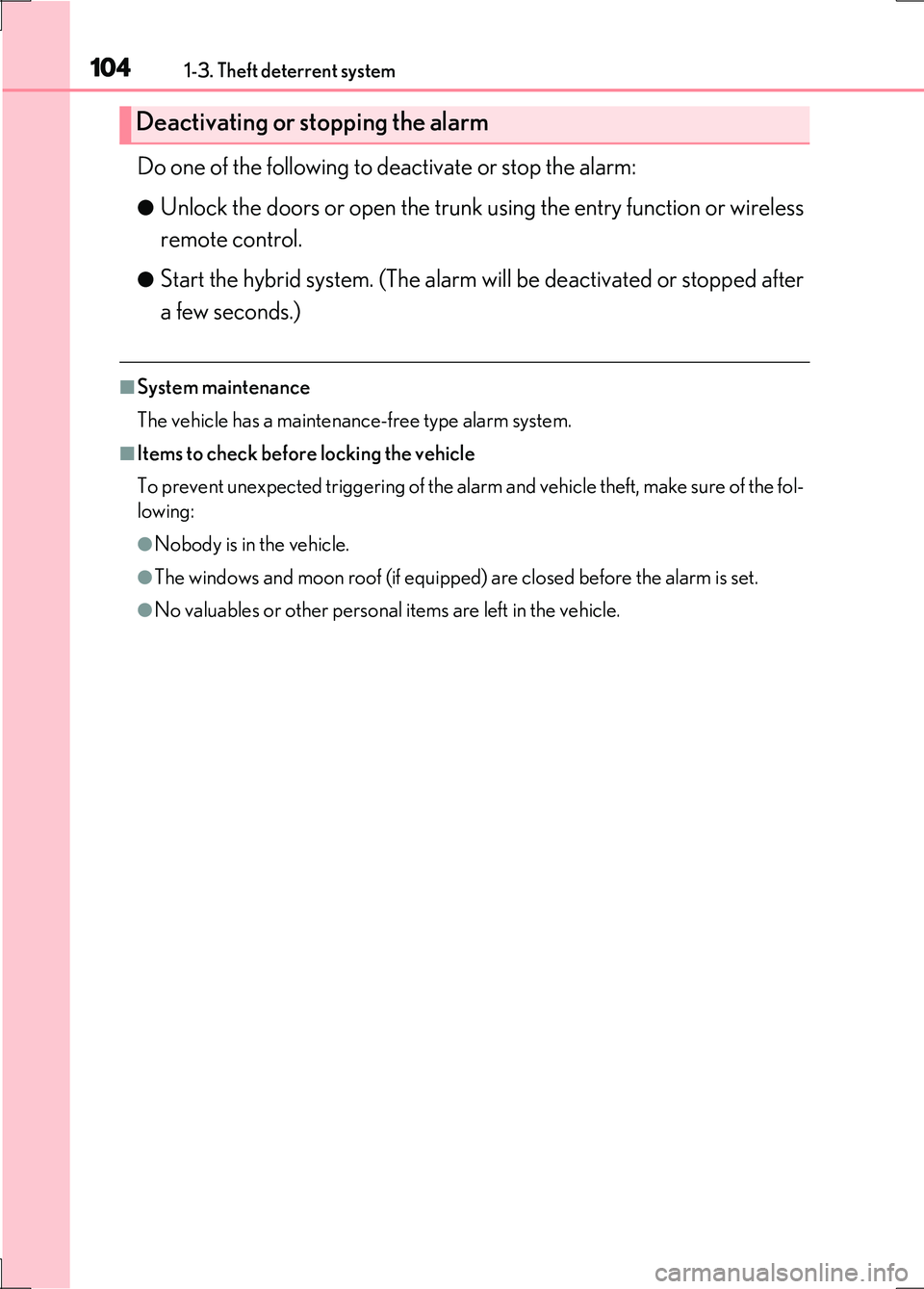

Do one of the following to deactivate or stop the alarm:
●Unlock the doors or open the trunk using the entry function or wireless
remote control.
●Start the hybrid system. (The alarm w ill be deactivated or stopped after
a few seconds.)
■System maintenance
The vehicle has a maintenance-free type alarm system.
■Items to check before locking the vehicle
To prevent unexpected triggering of the alarm and vehicle theft, make sure of the fol-
lowing:
●Nobody is in the vehicle.
●The windows and moon roof (if equipped) are closed before the alarm is set.
●No valuables or other personal items are left in the vehicle.
Deactivating or stopping the alarm

1332. Instrument cluster
2
Instrument cluster
LS600h/LS600hL_EE(OM50G20E)

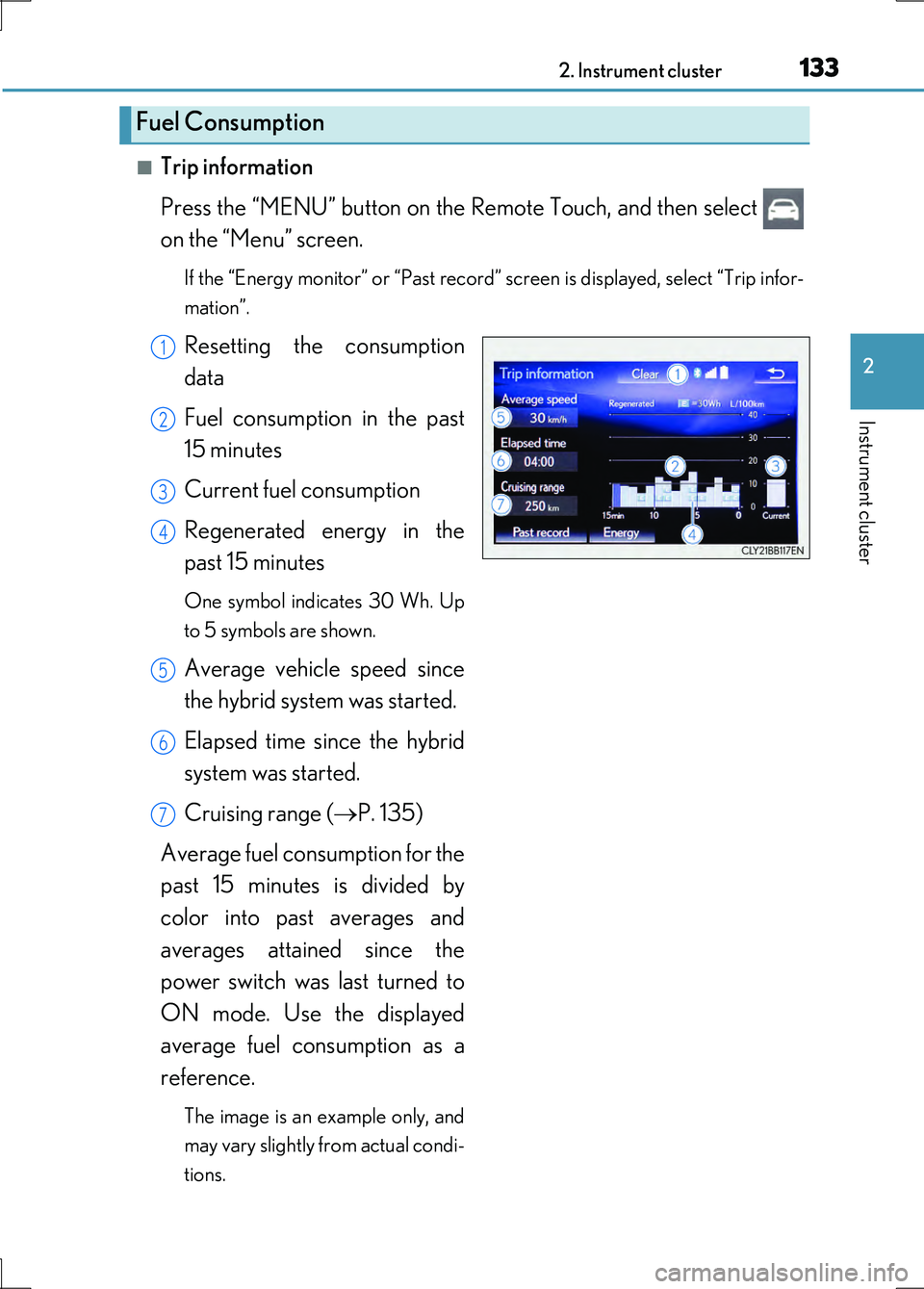

■Trip information
Press the “MENU” button on the Remote Touch, and then select
on the “Menu” screen.
If the “Energy monitor” or “Past record” screen is displayed, select “Trip infor-
mation”.
Resetting the consumption
data
Fuel consumption in the past
15 minutes
Current fuel consumption
Regenerated energy in the
past 15 minutes
One symbol indicates 30 Wh. Up
to 5 symbols are shown.
Average vehicle speed since
the hybrid system was started.
Elapsed time since the hybrid
system was started.
Cruising range ( P. 135)
Average fuel consumption for the
past 15 minutes is divided by
color into past averages and
averages attained since the
power switch was last turned to
ON mode. Use the displayed
average fuel consumption as a
reference.
The image is an example only, and
may vary slightly from actual condi-
tions.
Fuel Consumption
1
2
3
4
5
6
7

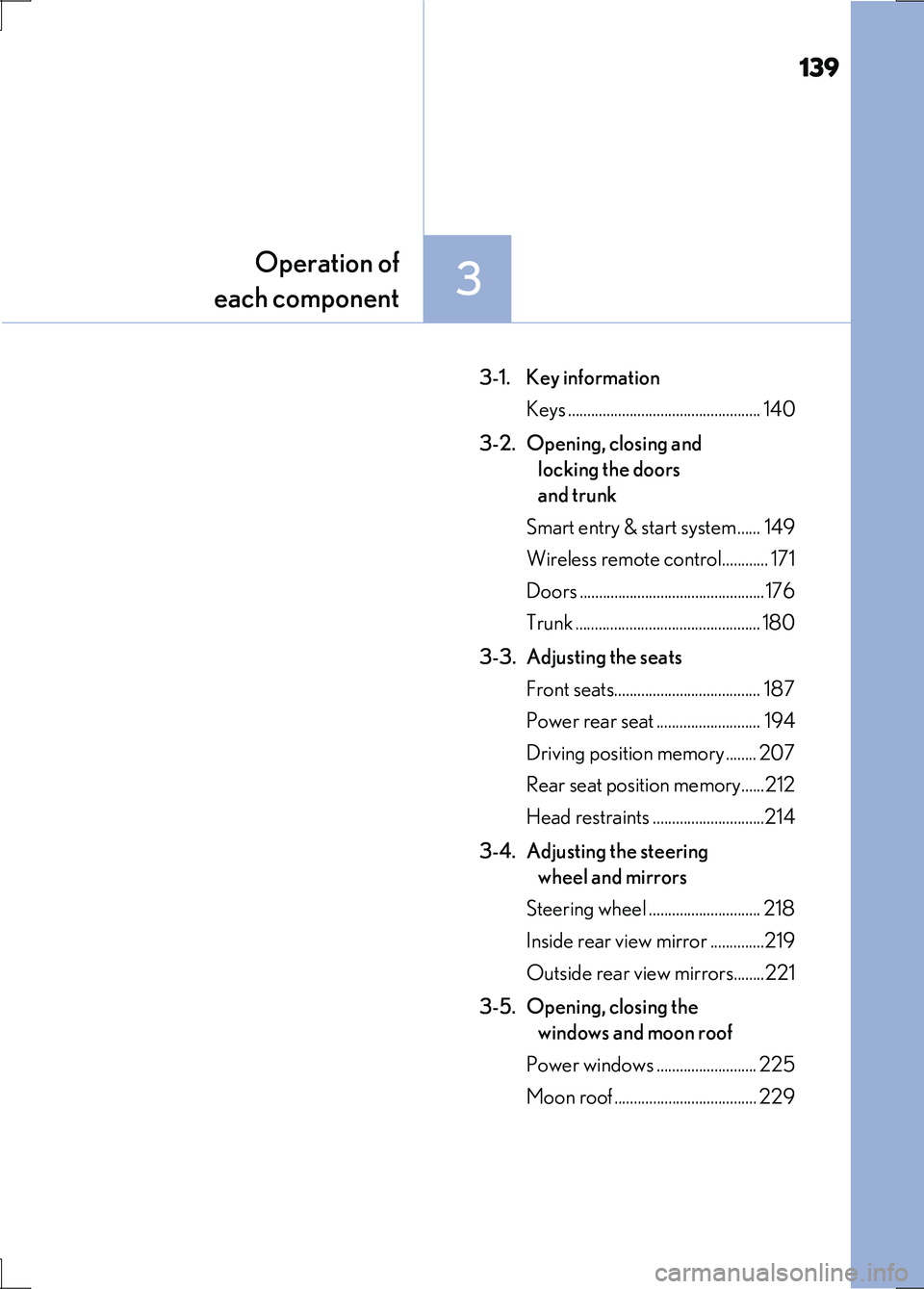

139
3
Operation of
each component
LS600h/LS600hL_EE(OM50G20E)
3-1. Key information
Keys .................................................. 140
3-2. Opening, closing and
locking the doors
and trunk
Smart entry & start system ...... 149
Wireless remote control............ 171
Doors ................................................176
Trunk ................................................ 180
3-3. Adjusting the seats
Front seats...................................... 187
Power rear seat ........................... 194
Driving position memory ........ 207
Rear seat position memory......212
Head restraints .............................214
3-4. Adjusting the steering
wheel and mirrors
Steering wheel ............................. 218
Inside rear view mirror ..............219
Outside rear view mirrors........221
3-5. Opening, closing the
windows and moon roof
Power windows .......................... 225
Moon roof ..................................... 229

140
LS600h/LS600hL_EE(OM50G20E)
3-1. Key information

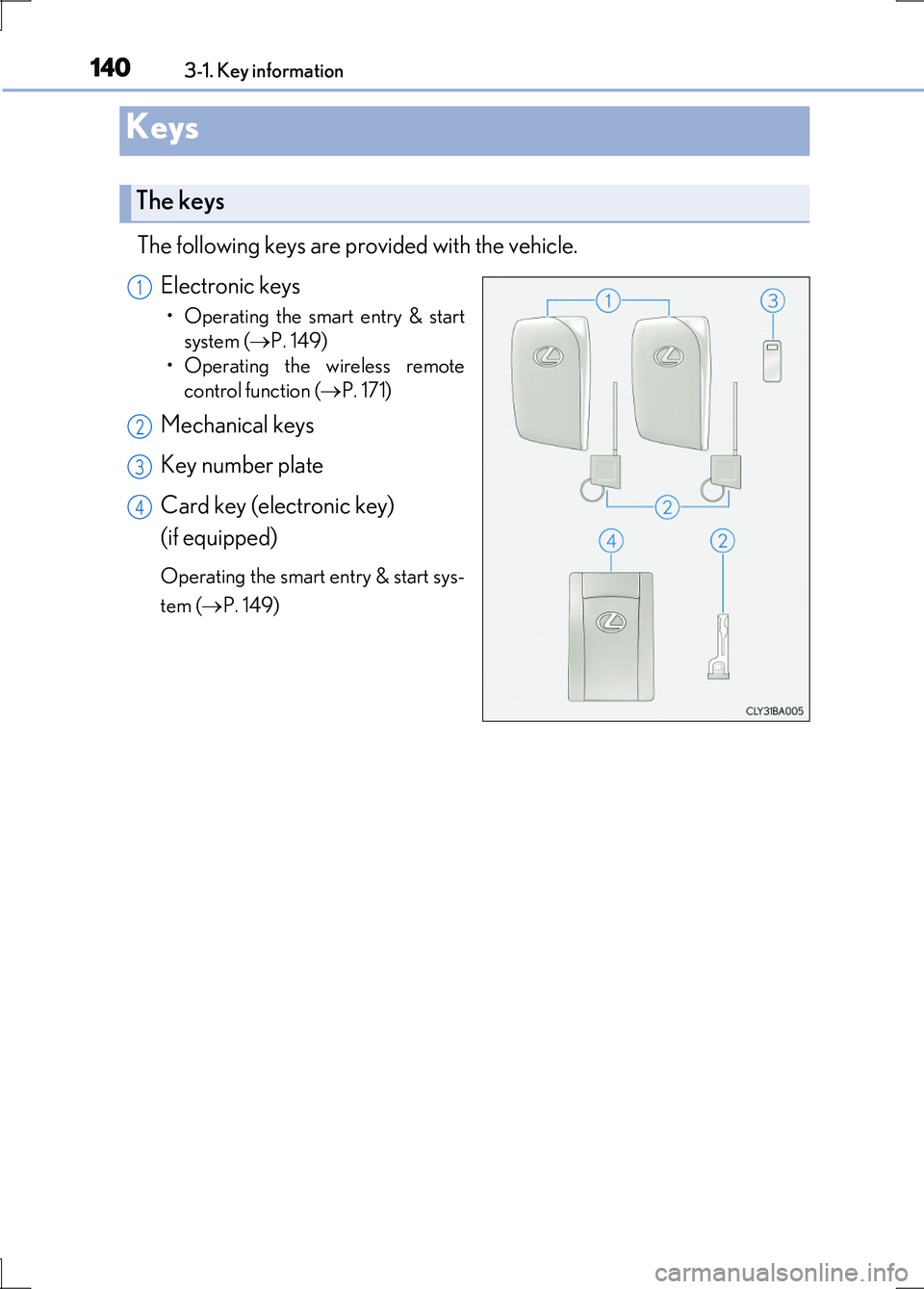

The following keys are provided with the vehicle.
Electronic keys
• Operating the smart entry & start
system ( P. 149)
• Operating the wireless remote
control function ( P. 171)
Mechanical keys
Key number plate
Card key (electronic key)
(if equipped)
Operating the smart entry & start sys-
tem ( P. 149)
Keys
The keys
1
2
3
4

1593-2. Opening, closing and locking the doors and trunk
3
Operation of each component
LS600h/LS600hL_EE(OM50G20E)

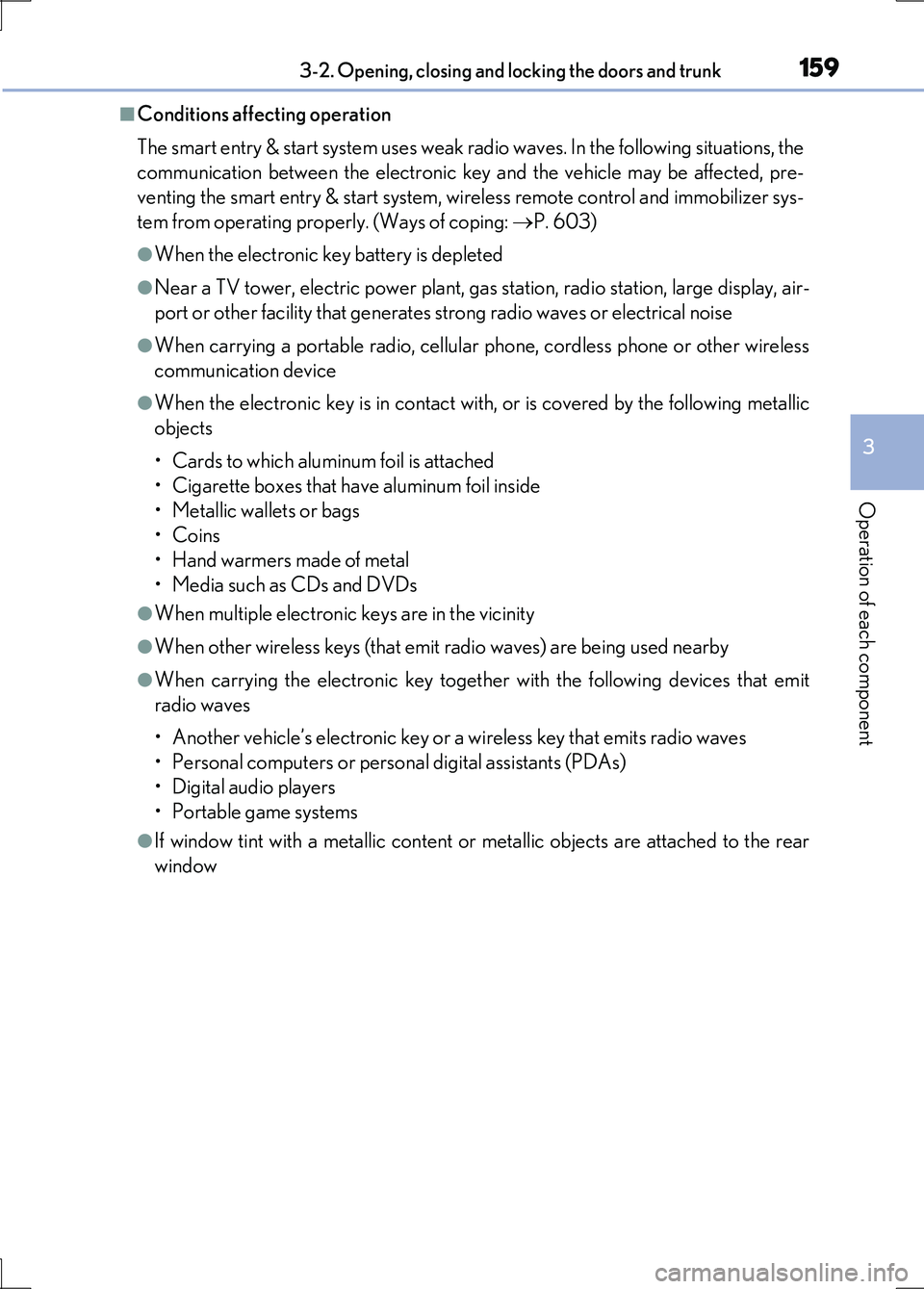

■Conditions affecting operation
The smart entry & start system uses weak radio waves. In the following situations, the
communication between the electronic key and the vehicle may be affected, pre-
venting the smart entry & start system, wi reless remote control and immobilizer sys-
tem from operating properly. (Ways of coping: P. 603)
●When the electronic key battery is depleted
●Near a TV tower, electric power plant, gas station, radio station, large display, air-
port or other facility that generates strong radio waves or electrical noise
●When carrying a portable radio, cellular phone, cordless phone or other wireless
communication device
●When the electronic key is in contact with, or is covered by the following metallic
objects
• Cards to which aluminum foil is attached
• Cigarette boxes that have aluminum foil inside
• Metallic wallets or bags
•Coins
• Hand warmers made of metal
• Media such as CDs and DVDs
●When multiple electronic keys are in the vicinity
●When other wireless keys (that emit radio waves) are being used nearby
●When carrying the electronic key together with the following devices that emit
radio waves
• Another vehicle’s electronic key or a wireless key that emits radio waves
• Personal computers or personal digital assistants (PDAs)
• Digital audio players
• Portable game systems
●If window tint with a metallic content or metallic objects are attached to the rear
window

1603-2. Opening, closing and locking the doors and trunk
LS600h/LS600hL_EE(OM50G20E)

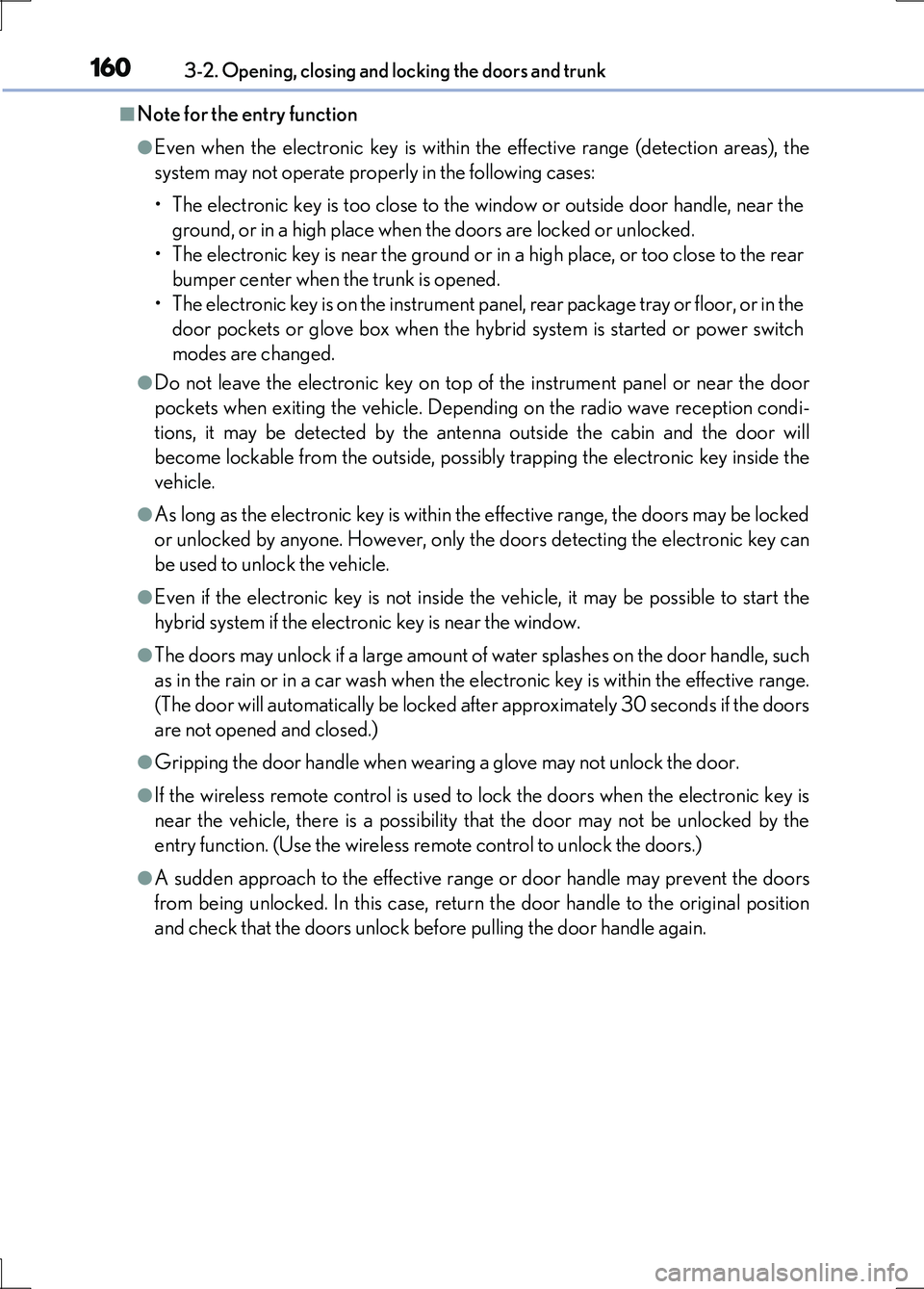

■Note for the entry function
●Even when the electronic key is within the effective range (detection areas), the
system may not operate properly in the following cases:
• The electronic key is too close to the window or outside door handle, near the
ground, or in a high place when the doors are locked or unlocked.
• The electronic key is near the ground or in a high place, or too close to the rear
bumper center when the trunk is opened.
• The electronic key is on the instrument panel, rear package tray or floor, or in the
door pockets or glove box when the hybrid system is started or power switch
modes are changed.
●Do not leave the electronic key on top of the instrument panel or near the door
pockets when exiting the vehicle. Depending on the radio wave reception condi-
tions, it may be detected by the antenna outside the cabin and the door will
become lockable from the outside, possibly trapping the electronic key inside the
vehicle.
●As long as the electronic key is within the effective range, the doors may be locked
or unlocked by anyone. However, only th e doors detecting the electronic key can
be used to unlock the vehicle.
●Even if the electronic key is not inside the vehicle, it may be possible to start the
hybrid system if the electronic key is near the window.
●The doors may unlock if a large amount of water splashes on the door handle, such
as in the rain or in a car wash when the electronic key is within the effective range.
(The door will automatically be locked after approximately 30 seconds if the doors
are not opened and closed.)
●Gripping the door handle when wearing a glove may not unlock the door.
●If the wireless remote control is used to lock the doors when the electronic key is
near the vehicle, there is a possibility that the door may not be unlocked by the
entry function. (Use the wireless remote control to unlock the doors.)
●A sudden approach to the effective range or door handle may prevent the doors
from being unlocked. In this case, return the door handle to the original position
and check that the doors unlock before pulling the door handle again.

1623-2. Opening, closing and locking the doors and trunk
LS600h/LS600hL_EE(OM50G20E)

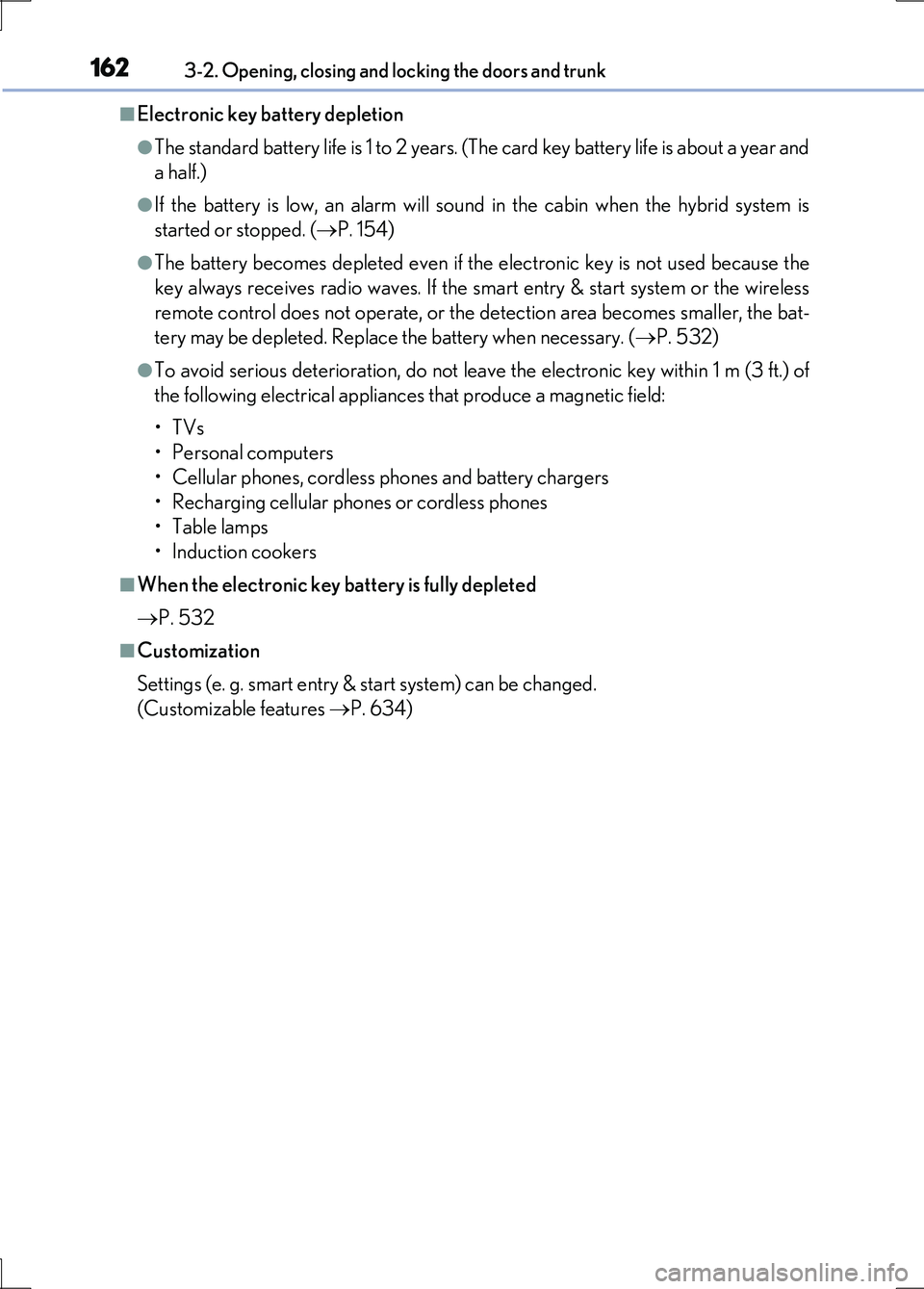

■Electronic key battery depletion
●The standard battery life is 1 to 2 years. (The card key battery life is about a year and
a half.)
●If the battery is low, an alarm will sound in the cabin when the hybrid system is
started or stopped. ( P. 154)
●The battery becomes depleted even if the electronic key is not used because the
key always receives radio waves. If the smart entry & start system or the wireless
remote control does not operate, or the detection area becomes smaller, the bat-
tery may be depleted. Replace the battery when necessary. ( P. 532)
●To avoid serious deterioration, do not leave the electronic key within 1 m (3 ft.) of
the following electrical appliances that produce a magnetic field:
•TVs
• Personal computers
• Cellular phones, cordless phones and battery chargers
• Recharging cellular phones or cordless phones
• Table lamps
• Induction cookers
■When the electronic key battery is fully depleted
 P. 532
■Customization
Settings (e. g. smart entry & start system) can be changed.
(Customizable features P. 634)

2103-3. Adjusting the seats
LS600h/LS600hL_EE(OM50G20E)

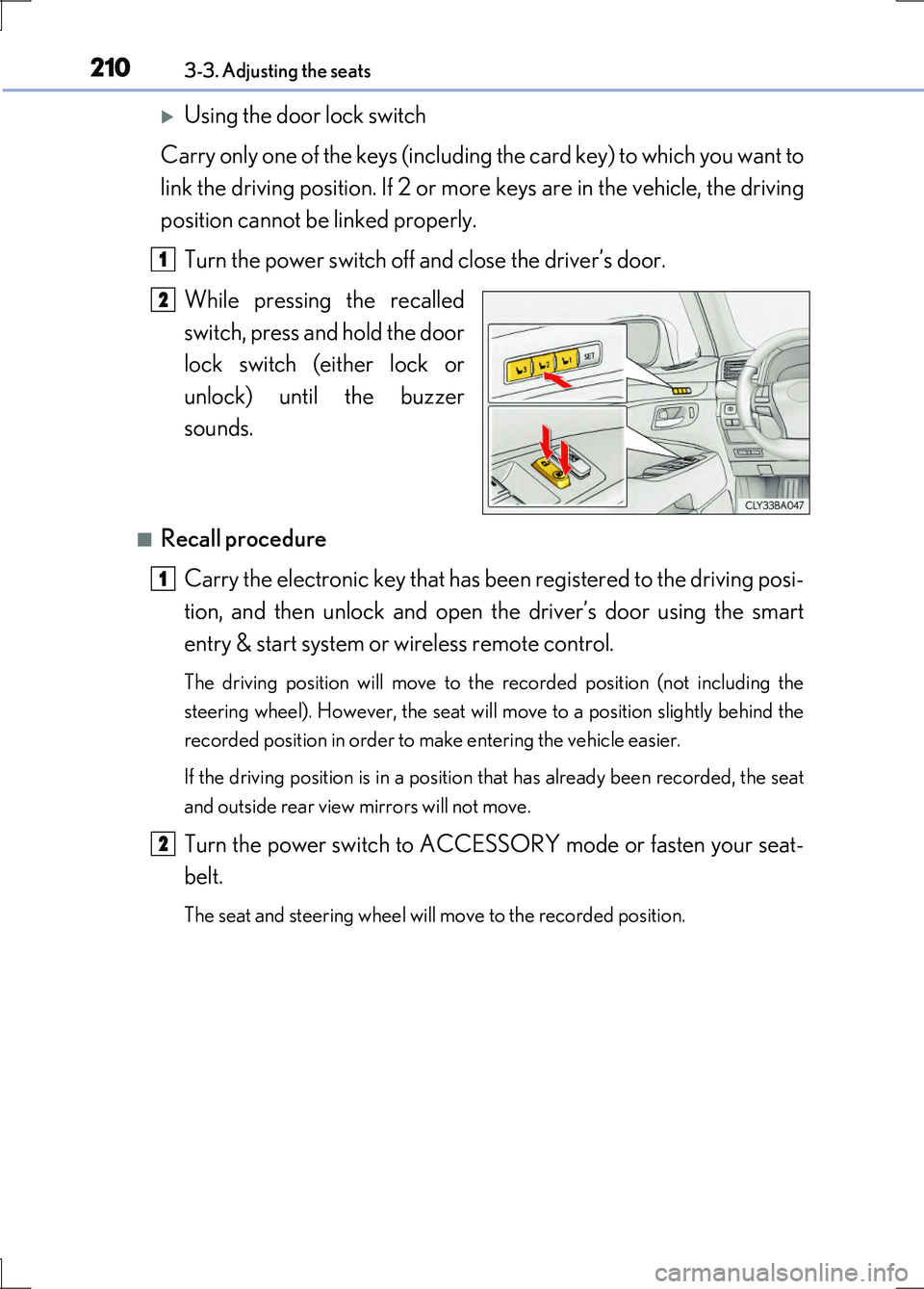

Using the door lock switch
Carry only one of the keys (including the card key) to which you want to
link the driving position. If 2 or more keys are in the vehicle, the driving
position cannot be linked properly.
Turn the power switch off and close the driver’s door.
While pressing the recalled
switch, press and hold the door
lock switch (either lock or
unlock) until the buzzer
sounds.
■Recall procedure
Carry the electronic key that has be en registered to the driving posi-
tion, and then unlock and open the driver’s door using the smart
entry & start system or wireless remote control.
The driving position will move to the recorded position (not including the
steering wheel). However, the seat will move to a position slightly behind the
recorded position in order to make entering the vehicle easier.
If the driving position is in a position that has already been recorded, the seat
and outside rear view mirrors will not move.
Turn the power switch to ACCESSORY mode or fasten your seat-
belt.
The seat and steering wheel will move to the recorded position.
1
2
1
2

2113-3. Adjusting the seats
3
Operation of each component
LS600h/LS600hL_EE(OM50G20E)

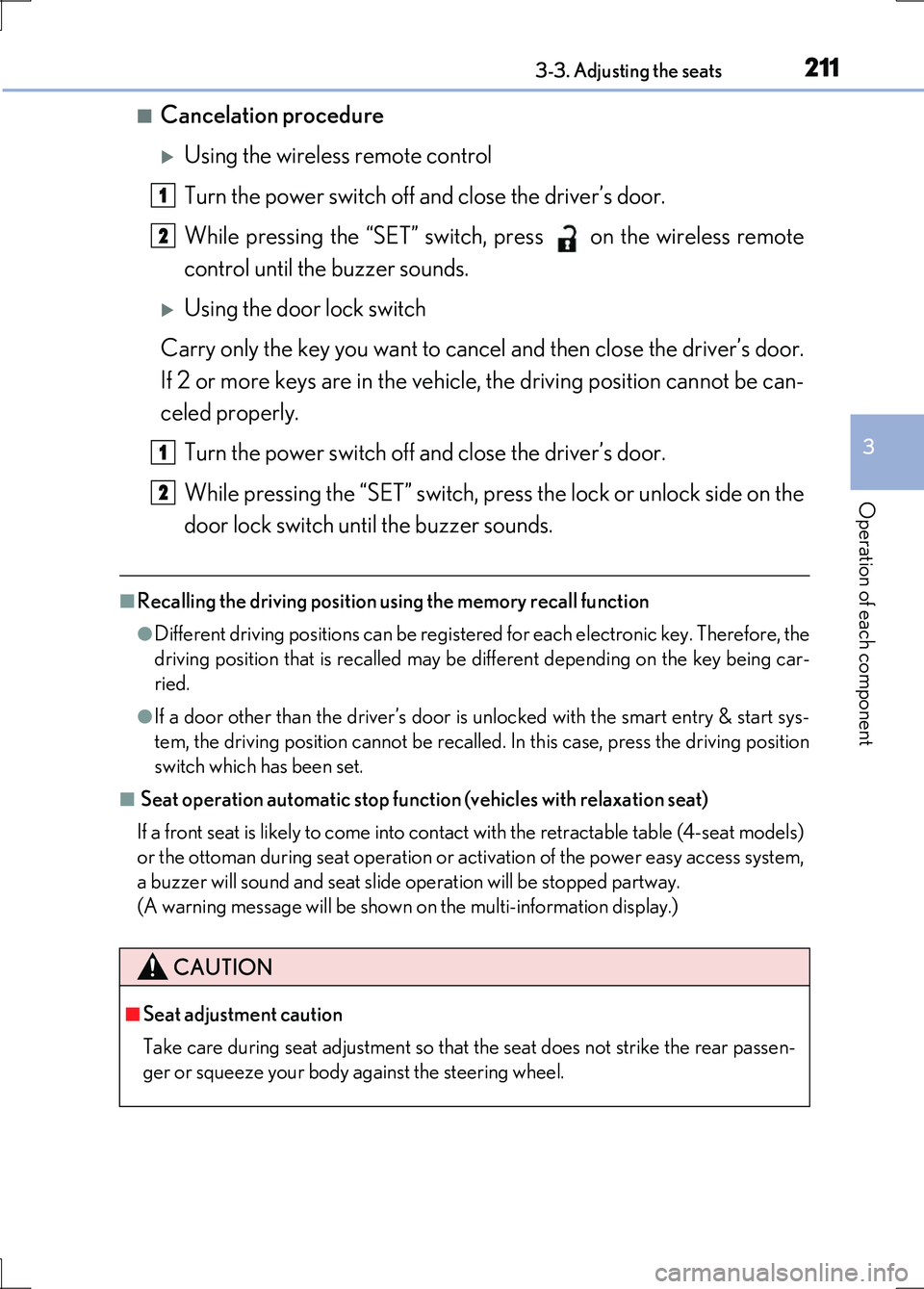

■Cancelation procedure
Using the wireless remote control
Turn the power switch off and close the driver’s door.
While pressing the “SET” switch, press on the wireless remote
control until the buzzer sounds.
Using the door lock switch
Carry only the key you want to cancel and then close the driver’s door.
If 2 or more keys are in the vehicl e, the driving position cannot be can-
celed properly.
Turn the power switch off and close the driver’s door.
While pressing the “SET” switch, press the lock or unlock side on the
door lock switch until the buzzer sounds.
■Recalling the driving position using the memory recall function
●Different driving positions can be registered for each electronic key. Therefore, the
driving position that is recalled may be different depending on the key being car-
ried.
●If a door other than the driver’s door is unlocked with the smart entry & start sys-
tem, the driving position cannot be recalled. In this case, press the driving position
switch which has been set.
■ Seat operation automatic stop function (vehicles with relaxation seat)
If a front seat is likely to come into contact with the retractable table (4-seat models)
or the ottoman during seat operation or activation of the power easy access system,
a buzzer will sound and seat slide operation will be stopped partway.
(A warning message will be shown on the multi-information display.)
CAUTION
■Seat adjustment caution
Take care during seat adjustment so that the seat does not strike the rear passen-
ger or squeeze your body against the steering wheel.
1
2
1
2
