LEXUS LX570 2014 Owners Manual

4513-2. Using the air conditio ning system and defogger
3
Interior features
LX570_OM_OM60L21U_(U) Outside temperature display
Outside temperature is displayed in the screen.
The displayed temperature ranges from -40  F (-40  C) up to 122  F
(50  C).
■
The outside temperature is displayed when
The “ENGINE START STOP” switch is in IGNITION ON mode. ■
When “— —” or “E” is displayed
The system may be malfunctioning. Take your vehicle to your Lexus dealer■
Display
In the following situations, the correct outside temperature may not be displayed, or
the display may take longer than normal to change. ●
When stopped, or driving at low speeds (less than 12 mph [20 km/h]) ●
When the outside temperature has changed suddenly (at the entrance/exit of a
garage, tunnel, etc.)

4523-2. Using the air conditio ning system and defogger
LX570_OM_OM60L21U_(U) Rear air conditioning system Airflow and outlets are automatically adjusted according to the tempera-
ture setting. Left side temperature control
Automatic mode
Fan speed OffLeft side temperature setting display Fan speed display Airflow display
Right side temperature controlRight side temperature setting display
Changes the air outlets used

4533-2. Using the air conditio ning system and defogger
3
Interior features
LX570_OM_OM60L21U_(U) Using the automatic mode
Press the “AUTO” button.
The air conditioning system will begin to operate. Air outlets
and fan speed are automatically adjusted according to the
temperature setting.
Press “  ” on the “TEMP” button to in crease the temperature and
“  ” to decrease the temperature. The temperature for the right-hand an d left-hand rear seats can be set
separately.
Adjusting the settings
■ Adjusting the temperature setting
Press “  ” on the “TEMP” button to increase the temperature and “  ”
to decrease the temperature. The temperature for the right-hand and left-hand rear seats can be set sep-
arately.
■ Adjusting the fan speed
Press “  ” (increase) or “  ”  (decrease) on .The fan speed is shown on the display. (7 levels)
Press to turn the fan off.
■ Changing the air outlets
Press the “MODE” button. The air outlets switch each time the button is pressed. STEP 1
STEP 2

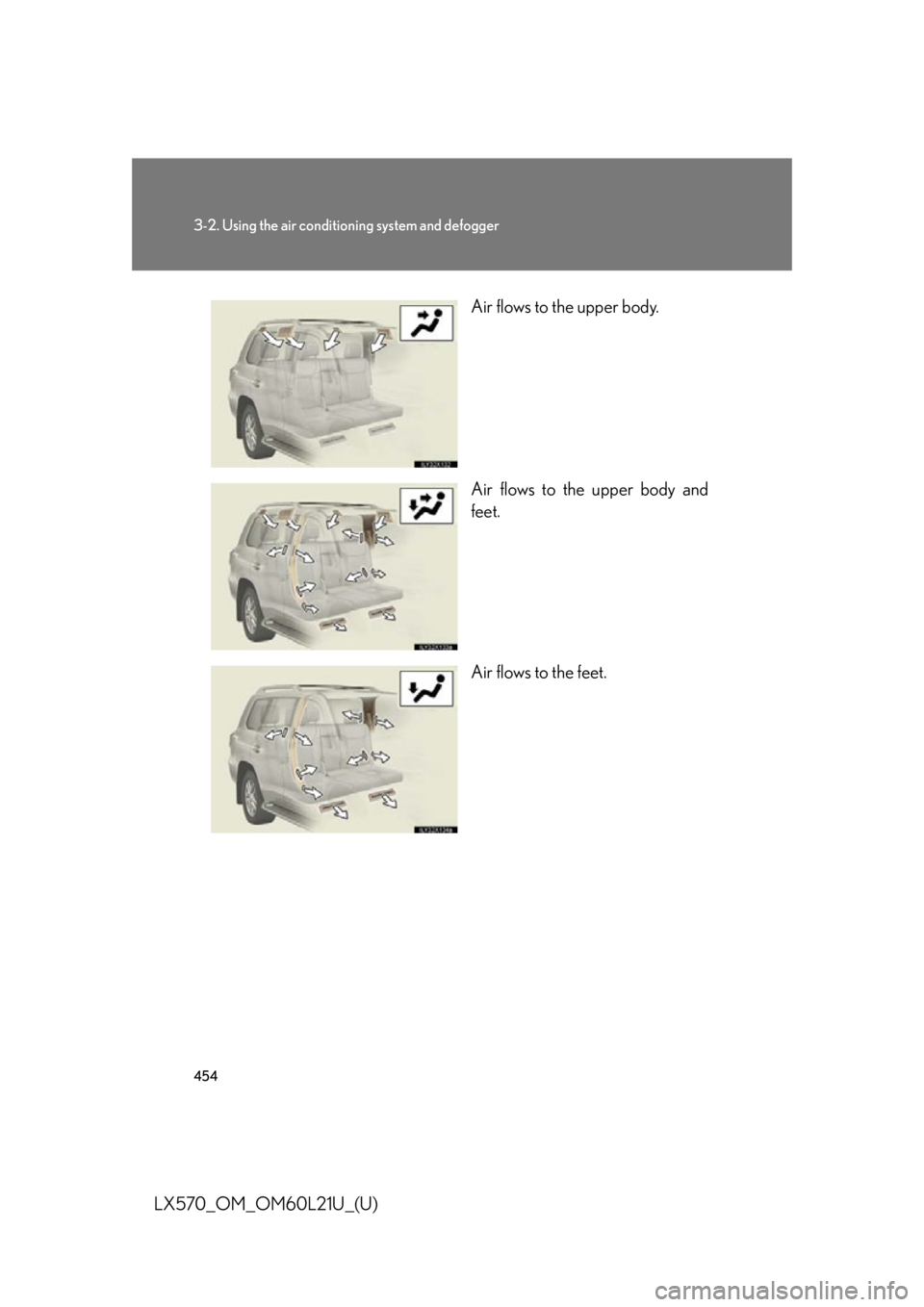

4543-2. Using the air conditio ning system and defogger
LX570_OM_OM60L21U_(U) Air flows to the upper body.
Air flows to the upper body and
feet.
Air flows to the feet.

4553-2. Using the air conditio ning system and defogger
3
Interior features
LX570_OM_OM60L21U_(U) Adjusting the position and opening and closing the air outlets
Direct air flow to the left or right,
up or down.
Turn the knob fully to the back of
the vehicle to close the vent.
NOTICE■
To prevent battery discharge
Do not leave the air conditioning system on longer than necessary when the engine
is stopped.

4563-2. Using the air conditio ning system and defogger
LX570_OM_OM60L21U_(U) Rear window and outside rear view mirror defoggers ■
The rear window and outside rear view mirror defoggers can be operated when
The “ENGINE START STOP” switch is in IGNITION ON mode.
CAUTION■
When the outside rear view mirror defoggers are on
Do not touch the rear view mirror surfac es, as they can become very hot and burn
you.These features are used to defog the rear window, and to remove rain-
drops, dew and frost from the outside rear view mirrors.
On/off The operation time changes
according to the ambient tem-
perature and vehicle speed.
Pressing the button again also
turns the defoggers off.

4573-2. Using the air conditio ning system and defogger
3
Interior features
LX570_OM_OM60L21U_(U) Windshield wiper de-icer
■
The windshield wiper de-icer can be operated when
The “ENGINE START STOP” switch is in IGNITION ON mode.
CAUTION■
When the windshield wiper de-icer is on
Do not touch the glass at the lower part of the windshield or the side of the front pil-
lars as the surfaces can become very hot and burn you.This feature is used to prevent ice fr om building up on the windshield and
wiper blades.
Press the “CLIMATE” button.
On/off The windshield wiper de-icer
will automatically turn off after
approximately 15 minutes.
Touching the switch again also
turns the de-icer off.STEP 1
STEP 2

458
LX570_OM_OM60L21U_(U) 3-3. Using the audio system
Audio system type CD and DVD player with AM/FM radio
Press “AUDIO” and touch each tab to display the audio control screen.

4593-3. Using the audio system
3
Interior features
LX570_OM_OM60L21U_(U) Ti t l e Pa g e
Using the radio P. 4 8 3
Using the CD/DVD player P. 5 0 3
Playing an audio CD and MP3/WMA discs P. 5 0 5
Playing DVD video P. 5 1 1
CD/DVD player and DVD video disc information P. 5 2 5
Listening to Bluetooth ®
audio P. 5 3 7
Listening to a USB memory P. 5 4 8
Listening to an iPod P. 5 5 8
Optimal use of the audio/video system P. 5 6 8
Using the AUX port P. 5 7 0
Using the steering wheel audio switches P. 5 7 2

4603-3. Using the audio system
LX570_OM_OM60L21U_(U) Using the voice command system
Press or to operate
the voice command system.
(  P. 429/“Navigation System
Owner’s Manual”)
Without dynamic radar cruise
control
With dynamic radar cruise con-
trol A
B
■
Using cellular phones
Interference may be heard through the audio system’s speakers if a cellular phone is
being used inside or close to the vehi cle while the audio system is operating.■
When using the touch screen
Dimmed screen buttons cannot be operated. ■
Ta b
Touch or , located either side of the screen tabs, to display tabs from the pre-
vious or next page. ■
About Dolby
Manufactured under license from Dolby Laboratories. Dolby and the double-D
symbol are trademarks of Dolby Laboratories.
