6853-6. Using the interior lights
3
Interior features
LX570_OM_OM60L21U_(U) Luggage compartment light
Off
Door position■
Illuminated entry system
The lights automatically turn on/off according to “ENGINE START STOP” switch
mode, the presence of the electronic key, whether the doors are locked/unlocked,
and whether the doors are open/closed. ■
To prevent battery discharge
If the interior lights remain on when the “ENGINE START STOP” switch is turned
off, the lights will go off automatically after 20 minutes. ■
Customization
Settings (e.g. Time period before the inte rior lights turn off.) can be changed.
(Customizable features  P. 9 0 6 ) Luggage compartment light

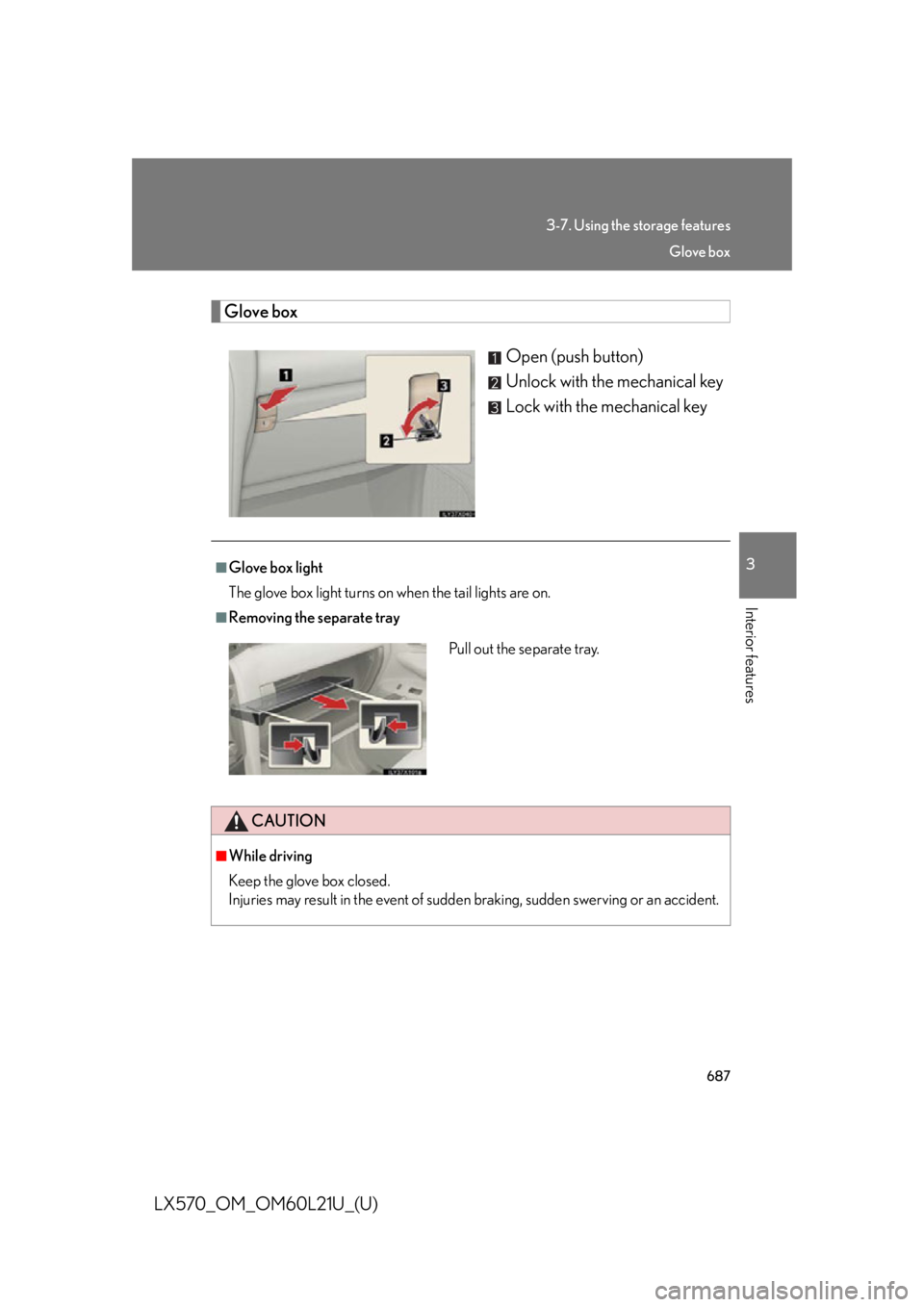

6873-7. Using the storage features
3
Interior features
LX570_OM_OM60L21U_(U) Glove box
Open (push button)
Unlock with the mechanical key
Lock with the mechanical key■
Glove box light
The glove box light turns on when the tail lights are on. ■
Removing the separate tray
CAUTION■
While driving
Keep the glove box closed.
Injuries may result in the event of sudden braking, sudden swerving or an accident.Pull out the separate tray. Glove box

Maintenance and care
4
729
LX570_OM_OM60L21U_(U) 4-1. Maintenance and care
Cleaning and protecting
the vehicle exterior ............ 730
Cleaning and protecting
the vehicle interior ............. 733
4-2. Maintenance
Maintenance
requirements........................ 736
General maintenance .......... 739
Emission inspection and
maintenance (I/M)
programs ................................ 742
4-3. Do-it-yourself maintenance
Do-it-yourself service
precautions ............................ 743
Hood ........................................... 746
Engine compartment ............ 747
Tires............................................. 762
Tire inflation pressure............. 771
Wheels ....................................... 775
Air conditioning filter ............ 777
Electronic key battery.......... 780
Checking and replacing
fuses ........................................ 782
Light bulbs ................................ 799

7804-3. Do-it-yourself maintenance
LX570_OM_OM60L21U_(U) Electronic key battery Replace the battery with a new one if it is discharged.
■ You will need the following items:
● Flathead screwdriver (To prevent damage to the key, cover the tip
of the screwdriver with rag.)
● Small Phillips-head sc rewdriver
● Lithium battery (CR1632)
■ Replacing the battery
Take out the mechanical key
(  P. 31).
Remove the cover.
Remove the depleted battery. Insert a new battery with the “+”
terminal facing up.STEP 1
STEP 2
STEP 3

7814-3. Do-it-yourself maintenance
4
Maintenance and care
LX570_OM_OM60L21U_(U) ■
If the electronic key battery is discharged
The following symptoms may occur. ●
The smart access system with push-button start and wireless remote control will
not function properly. ●
The operational range is reduced.■
Use a CR1632 lithium battery ●
Batteries can be purchased at your Lexus dealer, jewelers, or camera stores.●
Replace only with the same or equivalent type recommended by your Lexus
dealer. ●
Dispose of used batteries according to the local laws.■
When the card key battery needs to be replaced
The battery for the card key is available only at Lexus dealer. Your Lexus dealer can
replace the battery for you.
CAUTION■
Removed battery and other parts
These parts are small and if swallowed by a child, they can cause choking. Keep
away from children. Failure to do so could result in death or serious injury.
NOTICE■
For normal operation after replacing the battery
Observe the following precautions to prevent accidents. ●
Always work with dry hands.
Moisture may cause the battery to rust. ●
Do not touch or move any other comp onents inside the electronic key.●
Do not bend the battery terminals.

When trouble arises
5
811
LX570_OM_OM60L21U_(U) 5-1. Essential information
Emergency flashers................ 812
If your vehicle needs to be
towed ....................................... 813
If you think something is
wrong ....................................... 819
Fuel pump shut off
system .................................... 820 5-2. Steps to take in an
emergency
If a warning light turns on
or a warning buzzer
sounds... .................................. 821
If a warning message is
displayed................................ 832
If you have a flat tire............... 849
If the engine will not
start ......................................... 863
If the shift lever cannot be
shifted from “P”.................... 865
If you lose your keys .............. 866
If the electronic key does
not operate properly.......... 867
If the battery is
discharged ............................ 870
If your vehicle overheats ..... 873
If the vehicle becomes
stuck......................................... 876
If your vehicle has to be
stopped in an
emergency ............................ 878

8425-2. Steps to take in an emergency
LX570_OM_OM60L21U_(U) Have the malfunction repaired immediately.
After taking the specified steps to co rrect the suspected problem, check
that the warning message and light go off. Interior
buzzer Exterior
buzzerWa r n i n g m e s s a g e Details Correction
procedure
Once
3 times
(Flashes) The electronic key
was carried out-
side the vehicle
and a door other
than the driver’s
door was opened
and closed while
the “ENGINE
START STOP”
switch was in a
mode other than
off. Bring the elec-
tronic key back
into the vehicle.
The driver’s door
was opened and
closed while the
electronic key was
not in the vehicle,
the shift lever was
in “P” and the
“ENGINE START
STOP” switch was
not turned off. Tu r n t h e
“ENGINE START
STOP” switch off
or bring the elec-
tronic key back
into the vehicle.

5
When trouble arises
8435-2. Steps to take in an emergency
LX570_OM_OM60L21U_(U) * : If the engine does not start when the electronic key is inside the vehicle, the
electronic key battery may be depleted or there may be difficulty receiving sig-
nal from the key. (  P. 8 6 7 )Interior
buzzer Exterior
buzzerWa r n i n g m e s s a g e Details Correction
procedure
Once 
(Flashes) An attempt was
made to start the
engine without
the electronic key
being present, or
the electronic key
was not function-
ing normally.
An attempt was
made to drive
when the regular
key was not inside
the vehicle. Start the engine
with the elec-
tronic key
present
* .

8445-2. Steps to take in an emergency
LX570_OM_OM60L21U_(U) Interior
buzzer Exterior
buzzerWa r n i n g m e s s a g e Details Correction
procedure
Con-
tinuous 
(Flashes) The driver’s door
was opened when
the shift lever was
not in “P” and the
“ENGINE START
STOP” switch was
not turned off. Shift the shift lever
to “P”.
Con-
tinuous Con-
tinuous
(Displayed alternately)
(Flashes) The driver’s door
was opened and
closed while the
electronic key was
not in the vehicle,
the shift lever was
not in “P” and the
“ENGINE START
STOP” switch was
not turned off. • Shift the shift
lever to “P”.
• Bring the elec-
tronic key back
into the vehicle.

5
When trouble arises
8455-2. Steps to take in an emergency
LX570_OM_OM60L21U_(U) Once 
(Flashes) •When the doors
were unlocked
with the
mechanical key
and then the
“ENGINE
START STOP”
switch was
pressed, the
electronic key
could not be
detected in the
vehicle.
• The electronic
key could not be
detected in the
vehicle even
after the
“ENGINE
START STOP”
switch was
pressed two
consecutive
times. Touch the elec-
tronic key to the
“ENGINE START
STOP” switch
while depressing
the brake pedal.Interior
buzzer Exterior
buzzerWa r n i n g m e s s a g e Details Correction
procedure
