7093-8. Other interior features
3
Interior features
LX570_OM_OM60L21U_(U) Assist grips
CAUTION■
Assist grip (Type A)
Do not use the assist grip (Type A) when getting in or out of the vehicle or rising
from your seat.
NOTICE■
To prevent damage of the assist grip
Do not hang any heavy object or put a heavy load on the assist grip.An assist grip (Type A) installed on the ceiling can be used to support your
body while sitting on the seat.

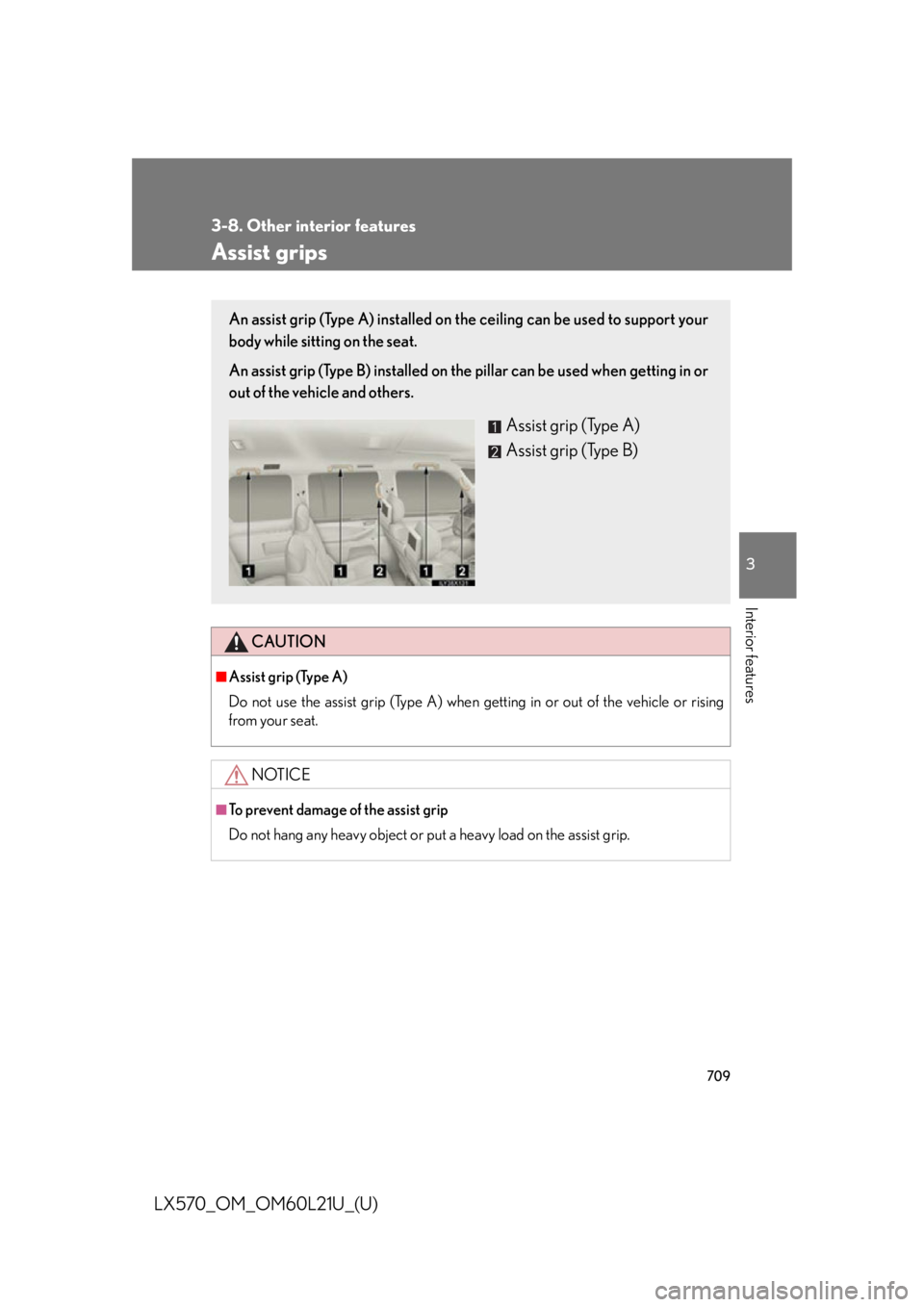

An assist grip (Type B) installed on th e pillar can be used when getting in or
out of the vehicle and others.
Assist grip (Type A)
Assist grip (Type B)

7103-8. Other interior features
LX570_OM_OM60L21U_(U) Floor mats Use only floor mats designed specifically for vehicles of the same model
and model year as your vehicle. Fix th em securely in plac e onto the carpet.
Insert the retaining hooks (clips)
into the floor mat eyelets.
Turn the upper knob of each
retaining hook (clip) to secure
the floor mats in place.
* : Always align the marks.
The shape of the retaining hooks (clips ) may differ from that shown in the
illustration. STEP 1
STEP 2
*

7113-8. Other interior features
3
Interior features
LX570_OM_OM60L21U_(U) CAUTIONObserve the following precautions.
Failure to do so may cause the driver’s floor mat to slip, possibly interfering with the
pedals while driving. An unexpectedly high speed may result or it may become diffi-
cult to stop the vehicle, leading to a serious accident. ■
When installing the driver’s floor mat ●
Do not use floor mats designed for other models or different model year vehicles,
even if they are Lexus Genuine floor mats. ●
Only use floor mats designed for the driver’s seat. ●
Always install the floor mat securely using the retaining hooks (clips) provided. ●
Do not use two or more floor mats on top of each other. ●
Do not place the floor mat bottom-side up or upside-down.■
Before driving ●
Check that the floor mat is securely fixed in
the correct place with all the provided
retaining hooks (clips). Be especially care-
ful to perform this check after cleaning the
floor. ●
With the engine stopped and the shift lever
in “P”, fully depress each pedal to the floor
to make sure it does not interfere with the
floor mat.

7123-8. Other interior features
LX570_OM_OM60L21U_(U) Luggage compartment features ■ Cargo hooks
Cargo hooks are provided for
securing loose items.
■ Cargo net hooks
To hang the cargo net, use the
cargo net hooks and rear cargo
hooks. The cargo net itself is not
included as an original equip-
ment.
■ Storage compartment (if equipped)
Remove the cover.

7133-8. Other interior features
3
Interior features
LX570_OM_OM60L21U_(U) CAUTION■
When the cargo hooks are not in use
To avoid injury, always return the cargo ho oks to their positions when they are not in
use.
NOTICE■
To prevent damage to the cargo net hooks
Avoid hanging things other than a cargo net on it.■ Warning reflector holder
Remove the cover. Hold the
warning reflector with the
bands. The warning reflector itself is not
included as an original equip-
ment.
■ First-aid kit holder
Remove the cover. Hold the
first-aid kit with a band. The first-aid kit itself is not
included as an original equip-
ment.

7143-8. Other interior features
LX570_OM_OM60L21U_(U) Garage door opener The garage door opener (HomeLink ®
Universal Transceiver) is manufactured
under license from HomeLink ®
.
Programming HomeLink ®
(for U.S.A. owners)
The HomeLink ®
compatible transceiver in your vehicle has 3 buttons
which can be programmed to operate 3 different devices. Refer to the
programming method below appropriate for the device.
Indicator
ButtonsThe garage door opener can be pr ogrammed to operate garage doors,
gates, entry doors, door locks, home lighting systems, security systems, and
other devices.

7153-8. Other interior features
3
Interior features
LX570_OM_OM60L21U_(U) ■ Programming HomeLink ®

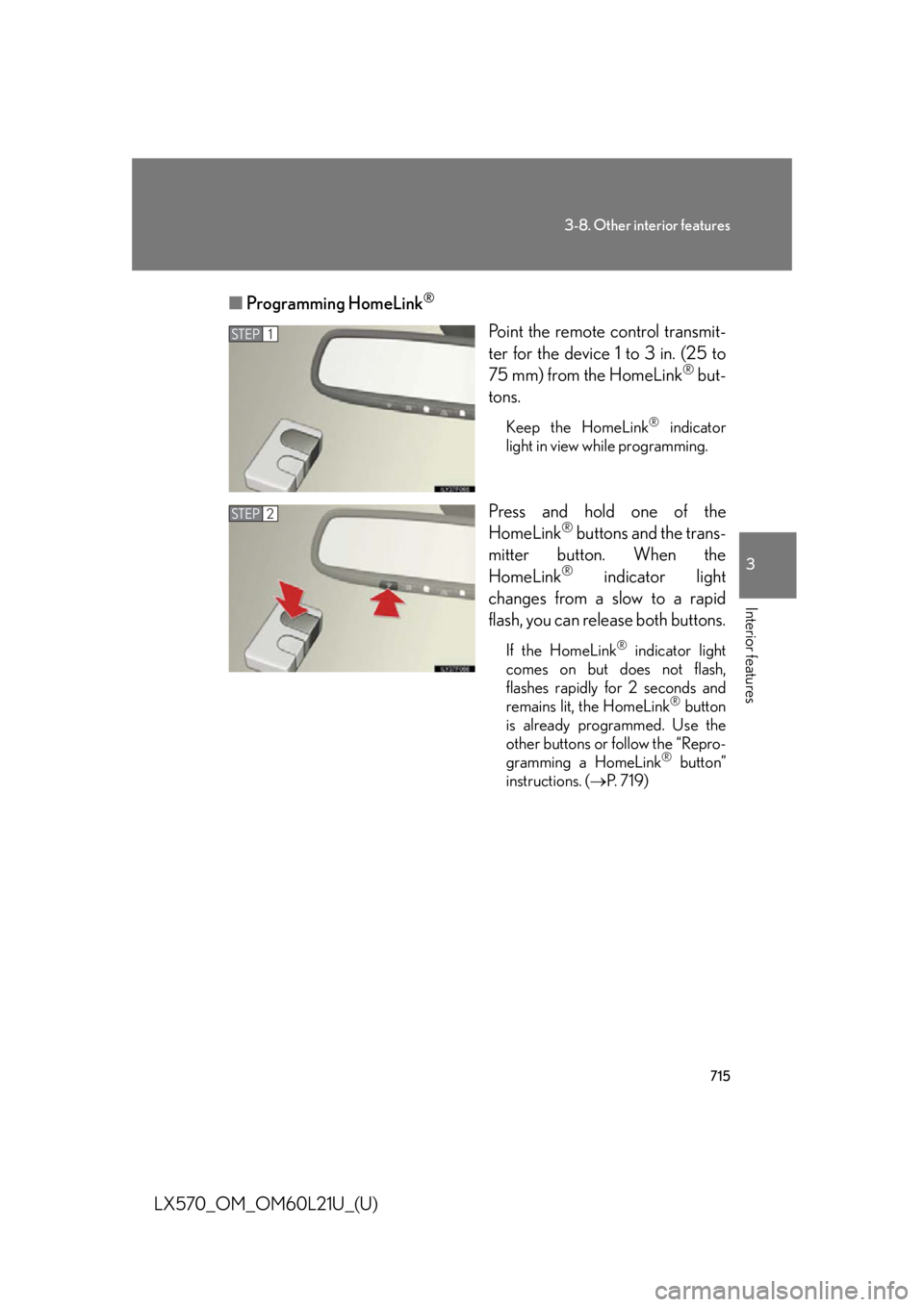

Point the remote control transmit-
ter for the device 1 to 3 in. (25 to
75 mm) from the HomeLink ®
but-
tons. Keep the HomeLink ®
indicator
light in view while programming.
Press and hold one of the
HomeLink ®
buttons and the trans-
mitter button. When the
HomeLink ®
indicator light
changes from a slow to a rapid
flash, you can release both buttons. If the HomeLink ®
indicator light
comes on but does not flash,
flashes rapidly for 2 seconds and
remains lit, the HomeLink ®
button
is already programmed. Use the
other buttons or follow the “Repro-
gramming a HomeLink ®
button”
instructions. (  P. 7 1 9 )STEP 1
STEP 2

7163-8. Other interior features
LX570_OM_OM60L21U_(U) Test the HomeLink ®
operation by
pressing the newly programmed
button. If a HomeLink ®
button has been
programmed for a garage door,
check to see if the garage door
opens and closes. If the garage
door does not operate, see if your
remote control transmitter is of the
rolling code type. Press and hold
the programmed HomeLink ®
but-
ton. The remote control transmitter
is of the rolling code type if the
HomeLink ®
indicator light flashes
rapidly for 2 seconds and then
remains lit. If your transmitter is of
the rolling code type, proceed to
the heading “Programming a roll-
ing code system”.
Repeat the steps above to program another device for each of
the remaining HomeLink ®
buttons.STEP 3
STEP 4

7173-8. Other interior features
3
Interior features
LX570_OM_OM60L21U_(U) ■ Programming a rolling code system
If your device is rolling code eq uipped, follow the steps under the
heading “Programming HomeLink ®
” before proceeding with the
steps listed below.

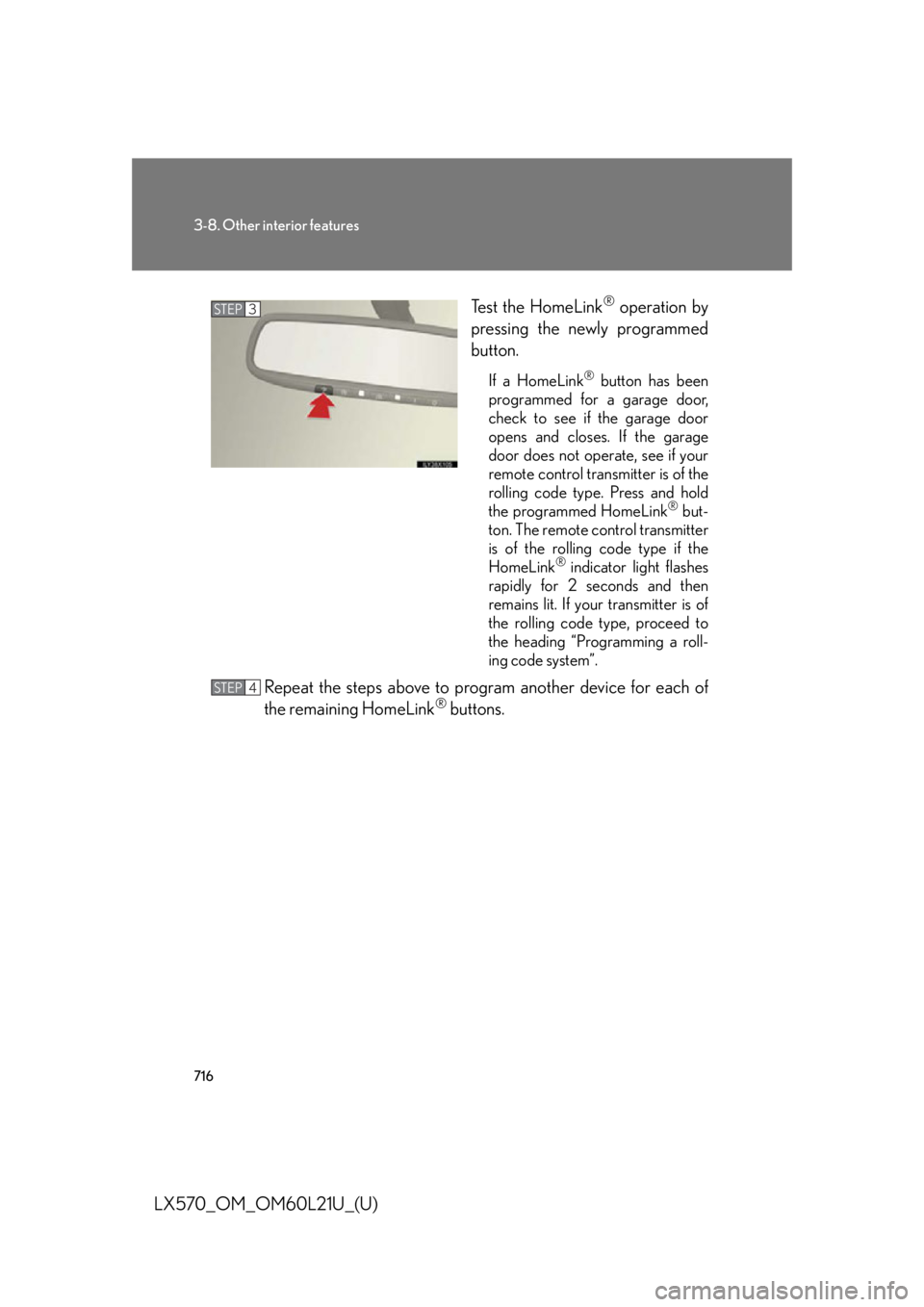

Locate the learn button on th e ceiling mounted garage door
opener motor. The exact location and color of the button may
vary by brand of garage door opener motor. Refer to the operation manual supplied with the garage door opener
motor for the location of the learn button.
Press the learn button. Following this step, you have 30 se conds in which to initiate step 3
below.
Press and hold the vehicle’s programmed HomeLink ®
button for
2 seconds and release it. Repeat this step once again. The garage
door may open. If the garage door opens, the programming process is complete. If the
door does not open, press and release the button a third time. This third
press and release will complete the programming process by opening
the garage door.
The ceiling mounted garage door op ener motor should now recognize
the HomeLink ®
signal and operate the garage door.
Repeat the steps above to prog ram another rolling code system
for any of the remaining HomeLink ®
buttons.STEP 1
STEP 2
STEP 3
STEP 4

7183-8. Other interior features
LX570_OM_OM60L21U_(U) ■ Programming an entry gate (for U .S.A. owners)/Programming all
devices in the Canadian market
Place your transmitter 1 to 3 in. (25 to 75 mm) away from the sur-
face of the HomeLink ®
.Keep the HomeLink ®
indicator light in view while programming.
Press and hold the selected HomeLink ®
button.
Repeatedly press and release (cyc le) the device’s remote control
button for two seconds each until step 4 is completed.
When the indicator light on the HomeLink ®
compatible trans-
ceiver starts to flash rapidly, release the buttons.
Test the operation of the HomeLink ®
by pressing the newly pro-
grammed button. Check to see if the gate/device operates cor-
rectly.
Repeat the steps above to program another device for each of
the remaining HomeLink ®
buttons.
■ Programming other devices
To program other devices such as home security systems, home door
locks or lighting, contact your au thorized Lexus dealer for assistance.
■ Reprogramming a button
The individual HomeLink ®
buttons cannot be erased but can be
reprogrammed. To reprogram a button, follow the “Reprogramming a
HomeLink ®
button” instructions.STEP 1
STEP 2
STEP 3
STEP 4
STEP 5
STEP 6
