LEXUS LX570 2016 Owner's Manual
Manufacturer: LEXUS, Model Year: 2016, Model line: LX570, Model: LEXUS LX570 2016Pages: 632, PDF Size: 10.34 MB
Page 21 of 632
21Pictorial index

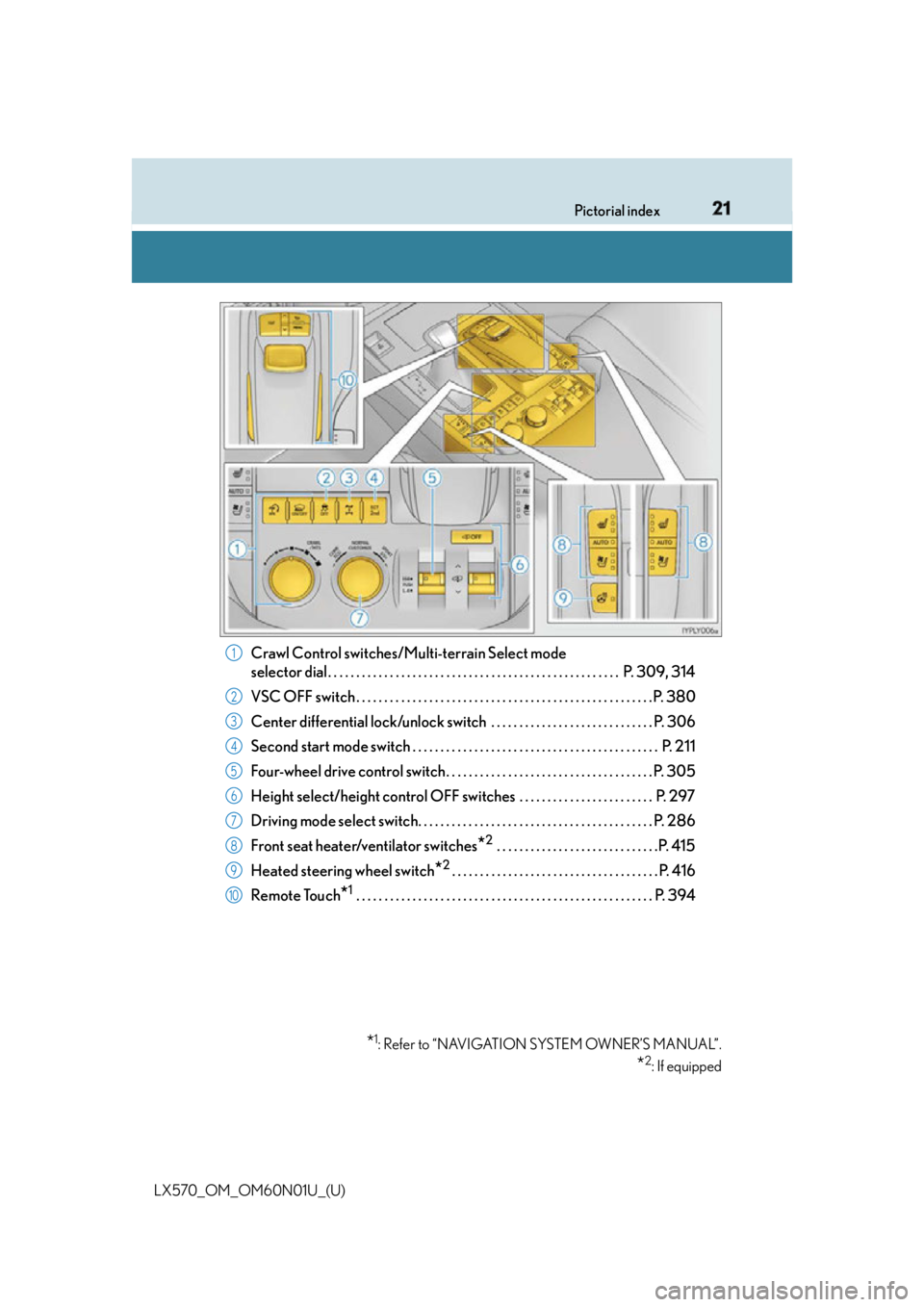

LX570_OM_OM60N01U_(U) Crawl Control switches/Multi-terrain Select mode
selector dial . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 309, 31 4
VSC OFF switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 380
Center differential lock/unlock switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 306
Second start mode switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 211
Four-wheel drive control switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 305
Height select/height control OFF switches . . . . . . . . . . . . . . . . . . . . . . . . P. 297
Driving mode select switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 286
Front seat heater/ventilator switches
* 2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 415
Heated steering wheel switch
* 2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 416
Remote Touch
* 1
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 394
* 1
: Refer to “NAVIGATION SYSTEM OWNER’S MANUAL”.
* 2
: If equipped1
2
3
4
5
6
7
8
9
10

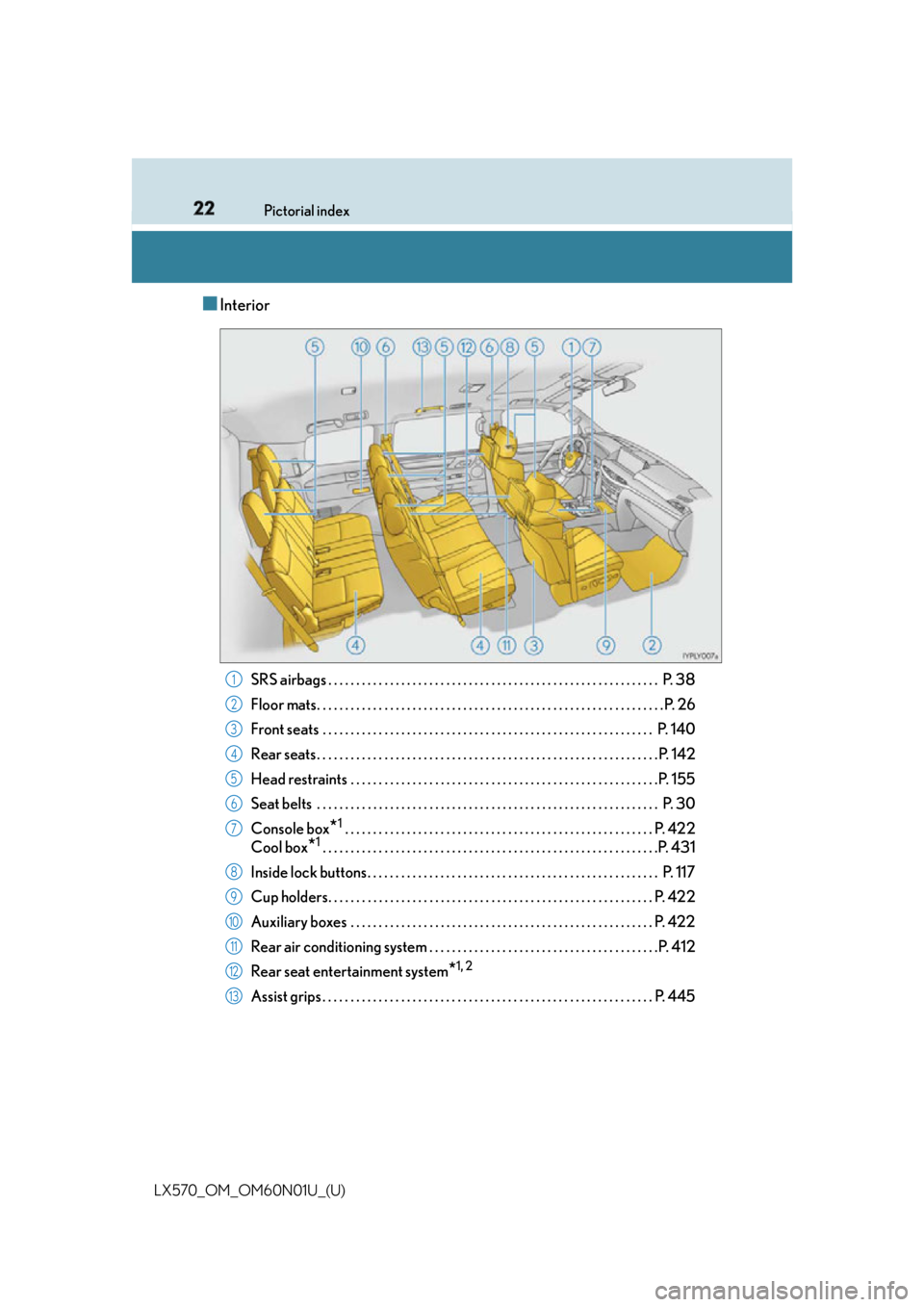

Page 22 of 632
22 Pictorial index
LX570_OM_OM60N01U_(U) ■ Interior
SRS airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 38
Floor mats. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 26
Front seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 140
Rear seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 142
Head restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 155
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 30
Console box
* 1
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 422
Cool box
* 1
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 431
Inside lock buttons. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 1 17
Cup holders. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 422
Auxiliary boxes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 4 22
Rear air conditioning system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 412
Rear seat entertainment system
* 1, 2
Assist grips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 4451
2
3
4
5
6
7
8
9
10
11
12
13
Page 23 of 632
23Pictorial index

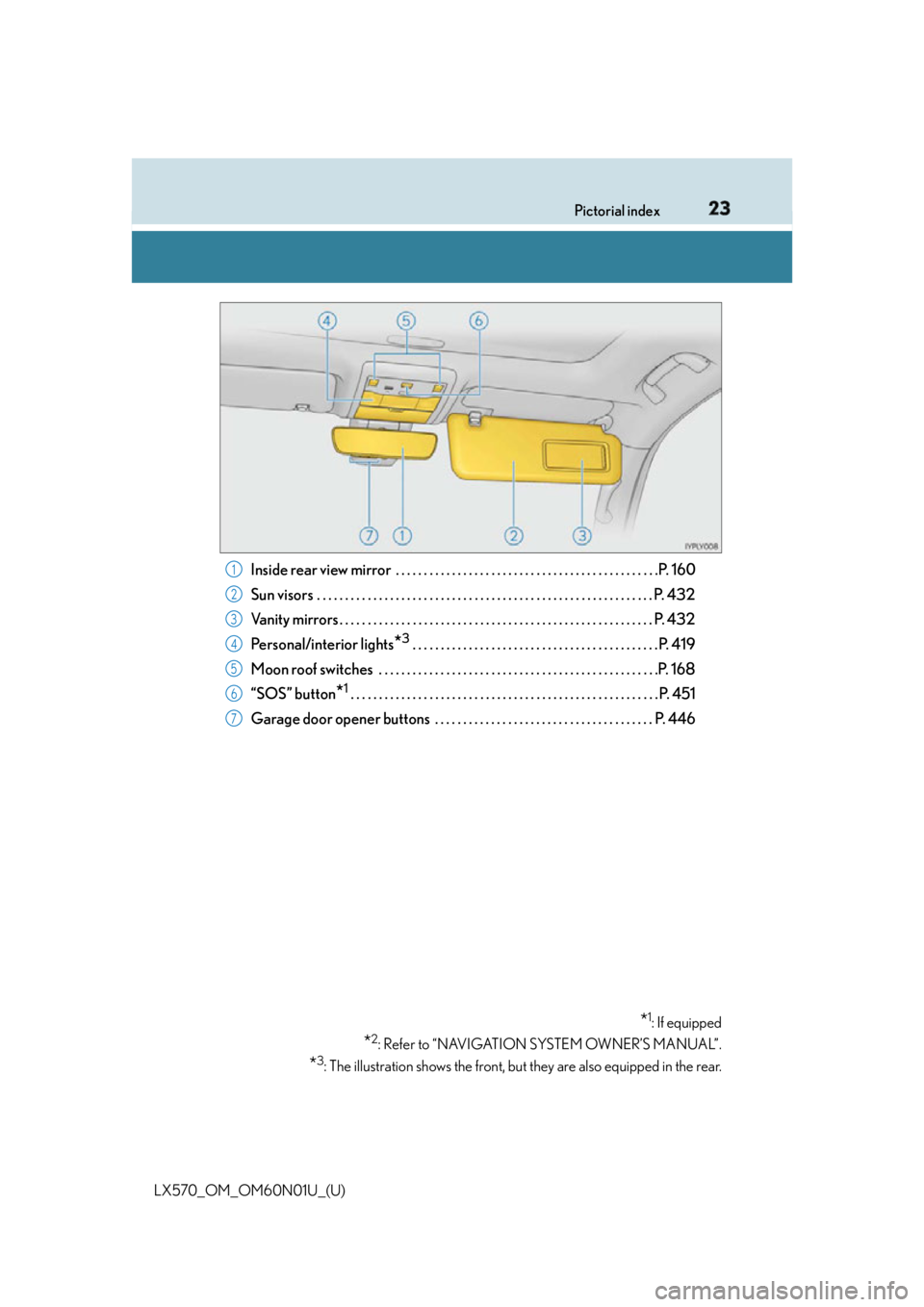

LX570_OM_OM60N01U_(U) Inside rear view mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 160
Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 432
Vanity mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 432
Personal/interior lights
* 3
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 419
Moon roof switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 168
“SOS” button
* 1
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 451
Garage door opener buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 446
* 1
: If equipped
* 2
: Refer to “NAVIGATION SYSTEM OWNER’S MANUAL”.
* 3
: The illustration shows the front, but they are also equipped in the rear.1
2
3
4
5
6
7
Page 24 of 632
24 Pictorial index
LX570_OM_OM60N01U_(U)
Page 25 of 632
25
LX570_OM_OM60N01U_(U) For safety and security
1 1-1. For safe use
Before driving................................. 26
For safety drive............................... 28
Seat belts .......................................... 30
SRS airbags .....................................38
Front passenger occupant
classification system....................51
Safety information for
children .......................................... 57
Child restraint systems ...............58
Installing child restraints ............. 63
Exhaust gas precautions ............ 75
1-2. Theft deterrent system
Engine immobilizer system ........ 76
Alarm ................................................. 78
Page 26 of 632
26 1-1. For safe use

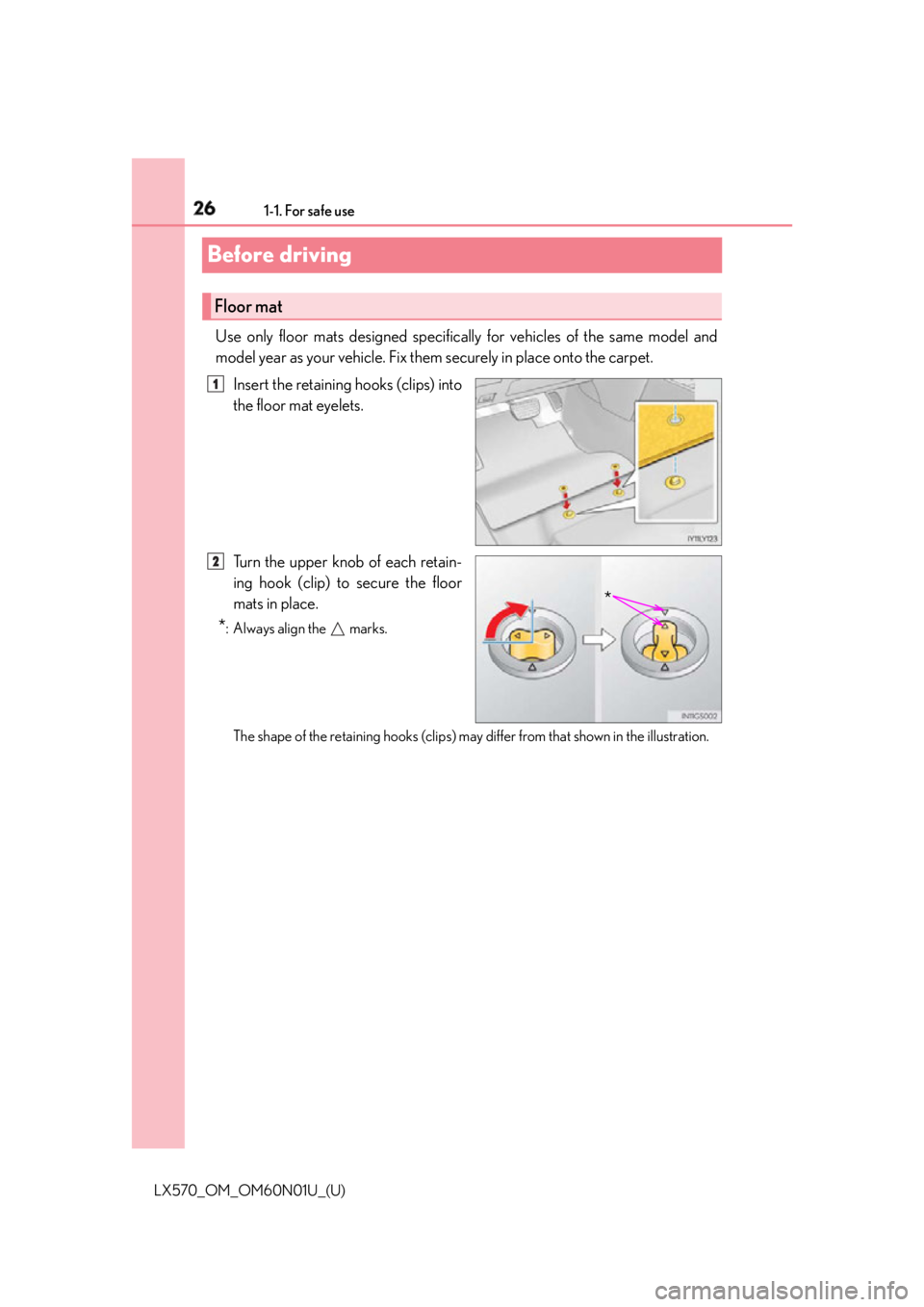

LX570_OM_OM60N01U_(U)Before driving Use only floor mats designed specifical ly for vehicles of the same model and
model year as your vehicle. Fix them securely in place onto the carpet.
Insert the retaining hooks (clips) into
the floor mat eyelets.
Turn the upper knob of each retain-
ing hook (clip) to secure the floor
mats in place.
* : Always align the marks.
The shape of the retaining hook s (clips) may differ from that shown in the illustration.Floor mat 1
*2
Page 27 of 632
271-1. For safe use
LX570_OM_OM60N01U_(U) 1

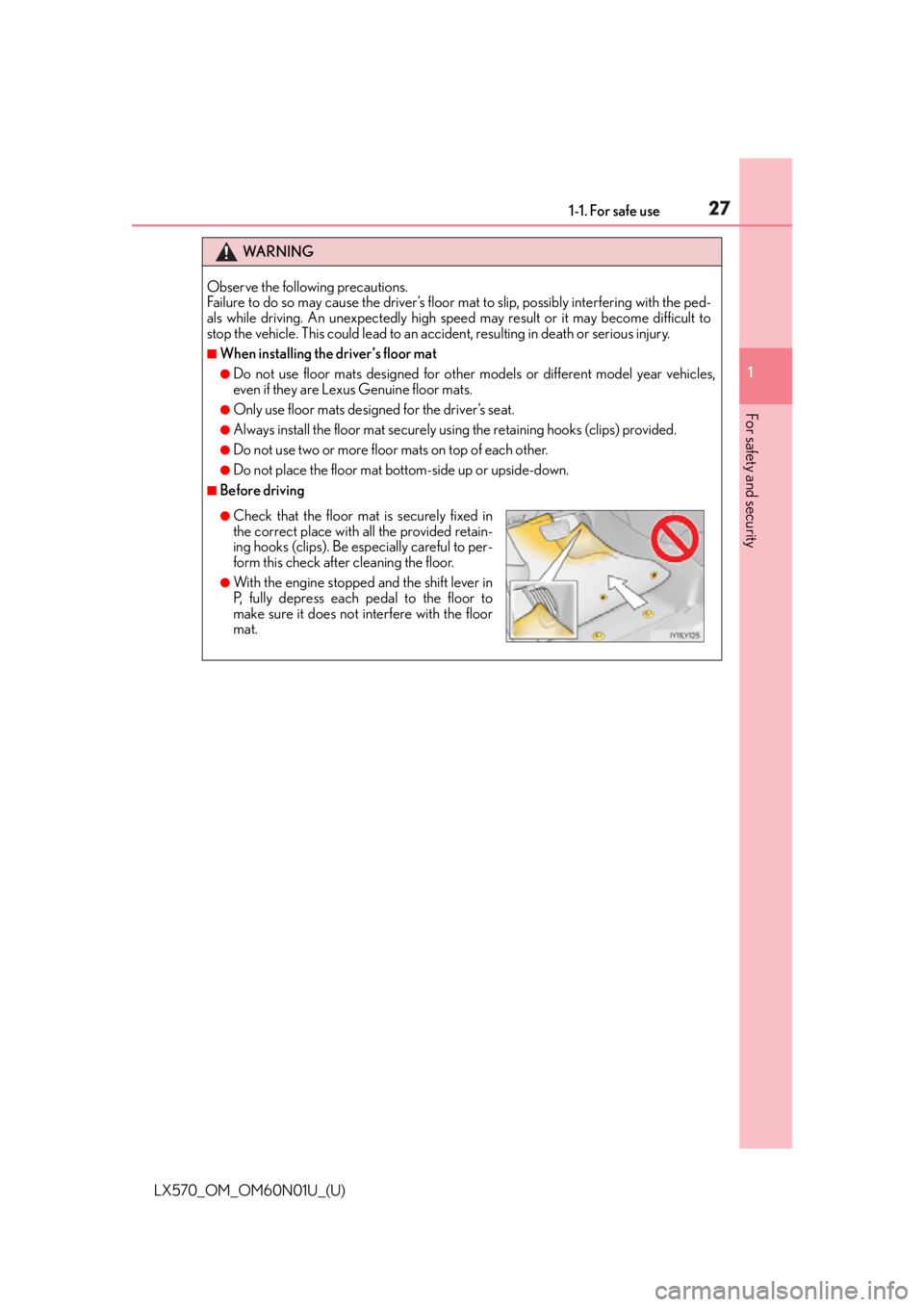

For safety and security WA R N I N G
Observe the following precautions.
Failure to do so may cause the driver’s floor mat to slip, possibly interfering with the ped-
als while driving. An unexpect edly high speed may result or it may become difficult to
stop the vehicle. This could lead to an ac cident, resulting in death or serious injury.■
When installing the driver’s floor mat ●
Do not use floor mats designed for other models or different model year vehicles,
even if they are Lexus Genuine floor mats. ●
Only use floor mats designed for the driver’s seat. ●
Always install the floor mat securely using the retaining hooks (clips) provided. ●
Do not use two or more floor mats on top of each other. ●
Do not place the floor mat bottom-side up or upside-down. ■
Before driving ●
Check that the floor mat is securely fixed in
the correct place with all the provided retain-
ing hooks (clips). Be especially careful to per-
form this check after cleaning the floor. ●
With the engine stopped and the shift lever in
P, fully depress each pedal to the floor to
make sure it does not interfere with the floor
mat.
Page 28 of 632
28 1-1. For safe use

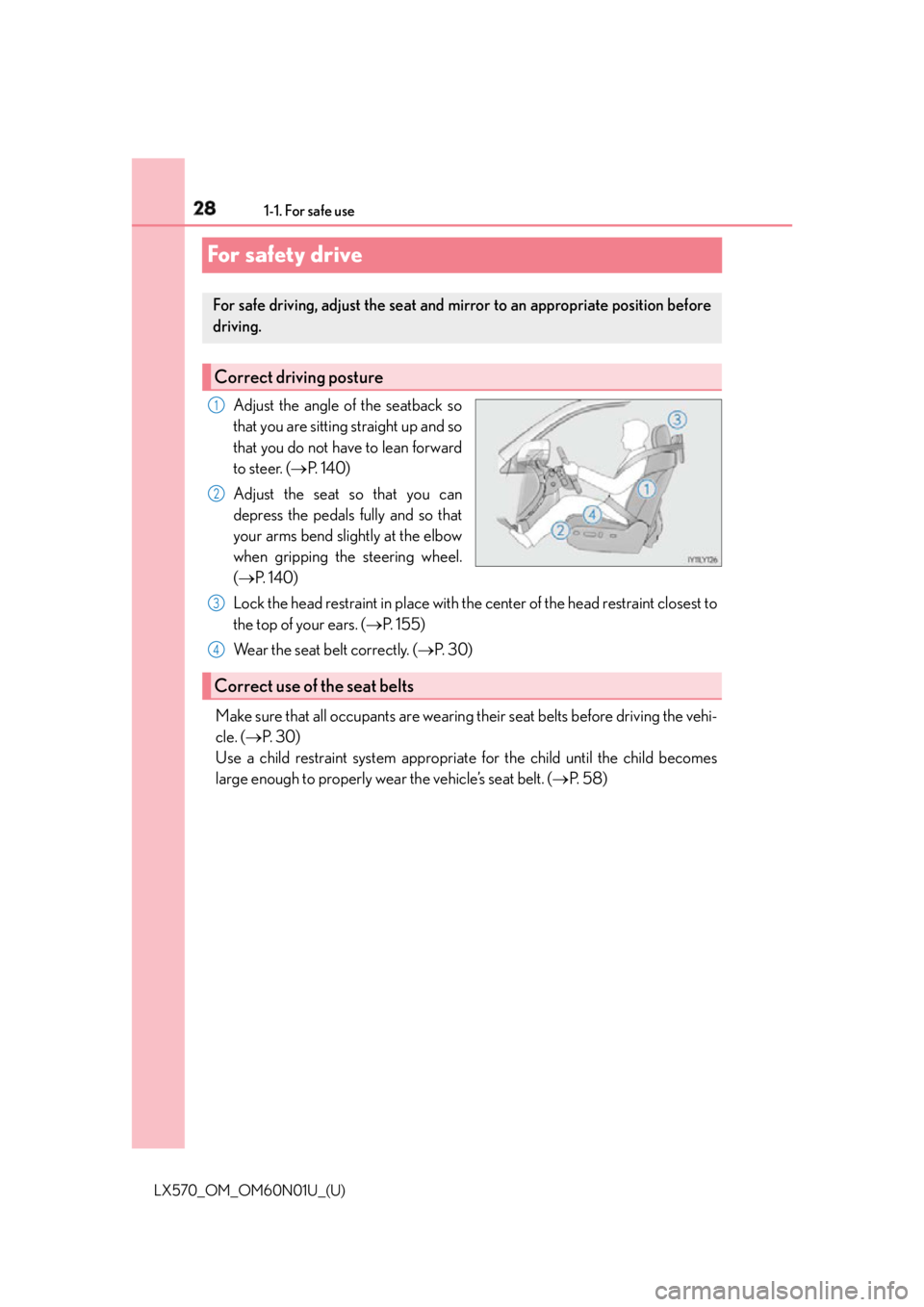

LX570_OM_OM60N01U_(U)For safety drive Adjust the angle of the seatback so
that you are sitting straight up and so
that you do not have to lean forward
to steer. ( P. 1 4 0 )
Adjust the seat so that you can
depress the pedals fully and so that
your arms bend slightly at the elbow
when gripping the steering wheel.
( P. 1 4 0 )
Lock the head restraint in place with th e center of the head restraint closest to
the top of your ears. ( P. 1 5 5 )
Wear the seat belt correctly. ( P. 3 0 )
Make sure that all occupants are wearing their seat belts before driving the vehi-
cle. ( P. 3 0 )
Use a child restraint system appropriate for the child until the child becomes
large enough to properly wear the vehicle’s seat belt. ( P. 5 8 )For safe driving, adjust the seat and mi rror to an appropriate position before
driving.
Correct driving posture 1
2
Correct use of the seat belts 3
4
Page 29 of 632
291-1. For safe use
LX570_OM_OM60N01U_(U) 1
For safety and security Make sure that you can see backward clea rly by adjusting the inside and outside
rear view mirrors properly. ( P. 160, 162)
Adjusting the mirrors WA R N I N G
Observe the following precautions.
Failure to do so may result in death or serious injury.●
Do not adjust the position of the driver’s seat while driving.
Doing so could cause the driver to lose control of the vehicle. ●
Do not place a cushion between the driver or passenger and the seatback.
A cushion may prevent correct posture from being achieved, and reduce the effec-
tiveness of the seat be lt and head restraint.●
Do not place anything under the front seats.
Objects placed under the front seats may be come jammed in the seat tracks and stop
the seat from locking in place. This may lead to an accident and the adjustment mech-
anism may also be damaged. ●
When driving over long distances, take regular breaks before you start to feel tired.
Also, if you feel tired or sleepy while drivin g, do not force yourself to continue driving
and take a break immediately.
Page 30 of 632
30 1-1. For safe use

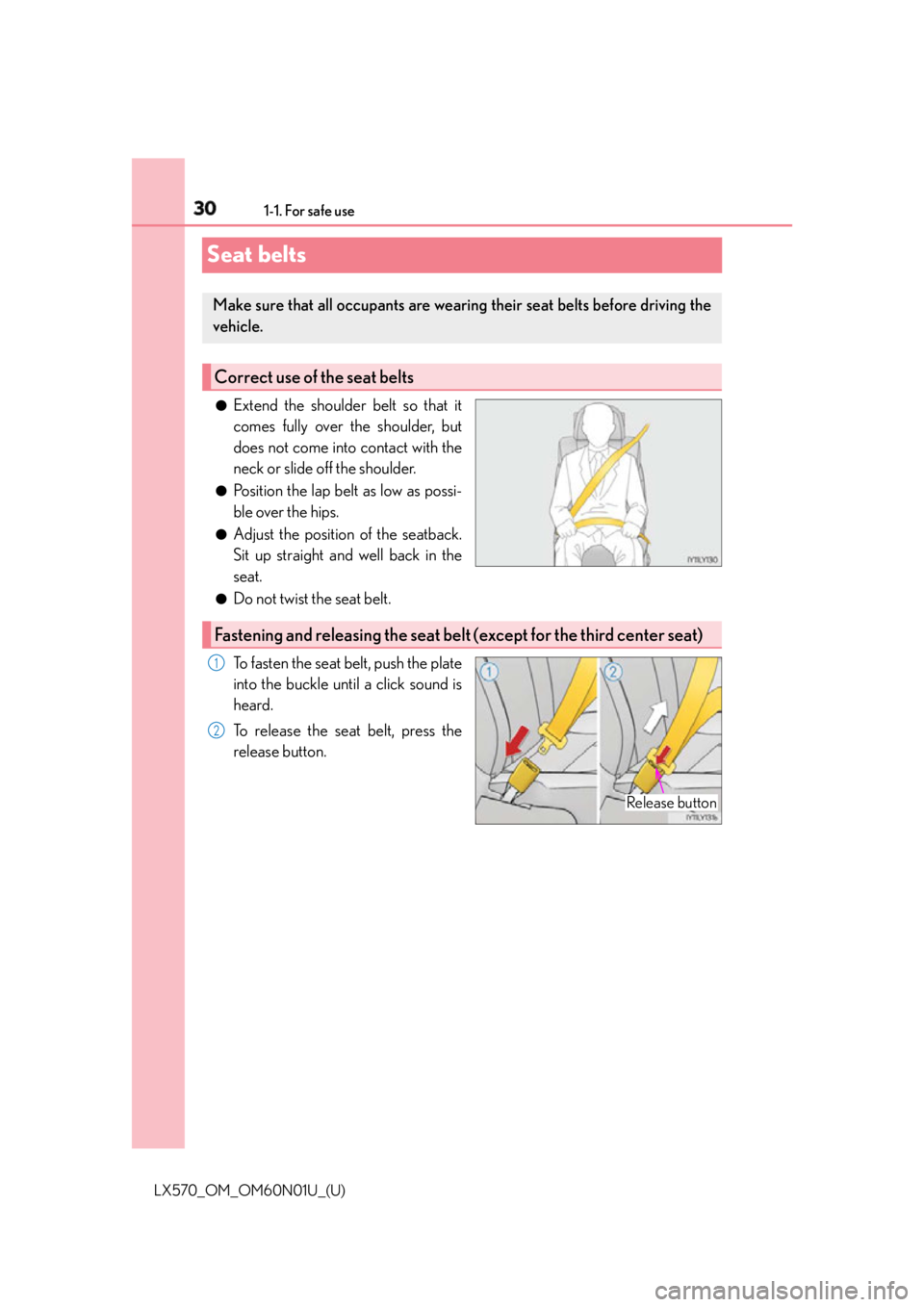

LX570_OM_OM60N01U_(U)Seat belts ●
Extend the shoulder belt so that it
comes fully over the shoulder, but
does not come into contact with the
neck or slide off the shoulder. ●
Position the lap belt as low as possi-
ble over the hips. ●
Adjust the position of the seatback.
Sit up straight and well back in the
seat. ●
Do not twist the seat belt.
To fasten the seat belt, push the plate
into the buckle until a click sound is
heard.
To release the seat belt, press the
release button.Make sure that all occupants are wearing their seat belts before driving the
vehicle.
Correct use of the seat belts
Fastening and releasing the seat belt (except for the third center seat)
Release button1
2
