Driving NOTICE ■
To prevent battery discharge ●
Do not leave the engine switch in AC CESSORY or IGNITION ON mode for long
periods of time without the engine running. ●
If “ACCESSORY” or “IGNITION ON” is disp layed on the multi-information display,
the engine switch is not off. When exiting the vehicle, always check that the engine
switch is off. ●
Do not stop the engine when the shift lever is in a position other than P. If the engine is
stopped in another shift lever position, the engine switch will not be turned off but
instead be turned to ACCESSORY mode. If the vehicle is left in ACCESSORY
mode, battery discharge may occur. ■
When starting the engine ●
Do not race a cold engine. ●
If the engine becomes difficult to start or stalls frequently, have your vehicle checked
by your Lexus dealer immediately. ■
Symptoms indicating a malfun ction with the engine switch
If the engine switch seems to be operating somewhat differently than usual, such as the
switch sticking slightly, there may be a malf unction. Contact your Lexus dealer immedi-
ately.

210
LX570_OM_OM60N01U_(U) 4-2. Driving procedures
Automatic transmission
While the engine switch is in IGNITION ON mode, move the shift lever
with the brake pedal depressed.
When shifting the shift lever between P and D, make sure that the vehicle is
completely stopped.
* 1
: Shifting to the D position allows the system to select a gear su itable for the driving
conditions. Setting the shift lever to the D position is recommended for normal driv-
ing.
* 2
: If equipped, by selecting shift ranges us ing paddle shift switches, you can control
engine braking forces.
* 3
: Selecting shift ranges using S mode rest ricts the upper limit of the possible gear
ranges, controls engine braking forces , and prevents unnecessary upshifting.Shifting the shift lever
Shift position purpose Shift position Purpose and condition
P Parking the vehicle/starting the engine
R Reversing
N Neutral
(Condition in which the power is not transmitted)
D Normal driving
* 1
or temporary shift range selection driving
* 2
S S mode driving
* 3
(  P. 2 1 3 )

212
LX570_OM_OM60N01U_(U) 4-2. Driving procedures
To drive using temporary shift range select ion, operate the “-” or “+” paddle shift
switch.
When the “-” paddle shift switch is operated, the shift range will be downshifted
to a range that enables engine braking forc e that is suitable to driving conditions.
When the “+” paddle shift switch is operated, the shift range will be one gear
upper than the gear in use during normal D position driving.
Changing the shift range allows restrictio n of the highest shift range, preventing
unnecessary upshifting and enabling the level of engine braking force to be
selected.
Downshifting
Upshifting The selected shift range, from D1 to
D8, will be displa yed in the meter.
To return to normal D position driv-
ing, the “+” paddle shift switch must
be held down for a period of time.
A lower shift range will provide greater engi ne braking forces than a higher shift
range.Changing shift range in D position (vehicles with paddle shift switches)1
2
Meter display Function
D2-D8 A gear in the range between 1 and the selected gear is auto-
matically chosen depending on vehicle speed and driving
conditions
D1 Setting the gear at 1

LX570_OM_OM60N01U_(U) 2134-2. Driving procedures
4
Driving When the shift lever is in the S position, the shift lever or paddle shift switches can
be operated as follows:
Upshifting
Downshifting
The selected shift range, from 1 to 8,
will be displayed in the meter.
The initial shift range in S mode is set
automatically to 6, 5 or 4 according to
vehicle speed. However, the initial shift
range may be set to 3 or 2 if AI-SHIFT
has operated while the shift lever was in
the D position. (  P. 2 1 4 )
■
Shift ranges and their functions ●
Automatically selecting gears between 1 and 8 according to vehicle speed
and driving conditions. But, the gear is limited according to selected shift
range. ●
You can choose from 8 levels of engine braking force. ●
A lower shift range will provide greate r engine braking force than a higher
shift range, and the engine speed will also increase.Changing shift ranges in S mode 1
2

214
LX570_OM_OM60N01U_(U) 4-2. Driving procedures■
Paddle shift switches (if equipped) ●
When the “-” paddle shift switch is operated in the D position, a shift range will be auto-
matically selected. The highest gear of the fi rst shift range will be one gear lower than
the gear in use during normal D position driving. ●
Automatic deactivation of shift range selection in the D position
Shift range selection in the D position will be deactivated in the following situations:
• When the vehicle comes to a stop
• If the accelerator pedal is depressed for long er than a certain period of time in one
shift range■
Driving on a downhill
On declines, there may be case where the ve hicle shifts down automatically to obtain
engine braking. As a result of the down shifting, the engine speed may increase.■
Second start mode automatic deactivation
Second start mode is automatically deactivated if the engine is turned off after driving in
second start mode. ■
S mode
When the shift range is 7 or lower, holding the shift lever toward “+” sets the shift range to
8. ■
AI-SHIFT
AI-SHIFT automatically select s the suitable gear according to driver performance and
driving conditions.
AI-SHIFT automatically operates when the shift lever is in the D position. (Shifting the
shift lever to the S position cancels the function.) ■
When driving with cruise control or dynamic radar cruise control activated
Even when performing the following actions with the intent of enabling engine braking,
engine braking will not activate because cruise control or radar cruise control will not be
canceled. ●
While driving in D position (vehicles with paddle shift switches) or S mode, downshift-
ing to 7, 6, 5 or 4. (  P. 2 7 1 , 2 8 3 )●
When switching the driving mode to spor t mode while driving in D position. (  P. 2 8 6 )■
If the shift lever cannot be shifted from P
 P. 5 4 9 ■
If the “S” indicator does not come on ev en after shifting the shift lever to S
This may indicate a malfunction in the automatic transmission system. Have the vehicle
inspected by your Lexus dealer immediately.
(In this situation, the transmission will operat e in the same manner as when the shift lever
is in D.) ■
Downshift restriction warning buzzer
To help ensure safety and driving performa nce, downshifting operation may sometimes
be restricted. In some circumstances, downshifting may not be possible even when the
shift lever is operated. (A buzzer will sound twice.)

LX570_OM_OM60N01U_(U) 2154-2. Driving procedures
4
Driving WA R N I N G ■
When driving on slippery road surfaces
Do not accelerate or shift gears suddenly.
Sudden changes in engine braking may cause th e vehicle to spin or skid, resulting in an
accident.

216
LX570_OM_OM60N01U_(U) 4-2. Driving procedures
Turn signal lever The turn signal lever can be used to show the following intentions of the driver:
Right turn
Lane change to the right (move the
lever partway and then release it) The right hand signals will flash 3 times.
Lane change to the left (move the
lever partway and then release it) The left hand signals will flash 3 times.
Left turn
■
Turn signals can be operated when
The engine switch is in IGNITION ON mode. ■
If the indicator flashes faster than usual
Check that a light bulb in the front or rear turn signal lights has not burned out. ■
If the turn signals stop flashing befo re a lane change has been performed
Operate the lever again. ■
To discontinue flashing of the turn signals during a lane change
Operate the lever in the opposite direction ■
Customization
The number of times the turn signals flash during a lane change can be changed.
(Customizable features  P. 585)Operating instructions 1
2
3
4

218
LX570_OM_OM60N01U_(U) 4-2. Driving procedures
Sets the parking brake The parking brake indicator light will
come on. (  P. 2 1 8 )
Pull and hold the parking brake switch if
an emergency occurs and it is necessary
to operate the parking brake while driv-
ing.

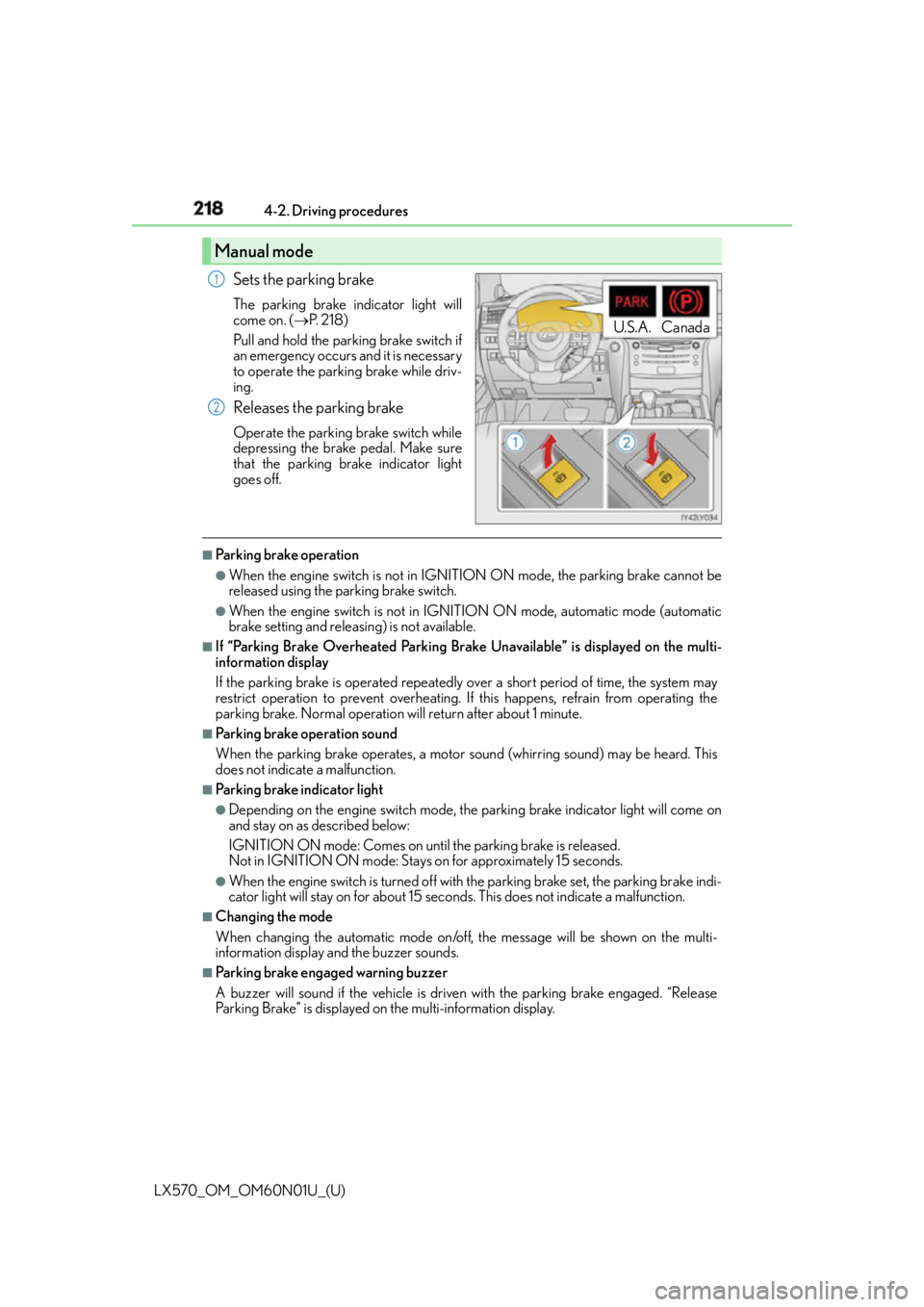

Releases the parking brake Operate the parking brake switch while
depressing the brake pedal. Make sure
that the parking brake indicator light
goes off. ■
Parking brake operation ●
When the engine switch is not in IGNITION ON mode, the parking brake cannot be
released using the pa rking brake switch.●
When the engine switch is not in IGNI TION ON mode, automatic mode (automatic
brake setting and releas ing) is not available.■
If “Parking Brake Overheated Parking Brake Unavailable” is displayed on the multi-
information display
If the parking brake is operated repeatedly over a short period of time, the system may
restrict operation to prevent overheating. If this happens, refrain from operating the
parking brake. Normal operation will return after about 1 minute. ■
Parking brake operation sound
When the parking brake operates, a motor sound (whirring sound) may be heard. This
does not indicate a malfunction. ■
Parking brake indicator light ●
Depending on the engine switch mode, the parking brake indicator light will come on
and stay on as described below:
IGNITION ON mode: Comes on until the parking brake is released.
Not in IGNITION ON mode: Stays on for approximately 15 seconds. ●
When the engine switch is turned off with the parking brake set, the parking brake indi-
cator light will stay on for about 15 seco nds. This does not indicate a malfunction.■
Changing the mode
When changing the automatic mode on/off , the message will be shown on the multi-
information display and the buzzer sounds. ■
Parking brake engaged warning buzzer
A buzzer will sound if the vehicle is driven with the parking brake engaged. “Release
Parking Brake” is displayed on the multi-information display.Manual mode U.S.A. Canada1
2

220
LX570_OM_OM60N01U_(U) 4-3. Operating the lights and wipers

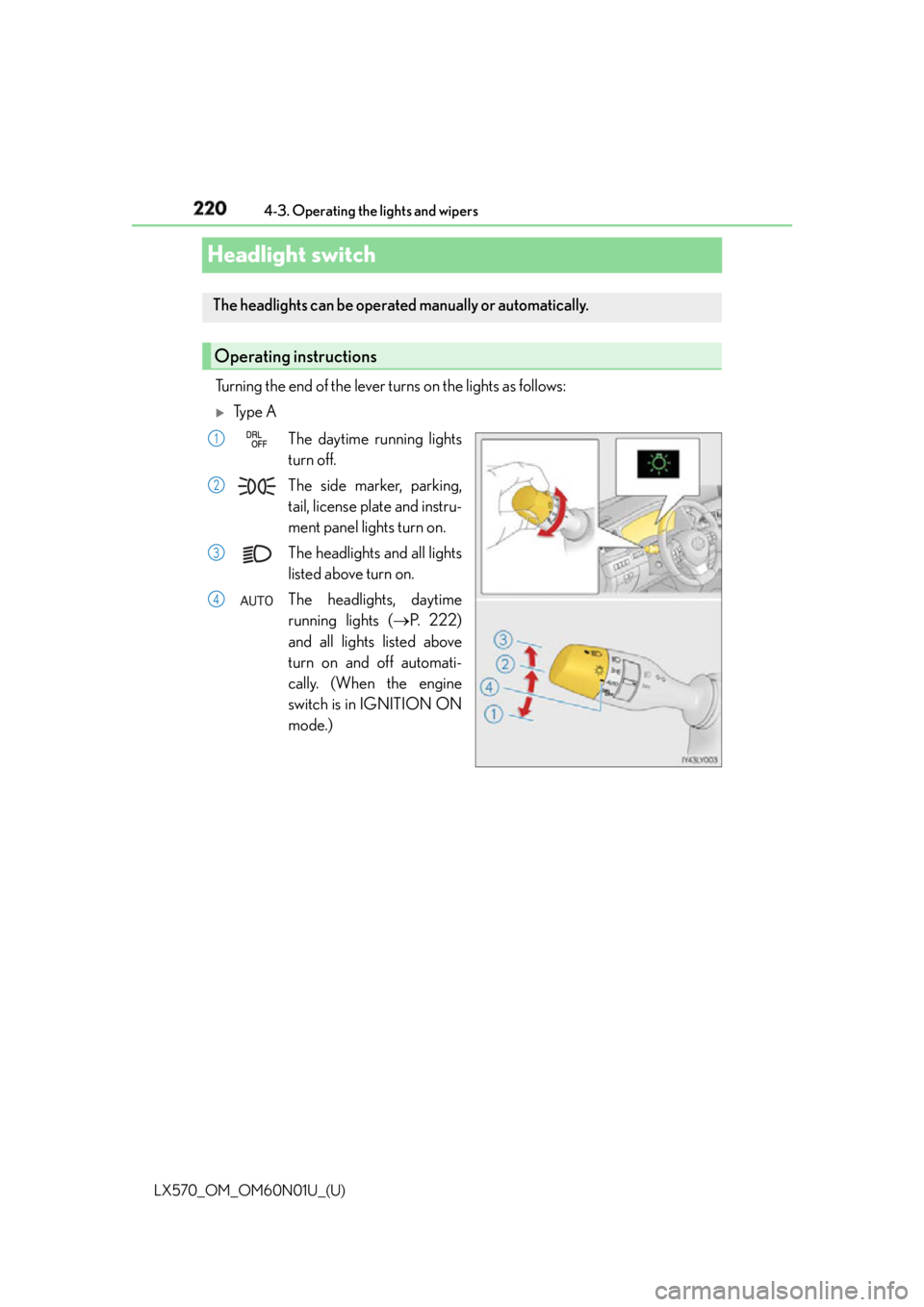

Headlight switch Turning the end of the lever turns on the lights as follows: 
Ty p e A
The daytime running lights
turn off.
The side marker, parking,
tail, license plate and instru-
ment panel lights turn on.
The headlights and all lights
listed above turn on.
The headlights, daytime
running lights (  P. 222)
and all lights listed above
turn on and off automati-
cally. (When the engine
switch is in IGNITION ON
mode.)The headlights can be operated manually or automatically.
Operating instructions 1
2
3
4

LX570_OM_OM60N01U_(U) 2214-3. Operating the lights and wipers
4
Driving 

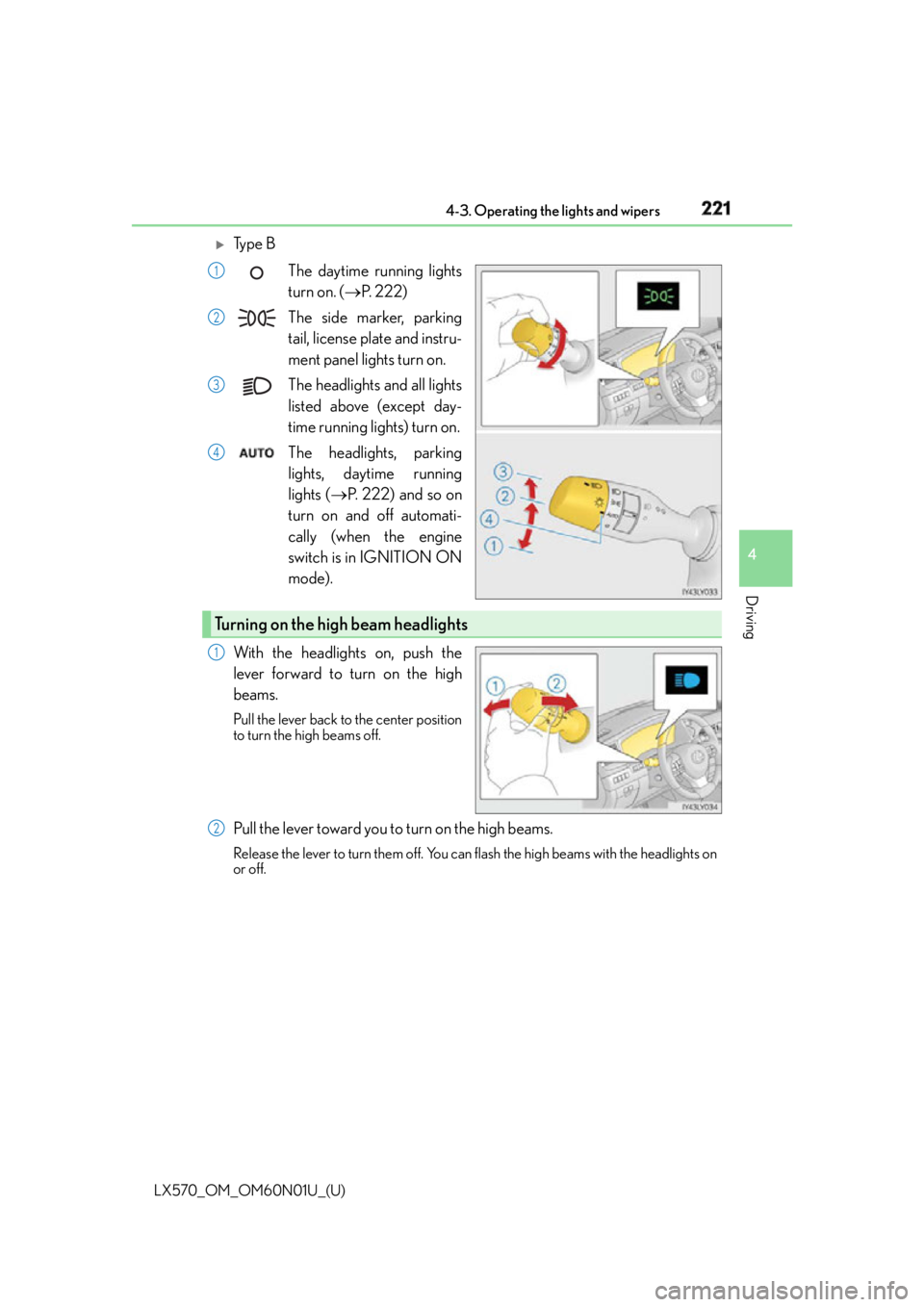

Ty p e B
The daytime running lights
turn on. (  P. 222)
The side marker, parking
tail, license plate and instru-
ment panel lights turn on.
The headlights and all lights
listed above (except day-
time running lights) turn on.
The headlights, parking
lights, daytime running
lights (  P. 222) and so on
turn on and off automati-
cally (when the engine
switch is in IGNITION ON
mode).
With the headlights on, push the
lever forward to turn on the high
beams. Pull the lever back to the center position
to turn the high beams off.
Pull the lever toward you to turn on the high beams. Release the lever to turn them off. You can flash the high beams with the headlights on
or off. 1
2
3
4
Turning on the high beam headlights 1
2
