steering wheel adjustment LEXUS LX570 2016 Owners Manual

LX570_OM_OM60N01U_(U) 1413-3. Adjusting the seats
3
Operation of each component ■
Power easy access system
The driver’s seat and steering wheel move in accordance with engine switch mode and
the driver’s seat belt condition. (  P. 1 5 1 )■
Active head restraints
Even small forces applied to the seatback may cause the head restraint to move. Pushing
up a locked head restraint forcibly may appe ar the head restraint inner structure. These
do not indicate problems.
WA R N I N G ■
When adjusting the seat position ●
Take care when adjusting the seat position to ensure that other passengers are not
injured by the moving seat. ●
Do not put your hands under the seat or near the moving parts to avoid injury.
Fingers or hands may become jammed in the se at mechanism.■
Seat adjustment
To reduce the risk of sliding under the lap belt during a co llision, do not recline the seat
more than necessary.
If the seat is too rec lined, the lap belt may slide past the hips and apply restraint forces
directly to the abdomen, or your neck may contact the shoulder belt, increasing the risk
of death or serious injury in the event of an accident.
Adjustments should not be ma de while driving as the seat may unexpectedly move and
cause the driver to lose control of the vehicle. Inner
structure During rear-end collision

LX570_OM_OM60N01U_(U) 1533-3. Adjusting the seats
3
Operation of each component ■
To stop the position recall operation part-way through
Perform any of the following: ●
Press the “SET” button. ●
Press button “1”, “2” or “3”. ●
Operate any of the seat adjustment switch es (only cancels seat position recall).●
Operate the tilt and telescopic steering co ntrol switch (only ca ncels steering wheel
position recall). ■
Operating the driving position memory after turning the engine switch off
Recorded seat positions can be activated up to 180 seconds after the driver’s door is
opened and another 60 seconds after it is closed again. ■
If the battery is disconnected
The memorized positions must be reset beca use the computer’s memory is erased when
the battery is disconnected.
Each electronic key can be registered to recall your preferred driving position.■
Registering procedure
Record your driving position to button “1”, “2” or “3” before performing the
following:
Carry only the key you want to regist er, and then close the driver’s door.
If 2 or more keys are in the vehicle, the driving position cannot be recorded
properly.
Check that the shift lever is in P.
Turn the engine switch to IGNITION ON mode.
Recall the driving position that you want to record.
While pressing the recalled but-
ton, press and hold the door lock
switch (either lock or unlock) until
the buzzer sounds. If the button could not be registered,
the buzzer sounds continuously for
approximately 3 seconds.Memory recall function (driver’s side only) 1
2
3
4

154
LX570_OM_OM60N01U_(U) 3-3. Adjusting the seats■
Recall procedure
Carry the electronic key that has been registered to the driving position,
and then unlock and open the driver’s door using the smart access system
with push-button start or wireless remote control. The driving position will move to the reco rded position (not including the steering
wheel). However, the seat will move to a po sition slightly behind the recorded posi-
tion in order to make entering the vehicle easier.
If the driving position is in a position th at has already been recorded, the seat and
outside rear view mirrors will not move.
Turn the engine switch to ACCESSORY mode or IGNITION ON mode,
or fasten a seat belt. The seat and steering wheel will move to the recorded position.■
Cancelation procedure
Carry only the key you want to cancel and then close the driver’s door.
If 2 or more keys are in the vehicle, the driving position cannot be canceled
properly.
Turn the engine switch to IGNITION ON mode.
While pressing the “SET” button, press and hold the door lock switch
(either lock or unlock) unt il the buzzer sounds twice.If the button could not be canceled, the buzzer sounds continuously for approxi-
mately 3 seconds.■
Recalling the driving position using the memory recall function ●
Different driving positions can be registered for each electronic key. Therefore, the
driving position that is recalled may be different depending on the key being carried. ●
If a door other than the driver’s door is unlocked with the smart access system with
push-button start, the driving position cannot be recalled. In this case, press the driving
position button which has been set. ■
Customization
The unlock door settings of the memory recall function can be customized.
(Customizable features:  P. 585)
WA R N I N G ■
Seat adjustment caution
Take care during seat adjustment so that th e seat does not strike the rear passenger or
squeeze your body against the steering wheel. 1
2
1
2

158 3-4. Adjusting the steering wheel and mirrors
LX570_OM_OM60N01U_(U)Steering wheel Operating the switch moves the steer-
ing wheel in the following directions:
Up
Down
Toward the driver
Away from the driver
To sound the horn, press on or close to
the mark.Adjustment procedure 1
2
3
4
Horn

1593-4. Adjusting the steering wheel and mirrors
3
Operation of each component
LX570_OM_OM60N01U_(U) ■
The steering wheel can be adjusted when
The engine switch is in ACCESSORY or IGNITION ON mode
* .
* : If the driver’s seat belt is fastened, the steering wheel can be adjusted regardless of
engine switch mode. ■
Automatic adjustment of the steering position
A desired steering position can be entered to memory and recalled automatically by the
driving position memory system. (  P. 1 5 1 )■
Power easy access system
The steering wheel and driver’s seat move in accordance with engine switch mode and
the driver’s seat belt condition. (  P. 1 5 1 )
WA R N I N G
Do not adjust the steering wheel while driving.
Doing so may cause the driver to mishandle the vehicle and cause an accident, result-
ing in death or serious injury.

162 3-4. Adjusting the steering wheel and mirrors
LX570_OM_OM60N01U_(U)Outside rear view mirrors To select a mirror to adjust, press the
switch.
Left
Right Pressing the same switch again will
put the switch in neutral.
To adjust the mirror, press the switch.
Up
Right
Down
Left
■
Using the switch
Press the switch to fold the mirrors. Press it again to extend them to the
original position.Adjustment procedure 1
1
2
2
1
2
3
4
Automatically folding and extending the mirrors

1633-4. Adjusting the steering wheel and mirrors
3
Operation of each component
LX570_OM_OM60N01U_(U) ■
Setting automatic mode
Automatic mode allows the folding or extending of the mirrors to be linked to
locking/unlocking of the doors.
Press the “AUTO” switch to set auto-
matic mode. The indicator will come on.
Pressing the switch once more will
return to manual mode.
When either “L” or “R” of the mirror se lect switch is selected, the outside rear
view mirrors will automatically angle downwards when the vehicle is reversing in
order to give a better view of the ground.
To disable this function, select neither “L” nor “R”. ■
Adjusting the mirror angle when the vehicle is reversing
With the shift lever in R, adjust the mirror angle at a desired position. The
adjusted angle will be memorized and the mirror will automatically tilt to the
memorized angle whenever the shift lever is shifted to R from next time. The memorized downward tilt position of the mirror is linked to the normal position
(angle adjusted with the shif t lever in other than R). Therefore, if the normal posi-
tion is changed after adjustment, th e tilt position will also change.
When the normal position is chang ed, readjust the angle in reversing.■
Mirror angle can be adjusted when
The engine switch is in ACCESSORY or IGNITION ON mode. ■
When the mirrors are fogged up
The outside rear view mirrors can be cleare d using the mirror defoggers. Turn on the
rear window defogger to turn on the outside rear view mirror defoggers. (  P. 4 0 7 )■
Automatic adjustment of the mirror angle
A desired mirror face angle can be entered to memory and recalled automatically by the
driving position memory. (  P. 1 5 1 )■
Auto anti-glare function
When the anti-glare inside rear view mirror is set to automatic mode, the outside rear
view mirrors will activate in conjunction with the anti-glare inside rear view mirror to
reduce reflected light. (  P. 1 6 0 ) Indicator
Linked mirror function when reversing

LX570_OM_OM60N01U_(U) 5938-2. Customization
8
Vehicle specifications ■

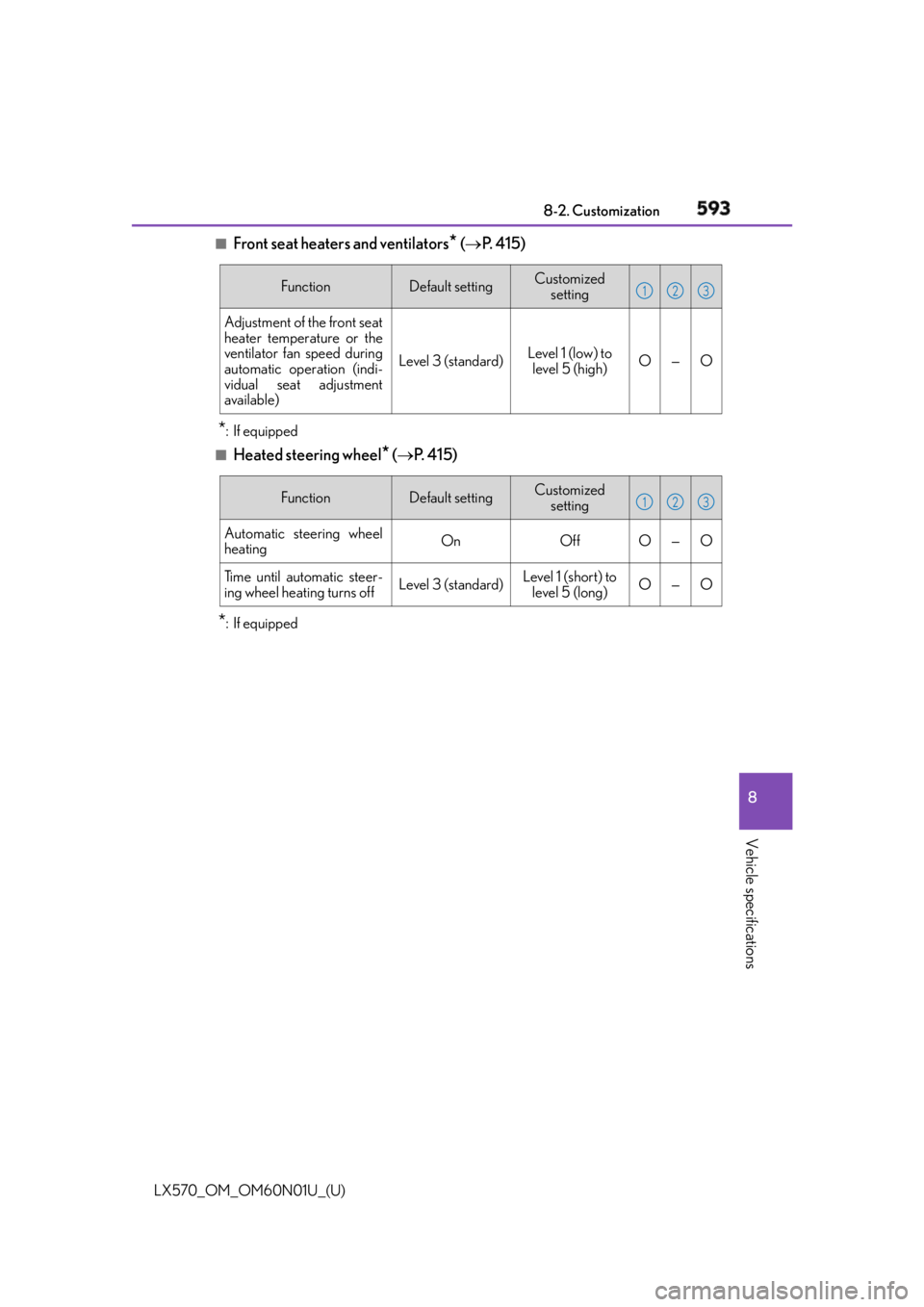

Front seat heaters and ventilators
* (  P. 4 1 5 )
* :If equipped ■
Heated steering wheel
* (  P. 4 1 5 )
* :If equipped Function Default setting Customized
setting
Adjustment of the front seat
heater temperature or the
ventilator fan speed during
automatic operation (indi-
vidual seat adjustment
available) Level 3 (standard) Level 1 (low) to
level 5 (high) O — O 1 2 3
Function Default setting Customized
setting
Automatic steering wheel
heating On Off O — O
Time until automatic steer-
ing wheel heating turns off Level 3 (standard) Level 1 (short) to
level 5 (long) O — O 1 2 3
