LEXUS LX570 2016 Owners Manual

LX570_OM_OM60N01U_(U)
2914-5. Using the driving support systems
4
Driving
■Distance display
Sensors that detect an obstacle will illuminate continuously or blink.
Sensor detection display, obstacle distance
Multi-information displayRemote touch screenApproximate distance to obstacle
Corner sensor/
front center sensorRear center sensor
(continuous)(continuous)
Front center
sensor:
3.3 ft. (100 cm) to
2.0 ft. (60 cm)
4.9 ft. (150 cm) to
2.6 ft. (80 cm)
(continuous)(continuous)
2.0 ft. (60 cm) to
1.5 ft. (45 cm)2.6 ft. (80 cm) to
2.1 ft. (65 cm)
(continuous)(continuous)
1.5 ft. (45 cm) to
1.1 ft. (35 cm)2.1 ft. (65 cm) to
1.6 ft. (50 cm)
(blinking)(continuous)
Less than
1.1 ft. (35 cm)Less than
1.6 ft. (50 cm)

292
LX570_OM_OM60N01U_(U)4-5. Using the driving support systems
■Buzzer operation and distance to an obstacle
A buzzer sounds when the sensors are operating.
●The buzzer sounds faster as the
vehicle approaches an obstacle.
When the vehicle comes within the follo wing distance of the obstacle, the
buzzer sounds continuously. • Front center sensors: Approximately 1.1 ft. (35 cm)
• Corner: Approximately 1.1 ft. (35 cm)
• Rear center sensors: Approximately 1.6 ft. (50 cm)
●When 2 or more obstacles are detected simultaneously, the buzzer system
responds to the nearest obstacle. If one or both come within the above dis-
tances, the beep will repeat a long tone, followed by fast beeps.
●You can change the volume of the warning beeps. ( P. 2 9 3 )
Approximately 3.3 ft. (100 cm)
Approximately 4.9 ft. (150 cm)
Approximately 2.0 ft. (60 cm)
Approximately 2.0 ft. (60 cm)
The diagram shows th e detection range
of the sensors. Note that the sensors
may not be able to detect obstacles that
are extremely close to the vehicle.
The range of the sensors may change
depending on the shape of the object
etc.
Detection range of the sensors
1
2
3
4

LX570_OM_OM60N01U_(U)
2934-5. Using the driving support systems
4
Driving
You can change the buzzer sound volume and the screen operating conditions.
Press the “SETUP” button.
Select “Vehicle”, and then select “L EXUS Park Assist”/“LEXUS Park Assist
Settings” on the screen.
Select the desired item.
The buzzer sound volume can be
adjusted.
On or off can be selected for intu-
itive parking assist display.
Front or rear center sensors dis-
play and tone indication can be
set.
Setting up intuitive parking assist
1
2
3
1
2
3

294
LX570_OM_OM60N01U_(U)4-5. Using the driving support systems
■The intuitive parking assist can be operated when
●Front corner sensors:
• The engine switch is in IGNITION ON mode.
• The shift lever is in a position other than P.
• The vehicle speed is less than approximately 6 mph (10 km/h).
(At any speed when the shift lever is in R)
●Front center sensors:
• The engine switch is in IGNITION ON mode.
• The shift lever is in a position other than P or R.
• The vehicle speed is less than about 6 mph (10 km/h).
●Rear corner and rear center sensors:
• The engine switch is in IGNITION ON mode.
• The shift lever is in R.
■Intuitive parking assist display
When an obstacle is detected while the re ar view monitor system, Lexus parking assist
monitor or Multi-terrain Monitor is in use, the warning indicator will appear in the upper
corner of the screen even if the display setting has been set to off.
■Sensor detectio n information
●The sensor’s detection areas are limited to the areas around the vehicle’s bumper.
●Certain vehicle conditions and the surround ing environment may affect the ability of a
sensor to correctly detect an obstacle. Particular instances where this may occur are
listed below.
• There is dirt, snow or ice on the sensor . (Wiping the sensors will resolve this prob-
lem.)
• The sensor is frozen. (Thawing th e area will resolve this problem.)
In especially cold weather, if a sensor is frozen the screen may show an abnormal
display, or obstacles may not be detected.
• The sensor is covered in any way.
• The vehicle is leaning co nsiderably to one side.
• On an extremely bumpy road, on an incline, on gravel, or on grass.
• The vicinity of the vehicle is noisy due to vehicle horns, motorcycle engines, air brakes of large vehicles, or other loud noises producing ultrasonic waves.
• There is another vehicle equipped with parking assist sensors in the vicinity.
• The sensor is coated with a sheet of spray or heavy rain.
• The vehicle is equipped with a fender pole or wireless antenna.
• The bumper or sensor receives a strong impact.
• The vehicle is approaching a tall or curved curb.
• In harsh sunlight or intense cold weather.
• The area directly under the bumpers is not detected.
• If obstacles draw too close to the sensor.
• A non-genuine Lexus suspension (low ered suspension etc.) is installed.
• People may not be detected if they are wearing certain types of clothing.
In addition to the examples above, there are instances in which, because of their shape,
signs and other objects may be judged by a sensor to be closer than they are.

LX570_OM_OM60N01U_(U)
2954-5. Using the driving support systems
4
Driving
●The shape of the obstacle may prevent a sensor from detecting it. Pay particular atten-
tion to the following obstacles:
• Wires, fences, ropes, etc.
• Cotton, snow and other materials that absorb sound waves
• Sharply-angled objects
•Low obstacles
• Tall obstacles with upper sections projecting outwards in the direction of your vehi-
cle
●The following situations may occur during use.
• Depending on the shape of the obstacle and other factors, the detection distance may shorten, or detect ion may be impossible.
• Obstacles may not be detected if they are too close to the sensor.
• There will be a short delay between obst acle detection and display. Even at slow
speeds, there is a possibility that the obstacle will come within the sensor’s detection
areas before the display is shown and the buzzer sounds.
• Thin posts or objects lower than the sensor may not be detected when approached, even if they have been detected once.
• It might be difficult to hear beeps due to th e volume of audio system or air flow noise
of the air conditioning system.
■If “Clean Parking Assist Sensor” is di splayed on the multi-information display
A sensor may be dirty or covered with snow or ice. In such cases, if it is removed from the
sensor, the system should return to normal.
Also, due to the sensor being frozen at low temperatures, a malfunction display may
appear or an obstacle may no t be detected. If the sensor thaws out, the system should
return to normal.
■If “Parking Assist Malfunction” is di splayed on the multi-information display
Depending on the malfunction of the sensor, the device may not be working normally.
Have the vehicle inspected by your Lexus dealer.
■Certification for the intuitive parking assist (Canada only)
This ISM device complies with Canadian ICES-001.
■Customization
Settings (e.g. buzzer sounds volume) can be changed.
(Customizable features: P. 585)

296
LX570_OM_OM60N01U_(U)4-5. Using the driving support systems
WA R N I N G
■When using the intuitive parking assist
Observe the following precautions.
Failing to do so may result in the vehicle being unable to be driven safely and possibly
cause an accident.
●Do not use the sensor
at speeds in excess of 6 mph (10 km/h).
●The sensors’ detection areas and reaction times are limited. When moving forward or
reversing, check the areas surrounding the vehicle (especially the sides of the vehi-
cle) for safety, and drive slowly, using the brake to control the vehicle’s speed.
●Do not install accessories within the sensors’ detection areas.
NOTICE
■When using intuitive parking assist
In the following situations, the system may not function correctly due to a sensor mal-
function etc. Have the vehicle checked by your Lexus dealer.
●A buzzer does not sound when you turn the intuitive parking assist on.
●The intuitive parking assist operation display flashes, and a buzzer sounds when no
obstacles are detected.
●If the area around a sensor collides with so mething, or is subjected to strong impact.
●If the bumper collides with something.
●If the display shows continuously without a buzzer.
●If a display error occurs, first check the sensor.
If the error occurs even if there is no ice, snow or mud on the sensor, it is likely that the
sensor is malfunctioning.
■Notes when washing the vehicle
Do not apply intensive bursts of water or steam to the sensor area.
Doing so may result in th e sensor malfunctioning.

297
LX570_OM_OM60N01U_(U)4-5. Using the driving support systems
4
Driving

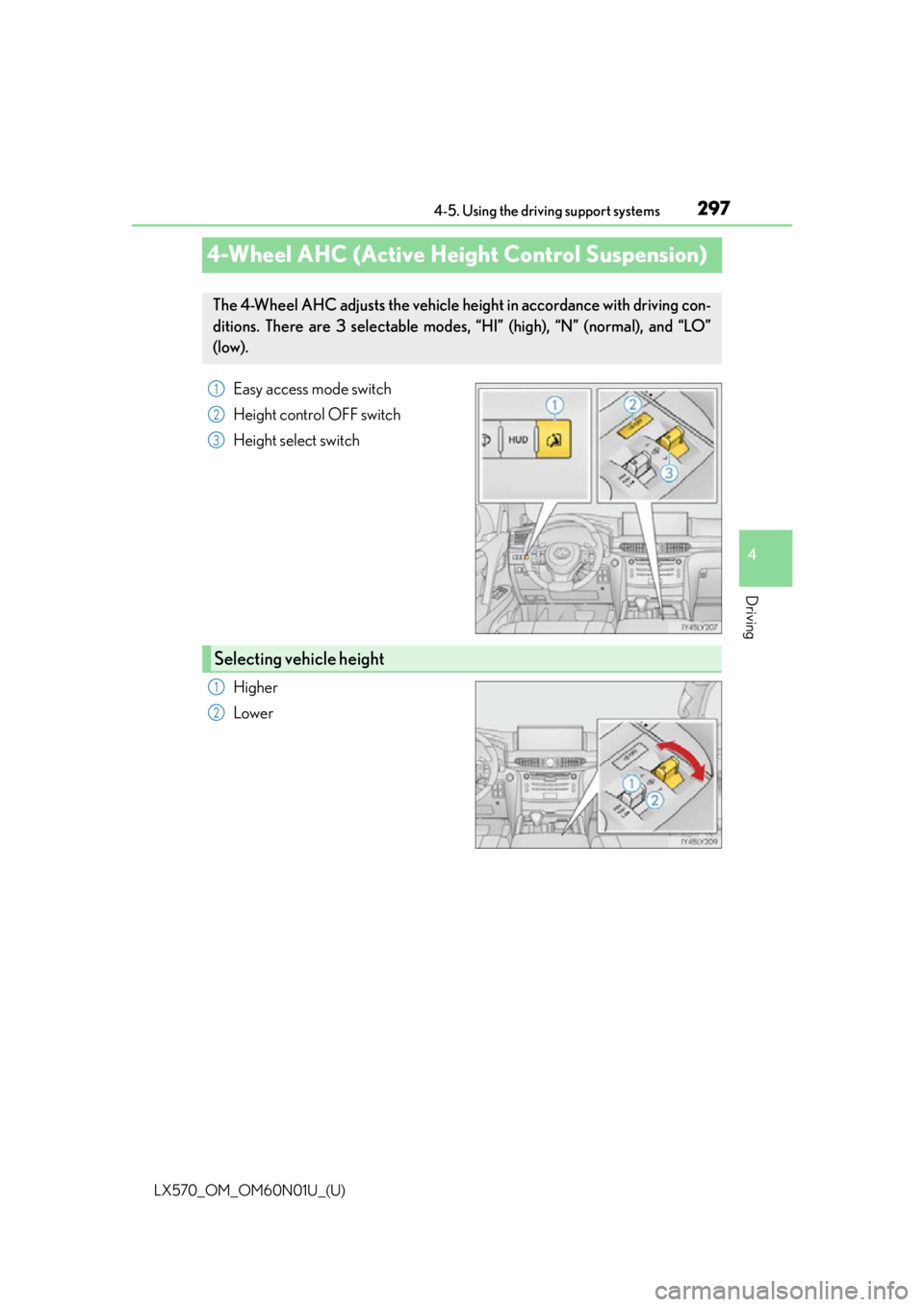

4-Wheel AHC (Active Height Control Suspension)
Easy access mode switch
Height control OFF switch
Height select switch
Higher
Lower
The 4-Wheel AHC adjusts the vehicle heig
ht in accordance with driving con-
ditions. There are 3 selectable modes, “HI” (high), “N” (normal), and “LO”
(low).
1
2
3
Selecting vehicle height
1
2

298
LX570_OM_OM60N01U_(U)4-5. Using the driving support systems
Current mode
The vehicle is in the N (normal) height
mode in the illustration. and
show directions in which it is possible to
adjust the vehicle height.
Height up
Height down
Height control “OFF” indicator
When the height control “OFF” indicator is
displayed, the vehicle height will not
change even if the height select switch is operated.
Push the height select switch to “ ” to step up one height mode, and pull to “ ” to
step down one height mode. (Ex. When in the low height mode, push to “” once
to switch to the normal height mode, and twice to switch to the high height
mode.)
■“HI” (high) height mode
Vehicle height is about 2.0 in. (50 mm) higher at the front, and about 2.4 in.
(60 mm) higher at the rear th an the normal mode height.
This mode is suitable when drivin g on bumpy roads or through water.
High height mode is only available wh en the vehicle speed is under 18 mph
(30 km/h).
■N (normal) height mode
The standard vehicle height. This mode is suitable for ordinary driving.
When driving at high speeds, the vehicle height is automatically lowered by
0.8 in. (20 mm) in the front and 0.6 in. (15 mm) in the rear, to ensure excellent
aerodynamic characteristics and stability.
If the vehicle speed drops, normal height mode is automatically resumed.
■“LO” (low) height mode
Vehicle height is about 2.4 in. (60 mm) lower at the front, and about 1.6 in. (40
mm) lower at the rear than the normal mode height.
This mode allows easy access to the vehicle.
Low height mode is only available when the vehicle is travelling at 7 mph
(12 km/h) or less. When the vehicle speed exceeds 7 mph (12 km/h), normal
height mode is automatically selected.
Display
1
2
3
4
Vehicle height modes

LX570_OM_OM60N01U_(U)
2994-5. Using the driving support systems
4
Driving
Some modes may not be selectable depending on the vehicle speed when the
four-wheel drive control switch is in the H4 position. Refer to the following table.
You can select this mode for easy
access and easy loading of the vehicle.
If the engine switch is turned to OFF
within 30 seconds after the vehicle
stops while this mode is on, the vehicle
height is lowered automatically.
When the vehicle begins to lower a
beep will sound twice, and while the
vehicle is lowering the indicator light
will flash to alert the driver and sur-
rounding people that the vehicle is low-
ering.
The indicator light stops blin king, and comes on continuously to indicate that the
shift is completed.
Easy access mode is available if the following conditions have been met:
●The vehicle height mode is in normal mode.
●The vehicle is stopped on a flat surface.
●The shift lever is in P.
●The side door and the back door are not opened, with the vehicle stopped and
the engine switch is turned to off.
The following method will cancel the vehicle lowering operation and raise the
vehicle again:
●Press the height control OFF switch.
●Push the height select switch to “ ”.
Conditions for changing the vehicle height mode
Low modeNormal modeHigh mode
Under 7 mph (12 km/h)Ye sYe sYe s
7 mph (12 km/h) to
18 mph (30 km/h)NoYe sYe s
18 mph (30 km/h) or overNoYe sNo
Easy access mode

300
LX570_OM_OM60N01U_(U)4-5. Using the driving support systems
When the height control OFF switch is
pressed with the vehicle stopped.
The height control “OFF” indicator will
appear on the multi-information display,
and the vehicle height will be fixed in the
current mode. Push the switch again to
turn the system back on.
■Operating conditions
●The engine must be running.
●Vehicle height control must be turned off.
●All side doors and the back door must be closed.
■Switching vehicle height mode while the engine is stopped
●If the engine is stopped while the vehicle height is being lowered, lowering will continue.
●If any luggage is removed from the vehicle
or if any occupants leave the vehicle within
approximately 30 seconds of the engine sw itch being turned OFF, the vehicle height
may be lowered by the auto leveling function.
●Operating the height select switch will have no effect while th e engine is stopped.
■Automatic change in vehicle height when the four-wheel drive control switch is in the
L4 position
If the vehicle speed exceeds 2 mph (3 km/h) while driving on an uneven road with the
four-wheel drive control switch in the “L4” position, high mode is automatically selected.
(On even roads, the height mode will not change.)
■Automatic change in vehicle height when in the high mode
●If the vehicle speed exceeds 18 mph (30 km/h) with the four-wheel drive control switch
in the “H4” position, normal mode is automatically selected.
●If the vehicle speed exceeds 30 mph (50 km/h) with the four-wheel drive control
switch in the “L4” position, the vehicle height is lowered to 1.0 in. (25 mm) higher than
the normal mode height. If the vehicle speed drops to 13 mph (20 km/h) or less, high
mode is automatically resumed.
Disabling the height control
