LEXUS LX570 2018 Owner's Guide

311-1. For safe use
LX570_OM_OM60Q78U_(U) 1
For safety and security Pull out the tab.
Push tab B into buckle B until a click-
ing sound is heard.
Push tab A into buckle A until a
clicking sound is heard. To release, push the release button on
buckle A.Fastening and releasing the third center seat belt (if equipped) Tab B
Tab A1
Tab B
Buckle B2
Tab A
Buckle ARelease button3

32 1-1. For safe use
LX570_OM_OM60Q78U_(U) Push the release button on buckle A.
Push either the mechanical key or
tab A into buckle B. When releasing and storing the seat
belt, hold the belt while winding it back
gently.
Put tabs A and B together and stow
them in the holder. To reattach the seat belt, reverse the
above procedure, pulling out the tabs
and inserting tab B into buckle B.Releasing and stowing the third center seat belt (if equipped)
Buckle A1
Tab ABuckle B
Buckle B2
Tab A Tab B3

331-1. For safe use
LX570_OM_OM60Q78U_(U) 1
For safety and security Push the seat belt shoulder anchor
down while pressing the release but-
ton.
Push the seat belt shoulder anchor
up. Move the height adjuster up and down
as needed until you hear a click.
The pretensioners help the seat belts to
quickly restrain the occupants by
retracting the seat belts when the vehi-
cle is subjected to certain types of
severe frontal collision or a vehicle roll-
over. The pretensioners do not activate in the
event of a minor frontal impact, a side
impact or a rear impact.Adjusting the seat belt shoulder anc hor height (front and second out-
board seats) 1
2
Seat belt pretensioners (front and second outboard seats)

34 1-1. For safe use
LX570_OM_OM60Q78U_(U) ■
Emergency locking retractor (ELR)
The retractor will lock th e belt during a sudden stop or on impact. It may also lock if you
lean forward too quickly. A slow, easy motion w ill allow the belt to ex tend so that you can
move around fully. ■
Automatic locking retractor (ALR)
When a passenger’s shoulder belt is completely extended and then retracted even
slightly, the belt is locked in that position and cannot be extended. This feature is used to
hold the child restraint system (CRS) firmly. To free the belt again, fully retract the belt
and then pull the belt out once more. ( → P. 62)■
When the third center seat belt cannot be extended (if equipped)
■
Child seat belt usage
The seat belts of your vehicle were principally designed for persons of adult size. ●
Use a child restraint system appropriate fo r the child, until the child becomes large
enough to properly wear the vehicle’s seat belt. ( → P. 57)●
When the child becomes large enough to properly wear the vehicle’s seat belt, follow
the instructions on P. 30 regarding seat belt usage.■
Replacing the belt after the pr etensioner has been activated
If the vehicle is involved in multiple collisions, the pretensioner will activate for the first
collision, but will not activate for th e second or subsequent collisions.■
Seat belt extenderPut your fingers between the seat belt and the
holder.
Pull the seat belt forcefully in the direction of the
arrow and then release it to unlock.
If your seat belts cannot be fastened securely
because they are not long enough, a personal-
ized seat belt extender is available from your
Lexus dealer free of charge.

351-1. For safe use
LX570_OM_OM60Q78U_(U) 1
For safety and security WARNING
Observe the following precautions to reduce the risk of injury in the event of sudden
braking, sudden swerving or an accident.
Failure to do so may cause death or serious injury. ■
Wearing a seat belt ●
Ensure that all passeng ers wear a seat belt.●
Always wear a seat belt properly. ●
Each seat belt should be used by one person only. Do not use a seat belt for more
than one person at once, including children. ●
Lexus recommends that ch ildren be seated in the rear seat and always use a seat belt
and/or an appropriate child restraint system. ●
To achieve a proper seating position, do not recline the seat more than necessary. The
seat belt is most effective when the occupa nts are sitting up stra ight and well back in
the seats. ●
Do not wear the shoulder belt under your arm. ●
Always wear your seat belt low and snug across your hips. ■
Pregnant women
■
People suffering illness
Obtain medical advice and wear the seat belt in the proper way. ( → P. 30)Obtain medical advice and wear the seat belt
in the proper way. ( → P. 30)
Women who are pregnant should position the
lap belt as low as possible over the hips in the
same manner as other occupants, extending
the shoulder belt completely over the shoulder
and avoiding belt contact with the rounding of
the abdominal area.
If the seat belt is not worn properly, not only the
pregnant woman, but also the fetus could suffer
death or serious injury as a result of sudden
braking, sudden swerving or a collision.

36 1-1. For safe use
LX570_OM_OM60Q78U_(U) WARNING ■
When the children are in the vehicle
Do not allow children to play with the seat belt. If the seat belt becomes twisted around
a child’s neck, it may lead to choking or othe r serious injuries that could result in death.
If this occurs and the buckle cannot be unfastened, scissors should be used to cut the
belt. ■
Seat belt pretensioners ●
Do not place anything, such as a cushion, on the front passenger’s seat. Doing so will
disperse the passenger’s weight, which prevents the sensor from detecting the pas-
senger’s weight properly. As a result, the seat belt pretensioner for the front passen-
ger’s seat may not activate in the event of a collision. ●
If the pretensioner has activated, the SRS wa rning light will come on. In that case, the
seat belt cannot be used again and must be replaced at your Lexus dealer. ■
Adjustable shoulder anchor
Always make sure the shoulder belt is posi tioned across the center of your shoulder.
The belt should be kept away from your neck , but not falling off your shoulder. Failure to
do so could reduce the amount of protection in an accident and cause death or serious
injuries in the event of a sudden stop, sudden swerve or accident. ( → P. 33)■
When using the third center seat belt (if equipped)
■
Seat belt damage and wear ●
Do not damage the seat belts by allowing th e belt, plate, or buckle to be jammed in
the door. ●
Inspect the seat belt system periodically. Check for cuts, fraying, and loose parts. Do
not use a damaged seat belt until it is replaced. Damaged seat belt cannot protect an
occupant from death or serious injury. ●
Ensure that the belt and plate are locked and the belt is not twisted.
If the seat belt does not function correct ly, immediately contact your Lexus dealer.●
Replace the seat assembly, incl uding the belts, if your vehi cle has been involved in a
serious accident, even if there is no obvious damage. ●
Do not attempt to install, remove, modify, disassemble or dispose of the seat belts.
Have any necessary repairs carried out by your Lexus dealer. Inappropriate handling
may lead to inco rrect operation.Do not use the third center seat belt with either
buckle released. Fastening only one of the
buckles may result in death or serious injury in
case of sudden braking, sudden swerving or an
accident.

371-1. For safe use
LX570_OM_OM60Q78U_(U) 1
For safety and security WARNING ■
Using a seat belt extender ●
Do not wear the seat belt extender if you can fasten the seat belt without the extender. ●
Do not use the seat belt extender when in stalling a child restrain t system because the
belt will not securely hold the child restra int system, increasing the risk of death or
serious injury in the event of an accident. ●
The personalized extender may not be safe on another vehicle, when used by another
person, or at a different seating position other than the one originally intended.
NOTICE ■
Using a seat belt extender
When releasing the seat belt, press on the buckle release button on the extender, not
on the seat belt.
This helps prevent damage to the vehicle interior and the extender itself.

38 1-1. For safe use

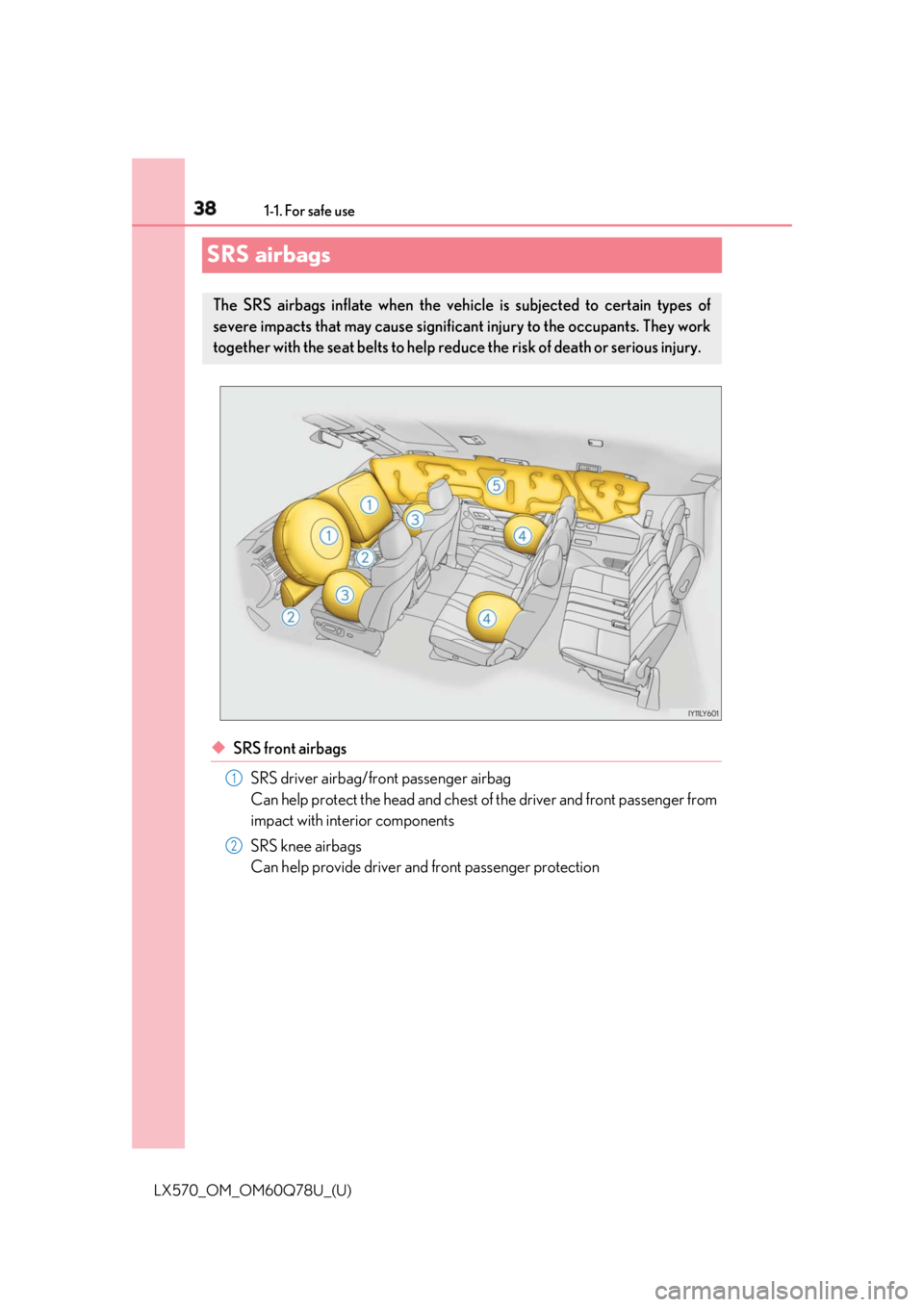

LX570_OM_OM60Q78U_(U)SRS airbags
◆ SRS front airbags
SRS driver airbag/front passenger airbag
Can help protect the head and chest of the driver and front passenger from
impact with interior components
SRS knee airbags
Can help provide driver an d front passenger protectionThe SRS airbags inflate when the vehi cle is subjected to certain types of
severe impacts that may ca use significant injury to the occupants. They work
together with the seat belts to help redu ce the risk of death or serious injury.
1
2

391-1. For safe use
LX570_OM_OM60Q78U_(U) 1
For safety and security ◆ SRS side and curtain shield airbags
SRS front side airbags
Can help protect the torso of the front seat occupants
SRS rear side airbags
Can help protect the torso of occupa nts in the second outboard seats
SRS curtain shield airbags ●
Can help protect primarily the head of occupants in the outboard seats●
Can help prevent the occupants from being thrown from the vehicle in
the event of vehicle rollover 3
4
5

40 1-1. For safe use
LX570_OM_OM60Q78U_(U) SRS airbag system components
Knee airbags
Curtain shield airbags
Front passenger airbag
Side impact sensors (front door)
Front side airbags
SRS warning light
Side impact sensors (rear)
Rear side airbags (second outboard
seat)
Driver airbag
Driver’s seat belt buckle switch
Safing sensor (rear) Airbag sensor assembly
Front impact sensors
Seat belt pretensioners and force
limiters (front seats)
Driver’s seat position sensor
“AIR BAG ON” and “AIR BAG
OFF” indicator lights
Front passenger’s seat belt buckle
switch
Front passenger occupant classifi-
cation system (ECU and sensors)
Seat belt pretensioners (second
outboard seats)1
2
3
4
5
6
7
8
9
10
11 12
13
14
15
16
17
18
19
