For safety and security ■
Adult
* 1
■
Child
* 4
or child restraint system with infant
* 5Condition and operation in the front passenger occupant classification
system Indicator/
warning light “AIR BAG ON” and “AIR BAG OFF”
indicator lights “AIR BAG ON”
SRS warning light Off
Front passenger’s seat belt reminder light Off
* 2
or flashing
* 3
Devices Front passenger airbag
ActivatedSide airbag
on the front passenger seat
Curtain shield airbag
in the front passenger side
Front passenger knee airbag
Front passenger’s seat belt pretensioner
Indicator/
warning light “AIR BAG ON” and “AIR BAG OFF”
indicator lights “AIR BAG OFF”
* 6
SRS warning light Off
Front passenger’s seat belt reminder light Off
* 2
or
flashing
* 3
Devices Front passenger airbag Deactivated
Side airbag
on the front passenger seat
Activated
Curtain shield airbag
in the front passenger side
Front passenger knee airbag Deactivated
Front passenger’s seat belt pretensioner Activated

52 1-1. For safe use
LX570_OM_OM60Q78U_(U) ■
Unoccupied
■
There is a malfunction in the system Indicator/
warning light “AIR BAG ON” and “AIR BAG OFF”
indicator lights Not illuminated
SRS warning light
Off
Front passenger’s seat belt reminder light
Devices Front passenger airbag Deactivated
Side airbag
on the front passenger seat
Activated
Curtain shield airbag
in the front passenger side
Front passenger knee airbag
Deactivated
Front passenger’s seat belt pretensioner
Indicator/
warning light “AIR BAG ON” and “AIR BAG OFF”
indicator lights “AIR BAG OFF”
SRS warning light
On
Front passenger’s seat belt reminder light
Devices Front passenger airbag Deactivated
Side airbag
on the front passenger seat
Activated
Curtain shield airbag
in the front passenger side
Front passenger knee airbag Deactivated
Front passenger’s seat belt pretensioner Activated

531-1. For safe use
LX570_OM_OM60Q78U_(U) 1
For safety and security * 1
: The system judges a person of adult size as an adult. When a smaller adult sits in
the front passenger seat, the system may recognize him/her as a child depending
on his/her physique and posture.
* 2
: In the event the front passenger is wearing a seat belt.
* 3
: In the event the front passenger does not wear a seat belt
* 4
: When a larger child who has outgrown a child restraint system sits in the front pas-
senger seat, the system may recognize hi m/her as an adult depending on his/her
physique or posture.
* 5
: Never install a rear-facing child restraint system on the front passenger seat. A for-
ward-facing child restraint sy stem should only be inst alled on the front passenger
seat when it is unavoidable. ( → P. 57)
* 6
: In case the indicator light is not illuminated, consult this manual on how to install the
child restraint system properly. ( → P. 62)

54 1-1. For safe use
LX570_OM_OM60Q78U_(U) WARNING ■
Front passenger occupant classification system precautions
Observe the following precau tions regarding the front passenger occupant classifica-
tion system.
Failure to do so may cause death or serious injury. ●
Wear the seat belt properly. ●
Make sure the front passenger’s seat belt plate has not been left inserted into the
buckle before someone sits in the front passenger seat.●
Make sure the “AIR BAG OFF” indicator li ght is not illuminated when using the seat
belt extender for the front passenger seat. If the “AIR BAG OFF” indicator light is illu-
minated, disconnect the extender tongue from the seat belt buckle, and reconnect
the seat belt. Reconnect the seat belt extender after making sure the “AIR BAG ON”
indicator light is illuminated. If you use the seat belt extender while the “AIR BAG
OFF” indicator light is illuminated, the SRS airbags for the front passenger will not
activate, which could cause death or seri ous injury in the event of a collision.●
Do not apply a heavy load to the front pa ssenger seat or equipment (e.g. seatback
pocket). ●
Do not put weight on the front passenger seat by putting your hands or feet on the
front passenger seat seatback from the rear passenger seat.●
Do not let a rear passenger lift the front passenger seat with their feet or press on the
seatback with their legs. ●
Do not put objects under the front passenger seat.

551-1. For safe use
LX570_OM_OM60Q78U_(U) 1
For safety and security WARNING ■
Front passenger occupant classification system precautions ●
Do not recline the front passenger seatback so far that it touches the rear seat. This
may cause the “AIR BAG OFF” indicator ligh t to be illuminated, which indicates that
the SRS airbags for the front passenger will no t activate in the ev ent of a severe acci-
dent. If the seatback touches the rear seat, return the seatback to a position where it
does not touch the rear seat. Keep the fron t passenger seatback as upright as possi-
ble when the vehicle is moving. Reclining the seatback excessively may lessen the
effectiveness of the seat belt system.●
If an adult sits in the fron t passenger seat , the “AIR BAG ON” indicator light is illumi-
nated. If the “AIR BAG OFF” indicator is illuminated, ask the passenger to sit up
straight, well back in the seat, feet on the floor, and with the seat belt worn correctly. If
the “AIR BAG OFF” indicator still remain s illuminated, either ask the passenger to
move to the rear seat, or if that is not possible, move the fron t passenger seat fully
rearward. ●
When it is unavoidable to in stall a forward-facing child re straint system on the front
passenger seat, install the ch ild restraint system on the front passenger seat in the
proper order. ( → P. 62)●
Do not modify or remove the front seats. ●
Do not kick the front passenger seat or subject it to severe impact. Otherwise, the
SRS warning light may come on to indica te a malfunction of the front passenger
occupant classification system. In this cas e, contact your Lexus dealer immediately.●
Child restraint systems installe d on the second seat should not contact the front seat-
backs. ●
Do not use a seat accessory, such as a cushion and seat cover, that covers the seat
cushion surface. ●
Do not modify or replace the upholstery of the front seat.

56 1-1. For safe use
LX570_OM_OM60Q78U_(U)Safety information for children ●
It is recommended that children sit in the rear seats to avoid accidental con-
tact with the shift lever, wiper switch etc. ●
Use the rear door child-pro tector lock or the window lock switch to avoid
children opening the door while driving or operating the power window acci-
dentally. ( → P. 118, 165)●
Do not let small children operate equipment which may catch or pinch body
parts, such as the power wind ow, hood, back door, seats etc.Observe the following precautions wh en children are in the vehicle.
Use a child restraint system appropriate for the child, until the child becomes
large enough to properly wear the vehicle’s seat belt.
WARNING
Never leave children unattended in the vehicl e, and never allow child ren to have or use
the key.
Children may be able to start the vehicle or sh ift the vehicle into neutral. There is also a
danger that children may injure themselves by playing with the windows, the moon roof
or other features of the vehi cle. In addition, heat build-up or extremely cold tempera-
tures inside the vehicle can be fatal to children.

571-1. For safe use
LX570_OM_OM60Q78U_(U) 1
For safety and security
Child restraint systems Studies have shown that installing a child restraint on a rear seat is much safer
than installing one on the front passenger seat. ●
Choose a child restraint system that su its your vehicle and is appropriate to
the age and size of the child. ●
For installation details, follow the instru ctions provided with the child restraint
system.
General installation instructions are provided in this manual. ( → P. 62)A child restraint system for a small ch ild or baby must itself be properly
restrained on the seat with the LATCH anchors or the lap portion of the lap/
shoulder belt.
The laws of all 50 states of the U.S.A. and Canada now require the use of child
restraint systems.
Points to remember

58 1-1. For safe use
LX570_OM_OM60Q78U_(U) Child restraint systems are classified in to the following 3 types according to the
age and size of the child:

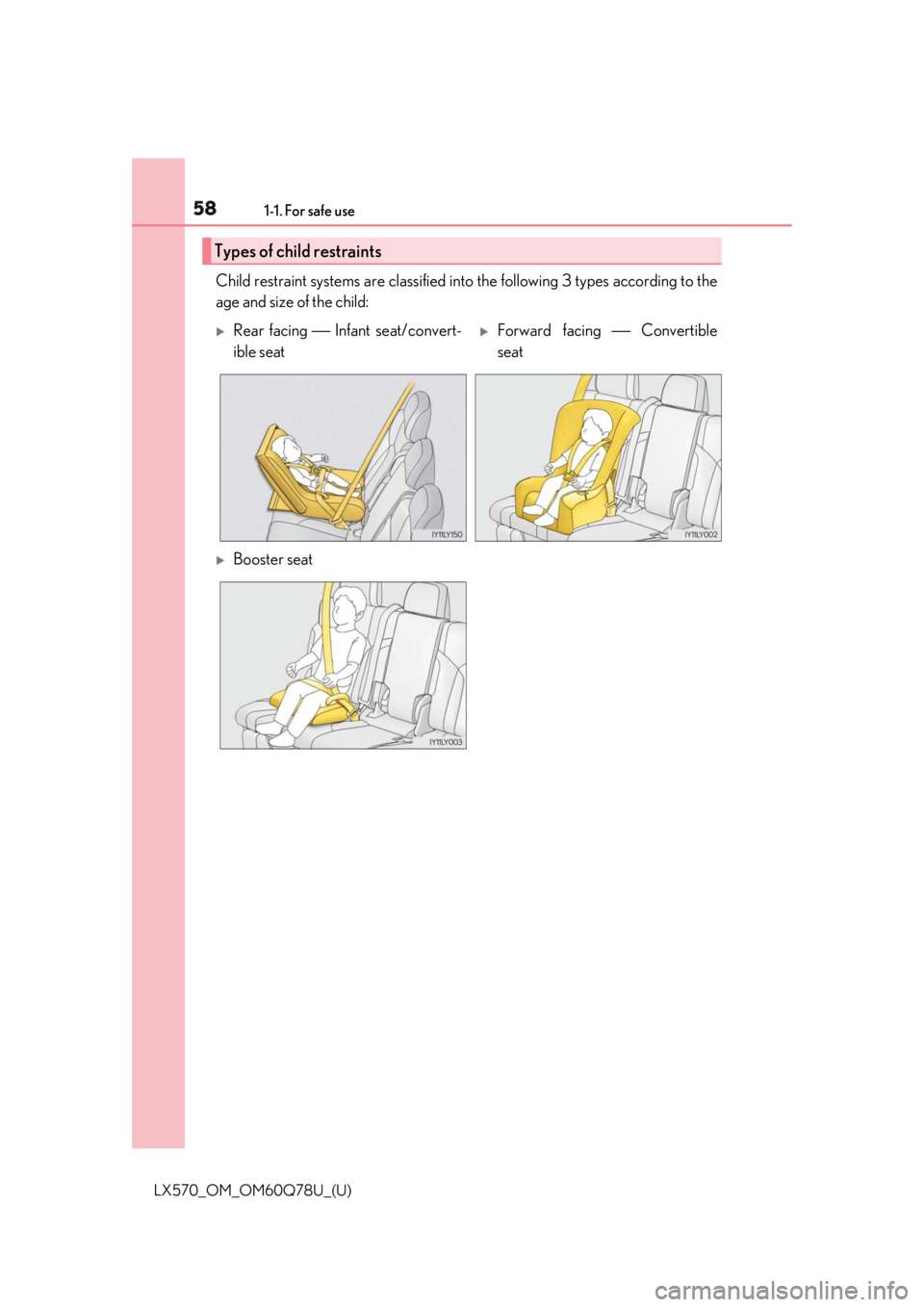

Types of child restraints 
Rear facing ⎯ Infant seat/convert-
ible seat 
Forward facing ⎯ Convertible
seat
Booster seat

591-1. For safe use
LX570_OM_OM60Q78U_(U) 1
For safety and security ■
When installing a child restraint system on the front passenger seat
When you have to use a child restraint system on the front passenger seat, adjust the fol-
lowing:
■
Selecting an appropriate child restraint system ●
Use a child restraint system appropriate fo r the child until the child becomes large
enough to properly wear the vehicle’s seat belt. ●
If the child is too large for a child restraint system, sit the child on a rear seat and use the
vehicle’s seat belt. ( → P. 30)●
The seatback to the most upright position ●
The seat cushion to the fully rearward and
highest position ●
The seat belt height to the lowest position

60 1-1. For safe use
LX570_OM_OM60Q78U_(U) WARNING ■
Child restraint precautions ●
For effective protection in automobile accidents and sudden stops, a child must be
properly restrained, using a seat belt or child restraint system depending on the age
and size of the child. Holding a child in your arms is not a su bstitute for a child restraint
system. In an accident, the child can be crushed against the windshield, or between
you and the vehicle’s interior. ●
Lexus strongly urges the use of a proper ch ild restraint system that conforms to the
size of the child, installed on the rear seat. According to accident statistics, the child is
safer when properly restrained in th e rear seat than in the front seat.●
Never install a rear-facing child restraint sy stem on the front passenger seat even if
the “AIR BAG OFF” indicator light is illuminated.
In the event of an accident, the force of the rapid inflation of the front passenger air-
bag can cause death or serious injury to the child if the rear-facing child restraint sys-
tem is installed on th e front passenger seat.●
A forward-facing child restraint system ma y be installed on the front passenger seat
only when it is unavoidable. A child restraint system that requires a top tether strap
should not be used in the front passenger seat since there is no top tether strap
anchor for the front passenger seat. Adjust the seatback as upright as possible and
always move the seat as far back as possible even if the “AIR BAG OFF” indicator
light is illuminated, because the front passenger airbag co uld inflate with considerable
speed and force. Otherwise, the chil d may be killed or seriously injured.●
Do not use the seat belt extender when inst alling a child restraint system on the front
or rear passenger seat. If in stalling a child restraint system with the seat belt extender
connected to the seat belt, th e seat belt will not securely hold the child restraint sys-
tem, which could cause death or serious injury to the chil d or other passengers in the
event of a sudden stop, sudden swerve or accident. ●
Do not allow the child to lean his/her head or any part of his/her body against the
door or the area of the seat, front, side and rear pillars or roof side rails from which the
SRS side airbags or SRS curtain shield airbags deploy even if the child is seated in the
child restraint syst em. It is dangerous if the SRS side airbags and curtain shield air-
bags inflate, and the impact could caus e death or serious injury to the child.●
Make sure you have complied with all insta llation instructions provided by the child
restraint manufacturer and that the system is properly secured. If it is not secured
properly, it may cause death or serious inju ry to the child in the event of a sudden
stop, sudden swerve or accident.
