LX570_OM_OM60R07U_(U) 4616-1. Maintenance and care
6
Maintenance and care ■
Notes for a smart access system with push-button start ●
If the door handle becomes wet while the el ectronic key is within the effective range,
the door may lock and unlock repeatedly. Place the key in a position 6 ft. (2 m) or more
separate from the vehicle while the vehicle is being washed. (Take care to ensure that
the key is not stolen.) ●
If the electronic key is inside the vehicle and a door handle becomes wet during a car
wash, a message may be shown on the mult i-information display and a buzzer will
sound outside the vehicle. To turn off the alarm, lock all the doors.
WARNING ■
When washing the vehicle
Do not apply water to the inside of the engine compartment. Doing so may cause the
electrical components etc. to catch fire. ■
When cleaning the windshield
●
When the upper part of the windshield where the raindrop se nsor is located is
touched by hand ●
When a wet rag or similar is held close to the raindrop sensor ●
If something bumps against the windshield ●
If you directly touch the raindrop sensor bo dy or if something bumps into the raindrop
sensor ■
Precautions regarding the exhaust pipe
Exhaust gasses cause the exhaust pipe to become quite hot.
When washing the vehicle, be careful not to touch the pipe until it has cooled suffi-
ciently, as touching a hot exhaust pipe can cause burns. ■
Precautions regarding the Blind Spot Monitor (if equipped)
If the paint of the rear bump er is chipped or scratched, the system may malfunction.
If this occurs, consult your Lexus dealer.Set the wiper switch to off.
If the wiper switch is in “AUTO”, the wipers may
operate unexpectedly in the following situa-
tions, and may result in hands being caught or
other serious injuries and cause damage to the
wiper blades. OFF
AUTO

LX570_OM_OM60R07U_(U) 4676-2. Maintenance
6
Maintenance and care ■
Repair and replacement
It is recommended that genuine Lexus parts be used for repairs to ensure performance
of each system. If non-Lexus parts are used in replacement or if a repair shop other than
a Lexus dealer performs repairs, confirm the warranty coverage.■
Resetting the message indicating main tenance is required (U.S.A. only)
After the required maintenanc e is performed according to the maintenance schedule,
please reset the message.
To reset the message, follow the procedures described below:
Press or of the meter control switches, select .
Press or of the meter control switches, select “Scheduled Maintenance” and
then press .
Select the “Yes” and press .
A message is displayed on th e multi-information display.■
Allow inspection and repairs to be performed by a Lexus dealer●
Lexus technicians are well-trained specialists and are kept up to date with the latest ser-
vice information. They are well informed about the operat ion of all systems on your
vehicle. ●
Keep a copy of the repair order. It proves that the maintenance that has been per-
formed is under warranty co verage. If any problem should arise while your vehicle is
under warranty, your Lexus dealer will promptly take care of it.
WARNING ■
If your vehicle is not properly maintained
Improper maintenance could result in seriou s damage to the vehicle and possible seri-
ous injury or death. ■
Handling of the battery ●
Engine exhaust, some of its constituents, and a wide variety of automobile compo-
nents contain or emit chemicals known to th e State of California to cause cancer and
birth defects and other reproductive ha rm. Work in a well ventilated area.●
Oils, fuels and fluids contained in vehicles as well as waste produced by component
wear contain or emit chemicals known to the State of California to cause cancer and
birth defects or other reproductive harm. Avoid exposure and wash any affected area
immediately. ●
Battery posts, terminals and related acce ssories contain lead and lead compounds
which are known to cause brain damage . Wash your hands after handling. (  P. 484)1
2
3
4

478
LX570_OM_OM60R07U_(U) 6-3. Do-it-yourself maintenance■
Adding engine oil
If the oil level is below or near the
low level mark, add engine oil of the
same type as already in the engine.
Make sure to check the oil type and prepare the items needed before adding
oil.
Remove the oil filler cap by turning it counterclockwise.
Add engine oil slowly, checking the dipstick.
Install the oil filler cap by turning it clockwise.■
Engine oil consumption
A certain amount of engine oil will be consumed while driving. In th e following situations,
oil consumption may increase, and engine oil may need to be refilled in between oil
maintenance intervals. ●
When the engine is new, for example directly after purchasing the vehicle or after
replacing the engine ●
If low quality oil or oil of an inappropriate viscosity is used ●
When driving at high engine speeds or with a heavy load, when towing, or when driving
while accelerating or decelerating frequently ●
When leaving the engine idling for a long time, or when drivin g frequently through
heavy traffic ■
After changing the engine oil
The engine oil maintenance data should be reset. Perform the following procedures:
Press or of the meter control switches, select .
Press or of the meter control swit ches, select “Oil Maintenance” and then
press .
Select the “Yes” and press .
A message is displayed on th e multi-information display.Engine oil selection  P. 564
Oil quantity (Low  Full) 1.6 qt. (1.5 L, 1.3 Imp.qt.)
Items Clean funnel1
2
3
1
2
3
4

LX570_OM_OM60R07U_(U) 4876-3. Do-it-yourself maintenance
6
Maintenance and care If any washer does not work or “Wind-
shield Washer Fluid Low” appears on
the multi-information display, the
washer tank may be empty. Add
washer fluid.Washer fluid
WARNING ■
When adding washer fluid
Do not add washer fluid when the engine is hot or running as washer fluid contains
alcohol and may catch fire if spilled on the engine etc.
NOTICE ■
Do not use any fluid other than washer fluid
Do not use soapy water or engine antifreeze instead of washer fluid.
Doing so may cause streaking on the vehicle’ s painted surface, as well as damaging the
pump leading to problems of the washer fluid not spraying.■
Diluting washer fluid
Dilute washer fluid with water as necessary.
Refer to the freezing temperatures listed on the label of the washer fluid bottle.

LX570_OM_OM60R07U_(U) 4896-3. Do-it-yourself maintenance
6
Maintenance and care Your Lexus is equipped with a tire pressu re warning system that uses tire pres-
sure warning valves and transmitters to detect low tire inflation pressure before
serious problems arise. ●
If the tire pressure drops below a predet ermined level, the driver is warned by
a screen display and a warning light. (  P. 525)●
The tire pressure detected by the
tire pressure warning system can be
displayed on the multi-information
display. (  P. 96)
◆ Installing tire pressure warning valves and transmitters
When replacing tires or wheels, tire pr essure warning valv es and transmitters
must also be installed.
When new tire pressure wa rning valves and transmitters are installed, new ID
codes must be registered in the tire pressure warning computer and the tire
pressure warning system must be initia lized. Have tire pressure warning valve
and transmitter ID codes registered by your Lexus dealer. (  P. 490)
◆ Initializing the tire pressure warning system ■
The tire pressure warning system must be initialized in the following circum-
stances: ●
When rotating the tires in above situation. ●
When the set tire pressure has been changed before towing. (  P. 569)
When the tire pressure warning system is initialized, the current tire inflation
pressure is set as the benchmark pressure.Tire pressure warning system

490
LX570_OM_OM60R07U_(U) 6-3. Do-it-yourself maintenance■
How to initialize the tire pressure warning system
Park the vehicle in safe place and turn the engine switch to off. Initialization cannot be performed while the vehicle is moved.
Adjust the tire inflation pressure to th e specified cold tire inflation pressure
level. (  P. 569)Make sure to adjust the tire pressure to the specified cold tire inflation pressure
level. The tire pressure warning system will operate based on this pressure level.
Turn the engine switch to IGNITION ON mode.
Push and hold the tire pressure
warning reset switch until the tire
pressure warning light blinks
slowly 3 times. “--” will be displayed for inflation
pressure of each tire on the multi-
information displa y while the tire
pressure warning system determines
the position of each tire.
When position of each tire is determined, the inflation pressure of each tire will be
displayed on the mult i-information display.
Drive the vehicle at approximately 25 mph (40 km/h) or more for approx-
imately 10 minutes. When initialization is comple te, the inflation pressure of each tire will be displayed
on the multi-information display.
Initialization will take long er than approximately 10 minutes if the vehicle is
stopped for a long time, su ch as at traffic signals.
◆ Registering ID codes
The tire pressure warning valve and tran smitter is equipped with a unique ID
code. When replacing a tire pressure warning valve and transmitter, it is nec-
essary to register the ID code of tire pressure warning valve and transmitter.
Have the ID code registered by your Lexus dealer. 1
2
3
4
5

LX570_OM_OM60R07U_(U) 4936-3. Do-it-yourself maintenance
6
Maintenance and care ●
Performance may be affected in the following situations.
• Near a TV tower, electric power plant, gas station, radio station, large display, air-
port or other facility that generates st rong radio waves or electrical noise
• When carrying a portable radio, cellular phone, cordless phon e or other wireless
communication device
If tire position information is not correctl y displayed due to the radio wave conditions,
the display may be corrected by driving and changing the radio wave conditions. ●
When the vehicle is parked, the time taken for the warning to start or go off could be
extended. ●
When tire inflation pressure declines rapidly for example when a tire has burst, the
warning may not function. ■
The initialization operation ●
Make sure to carry out initialization afte r adjusting the tire inflation pressure.
Also, make sure the tires are cold before carryi ng out initialization or tire inflation pres-
sure adjustment. ●
If you have accidentally turned the engine swit ch off during initialization, it is not neces-
sary to press the reset switch again as initialization will re start automatically when the
engine switch has been turned to IG NITION ON mode for the next time.●
If you accidentally press the re set switch when initialization is not necessary, adjust the
tire inflation pressure to the specified leve l when the tires are co ld, and conduct initial-
ization again. ●
While the position of each tire is being de termined and the inflation pressures are not
being displayed on the multi-info rmation display, if the inflat ion pressure of a tire drops,
the tire pressure warning light will come on.

494
LX570_OM_OM60R07U_(U) 6-3. Do-it-yourself maintenance■
When the initialization of the tire pressure warning system has failed
Initialization can be completed in a few minutes. However, in the following cases, the set-
tings have not been recorded and the system will not operate properly. If repeated
attempts to record tire inflation pressure settings are unsuccessful, have the vehicle
inspected by your Lexus dealer. ●
When operating the tire pres sure warning reset switch, th e tire pressure warning light
does not blink 3 times and the setting mess age does not appear on the multi-informa-
tion display. ●
After carrying out the initializat ion procedure, the tire pressu re warning light blinks for 1
minute then stays on after driving for about 20 minutes.
If the inflation of each tire is not displaye d after driving for approximately 1 hour, perform
the following procedure. ●
Park the vehicle in a safe place for approxim ately 20 minutes. Then drive straight (with
occasional left and right turns) at appr oximately 25 mph (40 km/h) or more for
approximately 10 to 20 minutes.
However, in the following situations, the tire inflation pressure will not be recorder and
the system will not operate pr operly. Perform initialization.●
When operating the tire pres sure warning reset switch, th e tire pressure warning light
does not blink 3 times. ●
After performing initia lization, the tire pressure warning light blinks for 1 minute then
stays on after driving for about 20 minutes.
If the inflation pressure of ea ch tire is still not displayed, have the vehicle inspected by
your Lexus dealer. ■
Tire pressure warning system certification 
For vehicles sold in the U.S.A., Hawaii, Guam and Puerto Rico
FCC ID: PAXPMVC015
NOTE
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
FCC WARNING
Changes or modifications not expressly approved by the pa rty responsible for compli-
ance could void the user’s authority to operate the equipment. 
For vehicles sold in Canada
Model: PMV-C015
NOTE
This device complies with Industry Canada licence-exempt RSS st andard(s). Operation
is subject to the following two conditions: (1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause
undesired operation of the device.

497
LX570_OM_OM60R07U_(U) 6-3. Do-it-yourself maintenance
6
Maintenance and care

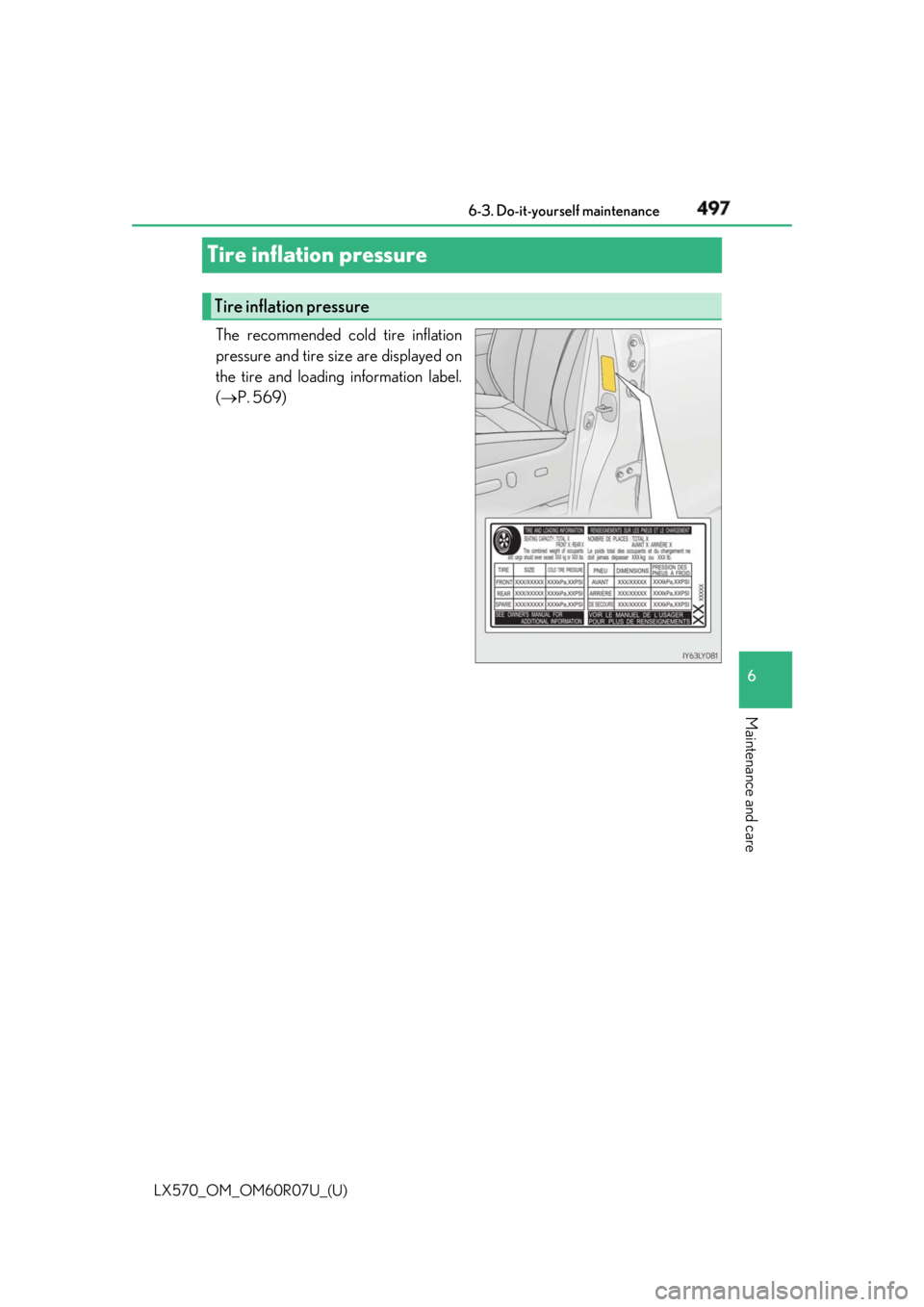

Tire inflation pressure The recommended cold tire inflation
pressure and tire size are displayed on
the tire and loading information label.
(  P. 569)Tire inflation pressure

511
LX570_OM_OM60R07U_(U) 7When trouble arises 7-1. Essential information
Emergency flashers ................... 512
If your vehicle has to be
stopped in an emergency..... 513
If the vehicle is trapped
in rising water ............................ 514
7-2. Steps to take in an emergency
If your vehicle needs
to be towed................................. 515
If you think something is
wrong ............................................ 521
Fuel pump shut off system ...... 522
If a warning light turns
on or a warning buzzer
sounds.......................................... 523
If a warning message is
displayed...................................... 531
If you have a flat tire ..................535
If the engine will not start ........ 547
If the electronic key does
not operate properly ............. 549
If the vehicle battery is
discharged ................................. 552
If your vehicle overheats .........555
If the vehicle becomes
stuck ............................................ 558
