display LEXUS LX570 2019 User Guide

LX570_OM_OM60R07U_(U) 932. Instrument cluster
2
Instrument cluster Odometer and trip meter display Odometer:
Displays the total distance the vehicle has been driven
Trip meter:
Displays the distance the vehi cle has been driven since the meter was last reset. Trip
meters A and B can be used to record an d display different distances independently.
Shift position and shift range display Displays the selected shift posi tion or selected shift range (  P. 216)
4-Wheel AHC display Display the status of 4-Wheel AHC (Active Height Control Suspension). (  P. 301)
Outside temperature Displays the outside temperature within the range of -40  F (-40  C) to 122  F
(50  C). Low outside temperature indicator comes on when the ambient temperature
is 37  F (3  C) or lower.
Clock Time displayed is linked to the anal og clock on the instrument panel. (  P. 438)
Odometer/trip meter display change button Switches between odometer and trip meter displays
Instrument panel light control dial The brightness of the instrument panel light can be adjusted
Switches between odometer and trip
meter displays. When the trip meter is
displayed, pressing and holding the
button will reset the trip meter.Changing the display 8
9
10
11
12
13
14

94
LX570_OM_OM60R07U_(U) 2. Instrument cluster

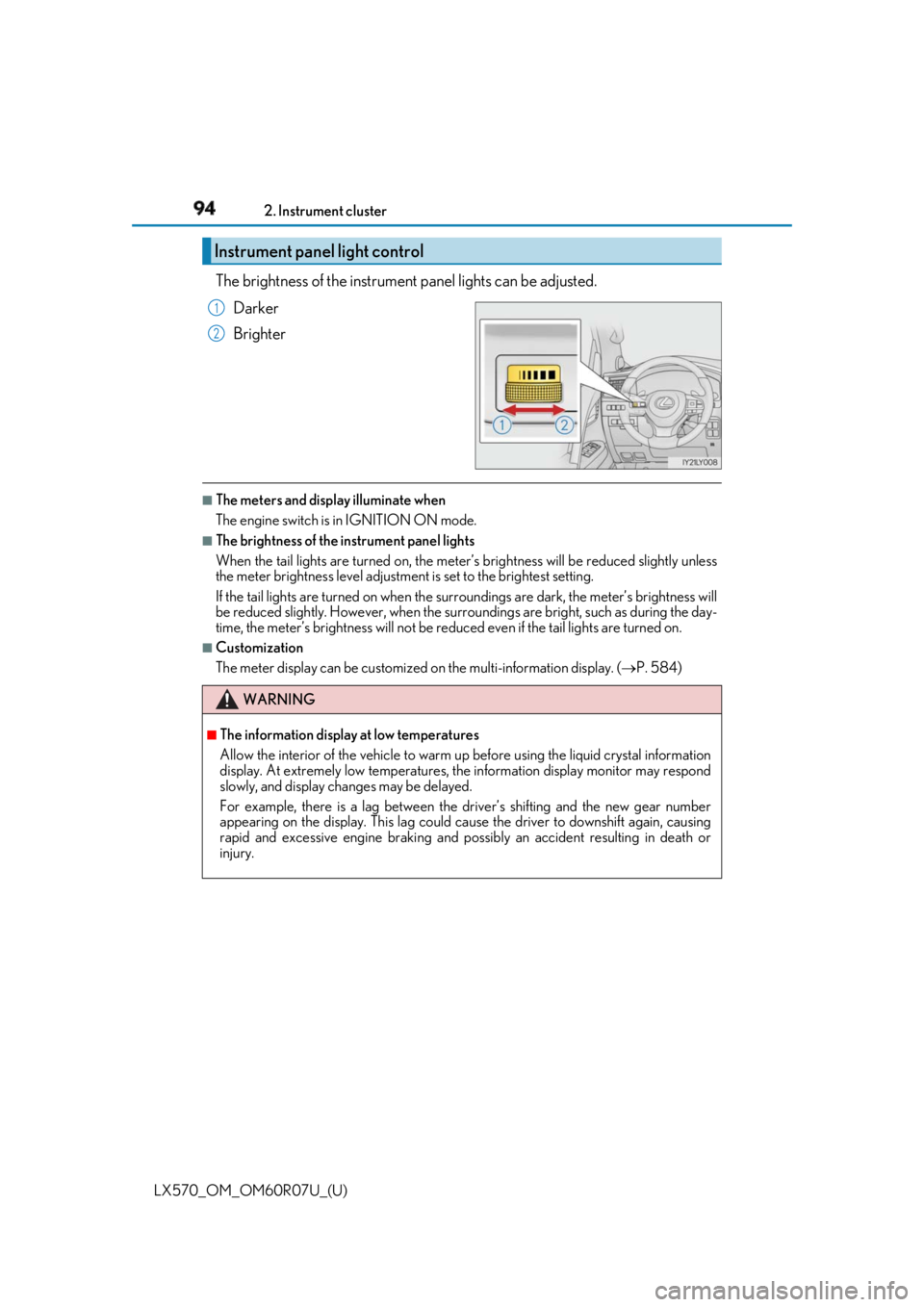

The brightness of the instrument panel lights can be adjusted.
Darker
Brighter ■
The meters and display illuminate when
The engine switch is in IGNITION ON mode. ■
The brightness of the instrument panel lights
When the tail lights are turned on, the meter’s brightness will be re duced slightly unless
the meter brightness leve l adjustment is set to the brightest setting.
If the tail lights are turned on when the surr oundings are dark, the meter’s brightness will
be reduced slightly. However, when the surro undings are bright, such as during the day-
time, the meter’s brightness w ill not be reduced even if th e tail lights are turned on.■
Customization
The meter display can be customized on the multi-information display. (  P. 584)Instrument panel light control 1
2
WARNING ■
The information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal information
display. At extremely low temperatures, th e information display monitor may respond
slowly, and display changes may be delayed.
For example, there is a lag between the dr iver’s shifting and the new gear number
appearing on the display. This lag could ca use the driver to downshift again, causing
rapid and excessive engine braking and possibly an accident resulting in death or
injury.

96
LX570_OM_OM60R07U_(U) 2. Instrument cluster
Multi-information display The following information will be dis-
played when a menu icon is selected.
(  P. 98)
Some of the information may be dis-
played automatically depending on the
situation.
Drive information Select to display various drive data. (  P. 99)
Vehicle information display (if equipped) Select to display the vehicle information. (  P. 100)
Navigation system-linked display Select to display the following na vigation system-linked information.
•Route guidance
• Compass display (north-up display/heading-up display)
Audio system-linked display Select to enable selection of an audio source or track on the display using the
meter control switches.Display contents

LX570_OM_OM60R07U_(U) 972. Instrument cluster
2
Instrument cluster Driving assist system information (if equipped) Select to display the operational status of the following systems:
• Dynamic radar cruise control with full-speed range (  P. 275)
When the vehicle is in constant speed control mode (  P. 283), the menu
icon will change to .
• LDA (Lane Departure Alert) (  P. 267)
Warning message display Select to display warning messages and me asures to be taken if a malfunction is
detected. (  P. 531)
Settings display Select to change the meter display settings and the operation settings of some
vehicle functions. (  P. 101)

98
LX570_OM_OM60R07U_(U) 2. Instrument cluster

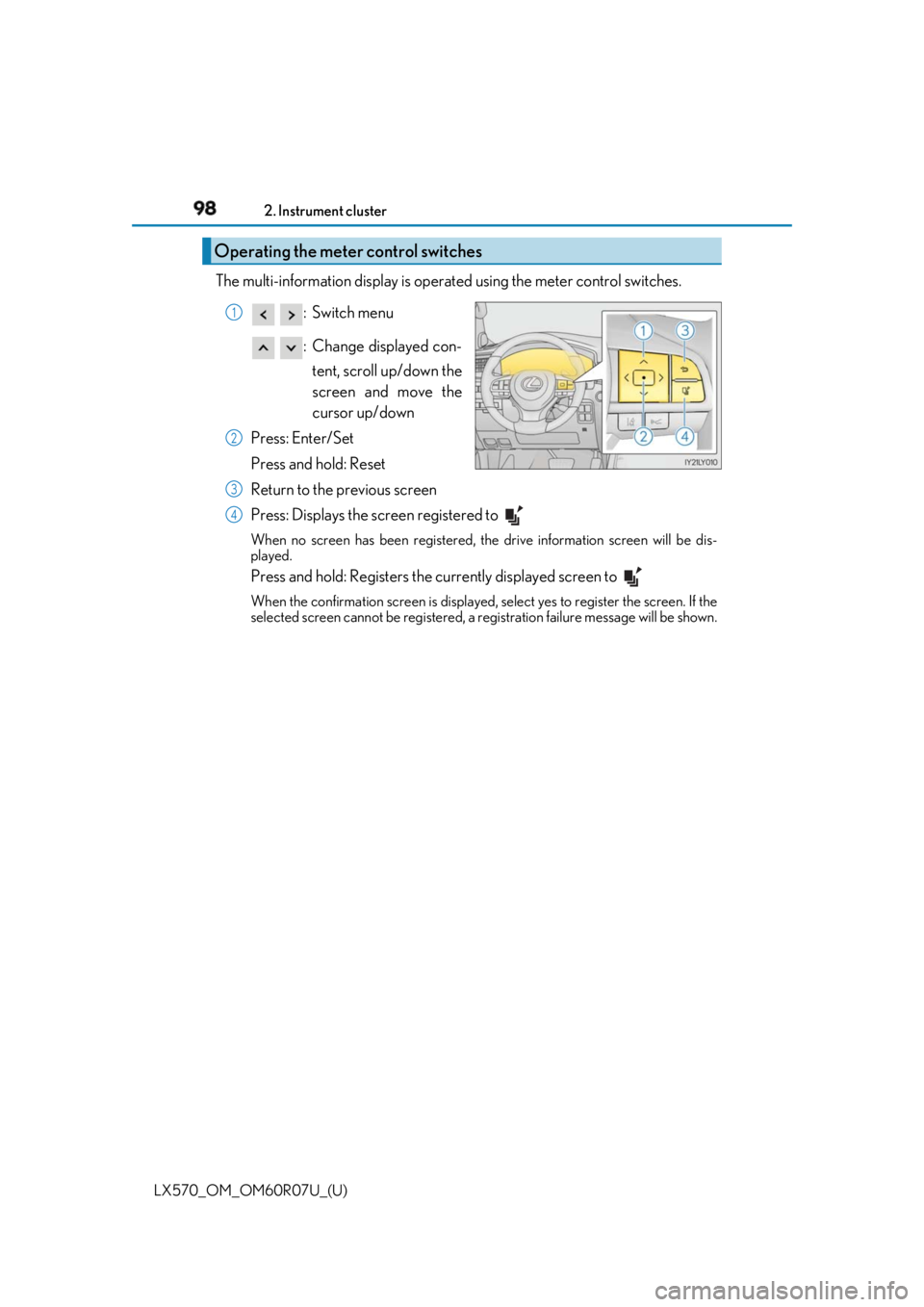

The multi-information display is operated using the meter control switches.
:Switch menu
: Change displayed con-
tent, scroll up/down the
screen and move the
cursor up/down
Press: Enter/Set
Press and hold: Reset
Return to the previous screen
Press: Displays the screen registered to When no screen has been registered, th e drive information screen will be dis-
played.
Press and hold: Registers the currently displayed screen to When the confirmation screen is displayed, select yes to register the screen. If the
selected screen cannot be registered, a registration failure me ssage will be shown.Operating the meter control switches 1
2
3
4

LX570_OM_OM60R07U_(U) 992. Instrument cluster
2
Instrument cluster ■
Drive information
4 of the following items can be register ed and displayed as the drive informa-
tion 1 and the drive information 2 (2 items on each screen).
Refer to P. 101 for the registration method of the drive information 1 and the
drive information 2. ●
Current fuel consumption (bar type/value type)
Displays the current rate of fuel consumption. ●
Average fuel consumption (after reset
* 2
/after start/after refuel)
* 1
Displays the average fuel consumption since the function was reset, the
engine was started, and the vehicle was refueled, respectively. ●
Average vehicle speed (after reset
* 2
/after start)
Displays the average vehicle speed si nce the function was reset and the
engine was started, respectively. ●
Elapsed time (after reset
* 2
/after start)
Displays the elapsed time since the function was reset and the engine was
started, respectively. ●
Distance (driving range/after start)
Displays the estimated maximum distance that can be driven with the
quantity of fuel remaining.
• This distance is computed based on your average fuel consumption.
As a result, the actual distance that can be driven may differ from that
displayed.
• When only a small amount of fuel is added to the tank, the display may
not be updated.
When refueling, turn the engine switch off. If the vehicle is refueled with-
out turning the engine switch off, the display may not be updated.
* 1
: Use the displayed average fuel consumption as a reference.
* 2
: The function can be reset by pressing for longer than 1 second when the item to
reset is displayed. If there is more than on e item that can be rese t, the item selection
screen will appear.Drive information

100
LX570_OM_OM60R07U_(U) 2. Instrument cluster■
Eco Indicator (Eco Driving Indicator Zone Display)
 P. 103■
Speed
Displays the vehicle speed. ■
Outside temperature
Displays the outside temperature within the range of -40  F (-40  C) to 122  F
(50  C).■
Sway warning (if equipped)
Detects the sway of the vehicle within a lane, which is often associated with a
decrease in the driver’s at tention level, and displays the decrease in attention
using a bar display.
The shorter the bar length, the more the driver may need to rest. This display is a part of the LDA (Lan e Departure Alert) system. The display is
enabled when the operating conditions of the vehicle sway warning are met.
(  P. 267)■
Blank screen (display off)
Drive information is not displayed. ■
Front tire angle (if equipped)
Displays the direction of the front tires. The tire direction is displaye d in 3 stages for both left and right, in accordance with
the angle of the tire.
If a battery terminal is disconnected an d reconnected, the display may be disabled
temporarily. After driving the vehicle fo r a while, the display will be enabled.■
Tire inflation pressure
Displays inflation pressure of each tire. The inflation pressure of the spare tire will be displayed.■
Oil maintenance (if equipped)
Displays the remaining distance before the next maintenance is required.Vehicle information

LX570_OM_OM60R07U_(U) 1012. Instrument cluster
2
Instrument cluster The settings of some features can be changed by using the meter control
switches. ■
Setting procedure
For functions that can be enabled or disabled, the function switches between
on and off each time is pressed. ■
Setting items ●
LDA (Lane Departure Alert)
*Select to set up LDA. (  P. 584)
• Alert method
• Alert sensitivity
• Sway warning
• Sway sensitivity ●
BSM (Blind Spot Monitor)
Select to set up BSM. (  P. 584)
•BSM on/off
• RCTA (Rear Cross Traffic Alert) on/off ●
Head-up display
*Select to set up Head-up display. (  P. 584)
• Display brightness/location
• Display content ●
Scheduled maintenance
Select to reset the message indi cating maintenance is required.●
Oil maintenance
*Select to reset the engine oil maintenance informationSettings display

102
LX570_OM_OM60R07U_(U) 2. Instrument cluster●
Meter settings
Select to set the following items.
• Language
Select to change the language on the display.
•Units
Select to change the unit for measure.
• Eco Driving Indicator Light
Select to activate/deactivate the Eco Driving Indicator Light. ( 
P. 91)
• switch settings
You can register 1 screen as the to p screen. To register, press and hold
while the desired screen is displayed.
• Drive information 1 and 2
Select to select up to 2 items that will be displayed on a drive informa-
tion screen, up to 2 drive in formation screens can be set.
• Clock
Select to set the display mode of the clock.
•Pop-up display
Select to set the pop-up displays, which may appear in some situations,
on/off. (  P. 103)
• Accent color
Select to change the accent colors on the screen, such as the cursor
color.
• Initialization
Registered or changed meter settin gs will be deleted or returned to
their default setting.
* :If equipped

LX570_OM_OM60R07U_(U) 1032. Instrument cluster
2
Instrument cluster ■
Eco Driving Indicator
■
When disconnecting and reco nnecting battery terminals
The drive information will be reset (only items that can be reset manually). ■
Pop-Up display
The pop-up display is displayed on the multi- information display according to the operat-
ing conditions of the following functions: ●
Route guidance display of the navigation system-linked system●
Incoming call display of the hands-free phone system (if equipped)
The pop-up display function can be disabled. (  P. 101)■
Tire inflation pressure ●
It may take a few minutes to display the tire inflation pressure after the engine switch is
turned to IGNITION ON mode. It may also take a few minutes to display the tire infla-
tion pressure after inflation pressure has been adjusted.●
“---” may be displayed if the tire information cannot be determined due to unfavorable
radio wave conditions. ●
Tire inflation pressure changes with temperat ure. The displayed values may also be dif-
ferent from the values measured using a tire pressure gauge. ■
When setting up the display
Stop the vehicle in a safe place, apply the pa rking brake, and shift the shift lever to P. ■
Suspension of the settings display
In the following situations, the settings disp lay using the meter control switches will be
suspended. ●
When a warning message appears on the multi-information display●
When the vehicle begins to move ■
Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is characteristic
of liquid crystal displays, and there is no problem continuing to use the display.Eco Driving Indicator Light (  P. 91)
Eco Driving Indicator Zone Display
Suggests the Zone of Eco driving with current
Eco driving ratio based on acceleration.
Eco driving ratio based on acceleration
If the acceleration exceeds Zone of Eco driv-
ing, the right side of Eco Driving Indicator
Zone Display will illuminate.
Zone of Eco driving 1
2
3
4
