534 7-3. Do-it-yourself maintenance

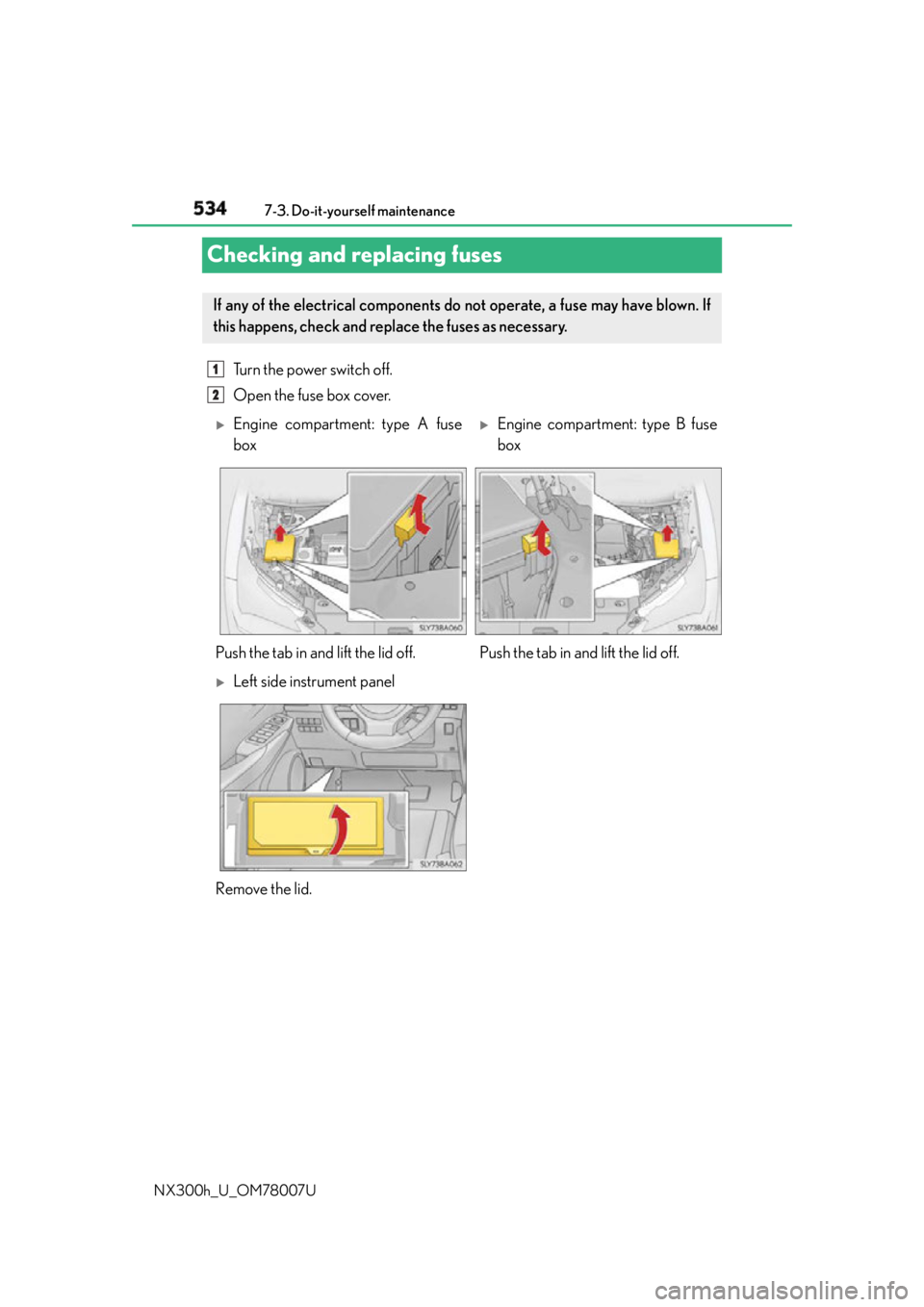

NX300h_U_OM78007UChecking and replacing fuses Turn the power switch off.
Open the fuse box cover.If any of the electrical components do not operate, a fuse may have blown. If
this happens, check and replace the fuses as necessary. 1
2 
Engine compartment: type A fuse
box 
Engine compartment: type B fuse
box
Push the tab in and lift the lid off. Push the tab in and lift the lid off. 
Left side instrument panel
Remove the lid.

538 7-3. Do-it-yourself maintenance
NX300h_U_OM78007ULight bulbs Check the wattage of the light bulb to be replaced. (  P. 6 1 7 )
 P. 5 0 3
 P. 1 3 2You may replace the following bulbs by yourself. The difficulty level of replace-
ment varies depending on the bulb. If necessary bulb replacement seems diffi-
cult to perform, contact your Lexus dealer.
For more information about replacing other light bulbs, contact your Lexus
dealer.
Preparing for light bulb replacement
Removing the engine compartment cover
Canceling the power back door system

574 8-2. Steps to take in an emergency
NX300h_U_OM78007U ■
If “Depress Brake When Vehicle Is Stopped Hybrid System May Overheat” is shown
Message is displayed when the accelerator pedal is depressed to maintain the vehicle
position when stopped on a upward slope, etc.
If this continues, the hybrid system may overheat.
Release the accelerator pedal and depress the brake pedal. ■
If “Oil Maintenance Required Soon” is shown
Indicates that the engine oil is scheduled to be changed. (The indicator will not work
properly unless the oil maintenance data has been reset.)
Check the engine oil, and change if necessar y. After changing the engine oil, the oil
change system should be reset. (  P. 5 0 6 )■
If “Oil Maintenance Required” is shown
Indicates that the engine oil should be changed. (After the engine oil is changed and the
oil maintenance data has been reset.)
Check and change the engine oil, and oil filt er by your Lexus dealer. After changing the
engine oil, the oil change system should be reset. (  P. 5 0 6 )■
If “See Owner’s Manual” is shown ●
If the following messages are shown, following the instru ctions, accordingly.
• “Engine Coolant Temp High” (  P. 6 0 0 )●
If the following messages are sh own, there may be a malfunction.
Immediately have the vehicle inspected by your Lexus dealer.
• “Hybrid System Malfunction”
•“Check Engine”
• “Hybrid Battery System Malfunction”
• “Accelerator System Malfunction”
• “Braking Power Low”
• “Smart Access System Malfunction” ●
If the following messages are sh own, there may be a malfunction.
Immediately stop the vehicle in a safe place and contact your Lexus dealer. Continuing
to drive the vehicle may be dangerous.
•“Low Oil Pressure”
• “Charging System Malfunction” ■
Warning buzzer
 P. 5 6 9
NOTICE ■
“High Power Consumption Partial Limit On AC/Heater Operation” is frequently
shown
There is a possible malfunction relating to the charging system or the 12-volt battery
may be deteriorating. Have the vehicle inspected by your Lexus dealer.

6018-2. Steps to take in an emergency
8
When trouble arises

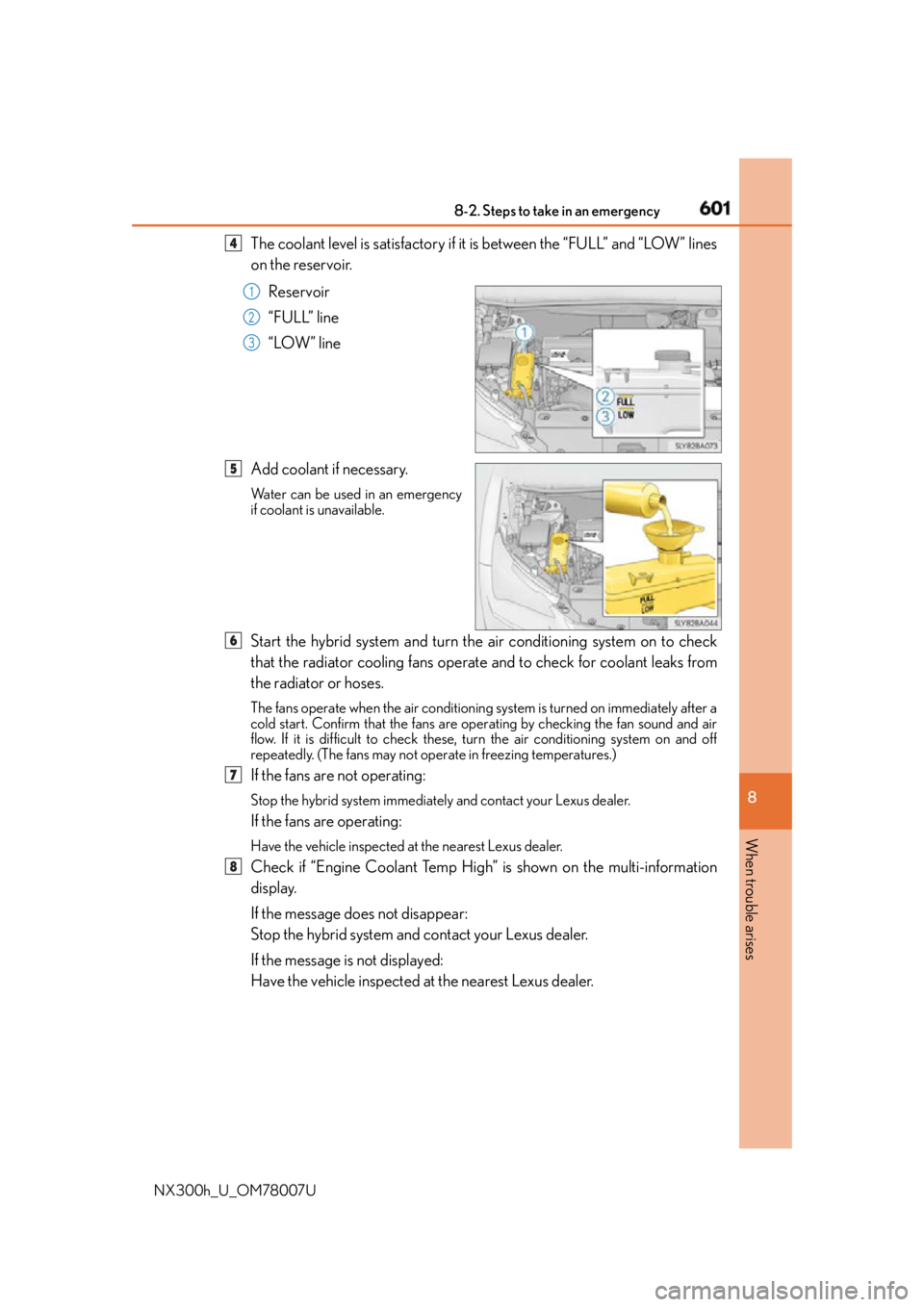

NX300h_U_OM78007U The coolant level is satisfactory if it is between the “FULL” and “LOW” lines
on the reservoir.
Reservoir
“FULL” line
“LOW” line
Add coolant if necessary. Water can be used in an emergency
if coolant is unavailable.
Start the hybrid system and turn the air conditioning system on to check
that the radiator cooling fans operate and to check for coolant leaks from
the radiator or hoses. The fans operate when the air conditioning system is turned on immediately after a
cold start. Confirm that the fans are op erating by checking the fan sound and air
flow. If it is difficult to check these, tu rn the air conditioning system on and off
repeatedly. (The fans may not operate in freezing temperatures.)
If the fans are not operating: Stop the hybrid system immediately and contact your Lexus dealer.
If the fans are operating: Have the vehicle inspected at the nearest Lexus dealer.
Check if “Engine Coolant Temp High” is shown on the multi-information
display.
If the message does not disappear:
Stop the hybrid system and contact your Lexus dealer.
If the message is not displayed:
Have the vehicle inspected at the nearest Lexus dealer. 4
1
2
3
5
6
7
8

6038-2. Steps to take in an emergency
8
When trouble arises
NX300h_U_OM78007U Start the hybrid system and check if “Hybrid System Overheated” is shown
on the multi-information display.
If the message does not disappear:
Stop the hybrid system and contact your Lexus dealer.
If the message is not displayed:
Have the vehicle inspected at the nearest Lexus dealer. WA R N I N G ■
To prevent an accident or injury when in specting under the hood of your vehicle
Observe the following precautions.
Failure to do so may result in serious injury such as burns. ●
If steam is seen coming from under the h ood, do not open the hood until the steam
has subsided. The engine compartment may be very hot. ●
After the hybrid system has been turned off, check that the “READY” indicator are
off.
When the hybrid system is operating, the gasoline engine may au tomatically start, or
the cooling fan may suddenly operate even if the gasoline engine stops. Do not touch
or approach rotating parts such as the fa n, which may lead to fingers or clothing
(especially a tie, a scarf or a muffler) ge tting caught, resulting in serious injury.●
Do not loosen the coolant reservoir cap while the hybrid system and radiator are hot.
High temperature steam or coolant could spray out.
NOTICE ■
When adding engine/power control unit coolant
Add coolant slowly after the hybrid system has cooled down sufficiently. Adding cool
coolant to a hot hybrid system too quickly can cause damage to the hybrid system. ■
To prevent damage to the cooling system
Observe the following precautions: ●
Avoid contaminating the coolant with foreign matter (such as sand or dust etc.). ●
Do not use any coolant additive. 6

6119-1. Specifications
9
Vehicle specifications
NX300h_U_OM78007U * : The engine oil capacity is a reference quantity to be used when changing the engine
oil. Warm up the engine and turn off the hybrid system, wait more than 5 minutes, and

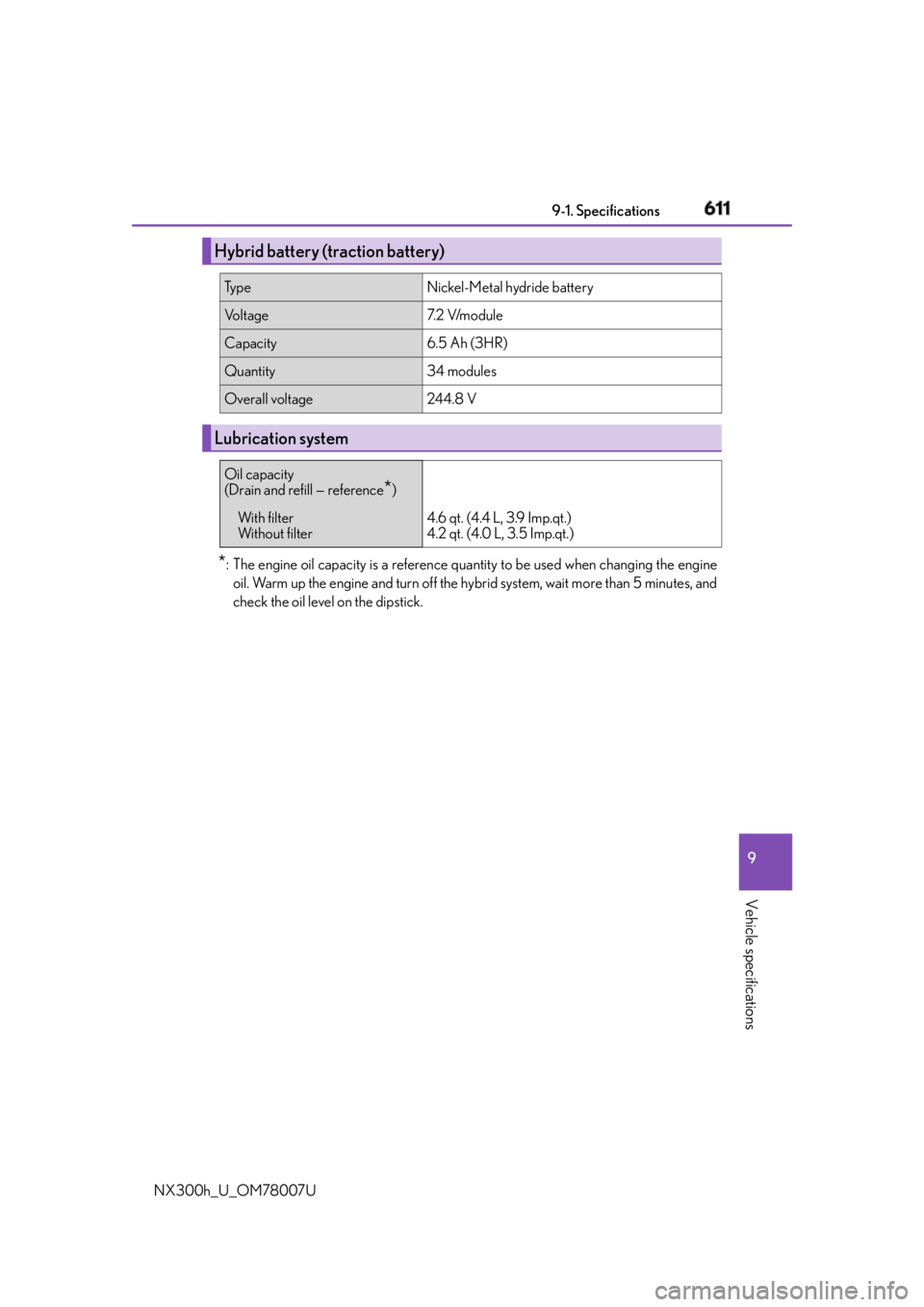

check the oil level on the dipstick.Hybrid battery (traction battery) Ty p e Nickel-Metal hydride battery
Vo l t a g e 7. 2 V/m o d u l e
Capacity 6.5 Ah (3HR)
Quantity 34 modules
Overall voltage 244.8 V
Lubrication system Oil capacity
(Drain and refill — reference
* )
With filter
Without filter 4.6 qt. (4.4 L, 3.9 Imp.qt.)
4.2 qt. (4.0 L, 3.5 Imp.qt.)

6139-1. Specifications
9
Vehicle specifications

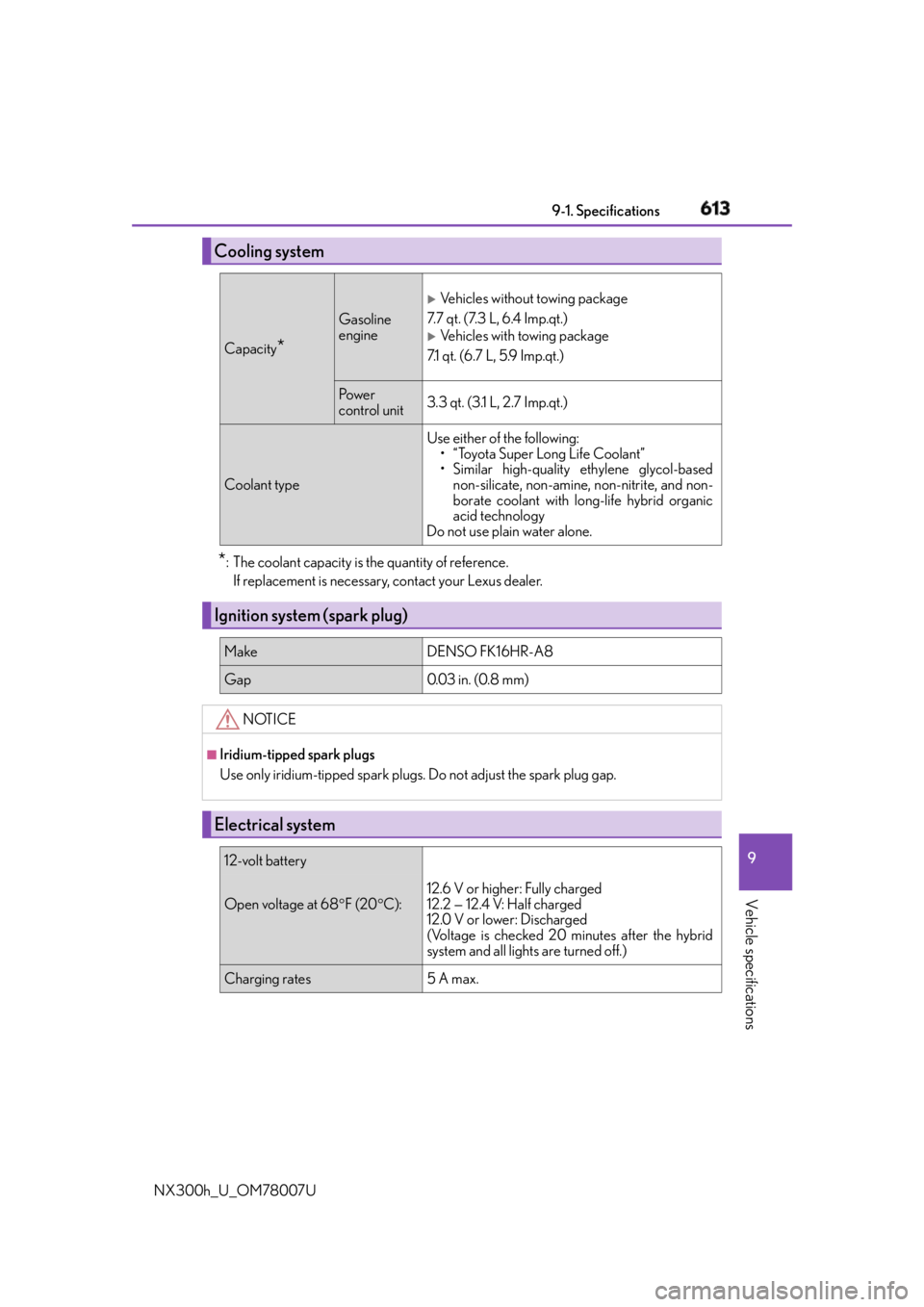

NX300h_U_OM78007U * : The coolant capacity is the quantity of reference.
If replacement is necessary, contact your Lexus dealer.Cooling system Capacity
* Gasoline
engine 
Vehicles without towing package
7.7 qt. (7.3 L, 6.4 Imp.qt.) 
Vehicles with towing package
7.1 qt. (6.7 L, 5.9 Imp.qt.)
Po w e r
control unit 3.3 qt. (3.1 L, 2.7 Imp.qt.)
Coolant type Use either of the following:
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based
non-silicate, non-amine, non-nitrite, and non-
borate coolant with long-life hybrid organic
acid technology
Do not use plain water alone.
Ignition system (spark plug) Make DENSO FK16HR-A8
Gap 0.03 in. (0.8 mm)
NOTICE ■
Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.
Electrical system 12-volt battery
Open voltage at 68  F (20  C): 12.6 V or higher: Fully charged
12.2 — 12.4 V: Half charged
12.0 V or lower: Discharged
(Voltage is checked 20 minutes after the hybrid
system and all lights are turned off.)
Charging rates 5 A max.
