bluetooth LEXUS NX300h 2015 Owner's Guide

402 5-9. Bluetooth ®
Phone
NX300h_U_OM78007UUsing the steering wheel switches Volume switch
During an incoming call: Adjusts the
ring tone volume
During speaking on the phone:
Adjusts in call volume The voice guidance volume cannot be
adjusted using this button.
Off-hook switch
• Start call
• Receiving
• Phone top screen display
On-hook switch
• End call
• Refuse call
Talk switch
Press: Turns the voice command system on
Press and hold: Turns the voice command system offThe steering wheel switches can be used to operate a connected cellular
phone.
Operating a telephone usin g the steering wheel switches1
2
3
4

4035-9. Bluetooth ®
Phone
5
Lexus Display Audio system
NX300h_U_OM78007UBluetooth ®
phone settingsGo to “Phone/Message Settings”: “MENU” button  “Setup”  “Phone”
Register and connect a Bluetooth ®
device. (  P. 3 8 4 )
Adjust the call volume and message
readout volume. (  P. 4 0 3 )
Change the contact/call history set-
tings. (  P. 4 0 5 )
Change messaging settings.
(  P. 4 0 8 )
Change phone display settings. (  P. 4 0 4 )
Go to “Sound Settings”: “MENU” button  “Setup”  “Phone”  “Sound
Settings”
Change the ring tone type
Adjust the ring tone volume
Adjust the message readout volume
Change the incoming SMS/MMS
tone type
Adjust the incoming SMS/MMS
tone volume
Change the incoming e-mail tone
type
Adjust the incoming e-mail tone vol-
ume
Adjust in call tone volumeYou can adjust the hands-free system to your desired settings.
“Phone/Message Settings” screen 1
2
3
4
Sound settings 5
1
2
3
4
5
6
7
8

404 5-9. Bluetooth ®
Phone
NX300h_U_OM78007U Go to “Phone Display Settings”: “MENU” button  “Setup”  “Phone” 
“Phone Display Settings”
Change the incoming call display
Set the phonebook/history transfer
status notification display on/off ■
To return to the default volume settings
Move the controller to the left and then select “Default”.Phone display settings 1
2

4055-10. Phonebook
5
Lexus Display Audio system
NX300h_U_OM78007UContact settings Go to “Contact/Call History Settings”: “MENU” button  “Setup”  “Phone”
 “Contact/Call History Settings”
Select to set the automatic phone-
book download on/off With this setting on , phonebook data will
be automatically transferred.
Depending on the ce llular phone, call
history will be also transferred.
Update contacts
Change the sort contacts mode
Add a favorite (  P. 4 0 6 )
Delete a favorite (  P. 4 0 7 )
Select to set the display of contact
images on/off
Delete call history. (PBAP incom-
patible Bluetooth ®
phones, or com-
patible phones with “Automatic
Tr a n s f e r ” o f f )
Add a new contact (PBAP incompatible Bluetooth ®
phones, or compatible
phones with “Automatic Transfer” off) Input the name, phone number and phon e number type to add a new contact.
Edit a contact (PBAP in compatible Bluetooth ®
phones, or compatible
phones with “Automatic Transfer” off) Select the desired contact to edit.
Delete contacts (  P. 407) (PBAP incompatible Bluetooth ®
phones, or com-
patible phones with “Automatic Transfer” off) ■
Return to the default settings
Move the controller to the left and select “Default”.Individual phonebooks from up to 5 ph ones can be registered to the system.
The data for 2500 contacts (up to 4 nu mbers per contact) can be registered
into the system’s phonebook.
“Contact/Call History Settings” screen 1
2
3
4
5
6
7
8
9
10

406 5-10. Phonebook
NX300h_U_OM78007U You can transfer the phone numbers in your Bluetooth ®
phone to the system.
Operation methods differ between PBAP compatible and PBAP incompatible
Bluetooth ®
phones. If your cellular phone does not support either PBAP or
OPP services, you cannot transfer contacts.
Go to “Transfer Contacts”: “MENU” button  “Setup”  “Phone”  “Contact/
Call History Settings”  “Update Contacts from Phone”
For PBAP compatible Bluetooth ®
phones when “Automatic Transfer” is set to
on
Start the update automatically. 
For PBAP compatible Bluetooth ®
phones when “Automatic Transfer” is set to
off and PBAP incompatible Bluetooth ®
phones
Select to transfer the contact from
the connected cellular phone and
replace the current one.
Select to transfer the desired con-
tact data from the connected cellu-
lar phone to add to the current one.
You can register the desired contact from the phonebook. Up to 15 contacts per
phone can be registered.
Go to “Add Favorite”: “MENU” button  “Setup”  “Phone”  “Contact/
Call History Settings”  “A d d F a v o r i t e ”
Choose the contact to register.Transferring a phone number
1
2
Registering favorites 1
2

4075-10. Phonebook
5
Lexus Display Audio system
NX300h_U_OM78007U Go to “Remove Favorite”: “MENU” button  “Setup”  “Phone”  “Con-
tact/Call History Settings”  “Remove Favorite”
Select the desired contacts. You can select all contacts by selecting “Select All”.
Move the controller to the left and select “Remove”.
Go to “Delete Contacts”: “MENU” button  “Setup”  “Phone”  “Con-
tact/Call History Settings”  “Delete Contacts”
Select the desired contacts. You can select all contacts by selecting “Select All”.
Move the controller to the left and select “Delete”.■
Phonebook data
Phonebook data is managed separately for every registered phone. When one phone is
connected, you cannot read the registered data of the other phones. ■
When transferring contacts
Transfer contacts while the hy brid system is operating.
If the cellular phone is OPP or PBAP compatible, you may need to input “1234” on the
cellular phone for OBEX certification. ■
When you have selected “Replace contacts ” or “Add contact” to transfer contacts
If the cellular phone does not support OPP service, you cannot use these functions. You
can transfer the phonebook data only by operating your phone.■
Transferring contacts while Bluetooth ®
audio is playing
Bluetooth ®
audio will disconnect. It will reconnect automatically when data transfer fin-
ishes. It may not reconnect dependin g on the phone which is connected.Removing favorites
Deleting the contacts data 1
2
3
1
2
3

4095-11. Bluetooth ®
5
Lexus Display Audio system

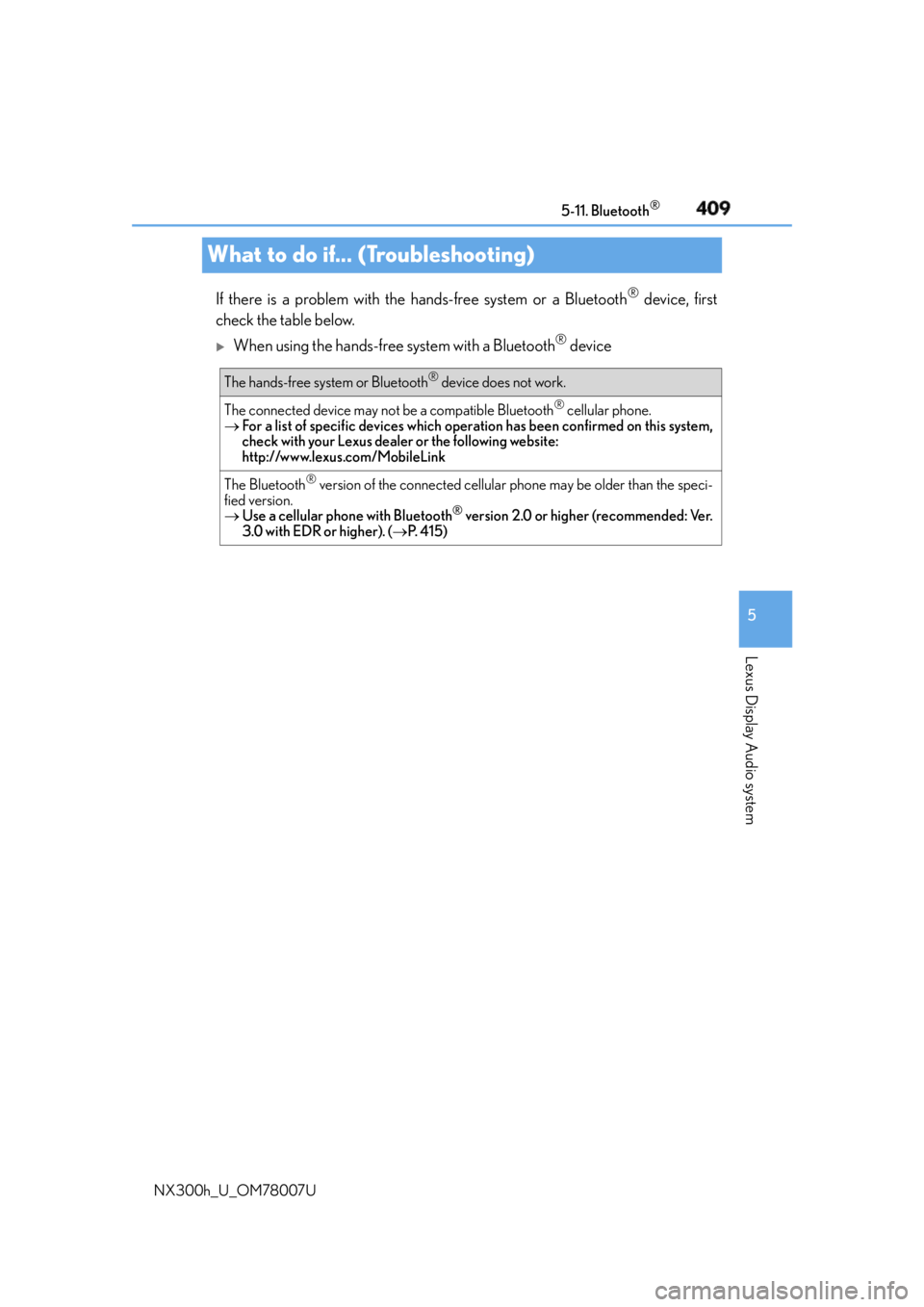

NX300h_U_OM78007UWhat to do if... (Troubleshooting) If there is a problem with the hands-free system or a Bluetooth ®
device, first
check the table below. 
When using the hands-free system with a Bluetooth ®
deviceThe hands-free system or Bluetooth ®
device does not work.
The connected device may not be a compatible Bluetooth ®
cellular phone.
 For a list of specific devices which operat ion has been confirmed on this system,
check with your Lexus dealer or the following website:
http://www.lexus.com/MobileLink
The Bluetooth ®
version of the connected cellular phone may be older than the speci-
fied version.
 Use a cellular phone with Bluetooth ®
version 2.0 or higher (recommended: Ver.
3.0 with EDR or higher). (  P. 4 1 5 )

410 5-11. Bluetooth ®
NX300h_U_OM78007U 

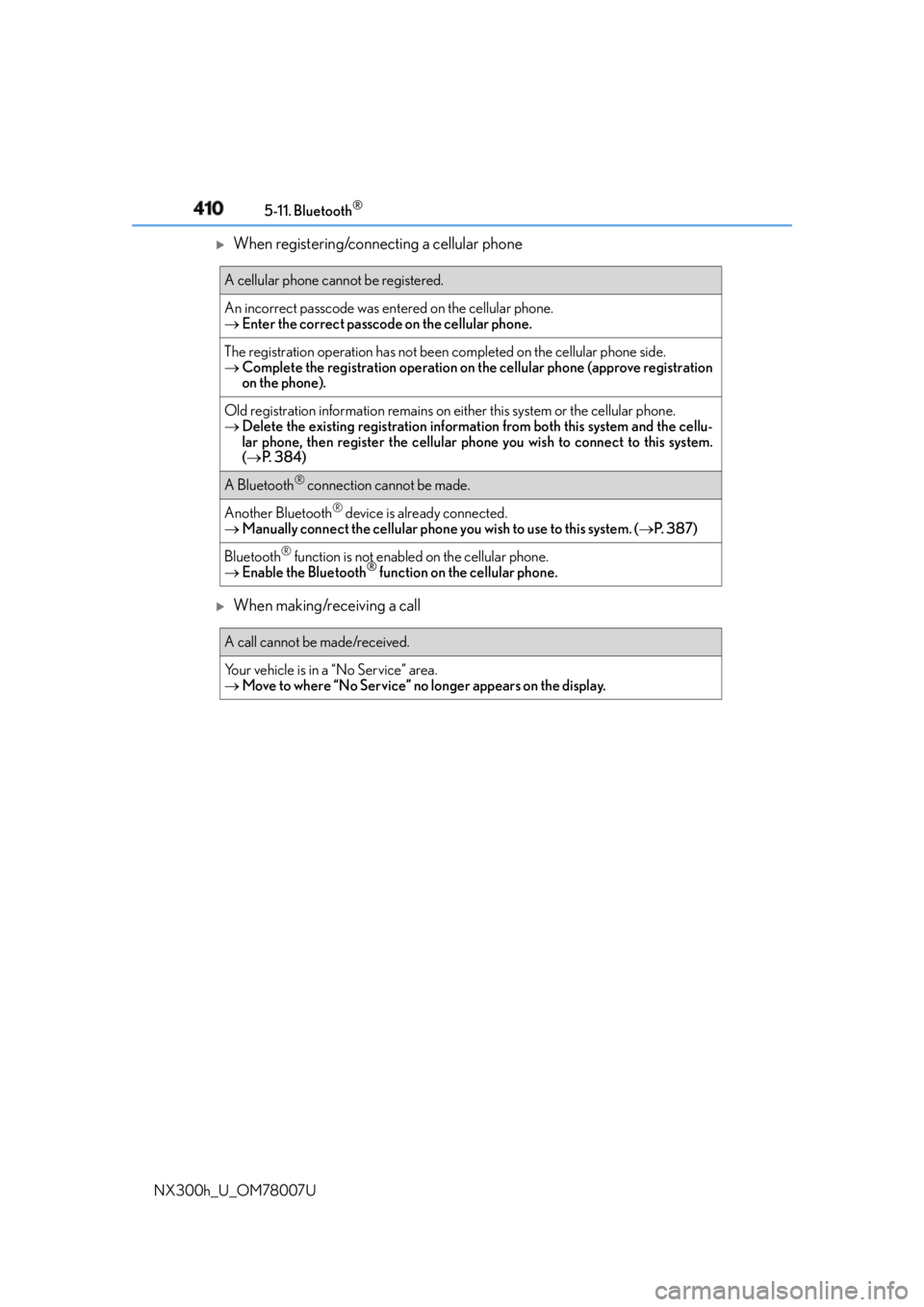

When registering/connecting a cellular phone 
When making/receiving a call A cellular phone cannot be registered.
An incorrect passcode was en tered on the cellular phone.
 Enter the correct passcode on the cellular phone.
The registration operation has not been completed on the cellular phone side.
 Complete the registration operation on the cellular phone (approve registration
on the phone).
Old registration information remains on ei ther this system or the cellular phone.
 Delete the existing registration informat ion from both this system and the cellu-
lar phone, then register the cellular phon e you wish to connect to this system.
(  P. 3 8 4 )
A Bluetooth ®
connection cannot be made.
Another Bluetooth ®
device is already connected.
 Manually connect the cellular phone you wish to use to this system. (  P. 3 8 7 )
Bluetooth ®
function is not enabled on the cellular phone.
 Enable the Bluetooth ®
function on the cellular phone.
A call cannot be made/received.
Your vehicle is in a “No Service” area.
 Move to where “No Service” no longer appears on the display.

4115-11. Bluetooth ®
5
Lexus Display Audio system
NX300h_U_OM78007U 
When using the phonebook 
When using the Bluetooth ®

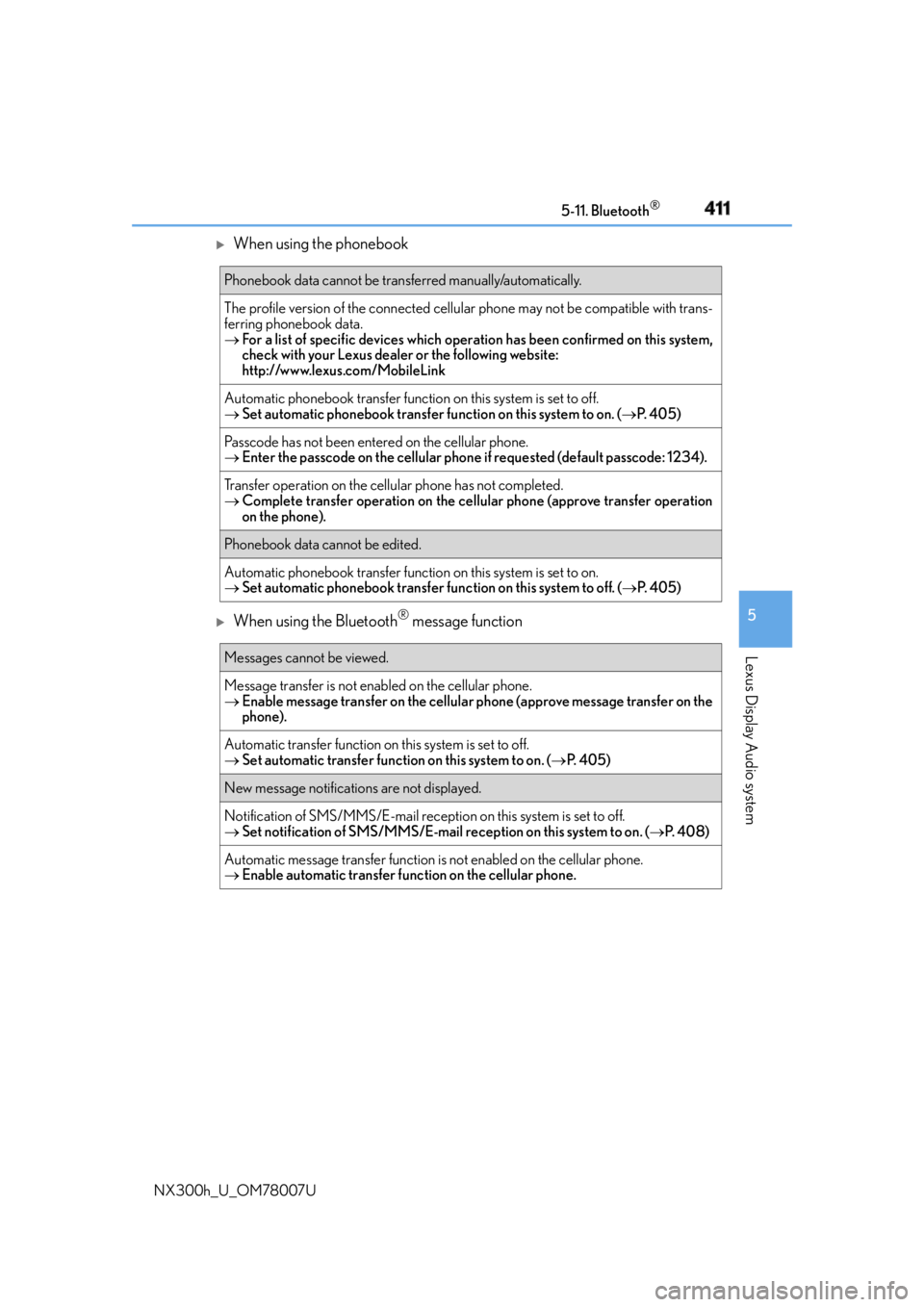

message functionPhonebook data cannot be transferred manually/automatically.
The profile version of the connected cellula r phone may not be compatible with trans-
ferring phonebook data.
 For a list of specific devices which operat ion has been confirmed on this system,
check with your Lexus dealer or the following website:
http://www.lexus.com/MobileLink
Automatic phonebook transfer function on this system is set to off.
 Set automatic phonebook transfer fu nction on this system to on. (  P. 4 0 5 )
Passcode has not been entered on the cellular phone.
 Enter the passcode on the cellular phon e if requested (default passcode: 1234).
Transfer operation on the ce llular phone has not completed.
 Complete transfer operation on the cell ular phone (approve transfer operation
on the phone).
Phonebook data cannot be edited.
Automatic phonebook transfer function on this system is set to on.
 Set automatic phonebook transfer func tion on this system to off. (  P. 4 0 5 )
Messages cannot be viewed.
Message transfer is not enabled on the cellular phone.
 Enable message transfer on the cellular phone (approve message transfer on the
phone).
Automatic transfer function on this system is set to off.
 Set automatic transfer function on this system to on. (  P. 4 0 5 )
New message notifications are not displayed.
Notification of SMS/MMS/E-mail reception on this system is set to off.
 Set notification of SMS/MMS/E-mail re ception on this system to on. (  P. 4 0 8 )
Automatic message transfer function is not enabled on the cellular phone.
 Enable automatic transfer function on the cellular phone.

412 5-11. Bluetooth ®
NX300h_U_OM78007U 
In other situations Even though all conceivable measures have been taken, the symptom status does not
change.
The cellular phone is not close enough to this system.
 Bring the cellular phone closer to this system.
The cellular phone is the most likely cause of the symptom.
 Turn the cellular phone off, remove an d reinstall the battery pack, and then
restart the cellular phone.
 Enable the cellular phone’s Bluetooth ®
connection.
 Stop the cellular phone’s security so ftware and close all applications.
 Before using an application installed on the cellular phone, carefully check its
source and how its operation might affect this system.
