Page 103 of 680
1032. Instrument cluster
2
Instrument cluster
NX300h_OM_USA_OM78082U

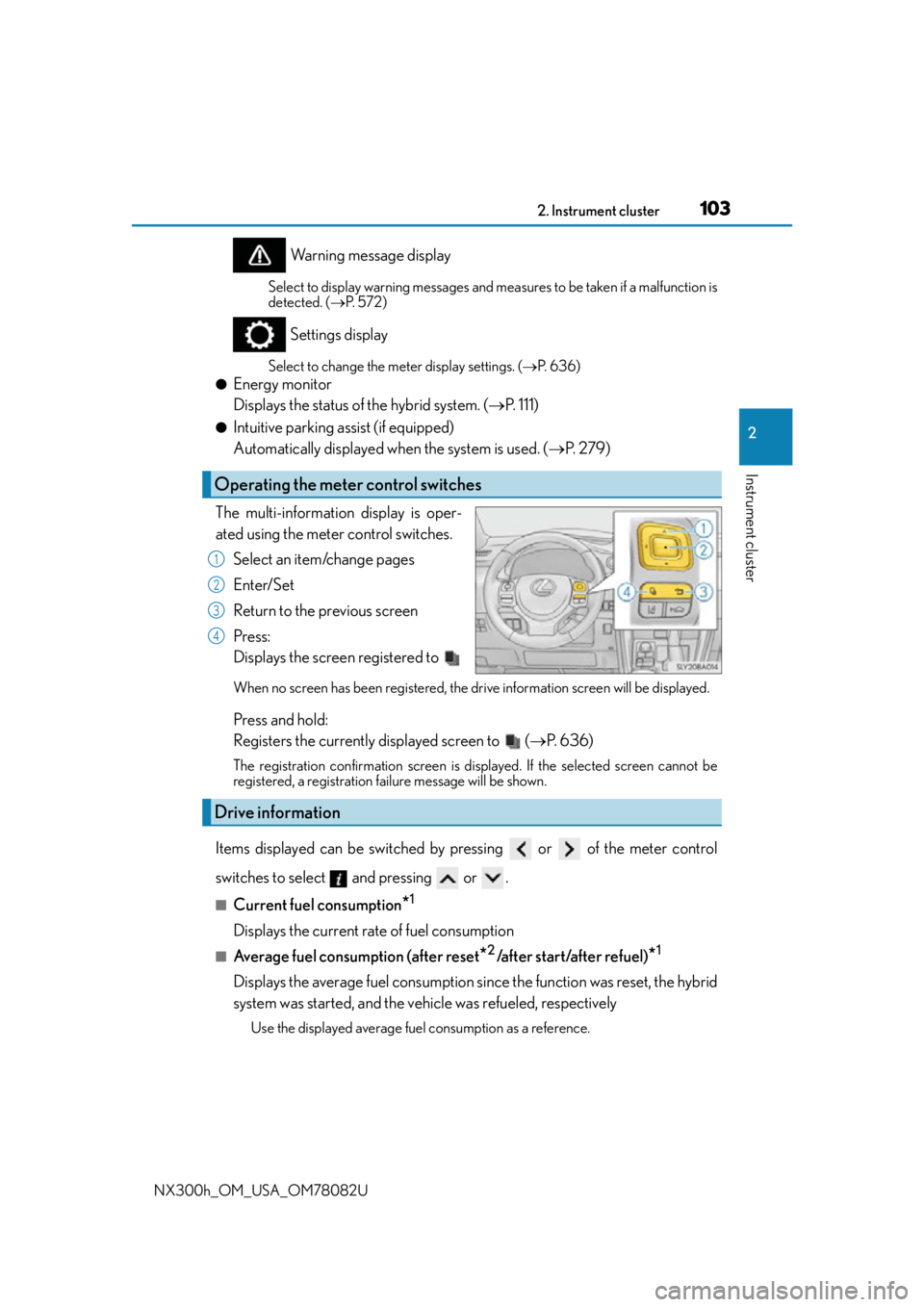

Warning message display
Select to display warning messages and measures to be taken if a malfunction is
detected. ( P. 5 7 2 )
Settings display
Select to change the meter display settings. ( P. 636)
●Energy monitor
Displays the status of the hybrid system. ( P. 111)
●Intuitive parking assist (if equipped)
Automatically displayed when the system is used. ( P. 2 7 9 )
The multi-information display is oper-
ated using the meter control switches. Select an item/change pages
Enter/Set
Return to the previous screen
Press:
Displays the screen registered to
When no screen has been registered, the drive information screen will be displayed.
Press and hold:
Registers the currently displayed screen to ( P. 636)
The registration confirmation screen is di splayed. If the selected screen cannot be
registered, a registration failure message will be shown.
Items displayed can be switched by pressing or of the meter control
switches to select and pressing or .
■Current fuel consumption*1
Displays the current rate of fuel consumption
■Average fuel consumption (after reset*2/after start/after refuel)*1
Displays the average fuel consumption si nce the function was reset, the hybrid
system was started, and the vehicle was refueled, respectively
Use the displayed average fuel consumption as a reference.
Operating the meter control switches
1
2
3
4
Drive information
Page 104 of 680
1042. Instrument cluster
NX300h_OM_USA_OM78082U
■Average vehicle speed (after reset*2/a f t e r s t a r t )*1
Displays the average vehicle speed since the function was reset and the
hybrid system was started, respectively
■Elapsed time (after reset*2/after start)*1
Displays the elapsed time since the function was reset and the hybrid system
was started, respectively
■Distance (driving range/after start)*1
Displays the estimated maximum distance that can be driven with the quantity
of fuel remaining and the distance driv en after the hybrid system was started
respectively.
• This distance is computed based on your average fuel consumption. As a result,
the actual distance that can be driven may differ from that displayed.
• When only a small amount of fuel is added to the tank, the display may not be
updated.
When refueling, turn the power switch off. If the vehicle is refueled without turning
the power switch off, the display may not be updated.
■Energy monitor
P. 1 1 1
■Tire inflation pressure
Displays inflation pressure of each tire.
The inflation pressure of the spare tire will not be displayed.
■Display off
A blank screen is displayed
*1: Displayed when the item is set in “D rive Info 1” or “Drive Info 2”. (P. 636)
*2: The function can be reset by pressing th e of the meter control switches for longer
than 1 second when the item to reset is displayed.
If there is more than one item that can be reset, the item selection screen will appear.
Page 105 of 680
1052. Instrument cluster
2
Instrument cluster
NX300h_OM_USA_OM78082U
■Suspension of the settings display
In the following situations, the settings display using the meter control switches will be
suspended.
●When a warning message appears on the multi-information display
●When the vehicle begins to move
■Tire inflation pressure
●It may take a few minutes to display the tire inflation pressure after the power switch is
turned to ON mode. It may also take a few minutes to display the tire inflation pressure
after inflation pressure has been adjusted.
●“---” may be displayed if the tire information cannot be determined due to unfavorable
radio wave conditions.
●Tire inflation pressure changes with temperat ure. The displayed values may also be dif-
ferent from the values measured using a tire pressure gauge.
■When disconnecting and reconnec ting 12-volt battery terminals
The drive information will be reset.
■Liquid crystal display
P. 1 0 1
WA R N I N G
■Cautions during setting up the display
As the hybrid system needs to be operating during setting up the display, ensure that
the vehicle is parked in a place with adequate ventilation. In a closed area such as a
garage, exhaust gases includin g harmful carbon monoxide (CO) may collect and enter
the vehicle. This may lead to death or a serious health hazard.
NOTICE
■The multi-information disp lay at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal information
display. At extremely low temperatures, th e information display monitor may respond
slowly, and display changes may be delayed.
■During setting up the display
To prevent 12-volt battery discharge, ensure that the hybrid system is operating while
setting up the display features.
Page 106 of 680
1062. Instrument cluster
NX300h_OM_USA_OM78082U
Head-up display
The head-up display can be used to proj ect vehicle speed and other information
onto the windshield.
Head-up display
Display brightness will change automat-
ically according to the brightness of the
surrounding area.
Display position adjustment switch
Display brightness adjustment
switch
Display brightness can be adjusted to
the desired level.
“HUD” button
“DISP” button
●Vehicle speed
●Hybrid System Indicator ( P. 1 0 8 )
●Tachometer
●Shift position and shift range
Displays the selected shift posi tion or selected shift range (P. 2 0 8 )
●Audio display
Displays audio information for approximately 3 seconds when the audio system is
operated
●Route guidance display (vehicles with navigation system) ( P. 1 0 9 )
When approaching an intersec tion while the navigation system is giving route guid-
ance, an arrow will automatically be displayed to indicate the direction of travel.
●Lane departure warning display (LDA [Lane Departure Alert with steering
control]) (if equipped) ( P. 2 7 0 )
: If equipped
Summary of functions
1
2
3
4
5
Head-up display contents
Page 107 of 680
1072. Instrument cluster
2
Instrument cluster
NX300h_OM_USA_OM78082U
●Approach warning display (dynamic radar cruise control)
(if equipped) (P. 2 4 0 , 2 5 3 )
●Pre-collision warning message (pre-collision system)
(if equipped) ( P. 3 1 0 )
●Speed limit display (vehicles with navigation system) ( P. 1 0 9 )
■“HUD” button
Pressing the switch turns the head-
up display on/off and changes the
vehicle speed display units as fol-
lows:
U.S.A.
OFF ON (MPH)
ON (km/h) OFF
Canada
OFF ON (km/h) ON (MPH) OFF
■“DISP” button
Pressing the button changes the dis-
play items (except vehicle speed).
Off
Hybrid System Indicator
Tachometer
Switching the head-up display
1
2
3
Page 108 of 680
1082. Instrument cluster
NX300h_OM_USA_OM78082U
■Adjusting the display position Higher
Lower
■Setting the brightness
The brightness of the display is automa tically adjusted in accordance with the
brightness of the surrounding environm ent. However, the brightness can also
be manually adjusted in 9 stages.
Brighter
Darker
Charge area
Shows regenerative charging.
Hybrid Eco area
Shows that gasoline engine power is not
being used very often.
The gasoline engine will automatically
stop and restart under various condi-
tions.
Eco area
Shows that the vehicle is being dr iven in an Eco-friendly manner.
Po w e r a r e a
Shows that an Eco-friendly driving range is being exceeded (during full power driving,
etc.)
Making the display easier to see
1
2
1
2
Hybrid System Indicator
1
2
3
4
Page 109 of 680
1092. Instrument cluster
2
Instrument cluster
NX300h_OM_USA_OM78082U
When the vehicle approaches an inter-
section, the direction the vehicle should
go is guided by the arrow. When the
vehicle approaches an intersection, the
route guidance will start and the dis-
tance
* to the intersection will also be
displayed.
*: The distance indication will disappear when the vehicle passes through the
intersection.
Displays the speed limit for the current
road.
The audio display and speed limit display can be shown or hidden.
When customizing vehicle features, ensure that the vehicle is parked in a safe
place with the shift lever in P and the parking brake set.
Until the screen changes, continue
pressing the “DISP” button, and it
will repeat until the item desired to
be changed is displayed.
Customization can be performed when
the head-up display is on.
Press the “DISP” button to switch
between on and off.
On and off will be switched between each time the button is pressed.
If the button is left alone without being op erated for a short time, setting will be fin-
ished automatically.
Route guidance display (v ehicles with navigation system)
Speed limit display (vehicles with navigation system)
Display customization
1
2
Page 110 of 680
1102. Instrument cluster
NX300h_OM_USA_OM78082U

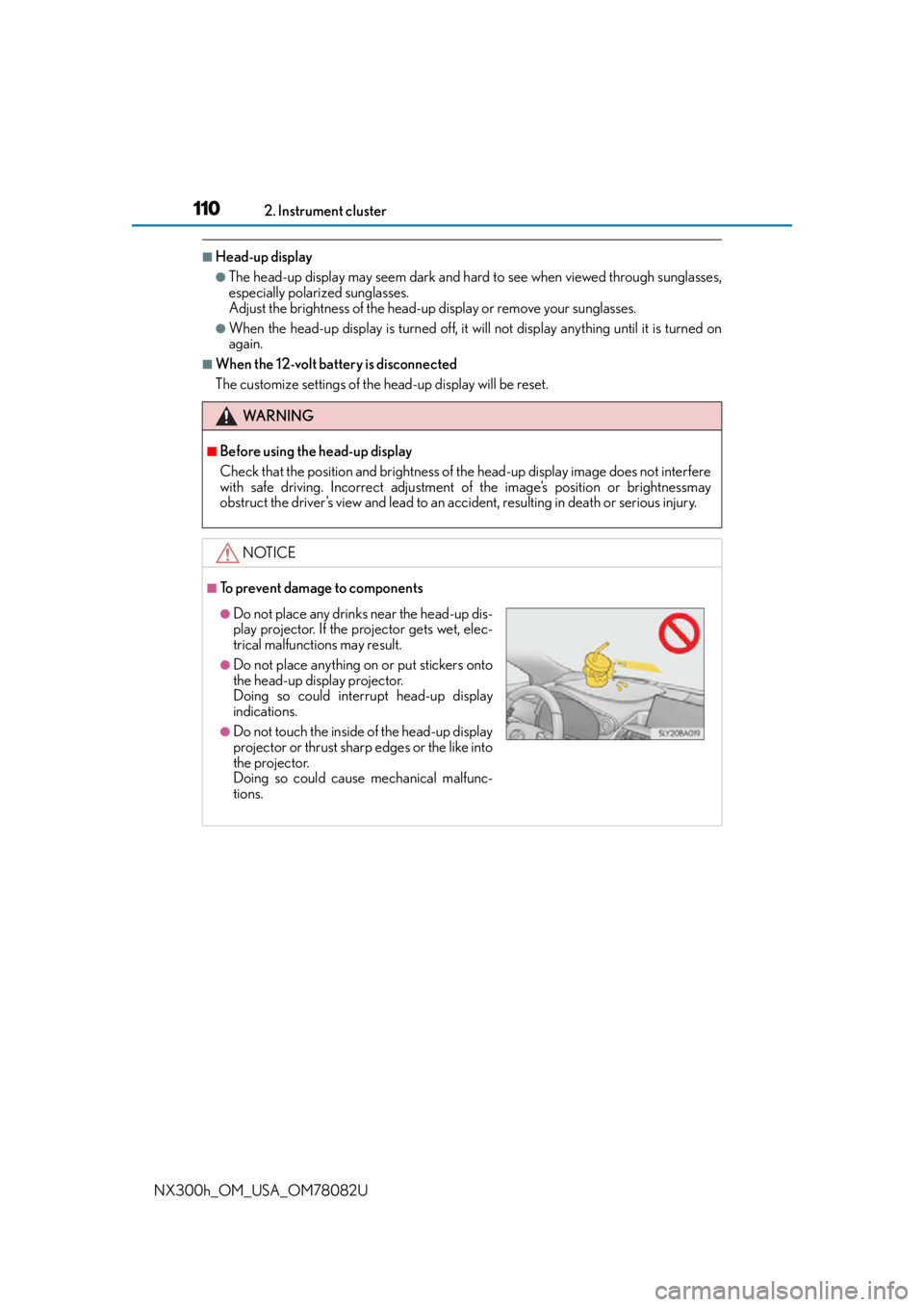

■Head-up display
●The head-up display may seem dark and hard to see when viewed through sunglasses,
especially polarized sunglasses.
Adjust the brightness of the head-up display or remove your sunglasses.
●When the head-up display is turned off, it will not display anything until it is turned on
again.
■When the 12-volt battery is disconnected
The customize settings of the head-up display will be reset.
WA R N I N G
■Before using the head-up display
Check that the position and brightness of the head-up display image does not interfere
with safe driving. Incorrect adjustment of the image’s positi on or brightnessmay
obstruct the driver’s view and lead to an a ccident, resulting in death or serious injury.
NOTICE
■To prevent damage to components
●Do not place any drinks near the head-up dis-
play projector. If the projector gets wet, elec-
trical malfunctions may result.
●Do not place anything on or put stickers onto
the head-up display projector.
Doing so could interrupt head-up display
indications.
●Do not touch the inside of the head-up display
projector or thrust sharp edges or the like into
the projector.
Doing so could cause mechanical malfunc-
tions.
Page 111 of 680
1112. Instrument cluster
2
Instrument cluster
NX300h_OM_USA_OM78082U
Energy monitor/consumption screen
You can view the status of your hybrid system on the multi-information display
and the navigation system (if equippe d)/Lexus Display Audio system (if
equipped).
Multi-information display
Navigation system screen/Lexus
Display Audio screen (if equipped)
“DISP” switch/Meter control
switches
Vehicles with a navigation system
“MENU” button
To u c h p a d
*
Vehicles with a Lexus Display Audio
system
“MENU” button
Lexus Display Audio controller
( P. 3 3 8 )
*: For use of the Remote Touch, refer to
“NAVIGATION SYSTEM OWNER’S
MANUAL”.
1
2
3
4
5
6
7
Page 112 of 680
1122. Instrument cluster
NX300h_OM_USA_OM78082U
Navigation system screen
Press the “MENU” button on the
Remote Touch, then select “Info” on the
“Menu” screen, and then select “Fuel
Consumption”.
If the “Trip Information” or “Past Record”
screen is displayed, select “Energy”.
Lexus Display Audio screen
Press the “MENU” button on the Lexus
Display Audio controller, then select
“Info” on the “Menu” screen, and then
select “Fuel Consumption”.
If the “Energy Monitor” screen does not
appear, move the controller to the right
and select “Energy”.
Multi-information display
Press or of the meter control switches and select , and then or
to select the energy monitor display.
Energy monitor
Navigation system screen or Lexus Display Audio screenMulti-information display
When the vehicle is
powered by the elec-
tric motor (traction
motor)
When the vehicle is
powered by both the
gasoline engine and
the electric motor
(traction motor)
