LEXUS NX300H 2016 Owners Manual

5417-3. Do-it-yourself maintenance
7
Maintenance and care
NX300h_OM_USA_OM78082U

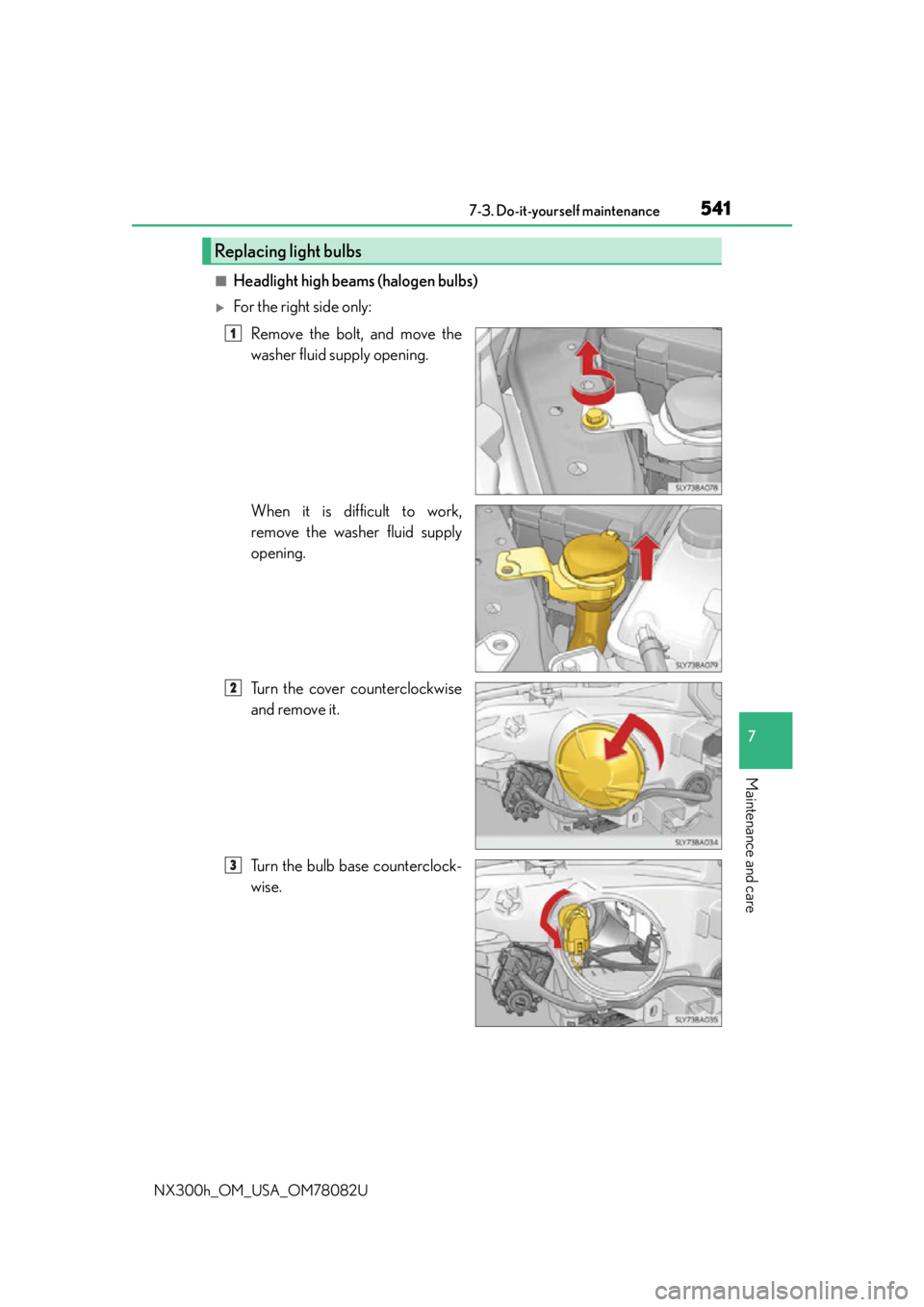

■Headlight high beams (halogen bulbs)
For the right side only:Remove the bolt, and move the
washer fluid supply opening.
When it is difficult to work,
remove the washer fluid supply
opening.
Turn the cover counterclockwise
and remove it.
Turn the bulb base counterclock-
wise.
Replacing light bulbs
1
2
3

5427-3. Do-it-yourself maintenance
NX300h_OM_USA_OM78082U

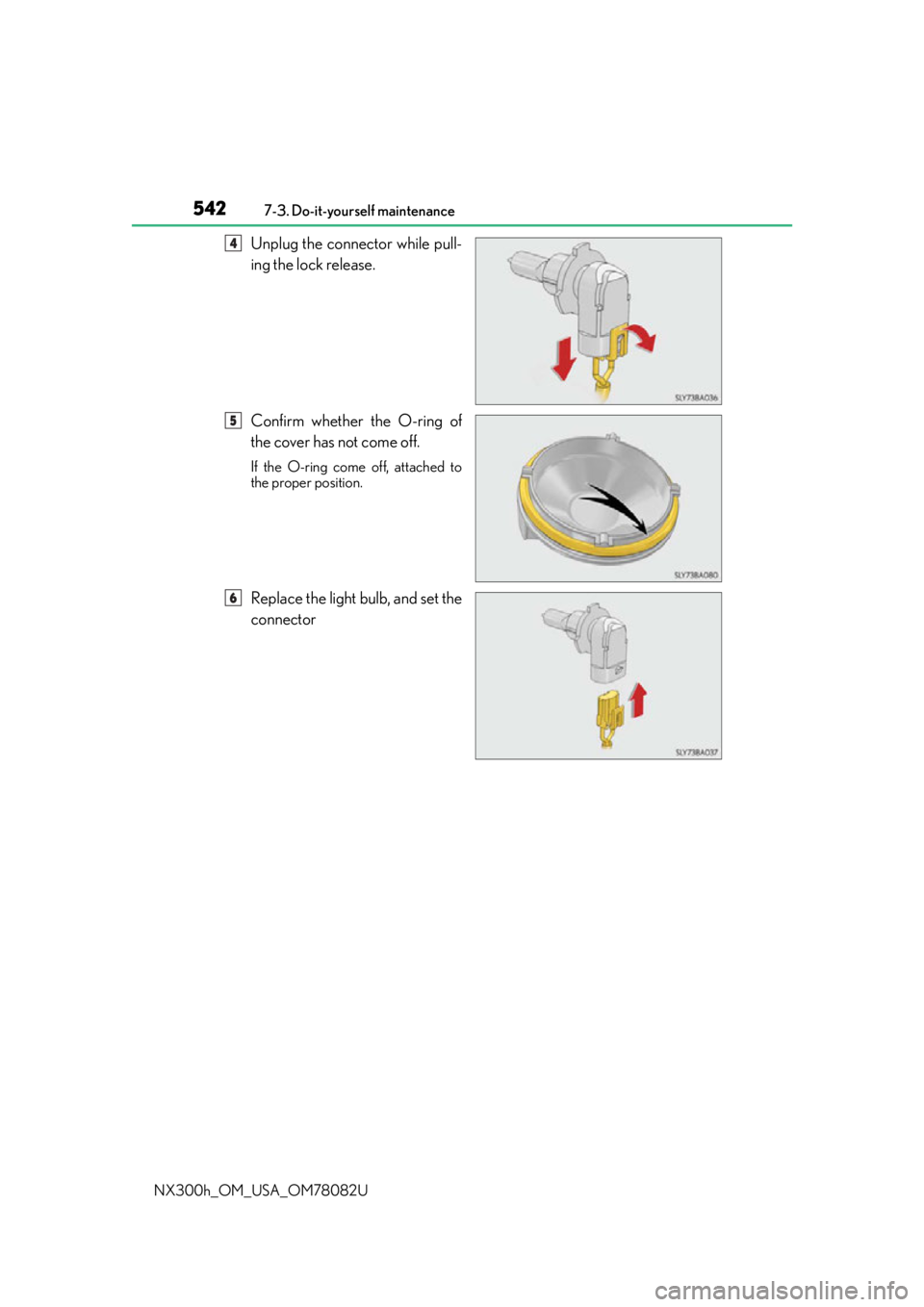

Unplug the connector while pull-
ing the lock release.
Confirm whether the O-ring of
the cover has not come off.
If the O-ring come off, attached to
the proper position.
Replace the light bulb, and set the
connector
4
5
6

5437-3. Do-it-yourself maintenance
7
Maintenance and care
NX300h_OM_USA_OM78082U
Install the bulb base.
Align the 3 tabs on the light bulb with
the mounting, and insert. Turn it
clockwise to set.
Confirm the installation of the
bulb base.
Shake the bulb base gently to check
that it is not loose, turn the headlight
high beams on once and visually
confirm that no light is leaking
through the mounting.
Install the cover and turn it clock-
wise.
Align the of the cover to the
positioning mark of the lamp body
and insert and turn it. There is the positioning mark on
the outer side of the light unit.
7
8
9

5447-3. Do-it-yourself maintenance
NX300h_OM_USA_OM78082U

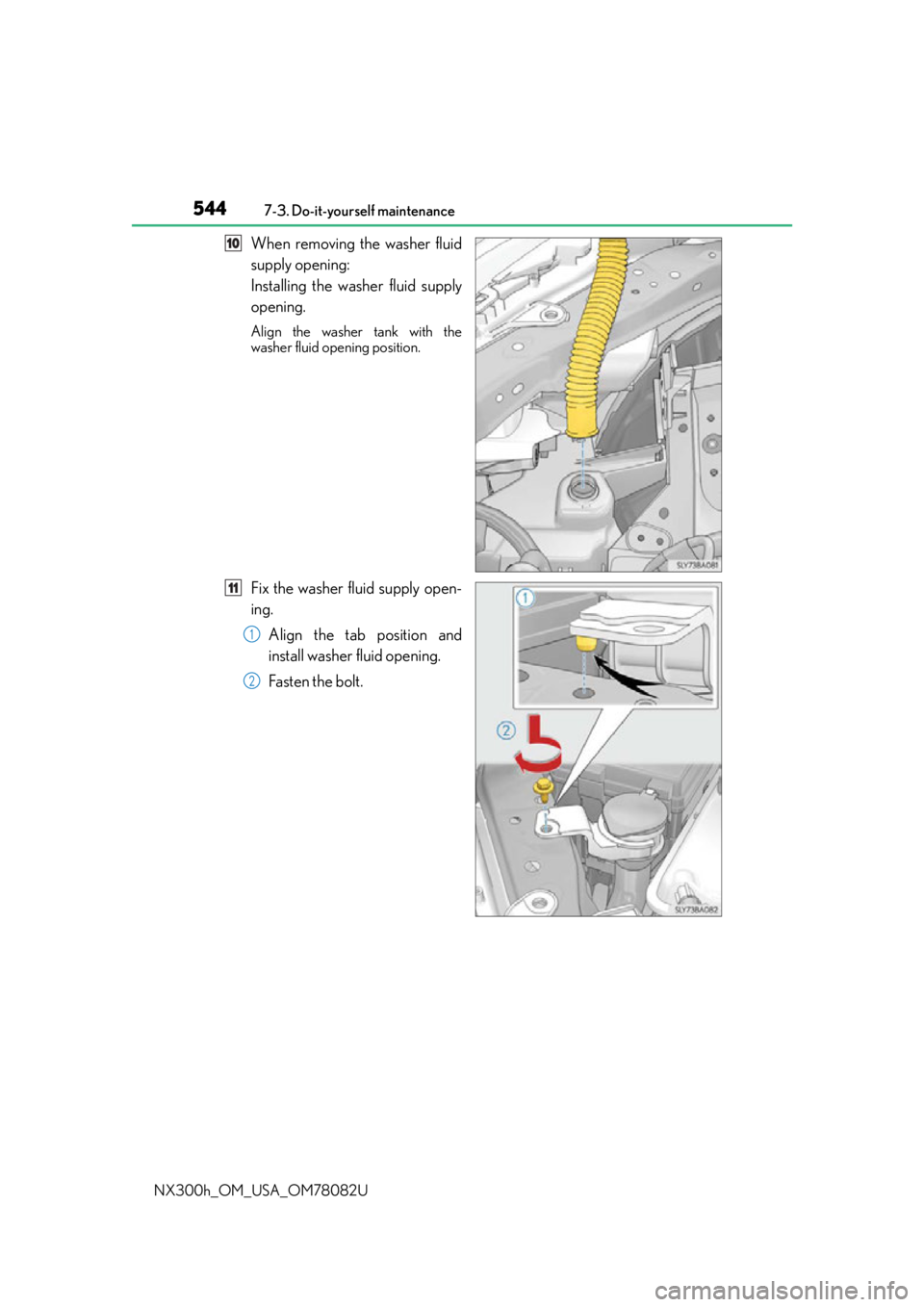

When removing the washer fluid
supply opening:
Installing the washer fluid supply
opening.
Align the washer tank with the
washer fluid opening position.
Fix the washer fluid supply open-
ing. Align the tab position and
install washer fluid opening.
Fasten the bolt.
10
11
1
2

5457-3. Do-it-yourself maintenance
7
Maintenance and care
NX300h_OM_USA_OM78082U

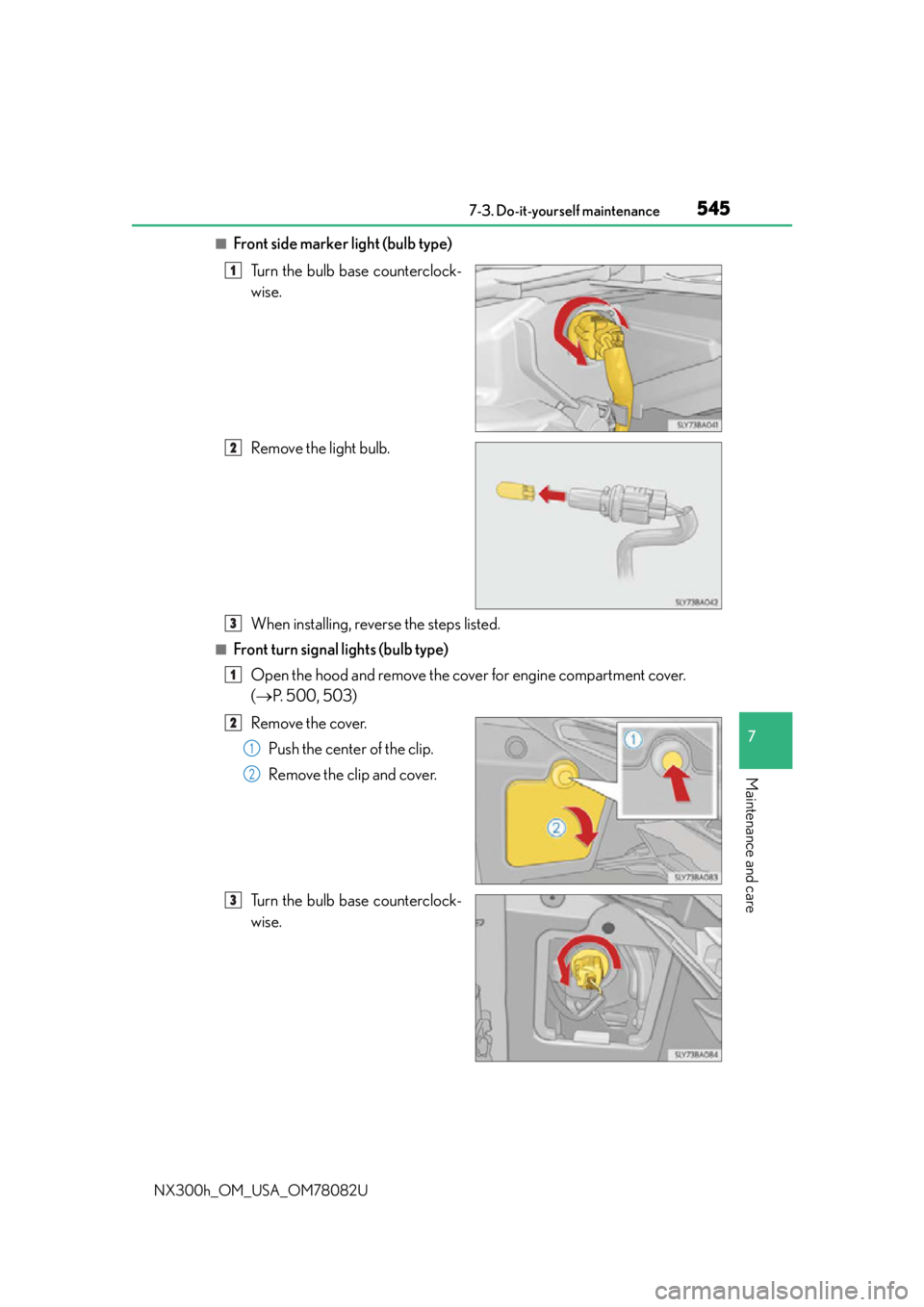

■Front side marker light (bulb type)Turn the bulb base counterclock-
wise.
Remove the light bulb.
When installing, reverse the steps listed.
■Front turn signal lights (bulb type)Open the hood and remove the cover for engine compartment cover.
( P. 500, 503)
Remove the cover. Push the center of the clip.
Remove the clip and cover.
Turn the bulb base counterclock-
wise.
1
2
3
1
2
1
2
3

5467-3. Do-it-yourself maintenance
NX300h_OM_USA_OM78082U
Remove the light bulb.
Replace the light bulb.
Turn clockwise and set the bulb
base.
Attach the clip to the cover. Push up on the center of the
clip.
Attach the clip.4
5
6
7
1
2

5477-3. Do-it-yourself maintenance
7
Maintenance and care
NX300h_OM_USA_OM78082U
Attach the cover.Align the 2 tabs positions and
close the cover.
Fix the cover by pushing the
center of the clip.
Install the engine compartment cover. ( P. 5 0 3 )
■Rear turn signal lights
Open the back door and attach
protective tape around the lamp
body. (Use masking tape, do not
use Duct tape, as duct tape may
leave markings.)
Remove the cover.
It is recommended for safeguarding
to wrap the tip of the screwdriver
with a cloth, etc., in order to prevent
scratches to the vehicle.
Remove the 2 bolts.
8
1
2
9
1
2
3

5487-3. Do-it-yourself maintenance
NX300h_OM_USA_OM78082U
Remove the light unit. Attach 2 long pieces of the
masking tape and fold the
excess portion over in half.
Hold the section folded in half,
pull toward the rear of the lens
and remove.
Turn the bulb base counterclock-
wise.
Remove the light bulb.4
1
2
5
6

5497-3. Do-it-yourself maintenance
7
Maintenance and care
NX300h_OM_USA_OM78082U
Replace the light bulb.
Turn clockwise and set the bulb
base.
Confirm that cable is fixed to the tab.
Set the light unit.Align the light unit with the 2
tabs on the rear bumper.
Push the light unit forward
while pushing A.
Confirm that the grommet fits into
the bolt installation hole on the
light unit.
37
Ta b
38
Grommet
A
Ta b
Ta b
9
1
2

5507-3. Do-it-yourself maintenance
NX300h_OM_USA_OM78082U

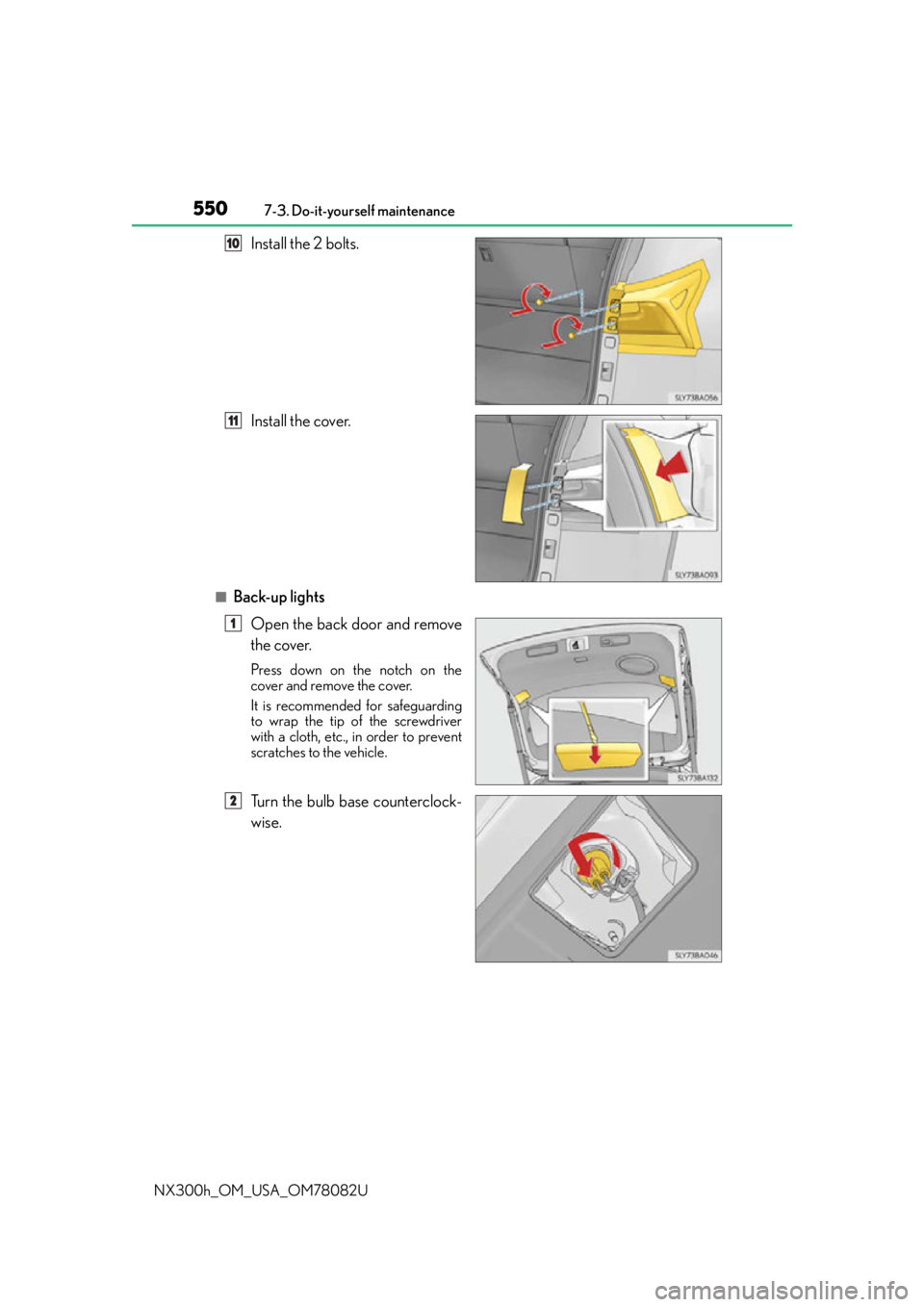

Install the 2 bolts.
Install the cover.
■Back-up lights Open the back door and remove
the cover.
Press down on the notch on the
cover and remove the cover.
It is recommended for safeguarding
to wrap the tip of the screwdriver
with a cloth, etc., in order to prevent
scratches to the vehicle.
Turn the bulb base counterclock-
wise.
10
11
1
2
