LEXUS NX300H 2016 Owners Manual

6119-1. Specifications
9
Vehicle specifications
NX300h_OM_USA_OM78082U
*: The coolant capacity is the quantity of reference. If replacement is necessary, contact your Lexus dealer.
Cooling system
Capacity*
Gasoline
engine
Vehicles with towing package
7.7 qt. (7.3 L, 6.4 Imp.qt.)
Vehicles without towing package
7.1 qt. (6.7 L, 5.9 Imp.qt.)
Po w e r
control unit3.3 qt. (3.1 L, 2.7 Imp.qt.)
Coolant type
Use either of the following: • “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based
non-silicate, non-amine, non-nitrite, and non-
borate coolant with long-life hybrid organic
acid technology
Do not use plain water alone.
Ignition system (spark plug)
MakeDENSO FK16HR-A8
Gap0.03 in. (0.8 mm)
NOTICE
■Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.
Electrical system
12-volt battery
Open voltage at 68F (20 C):
12.6 V or higher: Fully charged
12.2 — 12.4 V: Half charged
12.0 V or lower: Discharged
(Voltage is checked 20 minutes after the hybrid
system and all lights are turned off.)
Charging rates5 A max.

6129-1. Specifications
NX300h_OM_USA_OM78082U
*: The fluid capacity is the quantity of reference. If replacement is necessary, contact your Lexus dealer.
*: The fluid capacity is the quantity of reference. If replacement is necessary, contact your Lexus dealer.
*: Minimum pedal clearance when depressed wi th a force of 110 lbf (490 N, 50.0 kgf)
while the hybrid system is operating.

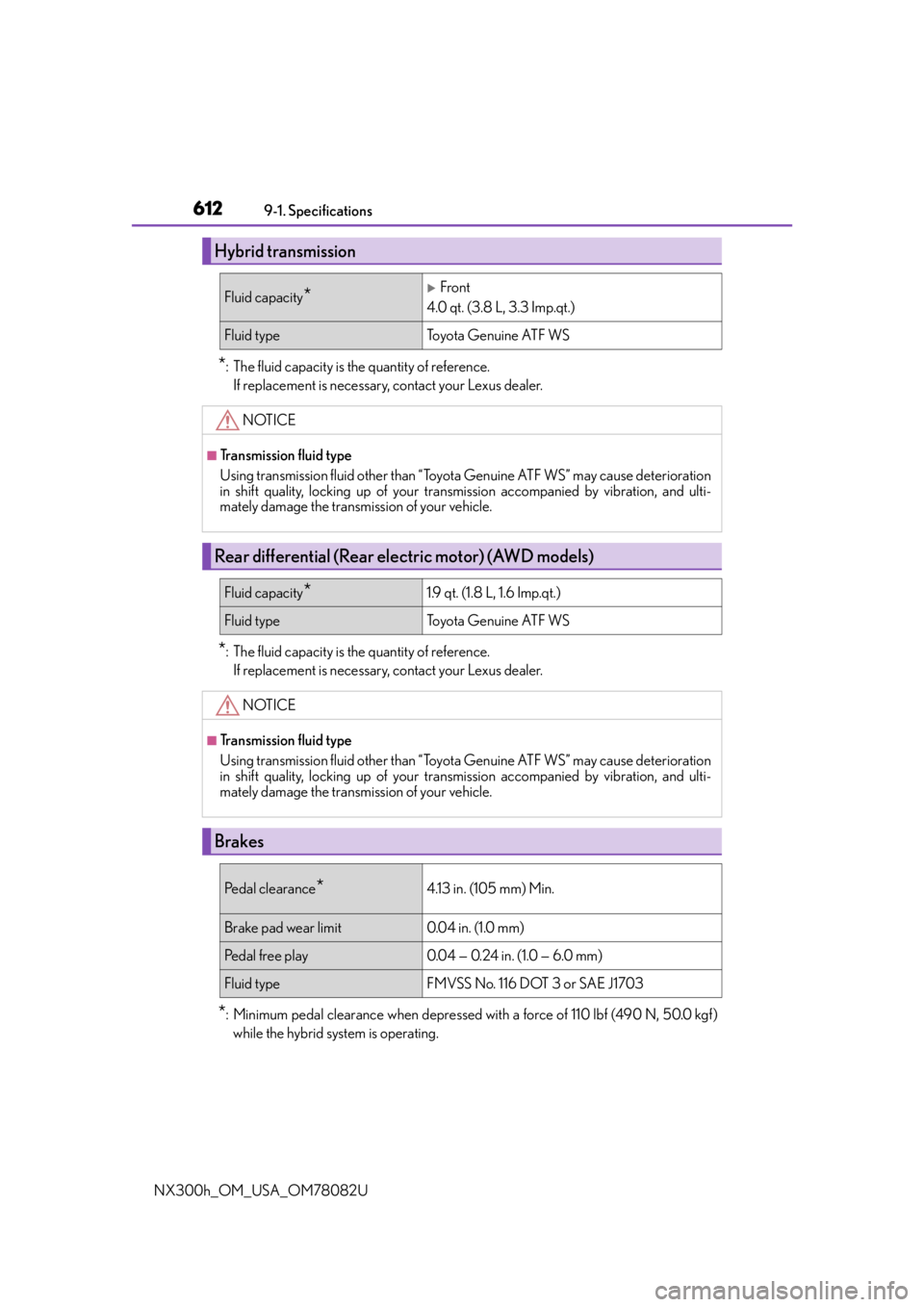

Hybrid transmission
Fluid capacity*Front
4.0 qt. (3.8 L, 3.3 Imp.qt.)
Fluid typeTo y o t a G e n u i n e AT F W S
NOTICE
■Transmission fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may cause deterioration
in shift quality, locking up of your transm ission accompanied by vibration, and ulti-
mately damage the transmission of your vehicle.
Rear differential (Rear electric motor) (AWD models)
Fluid capacity*1.9 qt. (1.8 L, 1.6 Imp.qt.)
Fluid typeTo y o t a G e n u i n e AT F W S
NOTICE
■Transmission fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may cause deterioration
in shift quality, locking up of your transm ission accompanied by vibration, and ulti-
mately damage the transmission of your vehicle.
Brakes
Pe d a l c l e a r a n c e*4.13 in. (105 mm) Min.
Brake pad wear limit0.04 in. (1.0 mm)
Pedal free play0.04 — 0.24 in. (1.0 — 6.0 mm)
Fluid typeFMVSS No. 116 DOT 3 or SAE J1703

6139-1. Specifications
9
Vehicle specifications
NX300h_OM_USA_OM78082U
Ty p e A
Ty p e B

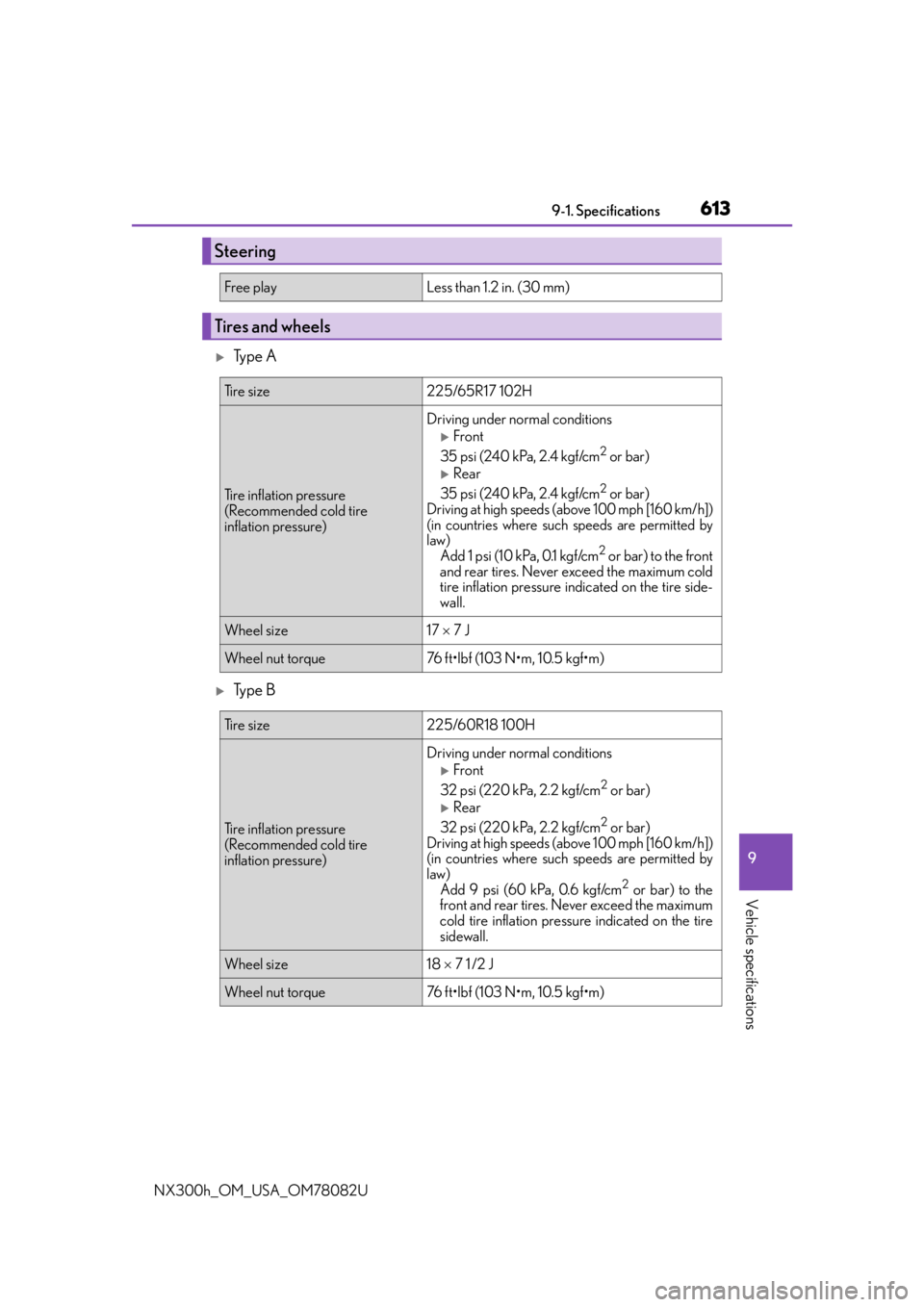

Steering
Free playLess than 1.2 in. (30 mm)
Tires and wheels
Ti r e s i z e225/65R17 102H
Tire inflation pressure
(Recommended cold tire
inflation pressure)
Driving under normal conditions
Front
35 psi (240 kPa, 2.4 kgf/cm2 or bar)
Rear
35 psi (240 kPa, 2.4 kgf/cm2 or bar)Driving at high speeds (above 100 mph [160 km/h])
(in countries where such speeds are permitted by
law)
Add 1 psi (10 kPa, 0.1 kgf/cm2 or bar) to the front
and rear tires. Never exceed the maximum cold
tire inflation pressure in dicated on the tire side-
wall.
Wheel size17  7 J
Wheel nut torque76 ft•lbf (103 N•m, 10.5 kgf•m)
Ti r e s i z e225/60R18 100H
Tire inflation pressure
(Recommended cold tire
inflation pressure)
Driving under normal conditions
Front
32 psi (220 kPa, 2.2 kgf/cm2 or bar)
Rear
32 psi (220 kPa, 2.2 kgf/cm2 or bar)
Driving at high speeds (above 100 mph [160 km/h])
(in countries where such speeds are permitted by
law)
Add 9 psi (60 kPa, 0.6 kgf/cm2 or bar) to the
front and rear tires. Never exceed the maximum
cold tire inflation pressure indicated on the tire
sidewall.
Wheel size18  7 1 /2 J
Wheel nut torque76 ft•lbf (103 N•m, 10.5 kgf•m)

6149-1. Specifications
NX300h_OM_USA_OM78082U

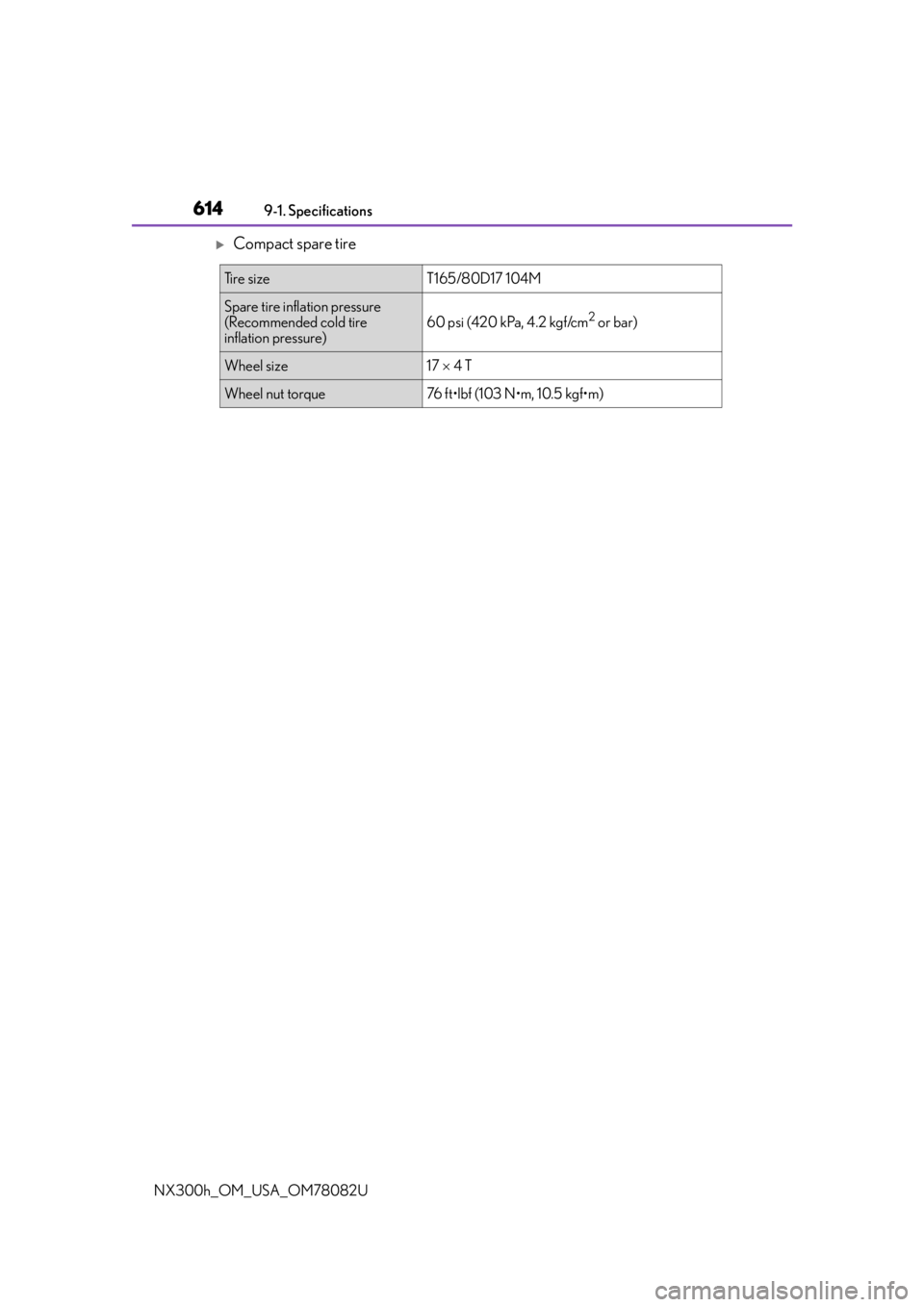

Compact spare tire
Ti r e s i z eT165/80D17 104M
Spare tire inflation pressure
(Recommended cold tire
inflation pressure)
60 psi (420 kPa, 4.2 kgf/cm2 or bar)
Wheel size17  4 T
Wheel nut torque76 f t•lbf (103 N•m, 10.5 kgf•m)

6159-1. Specifications
9
Vehicle specifications
NX300h_OM_USA_OM78082U

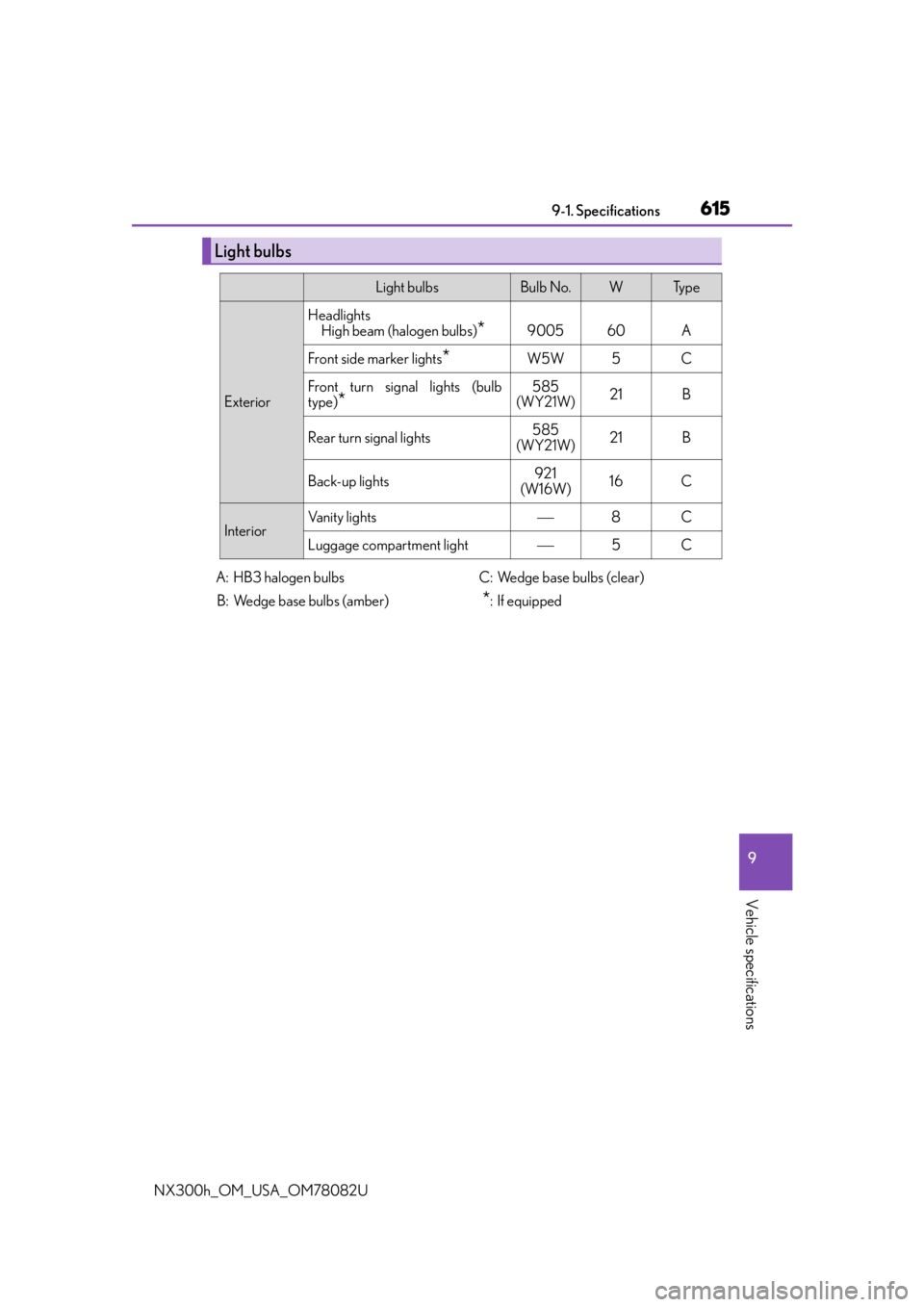

Light bulbs
Light bulbsBulb No.WTy p e
Exterior
HeadlightsHigh beam (halogen bulbs)
*900560A
Front side marker lights*W5W5C
Front turn signal lights (bulb
type)*585
(WY21W)21B
Rear turn signal lights585
(WY21W)21B
Back-up lights921
(W16W) 16C
InteriorVanity lights8C
Luggage compartment light5C
A: HB3 halogen bulbs
B: Wedge base bulbs (amber) C: Wedge base bulbs (clear)
*: If equipped

6169-1. Specifications
NX300h_OM_USA_OM78082U
Fuel information
■Gasoline quality
In very few cases, driveability problems may be caused by the brand of gasoline you are
using. If driveability problems persist, try changing the brand of gasoline. If this does not
correct the problem, consult your Lexus dealer.
■Gasoline quality standards
●Automotive manufacturers in the U.S.A., Eu rope and Japan have developed a specifi-
cation for fuel quality called the World-Wi de Fuel Charter (WWFC), which is expected
to be applied worldwide.
●The WWFC consists of four cat egories that are based on required emission levels. In
the U.S., category 4 has been adopted.
●The WWFC improves air quality by lowering emissions in vehicle fleets, and improves
customer satisfaction through better performance.
■Recommendation of the use of gasoli ne containing detergent additives
●Lexus recommends the use of gasoline that contains detergent additives to avoid the
build-up of engine deposits.
●All gasoline sold in the U.S.A. contains minimum detergent additives to clean and/or
keep clean intake systems, per EPA’s lowest additives concentration program.
●Lexus strongly recommends the use of Top Ti er Detergent Gasoline. For more informa-
tion on Top Tier Detergent Gasoline and a list of marketers, please go to the official
website www.toptiergas.com.
You must only use unleaded gasoline in your vehicle.
Select octane rating 87 (Research Octane Number 91) or higher. Use of
unleaded gasoline with an octane rating lower than 87 may result in engine
knocking. Persistent knocking can lead to engine damage.
At minimum, the gasoline you use should meet the specifications of ASTM
D4814 in the U.S.A.

6179-1. Specifications
9
Vehicle specifications
NX300h_OM_USA_OM78082U
■Recommendation of the use of low emissions gasoline
Gasolines containing oxygenates such as ethers and ethanol, as well as reformulated
gasolines, are available in some cities. These fuels are typically acceptable for use, pro-
viding they meet other fuel requirements.
Lexus recommends these fuels, since the fo rmulations allow for reduced vehicle emis-
sions.
■Non-recommendation of the use of blended gasoline
●If you use gasohol in your vehicle, be sure th at it has an octane rating no lower than 87.
●Lexus does not recommend the use of gasoline containing methanol.
■Non-recommendation of the use of gasoline containing MMT
Some gasoline contains an octane enhancing additive called MMT
(Methylcyclopentadienyl Manganese Tricarbonyl).
Lexus does not recommend the use of gasolin e that contains MMT. If fuel containing
MMT is used, your emission control system may be adversely affected.
The malfunction indicator lamp on the instru ment cluster may come on. If this happens,
contact your Lexus dealer for service.
■If your engine knocks
●Consult your Lexus dealer.
●You may occasionally notice light knocking fo r a short time while accelerating or driv-
ing uphill. This is normal and there is no need for concern.
●Use only gasoline containing up to 15% etha-
nol.
DO NOT use any flex-fuel or gasoline that
could contain more than 15% ethanol, includ-
ing from any pump labeled E30, E50, E85
(which are only some examples of fuel con-
taining more than 15% ethanol).DO NOT use gasoline
containing more than
15% ethanol.
(30% ethanol)
(50% ethanol)
(85% ethanol)

6189-1. Specifications
NX300h_OM_USA_OM78082U
NOTICE
■Notice on fuel quality
●Do not use improper fuels. If improper fuels are used, the engine will be damaged.
●Do not use leaded gasoline.
Leaded gasoline can cause damage to your vehicle’s three-way catalytic converters
causing the emission control system to malfunction.
●Do not use gasohol other than the type previously stated.
Other gasohol may cause fuel system da mage or vehicle performance problems.
●Using unleaded gasoline with an octane number or rating lower than the level previ-
ously stated will cause persistent heavy knocking.
At worst, this will lead to engine damage.
■Fuel-related poor driveability
If poor driveability (poor hot starting, vaporization, engine knocking, etc.) is encoun-
tered after using a different type of fuel, discontinue the use of that type of fuel.
■When refueling with gasohol
Take care not to spill gasohol. It can damage your vehicle’s paint.

6199-1. Specifications
9
Vehicle specifications
NX300h_OM_USA_OM78082U

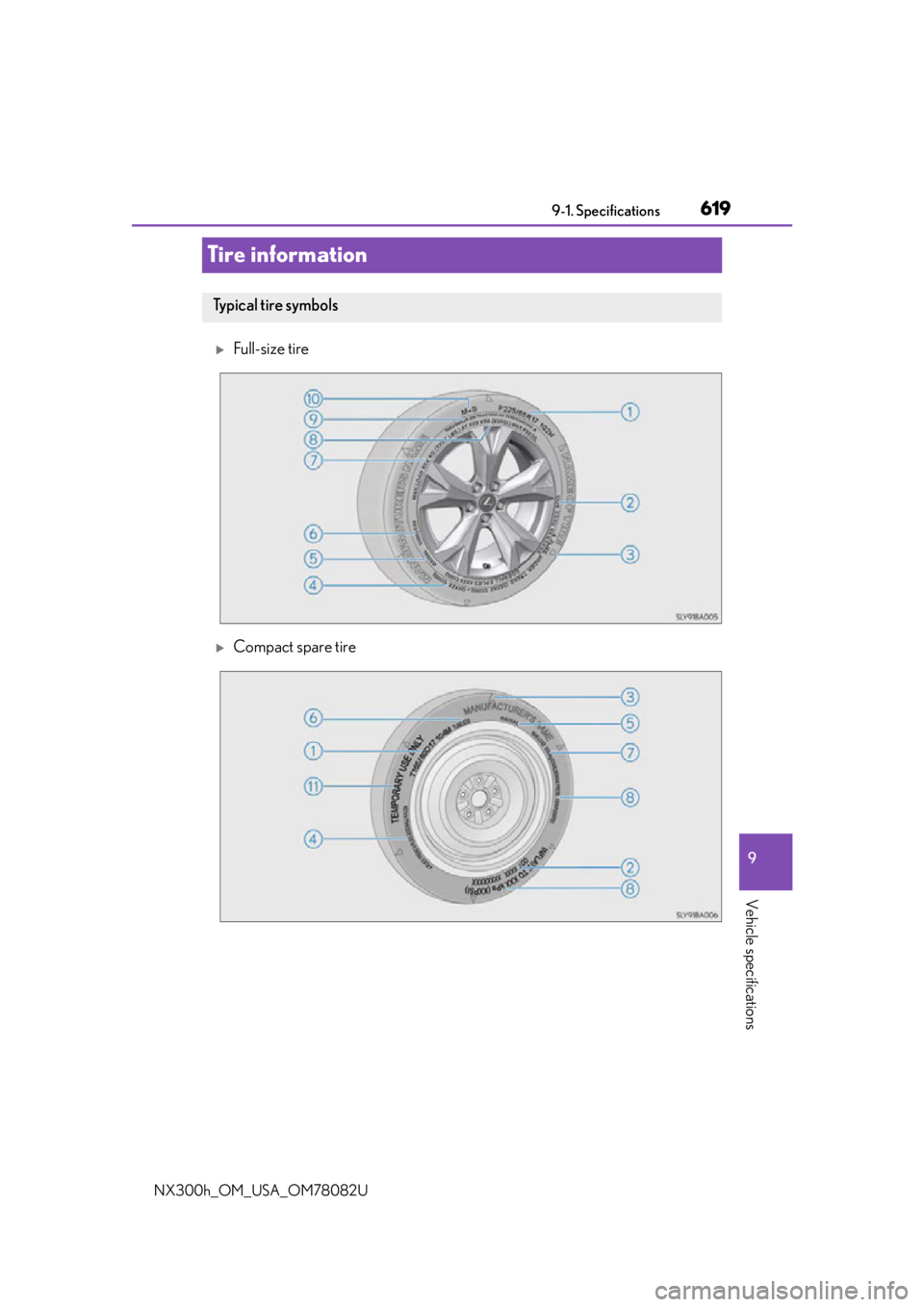

Tire information
Full-size tire
Compact spare tire
Ty p i c a l t i r e s y m b o l s

6209-1. Specifications
NX300h_OM_USA_OM78082U
Ti r e s i z e ( P. 6 2 2 )
DOT and Tire Identification Number (TIN) ( P. 6 2 1 )
Location of treadwear indicators (P. 5 1 6 )
Tire ply composition and materials
Plies are layers of rubber-coated parallel co rds. Cords are the strands which form the
plies in a tire.
Radial tires or bias-ply tires
A radial tire has “RADIAL” on the sidewall. A tire not marked “RADIAL” is a bias-ply
tire.
TUBELESS or TUBE TYPE
A tubeless tire does not have a tube and air is directly put into the tire. A tube type tire
has a tube inside the tire and the tube maintains the air pressure.
Load limit at maximum cold tire inflation pressure (P. 5 2 0 )
Maximum cold tire inflation pressure ( P. 6 1 3 )
This means the pressure to which a tire may be inflated.
Uniform tire quality grading
For details, see “Uniform Tire Quality Grading” that follows.
Summer tires or all season tires ( P. 5 2 0 )
An all season tire has “M+S” on the sidewall. A tire not marked “M+S” is a summer
tire.
“TEMPORARY USE ONLY”
A compact spare tire is identified by the phrase “TEMPORARY USE ONLY” molded
on its sidewall. This tire is desi gned for temporary emergency use only.
1
2
3
4
5
6
7
8
9
10
11
