176 4-2. Driving procedures
LEXUS NX300h Owners Manu-
al_USA_OM78212U 2 DownshiftingThe selected shift range, from 1 to 6, will be
displayed.
The initial shift range in S mode is 4. ■
Shift ranges and their functions
 You can choose from 6 levels of
accelerating force and engine brak-
ing force.
 A lower shift range will provide
greater accelerating force and
engine braking force than a higher
shift range, and the engine revolu-
tions will also increase. ■
Downshifting restriction warning
buzzer
To help ensure safety and driving perfor-
mance, downshifting operation may some-
times be restricted. In some circumstances,
downshifting may not be possible even
when the shift lever or paddle shift switch is
operated. (A buzzer will sound twice.)
1 Right turn
2 Lane change to the right (move the
lever partway and release it)
The right hand signals will flash 3
times.
3 Lane change to the left (move the
lever partway and release it)
The left hand signals will flash 3
times.
4 Left turn ■
Turn signals can be operated when
The power switch is in ON mode.
■
If the indicator flashes faster than usual
Check that a light bulb in the front or rear
turn signal lights has not burned out.
■
Customization
→ P.425Turn signal lever
Operating instructions

2554-6. Driving tips
LEXUS NX300h Owners Manu-
al_USA_OM78212U 4
Driving 4-6.Driving tips
When using Eco mode, the torque cor-
responding to the accelerator pedal
depression amount can be generated
more smoothly than it is in normal con-
ditions. In addition, the operation of the
air conditioning system (heating/cool-
ing) will be minimized, improving the
fuel economy. ( → P.249)
The Eco-friendly driving is possible by
keeping the indicator needle of Hybrid
System Indicator within Eco area.
( → P.82)
Shift the shift lever to D when stopped
at a traffic light, or driving in heavy traf-
fic, etc. Shift the shift lever to P when
parking. When using the N, there is no
positive effect on fuel consumption. In
the N, the gasoline engine operates
but electricity cannot be generated.
Also, when using the air conditioning
system, etc., the hybrid battery (trac-
tion battery) power is consumed.  Drive your vehicle smoothly. Avoid
abrupt acceleration and decelera-
tion. Gradual acceleration and
deceleration will make more effec-
tive use of the electric motor (trac-
tion motor) without having to use
gasoline engine power.
 Avoid repeated acceleration.
Repeated acceleration consumes
hybrid battery (traction battery)
power, resulting in poor fuel con-
sumption. Battery power can be
restored by driving with the acceler-
ator pedal slightly released.
Make sure to operate the brakes gently
and in a timely manner. A greater
amount of electrical energy can be
regenerated when slowing down.
Repeated acceleration and decelera-
tion, as well as long waits at traffic
lights, will lead to bad fuel economy.
Check traffic reports before leaving
and avoid delays as much as possible.
When driving in a traffic jam, gently
release the brake pedal to allow the
vehicle to move forward slightly while
avoiding overuse of the accelerator
pedal. Doing so can help control
excessive gasoline consumption.Hybrid vehicle driving tips For economical and ecological
driving, pay attention to the follow-
ing points:
Using Eco mode
Use of Hybrid System Indicator
Shift Changing the shift lever
operation Accelerator pedal/brake pedal
operation
When braking
Delays

256 4-6. Driving tips
LEXUS NX300h Owners Manu-
al_USA_OM78212U Control and maintain the vehicle at a
constant speed. Before stopping at a
toll booth or similar, allow plenty of
time to release the accelerator and
gently apply the brakes. A greater
amount of electrical energy can be
regenerated when slowing down.
Use the air conditioning only when
necessary. Doing so can help reduce
excessive gasoline consumption.
In summer: When the ambient tem-
perature is high, use the recirculated
air mode. Doing so will help to reduce
the burden on the air conditioning sys-
tem and reduce fuel consumption as
well.
In winter: Because the gasoline engine
will not automatically cut out until it and
the interior of the vehicle are warm, it
will consume fuel. Also, fuel consump-
tion can be improved by avoiding over-
use of the heater.
Make sure to check the tire inflation
pressure frequently. Improper tire infla-
tion pressure can cause poor fuel
economy.
Also, as snow tires can cause large
amounts of friction, their use on dry
roads can lead to poor fuel economy.
Use tires that are appropriate for the
season. Carrying heavy luggage will lead to
poor fuel economy. Avoid carrying
unnecessary luggage. Installing a large
roof rack will also cause poor fuel
economy.
Since the gasoline engine starts up and
cuts out automatically when cold,
warming up the engine is unnecessary.
Moreover, frequently driving short dis-
tances will cause the engine to repeat-
edly warm up, which can lead to excess
fuel consumption.Highway driving
Air conditioning
Checking tire inflation pressure Luggage
Warming up before driving

2614-6. Driving tips
LEXUS NX300h Owners Manu-
al_USA_OM78212U 4
Driving WARNING●
Always check your brakes for effec-
tiveness immediately after driving in
sand, mud, water or snow.●
After driving through tall grass, mud,
rock, sand, water, etc., check that there
is no grass, bush, paper, rags, stone,
sand, etc. adhering or trapped to the
underbody. Clear off any such matter
from the underbody. If the vehicle is
used with these materials trapped or
adhering to the underbody, a break-
down or fire could occur.●
When driving off-road or in rugged
terrain, do not drive at excessive
speeds, jump, make sh arp turns, strike
objects, etc. This may cause loss of
control or vehicle rollover causing
death or serious injury. You are also
risking expensive damage to your
vehicle’s suspension and chassis.
NOTICE■
To prevent water damage
Take all necessary sa fety measures to
ensure that water da mage to the hybrid
battery (traction battery), hybrid system
or other components does not occur. ●
Water entering the engine compart-
ment may cause severe damage to the
hybrid system. Water entering the inte-
rior may cause the hybrid battery
stowed under the rear seats to short
circuit.
●
Water entering the hybrid transmis-
sion and rear electr ic motor (traction
motor) will cause deterioration in
transmission quality. The malfunction
indicator may come on, and the vehi-
cle may not be drivable.
●
Water can wash the grease from wheel
bearings, causing rusting and prema-
ture failure, and may also enter the
hybrid transmission case, reducing the
gear oil’s lubricating qualities. ■
When you drive through water
If driving through water, such as when
crossing shallow streams, first check the
depth of the water and the bottom of the
riverbed for firmness. Drive slowly and
avoid deep water. ■
Inspection after off-road driving ●
Sand and mud that has accumulated
around brake discs may affect braking
efficiency and may damage brake sys-
tem components. ●
Always perform a maintenance
inspection after each day of off-road
driving that has taken you through
rough terrain, sand, mud, or water. For
scheduled maintena nce information,
refer to the “Warranty and Services
Guide/Owner’s Manual Supplement/
Scheduled Maintenance”.

313
LEXUS NX300h Owners Manu-
al_USA_OM78212U 6 6
Maintenance and care Maintenance and care 6-1. Maintenance and care
Cleaning and protecting the vehi-
cle exterior ................................. 314
Cleaning and protecting the vehi-
cle interior .................................. 317
6-2. Maintenance
Maintenance requirements ... 319
General maintenance ............. 320
Emission inspection and mainte-
nance (I/M) programs ......... 322
6-3. Do-it-yourself maintenance
Do-it-yourself service precautions
........................................................ 324
Hood............................................... 325
Positioning a floor jack............ 326
Engine compartment............... 327
12-volt battery............................. 333
Tires ................................................ 336
Tire inflation pressure .............. 343
Wheels........................................... 345
Air conditioning filter............... 346
Electronic key battery ............. 347
Checking and replacing fuses
........................................................ 349
Headlight aim............................... 351
Light bulbs .................................... 353

3196-2. Maintenance
LEXUS NX300h Owners Manu-
al_USA_OM78212U 6
Maintenance and care 6-2.Maintenance
■
Repair and replacement
It is recommended that genuine Lexus parts
be used for repairs to ensure performance
of each system. If non-Lexus parts are used
in replacement or if a repair shop other than
a Lexus dealer perfor ms repairs, confirm
the warranty coverage. ■
Allow inspection and repairs to be per-
formed by a Lexus dealer●
Lexus technicians are well-trained spe-
cialists and are kept up to date with the
latest service information. They are well
informed about the operation of all sys-
tems on your vehicle.●
Keep a copy of the repa ir order. It proves
that the maintenance that has been per-
formed is under warra nty coverage. If any
problem should arise while your vehicle is
under warranty, your Lexus dealer will
promptly take care of it. General maintenance should be per-
formed on a daily basis. This can be
done by yourself or by a Lexus dealer.
Scheduled maintenance should be
performed at specified intervals
according to the maintenance sched-
ule. For details about ma intenance items and
schedules, refer to the “Warranty and Ser-
vice Guide”, “Owner’s Manual Supple-
ment” or “Scheduled Maintenance”.
■
Resetting the message indicating main-
tenance is required (U.S.A. only)
After the required maintenance is pre-
formed according to the maintenance
schedule, please reset the message.
To reset the message, follow the procedures
described below:
1 Press or of the meter control
switches and select .Maintenance requirements To ensure safe and economical driv-
ing, day-to-day care and regular
maintenance are essential. It is the
owner’s responsibility to perform
regular checks. Lexus recommends
the following maintenance:
WARNING
■
If your vehicle is not properly main-
tained
Improper maintenanc e could result in
serious damage to the vehicle and possi-
ble serious injury or death.
■
Handling of the 12-volt battery
●
Engine exhaust, some of its constitu-
ents, and a wide variety of automobile
components contain or emit chemicals
known to the State of California to
cause cancer and birth defects and
other reproductive harm. Work in a
well ventilated area. ●
Oils, fuels and fluids contained in vehi-
cles as well as waste produced by
component wear contain or emit
chemicals known to the State of Cali-
fornia to cause cancer and birth
defects or other re productive harm.
Avoid exposure and wash any affected
area immediately. ●
12-volt Battery post s, terminals and
related accessories contain lead and
lead compounds which are known to
cause brain damage. Wash your hands
after handling. ( → P.333)
General maintenance
Scheduled maintenance

320 6-2. Maintenance
LEXUS NX300h Owners Manu-
al_USA_OM78212U 2 Press or of the meter control
switches, sele ct the “Vehicle Settings”
and then press .
3 Press or of the meter control
switches, select the “Scheduled Mainte-
nance” and then press and hold the .
4 Select the “Yes” and push .
“The Data Has Been Reset” is displayed
on the multi-information display.
You can perform some maintenance
procedures by yourself.
Please be aware that do-it-yourself
maintenance may affect warranty cov-
erage. The use of Lexus repair manuals is recom-
mended.
For details about warra nty coverage, refer
to the separate “Owner’s Guide”, “War-
ranty and Service Guide”, “Owner’s Man-
ual Supplement” or “Warranty Booklet”.Do-it-yourself maintenance General maintenance Listed below are the general main-
tenance items that should be per-
formed at the intervals specified in
the “Warranty and Service Guide”
or “Owner’s Manual Supplement”.
It is recommended that any prob-
lem you notice should be brought to
the attention of your Lexus dealer
or qualified service shop for advice. WARNING■
If the hybrid system is operating
Turn the hybrid system off and ensure
that there is adequate ventilation before
performing maintenance checks.
Engine compartment Items Check points
Brake fluid Is the brake fluid at the cor-
rect level? ( → P.332)
Engine/power
control unit
coolant Is the engine coolant at the
correct level? ( → P.330)
Engine oil Is the engine oil at the cor-
rect level? ( → P.328)
Exhaust sys-
tem There should not be any
fumes or strange sounds.
Radiator/con-
denser The radiator and con-
denser should be free from
foreign objects. ( → P.331)
Washer fluid Is there sufficient washer
fluid? ( → P.332)

3216-2. Maintenance
LEXUS NX300h Owners Manu-
al_USA_OM78212U 6

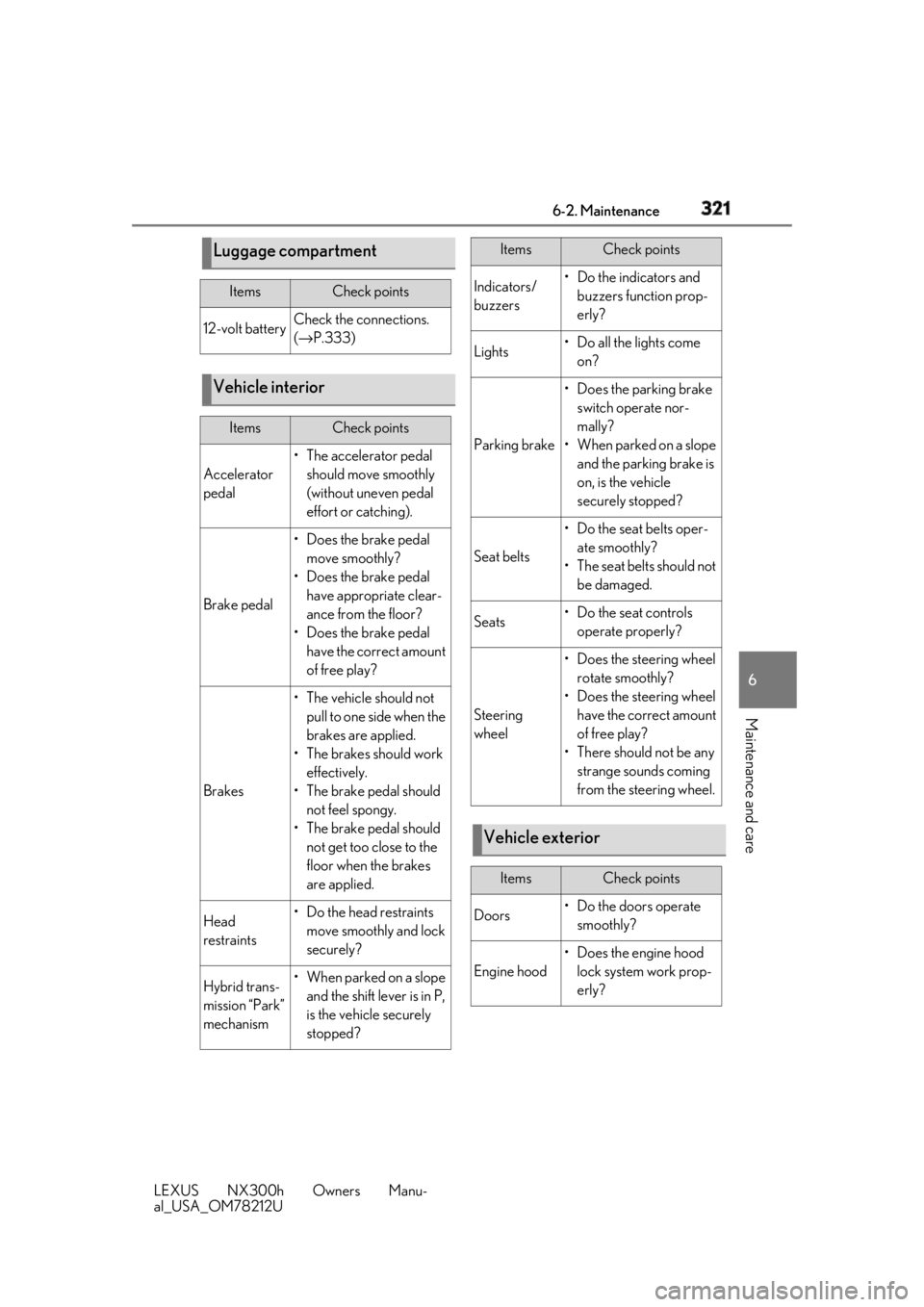

Maintenance and care Luggage compartment Items Check points
12-volt battery Check the connections.
( → P.333)
Vehicle interior Items Check points
Accelerator
pedal • The accelerator pedal
should move smoothly
(without uneven pedal
effort or catching).
Brake pedal • Does the brake pedal
move smoothly?
• Does the brake pedal
have appropriate clear-
ance from the floor?
• Does the brake pedal
have the correct amount
of free play?
Brakes •The vehicle should not
pull to one side when the
brakes are applied.
• The brakes should work
effectively.
• The brake pedal should
not feel spongy.
• The brake pedal should
not get too close to the
floor when the brakes
are applied.
Head
restraints • Do the head restraints
move smoothly and lock
securely?
Hybrid trans-
mission “Park”
mechanism • When parked on a slope
and the shift lever is in P,
is the vehicle securely
stopped? Indicators/
buzzers • Do the indicators and
buzzers function prop-
erly?
Lights • Do all the lights come
on?
Parking brake • Does the parking brake
switch operate nor-
mally?
• When parked on a slope
and the parking brake is
on, is the vehicle
securely stopped?
Seat belts • Do the seat belts oper-
ate smoothly?
• The seat belts should not
be damaged.
Seats • Do the seat controls
operate properly?
Steering
wheel • Does the steering wheel
rotate smoothly?
• Does the steering wheel
have the correct amount
of free play?
• There should not be any
strange sounds coming
from the steering wheel.
Vehicle exterior Items Check points
Doors • Do the doors operate
smoothly?
Engine hood • Does the engine hood
lock system work prop-
erly?Items Check points

3256-3. Do-it-yourself maintenance
LEXUS NX300h Owners Manu-
al_USA_OM78212U 6
Maintenance and care 1 Pull the hood lock release lever. The hood will pop up slightly.
2 Pull up the auxiliary catch lever and
lift the hood.WARNING●
Be careful not to touch the engine,
power control unit, radiator, exhaust
manifold, etc. right after driving as they
may be hot. Oil and other fluids may
also be hot.●
Do not leave anything that may burn
easily, such as paper and rags, in the
engine compartment.●
Do not smoke, cause sparks or expose
an open flame to fuel. Fuel fumes are
flammable.■
When working near the electric cool-
ing fans or radiator grille
Be sure the power switch is off.
With power switch in ON mode, the
electric cooling fans may automatically
start to run if the air conditioning is on
and/or the coolant temperature is high.
( → P.331)■
Safety glasses
Wear safety glasses to prevent flying or
falling material, fluid spray, etc. from get-
ting in your eyes.
NOTICE■
If you remove the air cleaner filter
Driving with the air cleaner filter
removed may cause excessive engine
wear due to dirt in the air. Hood
Opening the hood
WARNING
■
Pre-driving check
Check that the hood is fully closed and
locked.
If the hood is not locked properly, it may
open while the vehicle is in motion and
cause an accident, which may result in
death or serious injury.

328 6-3. Do-it-yourself maintenance
LEXUS NX300h Owners Manu-
al_USA_OM78212U ■
Removing the engine compart-
ment cover
■
Installing the clips
1 Insert
2 Press With the engine at operating tempera-
ture and turned off, check the oil level
on the dipstick. ■
Checking the engine oil
1 Park the vehicle on level ground.
After warming up the hybrid sys-
tem, and turning off the engine, wait
more than 5 minutes for the oil to
drain back into the bottom of the
engine.
2 Holding a rag under the end, pull
the dipstick out.
3 Wipe the dipstick clean.
4 Reinsert the dipstick fully with its
protruding areas ( in the illustra-
tion) pointing towards engine.Engine compartment cover
NOTICE
■
After installing an engine compart-
ment cover
Make sure that the cover is securely
installed in its original position. Checking and adding the engine
oil
A
