octane LEXUS NX300h 2018 Owners Manual

4018-1. Specifications
LEXUS NX300h Owners Manu-
al_USA_OM78212U 8

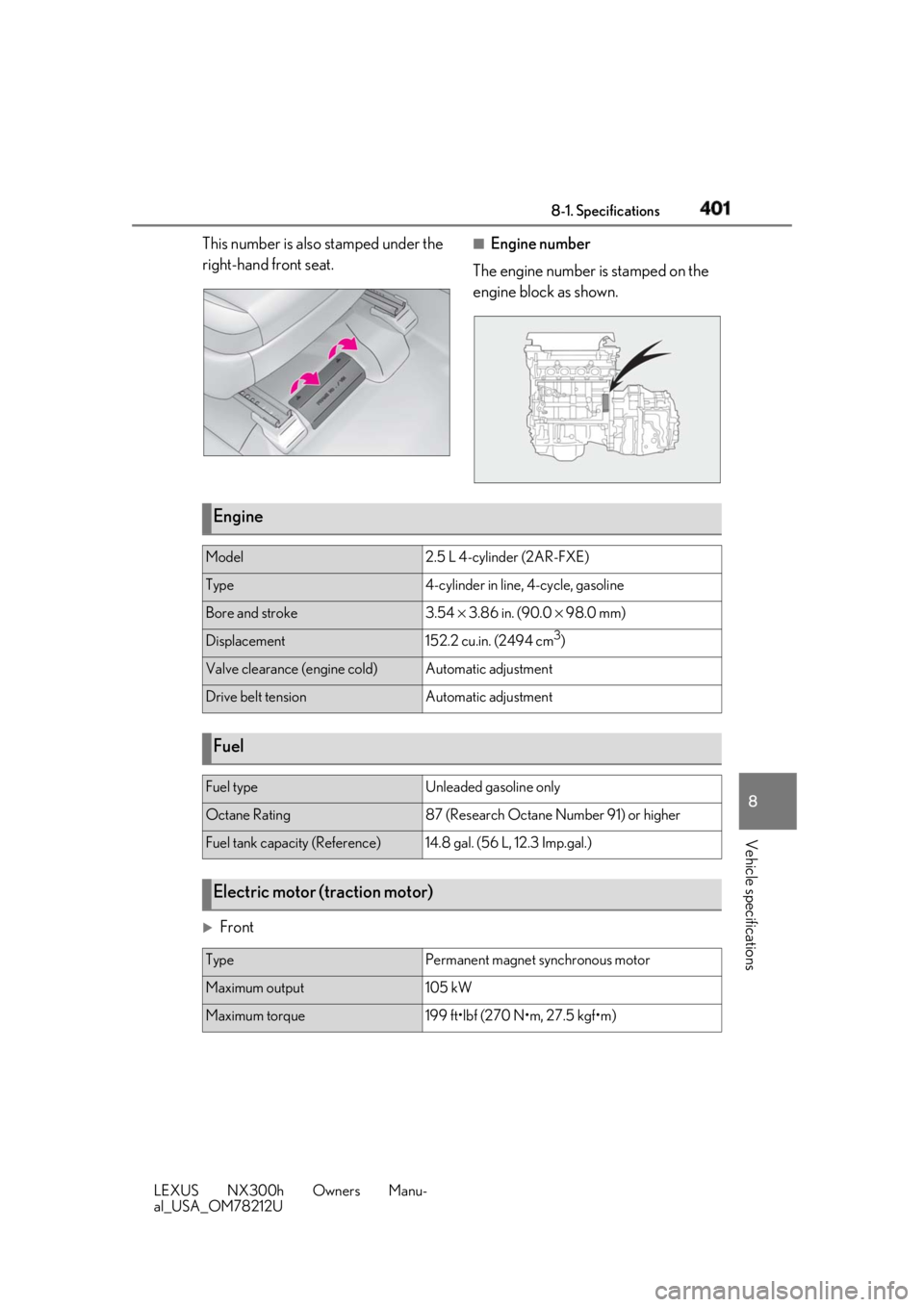

Vehicle specifications This number is also stamped under the
right-hand front seat. ■
Engine number
The engine number is stamped on the
engine block as shown.

FrontEngine Model 2.5 L 4-cylinder (2AR-FXE)
Type 4-cylinder in line, 4-cycle, gasoline
Bore and stroke 3.54 × 3.86 in. (90.0 × 98.0 mm)
Displacement 152.2 cu.in. (2494 cm 3
)
Valve clearance (engine cold) Automatic adjustment
Drive belt tension Automatic adjustment
Fuel Fuel type Unleaded gasoline only
Octane Rating 87 (Research Octane Number 91) or higher
Fuel tank capacity (Reference) 14.8 gal. (56 L, 12.3 Imp.gal.)
Electric motor (traction motor) Type Permanent magnet synchronous motor
Maximum output 105 kW
Maximum torque 199 ft•lbf (270 N•m, 27.5 kgf•m)

408 8-1. Specifications
LEXUS NX300h Owners Manu-
al_USA_OM78212U ■
Gasoline quality
In very few cases, driveability problems may
be caused by the brand of gasoline you are
using. If driveability problems persist, try
changing the brand of gasoline. If this does
not correct the problem, consult your Lexus
dealer. ■
Gasoline quality standards●
Automotive manufacturers in the U.S.A.,
Europe and Japan have developed a
specification for fuel quality called the
World-Wide Fuel Charter (WWFC),
which is expected to be applied world-
wide.●
The WWFC consists of four categories
that are based on required emission lev-
els. In the U.S., category 4 has been
adopted.
●
The WWFC improves air quality by low-
ering emissions in vehicle fleets, and
improves customer satisfaction through
better performance.
■
Recommendation of the use of gasoline
containing detergent additives
●
Lexus recommends the use of gasoline
that contains detergent additives to avoid
the build-up of engine deposits.
●
All gasoline sold in the U.S.A. contains
minimum detergent additives to clean
and/or keep clean intake systems, per EPA’s lowest additives concentration pro-
gram. ●
Lexus strongly recommends the use of
Top Tier Detergent Gasoline. For more
information on Top Tier Detergent Gaso-
line and a list of marketers, please go to
the official website www.toptiergas.com. ■
Recommendation of the use of low
emissions gasoline
Gasolines containing oxygenates such as
ethers and ethanol, as well as reformulated
gasolines, are available in some cities.
These fuels are typically acceptable for use,
providing they meet other fuel require-
ments.
Lexus recommends these fuels, since the
formulations allow for reduced vehicle
emissions. ■
Non-recommendation of the use of
blended gasoline ●
Use only gasoline containing up to 15%
ethanol.
DO NOT use any flex-fuel or gasoline
that could contain more than 15% etha-
nol, including from any pump labeled
E30 (30% ethanol ), E50 (50% etha-
nol ), E85 (85% ethanol ) (which
are only some examples of fuel contain-
ing more than 15% ethanol).
●
If you use gasohol in your vehicle, be sure
that it has an octane rating no lower than
87.
●
Lexus does not recommend the use of
gasoline containing methanol.
■
Non-recommendation of the use of gas-
oline containing MMT
Some gasoline contains an octane enhanc-
ing additive called MMT (Methylcyclopen-
tadienyl Manganese Tricarbonyl).Fuel information You must only use unleaded gaso-
line in your vehicle.
Select octane rating 87 (Research
Octane Number 91) or higher. Use
of unleaded gasoline with an octane
rating lower than 87 may result in
engine knocking. Persistent knock-
ing can lead to engine damage.
At minimum, the gasoline you use
should meet the specifications of
ASTM D4814 in the U.S.A.
A
B C

4098-1. Specifications
LEXUS NX300h Owners Manu-
al_USA_OM78212U 8
Vehicle specifications Lexus does not recommend the use of gas-
oline that contains MMT. If fuel containing
MMT is used, your emission control system
may be adversely affected.
The malfunction indicator lamp on the
instrument cluster may come on. If this hap-
pens, contact your Lexus dealer for service. ■
If your engine knocks●
Consult your Lexus dealer.●
You may occasionally notice light knock-
ing for a short time while accelerating or
driving uphill. This is normal and there is
no need for concern.
NOTICE■
Notice on fuel quality●
Do not use improper fuels. If improper
fuels are used, the engine will be dam-
aged.●
Do not use leaded gasoline.
Leaded gasoline can cause damage to
your vehicle’s three-way catalytic con-
verters causing the emission control sys-
tem to malfunction. ●
Do not use gasohol other than the type
previously stated.
Other gasohol may cause fuel system
damage or vehicle performance prob-
lems.
●
Using unleaded gasoline with an
octane number or rating lower than
the level previously stated will cause
persistent he avy knocking.
At worst, this will le ad to engine damage.
■
Fuel-related poor driveability
If poor driveability (poor hot starting,
vaporization, engine knocking, etc.) is
encountered after using a different type
of fuel, discontinue the use of that type of
fuel.
■
When refueling with gasohol
Take care not to spill gasohol. It can dam-
age your vehicle’s paint.
