1213-2. Opening, closing and locking the doors
LEXUS NX300h Owners Manu-
al_USA_M78287_en
3
Before driving
■When “Smart Access System Malfunc-
tion See Owner’s Manual” will be dis-
played on the multi-information display
The system may be malfunctioning. Have
the vehicle inspected by your Lexus dealer
immediately.
■Battery-saving function
The battery-saving fu nction will be acti-
vated in order to prevent the electronic key
battery and the 12-volt battery from being
discharged while the vehicle is not in opera-
tion for a long time.
●In the following situations, the smart
access system with pu sh-button start may
take some time to unlock the doors.
• The electronic key has been left in an area of approximately 6 ft. (2 m) of the
outside of the vehicle for 10 minutes or
longer.
• The smart access system with push-but- ton start has not been used for 5 days or
longer.
●If the smart access system with push-but-
ton start has not been used for 14 days or
longer, the doors cannot be unlocked at
any doors except the driver’s door. In this
case, take hold of the driver’s door han-
dle, or use the wireless remote control or
the mechanical key, to unlock the doors.
■Turning an electronic key to battery-
saving mode
When battery-saving mode is set, battery
depletion is minimized by stopping the elec- tronic key from receiving radio waves.
Press twice while pressing and
holding .
Confirm that the electronic key indicator
flashes 4 times. While the battery-saving
mode is set, the smart access system with
push-button start cannot
be used. To cancel
the function, press any of the electronic key
buttons.
■Conditions affecting operation
The smart access system with push-button
start, wireless remote control and immobi-
lizer system use weak radio waves. In the
following situations, the communication
between the electronic key and the vehicle
may be affected, preventing the smart
access system with push-button start, wire-
less remote control and immobilizer system
from operating properly. (Ways of coping:
 P.389)
●When the electronic key battery is
depleted
●Near a TV tower, electric power plant,
gas station, radio stat ion, large display,
airport or other fac ility that generates
strong radio waves or electrical noise
●When the electronic key is in contact
with, or is covered by the following metal-
lic objects
• Cards to which aluminum foil is attached
• Cigarette boxes that have aluminum foil inside
• Metallic wallets or bags
•Coins
• Hand warmers made of metal
• Media such as CDs and DVDs
●When other wireless keys (that emit radio
waves) are being used nearby
●When carrying the electronic key
together with the following devices that
SituationCorrection proce-
dure
The power switch was turned to
ACCESSORY mode while the
driver’s door was
open (The driver’s door was opened when the power switch was in
ACCESSORY mode).
Turn the power
switch off and close the driver’s door.

1223-2. Opening, closing and locking the doors
LEXUS NX300h Owners Manu-
al_USA_M78287_enemit radio waves
• Portable radio, cellular phone, cordless phone or other wireless communication
devices
• Another vehicle’s electronic key or a wireless key that emits radio waves
• Personal computers or personal digital assistants (PDAs)
• Digital audio players
• Portable game systems
●If window tint with a metallic content or
metallic objects are attached to the rear
window
●When the electronic key is placed near a
battery charger or electronic devices
■Note for the entry function
●Even when the electronic key is within the
effective range (detection areas), the sys-
tem may not operate properly in the fol-
lowing cases:
• The electronic key is too close to the win- dow or outside door handle, near the
ground, or in a high place when the doors
are locked or unlocked.
• The electronic key is near the ground or
in a high place, or too close to the rear
bumper center when the back door is
opened.
• The electronic key is on the instrument panel, luggage room, floor, or in the door
pockets or glove box when the hybrid
system is started or power switch modes
are changed.
●Do not leave the electronic key on top of
the instrument panel or near the door
pockets when exiting the vehicle.
Depending on the radio wave reception
conditions, it may be detected by the
antenna outside the cabin and the door
will become lockable from the outside,
possibly trapping the electronic key
inside the vehicle.
●As long as the electron ic key is within the
effective range, the doors may be locked
or unlocked by anyone.
●Even if the electronic key is not inside the
vehicle, it may be possible to start the
hybrid system if the electronic key is near
the window.
●The doors may unlock if a large amount
of water splashes on the door handle, such as in the rain or in a car wash when
the electronic key is
within the effective
range. (The door will automatically be
locked after approximately 60 seconds if
the doors are not opened and closed.)
●If the wireless remote control is used to
lock the doors when the electronic key is
near the vehicle, there is a possibility that
the door may not be unlocked by the
entry function. (Use the wireless remote
control to unlock the doors.)
●Touching the door lock sensor while
wearing gloves may delay or prevent lock
operation. Remove the gloves and touch
the lock sensor again.
●When the lock operation is performed
using the lock sensor, recognition signals
will be shown up to two consecutive
times. After this, no recognition signals
will be given.
●If the door handle becomes wet while the
electronic key is within the effective
range, the door may lock and unlock
repeatedly. In that case, follow the follow-
ing correction procedures to wash the
vehicle:
• Place the electronic key in a location 6 ft. (2 m) or more away from the vehicle.
(Take care to ensure that the key is not
stolen.)
• Set the electronic key to battery-saving mode to disable the smart access system
with push-button start. ( P.121)
●If the electronic key is inside the vehicle
and a door handle becomes wet during a
car wash, a message may be shown on
the multi-information display and a
buzzer will sound outside the vehicle. To
turn off the alarm, lock all the doors.
●The lock sensor may not work properly if
it comes into contact with ice, snow, mud,
etc. Clean the lock sensor and attempt to
operate it again.
●A sudden approach to the effective
range or door handle may prevent the
doors from being unlocked. In this case,
return the door handle to the original
position and check that the doors unlock
before pulling the door handle again.
●If there is another electronic key in the
detection area, it may take slightly longer

1233-2. Opening, closing and locking the doors
LEXUS NX300h Owners Manu-
al_USA_M78287_en
3
Before driving
to unlock the doors after the door handle
is gripped.
■When the vehicle is not driven for
extended periods
●To prevent theft of the vehicle, do not
leave the electronic key within 6 ft. (2 m)
of the vehicle.
●The smart access syst em with push-but-
ton start can be deactivated in advance.
■To operate the system properly
Make sure to carry the electronic key when
operating the system. Do not get the elec-
tronic key too close to the vehicle when
operating the system from the outside of the
vehicle.
Depending on the position and holding
condition of the electronic key, the key may
not be detected correctly and the system
may not operate properly. (The alarm may
go off accidentally, or the door lock preven-
tion may not operate.)
■If the smart access system with push-
button start does not operate properly
●Locking and unlockin g the doors: Use
the mechanical key. ( P.389)
●Starting the hybrid system: P.390
■Customization
Settings (e.g. smart access system with
push-button start) can be changed. (Cus-
tomizable features: P.421)
If the smart access system with push-button
start has been deactivated by a customized
setting, refer to the explanations for the fol-
lowing operations.
●Locking and unlo cking the doors:
Use the wireless remote control or
mechanical key. ( P.104, 389)
●Starting the hybrid system and changing
power switch modes: P.390
●Stopping the hybrid system: P.170

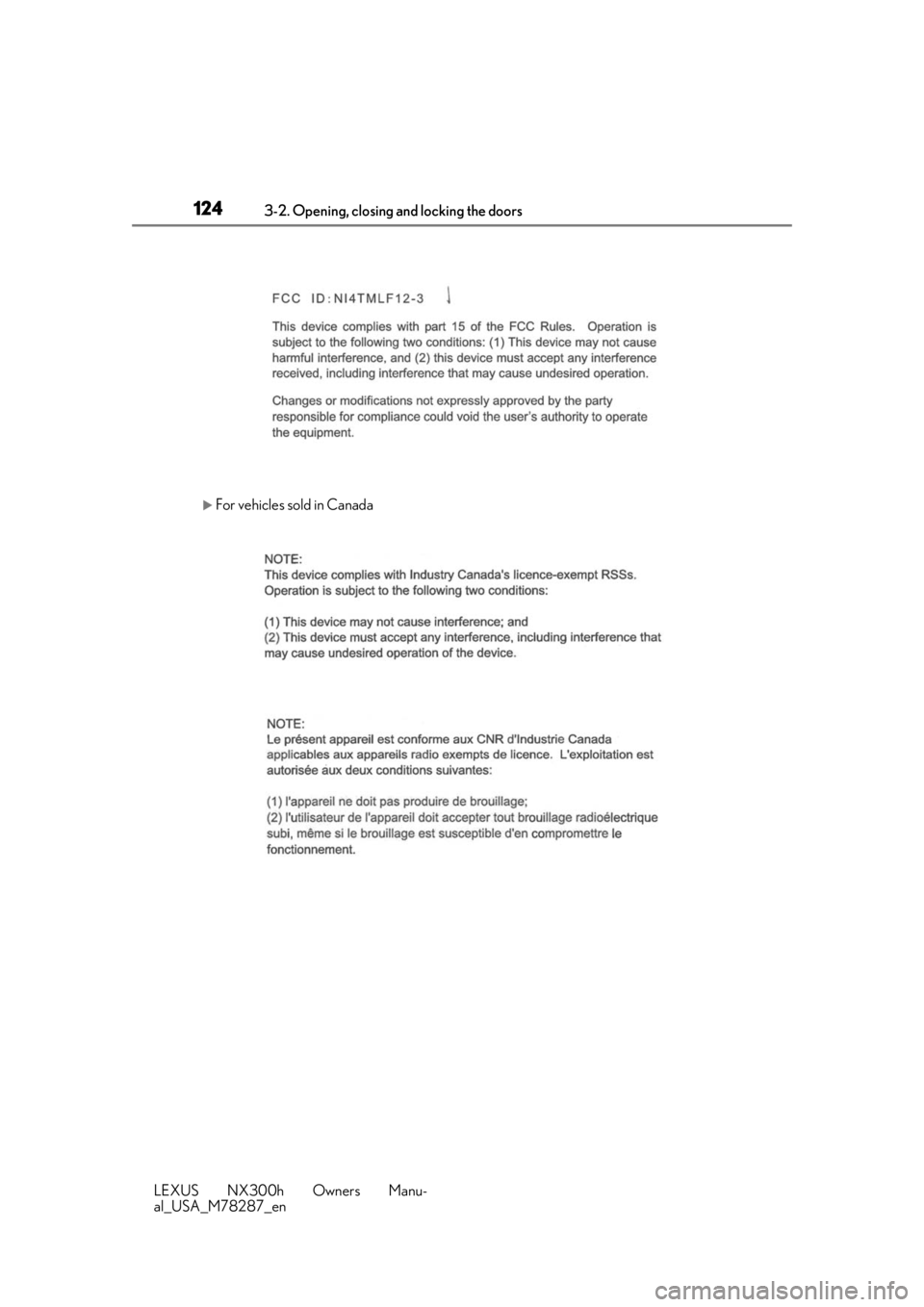

■Certification for the smart access system with push-button start
For vehicles sold in the U.S.A.

1243-2. Opening, closing and locking the doors
LEXUS NX300h Owners Manu-
al_USA_M78287_en
For vehicles sold in Canada

1253-2. Opening, closing and locking the doors
LEXUS NX300h Owners Manu-
al_USA_M78287_en
3
Before driving
WARNING
■Caution regarding interference with
electronic devices
●People with implantable cardiac pace-
makers, cardiac resynchronization
therapy-pacemakers or implantable
cardioverter defibrillators should keep
away from the smart access system
with push-button start antennas.
(  P.120)
The radio waves may affect the opera-
tion of such devices. If necessary, the
entry function can be disabled. Ask
your Lexus dealer for details, such as
the frequency of radio waves and tim-
ing of the emitted radio waves. Then,
consult your doctor to see if you
should disable the entry function.
●Users of any electrical medical device
other than implantable cardiac pace-
makers, cardiac resynchronization
therapy-pacemakers or implantable
cardioverter defibrillators should con-
sult the manufacturer of the device for
information about its operation under
the influence of radio waves.
Radio waves could have unexpected
effects on the operation of such medi-
cal devices.
Ask your Lexus dealer for details on dis-
abling the entry function.

1263-3. Adjusting the seats
LEXUS NX300h Owners Manu-
al_USA_M78287_en
3-3.Adjusting the seats
Seat position adjustment switch
Seat cushion (front) angle adjust-
ment switch
Vertical height adjustment switch
Seatback angle adjustment switch
Lumbar support adjustment switch
(for driver’s side)
■Power easy access system (if equipped)
The driver’s seat and steering wheel move
in accordance with power switch mode and
the driver’s seat belt condition. ( P.132)
Front seats
The seats can be adjusted (longitu-
dinally, vertically, etc.). Adjust the
seat to ensure the correct driving
posture.
Adjustment procedure
A
B
C
D
E
WARNING
■When adjusting the seat position
●Take care when ad justing the seat
position to ensure that other passen-
gers are not injured by the moving
seat.
●Do not put your hands under the seat
or near the moving parts to avoid
injury.
Fingers or hands may become
jammed in the seat mechanism.
■Seat adjustment
To reduce the risk of sliding under the lap
belt during a collision, do not recline the
seat more than necessary.
If the seat is too rec lined, the lap belt may
slide past the hips and apply restraint
forces directly to the abdomen, or your
neck may contact the shoulder belt,
increasing the risk of death or serious
injury in the event of an accident.
Adjustments should not be made while
driving as the seat may unexpectedly
move and cause the driver to lose control
of the vehicle.

1273-3. Adjusting the seats
LEXUS NX300h Owners Manu-
al_USA_M78287_en
3
Before driving
Manual seat Reclining adjustment
Power seatReclining adjustment
■Operating conditions for reclining
adjustment (power seat)
When the following conditions are met,
switch operations are possible.
●When the seatback position is within the range in the following illustration from
the upright position.
●When the other operation switches for
the seat being operated are not pressed.
■Reclining adjustment (power seat)
Stop the seatback part way. To set the seat-
back to the rearmost position, press the
button again.
■Power seat operations (if equipped)
If the seat has a cover or seat cushion, it may
not operate properly. Also, when folding
down the seat, check that there is nothing
on the rear seat that would interfere with
the operation.
Rear seats
Reclining adjustments and folding
the seat backs can be done with
either lever or switch operations.
Adjustment procedure
A
A
WARNING
■When operating the seatback
Observe the following precautions.
Failure to do so may cause death or seri-
ous injury.
●Keep other passenger s from being hit
with the seatback.
A

1283-3. Adjusting the seats
LEXUS NX300h Owners Manu-
al_USA_M78287_en
■Before folding down the rear seat-
backs
1 Stow the rear center seat belt, seat
belt buckles and armrest. ( P.30)
2 Lower the head restraint of the rear
seat. ( P.135)
■Folding down rear seatbacks (man-
ual seat)
Pull the seatback angle adjustment
lever and fold down the seatback.
■Folding down rear seatbacks
(power seat)
Press and hold the sw itch to fold down
the seatback.
The buzzer sounds and operations start.
The buzzer sounds again when the opera-
tion is complete.
To stop the operation of a seat partway,
press either seat oper ation switch for that
seat, once more. Switches for that seat in
other locations can be used to stop the
operations. (buzzer sounds depending on
stopping position of the seatback)
Instrument panel switch
WARNING
●Do not bring your hands close to the
moving parts or between the seats, as
well as do not let any part of your body
get caught.
●Vehicles with power seat: Do not let
children operate the seatback as other
passengers may get caught in seat.
●Vehicles with power seat: Check that
there are no passengers sitting in the
seat before folding that seat forward.
Also, do let other passengers sit in the
seat while the seat is forward folding.
■Seat adjustment
To reduce the risk of sliding under the lap
belt during a collision, do not recline the
seat more than necessary.
If the seat is too reclined, the lap belt may
slide past the hips and apply restraint
forces directly to the abdomen, or your
neck may contact the shoulder belt,
increasing the risk of death or serious
injury in the event of an accident.
Adjustments should not be made while
driving as the seat may unexpectedly
move and cause the driver to lose control
of the vehicle.
Folding down the rear seatbacks

1293-3. Adjusting the seats
LEXUS NX300h Owners Manu-
al_USA_M78287_en
3
Before driving
Rear seat switch
When the seatback is collapsed to the rear,
put the seatback in the most upright posi-
tion and press the switch once again.
Luggage room switch
■Returning the rear seatbacks
(manual seat)
1 Raise the rear seatback until it
locks.
2 Check that the plate for the seat
belt is on the front side of the seat.
When using the seat be lt for the rear cen- ter seat (
P.29)
■Returning the rear seatbacks
(power seat)
1 Press and hold the switch to return
the seatback.
The buzzer sounds and operations start.
The buzzer sounds again when the opera-
tion is complete.
To stop the operation of a seat partway,
press either seat oper ation switch for that
seat, once more. Switches for that seat in
other locations can be used to stop the
operations. (buzzer sounds depending on
stopping position of the seatback)
Instrument panel switch
Rear seat switch

1303-3. Adjusting the seats
LEXUS NX300h Owners Manu-
al_USA_M78287_en
Luggage room switch
2 Check that the plate for the seat
belt is on the front side of the seat.
When using the seat be lt for the rear cen-
ter seat ( P.29)
■Operating conditions for folding down
the seatback (power seat)
When the following conditions are met,
switch operations are possible.
●When operating the rear seat switch: The
seatback position is within the range
in the illustration from the most upright
position.
●When operating the instrument panel
switch or luggage compartment switch:
The seatback position is within the range in the illustration.
●When operating the rear seat switch:
When the rear door for the seat to be
operated is open.
●When operating the luggage compart-
ment switch: When the back door is
open.
●When the other operation switches for
the seat being operated are not pressed.
When the power switch is in ON mode, in
addition to the above, the power seat oper-
ates for any of the following conditions:
• Parking brake is engaged
• The brake pedal is depressed
• The shift lever is in P
■Operating conditions for returning the
seatback (power seat)
When the following conditions are met,
switch operations are possible.
●When operating the rear seat switch: The
seatback position is within the range
in the illustration fr om the most upright
position.
●When operating the rear seat switch:
When the rear door for the seat to be
operated is open.
●When operating the luggage compart-
ment switch: When the back door is
open.
●When the other operation switches for
the seat being operated are not pressed.
When the power switch is in ON mode, in
addition to the above, the power seat oper-
ates for any of the following conditions:
• Parking brake is engaged
• The brake pedal is depressed
• The shift lever is in P
A
B
A
