LEXUS NX300H 2019 Owners Manual

3516-3. Do-it-yourself maintenance
LEXUS NX300h Owners Manu-
al_USA_M78287_en
6
Maintenance and care
1 Turn the power switch off.
2 Open the fuse box cover.
Engine compartment: type A fuse
box
Push the tab in and lift the lid off.
Engine compartment: type B fuse
box
Push the tab in and lift the lid off.
Left side instrument panel
Remove the lid.
Luggage compartment
3 Remove the fuse.
Only type A fuse can be removed using the
pullout tool.
4Check if the fuse is blown.
Replace the blown fuse with a new fuse of
an appropriate amperage rating. The
amperage rating can be found on the fuse
box lid.
Checking and replacing
fuses
If any of the electrical components
do not operate, a fuse may have
blown. If this happens, check and
replace the fuses as necessary.
Checking and replacing fuses

3526-3. Do-it-yourself maintenance
LEXUS NX300h Owners Manu-
al_USA_M78287_en

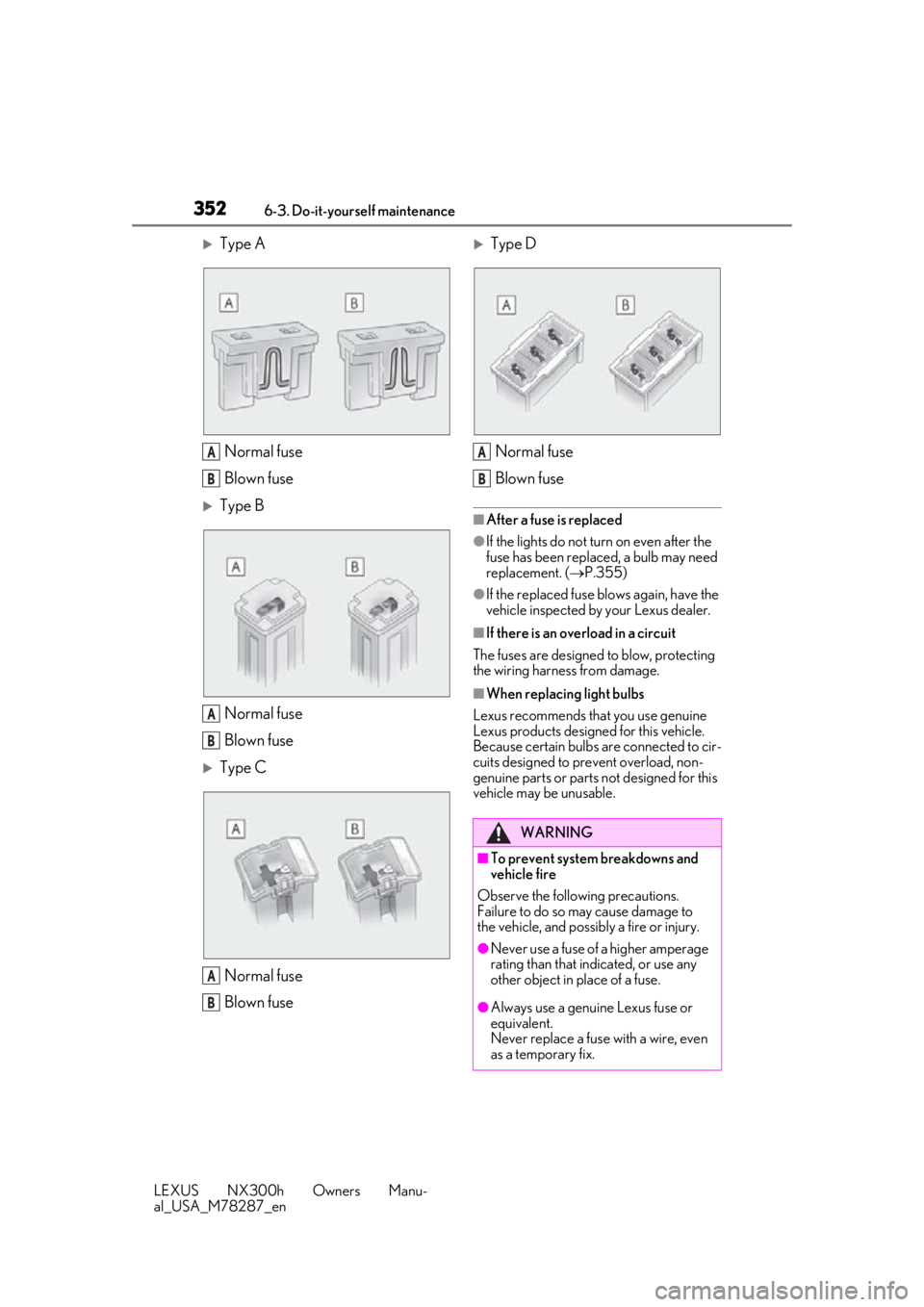

Type ANormal fuse
Blown fuse
Type BNormal fuse
Blown fuse
Type CNormal fuse
Blown fuse
Type DNormal fuse
Blown fuse
■After a fuse is replaced
●If the lights do not turn on even after the
fuse has been replaced, a bulb may need
replacement. ( P.355)
●If the replaced fuse blows again, have the
vehicle inspected by your Lexus dealer.
■If there is an overload in a circuit
The fuses are designed to blow, protecting
the wiring harness from damage.
■When replacing light bulbs
Lexus recommends that you use genuine
Lexus products designed for this vehicle.
Because certain bulbs are connected to cir-
cuits designed to prevent overload, non-
genuine parts or parts not designed for this
vehicle may be unusable.
A
B
A
B
A
B
WARNING
■To prevent system breakdowns and
vehicle fire
Observe the following precautions.
Failure to do so may cause damage to
the vehicle, and possibly a fire or injury.
●Never use a fuse of a higher amperage
rating than that indicated, or use any
other object in place of a fuse.
●Always use a genuine Lexus fuse or
equivalent.
Never replace a fuse with a wire, even
as a temporary fix.
A
B

3536-3. Do-it-yourself maintenance
LEXUS NX300h Owners Manu-
al_USA_M78287_en
6
Maintenance and care
Type A Adjustment bolt A
Adjustment bolt B
Type BAdjustment bolt A
Adjustment bolt B
 Make sure the vehicle has a full tank
of gasoline and the area around the
headlight is not deformed.
 Park the vehicle on level ground.
 Make sure the tire inflation pressure
WARNING
●Do not modify the fuses or fuse boxes.
■Fuse box near the power control unit
Never check or replace the fuses as
there are high voltage parts and wiring
near the fuse box.
Doing so may cause electric shock,
resulting in death or serious injury.
NOTICE
■Before replacing fuses
Have the cause of electrical overload
determined and repaired by your Lexus
dealer as soon as possible.
Headlight aim
Vertical movement adjusting
bolts
Before checking the headlight
aim
A
B
A
B

3546-3. Do-it-yourself maintenance
LEXUS NX300h Owners Manu-
al_USA_M78287_en
is at the specified level.
 Have someone sit in the driver’s
seat.
 Bounce the vehicle several times.
1 Using a Phillips-head screwdriver,
turn bolt A in either direction.
Remember the turning direction
and the number of turns.
Type A
Type B
2 Turn bolt B the same number of
turns and in the same direction as
step 1.
If the headlight cannot be adjusted using
this procedure, take the vehicle to your
Lexus dealer to adjust the headlight aim.
Type A
Type B

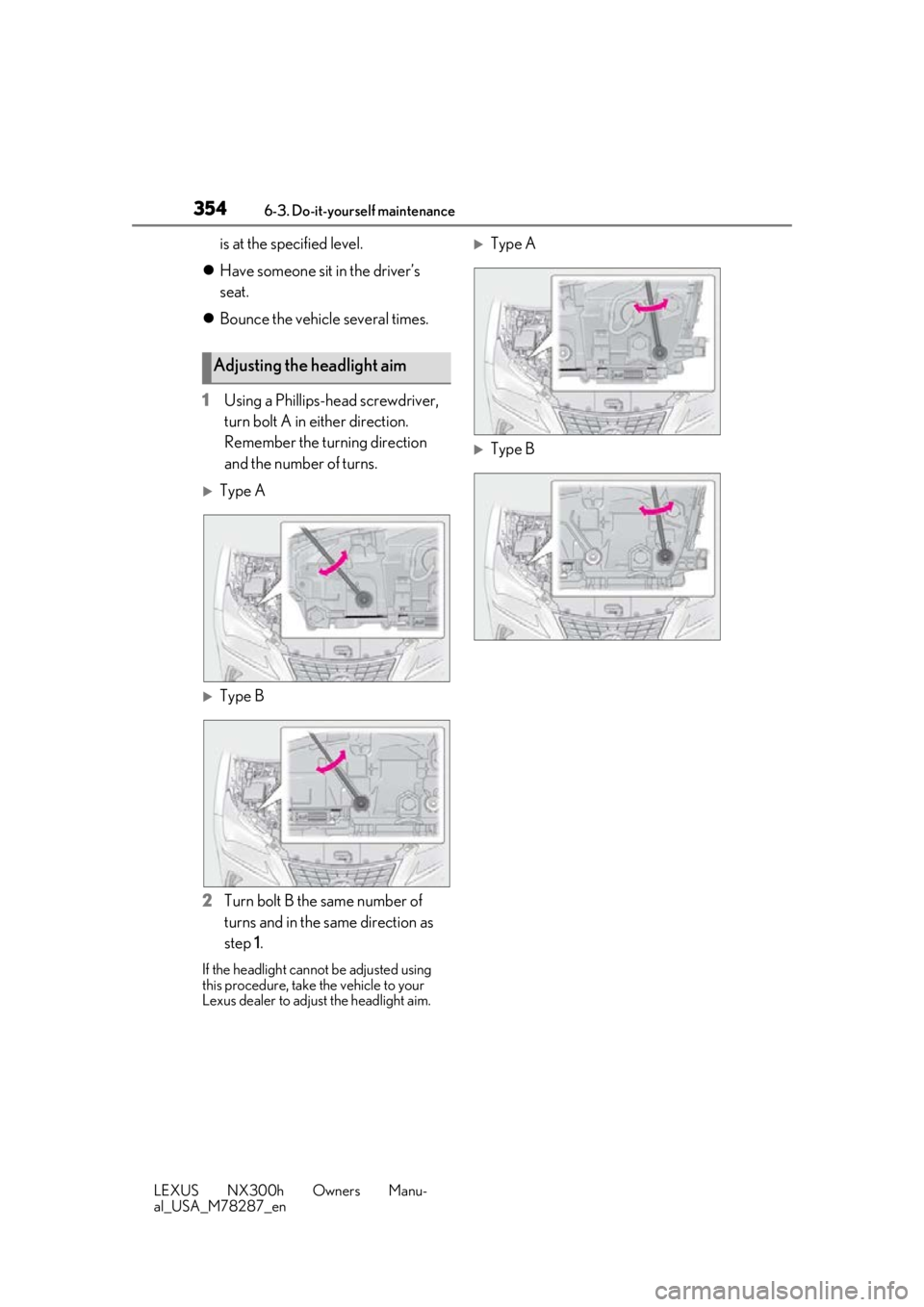

Adjusting the headlight aim

3556-3. Do-it-yourself maintenance
LEXUS NX300h Owners Manu-
al_USA_M78287_en
6
Maintenance and care
 P.329
Front side marker light (bulb type)
Front turn signal light (bulb type)
■Bulbs that need to be replaced by
the Lexus dealer
 Headlights
 Front turn signal lights (LED type)
 Parking lights and Daytime running
lights
 Front fog lights
 Front side marker lights (LED type)
 Side turn signal lights
 Stop/tail lights
 Rear side marker lights
 Back-up light
 Rear turn signal light
 High mounted stoplight
 License plate lights
 Outer foot lights
■LED lights
The lights other than the front side marker
lights (bulb type) and front turn signal lights
(bulb type) each consist of a number of
LEDs. If any of the LEDs burn out, take your
vehicle to your Lexus dealer to have the
light replaced.
■Condensation build-up on the inside of
the lens
Temporary condensation build-up on the
inside of the headlight lens does not indi-
cate a malfunction. Contact your Lexus
dealer for more information in the following
situations:
●Large drops of water have built up on the
inside of the lens.
●Water has built up inside the headlight.
■When replacing light bulbs
 P.352

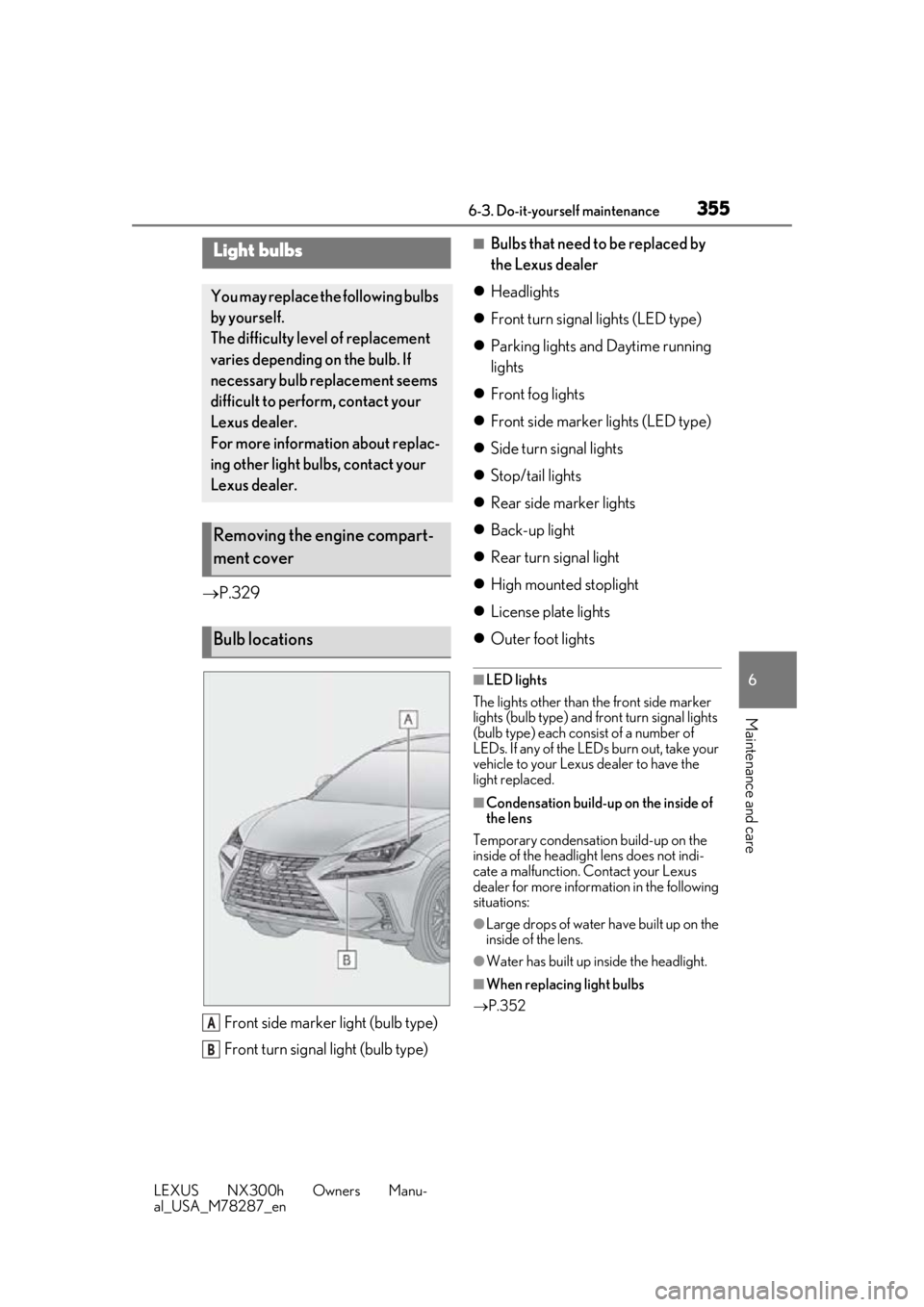

Light bulbs
You may replace the following bulbs
by yourself.
The difficulty level of replacement
varies depending on the bulb. If
necessary bulb replacement seems
difficult to perform, contact your
Lexus dealer.
For more information about replac-
ing other light bulbs, contact your
Lexus dealer.
Removing the engine compart-
ment cover
Bulb locations
A
B

3566-3. Do-it-yourself maintenance
LEXUS NX300h Owners Manu-
al_USA_M78287_en
Before replacing, check the wattage of
the light bulb to be replaced.
( P.409)
■Front side marker lights (bulb type)
1 Turn the bulb base counterclock-
wise.
2 Remove the light bulb.
3 When installing, reverse the steps
listed.
■Front turn signal lights (bulb type)
1 Open the hood and remove the
cover for engine compartment
cover. ( P.326, 329)
2 Remove the cover.
Push the center of the clip and remove the clip and cover .
3
Turn the bulb base counterclock-
wise.
4 Remove the light bulb.
5 Replace the light bulb.
Replacing light bulbs
A
B

3576-3. Do-it-yourself maintenance
LEXUS NX300h Owners Manu-
al_USA_M78287_en
6
Maintenance and care
6 Turn clockwise and set the bulb
base.
7 Attach the clip to the cover.
Push up on the center of the clip and attach
the clip .
Clip
8 Attach the cover.
Align the 2 tabs positions and close the
cover and fix the cover by pushing the
center of the clip .
9Install the engine compartment
cover. ( P.329)
A
A
A
B
WARNING
■Replacing light bulbs
●Be sure to stop the hybrid system and
turn off the lights. Do not attempt to
replace the bulb immediately after
turning off the lights.
The bulbs become very hot and may
cause burns.
●Do not touch the glass portion of the
light bulb with bare hands. When it is
unavoidable to hold the glass portion,
use and hold with a clean dry cloth to
avoid getting moisture and oils on the
bulb.
Also, if the bulb is scratched or
dropped, it may blow out or crack.
●Fully install light bulbs and any parts
used to secure them. Failure to do so
may result in heat damage, fire, or
water entering the he adlight unit. This
may damage the headlights or cause
condensation to build up on the lens.
●Do not attempt to repair or disassem-
ble light bulbs, connectors, electric cir-
cuits or component parts.
Doing so may result in death or serious
injury due to electric shock.
■To prevent damage or fire
●Make sure bulbs are fully seated and
locked.
●Check the wattage of the bulb before
installing to prevent heat damage.

3586-3. Do-it-yourself maintenance
LEXUS NX300h Owners Manu-
al_USA_M78287_en

359
LEXUS NX300h Owners Manu-
al_USA_M78287_en
7
7
When trouble arises
When trouble arises
7-1. Essential informationEmergency flashers.................. 360
If your vehicle has to be stopped in an emergency .......................... 360
7-2. Steps to take in an emergency If your vehicle needs to be towed........................................................ 362
If you think something is wrong ........................................................ 365
If a warning light turns on or a warning buzzer sounds ....... 367
If a warning message is displayed ........................................................ 376
If you have a flat tire.................. 379
If the hybrid system will not start ........................................................ 387
If you lose your keys ................. 388
If the fuel filler door cannot be opened........................................ 389
If the electronic key does not operate properly .................... 389
If the 12-volt battery is discharged ........................................................ 392
If your vehicle overheats ........ 396
If the vehicle becomes stuck 399

3607-1. Essential information
LEXUS NX300h Owners Manu-
al_USA_M78287_en
7-1.Essential information
Press the switch.
All the turn signal lights will flash. To turn
them off, press the switch once again.
■Emergency flashers
If the emergency flashers are used for a
long time while the hybrid system is not
operating (while the “READY” indicator is
not illuminated), the 12-volt battery may dis-
charge.
1 Steadily step on the brake pedal
with both feet and firmly depress it.
Do not pump the brake pedal repeatedly
as this will increase the effort required to
slow the vehicle.
2Shift the shift lever to N.
If the shift lever is shifted to N
3 After slowing down, stop the vehi-
cle in a safe place by the road.
4 Stop the hybrid system.
If the shift lever cannot be shifted to
N
3 Keep depressing the brake pedal
with both feet to reduce vehicle
speed as much as possible.
4 To stop the hybrid system, press
and hold the power switch for 2
consecutive seconds or more, or

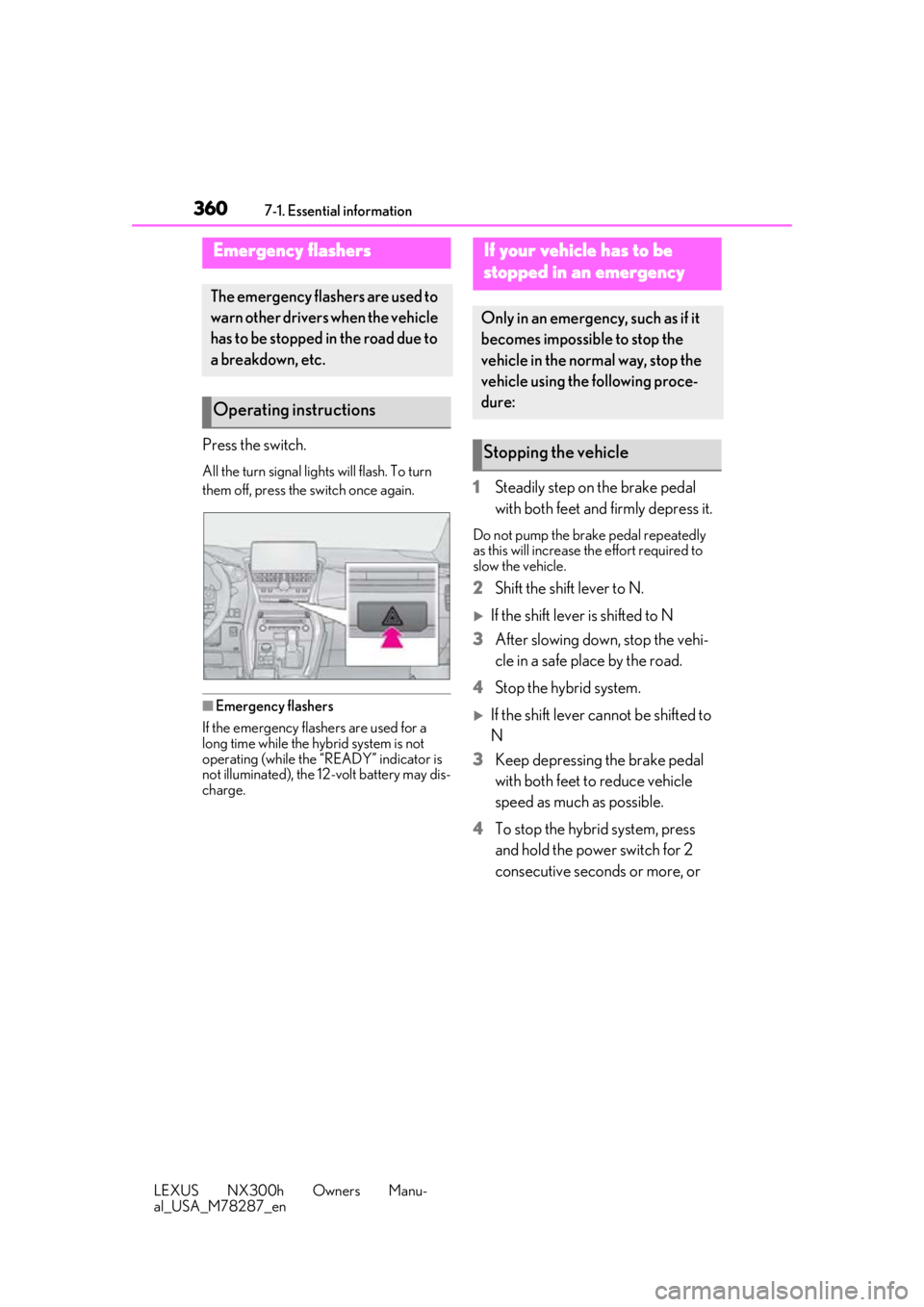

Emergency flashers
The emergency flashers are used to
warn other drivers when the vehicle
has to be stopped in the road due to
a breakdown, etc.
Operating instructions
If your vehicle has to be
stopped in an emergency
Only in an emergency, such as if it
becomes impossible to stop the
vehicle in the normal way, stop the
vehicle using the following proce-
dure:
Stopping the vehicle
