2-1.Instrument cluster
For the purpose of explanatio n, the following illustration displays all warning lights
and indicators illuminated.
The units used on the meter and some in dicators may differ depending on the tar-
get region.
Warning lights inform the driver of mal-
functions in any of the vehicle’s sys-
tems.
Warning lights and indicators
The warning lights and indicators inform th e driver of the status of the vehicle’s
various systems.
Instrument cluster
Warning lights
(U.S.A.)
Brake system warning light*1
(  P.388)
(Red)
(Canada)
Brake system warning light*1
(  P.388)
Charging system warning
light
*2 (  P.388)
Output control warning light*2
(  P.388, 399)
Low engine oil pressure warn-
ing light
*2 (  P.389)
High coolant temperature
warning light
*2 (  P.389)
(Yellow)
Brake system warning light*1
(  P.389)
(U.S.A.)
Malfunction indicator lamp*1
(  P.389)

842-1. Instrument cluster
LEXUS NX300h Owners Manual_USA_M78578_en
When driving mode is in other than Sport mode ( P.270)
The units used on the meters may differ depending on the target region.
Engine coolant temperature gauge
Displays the engine coolant temperature
Hybrid System Indicator
Displays hybrid system outp ut or regeneration level (P.87)
Outside temperature
Displays the outside temperature within the range of -40°F (-40°C) to 122°F (50°C). Low
outside temperature indicator comes on when the ambient temperature is 37°F (3°C) or
lower.
Background color of driving mode
Background color changes acco rding to the driving mode. (P.270)
•Sport mode: Red
•Eco mode: Blue
When in Normal mode, the background color is black.
Clock
Time displayed is linked to the analog clock on the instrument panel. (P.312)
Multi-information display
Gauges and meters
The meters display various drive information.
Meter display
A
B
C
D
E
F

852-1. Instrument cluster
LEXUS NX300h Owners Manual_USA_M78578_en
2
Vehicle status information and indicators
Presents the driver with a variety of vehicle data ( P.89)
Displays warning messages in case of a malfunction (P.398)
Speedometer
Displays the vehicle speed
Fuel gauge
Displays the quantity of fuel remaining in the tank
Shift position and shift range
Displays the selected shift posi tion or selected shift range (P.180)
Odometer, trip meter and maintena nce required information display
Odometer:
Displays the total distance the vehicle has been driven
Trip meter:
Displays the distance the vehicle has been driven since the meter was last reset.
Trip meters “A” and “B” can be used to record and display different distances inde-
pendently.
Maintenance required information:
Displays the remaining distance until the engine oil should be changed.
• Displays the maintenance requ ired information when the power switch is ON mode.
• It can be reset on of the multi-information display. ( P.92)
When driving mode is in Sport mode ( P.270)
The units used on the meters may differ depending on the target region.
Engine coolant temperature gauge
Displays the engine coolant temperature
Tachometer
Displays the engine speed in revolutions per minute
G
H
I
J
A
B

882-1. Instrument cluster
LEXUS NX300h Owners Manual_USA_M78578_en
the multi-information display.
(Customizable features: 
P.443)
Switches between odometer, trip
meter and maintenance required infor-
mation displays. When the trip meter is
displayed, pressing and holding the button will reset the trip meter.
The brightness of the instrument panel
lights can be adjusted.
1
Darker
2 Brighter
■Instrument panel brightness adjustment
The instrument panel brightness levels
when the tail lights are on and off can be
adjusted individually. However, when the
surroundings are bright (daytime, etc.),
turning on the tail lights will not change the
instrument panel brightness. At this time,
any adjustments made to the instrument
panel brightness levels will be applied to
both settings at once.
WARNING
■The information display at low tem-
peratures
Allow the interior of the vehicle to warm
up before using the liquid crystal infor-
mation display. At extremely low tem-
peratures, the in formation display
monitor may respond slowly, and display
changes may be delayed.
For example, there is a lag between the
driver’s shifting and the new gear number
appearing on the display. This lag could
cause the driver to downshift again,
causing rapid and excessive engine brak-
ing and possibly an accident resulting in
personal death or injury.
NOTICE
■To prevent damage to the engine and
its components
●When the tachometer is displayed, do
not let the indicator needle of the
tachometer enter the red zone, which
indicates the maximum engine speed.
●The engine may be overheating if the
engine coolant temperature gauge is
in the red zone (H); or “Engine Cool-
ant Temp High” or “Hybrid System
Overheated” is shown on the multi-
information display. In this case, imme-
diately stop the vehicle in a safe place,
and check the engine or hybrid system
after it has cooled completely.
(  P.418)
Changing between the odome-
ter, trip meter and maintenance
required information
Changing the Instrument panel
light brightness

1724-1. Before driving
LEXUS NX300h Owners Manual_USA_M78578_en
do not put the transmission in D.
( P.180)
 Instability happens more frequently
when descending steep or long
downhill grades. Before descend-
ing, slow down and downshift. Do
not make sudden downshifts while
descending steep or long downhill
grades.
 Avoid holding the brake pedal down
too long or applying the brakes too
frequently. This could cause the
brakes to overheat and result in
reduced braking efficiency.
 Due to the added load of the trailer,
your vehicle’s engine may overheat
on hot days (at temperatures over
85°F [30°C]) when driving up a
long or steep grade. If the engine
coolant temperature gauge indi-
cates overheating, immediately turn
off the air conditioning (if in use),
pull your vehicle off the road and
stop in a safe spot. ( P.418)
 Always place wheel blocks under
both the vehicle’s and the trailer’s
wheels when parking. Put the trans-
mission in P and apply the parking
brake. Avoid parking on a slope, but
if unavoidable, do so only after per-
forming the following:
1 Apply the brakes and keep them
applied.
2 Have someone place wheel blocks
under both the vehicle’s and trailer’s
wheels. 3
When the wheel blocks are in
place, release the brakes slowly
until the blocks absorb the load.
4 Shift into P and apply the parking
brake.
5 Turn off the hybrid system.
 When restarting after parking on a
slope:
1 With the transmission in P, start the
hybrid system. Be sure to keep the
brake pedal depressed.
2 Shift into a forward gear. If revers-
ing, shift into R.
3 If the parking brake is in manual
mode, release the parking brake.
(P.185)
4 Release the brake pedal, and slowly
pull or back away from the wheel
blocks. Stop and apply the brakes.
5 Have someone retrieve the blocks.

2794-6. Driving tips
LEXUS NX300h Owners Manual_USA_M78578_en
4
Driving
Use fluids that are appropriate to
the prevailing outside temperatures.
•Engine oil
• Engine/power control unit coolant
•Washer fluid
Have a service technician inspect
the condition of the 12-volt battery.
 Have the vehicle fitted with four
snow tires or purchase a set of tire
chains for the front tires
*.
Ensure that all tires are the same size and
brand, and that chains match the size of the
tires.
*: Tire chains cannot be mounted on the
225/60R18 tires.
Perform the following according to the
driving conditions:
 Do not try to forcibly open a window
or move a wiper that is frozen. Pour
warm water over the frozen area to
Winter driving tips
Carry out the necessary prepara-
tions and inspections before driving
the vehicle in winter. Always drive
the vehicle in a manner appropriate
to the prevailing weather condi-
tions.
Preparation for winter
WARNING
■Driving with snow tires
Observe the following precautions to
reduce the risk of accidents. Failure to do
so may result in a loss of vehicle control
and cause death or serious injury.
●Use tires of the specified size.
●Maintain the recommended level of air
pressure.
●Do not drive in excess of 75 mph (120
km/h), regardless of the type of snow
tires being used.
●Use snow tires on all, not just some
wheels.
■Driving with tire chains
Observe the following precautions to
reduce the risk of accidents. Failure to do
so may result in the vehicle being unable
to be driven safely, and may cause death
or serious injury.
●Do not drive in excess of the speed
limit specified for the tire chains being
used, or 30 mph (50 km/h), which-
ever is lower.
●Avoid driving on bumpy road surfaces
or over potholes.
●Avoid sudden acceleration, abrupt
steering, sudden br aking and shifting
operations that cause sudden engine
braking.
●Slow down sufficiently before entering
a curve to ensure that vehicle control is
maintained.
●Do not use LDA (Lane Departure
Alert with steering control) (if
equipped).
●Do not use LTA (Lane Tracing Assist)
(if equipped).
NOTICE
■Repairing or replacing snow tires
Request repairs or replacement of snow
tires from Lexus dealers or legitimate tire
retailers. This is be cause the removal and
attachment of snow tires affects the
operation of the tire pressure warning
valves and transmitters.
Before driving the vehicle

3406-2. Maintenance
LEXUS NX300h Owners Manual_USA_M78578_en
2
Press or of the meter control
switches, sele ct the “Vehicle Settings”
and then press .
3 Press or of the meter control
switches, select the “Scheduled Mainte-
nance” and then press and hold the .
4 Select the “Yes” and push .
“The Data Has Been Reset” is displayed
on the multi-information display.
You can perform some maintenance
procedures by yourself.
Please be aware that do-it-yourself
maintenance may affect warranty cov-
erage.
The use of Lexus repair manuals is recom-
mended.
For details about warra nty coverage, refer
to the separate “Owner’s Guide”, “War-
ranty and Service Guide”, “Owner’s Man-
ual Supplement” or “Warranty Booklet”.
Do-it-yourself maintenance
General maintenance
Listed below are the general main-
tenance items that should be per-
formed at the intervals specified in
the “Warranty and Service Guide”
or “Owner’s Manual Supplement”.
It is recommended that any prob-
lem you notice should be brought to
the attention of your Lexus dealer
or qualified service shop for advice.
WARNING
■If the hybrid system is operating
Turn the hybrid system off and ensure
that there is adequate ventilation before
performing maintenance checks.
Engine compartment
ItemsCheck points
Brake fluidIs the brake fluid at the
correct level? ( P.353)
Engine/power
control unit
coolantIs the engine/power con-
trol unit coolant at the cor-
rect level? ( P.351)
Engine oilIs the engine oil at the cor-
rect level? ( P.349)
Exhaust sys-
temThere should not be any
fumes or strange sounds.
Radiator/con-
denserThe radiator and con-
denser should be free from
foreign objects. ( P.352)
Washer fluidIs there sufficient washer
fluid? (P.353)

3446-3. Do-it-yourself maintenance
LEXUS NX300h Owners Manual_USA_M78578_en
6-3.Do-it-yourself maintenance

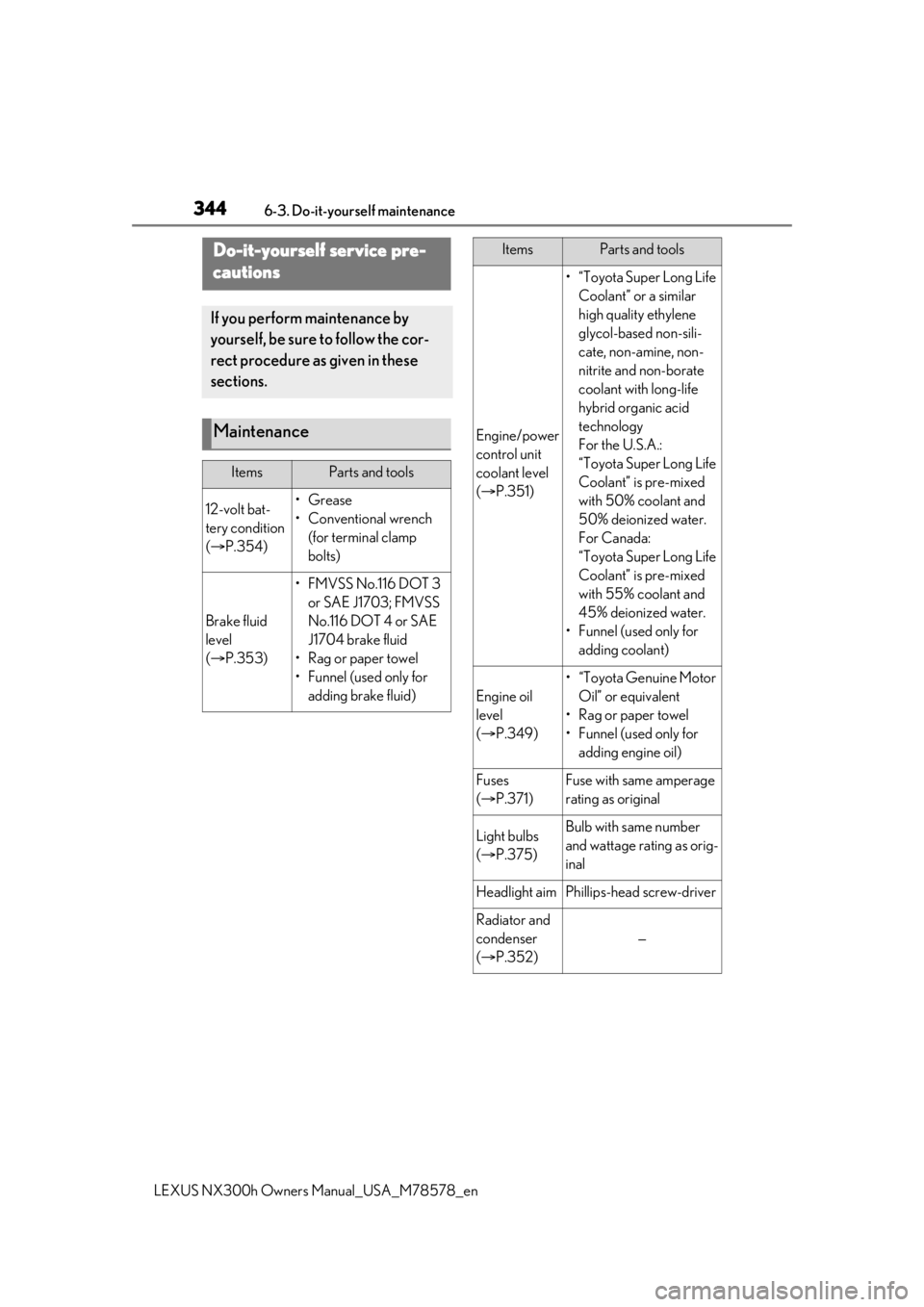

Do-it-yourself service pre-
cautions
If you perform maintenance by
yourself, be sure to follow the cor-
rect procedure as given in these
sections.
Maintenance
ItemsParts and tools
12-volt bat-
tery condition
( P.354)•Grease
• Conventional wrench
(for terminal clamp
bolts)
Brake fluid
level
( P.353)
• FMVSS No.116 DOT 3
or SAE J1703; FMVSS
No.116 DOT 4 or SAE
J1704 brake fluid
• Rag or paper towel
• Funnel (used only for adding brake fluid)
Engine/power
control unit
coolant level
( P.351)
•“Toyota Super Long Life
Coolant” or a similar
high quality ethylene
glycol-based non-sili-
cate, non-amine, non-
nitrite and non-borate
coolant with long-life
hybrid organic acid
technology
For the U.S.A.:
“Toyota Super Long Life
Coolant” is pre-mixed
with 50% coolant and
50% deionized water.
For Canada:
“Toyota Super Long Life
Coolant” is pre-mixed
with 55% coolant and
45% deionized water.
• Funnel (used only for adding coolant)
Engine oil
level
( P.349)
• “Toyota Genuine Motor
Oil” or equivalent
•Rag or paper towel
• Funnel (used only for adding engine oil)
Fuses
( P.371)Fuse with same amperage
rating as original
Light bulbs
( P.375)Bulb with same number
and wattage rating as orig-
inal
Headlight aimPhillips-head screw-driver
Radiator and
condenser
( P.352)
—
ItemsParts and tools

3456-3. Do-it-yourself maintenance
LEXUS NX300h Owners Manual_USA_M78578_en
6
Maintenance and care
Tire inflation
pressure
( P.365)• Tire pressure gauge
• Compressed air source
Washer fluid
( P.353)
• Water or washer fluid
containing antifreeze
(for winter use)
• Funnel (used only for adding water or washer
fluid)
WARNING
The engine compartment contains many
mechanisms and fluids that may move
suddenly, become hot, or become elec-
trically energized. To avoid death or seri-
ous injury, observe the following
precautions.
■When working on the engine com-
partment
●Make sure that the “IGNITION ON”
on the multi-information display and
the “READY” indicator are both off.
●Keep hands, clothi ng and tools away
from the moving fan and engine drive
belt.
●Be careful not to touch the engine,
power control unit, radiator, exhaust
manifold, etc. right after driving as they
may be hot. Oil and other fluids may
also be hot.
●Do not leave anything that may burn
easily, such as paper and rags, in the
engine compartment.
●Do not smoke, cause sparks or expose
an open flame to fuel. Fuel fumes are
flammable.
ItemsParts and tools■When working near the electric cool-
ing fans or radiator grille
Be sure the power switch is off.
With power switch in ON mode, the
electric cooling fans may automatically
start to run if the air conditioning is on
and/or the coolant temperature is high.
(  P.352)
■Safety glasses
Wear safety glasses to prevent flying or
falling material, fluid spray, etc. from get-
ting in your eyes.
NOTICE
■If you remove the air cleaner filter
Driving with the air cleaner filter
removed may cause excessive engine
wear due to dirt in the air.

3486-3. Do-it-yourself maintenance
LEXUS NX300h Owners Manual_USA_M78578_en
Fuse box (P.371)
Engine coolant reservoir ( P.351)
Engine oil filler cap ( P.350)
Power control unit coolant reservoir ( P.352)
Brake fluid reservoir ( P.353)
Radiator ( P.352)
Condenser ( P.352)
Electric cooling fans
Engine oil level dipstick ( P.349)
Washer fluid tank ( P.353)
■12-volt battery
 P.354
Engine compartment
Components
A
B
C
D
E
F
G
H
I
J
