LEXUS RC F 2015 Owners Manual

6419-2. Customization
9
Vehicle specifications
RC350/RCF_U (OM24636U)
■Powe r w i n d ow s (P. 1 7 1 )
■Moon roof* ( P. 1 7 5 )
*: If equipped
■Tu r n s i g n a l l e v e r ( P. 2 0 4 )
*1: After flashing the turn signal lights when turn ing left or right while this function is off
and the turn signal lever is moved to the fi rst position in the direction of the flashing
light, the turn signal lights can be selected to be flashing or off.
*2: The turn signal lights keep flashing if the tu rn signal lever is moved to the first position
in the direction of flashing light.
*3: The turn signal lights will be off if the turn signal lever is moved to the first position in
the direction of flashing light.
FunctionDefault settingCustomized setting
Mechanical key linked oper-
ationOffOn——O
Wireless remote control
linked operationOffOn (Open only)——O
Wireless remote control
linked operation signal
(buzzer)
OnOff——O
123
FunctionDefault settingCustomized setting
Mechanical key linked oper-
ationOffOn——O
Wireless remote control
linked operationOffOn (Open only)——O
Wireless remote control
linked operation signal
(buzzer)OnOff——O
123
FunctionDefault settingCustomized setting
The number of times the
turn signal lights flash auto-
matically when the turn sig-
nal lever is moved to the first
position during a lane
change
*1
3
5
——O7
Off*2
Off*3
123

6429-2. Customization
RC350/RCF_U (OM24636U)
■Automatic light control system ( P. 2 0 8 )
■Lights ( P. 2 0 8 )
*: If equipped
■Intuitive parking assist*1 ( P. 2 5 4 )
*1: If equipped
*2: When intuitive parking assist is operating.
FunctionDefault settingCustomized setting
Light sensor sensitivityStandard-2 to 2O—O
Time elapsed before head-
lights automatically turn off
after doors are closed
30 seconds
Off
O—O60 seconds
90 seconds
123
FunctionDefault settingCustomized setting
Daytime running light sys-
tem*OnOffO—O
123
FunctionDefault settingCustomized setting
Detection distance of the
front center sensor
*1FarNearO—O
Detection distance of the
rear center sensorFarNearO—O
Buzzer volume31 to 5O—O
Display setting*2All sensors dis-
playedDisplay offO—O
123

6439-2. Customization
9
Vehicle specifications
RC350/RCF_U (OM24636U)
■Active rear wing* ( P. 310)
*:If equipped
■Automatic air conditioning system ( P. 4 1 6 )
■Seat heaters* ( P. 4 2 6 )
*:If equipped
FunctionDefault settingCustomized setting
Operation of the active rear
wingOffOn—OO
123
FunctionDefault settingCustomized setting
A/C auto switch operationOnOffO—O
Exhaust gas sensor sensitiv-
ityStandard-3 to 3O—O
123
FunctionDefault settingCustomized setting
Seat heater timer controlOffOnO—O
123

6449-2. Customization
RC350/RCF_U (OM24636U)
■Illumination ( P. 4 2 8 )
*:If equipped
■Seat belt reminder ( P. 5 3 4 )
FunctionDefault settingCustomized setting
Time elapsed before the
interior lights turn off15 seconds
Off
O—O7. 5 s e c o n d s
30 seconds
Operation after the engine
switch is turned offOnOff——O
Operation when the doors
are unlockedOnOff——O
Operation when you
approach the vehicle with
the electronic key on your
person
OnOff——O
Ambient lights and Remote
Touch pad light
*OnOff——O
Time elapsed before the
outer foot lights turn off15 seconds
Off
O—O7. 5 s e c o n d s
30 seconds
Operation of the outer foot
lights when you approach
the vehicle with the elec-
tronic key on your person
OnOff——O
Operation of the outer foot
lights when the doors are
unlocked with the power
door lock switch
OnOff——O
Operation of the outer foot
lights when a door is openedOnOff——O
Fading out of the outer foot
lights when they turn offLongShort——O
123
FunctionDefault settingCustomized setting
Vehicle speed linked seat
belt reminder buzzerOnOff——O
123

6459-2. Customization
9
Vehicle specifications
RC350/RCF_U (OM24636U)
■Vehicle customization
●When the smart access system with push-button start is off, the entry unlock function
cannot be customized.
●When the doors remain closed after unlocking the doors and the timer activated auto-
matic door lock function activates, signals will be generated in accordance with the
operation buzzer volume and operational si gnal (Emergency flashers) function set-
tings.
●Some settings can be changed using a switch or the audio system screen. If a setting is
changed using a switch, the changed setting will not be reflected on the audio system
screen until the engine switch is turn ed off and then to IGNITION ON mode.
■When customizing using the Remote Touch or Lexus Display Audio controller
Stop the vehicle in a safe place, apply the parking brake, and shift the shift lever to P. Also,
to prevent battery discharge, leave the engi ne running while customizing the features.
WA R N I N G
■During customization
As the engine needs to be running during customization, ensure that the vehicle is
parked in a place with adequate ventilation. In a closed area such as a garage, exhaust
gases including harmful carbon monoxide (CO) may collect and enter the vehicle. This
may lead to death or a serious health hazard.
NOTICE
■During customization
To prevent battery discharge, ensure that the engine is running while customizing fea-
tures.

646
RC350/RCF_U (OM24636U)9-3. Items to initialize

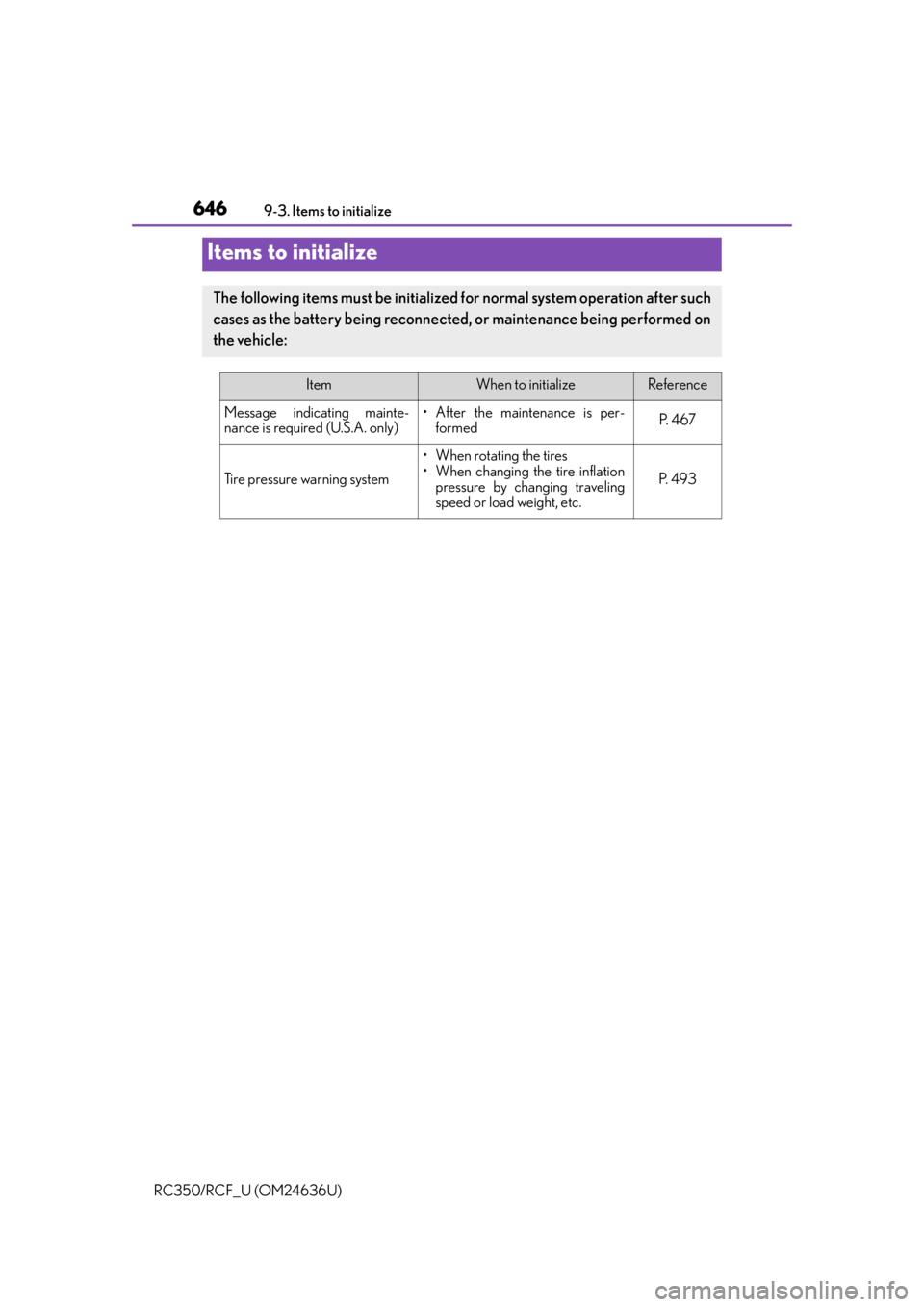

Items to initialize
The following items must be initialized for normal system operation after such
cases as the battery being reconnecte
d, or maintenance being performed on
the vehicle:
ItemWhen to initializeReference
Message indicating mainte-
nance is required (U.S.A. only)• After the maintenance is per- formedP. 4 6 7
Tire pressure warning system
• When rotating the tires
• When changing the tire inflation
pressure by changing traveling
speed or load weight, etc.
P. 4 9 3

647
For owners10
RC350/RCF_U (OM24636U)
Reporting safety defects for U.S. owners.........................648
Seat belt instructions for Canadian owners
(in French) .................................. 649
SRS airbag instructions for Canadian owners
(in French) ................................... 651

648
RC350/RCF_U (OM24636U)

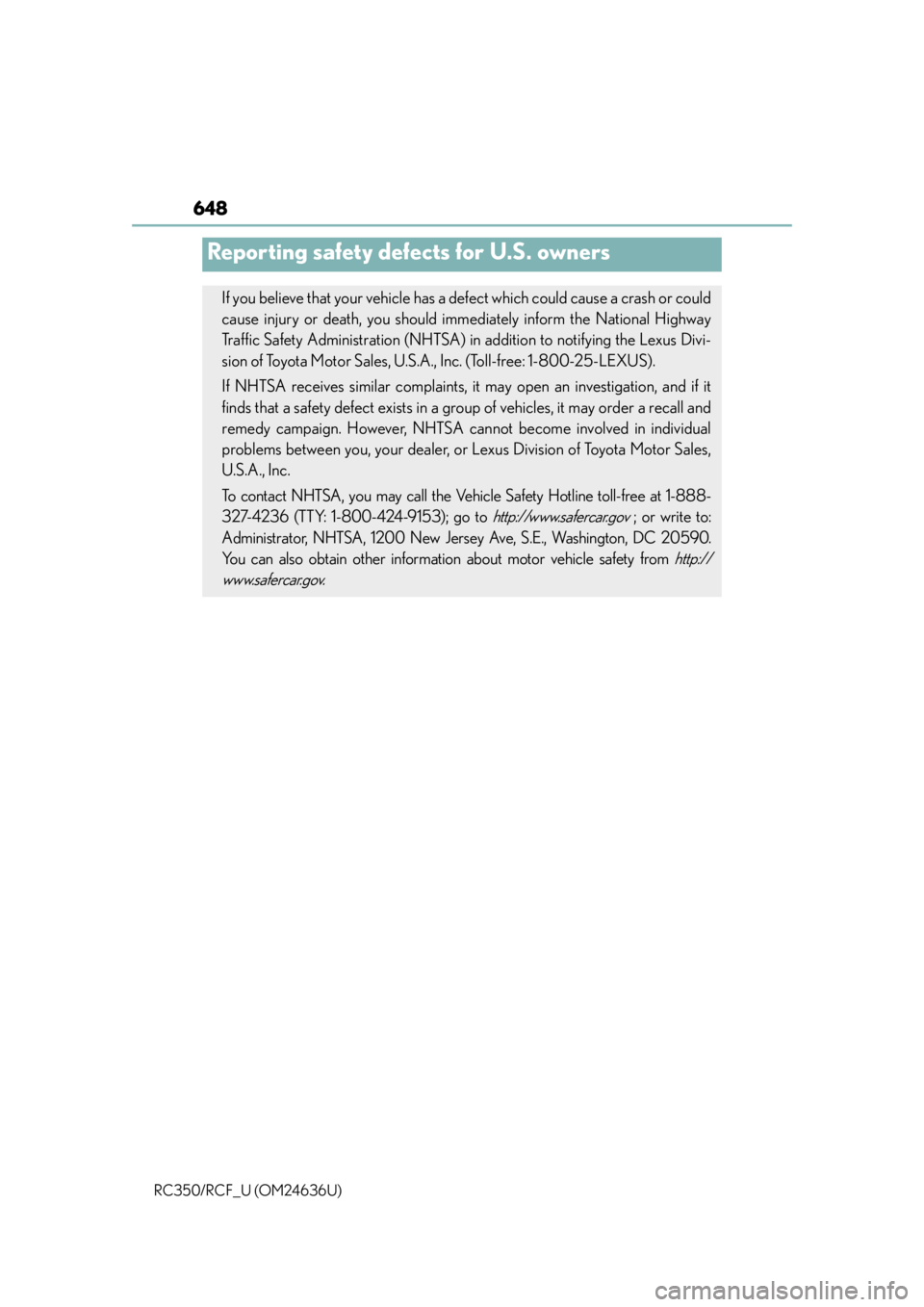

Reporting safety defects for U.S. owners
If you believe that your vehicle has a defect which could cause a crash or could
cause injury or death, you should immediately inform the National Highway
Traffic Safety Administration (NHTSA) in addition to notifying the Lexus Divi-
sion of Toyota Motor Sales, U.S.A. , Inc. (Toll-free: 1-800-25-LEXUS).
If NHTSA receives similar complaints, it may open an investigation, and if it
finds that a safety defect exists in a gr oup of vehicles, it may order a recall and
remedy campaign. However, NHTSA cannot become involved in individual
problems between you, your dealer, or Lexus Division of Toyota Motor Sales,
U.S.A., Inc.
To contact NHTSA, you may call the Vehi cle Safety Hotline toll-free at 1-888-
327-4236 (TTY: 1-800-424-9153); go to
http://www.safercar.gov ; or write to:
Administrator, NHTSA, 1200 New Jersey Ave, S.E., Washington, DC 20590.
You can also obtain other informatio n about motor vehicle safety from
http://
www.safercar.gov.

649
For owners
RC350/RCF_U (OM24636U)
●Déroulez la sangle diagonale de
telle sorte qu’elle passe bien sur
l’épaule, sans pour autant être en
contact avec le cou ou glisser de
l’épaule.
●Placez la sangle abdominale le plus
bas possible sur les hanches.
●Réglez la position du dossier de
siège. Asseyez-vous le dos droit et
calez-vous bien dans le siège.
●Ne vrillez pas la ceinture de sécu-
rité.Non vrillée
Vrillée
Seat belt instructions for Canadian owners (in
French)
The following is a French explanation of seat belt instructions extracted from
the seat belt section in this manual.See the seat belt section for more deta iled seat belt instructions in English.
Utilisation correcte des ceintures de sécurité
1
2

650
RC350/RCF_U (OM24636U)
■Ceintures de sécurité
Nettoyez avec un chiffon ou une éponge humidifiés avec de l'eau savonneuse
tiède. Vérifiez régulièrement que les ceintures ne sont pas usées, effilochées
ou entaillées excessivement.
Entretien et soin
AVERTISSEMENT
■Détérioration et usure des ceintures de sécurité
Inspectez le système de ceintures de sécurité régulièrement. Contrôlez l'absence de
coupures, d'effilochages et de pièces desse rrées. N'utilisez pas une ceinture de sécu-
rité endommagée avant qu'elle ne soit remp lacée. Une ceinture de sécurité endom-
magée ne permet pas de protéger un occupant de blessures graves ou mortelles.
