711-1. For safe use
1
For safety and security
RC350/RCF_U (OM24636U)
■Installation with LATCH system
Install the child restraint system in accordance to the operation manual
enclosed with the child restraint system.
RC350: Remove the head
restraint if it interferes with your
child restraint system. ( P. 161)
Ty p e A
Latch the hooks of the lower
straps onto the LATCH anchors.
For owners in Canada:
The symbol on a child restraint
system indicates the presence of
a lower connector system.
1
Canada only
2

721-1. For safe use
RC350/RCF_U (OM24636U)
Ty p e B
Latch the buckles onto the
LATCH anchors.
For owners in Canada:
The symbol on a child restraint
system indicates the presence of
a lower connector system.
After installing the child restraint system, rock it back and forth to ensure
that it is installed securely.
■Laws and regulations pertaining to anchorages
The LATCH system conforms to FMVSS225 or CMVSS210.2.
Child restraint systems conforming to FMVS S213 or CMVSS213 specifications can be
used.
This vehicle is designed to conform to the SAE J1819.
Canada only
2
WA R N I N G
■When installing a child restraint system
Observe the following precautions.
Failure to do so may result in death or serious injury.
●Shake the child restraint system left and right, and forward and backward to ensure
that it has been securely installed.
●After securing a child restraint system, never adjust the seat.
●When using the LATCH anchors, be sure that there are no foreign objects around the
anchors and that the seat belt is not caught behind the child restraint system.
●Follow all installation instructions provided by the child restraint system manufacturer.
3

731-1. For safe use
1
For safety and security
RC350/RCF_U (OM24636U)

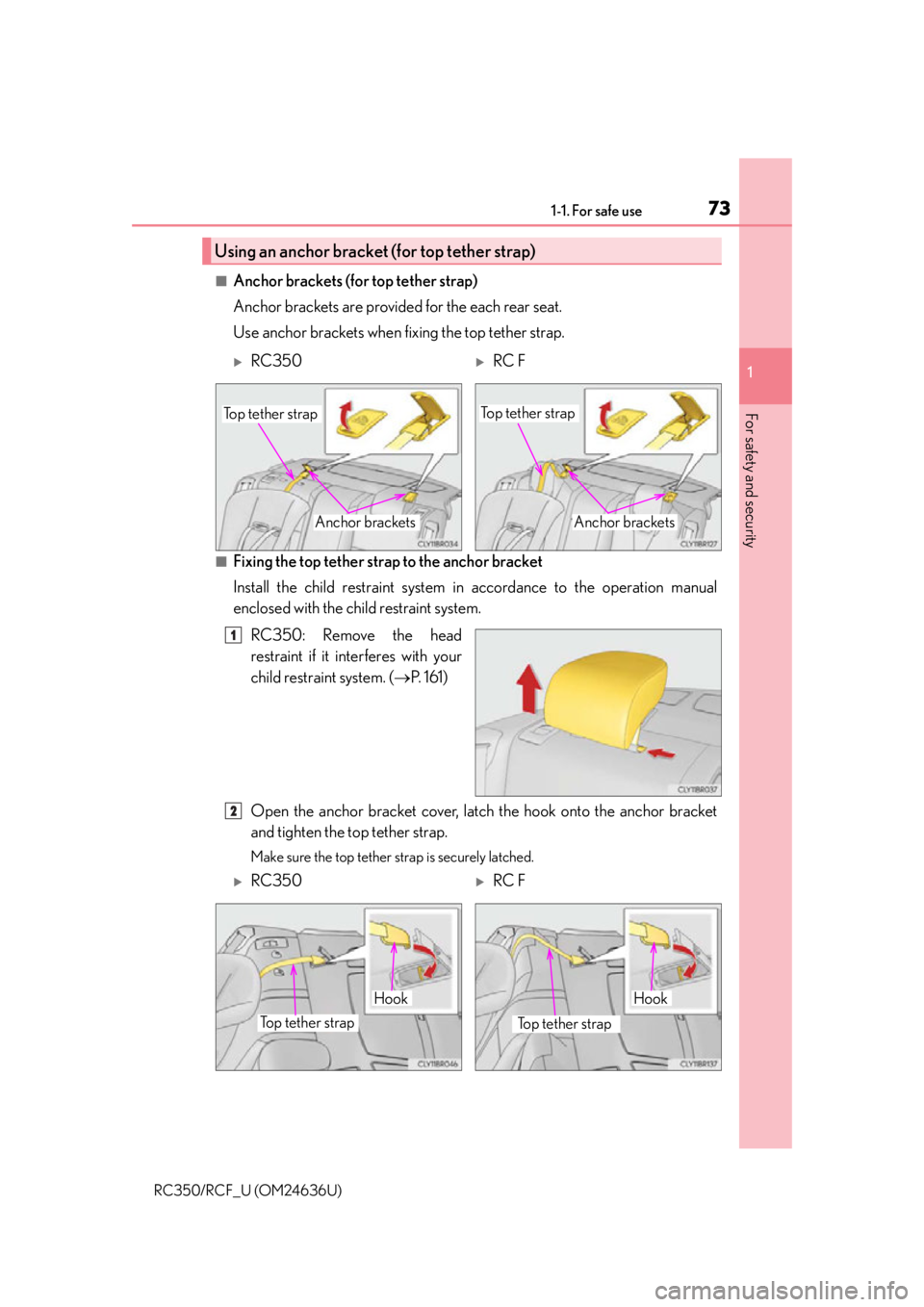

■Anchor brackets (for top tether strap)
Anchor brackets are provided for the each rear seat.
Use anchor brackets when fixing the top tether strap.
■Fixing the top tether strap to the anchor bracket
Install the child restraint system in accordance to the operation manual
enclosed with the child restraint system.
RC350: Remove the head
restraint if it interferes with your
child restraint system. ( P. 161)
Open the anchor bracket cover, latc h the hook onto the anchor bracket
and tighten the top tether strap.
Make sure the top tether strap is securely latched.
Using an anchor bracket (for top tether strap)
RC350RC F
Top tether strap
Anchor brackets
Anchor brackets
Top tether strap
1
2
RC350RC F
Hook
Top tether strapHook
Top tether strap

741-1. For safe use
RC350/RCF_U (OM24636U)
■Laws and regulations pertaining to anchorages
The LATCH system conforms to FMVSS225 or CMVSS210.2.
Child restraint systems conforming to FMVSS213 or CMVSS213 specifications can be
used.
This vehicle is designed to conform to the SAE J1819.
WA R N I N G
■When installing a child restraint system
Observe the following precautions.
Failure to do so may result in death or serious injury.
●Firmly attach the top tether strap and make sure that the belt is not twisted.
●Do not attach the top tether strap to anything other than the anchor bracket.
●Shake the child restraint system left and right, and forward and backward to ensure
that it has been securely installed.
●After securing a child restraint system, never adjust the seat.
●Follow all installation instructions provided by the child restraint system manufacturer.
NOTICE
■Anchor brackets (for top tether strap)
When not in use, make certain to close the lid. If it remains open, the lid may be dam-
aged.

751-1. For safe use
1
For safety and security
RC350/RCF_U (OM24636U)
Exhaust gas precautions
Harmful substance to the human body is included in exhaust gases if inhaled.
WA R N I N G
Exhaust gases include harmful carbon monoxi de (CO), which is colorless and odorless.
Observe the following precautions.
Failure to do so may cause exhaust gases enter the vehicle and may lead to an accident
caused by light-headedness, or may lead to death or a serious health hazard.
■Important points while driving
●Keep the trunk lid closed.
●If you smell exhaust gases in the vehicle ev en when the trunk lid is closed, open the
windows and have the vehicle inspected at your Lexus dealer as soon as possible.
■When parking
●If the vehicle is in a poorly ventilated area or a closed area, such as a garage, stop the
engine.
●Do not leave the vehicle with the engine on for a long time.
If such a situation cannot be avoided, park the vehicle in an open space and ensure
that exhaust fumes do not enter the vehicle interior.
●Do not leave the engine running in an area with snow build-up, or where it is snowing.
If snowbanks build up around the vehicle wh ile the engine is running, exhaust gases
may collect and enter the vehicle.
■Exhaust pipe
The exhaust system needs to be checked periodically. If there is a hole or crack caused
by corrosion, damage to a joint or abnormal exhaust noise, be sure to have the vehicle
inspected and repaired by your Lexus dealer.

76
RC350/RCF_U (OM24636U)1-2. Theft deterrent system
The indicator light flashes after the
engine switch has been turned off to
indicate that the system is operating.
The indicator light stops flashing after
the engine switch has been turned to
ACCESSORY or IGNITION ON
mode to indicate that the system has
been canceled.
■System maintenance
The vehicle has a maintenance-free type engine immobilizer system.
■Conditions that may cause the system to malfunction
●If the grip portion of the key is in contact with a metallic object
●If the key is in close proximity to or touching
a key registered to the security system (key
with a built-in transponder chip) of another vehicle
Engine immobilizer system
The vehicle’s keys have built-in transponder chips that prevent the engine
from starting if a key has not been prev iously registered in the vehicle’s on-
board computer.
Never leave the keys inside the vehicle when you leave the vehicle.
This system is designed to help prev ent vehicle theft but does not guarantee
absolute security against all vehicle thefts.

771-2. Theft deterrent system
1
For safety and security
RC350/RCF_U (OM24636U)
■Certifications for the engine immobilizer system
For vehicles sold in the U.S.A.
FCC ID: NI4TMIMB-3
NOTE:
This device complies with part 15 of the FC C Rules. Operation is subject to the following
two conditions: (1) This device may not caus e harmful interference, and (2) this device
must accept any interference received, incl uding interference that may cause undesired
operation.
FCC WARNING:
Changes or modifications not expressly approved by the party responsible for compli-
ance could void the user's authority to operate the equipment.
For vehicles sold in Canada
This device complies with Industry Canada licence-exempt RSS standard(s). Operation
is subject to the following two conditions: (1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause
undesired operation of the device.
NOTICE
■To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper operation of
the system cannot be guaranteed.

781-2. Theft deterrent system
RC350/RCF_U (OM24636U)
The alarm uses light and sound to give an alert when an intrusion is detected.
The alarm is triggered in the following situations when the alarm is set:
●A locked door or trunk is unlocked or opened in any way other than using the
entry function, wireless remote control or mechanical key. (The doors will lock
again automatically.)
●The hood is opened.
Close the doors, trunk and hood, and
lock both side doors. The system will be
set automatically after 30 seconds.
The indicator light changes from being
on to flashing when the system is set.
Do one of the following to de activate or stop the alarms:
●Unlock the doors or open the trunk.
●Turn the engine switch to ACCESSORY or IGNITION ON mode, or start
the engine. (The alarm will be deactivat ed or stopped after a few seconds.)
Alarm
The alarm
Setting the alarm system
Deactivating or stopping the alarm

791-2. Theft deterrent system
1
For safety and security
RC350/RCF_U (OM24636U)
■System maintenance
The vehicle has a maintenance-free type alarm system.
■Items to check before locking the vehicle
To prevent unexpected triggering of the alarm and vehicle theft, make sure of the follow-
ing:
●Nobody is in the vehicle.
●The windows and moon roof (if equipped) are closed before the alarm is set.
●No valuables or other personal items are left in the vehicle.
■Triggering of the alarm
The alarm may be triggered in the following situations:
(Stopping the alarm deactivates the alarm system.)
■Alarm-operated door lock
The door automatically locks when the following occurs:
●When a person remaining in the vehicle unlocks the door and the alarm is activated.
●While the alarm is activated, a person remaining in the vehicle unlocks the door.
●A person inside the vehicle opens a door, the
trunk or hood, or unlocks the vehicle using a
inside lock button.
●The battery is recharged or replaced when the
vehicle is locked. (P. 5 9 5 )
NOTICE
■To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper operation of
the system cannot be guaranteed.

801-2. Theft deterrent system
RC350/RCF_U (OM24636U)
These labels are attached to the vehicle
to reduce vehicle theft by facilitating
the tracing and recovery of parts from
stolen vehicles. Do not remove under
penalty of law.
Theft prevention labels (U.S.A.)
